B-TEC Painty-02 User manual

B-TEC GmbH • Zunftweg 6-8 • D-31303 Burgdorf / Ehlershausen • Tel.: [phone]
Fax: [phone] • Email: [e-mail] • www.btecsystems.de
Painty-02/-03/-04
Mixing- and Preparation Table
Operating Manual
for Mixing- and Preparation Table Painty
–Translation of German Original Document –

B-TEC GmbH • Zunftweg 6-8 • D-31303 Burgdorf / Ehlershausen • Tel.: [phone]
Fax: [phone] • Email: [e-mail] • www.btecsystems.de
Table of Contents
1. Important Information .................................................................................................................... 1
1.1. Explanation of the Symbols..................................................................................................... 1
1.2. Operating Instruction.............................................................................................................. 1
1.3. Liability and Warranty ............................................................................................................. 1
1.4. Intended Use ........................................................................................................................... 2
1.5. Requirements to be the Operator........................................................................................... 2
2. Safety Requirements ....................................................................................................................... 2
2.1. General Safety......................................................................................................................... 2
2.2. Operational Safety................................................................................................................... 3
2.3. Hazards from Pneumatic Energy............................................................................................. 4
3. Technical Description of the Product.............................................................................................. 5
3.1. Technical Data ......................................................................................................................... 5
4. Zone and Product Classification according to ATEX........................................................................ 6
5. Requirements for the Installation Site ............................................................................................ 6
6. Transport and Installation............................................................................................................... 7
6.1. Assembling Painty-02/-03 ....................................................................................................... 7
6.2. Exhaust Ducting Painty-02/04................................................................................................. 8
6.3. Exhaust Ducting Painty-03....................................................................................................... 9
6.4. Compressed Air Connection.................................................................................................... 9
6.5. Grounding / Earthing............................................................................................................... 9
7. Safety Inspection Checklist............................................................................................................ 10
V2.2

Mixing- and preparation table Painty Page 1
1. Important Information
Thank you for the trust you placed in us by purchasing this B-TEC product. B-TEC products have been
designed and manufactured to the highest quality standards for best operational safety.
Read this document carefully before putting the device
into operation and keep it for future reference.
On page 10 of this manual, there is a form for documenting the safety inspections to be carried out at
regular intervals. The form has to be filled in by specialist technicians (persons with sufficient
knowledge and experience or manufacturer's technicians) or experts (e.g. engineers or Technical Con-
trol Board experts).
A safety inspection must be carried out before
commissioning and at least once a year.
B-TEC products are to be used solely in accordance with the intended use. Usage not in accordance
with the intended use as well as unauthorised modifications invalidate the liability of the manufacturer
for any damages resulting from this. Detailed information regarding intended use to as well as liability
and warranty can be read in section 1.3 and 1.4.
The B-TEC products are only to be used according to the intended used. Im-
proper use of the product can endanger the health of the operator.
1.1. Explanation of the Symbols
To directly draw attention to important information in this operating manual, the symbols "Caution!"
and "Notice!" are used. Please note that paragraphs with these symbols need particular attention.
Caution!
You will see this symbol whenever attention is drawn to situations in which danger to life
can arise due to or during incorrect or improper operation. Pay special attention to these
symbols and act carefully.
Notice!
You will see this symbol in the operating manual whenever your attention is being drawn
to correct work procedures, economic ways of operating or when the device may be
damaged by incorrect operation.
1.2. Operating Instruction
The responsible person within the company where the device is placed has to create operating instruc-
tions in accordance with the "Occupational Safety and Health Regulations" applicable in the respective
country. The operating instructions must be adapted to the fluids used and country of application.
1.3. Liability and Warranty
The product is state of the art, tested and operationally safe. Liability for the function of the product
is transferred to the operating company, if the product is improperly maintained or repaired by per-
sons who are not authorised by the manufacturer and / or supplier, or if it’s used against the intended
use and the instructions of the user manual. The operator is obliged to operate the product only when
in immaculate condition. The manufacturer is liable for errors or omissions - to the exclusion of further
claims - only within the scope of the statutory warranty obligations. We reserve the right to make

Mixing- and preparation table Painty Page 2
technical changes any time for continuous development and improvement of our products. Such
changes, mistakes and misprints do not constitute a claim for damages. Only original spare parts and
accessories are to be used. The manufacturer and / or supplier is not responsible for damages caused
by ignoring the instructions in this operating manual. Warranty and liability conditions of the manu-
facturers and / or supplier sales and delivery terms are not extended by the above notes.
B-TEC warrants its products to be free from defects in materials and workmanship, for a period of 24
months on a one shift basis. In case of exceptional usage such as multiple-shift operation, the statutory
warranty is shortened to 12 months (two-shift operation) or 8 months (three-shift operation). The
period starts from the date the machine is shipped from the factory. The guarantee expires prema-
turely if the customer or a third party undertakes inappropriate modifications or repairs or if the cus-
tomer, in case of a defect, does not immediately take all appropriate steps to mitigate the damage and
give the supplier the possibility of remedying such defect.
1.4. Intended Use
This mixing- and preparation table may only be used for its intended purpose. It is
not intended for other purposes than the following terms. The manufacturer/sup-
plier is not liable for any damages resulting from improper use.
The working tables Painty are mixing- and preparation tables for paints and solvents.
This product is for commercial use only, but not for continuous operation (e.g. serial production).
This product does not have any ignition source and is therefore not subject to ATEX-Directive
2014/34/EU. Operation in an ex-zone (e.g. zone 1) is therefore possible.
Improper use of the product can endanger the health of the operator and of others and cause damage
to the product itself or to other objects. Any other use of the product must be agreed and approved
with the manufacturer in advance.
1.5. Requirements to be the Operator
The product may only be used by competent personnel who, by virtue of their training, knowledge or
experience, ensure proper handling and are aware of the dangers (for example, by reading the oper-
ating manual).
2. Safety Requirements
2.1. General Safety
The product is built according to the state of the technology and can be operated safely. However, this
does not mean that the consequences of all operational failures are protected by technical measures.
Dangers can arise from this product if it is used improperly or incorrectly. However, additional organi-
sational measures have to be taken into account for certain workflows, such as the removal of residual
paint from the gun.
•Read and follow the operating instructions for the product as well as the safety instructions
before commissioning.
•Always keep the manual available in the immediate vicinity of the product.

Mixing- and preparation table Painty Page 3
•The product may only be operated by trained personnel. Operators under the age of 18 are
only allowed to operate the product when under supervision of an expert.
For some users, hazard assessment activity restrictions may result, e.g. for persons with
chronic respiratory problems or allergic diseases as well as for pregnant women or nursing
mothers.
For the correct operation of the product, the safety and operating instructions are valid in
all cases. These must be read carefully and followed strictly!
The manufacturer recommends to strictly follow the occupational safety provisions, rules and infor-
mation applicable in the respective country for using spray gun and part cleaning systems such as the
following examples: "Accident prevention - Principles and prevention", "Safety and health protection
warnings at the workplace", "Safety rules for air pollution control systems for the workplace", "Safe
use of the product by following operating instructions", "Safe use of the machine by following operat-
ing instructions", "Avoidance of ignition from electrostatic charges", "Guidelines for facilities for clean-
ing parts with solvents", "Use of protective clothing", "Use of eye and face protection", "Use of pro-
tective gloves", " Industrial Safety".
2.2. Operational Safety
•The product may only be operated, if:
othe integrated suction system (Venturi system with flexible exhaust hose) is connected
and the resultant (solvent-) fumes are safely discharged to the outside in the free air
in order to avoid fire, explosion and health hazards. See section 6.2.
ogrounding / earthing is ensured using a grounding cable (potential equalisation)! Con-
nection must be carried out by a specialist. See section 6.5.
•In all cases, the local safety and accident prevention rules for the use of the product must be
followed.
•Fire, naked flame and smoking prohibited.
•Open fires and other sources of ignition (e.g. due to grinding or welding, any flying
sparks) are not allowed within a radius of 1 metre around the product. This applies
also e.g. for lighting and fans as well as the associated electrical components.
•Depending on the cleaning application, use the required personal protective and chemical re-
sistant protective equipment. The minimum required protective equipment is eye protection
and gloves. Optionally protective clothing and safety shoes are recommended.
Minimal require-
ment:
Optional:
•Ensure that clothing (especially footwear) is conductive.
•Do not place the protective equipment on the product.

Mixing- and preparation table Painty Page 4
•If clothing has been wetted with solvent / cleaning fluid, smoking is also prohibited outside the
Ex-zone. Take off the contaminated clothing immediately. There is risk of skin irritation, aller-
gies, etc. Persons wearing contaminated clothing must not be exposed to sources of ignition
(e.g. welding). Risk of fire.
•Compliance with country-specific workplace exposure limits legislation according to safety
data sheets must be documented.
•The limit values of the country specific air pollution and adherence thereto must be observed.
•Do not eat or drink near the product. Clean your hands before eating any food or drink after
working. Danger of poisoning!
2.3. Hazards from Pneumatic Energy
Only specialists with expert knowledge and experience may work on pneumatic products. When work-
ing on pneumatic systems, these must be disconnected from the air supply and de-pressurised in order
to prevent injury.

Mixing- and preparation table Painty Page 5
3. Technical Description of the Product
Painty-02/-03
The Painty-02/-03 is a mixing and preparation table with drain covered with gratings. Both models are
equipped with: 4 x spray gun holder, 1 x paper roll holder, 1 x refuse sack holder.
The product Painty-02 has a strong exhaust suction system and is operated exclusively by pneumatic
parts. The product Painty-03 has a 150mm exhaust air connection for existing local exhaust air systems.
Painty-04
Der Painty-04 is a mixing and preparation table with drain covered with gratings. It has 4 x spray gun
holder and a lockable base cabinet with two stable storage shelves made of stainless steel.
The product Painty-04 has a strong exhaust suction system on the table work area and in the base
cabinet. It is operated exclusively by pneumatic
3.1. Technical Data
Figure 3-1
- Technical changes and errors reserved. All pictures similar –
1180
1390
1510
980
1390
1390
1510
1180
980
Compressed air connection
Operating pressure:
Compressed air demand Painty-02/04:
max. 6 bar
150 l/min
Exhaust air flow rate at 0.2 m/s
Painty-02 and Painty-04:
Painty-03 (without integrated extraction):
510 m³/h
0 m³/h
Product dimensions
Painty-02 (Width × Height × Depth):
Painty-03 (W × H × D):
Painty-04 (W × H × D):
1180 x 1510 x 600 [mm]
1800 x 1510 x 600 [mm]
1180 x 1510 x 600 [mm]

Mixing- and preparation table Painty Page 6
4. Zone and Product Classification according to ATEX
This product does not have any ignition source and is therefore not subject to ATEX-Directive
2014/34/EU. Operation in an ex-zone (e.g. zone 1) is therefore possible.
In accordance with legal requirements, the ATEX zone definition around the product and creation of
an explosion protection document comes under the responsibility of the "responsible person of the
company" where the product is placed as this classification is subject to the cleaning fluid used and
various conditions such as ventilation.
However, at this point the operator should be supported with general advice to comply with this ob-
ligation. Helpful advice can also be found in EN 12921‐1 and ‐3 and EN 13463-1.
If using the product with flammable fluids, the following zone designation can be applied:
Zone 1
→
The mixing and working area
Zone 2
→
Surroundings within 1.0 m
Mark the different zones with appropriate warning and prohibition signs. Markings on the floor can be
helpful. In the area surrounding the product, open flames and other ignition sources (e.g. welding or
grinding equipment) are not allowed. In addition, smoking is prohibited. Temporary work causing igni-
tion sources must be approved in writing and appropriate additional safety measures must be applied
(e.g. remove all combustible materials; firefighting equipment must be on hand in the working area.)
5. Requirements for the Installation Site
•Horizontal industrial floor with electrical resistance of max. 108Ohm.
•Dry and protected from frost.
•Very good technical room ventilation with 5-7 air changes per hour (Depending on local regu-
lations).
•Do not install or operate the product within a radius of 1.5 m from heat sources.
•Ensure an ambient temperature of 5 °C –40 °C and do not expose the product to direct sun-
light, as this carries a risk of overheating.
•Follow the relevant legislative and regulatory safety instructions regarding substances hazard-
ous to water applicable in the country where the product is installed.
•Follow the safety regulations according to zone designation.
Space Requirements for Operation and Maintenance
The product can be placed against the wall or in a corner. A 1.5 m space should be provided in front of
the product.

Mixing- and preparation table Painty Page 7
6. Transport and Installation
The product is delivered packed. Unpack the product outside an explosive atmosphere and bring it to
the installation site. Install the product as described in the following sections.
6.1. Assembling Painty-02/-03

Mixing- and preparation table Painty Page 8
6.2. Exhaust Ducting Painty-02/04
The exhaust air hose must be integrated in the exhaust system at the installation site and must be
routed outdoors properly into the so-called "free air space". Place the exhaust air hose vertically, a
minimum of one metre for optimal function of the exhaust system and stretch the hose as far as pos-
sible in order to avoid a reduced cross-section. In this way optimal exhaust suction will be achieved.
Ensure that fumes are not directed into areas where people are likely to be. The exhaust air has to be
led away safely. That means according to ATEX and especially not into flues serving furnaces or fire-
places and not into the exhaust ducts of spraying and drying cabinets. In case the exhaust system con-
ditions at the installation site require a longer exhaust air hose or the instructions in how to route the
exhaust air system cannot be complied with, please contact an ATEX-ventilation system specialist to
ensure safe operation.
It’s recommended not to connect the product directly to a rigid pipe. Use at least 30-40 cm of the
flexible B-TEC exhaust hose to ensure that the product can be relocated or repaired conveniently if
necessary.
Diameter of exhaust hose: Ø125 mm
The exhaust air flow rate can be adjusted at the flow adjuster as needed depending on the length
of the duct.
Caution! Only use original B-TEC exhaust air
hoses! Risk of fire! Do not use plastic hoses!

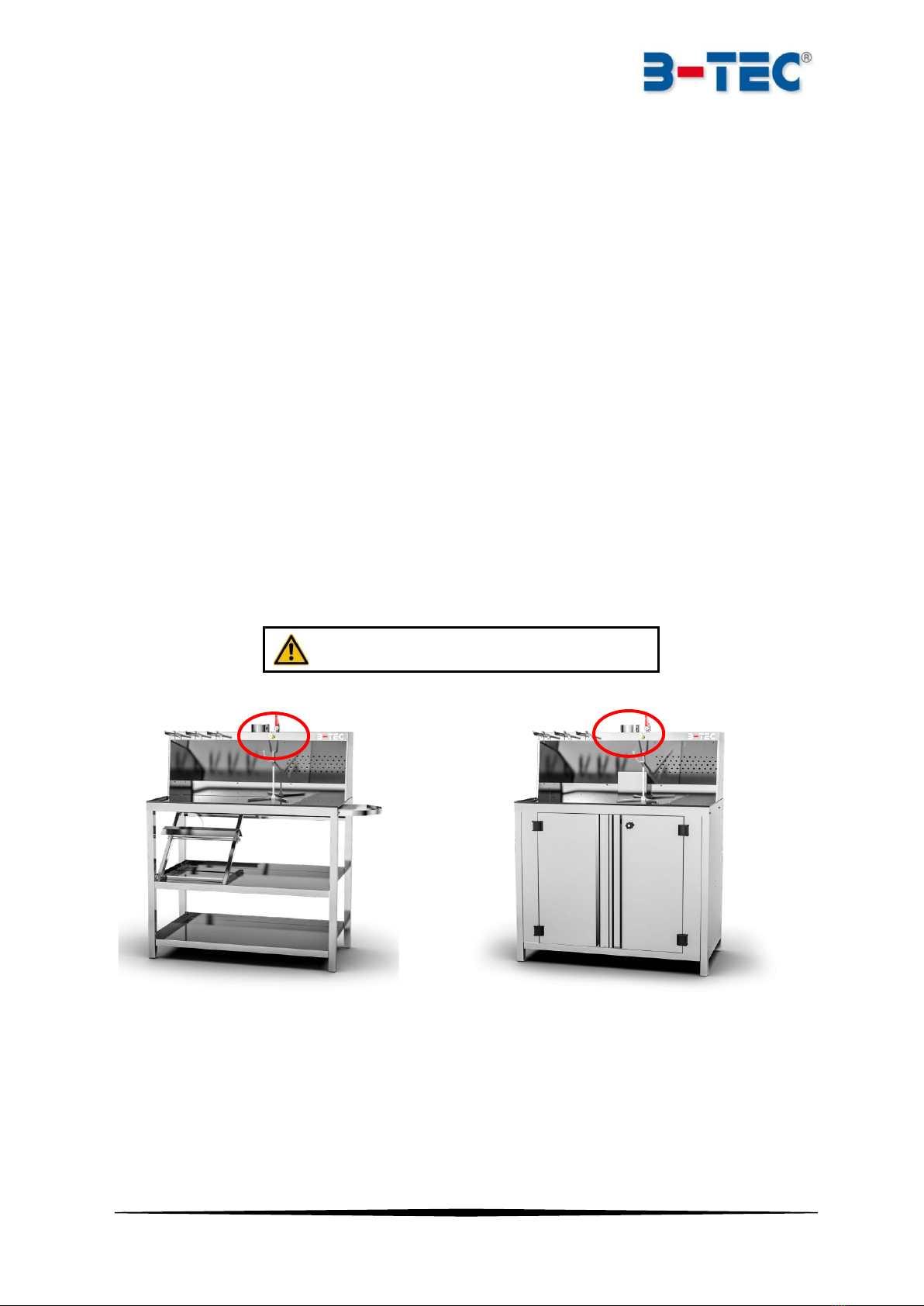

Figure 1 - Painty-02 –Extraction for diameter 125mm
Figure 2 - Painty-04 –Extraction for diameter 125mm

Mixing- and preparation table Painty Page 9
6.3. Exhaust Ducting Painty-03
The Painty-03 comes without integrated extraction nozzle, but comes with a preparation for an on-
site air extraction. The on-site air extraction can be connected to the Painty-03 with a Ø150 mm
exhaust hose. The connection is on the roofe of the table.

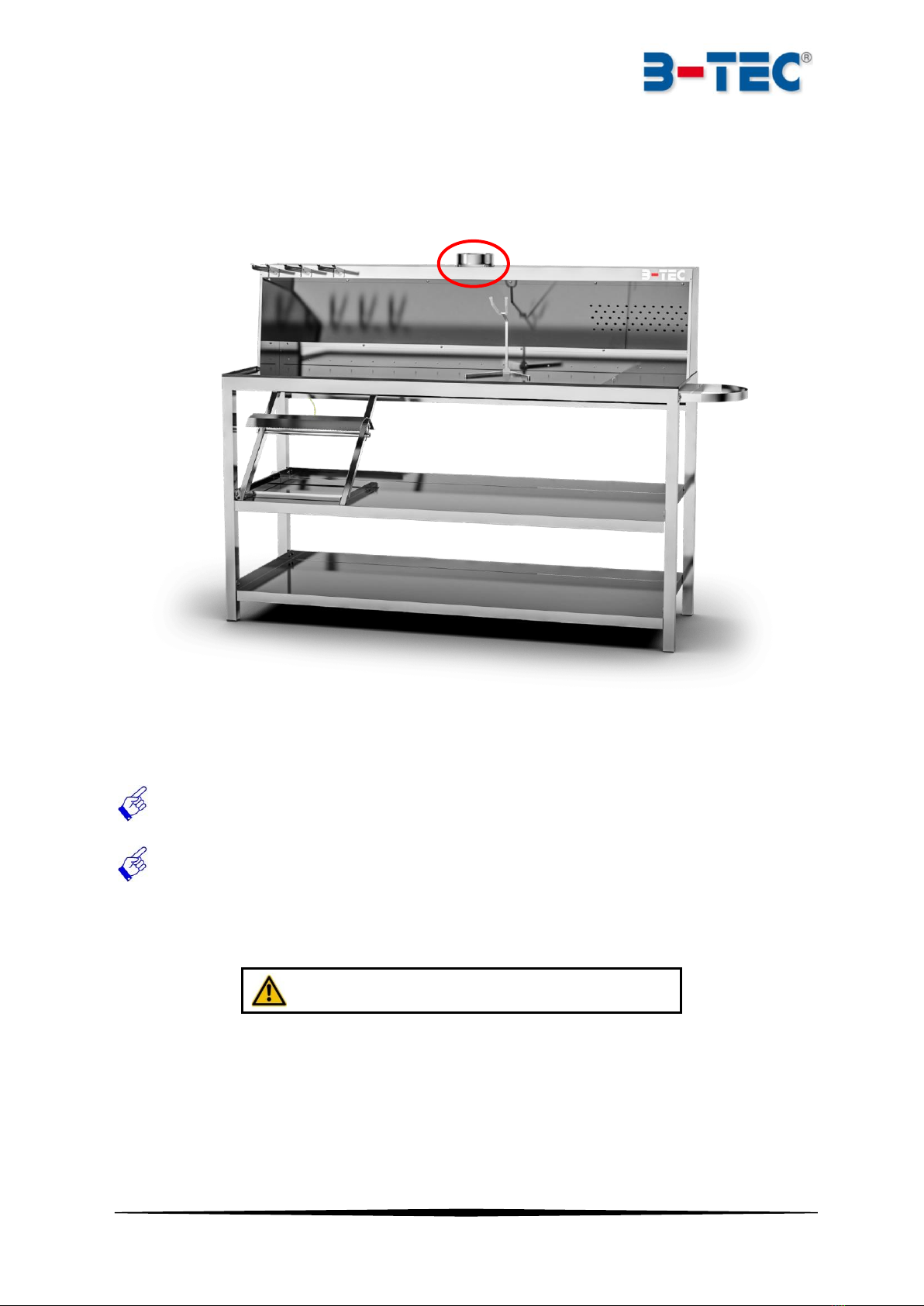

Figure 3 - Painty-03 - Extraction prepared for diameter 150mm
6.4. Compressed Air Connection
A compressed air supply is needed for the product.
Operating pressure max.: 600 kPa (6 bar , 87 psi)
Operating pressure min.: 500 kPa (5 bar , 73 psi)
A pressure regulating valve (Item no.: 10000619) has to be fitted if the compressed air con-
nection exceeds the required operating pressure. Use only dry and oil-free air!
6.5. Grounding / Earthing
The product has a grounding / earthing connection
and may not be operated without being grounded!
The product has a grounding / earthing cable, which needs to be grounded / earthed safely by a com-
petent person (e.g. electrician). Customer-provided containers have to be grounded separately!
After proper installation and mounting of the exhaust hose, connection to the compressed air supply
and grounding, the product can be commissioned.
- Technical changes and errors reserved. All pictures similar -

Mixing- and preparation table Painty Page 10
7. Safety Inspection Checklist
Please make copies before filling out for the first time!
Safety inspections must be carried out at least once a year! Audit according to the applicable
document regarding European Council Directive 2009/104/EC in the respective country.
Model:
__________________________
Year of construction:
__________________________
Customer/Operator:
__________________________
Item checked
OK
Missing
or faulty
Recheck
1. Operating manual / Instructions available
2. Condition of hoses and connectors*
3. Cabinet not leaking and undamaged
4. All functions intact and properly set
5. Grounding / Earthing wire connected
6. Extraction works
* Check for brittleness, tight connections, etc.
Remarks:
Name of inspector:
__________________________
Company:
__________________________
Date:
__________________________
Result of the safety inspection
No faults, can be operated without restrictions
Restricted operation, faults to be fixed by date _______________.
Operation not permitted. Re-inspection necessary.
_______________________________ _________________________________
Date, place, signature of expert technician Signature of operator
Faults fixed and re-inspection successful
_______________________________ _________________________________
Date, place, signature of expert technician Signature of operator
