True TSSU-60-24M-B-DS-ST User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TSSU-60-24M-B-DS-ST
TSSU-60-24M-B-DS-ST
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
L** D†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TSSU-60-24M-B-DS-ST 2 15.5
439
42460
3/8
1534
403/8
1026
313/8
797
1/3
1/3
115/60/1
230-240/50/1
7.8
4.2
5-15P
▲
7
2.13
395
180
** Length does not include 1/4"(7mm) each side for cutting board brackets. ▲Plug type varies by country.
†Depth does not include 31/8" (80 mm) each side for cutting boards.
*Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.
6/06
True’s salad/sandwich units are
designed with enduring quality
that protects your long term
investment.
Oversized, environmentally
friendly (134A), patented,
forced-air refrigeration system
holds 33°F to 41°F (.5°C to 5°C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Stainless steel, patented,
foam insulated lids keep pans’
temperature colder, lock
in freshness and minimize
condensation. Removable for
easy cleaning.
87/8" (226 mm) deep, full
length removable cutting
boards included. Sanitary,
high-density, NSF approved
white polyethylene provides
tough preparation surface.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Heavy duty PVC coated wire
shelves.

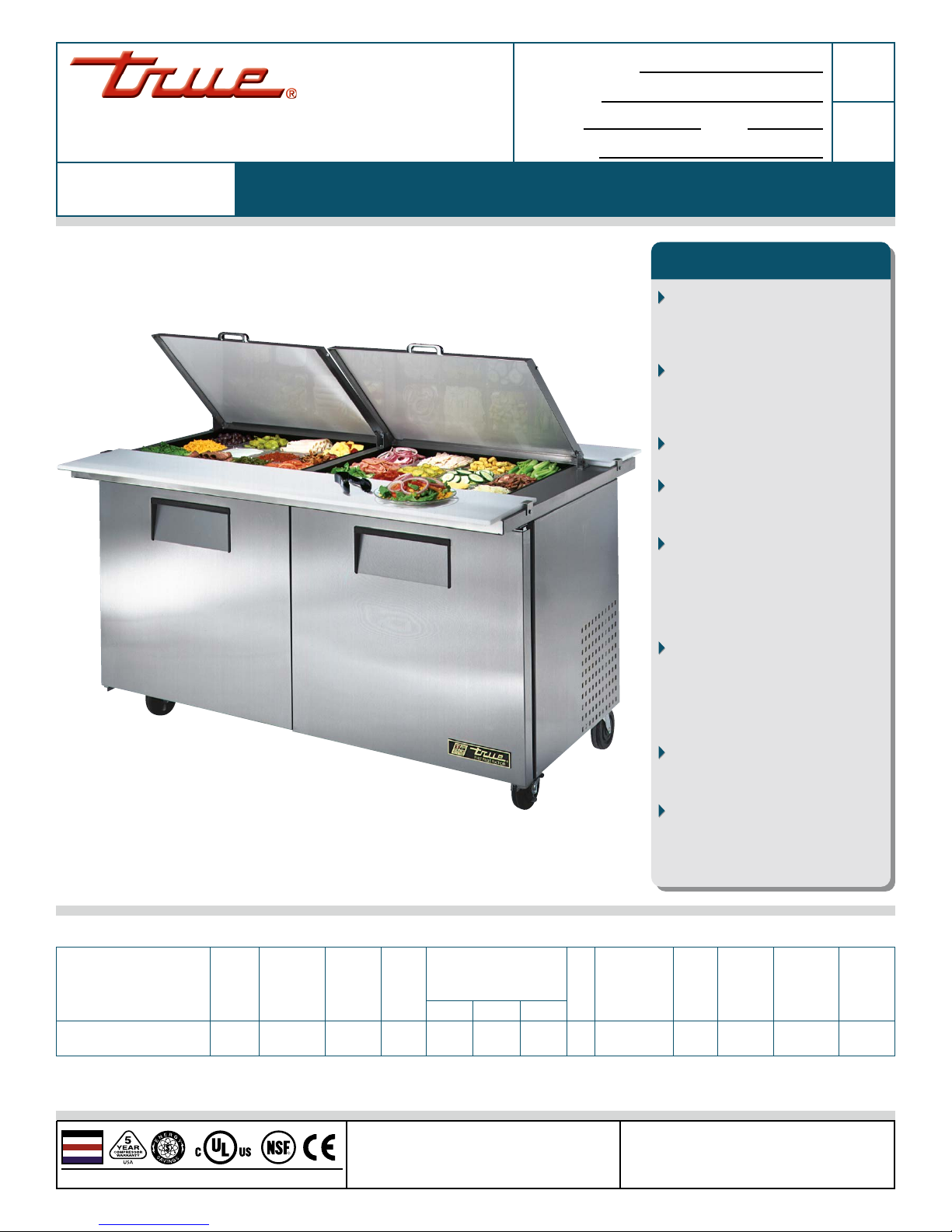

Food Prep Table:
Dual Sided Mega Top Solid Door Split Top Sandwich/Salad Unit
R
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

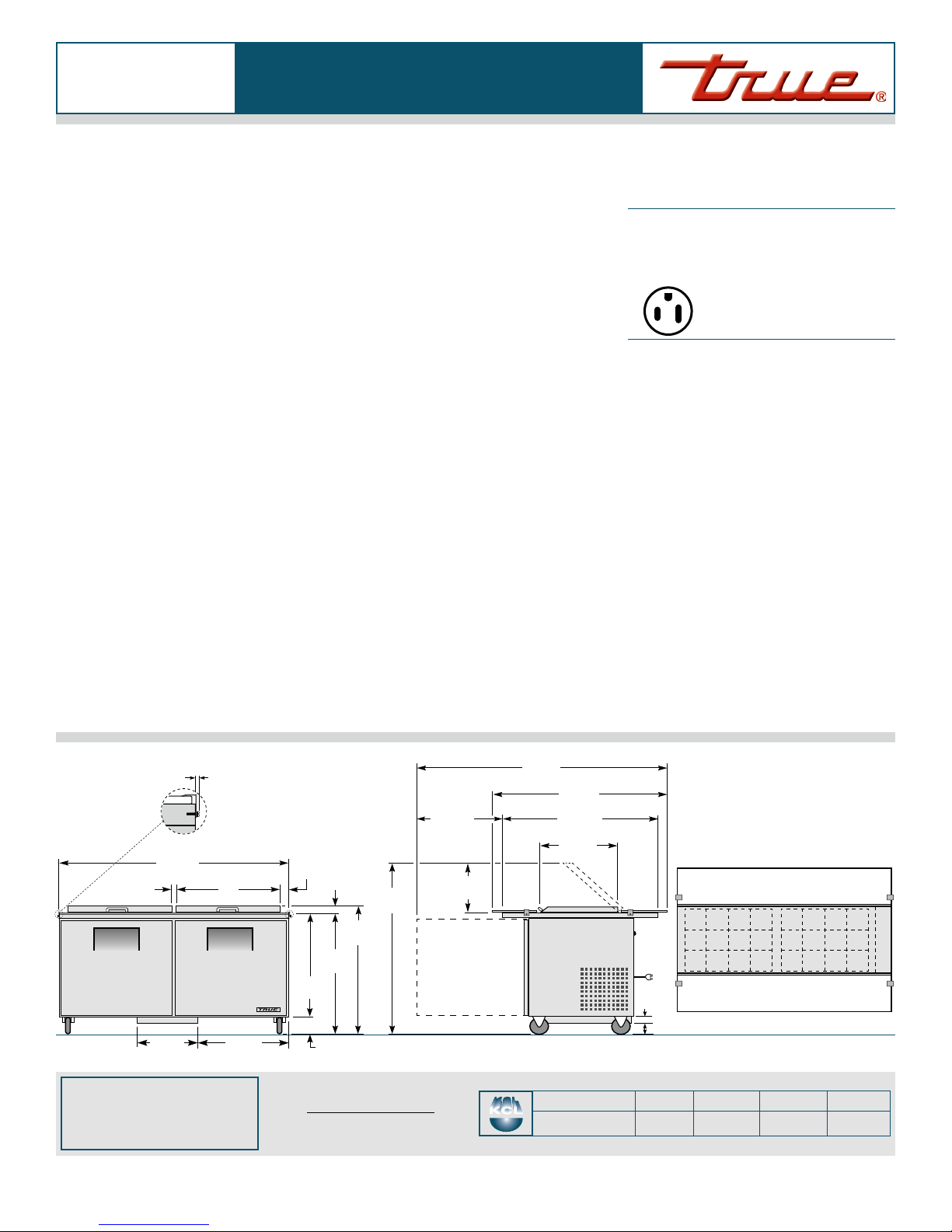

PLAN VIEW
KCL
Model Elevation Right Plan 3D
1/4"
(7 mm)
each side for
Cutting Board
Brackets and
Thumb Screws
125/8"
(321 mm )
243/4"
(629 mm )
TSSU-60-24M-B-DS-ST TFN045E TFN045S TFN045P TFN0453
TSSU-60-24M-B-DS-ST
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user with
colder product temperatures, lower utility
costs, exceptional food safety and the best
value in today’s food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform temperature in food pans and
cabinet interior.
• Patented forced-air design holds 33°F to
41°F (.5°C to 5°C) product temperature in
food pans and cabinet interior. Complies
with and listed under ANSI/NSF-7-1997-6.3.
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
sandwich/salad units a more efficient low
velocity, high volume airflow design.
• Condensing unit access in back of cabinet,
slides out for easy maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum finished
back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using high
density, CFC free, polyurethane insulation.
• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm) work
surface height.
DOORS
• Stainless steel exterior with white aluminum
liner to match cabinet interior.
• Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
• Positive seal self-closing doors with 90° stay
open feature. Doors swing within cabinet
dimensions.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty PVC coated
wire shelves 271/2"L x 16"D (699 mm x
407 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• 87/8" (226 mm) deep, 1/2" (13 mm) thick,
full length removable cutting boards.
Sanitary, high-density, NSF approved white
polyethylene provides tough preparation
surface.
• Stainless steel, patented, foam insulated
lids and hood keep pans’ temperature
colder, lock in freshness and minimize
condensation. Removable for easy
cleaning.
• NSF-7 compliant for open food product.
PAN CAPACITY
• Comes standard with 24 (1/6size) 67/8"L x
61/4"W x 4"D (175 mm x 159 mm x
102 mm) clear polycarbonate, NSF
approved, food pans in countertop prep
area. Also accommodates 6"(153 mm) and
8" (204 mm) deep food pans (supplied by
others).
• Countertop pan opening designed to
fit varying size pan configurations with
available pan divider bars. Varying size
pans supplied by others.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒21/2" (64 mm) diameter castors.
❒Additional shelves.
❒87/8" (226 mm) deep, 1/2" (13 mm) thick,
composite cutting board.
❒Crumb catcher. Requires crumb catcher
cutting board for proper installation.
❒ Pan dividers.
❒ Exterior rectangular digital thermometer
(factory installed).
❒ ADA compliant models with 34" (864 mm)
work surface height.
❒ Remote cabinets (condensing unit supplied
by others; sytems comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
115/60/1
NEMA-5-15R
ELEVATION RIGHT VIEW PAN LAYOUT
Food Prep Table:
Dual Sided Mega Top Solid Door Split Top
Sandwich/Salad Unit
605/16"
(1532 mm )115/16"
(50 mm )
27"
(686 mm )
13/8"
(35 mm )
63/16"
(158 mm )
461/2"
(1182 mm )
405/16"
(1024 mm )
221/32"
(560 mm )
153/8"
(391 mm )
667/8"
(1699 mm )
2315/32"
(597 mm )
293/4"
(756 mm )
371/2"
(953 mm )
19/16"
(40 mm )515/16"
(1304 mm )
37/8"
(99 mm )
3515/16"
(913 mm )
25/16"
(59 mm )
