18PTL SELF-CONTAINED REFRIGERATED PIZZA PREP TABLE WITH LIQUITEC®
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
18PTL
Self-contained Refrigerated Pizza Prep Table with Flush Mount
LiquiTec® Raised Rail
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfi eld.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfi eld.com
Approval _________________
Date ____________________
SPECIFICATIONS
Exterior Top: Constructed of one-piece 18-
gauge stainless steel, with integral 2.12" (5.4cm)
high square nosing at the front. Top has a
mechanically cooled LiquiTec® refrigerated raised
rail at the rear with openings to accommodate
pans (provided by others). Rail interior is
22-gauge stainless steel. Raised rail openings
have 18-gauge stainless steel hinged removable
lids. Unit is equipped with separate expansion
valve and on/off switch for refrigerated rail.
Temperature in top openings maintains 33°F
(1°C) to 41°F (5°C) with pans flush mounted
at 86°F (29.7˚C) ambient room temperature,
meeting NSF 7 requirements.
Exterior Back, Bottom and Ends: 24-gauge
galvanized steel back and bottom. Exterior ends are
finished with 22-gauge stainless steel.
Base Interior: Stainless steel back and bottom. Base
interior sides and door frames are thermoformed ABS
plastic. Each interior door section has (1) 25” (63.5cm)
deep removable epoxy coated wire shelf. Base is
insulated with 2” (5.1cm) high density foamed in place
polyurethane. End of base has a machine compartment
with condensing unit installed.
Door(s): 22-gauge stainless steel exterior front, with
a thermoformed ABS plastic interior liner.
Refrigeration System: HFC-404A refrigerant. Cabinet
has (1) blower coil assembly with expansion valve on
48” and 72” models and (2) on the 99” model, located
in coil housing. Base is equipped with independently
controlled thermostat, solenoid valve and condensate
evaporator. Refrigerated base maintains temperature of
36°F (2°C) to 40°F (4°C). On/off switches for rail
and base are located behind the louvered panel. A
1.50” diameter hole is on the louver for easy access
to rail on/off switch
Electrical Connections: 115 volt, 60 Hertz, single
phase. Unit is wired with 3-wire, grounded, maximum
8’ (2.4m) cord and plug.
Casters: Equipment is mounted on 5” (12.7cm)
diameter casters; overall height of casters is 6.13”
(15.6cm).
MODELS:
❑ 18648PTL 48” Pizza Prep Table
(2) 12”X20” pan openings
❑ 18672PTL 72” Pizza Prep Table
(3) 12”X20” pan openings
❑ 18699PTL 99” Pizza Prep Table
(4) 12”X20” pan openings
STANDARD FEATURES
• Top is constructed of 18-gauge stainless steel
• 22-gauge stainless steel ends are standard
• Rail is mechanically cooled utilizing LiquiTec®
technology with die stamped 12”X20” openings
• Pans and adapter bars by others
• 20” cutting board is standard
• Flush mount NSF-7 certifi ed pans
• High density polyurethane foam throughout unit
• Dart style quick change gaskets
• Stainless steel removable hinged covers
• On/off switch is located behind the louver
• 1.50” diameter hole in louver for easy access to rail
on/off switch
• 8’ long electrical cord
• Environmentally friendly HFC-404A refrigerant
• One year parts and 90 day labor standard
warranty
OPTIONS AND ACCESSORIES
❑ Stainless steel back
❑ Laminate facing (full front)
❑ Laminate end
❑ Laminate back
❑ Tray racks
❑ Legs, set of four
❑ Legs, set of six
❑ Cheese grates with removable catch pans
❑ 18” deep single tier stainless steel overshelf
❑ 27” wide refrigerated drawers (2) high, holds 6” deep pans
❑ 27” wide refrigerated drawers (3) high, holds 4” deep pans
❑ Lock
❑ *220V/50 cycle electrical system
❑ Additional shelf (specify door size)
* Inclusion of this option will alter the electrical specifications of the unit
Model 18672PTL
®
18PTL Self-contained refrigerated pizza prep table with LiquiTec®
Model #__________
CSI Section 11400
Printed in the USA.
04/06
DS18PTL
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com

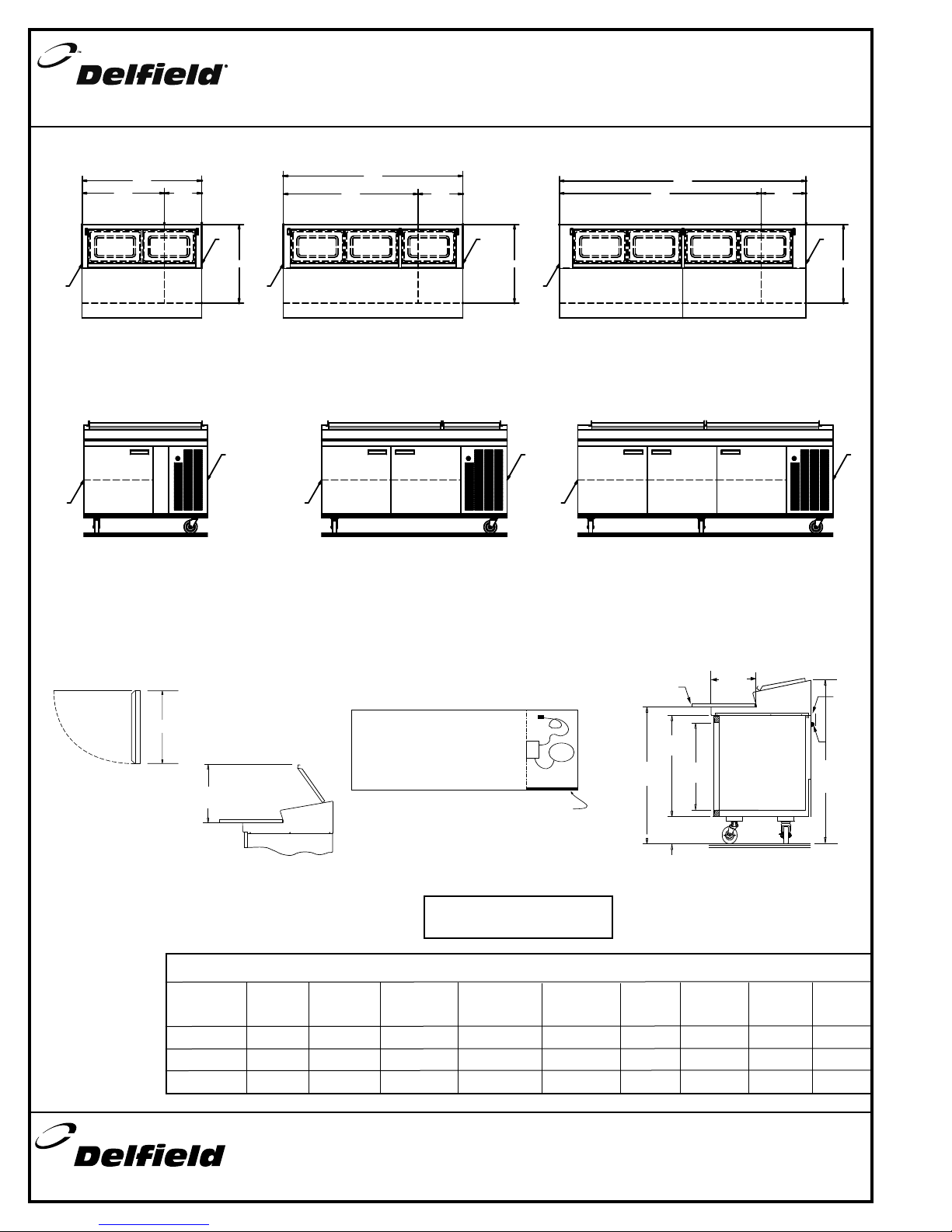

DOOR CLEARANCE DETAIL
ALL MODELS
15.5"
39.4cm
LID HEIGHT DETAIL
ALL MODELS
36"
91.4cm
21.8"
55.4cm
7.62"
19.3cm
42"
106.7cm
26.31"
66.8cm
RUBBER
BUMPER
1.00"
2.54cm
MECHANICAL ACCESS
BEHIND LOUVER
C
J
C = CONDENSING UNIT
J = JUNCTION BOX
WITH 8 ft/2.4 m
CORD AND PLUG
MECHANICAL ACCESS
(PLAN VIEW) ALL MODELS
MODEL 12x20 PAN # OF STORAGE CAP SHELF AREA NEMA
NUMBER CAP. SHELVES CU. FT. SQ. FT. H.P. VOLTAGE AMPS PLUG SHIP WEIGHT
18648PTL 2 1 8.36 3.36 1/4 115 10.0 5-15P 520lbs, 236kg
18672PTL 3 2 16.77 7.72 1/2 115 14.0 5-20P 635lbs, 288kg
18699PTL 4 3 25.87 11.58 1/2 115 14.0 5-20P 805lbs, 365kg
Mechanical Data–Standard Unit
NOTE: PANS AND ADAPTER
BARS ARE NOT INCLUDED
PLAN VIEW
18648PTL
PLAN VIEW
18672PTL
PLAN VIEW
18699PTL
PLAN VIEW
18648PTL
PLAN VIEW
18672PTL
PLAN VIEW
18699PTL
27.5”
70.Ocm
TYPICAL SECTION VIEW
ALL MODELS
Delfield reserves the right to make changes in design or specifications without prior notice.
.5”
1.27CM
14”
35.56CM
