True TSSU-60-24M-B-ST User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TSSU-60-24M-B-ST
TSSU-60-24M-B-ST
†Depth does not include 1" (26 mm) for rear bumpers. ▲Plug type varies by country.
* Height does not include 61/4"(159 mm) for castors or 6"(153 mm) for optional legs.
8/07
R
True’s salad/sandwich units are
designed with enduring quality
that protects your long term
investment.
Oversized, environmentally
friendly (134A) patented
forced-air refrigeration system
holds 33°F to 41°F (.5°C to 5°C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Stainless steel, patented, foam
insulated lids and hoods keep
pan temperatures colder, lock
in freshness and minimize
condensation. Removable for
easy cleaning.
87/8" (226 mm) deep, 1/2"
(13 mm) thick, full length
removable cutting board
included. Sanitary, high
density, NSF approved white
polyethylene provides tough
preparation surface.
Heavy duty PVC coated wire
shelves.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Food Prep Table:
Mega Split Top Sandwich/Salad Unit
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
LD
†H* HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TSSU-60-24M-B-ST 2 15.5
439
42460
3/8
1534
341/8
867
403/8
1026
1/3
1/3
115/60/1
230-240/50/1
7.8
4.2
5-15P
▲
7
2.13
325
148
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TSSU-60-24M-B-ST TFN045E TFN045S TFN045P TFN0453
TSSU-60-24M-B-ST
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform temperature in food pans and
cabinet interior.
• Patented, forced-air design holds 33°F to 41°F
(.5°C to 5°C) product temperature in food
pans and cabinet interior. Complies with and
listed under ANSI/NSF-7-1997-6.3.
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
sandwich/salad units a more efficient low
velocity, high volume airflow design.
• Condensing unit access in back of cabinet,
slides out for easy maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and ends.
Matching aluminum finished back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless steel floor
with coved corners.
• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.
• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm) work
surface height.
DOORS
• Stainless steel exterior with white aluminum
liner to match cabinet interior.
• Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
• Positive seal self-closing doors with 90° stay
open feature. Doors swing within cabinet
dimensions.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty PVC coated
wire shelves 271/2"L x 16"D (699 mm x
407 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• 87/8" (226 mm) deep, 1/2" (13 mm) thick
full length removable cutting board.
Sanitary, high-density, NSF approved, white
polyethylene provides tough preparation
surface.
• Stainless steel, patented, foam insulated lids
and hood keep pan temperatures colder,
lock in freshness and minimize condensation.
Removable for easy cleaning.
• NSF-7 compliant for open food product.
COUNTERTOP PAN CAPACITY
• Comes standard with 24 (1/6size) 67/8"L x
61/4"W x 4"D (175 mm x 159 mm x 102 mm)
clear polycarbonate, NSF approved, food pans
in countertop prep area. Also accommodates
6" (153 mm) and 8" (204 mm) deep food pans
(supplied by others).
• Countertop pan opening designed to fit
varying size pan configurations with available
pan divider bars. Varying size pans supplied
by others.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒Additional shelves.
❒Basic overshelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ Sneezeguard.
❒ 87/8" (226 mm) deep, 1/2" (13 mm) thick,
composite cutting board.
❒ Crumb catcher. Requires crumb catcher
cutting board for proper installation.
❒ Pan dividers.
❒Exterior rectangular digital temperature
display (factory installed).
❒ ADA compliant model with 34"
(864 mm) work surface height.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R

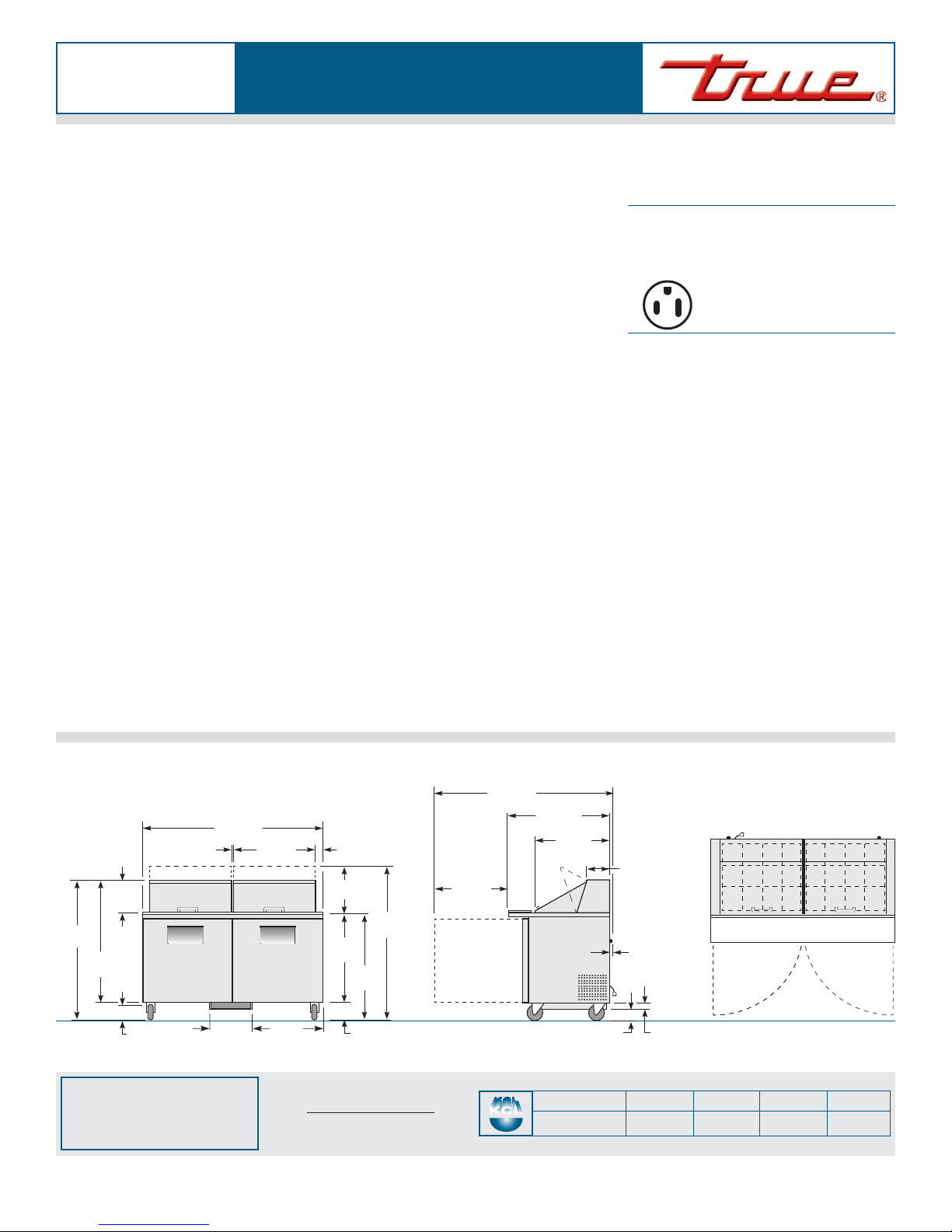

ELEVATION RIGHT VIEW PAN LAYOUT
Food Prep Table:
Mega Split Top Sandwich/Salad Unit
25/16"
(59 mm)
605/16"
(1532 mm)
217/32"
(65 mm)
271/2"
(699 mm)
125/8"
(321 mm)
243/4"
(629 mm)
1"
(26 mm)
2315/32"
(597 mm)
159/32"
(389 mm)
341/16"
(866 mm)
257/32"
(641 mm)
77/8"
(201 mm)
5817/32"
(1487 mm)
293/4"
(756 mm)
517/32"
(1301 mm)
3515/16"
(913 mm)
63/16"
(158 mm)
4615/32"
(1181 mm)
409/32"
(1024 mm)
1017/32"
(268 mm)
1/4"
(7 mm)
37/8"
(99 mm)
5"
(127 mm)
