TSSU-72-18-ADA
TSSU-72-18-ADA
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TSSU-72-18-ADA 3 19.0
539
61872
3/8
1839
301/8
766
363/4
934
1/2
1/2
115/60/1
230-240/50/1
10.3
6.7
5-15P
▲
7
2.13
425
193
†Depth does not include 1" (26 mm) for rear bumpers.
*Height does not include 4"(102 mm) for castors. Counter height is 34" (864 mm).
9/06
R
3" (77 mm) diameter stem
castors standard. Work
surface 34" (864 mm) high to
comply with the Americans
with Disabilities Act (ADA)
requirements.
Oversized, environmentally
friendly (134A) patented,
forced-air refrigeration system
holds 33°F to 41°F (.5°C to 5°C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Stainless steel, patented, foam
insulated lid and hood keeps
pan temperatures colder, locks
in freshness and minimizes
condensation. Removable for
easy cleaning.
113/4" (299 mm) deep full
length removable cutting
board included. Sanitary, high-
density, NSF approved white
polyethylene provides tough
preparation surface.
Foamed-in-place, high density
polyurethane insulation
(CFC free).
Heavy duty PVC coated wire
shelves.
Food Prep Table:
ADA Compliant Solid Door Sandwich/Salad Unit
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

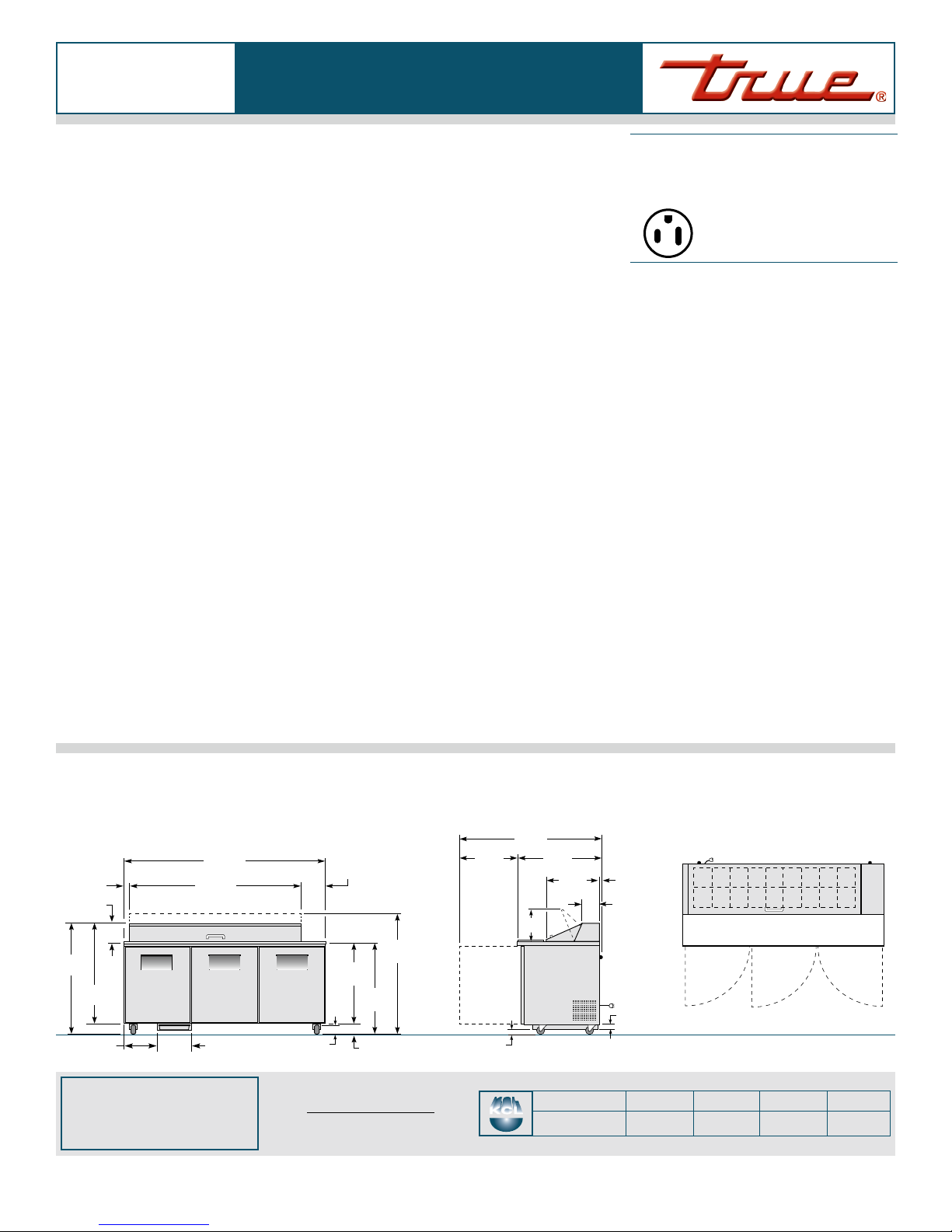

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TSSU-72-18-ADA TFNX19E TFNX19S TFNY09P TFNX193
TSSU-72-18-ADA
DESIGN
• True’s salad/sandwich units are designed with
enduring quality that protects your long term
investment.
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.
REFRIGERATION SYSTEM
• Self-contained, factory pre-engineered
capillary tube system using environmentally
friendly (CFC free) 134A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform temperature in food pans and
cabinet interior.
• Patented forced-air design holds 33°F to 41°F
(.5°C to 5°C) product temperature in food
pans and cabinet interior. Complies with and
listed under ANSI/NSF-7-1997-6.3.
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
sandwich/salad units a more efficient low
velocity, high volume airflow design.
• Condensing unit access in back of cabinet,
slides out for easy maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and cabinet
ends. Matching aluminum finished back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor with
coved corners.
• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.
• 3" (77 mm) diameter stem castors standard.
34" (864 mm) work surface height.
DOORS
• Stainless steel exterior with white aluminum
liner to match cabinet interior.
• Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
• Positive seal self-closing doors with 90° stay
open feature (excludes center door). Doors
swing within cabinet dimensions.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Six (6) adjustable, heavy duty PVC coated
wire shelves. Two (2) left and two (2) right
door shelf dimensions are 219/16"L x 16"D
(548 mm x 407 mm). Two (2) center door
shelf dimensions are 231/2"L x 16"D (597 mm
x 407 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• 113/4" (299 mm) deep full length removable
cutting board included. Sanitary, high-density,
NSF approved white polyethylene provides
tough preparation surface.
• Stainless steel, patented, foam insulated
lid and hood keeps pans’ temperature
colder, locks in freshness and minimizes
condensation. Removable for easy cleaning.
• Comes standard with 18 (1/6size) 67/8"L x
61/4"W x 4"D (175 mm x 159 mm x 102 mm)
clear polycarbonate, NSF approved, food pans
in countertop prep area. Also accommodates
6" (153 mm) and 8" (204 mm) deep food pans
(supplied by others).
• Countertop pan opening designed to fit
varying size pan configurations with available
pan divider bars. Pans supplied by others.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase
- 15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ Sandwich/salad service shelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ Sneezeguard.
❒ 19" (483 mm) deep, 1/2" (13 mm) thick, white
polyethylene cutting board. Requires “L”
brackets.
❒ 19" (483 mm) deep, 3/4" (20 mm) thick, white
polyethylene cutting board. Requires “L”
brackets.
❒ 113/4" (299 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.
❒ 19" (483 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.
❒ Crumb catcher. Requires crumb catcher
cutting board for proper installation.
❒ Exterior, rectangular, digital temperature
monitor (factory installed).
❒ Standard height units with 5" (127 mm)
diameter castors. 36" (915 mm) work surface
height.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
Food Prep Table:
ADA Compliant Solid Door Sandwich/Salad Unit
PLAN VIEW
ELEVATION RIGHT VIEW
725/16"
(1837 mm) 515/32"
(139 mm)
111/4"
(286 mm)
293/4"
(756 mm)
447/16"
(1129 mm)
3311/16"
(856 mm)
315/16"
(101 mm)
4011/16"
(1034 mm)
363/4"
(934 mm)
7"
(178 mm)
117/32"
(39 mm)
655/16"
(1659 mm)
12
5
/ 8 "
(321 mm)
25/16"
(59 mm)
217/8"
(556 mm)
301/16"
(764 mm)
185/16"
(466 mm)
61/8"
(156 mm)
103/4"
(274 mm)
5215/16"
(1345 mm)
1"
(26 mm)
15/8"
(42 mm)
3"
(77 mm)
