Delfield 186114 PTB User manual

18PTB Three Section Refrigerated Pizza Prep Tables
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
18PTB
Three Section Self-Contained Refrigerated Pizza Prep Tables
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfi eld.com
Phone: [phone]
Fax: [phone]
Email: info@delfi eld.com
Approval _________________
Date ____________________
SPECIFICATIONS
Exterior Top: Constructed of one-piece
18-gauge stainless steel, with integral 2.12"
(5.4cm) high square nosing at the front. Top
has a mechanically cooled refrigerated raised
rail at the rear with openings to accommodate
pans (provided by others). Rail interior is 22-
gauge stainless steel. Raised rail openings have
20-gauge stainless steel removable lids. Unit
is equipped with separate expansion valve and
on/off switch for refrigerated rail. Temperature
in top openings maintains 33°F (1°C) to 41°F
(5°C) with pans recessed 2” (5.1cm) at 86°F
ambient room temperature, meeting NSF 7
requirements.
Exterior Back and Bottom: 24-gauge
galvanized steel. Exterior ends are finished with
stainless steel.
Base Interior: Stainless steel back and bottom. Base
interior sides and door frames are thermoformed ABS
plastic. Each interior door section has (1) 25” (63.5cm)
deep removable epoxy coated wire shelf. Base is
insulated with 2” (5.1cm) high density foamed in place
polyurethane. End of base has a machine compartment
with condensing unit installed.
Door(s): 22-gauge stainless steel exterior front, with
a thermoformed ABS plastic interior liner.
Refrigeration System: HFC-404A refrigerant. Cabinet
has a blower coil assembly with two expansion valves on
91”, 99” and 114” models, located in coil housing. Base
is equipped with independently controlled thermostat,
solenoid valve and condensate evaporator. Refrigerated
base maintains temperature of 36°F (2°C) to 40°F
(4°C). Recessed on/off switches for rail and base are
located behind the hinged louver door.
Electrical Connections: 115 volt, 60 Hertz, single
phase. Unit is wired with 3-wire, grounded, maximum
8’ (2.4m) cord and plug.
Casters: Equipment is mounted on 5” (12.7cm)
diameter casters; overall height of casters is 6.13”
(15.6cm).
MODELS:
❑ 18691PTB 91” Pizza Prep Table ❑ 18699PTB 99” Pizza Prep Table ❑ 186114PTB 114” Pizza Prep Table
22 pan capacity 24 pan capacity 28 pan capacity
STANDARD FEATURES
• Top, sides and ends are constructed of 18-gauge
stainless steel
• Units are mechanically cooled with
diestamped openings to accommodate
12” x 20” hotel pans or fractional pans
• Pans and adapter bars by others
• Pans are recessed 2” to provide proper
cooling for NSF 7
• High density polyurethane foam throughout unit
• Dart style quick change gaskets
• Stainless steel removable hinged covers
• On/off switch and rail on/off is located
behind the louver
• Front louver is hinged for access to
condensing unit and allow adequate air fl ow
back of the unit
• 8’ long electrical cord
• Environmentally friendly HFC-404A refrigerant
• One year parts and 90 day labor standard warranty
OPTIONS AND ACCESSORIES
❑ Stainless steel back
❑ Laminate facing (full front)
❑ Laminate end
❑ Laminate back
❑ Tray racks
❑ Cutting board (.5” x 20”)
❑ Legs, set of four
❑ Legs, set of six
❑ Cheese grates with removable catch pans
❑ 18” deep single tier stainless steel overshelf
❑ 19" wide refrigerated drawers (2) high, holds 6" deep pans
❑ 19” wide refrigerated drawers (3) high, holds 4” deep pans
❑ 14” wide refrigerated drawers (2) high, holds 6” deep pans
❑ 14” wide refrigerated drawers (3) high, holds 4” deep pans
❑ 27” wide refrigerated drawers (2) high, holds 6” deep pans
❑ 27” wide refrigerated drawers (3) high, holds 4” deep pans
❑ 32” wide refrigerated drawers (2) high, holds 6” deep pans
❑ 32” wide refrigerated drawers (3) high, holds 4” deep pans
❑ Lock
❑ *220V/50 cycle electrical system
❑ Additional shelf (specify door size)
* Inclusion of this option will alter the electrical specifications of the unit
Model 18691PTB
Model 186114PTB

18PTB Three Section Pizza Prep Table
Model #__________
CSI Section 11400
Printed in the USA.
2/05
DS18PTB3
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
A
19" DOOR (A= 19.5" or 49.5cm)
27" DOOR (A= 27.5" or 70cm)
32" DOOR (A= 32.5" or 82.5cm)
DOOR CLEARANCE DETAIL
ALL MODELS
15.5"
39.4cm
LID HEIGHT DETAIL
ALL MODELS
36"
91.4cm
21.8"
55.4cm
7.62"
19.3cm
14.36"
36.5cm
42"
106.7cm
TYPICAL END VIEW
ALL MODELS
26.31"
66.8cm
RUBBER
BUMPER
1.00"
2.54cm
MECHANICAL ACCESS
BEHIND LOUVER
C
J
C = CONDENSING UNIT
J = JUNCTION BOX
WITH 8 ft/2.4 m
CORD AND PLUG
MECHANICAL ACCESS
(PLAN VIEW) ALL MODELS
MODEL PAN # OF STORAGE SHELF AREA STORAGE NEMA SHIP WEIGHT
NUMBER CAP. SHELVES CU. FT. SQ. FT. CAP. H.P. VOLTAGE AMPS PLUG LBS
18691PTB 22 3 22.82 9.99 22.82ft³ 1/2 115 14.0 5-20P 770
18699PTB 24 3 25.87 11.58 25.87ft³ 1/2 115 14.0 5-20P 805
186114PTB 28 3 30.9 14.11 30.9ft³ 3/4 115 14.0 5-20P 927
Mechanical Data–Standard Unit

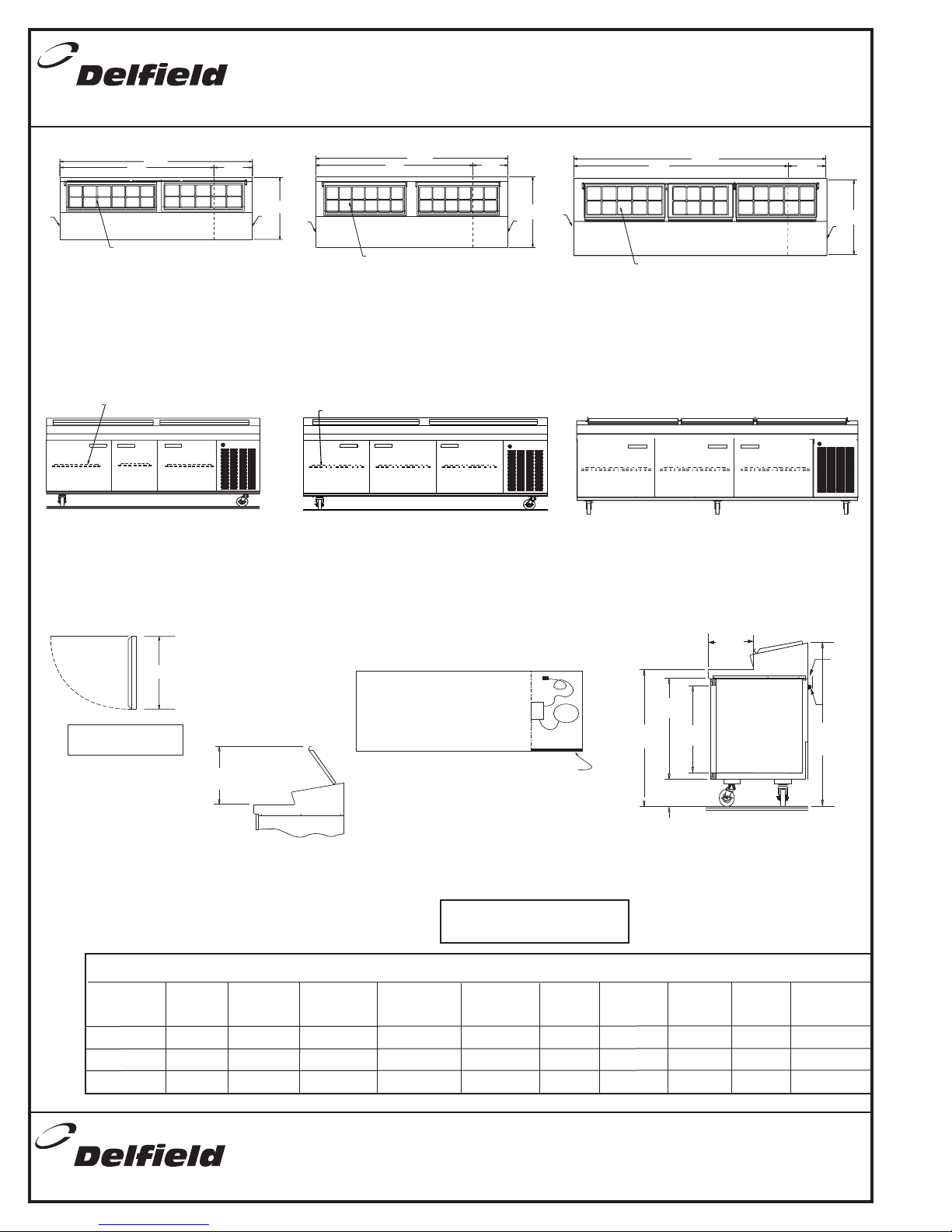

PLAN VIEW
18691PTB
END
S/S
91"
231cm
73"
185.4cm
MECHANICALLY COOLED PANS
RAISED RAIL WITH (1) 13.62 X 41.87 AND
(1) 13.62 X 34.87 TOP OPENINGS, HINGED REMOVABLE
COVERS, AND PANS REST ON RECESSED
STAINLESS STEEL BRACKET
END
S/S
31.5"
80cm
18"
45.9cm
PLAN VIEW
18699PTB
99"
251.5cm
81"
205.7cm
MECHANICALLY COOLED PANS
RAISED RAIL WITH (2) 13.62 X 41.87 TOP
OPENINGS, HINGED REMOVABLE COVERS,
AND PANS REST ON RECESSED STAINLESS STEEL BRACKET
END
S/S
31.5"
80cm
18"
45.9cm
END
S/S
PLAN VIEW
186114PTB
MECHANICALLY COOLED PANS
RAISED RAIL WITH (2) 13.62 X 41.87 TOP
OPENINGS, HINGED REMOVABLE COVERS,
AND PANS REST ON RECESSED STAINLESS STEEL BRACKET
END
S/S
31.5"
80cm
END
S/S
114"
290cm
96"
244cm
18"
45.9cm
ELEVATION VIEW
186114PTB
32" DOOR
32" DOOR
32" DOOR
NOTE: PANS AND ADAPTER
BARS ARE NOT INCLUDED
SHELF
27" DOOR 27" DOOR
ELEVATION VIEW
18691PTB
19" DOOR
SHELF
27" DOOR 27" DOOR27" DOOR
ELEVATION VIEW
18699PTB
PLAN VIEW
18691PTB
PLAN VIEW
18699PTB
ELEVATION VIEW
18691PTB
ELEVATION VIEW
18699PTB
