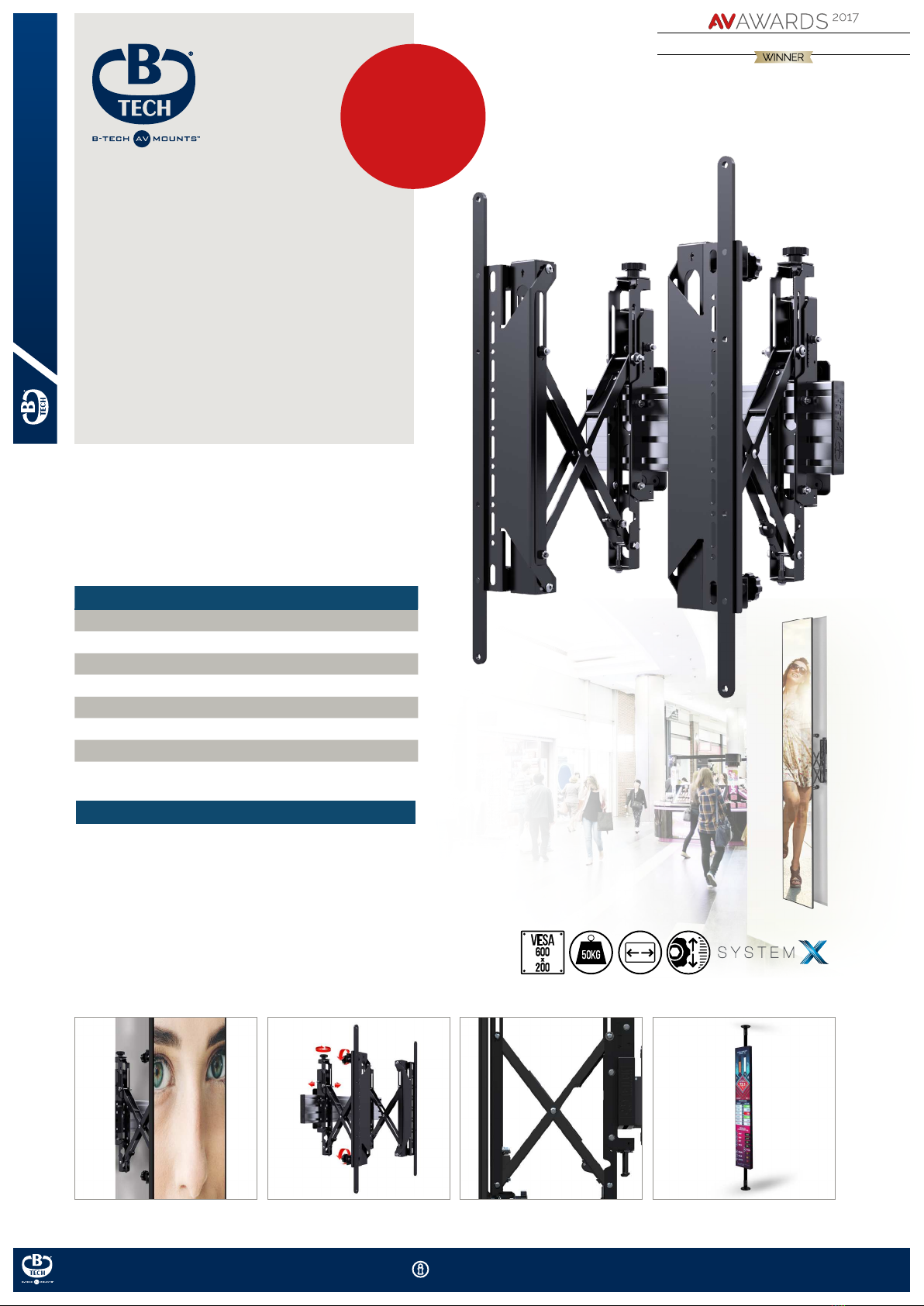

The BT9909 is a pop-out mounting solution that is ideal for portrait
mounting LG's 86BH5C Ultra Stretch Signage in a recessed wall.
Tool-less, micro-adjustment allows mounted screens to sit perfectly
ush with the wall and the pop-out mechanism provides access to
the rear of the screen for easy installation and maintenance. Safety
screws come as standard to help prevent unauthorised removal of
the screen and height adjustment screws allow the screen to be
levelled perfectly after installation.
FEATURES
 Ideal for mounting a screen in a recess
 Features pop-in, pop-out function to allow access to the rear of screens
for servicing and maintenance and to aid installation
 Tool-less micro-adjustment for seamless display alignment
 Arms feature levelling screws to adjust the screen height
 Arms include locking screw to prevent accidental pop-out of screens
 Pole mounted version for ceiling and oor mounting is available on request
 Safety screws help prevent unauthorised removal of screens
 High-end aesthetic quality with stylish end caps for a neat and tidy install
 All mounting hardware included
IDEAL FOR
lg's 86bh5c
Ultra stretch
signage
Tool-less micro-adjustment for seamless
display alignment
Pole mounted version for ceiling and oor
mounting is available on request
Arms include locking screw to prevent
accidental pop-out of screens
Ideal for mounting screens in a recess
SPECIFICATION
Recommended screen size 86" Ultra-stretch screens
Max load 50kg
VESA® compatibility 600 x 200
Depth (at) 110mm (+/-10mm with micro-adjustment)
Depth (popped out) 279mm (+/-10mm with micro-adjustment)
Screen Height Adjustment +/-20mm
Colour (horizontal rail) Silver
Colour (interface arms) Black
MANUFACTURER OF THE YEAR
TM
BT9909
system xTm Pop-Out
Ultra Stretch
Signage Mount
For Lg®86Bh5c

B-TECH av mounts
