BÖWE P12 User manual

BA P12 /P15/ 12.02 /E I
SN 707757

This machine, which works with the solvent
TETRACHLORETHENE (perc), complies with
the EC Machinery Directive 98/37 EC,
the EC Low Voltage Directive 73/23 EEC
in the version RL 93/68 EEC,
EMC Directive 89/336/EEC
and the Harmonized Standards:
EN 292 Part 1 and Part 2
EN 60204-1 (DIN-VDE 0113 Part I)
EN 418
EN ISO 8230*
The contents are correct to the best of our knowledge and belief and correspond to the present state of the technology.
No legal claims can be derived.
Subject to technical changes.
Reproduction or duplication only with our express permission.
* with the options -Safety separator and
-Distillation overfill preventer

Dear Customer,
It gives us great pleasure to present you with your BÖWE
machine. You are acquiring a machine that has been
designed and manufactured to meet the highest quality
standards and that corresponds to the latest standards in
research and technology.
Please do not put these operating instructions away without
reading them!
This manual contains all of the important information that you
need to operate your drycleaning machine.
If the prescribed maintenance work is neglected or improperly
performed, if repair work is carried out by service technicians
other than those authorized by BÖWE or if parts other than
original BÖWE spare parts are used, we naturally cannot
fulfill the guarantee obligations according to our General
Terms of Delivery.
Measurements and other values reflect the status as of the
printing date.
We reserve the right to make technical changes at any time
and without prior notice in the interest of continuing
development or when changes are considered to be
necessary for constructional reasons.
Reproduction - including excerpts - is permitted only with
written permission and when the source of the information is
indicated.
BÖWE Textile Cleaning GmbH
Rumplerstraße 2, D-86159 Augsburg
Telefon [phone], Telefax (08 21) 57 07-351
Phone: ++49-821-5707-0, Fax: ++49-821-5707-351
email: [email protected]
P12

Diese Seite ist bewusst leergelassen
This page intentionally left blank
P12

Necessary Operating Materials and Chemical Additives
Dear Customer,
In order to prevent any delays in the commissioning of your Drycleaning Machine
P 12/P15, we ask you to make sure that the following operating materials and
chemical additives are available.
- Solvent
Use only stabilized, high-purity TETRACHLORETHENE (PERC), in accordance
with DIN 53978.
Total filling amount for the first filling:
P 12: about 220 l (about 360 kg) or about 58 US gal (about 794 lbs)
P 12, 3-tank model: about 280 l (about 455 kg) or about 74 US gal (about 1003 lbs)
P 15: about 260 l (about 420 kg) or about 69 US gal (about 926 lbs)
P 15, 3-tank model: about 330 l (about 535 kg) or about 87 US gal (about 1180 lbs)
Tank I: Minimum filling volume (high level): P12: 60 l (15.8 US gal)
P15: 70 l (18.5 US gal)
Tank III: Minimum filling volume*: P12: 60 l (15.8 US gal)
P15: 70 l (18.5 US gal)
* Optional equipment
- Chemical additives
The chemical additives used must be heat-resistant under operating conditions.
Please provide the following additives, depending on the equipment:
- Drycleaning detergent
- Antistatic agent
- Waterproofing agent
- Pre- and post-spotting agents
BÖWE Textile Cleaning GmbH
Rumplerstraße 2, D-86159 Augsburg
Telefon [phone], Telefax (08 21) 57 07-351
Phone: ++49-821-5707-0, Fax: ++49-821-5707-351
email: [email protected]
P12

BÖWE P 12 /P15
Contents
P12
1 General Information..................................................................................3
1.1 Technical Literature...............................................................................................................................3
1.2 Laws, Ordinances, Directives...............................................................................................................3
1.3 Corrective Maintenance Work ..............................................................................................................3
2 Safety Regulations....................................................................................4
2.1 Safe Installation and Commissioning..................................................................................................4
2.2 Authorized Use.......................................................................................................................................4
2.3 Operation and Maintenance..................................................................................................................5
2.4 Repair Work ............................................................................................................................................6
2.5 Decocommissioning and Disassembling............................................................................................7
2.6 Further Safety Regulations ...................................................................................................................7
3 View of the Machine ...............................................................................10
3.1 General Information.............................................................................................................................10
3.2 Side View of the Machine ....................................................................................................................11
3.3 Rear View of the Machine....................................................................................................................12
4 Technical Specifications.......................................................................13
5 Settings and Optimum Operating Values........................................19
6 Operation ...................................................................................................21
6.1 First Startup..........................................................................................................................................21
6.1.1 Preparatory Work............................................................................................................................21
6.1.2 Filling Machine With Solvent...........................................................................................................21
6.1.3 Refilling Solvent ..............................................................................................................................22
6.1.4 Filling the Slimsorba Carbon Container (Optional Equipment).......................................................22
6.1.5 Filling the Water Separator .............................................................................................................23
6.1.6 Filling the Economy Filter................................................................................................................23
6.1.7 Electric Steam Generator for the Slimsorba (Optional Equipment)................................................23
6.1.8 Dosing Unit (Optional Equipment) ..................................................................................................26
6.1.9 SPP Spraymatic (Optional Equipment)...........................................................................................27
6.1.10 Still (Electrically Heated).................................................................................................................28
6.1.11 Opening the Loading Door..............................................................................................................29
6.1.12 Performing a Test Run....................................................................................................................29
6.1.13 Refrigeration Unit............................................................................................................................30
6.2 Automatic Operation - Brief Instructions ..........................................................................................31
7Functional Units...................................................................................32
7.1 Tanks.....................................................................................................................................................32
7.2 Solvent Pump .......................................................................................................................................32
7.3 Solvent Cooling System (Optional Equipment) ................................................................................32
7.4 Work Tank Cooling System.................................................................................................................32
7.5 Economy Filter for Solvent .................................................................................................................32
7.6 Cartridge Adsorption Filter .................................................................................................................33
7.7 Cage.......................................................................................................................................................34
7.8 Cage Drive.............................................................................................................................................34
7.9 Button Trap...........................................................................................................................................34

BÖWE P 12 /P15
Contents
P12
7.10 Level Controller ................................................................................................................................34
7.11 Lint Filter ...........................................................................................................................................34
7.12 Airshaft ..............................................................................................................................................34
7.12.1 Refrigeration Unit............................................................................................................................34
7.13 Cool-Down.........................................................................................................................................35
7.14 Drying Controller (Volumendrystat) ...............................................................................................35
7.15 Loading Door Venting......................................................................................................................36
7.16 Distillation .........................................................................................................................................36
7.16.1 Overfill Preventer in Still (Optional Equipment)..................................................................................36
7.17 Emission-Free Still Rake Out System ............................................................................................36
7.18 Water Separator................................................................................................................................37
7.19 Dosing Unit .......................................................................................................................................38
7.20 Spraymatic SPP ................................................................................................................................38
7.21 Slimsorba Adsorption Unit..............................................................................................................39
7.22 Solvent Safety Trough .....................................................................................................................40
8Data Display ..........................................................................................41
8.1 Temperature Display............................................................................................................................41
8.2 Operating Data .....................................................................................................................................41
8.3 What to Do When the Machine Malfunctions ....................................................................................42
9Control System and Programs........................................................43
9.1 Summary of Cleaning Programs ........................................................................................................43
9.2 Program Sequence ..............................................................................................................................44
10 Operating and Monitoring Systems............................................46
11 Maintenance.......................................................................................52
11.1 Operation and Maintenance Summary...........................................................................................52
11.2 Maintenance Points..........................................................................................................................53
11.3 Maintenance Program Summary ....................................................................................................57
11.4 Special Maintenance Features ........................................................................................................59
11.5 Maintenance Work Instructions ......................................................................................................61
11.5.1 Lint Filter/Button Trap .....................................................................................................................61
11.5.2 Water separator ..............................................................................................................................62
11.5.3 Safety Separator (Optional Equipment)..........................................................................................63
11.5.4 Economy Filter Maintenance (2nd Filter Optional) .........................................................................64
11.5.5 Cartridge Adsorption Filter Maintenance ........................................................................................65
11.5.6 Distillation Maintenance..................................................................................................................65
11.5.7 Disposal Vessel with Overfill Sensor (Optional Equipment)...........................................................68
12 Solvent Inspection and Care.........................................................69
13 Safety Remarks Located on the Machine .................................70

3
1 General Information
1.1Technical Literature
We make particular reference here to the literature and leaflets of the trade and professional
associations, research institutes and mutual indemnity associations, as well as safety data sheets
provided by the solvent producers.
1.2Laws, Ordinances, Directives
To avoid health risks and environmental damage, you must strictly comply with all directives and
regulations pertaining to the industry, particularly with regard to proper handling of
TETRACHLORETHENE (perc).
In any case, you must observe the applicable laws and regulations in the country in which the
machine is installed.
The machine complies with the following regulations:
- EC Machinery Directive 98/37 EC
- EC Low Voltage Directive 73/23 EEC in the version RL 93/68 EEC
- EMC Directive 89/336/EEC
Applied harmonized standards:
- EN 292 Part 1 and Part 2 - EN 418
- EN 60204-1 (DIN-VDE 0113 Part 1) - EN ISO 8230 *
Applied national standards and directives:
- VBG 20 - Accident Prevention Regulations for Refrigeration Plants, Heat Pumps and
Cooling Equipment
- Pressure Equipment Directive 97/23/EC
- CFC and Halon Prohibition Ordinance
When operating the system in Germany, the following laws and directives must be observed:
- 2. BImSchV
- VBG 66- Accident Prevention Regulations for Chemical Cleaning
- Water Resources Law (WHG § 19)
- Waste Disposal Law
- Technical Regulations for Dangerous Working Materials (TRGS 402)
- VDI Guidelines
- VDE Regulations
- DIN standards
1.3Corrective Maintenance Work
We recommend that you commission the customer service department of the BÖWE organization for
the maintenance, servicing and operating safety of this valuable drycleaning machine. The customer
service organization uses original BÖWE spare parts when making replacements.
* with the options - safety separator and
- distillation overfill preventer
P12

4
2 Safety Regulations 2
Each person who is charged with the installation, commissioning, operation, maintenance or repair of
the drycleaning machine must first have read and understood the operating and installation instructions.
In particular, we refer to the observation of the relevant laws and regulations for the countries in
question.
The cleaning machine has been built according to the latest state of the technology. Only persons who
are familiar with the machine and informed of the possible risks are authorized to set up, install,
commission, operate, maintain and repair this machine. The relevant accident prevention regulations
and other regulations involving safety and medical care for workers must be strictly adhered to.
Safety Symbols
This safety symbol identifies particular information regarding occupational safety. It
points out hazards and serves to protect personnel from physical injury. All
applicable laws and regulations must be observed; the information on occupational
safety only emphasizes particularly dangerous areas. Failure to observe this
information can result in serious consequences for the health, up to and including
life-threatening injuries.
This symbol provides important information on the correct use of the machine.
Failure to observe this information can lead to disturbances in the machine or
surrounding area.
You are not permitted to bypass or turn off safety devices or to make them otherwise inoperative. You
must observe all applicable industrial safety regulations during installation and repair work. You must
dispose of distillation residues and process water in accordance with regulations.
2.1Safe Installation and Commissioning 2.1
You must install the drycleaning machine according to the enclosed installation instructions. The room
must be sufficiently ventilated.
You are not permitted to operate the machine in potentially explosive areas or in areas in which systems
with open flames have been installed.
The BÖWE Customer Service Department is responsible for carrying out the first startup.
2.2Authorized Use 2.2
This drycleaning machine has been designed exclusively for operation with the solvent
TETRACHLORETHENE (perc). (See "Necessary Operating Materials and Chemical Additives”). Handle
these solvents only when absolutely necessary and wear protective gloves and goggles.
P12

5
2. Safety Regulations 2
This closed-circuit drycleaning machine for industrial use (including use in cleaning shops) is intended
for cleaning textile articles (also leather or fur or for treating skins). This drycleaning machine is not
intended for customer access (such as in self-service shops).
You are not permitted to treat textiles that are easily inflammable or poisonous or that contain
radioactive materials.
The definition of authorized use includes compliance with the operating, maintenance and repair
conditions prescribed by BÖWE.
The manufacturer is not liable for damages resulting from unauthorized use or from changes to the
system made without proper authority.
2.3Operation and Maintenance
Only trained service personnel who are familiar with the machine are authorized to operate and
maintain the BÖWE drycleaning machine. Safety regulations must be observed during operation and
maintenance.
Do not start the system unless all protective devices (belt guards for cage and filter drives) are in place
and functional.
Check the operating safety of the machine (sealing test) and the liquid levels daily before turning it on.
Dispose of lint, process water and distillation residues according to the operating instructions.
Do not perform any maintenance work when the machine is in operation. Make sure that the solvents,
lubricants and chemical additives meet the specified quality requirements.
Perform maintenance work only when the machine is turned off and secured and has cooled off.
P12

6
2. Safety Regulations 2.
Attention: Check the liquid level before opening the still door.
Attention: Do not dispose of distillation residues in the sewer system
or normal garbage. You must dispose of these residues
according to country-specific regulations on special waste.
Requirements for the owner and operating personnel
According to the legal stipulations of the German accident prevention
regulations VBG 66 and the 2nd BlmSchV, special knowledge is required
for the operation and maintenance of drycleaning systems. A person with
this special knowledge must regularly be present during the operation of
drycleaning systems.
2.4Repair Work 2.4
Only skilled workers with suitable protection devices and work tools are authorized to carry out repairs.
Make sure that there are no solvent emissions.
During repair and cleaning work:
Turn main switch off
Close the stop valves on the supply lines (steam, condensate and compressed air).
Make sure that the system cannot be turned on without permission (close off and put up a sign " DO
NOT TURN ON – REPAIR WORK")
Always remove the main fuse when working on the electrical system.
Use only original fuses to replace defective ones.
When working on pneumatic control parts, make sure that there is no pressure in the system.
Only specially trained refrigeration technicians are authorized to make repairs to the refrigeration unit.
All spare parts used must comply with the technical standards set by the manufacturer.
P12

7
2 Safety Regulations 2
2.5Decocommissioning and Disassembling
Only skilled workers with suitable protection devices and work tools are authorized to decommission
and disassembly the system.
When decommissioning and disassembling the machine, drain all solvent from the machine,
including the pipelines, valves and fittings. You must remove residues that could cause
environmental pollution.
You must separate electric lines and pipelines that were used to supply or drain the machine from the
supply network. Make sure that they cannot be turned on by unauthorized persons.
Have an authorized customer service technician dispose of the cooling agent from the refrigeration unit.
2.6Further Safety Regulations
This BÖWE drycleaning machine works with TETRACHLORETHENE (perc). This solvent is hazardous
to the health and is rated as slightly toxic in the context of the German Hazardous Substances
Ordinance.
Drinking, eating and food storage are prohibited in the area where the machine is installed.
Open flames and fires are not allowed in the operating area. No smoking is allowed.
Install steam generators in such a way that they do not draw in air containing solvent.
A BÖWE customer service representative must train the personnel in the operation of the machine
before the first startup. This training must include information on safe operation and possible hazards.
The owner is responsible for employing trained personnel to load and unload the machine and must
employ well-informed and expert personnel for maintenance work. No unauthorized personnel are
allowed in the area of the machine.
The daily checks prescribed in the operating instructions represent the minimum requirements.
Operating personnel must immediately report any changes in the machine that could affect the safety.
P12

8
2 Safety Regulations 2
The owner is obligated:
- to draw up clear regulations regarding responsibility for operation and maintenance, to ensure that
the machine is only operated when it is in perfect condition and to ensure the order, safety and
cleanliness at the workplace by means of instructions and inspections.
The owner is obligated to make sure that no working method is used that could place the health of the
personnel, the environment or the safety of the machine at risk.
Notice and warning signs must be placed on the machine or in the operating area in plain sight.
Damaged or missing signs must be replaced immediately. The specified safety regulations must be
followed at all times.
In the event of any kind of hazard, stop the machine immediately and turn off the main switch.
If there is a solvent leak:
Turn off the machine
Immediately send all personnel into an open area
Open windows and doors
Cut off the cause of the solvent leak
Change any clothing that is wet with TETRACHLORETHENE (perc)
If necessary, request a BÖWE customer service technician.
The escape of larger amounts of solvent is a reportable malfunction. It must be reported to the
responsible authorities, industrial control group, fire department, water resources board or subordinate
water authorities.
P12

9
2 Safety Regulations
The proper handling of perchlorethylene is an important prerequisite for workplace safety.
Note the following potential hazards:
TETRACHLORETHENE (perc) is a very good grease remover; it also removes natural oils from
unprotected skin.
Protection: Wear solvent-resistant protective gloves, apply skin cream with oil to the hands.
Liquid TETRACHLORETHENE (perc) is a strong irritant to the eyes.
Protection: Wear protective goggles.
Inhalation of TETRACHLORETHENE (perc) vapors reduces alcohol tolerance.
Protection: Do not consume alcohol while working or for a short time after.
TETRACHLORETHENE (perc) decomposes in the presence of an open flame or red-hot parts.
Protection: No smoking.
TETRACHLORETHENE (perc) vapors irritate the mucous membranes of the respiratory passage
and eyes.
Protection: Prevent vapors from escaping and wear respiratory equipment when performing
extensive maintenance work (DIN 3181 gas filter, brown).
Caution: It is possible to smell perc (odor threshold) in concentrations as low as
5 ml/m3of air.
TETRACHLORETHENE (perc) affects the central nervous system similar to an
anesthetic and can result in unconsciousness and, in very high concentrations, even in
death.
Do not overload the machine.
The operating instructions provided by the company define special rules and regulations for the area
where the machine is installed. These instructions also contain information on all additional protective
measures, first aid instructions and information on correct behavior during operating malfunctions,
according to the local conditions.
The German Hazardous Substances Ordinance, VBG 66 and the 2nd BImSchV stipulate the obligation
to provide operating instructions.
P12

10
3 View of the Machine 3
MADEINGERMANY E
6
3
9
C
7
0
8
4
1 2
5
BÖWE
F4
F2
F3
F1
BÖWE
707757-02-0
3.1General Information 3.1
The BÖWE P 12 /P15 is a state-of-the-art drycleaning machine with a
computer control system.
The high level of the processing technology that it offers allows you to treat
virtually all textiles on the market without problems.
The machine has been designed for use with the solvent
TETRACHLORETHENE (perc).
The machine serial number is on the nameplate.
The BÖWE P 12 /P 15 is available in a Slimline version
with the distillation module behind the machine block
or in a Crossline version with the distillation module beside the
machine block (shown in the figure).
P12

11
3 View of the Machine
3.2Side View of the Machine
Slimline
707758-02-0
1 Switch panel 14 Dosing unit
2 Loading door 15 Spraymatic SPP
3 Cage 16 Economy filter 1
4 Tanks 1 + 2 17 Cartridge adsorption filter 1 *
5 Safety trough 18 Filter drive
6 Cage drive 19 Economy filter 2 **
7 Solvent pump 20 Cartridge adsorption filter 2 *
8 Button trap/lint filter 21 Condenser
9 Special tank 3 ** 22 Slimsorba carbon container **
10 Pump for still rake out system 23 Fan
11 Safety separator ** 24 Refrigeration unit
12 Still 25 Venting and aeration filter
13 Water separator 26 Air shaft flap
27 Air shaft
* Option, USA standard
** Option
P12

12
3 View of the Machine 3

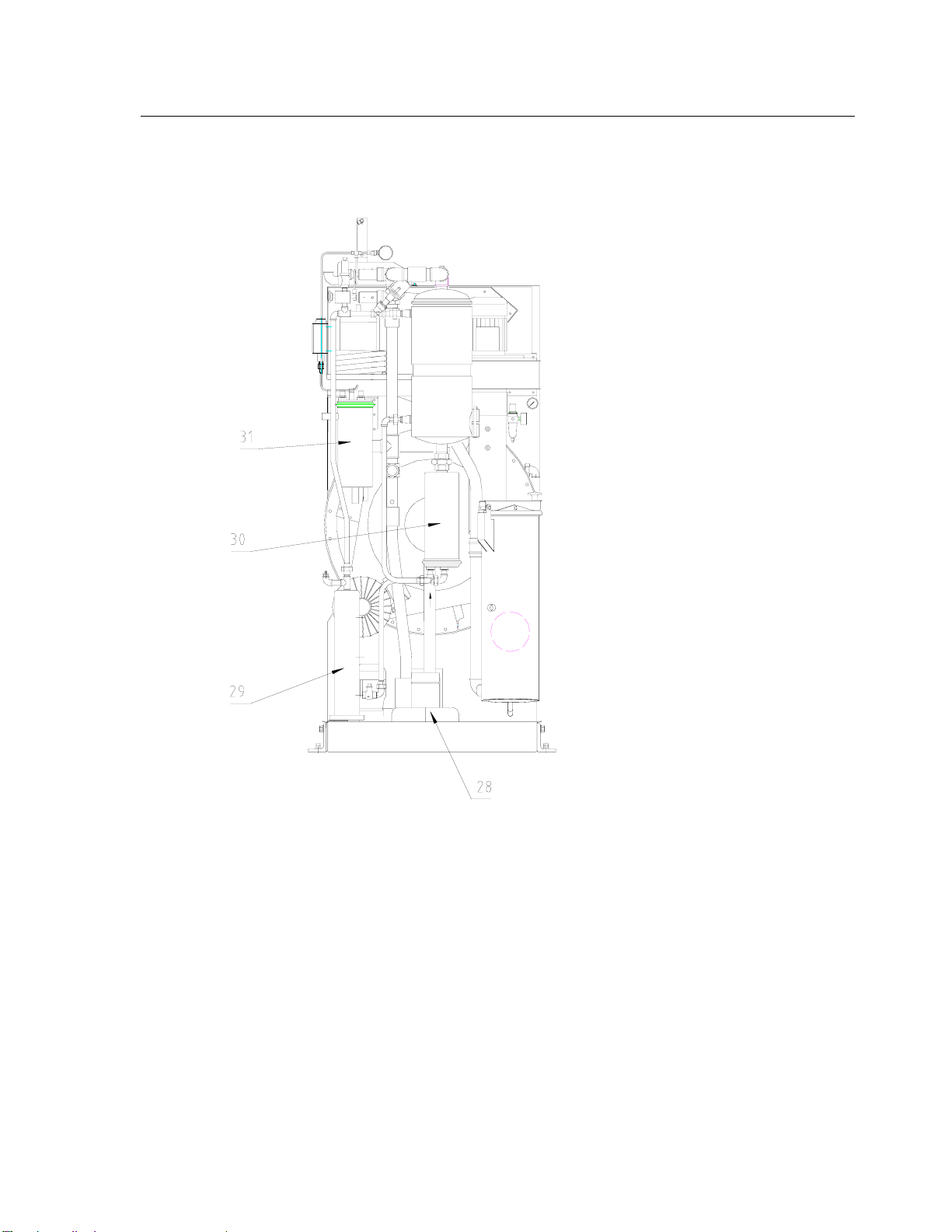

3.3Rear View of the Machine 3.3
Slimline
707758-03-0
28 Slimsorba fan**
29 Slimsorba electric steam generator **
30 Slimsorba air heater **
31 Detergent solution cooler **
** Option
P12

13
4 Technical Specifications 4
P12
Heating Steam Electric
Filling capacity kg(lb) 12(26.5) 12(26.5)
Cage volume l(US gal) 240(63.4) 240(63.4)
Cage diameter mm(in) 820(32.3) 820(32.3)
Cage depth mm(in) 460(18.1) 460(18.1)
Cleaning speed RPM 40 40
Spinning speed: standard/variable
speed drive RPM 375 /400 375 /400
Max. g-factor 73 73
Low level l(US gal) 30(7.9) 30(7.9)
High level l(US gal) 60(15.8) 60(15.8)
Operating load (max. at 400 V, 50 Hz)
With distillation kW 4.5 13.7
With distillation with Slimsorba kW 5.2 20.1
Connected loads: (measured values)
Compressor capacity kW 3.5 3.5
Fan capacity kW 1.1 1.1
Solvent pump capacity kW 0.55 0.55
Still rake out system pump capacity kW 0.55 0.55
Cage drive capacity, cleaning/spinning kW 0.55 /1.9 0.55 /1.9
Filter drive capacity kW 0.37 0.37
Slimsorba fan capacity kW 0.75 0.75
Air shaft heater battery capacity kW - 4.3
Distillation capacity kW - 10
Slimsorba steam generator capacity kW - 6
Dimensions:
Machine:
Width: Slimline
Crossline
mm(in)
mm(in)
1080(42.5)
1840(72.4)
1080(42.5)
1840(72.4)
Depth: Slimline
Crossline
mm(in)
mm(in)
2165(85.2)
1390(54.7)
2165(85.2)
1390(54.7)
Height inc. trough mm(in) 2260(89.0) 2260(89.0)
Height inc. trough without air shaft flap mm(in) 1995(78.5) 1995(78.5)
Floor space: Slimline
Crossline
m2(ft2)
m2(ft2)
2.3(24.8)
2.5(27.0)
2.3(24.8)
2.5(27.0)
P12

14
4 Technical Specifications 4
P12
Heating Steam Electric
Filling volumes:
Tank I filling l(US gal) 120(31.7) 120(31.7)
Tank II filling l(US gal) 80(21.2) 80(21.2)
Tank III filling l(US gal) 100(26.4) 100(26.4)
Economy filter l(US gal) 40(10.6) 40(10.6)
Cartridge filter l(US gal) 15(4) 15(4)
Distillation filling
total
l(US gal)
l(US gal)
120(31.7)
160(42.2)
120(31.7)
160(42.2)
Consumption for drying:
Drying time inc. reduction without Slimsorba
with Slimsorba
min.
min.
20
25
20
25
El. energy drying without Slimsorba
with Slimsorba
kWh
KWh
1.7
1.9
2.7
3.1
Saturated steam drying without Slimsorba
with Slimsorba
kg(lb)
kg(lb)
1.8(4)
2.5(5.5) -
Cooling water drying (12 °C/53.6 °F)
without Slimsorba
with Slimsorba
l(US gal)
l(US gal)
38(10.0)
56(14.8)
42(11.1)
56(14.8)
Consumption for distillation:
Distilled solvent l(US gal) 25(6.6) 25(6.6)
El. energy distillation kWh - 4.3
Saturated steam distillation kg(lb) 5.0 (11.0) -
Cooling water for dist. (12 °C or 53.6 °F) l(US gal) 65(17.4) 75(19.8)
Consumption per cycle: *
El. energy without Slimsorba
with Slimsorba
kWh
kWh
1.9
2.1
7.2
7.6
Saturated steam without Slimsorba
with Slimsorba
kg(lb)
kg(lb)
6.8(15)
7.5(16.5) -
Cooling water drying (12 °C or 53.6° F)
without Slimsorba
with Slimsorba
l(US gal)
l(US gal)
103(27.2)
121(31.9)
117(30.9)
131(34.6)
Compressed air (6 bar/87 psi) l(US gal) 6(1.6) 6(1.6)
Dimensions may differ if special options are used
P12

15
4 Technical Specifications 4
P12
Heating Steam Electric
Other data:
Dist. throughput (DIN 11916) max. l/h(US gal/h) 120(31.7) 75(19.8)
Filter throughput l/h(US gal/h) 4000(1056) 4000(1056)
Filter surface, economy filter m2(ft2) 2.4(25.8) 2.4(25.8)
Weight without solvent: Slimline
Crossline
kg(lb)
kg(lb)
980(2161)
1080(2381)
980(2161)
1080(2381)
Weight with solvent: Slimline
Crossline
kg(lb)
kg(lb)
1300(2866)
1400(3087)
1300(2866)
1400(3087)
Floor space: Slimline
Crossline
m2(ft2)
m2(ft2)
2.3(24.81)
2.5(27)
2.3(24.81)
2.5(27)
Floor surface *** Slimline
Crossline
m2(ft2)
m2(ft2)
1.3(14)
1.3(14)
1.3(14)
1.3(14)
Cage centrifugal force N(lb) 4800(1079) 4800(1079)
Floor load Slimline
stat. and dyn. Crossline
N/m2(lb/ft2)
N/m2(lb/ft2)
13600(284)
14300(299)
13600(284)
14300(299)
Noise level dB (A) 64 64
Carbon filling, Slimsorba kg(lb) 10(22) 10(22)
Heat balance:
Heat to dissipate
via cooling water ****:
Without Slimsorba kJ/h 25000 26000
With Slimsorba ** kJ/h 26000 27000
Heat dissipated to the surroundings *:
Without Slimsorba kJ/h 9300 9300
With Slimsorba 9500 9500
* Values apply to a standard 2-bath cycle, 1st bath low level for distillation at cooling water inlet temperature
+ 12 °C (53.6 °F), cage housing outlet temperature 50 °C (122 °F), condensation pressure 22 bar (319
psi), 16 min. drying, 4 min. reduction, steam supply 4 – 5 bar (58 – 72.5 psi) overpressure saturated
steam, ambient temperature 5 to + 40 °C (41 – 104 °F) (with Slimsorba: 3 min. reduction, 6 min.
adsorption)
** Inc. desorption process per 25 cycles
*** Portion of the floor surface for force transmission, see Installation Instructions, Point 5.3.1
**** Refers to water without any additives
Subject to change!
P12
