Baby Relax DA8269-1 User manual

Model No:
UPC CODE:
NOTE:
Lot number:
(TAKEN FROM CARTON)
_____________________________________
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
Date of purchase:
_______ / _______ / _______
KEEP FOR FUTURE REFERENCE.
THIS INSTRUCTION BOOKLET
0-65857-19265-0 (TIMBER)
INSTRUCTION MANUAL
DA8269-1W (WHITE)
DA8269-1 (TIMBER)
COLLINS 3-DRAWER
DRESSER AND TOPPER
0-65857-19266-7 (WHITE)
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

*
*
*
*
*
*
*
*
Serious or fatal crushing injuries can occur from furniture tipover. To help prevent tipover:
* Install tipover restraint provided.
* Place heaviest items in the lower drawers.
* Unless specifically designed to accommodate, do not set TVs or other heavy objects on top of this product.
* Never allow children to climb or hang on drawers, doors or shelves.
* Never open more than one drawer at a time.
* Do not defeat or remove the drawer interlock system.
* Use of tipover restraints may only reduce, but not eliminate, the risk of tipover.
*
*
*
*
*
*
*
*
*
Avoid serious injury. Never leave child unattended.
FALL HAZARD - Children have suffered serious injuries after falling from changing table. Falls can happen quickly.
STAY within arm's reach.
ALWAYS secure this unit to the dresser (Model # DA8269-1 / DA8269-1W) by using the hardware provided. See
instructions.
The maximum recommended weight of the child is 30 lbs (13.60 kgs).
This unit is to be used with a changing pad measuring 16 inches X 32 inches and not exceeding 2 inches in thickness
(excluding the height of any contoured edges).
Always secure the child to the changing pad using safety straps attached to changing pad.
Ensure all parts and components are present before beginning assembly.
Assemble on a soft, smooth surface to prevent damage to the product finish.
Use the wall safety strap provided to secure the unit to the wall.
NOTES AND INSTALLATION
CUSTOMER SERVICE
DO NOT use power tools.
CAUTION: Adult assembly required.
Assembly will require two people.
To avoid unnecessary damage, when levelers have been extended, DO NOT drag across surface when moving. Be sure
to lift and carry the item to its location.
Estimated assembly time: 60 minutes.
A Phillips head screw driver is not included.
Read all instructions before use of the changing unit.
Keep instructions for future use.
DO NOT use the unit if it is damaged or broken.
When used as a changing dresser, this unit must be used with a changing pad (not provided) equipped with safety straps
that secure the child to the changing pad as well as straps that secure the pad to the dresser.
WARNING
Montreal, Quebec
12345 Albert-Hudon Boulevard, Suite 100
Dorel Living - Customer Service Department
You can also contact us by writing to the address listed below. Please include the product model number, color and a detailed description of your
enquiry.
Canada, H1G 3L1

WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used occasionally to clean surface.
Dry immediately. Do not use any abrasives that may damage finish. Excessive exposure to sunlight and extreme changes in
temperature and moisture can damage wood furniture.
Check bolts/screws periodically and tighten them if necessary.
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This
warranty covers 1 year from the date of original purchase from authorized retailers. This warranty is valid only upon
presentation of proof of purchase. This is solely limited to the repair or replacement of defective furniture components and no
assembly labor is included. This warranty does not apply to any product which has been improperly assembled, subjected to
misuse or abuse or which has been altered or repaired in any way. The warranty does not cover wearing, tearing, fading or
splitting of the fabric (where applicable). This warranty gives you specific legal rights and you may also have other rights
which vary from State to State or Province to Province.
1-YEAR LIMITED WARRANTY
CARE, CLEANING AND MAINTENANCE

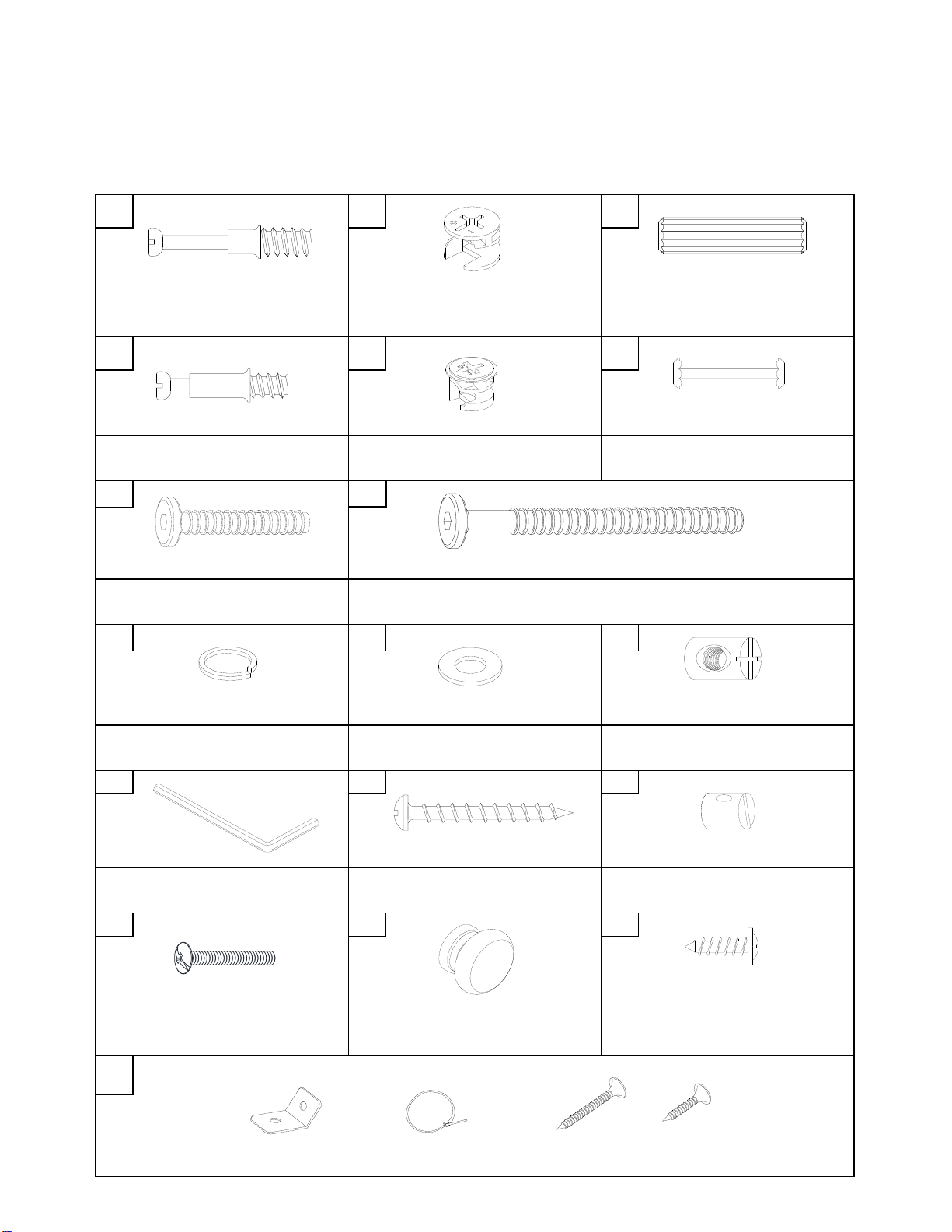

HARDWARE LIST
1 2 3
4 5 6
7 8
910 11
12 13 14
15 16 17
18
BOLT
6 PCS
KNOB
6 PCS
SCREW
14 PCS
Ø9 X 4 X 25mm
M3 X 15mm
BOLT
4 PCS
Ø1/4" X 3"
Ø8 X 4 X 35mm
ALLEN KEY
1 PC
SCREW
16 PCS
PLASTIC BARREL NUT
12 PCS
SPRING WASHER
6 PCS
Ø13 X 1/4" X 1mm
Ø9.5 X 1/4" X 15mm
FLAT WASHER
6 PCS
BARREL NUT
4PCS
Ø12 X 1/4" X 1.5mm
CAM BOLT
14 PCS
WOOD DOWEL
18 PCS
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W
Ø8 X 30mm
Ø6 X 20mm
Ø1/4" X 1-3/8"
BOLT
2 PCS
CAM BOLT
18 PCS
WOOD DOWEL
22 PCS
CAM LOCK
14 PCS
CAM LOCK
18 PCS
Ø8 X 8mm
SAFETY STRAP 2 PACKS
SHORT SCREW
2 PCS
LONG SCREW
2 PCS
4 PCS SAFETY WALL STRAP
MOUNTING BRACKET 2 PCS

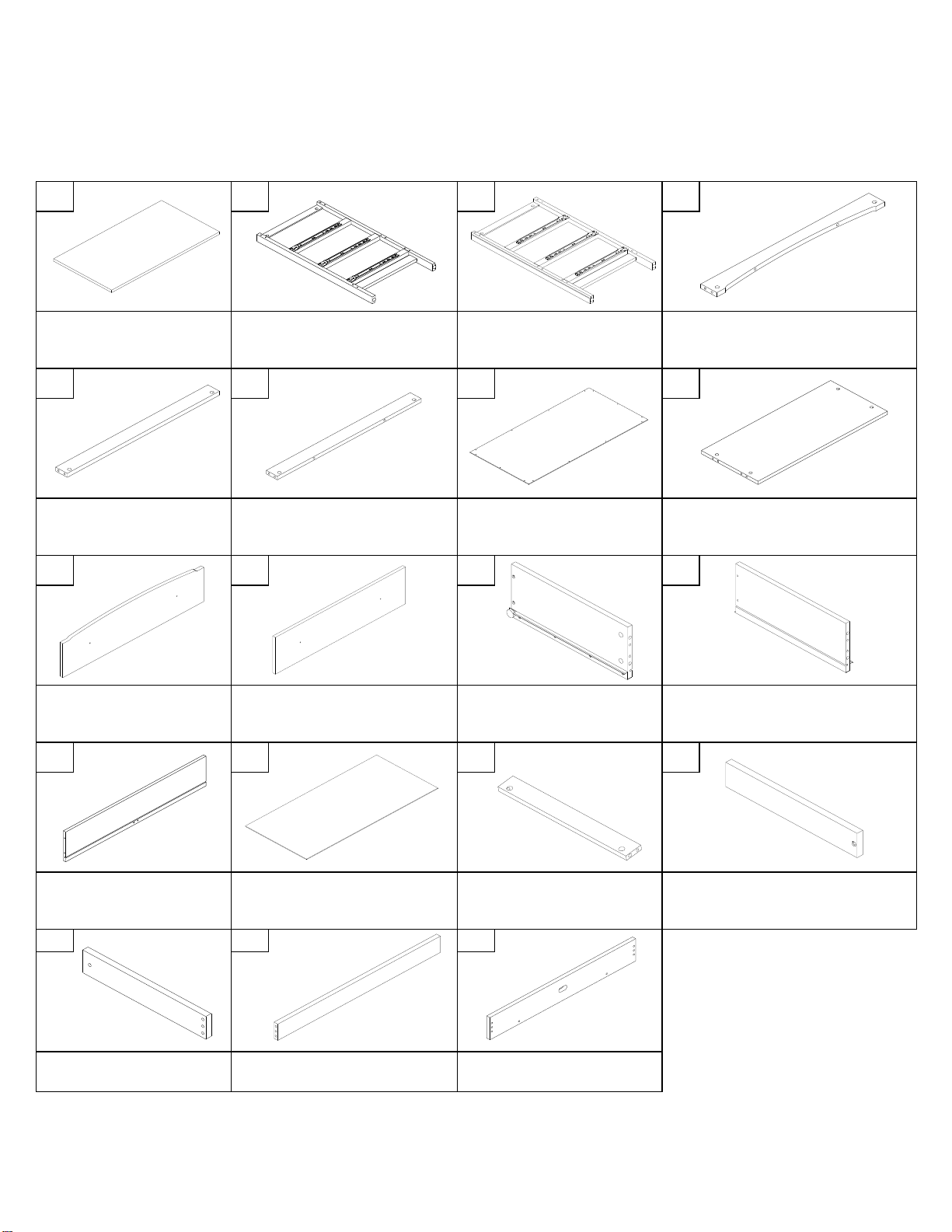

PARTS LIST
A B C D
E F G H
I J K L
M N O P
Q R S
1 PC
1 PC
1 PC
RIGHT RAIL
FRONT RAIL
BACK RAIL
LEFT SIDE PANEL
1 PC
1 PC
1 PC
FRONT BOTTOM RAIL
1 PC
1 PC
RIGHT SIDE PANEL
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W
3 PCS
3 PCS
3 PCS
1 PC
DRAWER BACK
BACK BOTTOM PANEL
BACK TOP PANEL
DRAWER RIGHT SIDE
BACK TOP RAIL
1 PC
DRAWER LEFT SIDE
1 PC
DRAWER BOTTOM
1 PC
LEFT RAIL
TOP DRAWER FRONT
TOP PANEL
2 PCS
DRAWER BOTTOM RAIL
3 PCS
3 PCS
BOTTOM DRAWER FRONT
FRONT TOP RAIL
1 PC

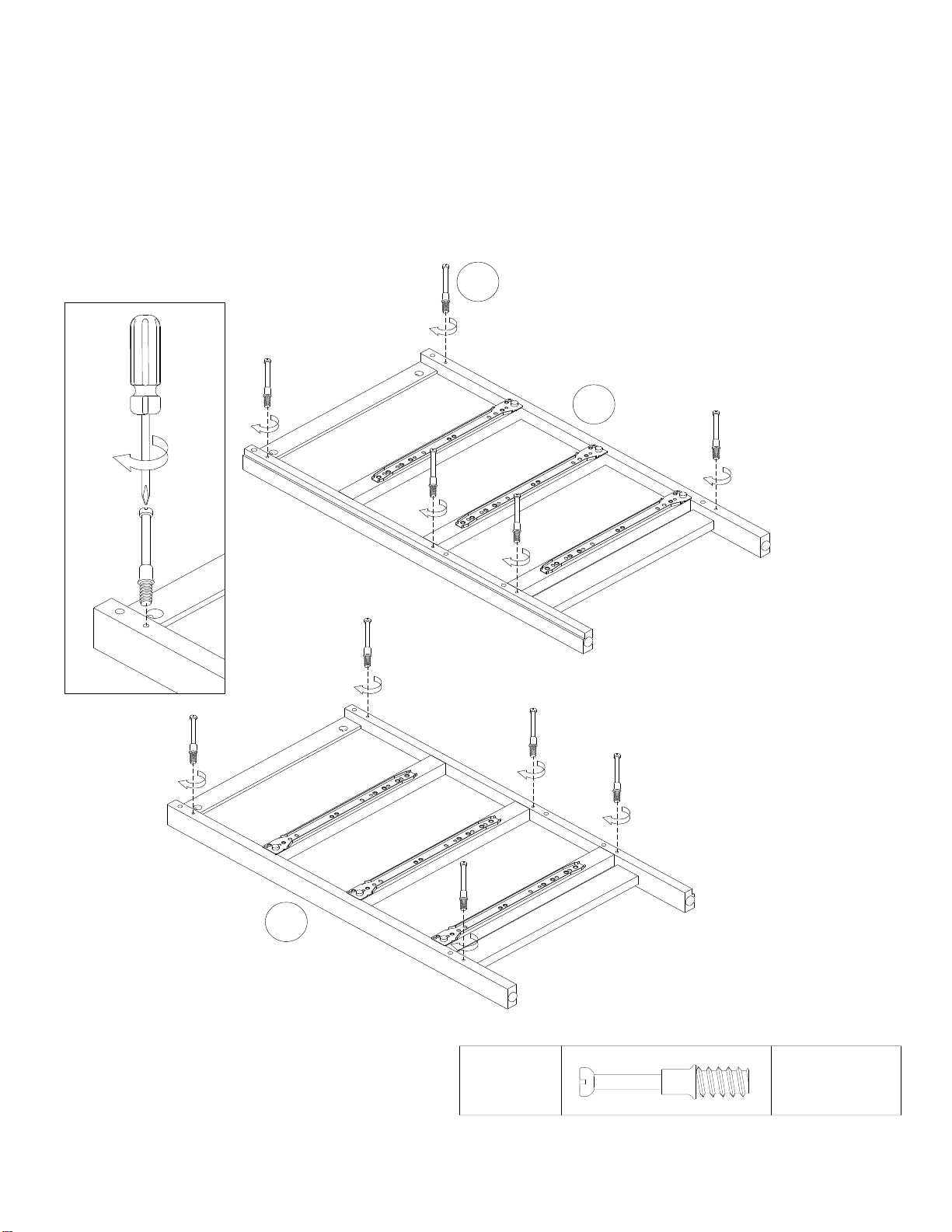

STEP 1
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W
Insert cam bolt (1) into the left and right side panel (B & C) using a Phillips head screwdriver (not
included) as shown.
110 PCS
B
1
C

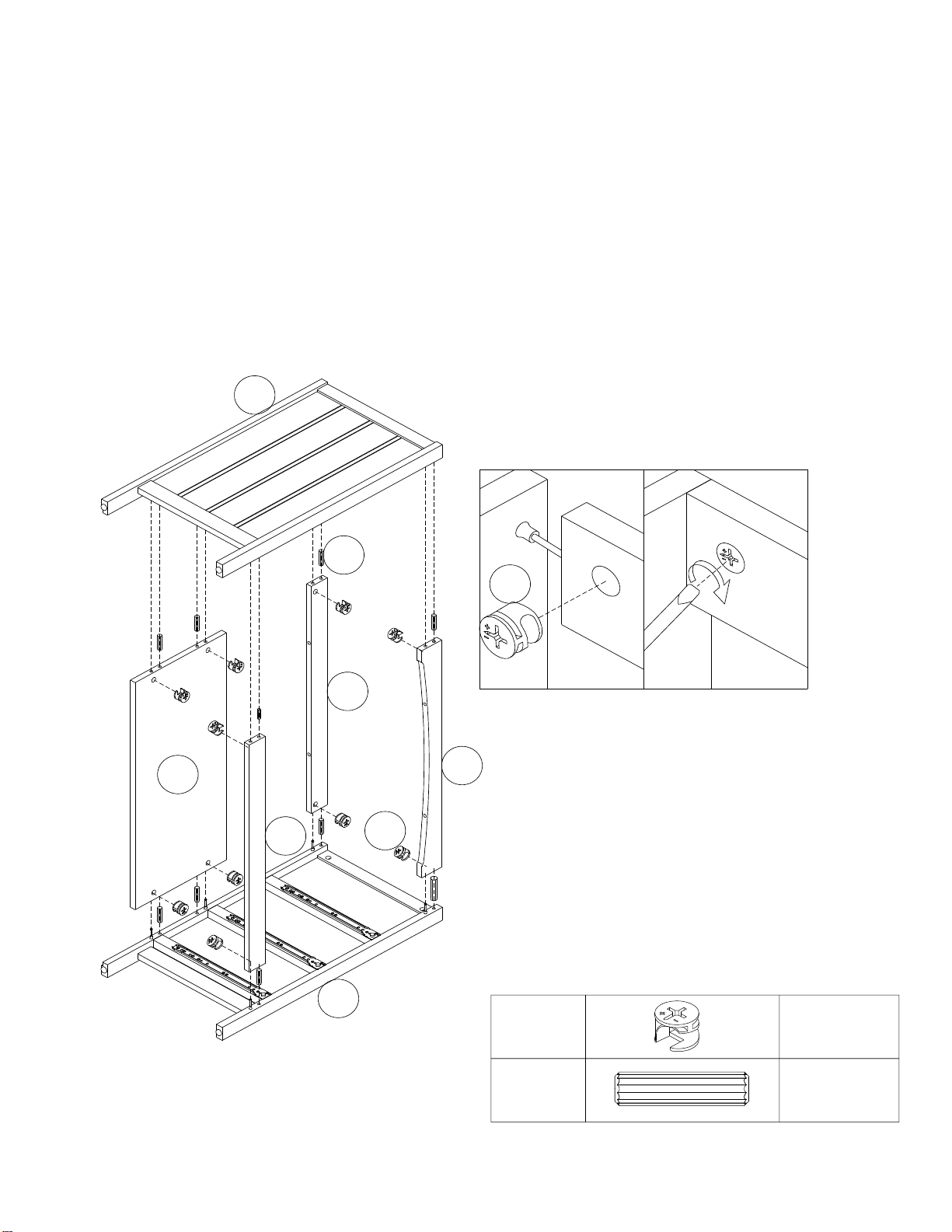

STEP 2
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W
Insert cam locks (2) and wood dowels (3) into the front top and bottom rail (D & E), back top rail (F) and
back bottom panel (H) as shown.
Attach the front top and bottom rail (D & E), back top rail (F) and back bottom panel (H) to left and right
side panels (B & C).
Secure the rails and panel by rotating the cam locks (2) 1/2 turn clockwise using a Phillips head
screwdriver (not included).
3
10 PCS
10 PCS
2
B
C
H
F
E
3
2
D
2

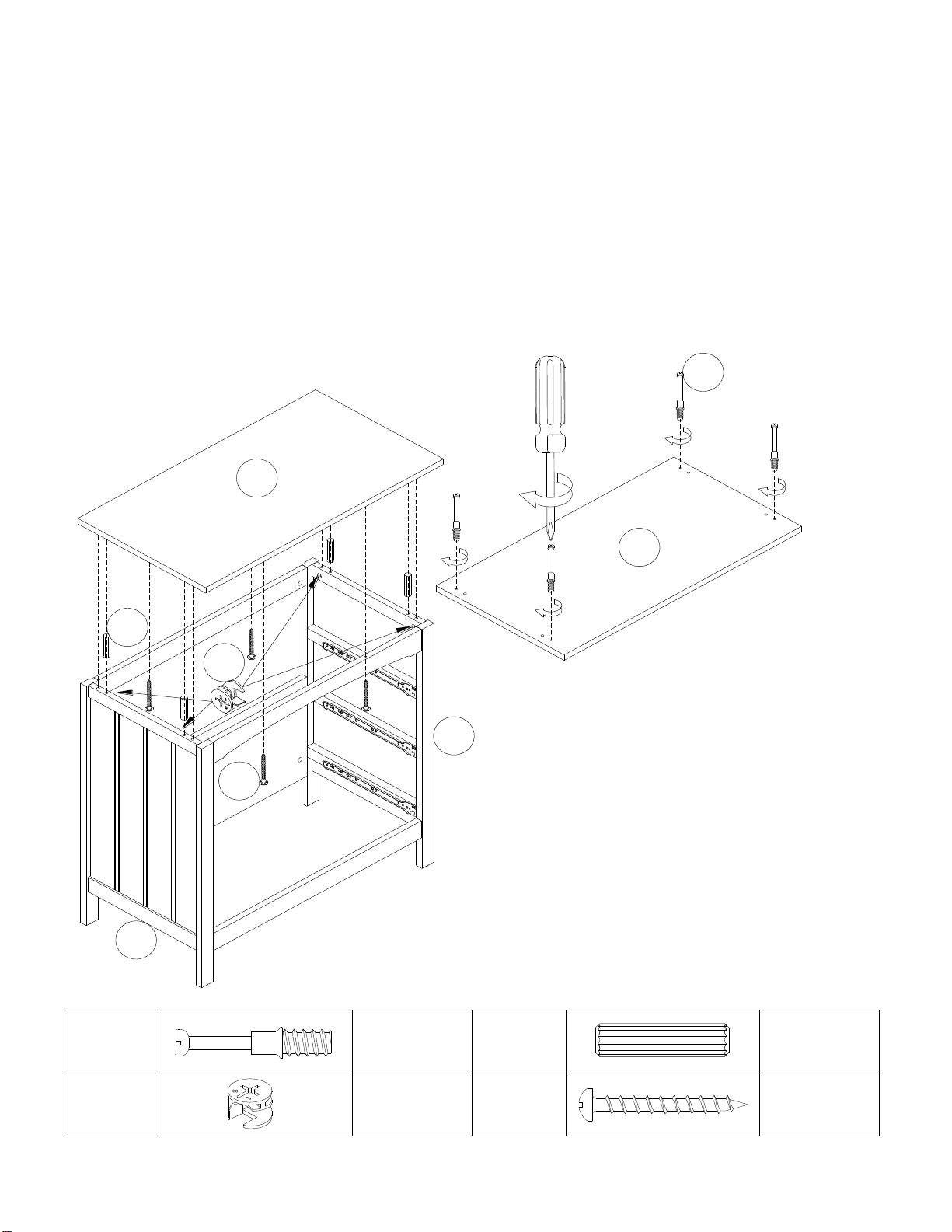

STEP 3
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W
Insert cam bolts (1) into the top panel (A) as shown.
Insert cam locks (2) into the left and right side panel (B & C) as shown.
Attach top panel (A) to the left and right side panel (B & C) with wood dowels (3) as shown. Secure the
top panel (A) by rotating the cam locks (2) on left and right side panel (B & C) 1/2 turn clockwise using a
Phillips head screwdriver (not included).
Further secure top panel (A) to the assembled unit with screws (13). Use a Phillips head screwdriver (not
included) to tighten screws.
4 PCS
4 PCS
1
4 PCS
4 PCS
13
3
2
A
13
1
C
A
2
3
B

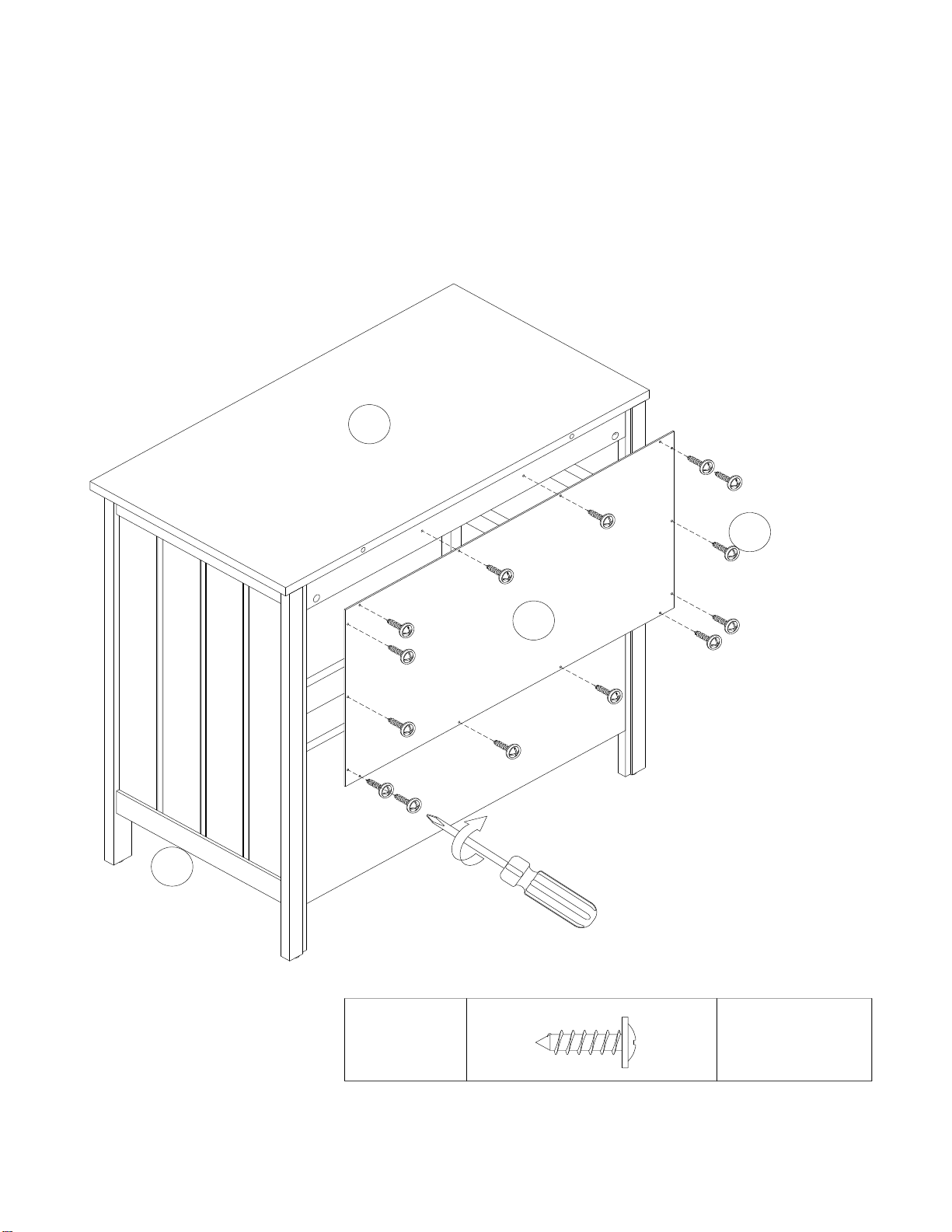

STEP 4
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W
Attach back top panel (G) to the assembled unit with screws (17) as shown.
Use a Phillips head screwdriver (not included) to tighten the screws.
17 14 PCS
G
17
A
C

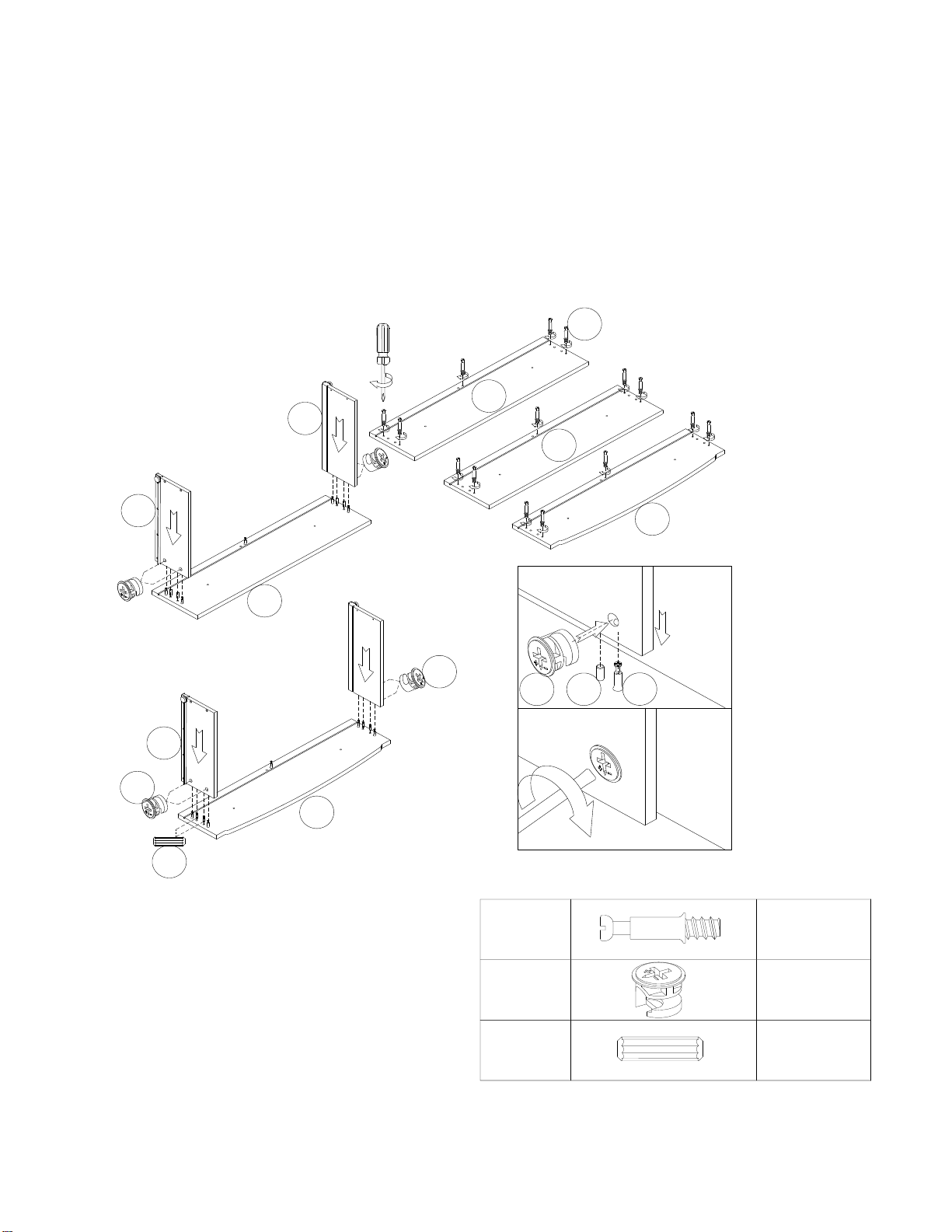

STEP 5
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W
Insert cam bolts (4) into the drawer fronts (I & J) as shown.
Insert wood dowels (6) and cam locks (5) into the drawer left and right sides (K & L) as shown.
Secure the drawer left and right sides (K & L) to drawer fronts (I & J) by rotating the cam locks (5) 1/2
turn clockwise using a Phillips head screwdriver (not included).
5
4
6
12 PCS
15 PCS
12 PCS
K
J
54
6
J
5
J
I
5
4
K
L
I
6

STEP 6
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W

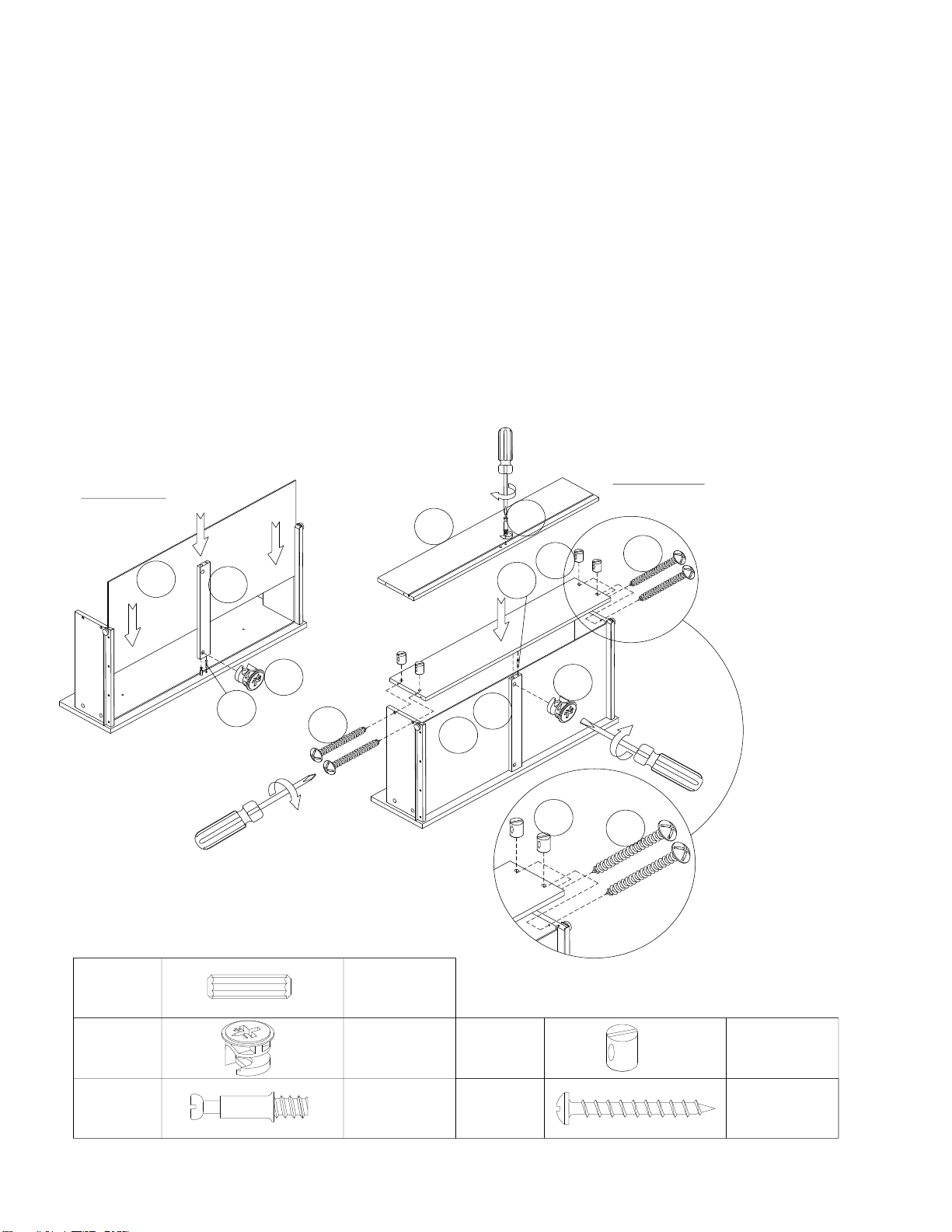

Slide the drawer bottom (N) into the grooves of drawer left and right sides and drawer front.
Insert wood dowel (6) and cam lock (5) into the drawer bottom rail (O) as shown in figure 1. Secure
drawer bottom rail (O) to drawer front by rotating the cam lock (5) 1/2 turn clockwise using a Phillips
head screwdriver (not included).
Insert cam bolt (4) into drawer back (M) as shown in figure 2.
Insert wood dowel (6) and cam lock (5) into the drawer bottom rail (O) as shown in figure 2.
Attach drawer back (M) to the drawer sides with screws (13) and plastic barrel nuts (14). Secure drawer
bottom rail (O) to drawer back (M) by rotating the cam lock (5) 1/2 turn clockwise using a Phillips head
screwdriver (not included).
Repeat above steps for other drawers.
* USE FLAT HEAD
SCREWDRIVER (NOT
INCLUDED) TO ALIGN
PLASTIC BARREL NUT
WITH SCREW.
Figure1
O
5
N
613
M13
13
O5
14
4
14
N
Figure 2
6
3 PCS 12 PCS
56 PCS
6
413
6 PCS
12 PCS
14

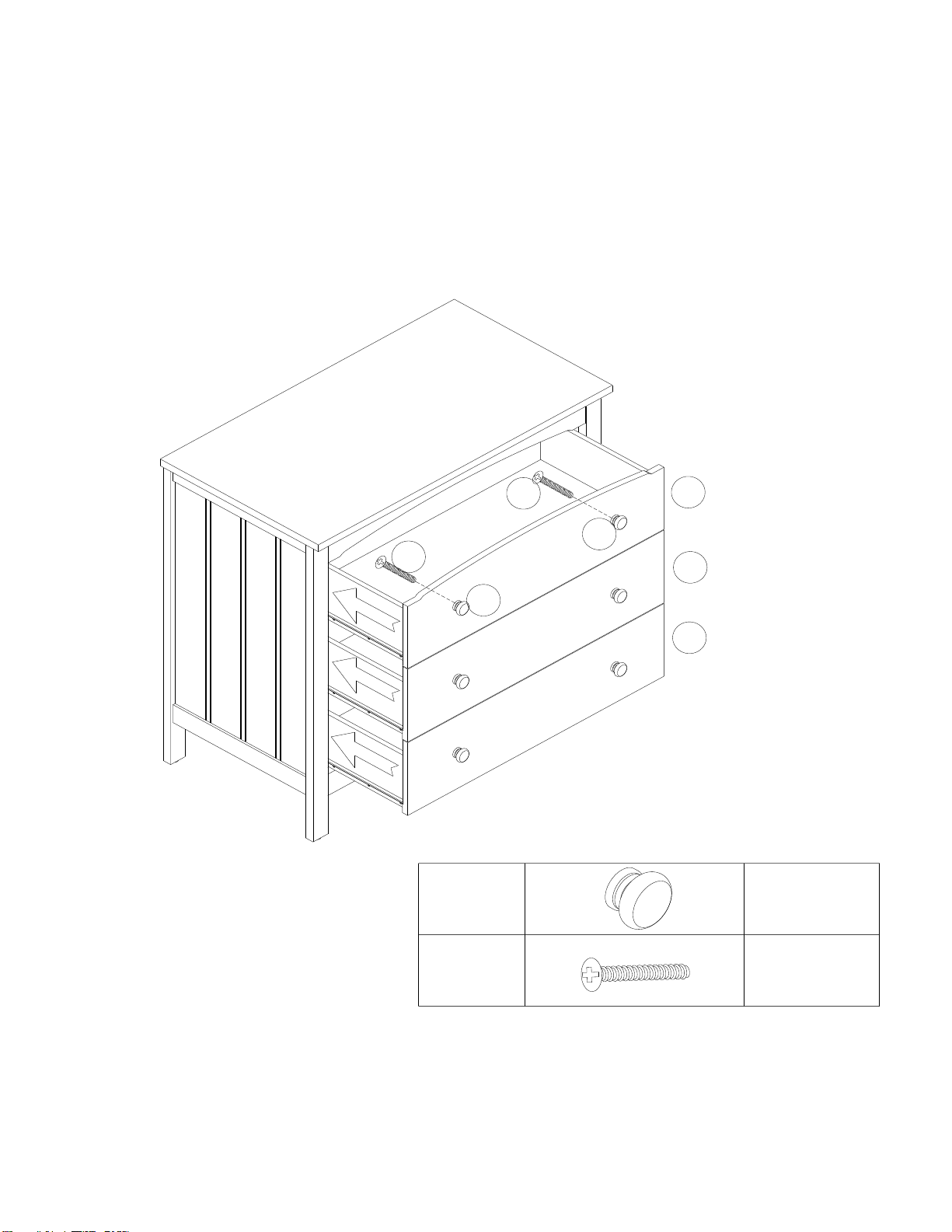

STEP 7
Insert all drawers into the assembled unit.
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W
Attach knobs (16) with bolts (15) using a Phillips head screwdriver (not included).
15
16
15 16
J
I
J
6 PCS
16 6PCS
15

STEP 8
Use Allen key (12) to tighten the bolts.
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W

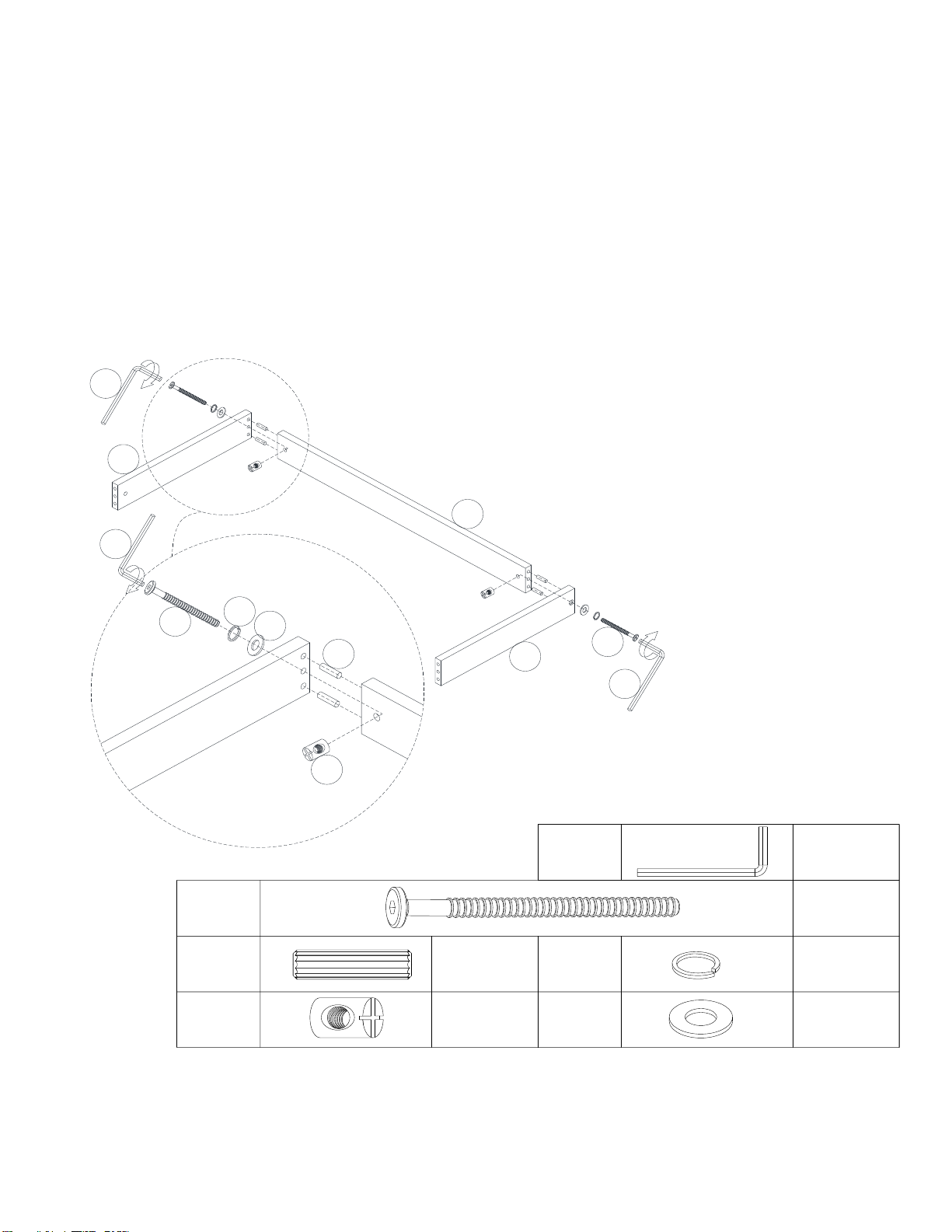

Insert wood dowels (3) and barrel nuts (11) into the front rail (R) as shown.
Attach left and right rails (P & Q) to the front rail (R) with bolts (8), spring washers (9) and
flat washers (10).
3 9
2 PCS
10
12
4 PCS
1 PC
2 PCS
11 2 PCS
8
2 PCS
3
R
Q
12
10
12
P
88
9
11
12

STEP 9
Use Allen key (12) to tighten the bolts.
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W

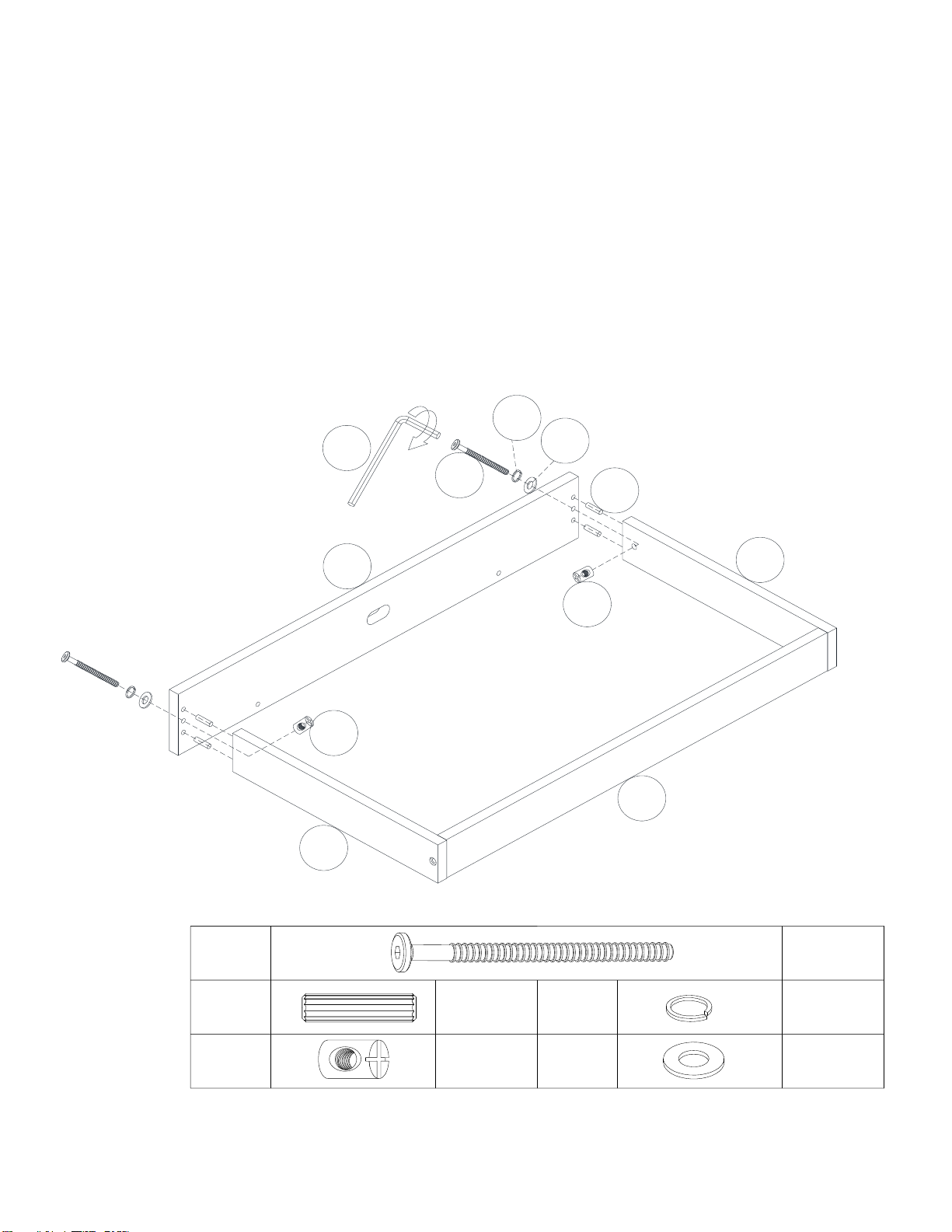

Insert wood dowels (3) into the back rail (S) as shown.
Insert barrel nuts (11) into the left and right rails (P & Q) as shown.
Attach back rail (S) to the left and right rails (P& Q) with bolts (8), spring washers (9) and
flat washers (10).
2 PCS
3
11
4 PCS
2 PCS
2 PCS
2 PCS
8
9
10
3
R
11
8
9
S
12
P
Q
11
10

COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W

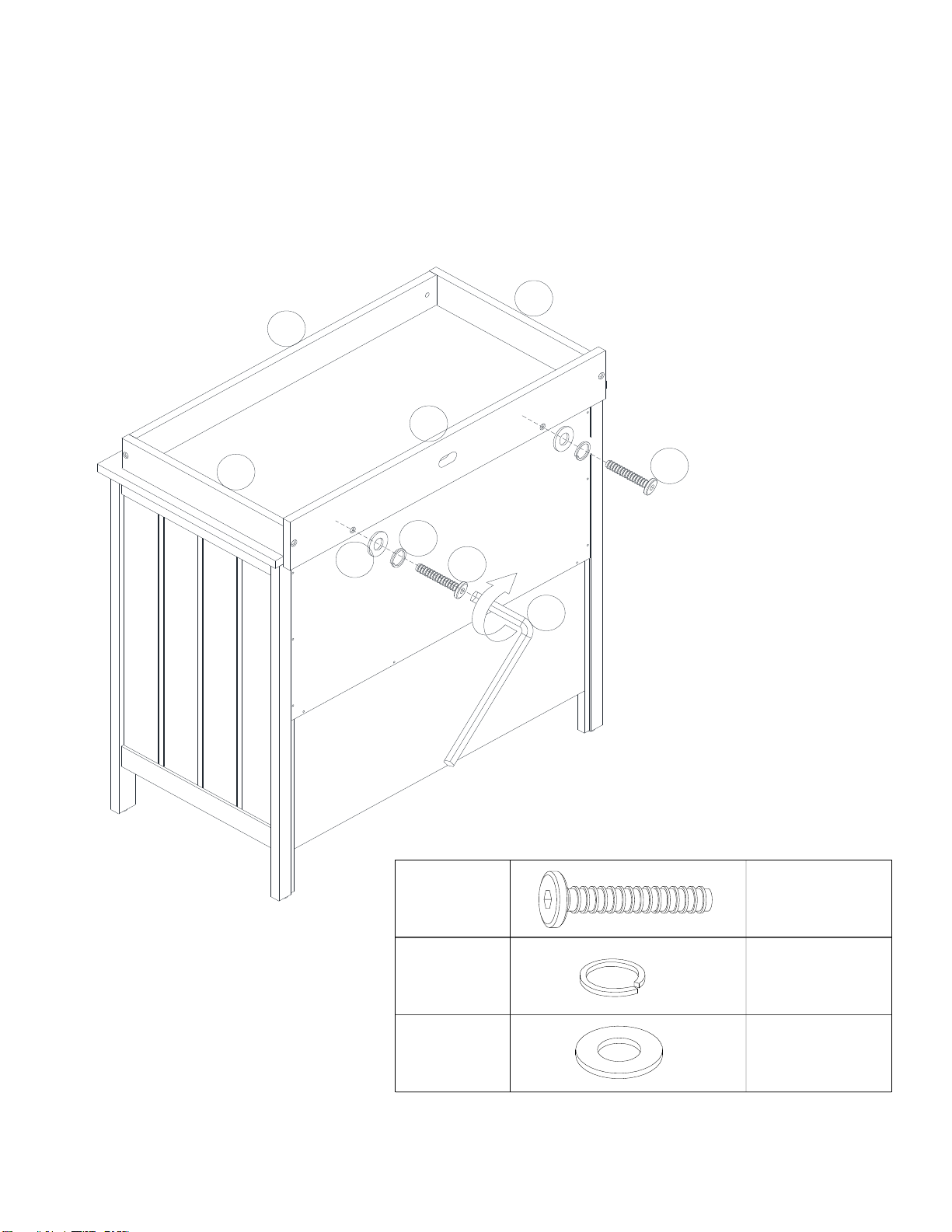

STEP 10
Attach the assembled topper to the dresser with bolts (7), spring washers (9) and flat
washers (10). Use Allen key (12) to tighten the bolts.
7
9
2 PCS
10
2 PCS
2 PCS
S
P
9
12
7
10
Q
R
7

That's it! You've finished assembling your Dresser and Topper!
COLLINS 3-DRAWER DRESSER AND TOPPER
DA8269-1 / DA8269-1W
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
Drawer
Maximum
weight 15 lbs.
Top panel
maximum weight
30 lbs.
NOTE: This item can be
used without the topper.

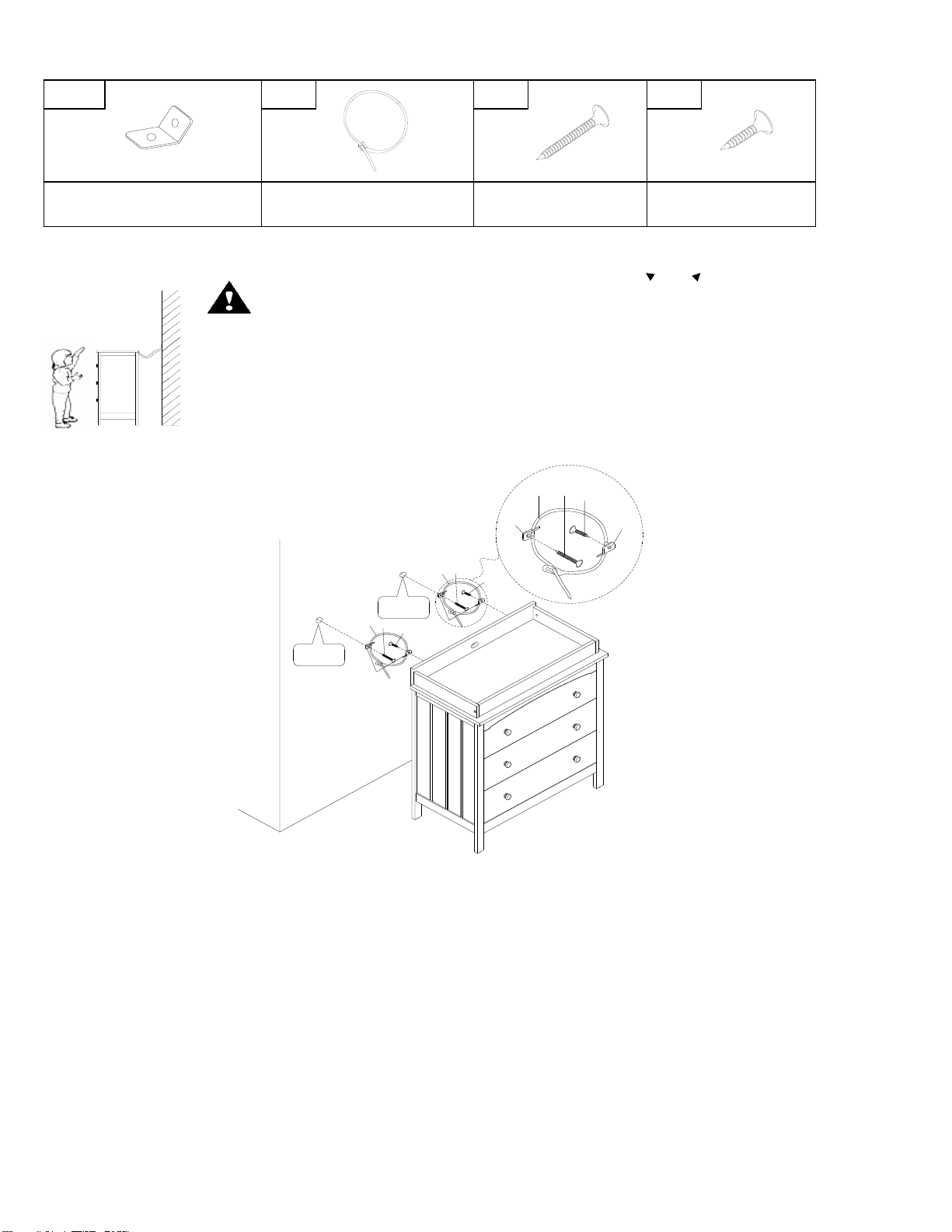

Furniture Wall Safety Strap
A B C D
TOOLS NECESSARY: RUBBER MALLET AND PHILLIPS SCREW DRIVER ARE NOT INCLUDED.
NOTE: 3/8" DRILL BIT AND ELECTRIC DRILL ARE NOT PROVIDED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE
USING THIS PRODUCT AND KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, PLEASE
CALL OUR CUSTOMER SERVICE NUMBER: 1-800-295-1980.
Step 4:
CONFIRM THAT THE STRAP IS SECURELY LACED AND LOCKED.
TO MOVE THE FURNITURE AFTER THE SAFETY WALL STRAP HAS BEEN INSTALLED, SIMPLY
REMOVE THE SCREW FROM THE WALL TO LOOSEN THE SAFETY WALL STRAP.
Step 1:
ATTACH A MOUNTING BRACKET (A) SECURELY TO THE BACK EDGE OF THE FURNITURE USING THE
SHORT SCREW (D), THROUGH THE SMALLER HOLE.
Step 2:
LOCATE THE OTHER MOUNTING BRACKET (A) ON THE WALL OVER A WALL STUD AND 2 INCHES BELOW
THE MOUNTING BRACKET SECURED TO THE BACK OF YOUR UNIT. ATTACH TO THE WALL STUD USING
THE LONG SCREW (C) PROVIDED, THROUGH THE SMALLER HOLE.
Step 3:
PLACE THE FURNITURE INTO POSITION SO BOTH MOUNTING BRACKETS ARE VERTICALLY IN LINE. LACE
THE END OF THE SAFETY WALL STRAP (B) THROUGH THE LARGER HOLE IN EACH MOUNTING BRACKET
(A). BRING BOTH ENDS TOGETHER AND SLIDE THE FLAT END THROUGH THE LOCKING END AND DRAW IT
THROUGH UNTIL ALL SLACK IS REMOVED.
MOUNTING BRACKET
4 PCS
SAFETY WALL STRAP
2 PCS
LONG SCREW
2 PCS
SHORT SCREW
2 PCS
WARNING: WHEN UPRIGHT, IT IS POSSIBLE THAT THE FURNITURE MAY
TIP OVER. PLEASE INSTALL THE SAFETY WALL STRAP BEHIND THE
FURNITURE TO ENSURE SAFETY.
A
B
B
A
B
HOLE
C
A
BD
A
C
A
HOLE
B
A
D
C
BD

Modelo No:
CODIGO UPC:
NOTA:
CONTIENE INFORMACIÓN DE SEGURIDAD
IMPORTANTE. POR FAVOR LÉALO Y CONSÉRVELO
PARA REFERENCIA FUTURA.
Número de lote:
(TOMADO DEL CARTON)
_____________________________________
ESTE MANUEL DE INSTRUCCIONES
Fecha de compra:
_______ / _______ / _______
0-65857-19266-7 (BLANCO)
MANUAL DE INSTRUCCIONES
DA8269-1 (MARRÓN)
DA8269-1W (BLANCO)
CÓMODA DE 3 CAJONES COLLINS
CON CAMBIADOR
0-65857-19265-0 (TIMBER)
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
NO DEVUELVA EL PRODUCTO A LA TIENDA.
Si falta una pieza o está dañada, contacte nuestro departamento de
servicio a la clientela. Reemplazaremos la pieza SIN cargo.
Tel #: [phone]
Correo electrónico: [e-mail]

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
* El destornillador en cruz no está incluido.
*
*
* El armado y la manipulación pueden requerir dos personas.
*
* El tiempo de armado se estima en 60 minutos.
No use herramientas eléctricas.
PRECAUCIÓN: Requiere ser armado por un adulto.
Para evitar dañar la superficie, una vez instalados los niveladores, NO arrastrar el mueble para desplazarlo. Asegúrese de
levantarlo.
Utilice la correa de seguridad provista para fijar el mueble a la pared.
Pueden producirse lesiones graves o fatales si el mueble se vuelca. Para prevenirlo:
Instalar la sujeción provista.
Colocar los artículos más pesados en los cajones más bajos.
No colocar aparatos de TV u otros objetos pesados sobre este producto, a menos que esté específicamente diseñado
para ese uso.
Nunca permitir que los niños trepen sobre los cajones, puertas o estantes o se cuelguen de ellos.
Nunca abrir más de un cajón a la vez.
No eliminar o retirar el dispositivo que asegura los cajones.
El uso de la sujeción provista reduce el riesgo de que el mueble se vuelque, pero no lo elimina completamente.
NOTAS E INSTALACIÓN
Antes de comenzar a armarla, asegúrese de identificar todas las piezas y componentes
Ensamble sobre una superficie suave, lisa para evitar daños en el acabado del producto.
Siempre sujete al niño a la almohadilla con correas de sujeción fijadas a la almohadilla.
ADVERTENCIA
RIESGO DE CAÍDA: Los niños han sufrido lesiones graves después de haber caído de los cambiadores. Las caídas pueden
ocurrir rápidamente.
PERMANEZCA al alcance del bebé.
SIEMPRE asegure esta unidad a la cómoda (Model # DA8269-1 / DA8269-1W) utilizando los accesorios provistos. Vea
las instrucciones.
El peso máximo recomendado del niño es de 13.6 kg (30 lb).
Evite lesiones graves. Nunca deje al bebe sin atención.
Lea todas las instrucciones antes de usarlo.
Guarde las instrucciones para uso futuro.
NO utilice la unidad si está dañada o rota.
*
Cuando se utilice como cambiador, este mueble siempre debe ser utilizado con una almohadilla (no incluida) equipada con
correas de seguridad que sujeten al niño a la almohadilla, así como correas que sujeten la almohadilla al mueble.
Canada, H1G 3L1
SERVICIO AL CLIENTE
También puede contactarnos escribiendo a la dirección que figura a continuación. Por favor incluya el número de modelo del producto, el color y
una descripción detallada de su pregunta.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec

GARANTÍA LIMITADA DE 1 AÑO
Dorel garantiza que este producto está libre de defectos de material y mano de obra y se compromete a remediar
cualquier defecto de este tipo. Esta garantía cubre 1 año a partir de la fecha de compra original. Esta garantía es válida
solamente con presentación de una prueba de compra. Esto se limita a la reparación o reemplazo de componentes
defectuosos del mueble y no se incluye ningún trabajo de ensamblaje. Esta garantía no se aplica a ningún producto que
haya sido mal ensamblado, sujeto a mal uso o abuso, o que haya sido alterado o reparado de cualquier manera.
Cualquier uso, rotura o pérdida de color de la tela no están incluidos en esta garantía (donde corresponda). Esta
garantía le da derechos legales específicas y usted puede también tener otros derechos que varían de estado a estado o
de provincia a provincia.
ADVERTENCIA: Si este producto está dañado y/o ciertas
piezas faltan o están rotas, NO LO USE.
CUIDADO, LIMPIEZA Y MANTENIMIENTO
Límpiela regularmente con un paño suave para evitar la acumulación de suciedad. Ocasionalmente se puede usar
un paño húmedo para limpiar la superficie. Séquela inmediatamente. No utilice productos abrasivos que puedan
dañar la terminación. Una exposición excesiva a la luz del sol y a cambios extremos de temperatura y humedad
puede dañar los muebles de madera.
Verifique las arandelas/tornillos periódicamente y ajústelos si es necesario.
