PRELIMINARY MANUAL
Backgrounds Unlimited, Incorporated.
Old Town Hall, Rt. 11 South
P.O. Box 327
Mt. Sidney, VA 24467
MODEL: TXBD-12A
FCC ID: NH5FWVTXBD12A

VCR
or
Satellite Receiver
or
Camcorder
or
Setting Up Units
Using absolutely no wires, Backgrounds Unlimited TXBD12A and can
send audio or video signals from virtually any sound or picture source to
any TV, video monitor or powered speakers using the same connectors as
your other electronics.
To enjoy wireless video and audio, just connect the transmitter
to whatever picture or sound source you want to view or hear at another
location, and then connect the receiver to the TV, computer, or powered
speakers in that other location. Then turn on the power switch on both the
transmitter and receiver and you are ready to go wireless.
Stereo Receiver
Send from any of -the following sources:
Video Audio Power Speakers
• VCR Compact Disc Player or Changer
• Satellite Receiver Stereo Receiver
• Cable TV Cassette Deck
• Laser Disc Player
• Digital Video Disc
• Wireless Cable
• Camcorder
• Security Camera (CCD)
• Computer
The following pages first show you how to connect the Backgrounds Unlimited
TXBD11A transmitter to any of these source components and then demonstrate how
and where to connect and position the receiver.
TXBD12A
Transmitter Receiver
TV & Monitor
or

4 Locate and orient the transmitter according to the section of this manual titled
"Orienting Units for Optimal Performance.'
BACKGROUNDS UNLIMITED, TXBD12A TRANSMITTER
Connecting the Transmitter

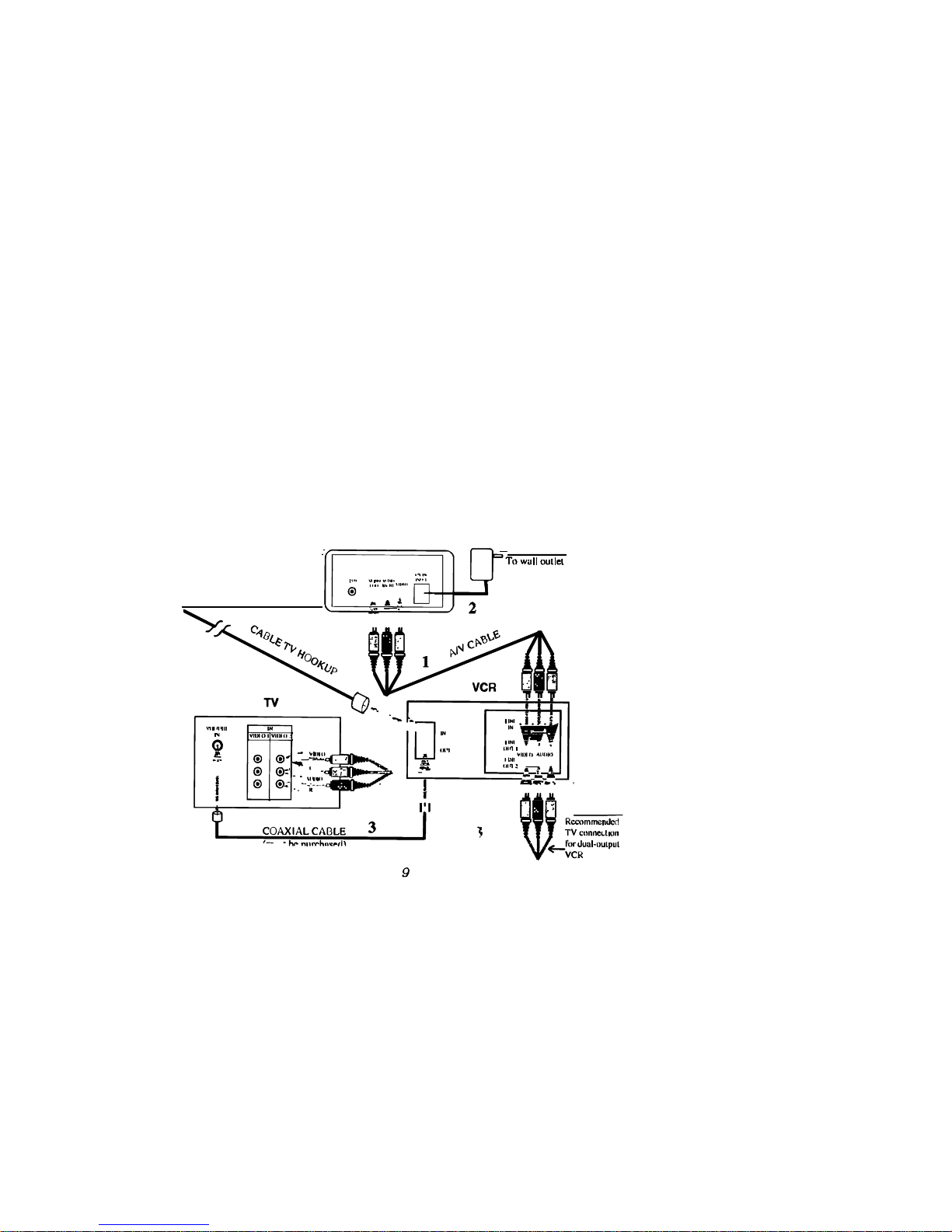

How To Transmit Audio/Video from Your VCR
1 Make sure the Backgrounds Unlimited TXBD12A Transmitter ON/OFF switch is
in the OFF position. Connect one set of audio/video (A/V) cables to the A/V jacks
of the transmitter and to the A/V jacks on the back of your VCR labeled LINE
OUT. Be sure the yellow, red and white plugs match the yellow, red and white
jacks on both the VCR and the transmitter. If the VCR has only one output for
audio (mono sound only), connect the white plug to that single audio output and to
transmitter's AUDIO LEFT jack.
2 Plug one end of the provided power adapter into the back of the Backgrounds
Unlimited TXBD12A transmitter and the other end into any 120-volt wall outlet. Turn
the ON/OFF switch to ON position and channel 1 indicator light should be lit.
3
If your VCR has only one set of A/V output jacks and you want to use it with a
nearby TV, connect coaxial cable from the single OUT port on your VCR to the
VHF/UHF IN port on your TV. (Note: In order to also view cable transmission on
that TV, connect your incoming cable TV source to the single IN port of the VCR.)
