Manufacturer: Backyard Discovery
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
Made in China
INS-30211-01 BRS 06/24/10
Features the fastening system.
Register your new swing set on-line @ www.swingsetonline.com
(you will also find any updates on assembly instructions and
information to order replacement parts)
Save this assembly manual for future reference in the event that
you need to order replacement parts.

PLEASE HAVE THE FOLLOWING INFORMATION WHEN YOU MAKE YOUR CALL:
1 – MODEL NUMBER OF THE PRODUCT LOCATED ON THE FRONT OF THE ASSEMBLY MANUAL
2 – DESRIPTION OF THE PART FROM THE PARTS LIST
POR FAVOR TENGA VISIBLE LA SIGUIENTE INFORMACIÓN CUANDO LLAME:
1 - NÚMERO DE MODELO DEL PRODUCTO QUE SE ENCUENTRA UBICADO AL FRENTE DEL MANUAL
DE ENSAMBLAJE
2 - DESCRIPCIÓN DE LA PIEZA QUE SE ENCUENTRA EN LA LISTA DE PIEZAS
PLEASE READ THIS BEFORE STARTING ASSEMBLY
POR FAVOR LEA ESTAS INSTRUCCIONES ANTES DE COMENZAR EL ENSAMBLAJE
STOP
PARE
Missing A Part?
CALL US BEFORE GOING
BACK TO THE STORE!
The store where you made your purchase
does not stock parts for this item.
If you have assembly questions or if you need parts,
whether they are missing or damaged
Call Toll-Free Help Line or visit www.swingsetsonline.com
¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA!
La tienda donde realizó la compra no almacena piezas de este producto.
Si tiene preguntas sobre el ensamblaje o si necesita piezas debido a que
faltan o están dañadas
llame gratis a la línea de ayuda
1-800-856-4445
• READ THE ASSEMBLY MANUAL COMPLETELY, PAYING SPECIAL ATTENTION TO THE IMPORTANT TIPS AND
SAFETY INFORMATION.
• AFTER YOU HAVE READ THE ASSEMBLY MANUAL, YOU WILL BE ABLE TO DECIDE IF YOU NEED PROFESSIONAL
HELP TO COMPLETE THE ASSEMBLY OF THE PLAYSET.
• SEPARATE AND IDENTIFY ALL PARTS TO MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED.
• IF YOU CAN’T FIND ALL OF THE PARTS, CHECK THE PACKING MATERIAL. SMALL PARTS MAY HAVE FALLEN INTO IT
DURING SHIPMENT.
• IF YOU HAVE PROBLEMS WITH THE ASSEMBLY OR IF ANY PART IS MISSING OR DAMAGED, PLEASE CALL THE
HELP LINE 1-800-856-4445 OR VISIT www.swingsetsonline.com
• LEA EL MANUAL DE ENSAMBLAJE COMPLETAMENTE, PRESTANDO ESPECIAL ATENCIÓN A LOS CONSEJOS ÚTILES
IMPORTANTES Y A LA INFORMACIÓN SOBRE SEGURIDAD.
• DESPUÉS DE QUE HAYA LEÍDO EL MANUAL DE ENSAMBLAJE, PODRÁ DECIDIR SI NECESITA AYUDA PROFESIONAL
PARA EFECTUAR EL ENSAMBLAJE DE LA UNIDAD DE JUEGOS.
• SEPARE E IDENTIFIQUE TODAS LAS PIEZAS PARA COMPROBAR QUE DISPONE DE TODAS LAS PARTES INDICADAS.
• SI NO PUEDE ENCONTRAR TODAS LAS PIEZAS, REVISE EL MATERIAL DE EMPAQUE. ES POSIBLE QUE ALGUNAS
PIEZAS PEQUEÑAS PUEDAN HABERSE CAÍDO ALLÍ DURANTE EL ENVÍO.
• SI TIENE PROBLEMAS CON EL ENSAMBLAJE O SI ALGUNA PIEZA FALTA O ESTÁ DAÑADA, LLAME A LA LÍNEA DE
AYUDA AL 1-800-856-4445 O VISITE www.swingsetsonline.com

Owner’s Manual Play Set
Rev5/20/10 BRS
Dear Customer:
Please read entire booklet completely before beginning the assembly process.
Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use.
The Company does not warranty any of its residential structures subjected to commercial use such as:
Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
WARNING: This Symbol points out important safety instructions which, if not followed, could endanger
the personal safety of yourself and your children and/or damage your property. You MUST read and
follow all instructions in this manual before attempting to use this playcenter.
WARNING: Children must NOT use this playcenter until unit has been completely assembled
and inspected by an adult to insure set has been properly installed and anchored.
Please follow all recommendations below. Failure to do so may result in the warranty being void and/or safety
violations that could result in serious injury. This manual contains helpful information concerning Assembly
Preparation, Installation Procedure, and Required Maintenance. Always keep the safety of your children in mind as
your play structure is being built and as your children play on the set. Before your children play on the set please
review the Operation Instructions with them to help ensure their safety.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE PLACE WHERE YOU CAN
REFER TO THEM AS NEEDED. IN ORDER TO PROVIDE YOU WITH THE MOST EFFICIENT SERVICE, IT IS REQUIRED THAT
YOU PROVIDE US WITH THE PART NUMBERS WHEN ORDERING PARTS.
For Your Records:
Please take time and fill out the information below. This information will be needed for warranty issues.
Where Purchased: ____________________
Date of Purchase: ____________________
Installation Date: _____________________
Installed by: _________________________
Tracking Number Reference Label
Remove label sticker from each carton and stick on the back side of ID plate. In the event of warranty
claim this will help identify your unit.
Staple Receipt Here

Owner’s Manual Play Set
Rev5/20/10 BRS

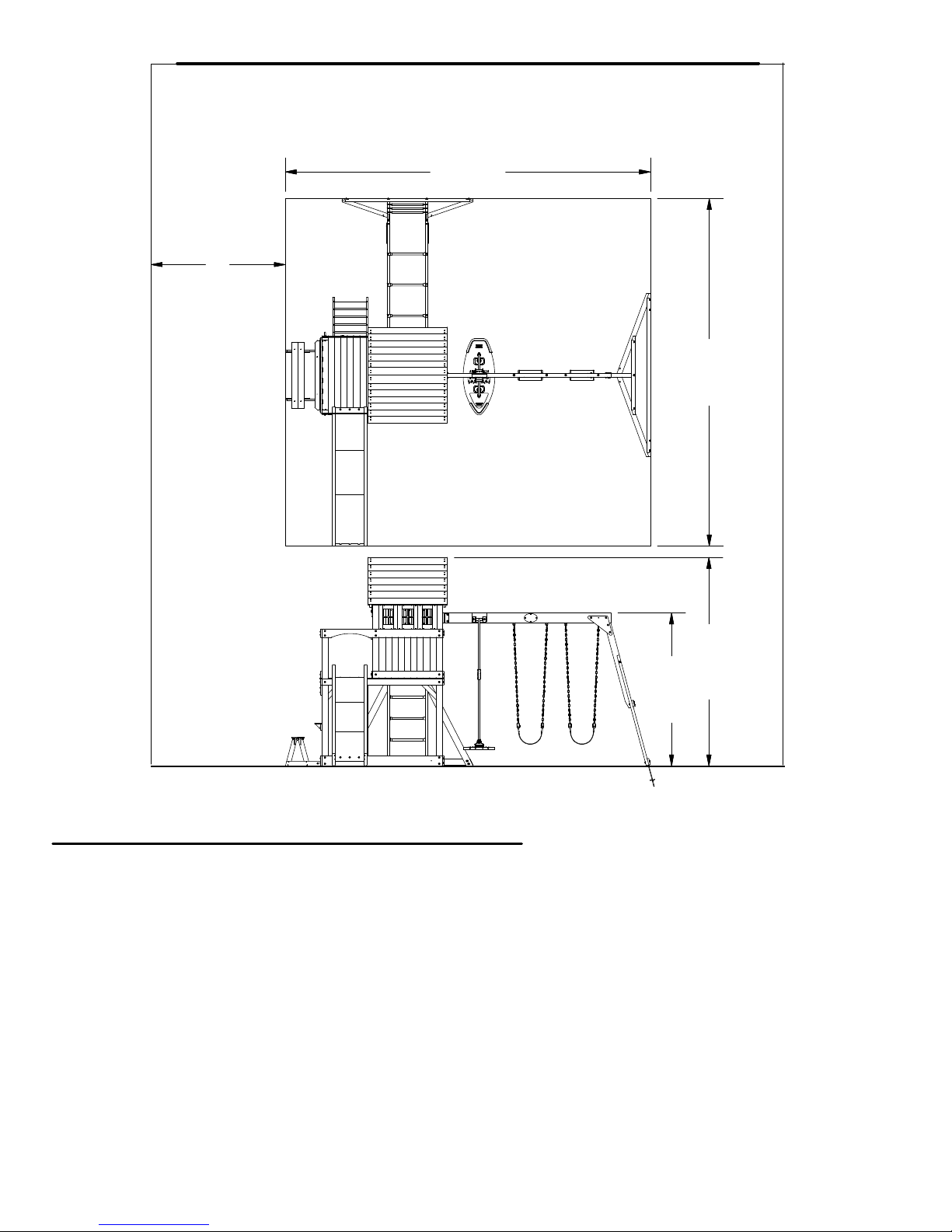

Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height.
Positioning Your Playcenter
1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult
helper. Place in a flat area of your yard to minimize ground preparation.
2. Choose a level location for the equipment. This can reduce the likelihood of the play set
tipping over and loose-fill surfacing material washing away during heavy rains.
3. Place the equipment not less than 6 ft from any structure or obstruction such as a fence,
garage, house, overhanging branches, laundry lines, or electrical wires.
4. Provide enough room so that the children can use the equipment safely. For example, for
structures with multiple play activities, a slide should not exit in front of a swing.
5. It is a good idea to place your Playcenter in an area that is convenient for adults to watch
children at play.
6. Create a site free of obstacles that could cause injuries – such as low overhanging tree
branches, overhead wires, tree stumps and/or roots, large rocks, bricks and concrete.
Additional suggestions in the Suggested Playground Surfacing Section.
7. Do not build your playset on top of surfacing material.
8. Locate bare metal platforms and slides out of direct sunlight to reduce the likelihood of serious
burns. A slide that faces north will receive the least direct sunlight.
9. Separate active and quiet activities from each other. For example, locate sandboxes away
from swings or use a guardrail or barrier to separate the sandbox from the movement of the
swings.
Suggested Playground Surfacing
Playground equipment should never be placed on hard surfaces such as concrete or asphalt.
Do not install loose fill surfacing over hard surfaces such as concrete or asphalt.
Shredded bark mulch, wood chips, fine sand and fine gravel, are added as shock absorbing
materials after assembly. If used properly these materials can absorb some of the impact of a
child’s fall.
All surface material should extend a minimum of 6 feet in all directions around the play area.
Do not apply playground surfacing until after the unit is completely constructed. Playset should
not be built on top of surfacing.
Use containment, such as digging out around the perimeter and/or lining the perimeter with
landscape edging.
Installations of rubber tiles or poured-in-place surfaces (other than loose-fill materials)
generally require a professional and are not “do-it-yourself” projects.
Shall use Playground Surfacing Materials (other than loose-fill material) which comply with the
safety standard ASTM F1292 Standard Specification of Impact Attenuation of Surfacing
Materials within the Use Zone of Playground Equipment.

Owner’s Manual Play Set
Rev5/20/10 BRS
The following chart explains the fall height in feet from which a life threatening head injury
would not be expected
Critical Heights in feet (m) of Tested Materials
Material Uncompressed Depth Compressed Depth
6" (152mm) 9" (228mm) 12" (304mm) to 9" (228mm)
Wood Chips 7' (2.13m) 10' (3.05m) 11' (3.35m) 10' (3.05m)
Double-Shredded bark mulch 6' (1.83m) 10' (3.05m) 11' (3.35m) 7' (2.13m)
Engineered Wood Fibers 6' (1.83m) 7' (2.13m) >12' (3.66m) 6' (1.83m)
Fine Sand 5' (1.52m) 5' (1.52m) 9' (2.74m) 5' (1.52m)
Coarse Sand 5' (1.52m) 5' (1.52m) 6' (1.83m) 4' (1.22m)
Fine Gravel 5' (1.52m) 7' (2.13m) 10' (3.05m) 6' (1.83m)
Medium Gravel 5' (1.52m) 5' (1.52m) 6' (1.83m) 5' (1.52m)
Shredded Tires* 10-12' (3.0-3.6m) N/A N/A N/A
*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples produced by four manufacturers. The tests
reported critical heights, which varied from 10 feet to greater than 12 feet. It is recommended that persons seeking to install shredded tires as a protective surface request test
data from the supplier showing the critical height of the material when it was tested in accordance with ASTM F1292.
Operating Instructions:
NOTE: Your children’s safety is our #1 concern. Observing the following statements
and warnings reduces the likelihood of serious or fatal injury. Please review these
safety rules regularly with your children.
1. This Playcenter is designed for specific number of occupants whose combined weight should
not exceed a designated weight on the elevated floor or the swing area, the total Unit capacity
is outlined in the assembly section of instruction manual. The maximum fall height and
recommended play area is also available on the assembly manual for the specific unit.
2. On-site adult supervision is required.
3. Instruct children not to walk close to, in front of, behind, or between moving swings or other
moving playground equipment.
4. Instruct children to sit in and never stand on swings
5. Instruct children not to twist the chains and ropes and not to loop them over the top support
bar, since this may reduce the strength of the chain or rope.
6. Instruct children not to jump from swings or other playground equipment in motion.
7. Instruct children to not to push empty seats. The seat may hit them and cause serious injury.
8. Instruct and teach children to sit in the center of the swings with their full weight on the seats.
9. Instruct children not to use the equipment in a manner other than intended.
10.Instruct children to always go down slides feet first. Never slide head first.
11.Instruct children to look before they slide to make sure no one is at the bottom.
12.Instruct children to never run up a slide, as this increases their chances of falling.
13.The parents should have the children dress appropriately with well-fitting shoes. Loose
clothing such as scarves and ponchos should not be worn. Always take off, tie up or tuck in
cords and drawstrings on children’s clothing. These things can get caught on playground
equipment and strangle a child.
14.Instruct children not to climb when the equipment is wet.

Owner’s Manual Play Set
Rev5/20/10 BRS
15.Instruct children to never jump from a fort deck. They should always use the ladder, ramp or
slide.
16.Instruct children to never crawl or walk across the top of monkey bars.
17.Instruct children to never crawl on top of a fort roof.
18.Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that
they cannot be looped back on it.
19.Instruct children not to attach items to the playground equipment that are not specifically
designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet
leashes, cables and chain as they may cause a strangulation hazard.
20.Instruct children to never wrap their legs around swing chain.
21.Instruct children to never slide down the swing chain.
Maintenance Instructions:
1. Check all nuts and bolts twice monthly during the usage season and tighten as required. (But
not so tight that you crack the wood) We recommend you check the swing beam and
hardware every two weeks due to wood expansion and contraction. It is particularly important
that this procedure be followed at the beginning of each season.
2. Remove plastic swing seats and take indoors or do not use when the temperature drops below
32  F.
3. Oil all metallic moving parts monthly during the usage period.
4. Check all coverings for bolts and sharp edges twice monthly during usage season to be certain
they are in place. Replace when necessary. It is especially important to do this at the
beginning of each new season.
5. Check swing seats, ropes, cables and chains monthly during usage season for evidence of
deterioration. Replacement should be made of any swing seat that has developed cracks in
the plastic seats or has exposed metal in the edges of the swing seat. If there are already
exposed metal inserts on the edge of the seat, immediately remove the seats and chains to
prevent serious injury. Ropes, cables and chains should be removed and replaced if excessive
wear is found.
6. For rusted areas on metallic members such as monkey bars, hand supports, brackets, etc.
Sand and repaint, using a non lead-based paint meeting the requirements of Title 16 CRF Part
1303.
7. Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season
causing splinters to appear. Light sanding may be necessary to maintain a safe playing
environment. If you are treating your Playcenter with stain regularly, it will help prevent severe
checking/splitting and other weather damage.
8. We have applied a waterborne transparent stain to your unit. This is done for color only. Once
or twice a year, depending on your climate conditions, you must apply some type of protection
(sealant) to the wood of your unit. Prior to the application of sealant, lightly sand any “rough”
spots on your set. Please note this is a requirement of your warranty.
9. Creating and maintaining the Playcenter on a level location is very important. As your children
play, your Playcenter will slowly dig its way into the soil, and it is very important that it settles
evenly. Make sure the play set is level and true once each year or at the beginning of each
play season.
10.Rake the surface periodically to prevent compaction and maintain appropriate depths.

Owner’s Manual Play Set
Rev5/20/10 BRS
Disposal Instructions:
When the Playcenter use is no longer desired, it should be disassembled and disposed of in such
a way that no unreasonable hazards will exist at the time the unit is discarded.
Third Party Assembly:
Customer may, in their sole discretion, elect to use a third party person or service to assemble this
product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the
Customer for any assembly services’.
Please see our warranty for more information about damaged and missing part replacement
coverage. Backyard Discovery will not reimburse Customer for the price of parts purchased.

Owner’s Manual Play Set
Rev5/20/10 BRS
APPENDIX A
Information on Playground Surfacing Materials:
The following information is from the United States Consumer Product Safety Commission’s
Information Sheet for playground surfacing material; also see the following website for additional
information: www.cpsc.gov/cpscpub/pubs/323.html.
X3. CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS11
X3.1 The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment-
related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries
involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be
fatal, particularly when the injury is to the head. The surface under and around playground equipment can be a major
factor in determining the injury-causing potential of a fall. It is self evident that a fall onto a shock-absorbing surface is
less likely to cause a serious injury than a fall onto a hard surface. Playground equipment should never be placed on
hard surfaces such as concrete or asphalt and while grass may appear to be acceptable it may quickly turn to hard
packed earth in areas of high traffic. Shredded bark mulch, wood chips, fine sand or find gravel are considered to be
acceptable shock absorbing surfaces when installed and maintained at a sufficient depth under and around playground
equipment.
X3.2 Table X3.1 lists the maximum height from which a child would not be expected to sustain a life-threatening head
injury in a fall onto four different loose-fill surfacing materials if they are installed and maintained at depths of 6, 9, and 12
in. However, it should be recognized that all injuries due to falls cannot be prevented no matter what surfacing material
is used.
X3.3 It is recommended that a shock absorbing material should extend a minimum of 6 ft in all directions from the
perimeter of stationary equipment such as climbers and slides. However, because children may deliberately jump from a
moving swing, the shock absorbing material should extend in the front and rear of a swing a minimum distance of 2
times the height of the pivot point measured from a point directly beneath the pivot on the supporting structure.
X3.4 This information is intended to assist in comparing the relative shock-absorbing properties of various materials. No
particular material is recommended over another. However, each material is only effective when properly maintained.
Materials should be checked periodically and replenished to maintain correct depth as determined necessary for your
equipment. The choice of a material depends on the type and height of the playground equipment, the availability of the
material in your area, and its cost.
11This information has been extracted from the CPSC publications “Playground Surfacing — Technical
Information Guide” and “Handbook for Public Playground Safety.” Copies of these reports can be obtained by sending
a postcard to: Office of Public Affairs, U.S. Consumer Product Safety Commission, Washington, D.C., 20207 or call the
toll-free hotline: [phone].
The American Society for Testing and Materials takes no position respecting the validity of any parent right
asserted in connection with any item mentioned in this standard. Users of this standard are expressly advised that
determination of the validity of any such parent rights, and the risk of infringement of such rights, are entirely their own
responsibility.
The standard is subject to revision at any time by the responsible technical committee and must be reviewed
every five years and if not revised, either approved or withdrawn. Your comments are invited either for revision of this
standard or for additional standards and should be addressed to ASTM Headquarters. Your comments will receive
careful consideration at a meeting of the responsible technical committee, which you may attend. If you feel that your
comments have not received a fair hearing you should make your views known to the ASTM Committee on Standards.
100 Barr Harbor Drive, West Conshohocken, PA 19428.

Rev5/20/10BRS
Play Set Assembly Manual FAQs:
1. Does the area for the playset need to be level?
Yes. Backyard Discovery recommends the playset be positioned on a flat level area for
maximum safety and durability. The stakes provided should be used to secure it firmly to the
ground.
2. What size area is recommended for the playset?
Backyard Discovery recommends at least a 6’ (six foot) perimeter around and above the playset
for maximum safety.
3. What age range is appropriate for the playsets?
Backyard Discovery playsets are recommended for children ages 3 – 10 years.
4. Is the wood treated with chemicals?
Backyard Discovery uses 100% Chinese Cedar wood which is naturally bug resistant, decay
and rot resistant. To help ensure your child’s safety, our wood is completely chemical free and
we do not use pressure-treated wood. The stain we use is a top coat using a water-based
product that is for appearance only.
5. How often should the playset be stained?
Backyard Discovery recommends the playset be stained once each year. A water or oil based
stain can be used at the customer’s discretion.
6. Why does it seem that my swing set is developing cracks?
Wood is a natural material; no two pieces are exactly alike. Each piece has its own
characteristics and personality and reacts differently to climate changes. When any wood
product is exposed to the elements, it develops “wood checks”. A check is the radial separation
of the wood fibers running with the grain of the wood. These are caused by the varying
temperature and moisture conditions. A check is not a crack – it does not affect the strength or
durability of the wood or structural integrity of the play set.
7. Do Backyard Discovery playsets come with a warranty?
Yes. All Backyard Discovery products carry a 1-year replacement warranty on all parts for
manufacturer’s defect. Our wood carries a 5 year warranty on rot and decay as well. Please see
warranty details for more information.
8. What is the best way to get started assembling the playset?
Backyard Discovery recommends taking all the parts out of the boxes and arranging them by
part number before you begin any assembly. This will not only allow faster assembly, but will
also identify any parts that may be missing or damaged so they can be replaced before
assembly. If parts are missing or need replacement, go to

Rev5/20/10BRS
www.swingsetsonline.com/support.aspx and follow the prompts to order them. Next, read the
assembly manual and get the tools ready for the job as
recommended in the manual. If the assembly manual is lost or misplaced a new one can be
printed from Backyard Discovery’s website: www.swingsetsonline.com.
9. The playset seems to rock or sway too much. What’s wrong?
Rocking is caused by uneven ground or obstructions such as rocks, roots, etc. under the ground
rails. These should be removed and the ground underneath re-leveled to prevent rocking. Also
ensure the playset is securely staked to the ground using the stakes provided.
10. The 2”x4” boards do not measure 2”x 4”. Why not?
In the U.S. it is common practice to describe lumber dimensions using the rough cut sizes from
the sawmill and not the finished dimensions. Retailers, home stores, etc. all use this accepted
practice for describing lumber dimensions. However, Backyard Discovery playsets are designed
and constructed using the actual dimensions so everything fits properly and remains so during
the life of the playset.
11. The end beam is not straight up and down. Why not?
This is normal. Backyard Discovery designs playsets this way to ensure the strongest structure
possible. The slight angle adds strength and reduces rocking and twisting.
12. The S-hooks for the swings won’t close. What is wrong?
Backyard Discovery recommends placing them on a hard surface such as concrete (don’t do
this on anything that will dent such as metal or finished wood or glass which will break!). It will
take quite a few strokes, but the hooks will close.
For more information and frequently asked questions, please refer to our website at
www.swingsetsonline.com.

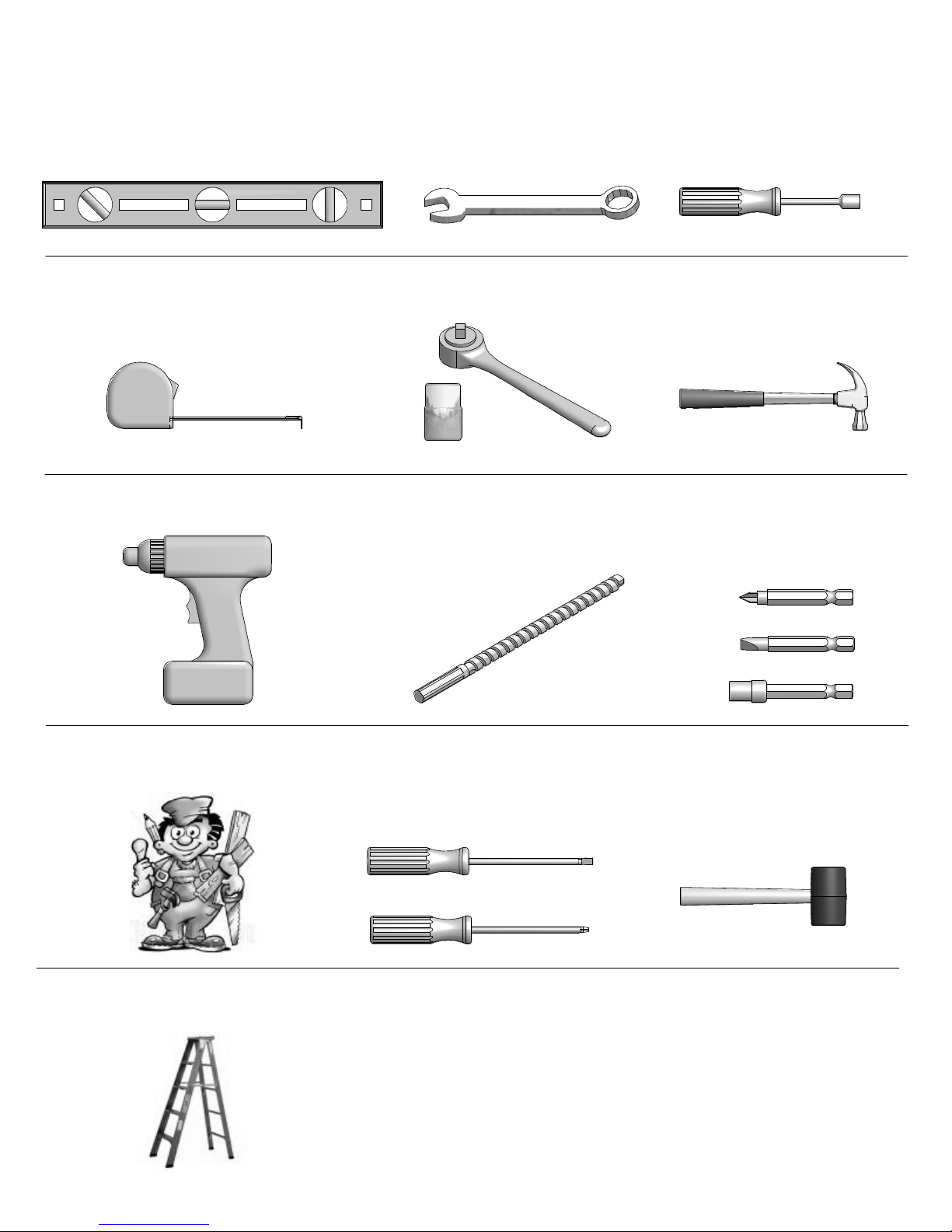

Tools Required for Installation:
(These are the tools that are generally required for assembly of our swing sets. These tools
are not included in the swing set purchase.)
(Level 24") (Open End Wrenches
1/2" & 7/16")
(Nut Drivers 1/2" & 9/16")
(Tape Measure) (3/8" Drive Ratchet, 1/2" &
9/16" STD Sockets 1/2" &
9/16" Deep Sockets)
(Claw Hammer)
(3/8" Cordless Drill or Electric Drill) (3/16" , 5/16" & 3/8" Drill Bits) (Drill Attachments:
Phillips Head Screw 3/8"
Socket Driver
Torque Head Screw)
(An Adult w/ an Adult Helper) (Phillips & Straight
Blade Screw Drivers)
(Rubber Mallet - Optional)
(Ladder)

I
IIIm mmmp pppo ooor rrrt ttta aaan nnnt ttt A AAAs ssss ssse eeem mmmb bbbl llly yyy N NNNo ooot ttte eees sss
1) While assembling unit, take time before and after each phase to make sure fort is level. If fort is
not level, assembly will be difficult and improper assembly may result. Extra care must be taken to
insure the fort is square.
2) Pay close attention to the ITEMS NEEDED FOR EACH PHASE. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by phase.
3) Pay close attention to make sure you are using the correct hardware in the correct phases. Using
incorrect hardware may result in improper assembly.
4) Whenever a T-nut is used, follow these directions. Place T-nut in pre-drilled hole. Tap in with hammer.
Place bolt with washers in the opposite side. Hand tighten to make sure the bolt is in the T-nut.
DO NOT over tighten.
5) Read the steps of each phase thoroughly. The written steps may include important information not
shown in the illustrations.
B
BBBa aaas ss
si
iiic ccc S SSSe eeet tttu uuup ppp D DDDi iiim mmme eeen nnns sssi iiio ooon nnns sss
Place the set on level ground, not less than 6 ft [2 m] from any structure or
obstruction such as a fence, garage, house, overhanging branches, laundry
lines, or electrical wires.
Safe Play Zone
Safe play height: 14'-11 1/2" [2.7 m]
Maximum fall height: 6'-4 1/2" [1.9 m]
72
1861/16
195 13/16
8115/16
11111/16

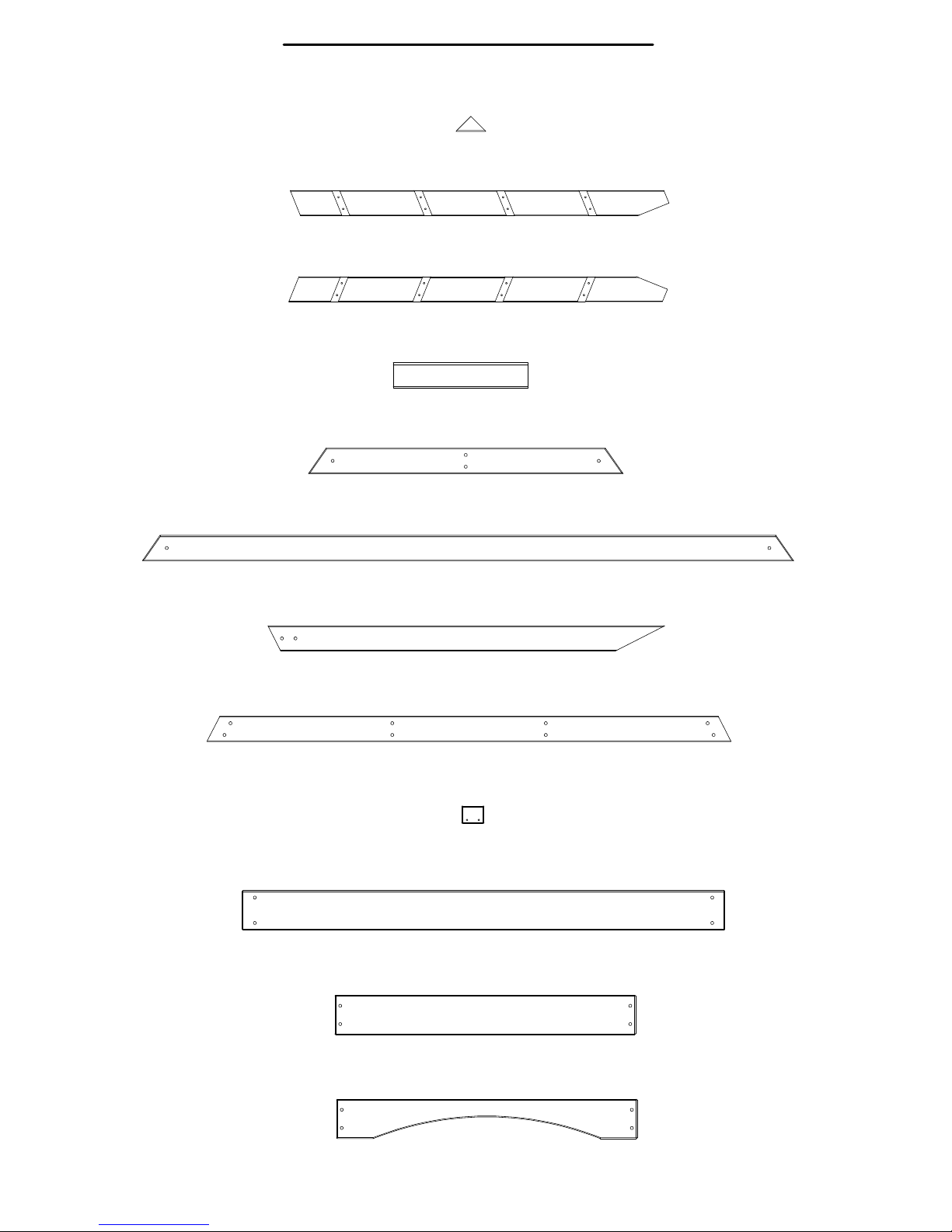

Parts Identification
Wood Components
(NOT TO SCALE)
E1 - TOWER LEG - W101453
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
(1)
E2 - TOWER LEG - W101445
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
(1)
E3 - TOWER LEG - W101450
1 3/8"x3 3/8"x73 1/8" (36x86x1856)
(2)
E4 - MONKEY BAR UPRIGHT - W101733
1 3/8"x3 3/8"x71 3/8" (36x86x1812)
(2)
E5 - CLUB HOUSE LEG - W101490
1 3/8"x3 3/8"x42 1/2" (36x86x1078)
(2)
E71 - MONKEY BAR RAIL - W100974
1 3/8"x3 3/8"x60 5/8" (36x86x1539)
(2)
E77 - ANGLE BRACE - W100991
1 3/8"x3 3/8"x74 3/8" (36x86x1890)
(2)
F1 - DECK BRACE - W101504
1 3/8"x2 3/8"x15 3/4" (36x60x400)
(4)
G1 - SWING BEAM MOUNT - W101495
1"x5 1/4"x40 3/8" (24x134x1024)
(1)
H1 - FLOOR RAIL - W101449
1"x3 3/8"x64 3/4" (24x86x1644)
(1)
H2 - FLOOR RAIL - W101457
1"x3 3/8"x64 3/4" (24x86x1644)
(1)
H3 - ROOF RAFTER - W101502
1"x3 3/8"x34" (24x86x864)
(4)

Parts Identification
Wood Components
(NOT TO SCALE)
H4 - TABLE SUPPORT - W100560
1"x2"x4" (24x51x102)
(2)
H74 - LEFT UPRIGHT - W100608
1"x3 3/8"x50 3/4" (24x86x1290)
(1)
H75 - RIGHT UPRIGHT - W100609
1"x3 3/8"x50 3/4" (24x86x1290)
(1)
H76 - LADDER RUNG - W100611
1"x3 3/8"x18 1/8" (24x86x460)
(4)
H79 - END SUPPORT - W100992
1"x3 1/2"x42" (24x86x1072)
(1)
H80 - GROUND BOARD - W100990
1"x3 3/8"x87 3/8" (24x86x2218)
(1)
H81 - MONKEY BAR BRACE - W100993
1"x3 3/8"x53 1/4" (24x86x1352)
(2)
H82 - MONKEY BAR GROUND BOARD - W100994
1"x3 3/8"x70 3/8" (24x86x1786)
(1)
J1 - FLOOR SUPPORT - W101037
1"x2 3/8"x3" (24x60x76)
(4)
K1 - BASE BOARD - W101451
5/8"x5 1/4"x64 3/4" (16x134x1644)
(2)
K2 - BASE BOARD - W101452
5/8"x5 1/4"x40 3/8" (16x134x1024)
(2)
K3 - ARCHED WALL BOARD - W101456
5/8"x5 1/4"x40 3/8" (16x134x1024)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
K4 - COUNTER TOP - W101455
5/8"x5 1/4"x37 3/8" (16x134x948)
(1)
L1 - WALL RAIL - W101730
5/8"x4 3/8"x64 3/4" (16x112x1644)
(1)
L2 - WALL RAIL - W101487
5/8"x4 3/8"x64 3/4" (16x112x1644)
(1)
L3 - WALL RAIL - W101489
5/8"x4 3/8"x40 3/8" (16x112x1024)
(2)
L4 - CLUB HOUSE WALL RAIL - W101491
5/8"x4 3/8"x40 3/8" (16x112x1024)
(1)
L5 - OUTER FLOOR BOARD - W101486
5/8"x4 3/8"x37 1/2" (16x112x952)
(2)
L6 - BAY WINDOW - W100571
5/8"x4 3/8"x30 1/2" (16x112x774)
(2)
L7 - GABLE MOON - W100572
5/8"x4 3/8"x13" (16x112x330)
(2)
L9 - DOOR BOARD - W101233
5/8"x4 3/8"x35" (16x112x890)
(1)
L10 - DOOR BOARD - W101229
5/8"x4 3/8"x35" (16x112x890)
(1)
M1 - WALL BOARD - W101501
5/8"x3 3/8"x34 3/8" (16x86x874)
(2)
M2 - FLOOR RUNNER - W101498
5/8"x3 3/8"x64 3/4" (16x86x1644)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
M3 - FLOOR BOARD - W101458
5/8"x3 3/8"x42 1/4" (16x86x1072)
(17)
M4 - WALL BOARD - W101510
5/8"x3 3/8"x40 5/8" (16x86x1032)
(2)
M5 - WALL BOARD - W101497
5/8"x3 3/8"x38 7/8" (16x86x986)
(11)
M6 - FLOOR RAIL - W101447
5/8"x3 3/8"x40 3/8" (16x86x1024)
(1)
M7 - WALL BOARD - W100579
5/8"x3 3/8"x40" (16x86x1016)
(2)
M8 - WALL RAIL - W101454
5/8"x3 3/8"x40 3/8" (16x86x1024)
(6)
M9 - WALL RAIL - W101496
5/8"x3 3/8"x37 1/2" (16x86x951)
(2)
M10 - WALL RAIL - W101494
5/8"x3 3/8"x37 1/2" (16x86x951)
(1)
M11 - WALL BOARD - W100583
5/8"x3 3/8"x20" (16x86x508)
(9)
M12 - WALL RAIL - W101731
5/8"x3 3/8"x6 3/4" (16x86x173)
(2)
M13 - WALL RAIL - W101500
5/8"x3 3/8"x8 1/2" (16x86x216)
(2)
M14 - BENCH SEAT - W101258
5/8"x3 3/8"x35 3/8" (16x86x900)
(2)

Parts Identification
Wood Components
(NOT TO SCALE)
M15 - WALL BOARD - W101506
5/8"x3 3/8"x3 1/2" (16x86x88)
(8)
M16 - WALL BOARD - W101732
5/8"x3 3/8"x16 1/4" (16x86x412)
(3)
M17 - WALL BOARD - W101493
5/8"x3 3/8"x21 3/8" (16x86x542)
(9)
M18 - BENCH BRACE - W100847
5/8"x3 3/8"x3 3/8" (16x86x86)
(4)
M19 - DOOR BOARD - W101230
5/8"x3 3/8"x35 3/4" (16x86x908)
(2)
M21 - DOOR BOARD - W101232
5/8"x3 3/8"x21 1/4" (16x86x540)
(2)
M22 - DOOR BOARD - W101231
5/8"x3 3/8"x6 1/4" (16x86x160)
(2)
M73 - REAR SUPPORT - W100610
5/8"x3 3/8"x19 1/4" (16x86x488)
(1)
M77 - SLIDE BRACE - W100544
5/8"x3 3/8"x17 1/4" (16x86x438)
(1)
M78 - CENTER SLIDE BRACE - W100545
5/8"x3 3/8"x17 1/4" (16x86x438)
(2)
N1 - GABLE BOARD - W100590
5/8"x2 3/8"x31 1/2" (16x60x800)
(2)
N3 - BENCH GROUND BOARD - W100845
5/8"x2 3/8"x18 7/8" (16x60x480)
(2)
N4 - PICKET - W101492
5/8"x2 3/8"x21 3/8" (16x60x542)
(6)

Parts Identification
Wood Components
(NOT TO SCALE)
N5 - BAY WINDOW - W100592
5/8"x2 3/8"x13 1/8" (16x60x332)
(6)
N6 - GABLE BOARD - W100593
5/8"x2 3/8"x13" (16x60x330)
(2)
N7 - GABLE BOARD - W100594
5/8"x2 3/8"x8" (16x60x202)
(4)
N8 - WALL BOARD SUPPORT - W100595
5/8"x2 3/8"x6 3/4" (16x60x170)
(2)
N9 - BAY WINDOW - W100596
5/8"x2 3/8"x6 1/4" (16x60x158)
(6)
N10 - BENCH LEG - W100846
5/8"x2 3/8"x15 3/4" (16x60x400)
(4)
N11 - DOOR STOP - W101236
5/8"x2 3/8"x2" (16x60x51)
(1)
O1 - DOOR SUPPORT - W101234
5/8"x1 3/8"x21" (16x34x534)
(3)
R1 - ROOF BOARD - W101503
3/4"x5 1/2"x42 1/2" (18x140x1081)
(14)
T7 - BENCH SEAT SUPPORT - W100848
1"x1 3/8"x5 7/8" (24x34x150)
(2)
W70 - SWING BEAM SUPPORT - W100956
2"x3 3/8"x47 3/8" (50x86x1204)
(1)
Y1 - WALL BOARD - W101499
5/8"x4"x34 3/8" (16x102x874)
(2)
SB73 - SWING BEAM WAVE RIDER - W101509
2"x5 1/4"x89 1/2" (50x134x2274)
(1)

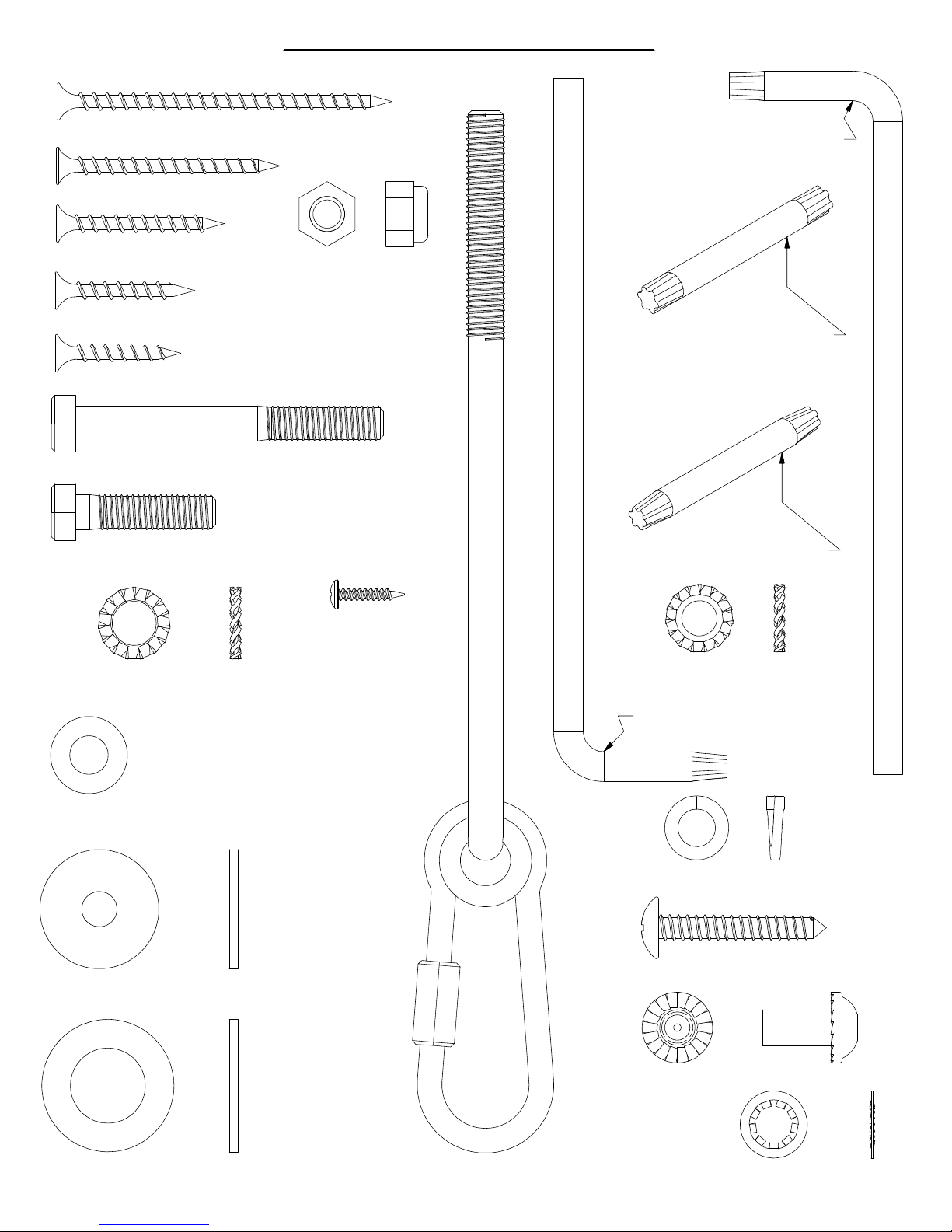

Parts Identification
Hardware
M - BOLT WH 5/16x2-1/2 - H100014
(2)
K - BOLT WH 5/16x2 - H100012
(13)
J - BOLT WH 5/16x1-3/4 - H100011
(2)
H - BOLT WH 5/16x1-1/2 - H100010
(48)
Z - LAG SCREW WH 5/16x2 - H100027
(48)
E - NUT BARREL WH 5/16x1-3/4 - H100007
(4)
BC - SCREW PWH 8x3/4 - H100070
(26)
CY - SCREW PWH 8x5/8 - H100128
(4)
AC - WASHER LOCK EXT 8x19 - H100030
(113)
BG - T-NUT 5/16 - H100074
(33)
D - NUT BARREL WH 5/16x7/8 - H100005
(51)
B - NUT BARREL WH 5/16x5/8 - H100004
(11)
AD - WASHER LOCK EXT 12x19 - H100031
(60)
AA-LAGSCREWWH5/16x2-1/2-H100028
(2)
CM - BOLT WH 5/16x1/2 - H100115
(15)
T - BOLT WH 5/16x4 - H100020
(4)
KA - BOLT WH 5/16x4-1/2 - H100021
(1)
LC - LAG SCREW WH 1/4x1-1/2 - H100145
(9)
KT - BOLT WH 1/4x1 - H100137
(7)
V - BOLT WH 5/16x5 - H100022
(4)
F - BOLT WH 5/16x1 - H100008
(2)

Parts Identification
Hardware
(2) T-40 Wrench - A100041
(2) T-40 Torx Driver - A100042
BW - SCREW PFH 8x3
-H100092
(26)
CK - SCREW PFH 8x2
-H100111
(120)
BQ - SCREW PFH 8x1-1/4
-H100087
(29)
BR - SCREW PFH 8x1-1/8
-H100088
(317)
AN - BOLT HEX 5/16x2-3/4
-H100047
(4)
AJ - BOLT HEX 5/16x1-1/4
-H100042
(4)
BX - WASHER SPLIT 5/16
-H100095
(4)
CJ - NUT LOCK 5/16
-H100110
(11)
CE - WASHER FLAT 9x18
-H100106
(9)
CD - WASHER FLAT 8x27
-H100105
(17)
CX - SCREW #4x5/8
-H100127
(11)
CB - WASHER FLAT 17x30
-H100103
(4) BZ - SWING HANGER QUICK LINK
-H100099
(4) CG - WASHER LOCK INT 8x15
-H100108
(2)
BP - SCREW PFH 8x1-1/2
-H100086
(83)
CH - SCREW TAPPING 14x1-1/2
-H100109
(13)
KS - NUT BARREL WH 1/4x5/8
-H100136
(7)
(2) T-30 Wrench - H100114
(2) T-30 Torx Driver - A100147
KV - WASHER LOCK EXT 6x15
-H100138
(9)
KW - WASHER LOCK EXT 8x15
-H100139
(7)
