Backyard Discovery Patriot II User manual

Owner’s Manual
FAQ’s
Assembly Instructions
Warranty Information
Patriot II
Wooden Playcenter - 2010
Model: 44010
Manufacturer: Backyard Discovery
3001 North Rouse
Pittsburg, KS 66762
Made in China
44010 Patriot II Ver 1-10-0425

Title Page PS
Rev. 01/28/2009

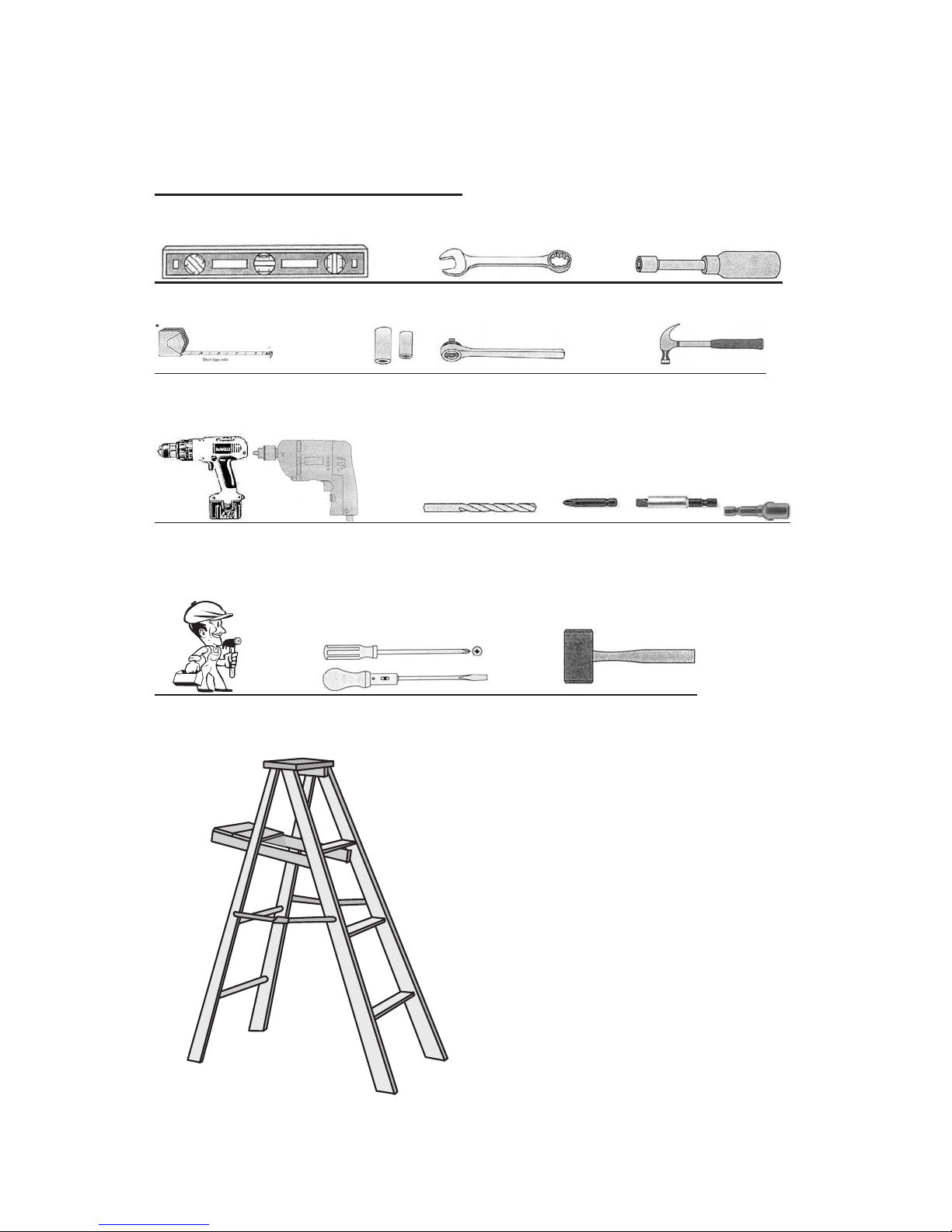

Tools Required for Installation:
(These are the tools that are generally required for assembly of our playsets. These tools are not included in the playset
purchase.)
(Level 24”) (Open end Wrenches (Nut drivers
½” & 7/16” ) ½” & 9/16” )
(Tape Measure) (3/8” Drive Ratchet , ½”& 9/16” std sockets (Claw Hammer)
½” & 9/16 deep sockets)
( 3/8” Cordless Drill or Electric drill) (1/8”, 5/16” & (Drill attachments:
3/8” drill bits) Phillips head screw
3/8” Socket Driver
Torque head screw)
(An Adult w/an (Phillips & Straight Blade (Rubber Mallet –Optional)
Adult helper) screw drivers)
(Step Ladder)

PAGE 1
Owner’s Manual Play Set
OWNER PS-2010 Rev. 10/21/2009
Dear Customer:
Please read entire booklet completely before beginning the assembly process.
WARNING: Children must NOT use this playcenter until unit has been completely assembled
and inspected by an adult to insure set has been properly installed and anchored.
Please follow all recommendations below. Failure to do so may result in the warranty being void and/or safety
violations that could result in serious injury . This manual contains helpful information concerning Assembly
Preparation, Installation Procedure, and Required Maintenance. Always keep the safety of your children in mind as
your play structure is being built and as your children play on the set. Before your children play onthe set please
review the Operation Instructions with them to help ensure their safety.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE PLACE WHERE YOU CAN
REFER TO THEM AS NEEDED. IN ORDER TO PROVIDE YOU WITH THE MOST EFFICIENT SERVICE, IT IS REQUIRED THAT
YOU PROVIDE US WITH THE PART NUMBERS WHEN ORDERING PARTS.
For Your Records:
Please take time and fill out the information below. This information will be needed for warranty issues.
Where Purchased: ______________
Date of Purchase: ________________
Installation Date: _______________
Installed by: ______________________
Tracking Number Reference Label
Remove label sticker from each carton and stick on the back side of ID plate. In the event of warranty claim this
will help identify your unit.
Staple Receipt Here
Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use.
The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare,
Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
WARNING: This Symbol points out important safety instructions which, if not followed, could endanger
the personal safety of yourself and your children and/or damage your property. You MUST read and
follow all instructions in this manual before attempting to use this playcenter.

PAGE 2
OWNER PS-2010 Rev. 10/21/2009
Owner’s Manual Play Set

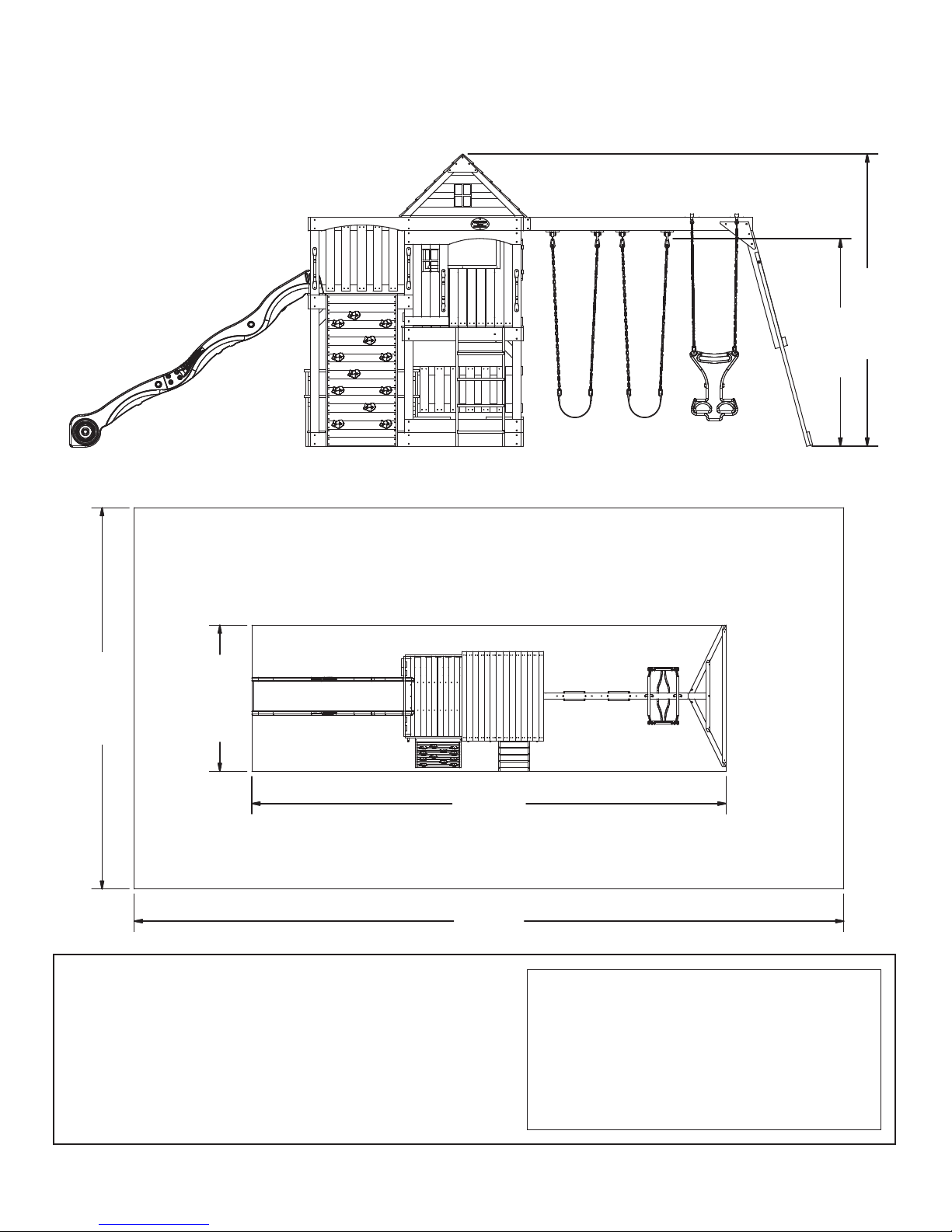

Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height.
Positioning Your Playcenter
1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult helper. Place in a
flat area of your yard to minimize ground preparation.
2. Choose a level location for the equipment. This can reduce the likelihood of the play set tipping over and
loose-fill surfacing material washing away during heavy rains.
3. Place the equipment not less than 6ft from any structure or obstruction such as a fence, garage, house,
overhanging branches, laundry lines, or electrical wires.
4. Provide enough room so that the children can use the equipment safely. For example, for structures with
multiple play activities, a slide should not exit in front of a swing.
5. It is a good idea to place your Playcenter in an area that is convenient for adults to watch children at play.
6. Create a site free of obstacles that could cause injuries – such as low overhanging tree branches, overhead
wires, tree stumps and/or roots, large rocks, bricks and concrete. Additional suggestions in the Suggested
Playground Surfacing Section.
7. Do not build your playset on top of surfacing material.
8. Locate bare metal platforms and slides out of direct sunlight to reduce the likelihood of serious burn.s A
slide that faces north will receive the least direct sunlight.
9. Separate active and quiet activities from each other. For example, locate sandboxes away from swingsor
use a guardrail or barrier to separate the sandbox from the movement of the swings.
Suggested Playground Surfacing
Playground equipment should never be placed on hard surfaces such as concrete or asphalt.
Do not install loose fill surfacing over hard surfaces such as concrete or asphalt.
Shredded bark mulch, wood chips, fine sand and fine gravel, are added as shock absorbing materials after
assembly. If used properly these materials can absorb some of the impact of a child’s fall.
All surface material should extend a minimum of 6 feet in all directions around the play area.
Do not apply playground surfacing until after the unit is completely constructed. Playset should not be built
on top of surfacing.
Use containment, such as digging out around the perimeter and/or lining the perimeter with landscape
edging.
Installations of rubber tiles or poured-in-place surfaces (other than loose-fill materials) generallyrequire a
professional and are not “do-it-yourself” projects.
Shall use Playground Surfacing Materials (other than loose-fill material) which comply with the safety
standard ASTM F1292 Standard Specification of Impact Attenuation of Surfacing Materials within the Use
Zone of Playground Equipment.
The following chart explains the fall height in feet from which a life threatening head injury
would not be expected
Critical Heights in feet (m) of Tested Materials
Material Uncompressed Depth Compressed Depth
6" (152mm) 9" (228mm) 12" (304mm) to 9" (228mm)
Wood Chips 7’ (2.13m) 10’ (3.05m) 11’ (3.35m) 10’ (3.05m)
Double-Shredded bark mulch 6’ (1.83m) 10’ (3.05m) 11’
(3.35m) 7’(2.13m)
Engineered Wood Fibers 6’ (1.83m) 7’ (2.13m) >12’ (3.66m) 6’ (1.83m)
Fine Sand 5’ (1.52m) 5’ (1.52m) 9’ (2.74 m) 5’ (1.52m)
Coarse Sand 5’ (1.52m) 5’ (1.52m) 6’ (1.83m) 4’ (1.22m)
Fine Gravel 5’ (1.52m) 7’ (2.13m) 10’ (3.05m) 6’ (1.83m)
Medium Gravel 5’ (1.52m) 5’ (1.52m) 6’ (1.83m) 5’(1.52m)
Shredded Tires* 10-12’ (3.0-3.6m) N/A N/A N/A
*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples produced by four manufacturers. The tests
reported critical heights, which varied from 10 feet to greater than 12 feet. It is recommended that persons seeking to install shredded tires as a protective surface request test
data from the supplier showing the critical height of the material when it was tested in accordance with ASTM F1292.

PAGE 3
Owner’s Manual Play Set
OWNER PS-2010 Rev. 10/21/2009
Operating Instructions:
NOTE : Your children’s safety is our #1 concern. Observing the following statements
and warnings reduces the likelihood of serious or fatal injury. Please review these
safety rules regularly with your children.
1. This Playcenter is designed for specific number of occupants whose combined weight should not
exceed a designated weight on the elevated floor or the swing area, the total Unit capacity is
outlined in the assembly section of instruction manual. The maximum fall height and
recommended play area is also available on the assembly manual for the specific unit.
2. On-site adult supervision is required .
3. Instruct children not to walk close to, in front of, behind, or between moving swings or other
moving playground equipment.
4. Instruct children to sit in and never stand on swings
5. Instruct children not to twist the chains and ropes and not to loop them over the top support bar,
since this may reduce the strength of the chain or rope.
6. Instruct children not to jump from swings or other playground equipment in motion.
7. Instruct children to not to push empty seats. The seat may hit them and cause serious injury.
8. Instruct and teach children to sit in the center of the swings with their full weight on the seats.
9. Instruct children not to use the equipment in a manner other than intended.
10. Instruct children to always go down slides feet first. Never slide head first.
11. Instruct children to look before they slide to make sure no one is at the bottom.
12. Instruct children to never run up a slide, as this increases their chances of falling.
13. The parents should have the children dress appropriately with well-fitting shoes. Loose clothing
such as scarves and ponchos should not be worn. Always take off, tie up or tuck in cords and
drawstrings on children’s clothing. These things can get caught on playground equipment and
strangle a child.
14. Instruct children not to climb when the equipment is wet.
15. Instruct children to never jump from a fort deck. They should always use the ladder, ramp or
slide.
16. Instruct children to never crawl or walk across the top of monkey bars.
17. Instruct children to never crawl on top of a fort roof.
18. Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that they
cannot be looped back on it.
19. Instruct children not to attach items to the playground equipment that are not specifically
designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet
leashes, cables and chain as they may cause a strangulation hazard.
20. Instruct children to never wrap their legs around swing chain.
21. Instruct children to never slide down the swing chain.

Owner’s Manual Play Set
OWNER PS-2010 Rev. 10/21/2009
Maintenance Instructions:
1. Check all nuts and bolts twice monthly during the usage season and tighten as required. (But not so
tight that you crack the wood) We recommend you check the swing beam and hardware every two
weeks due to wood expansion and contraction. It is particularly important that this procedure be
followed at the beginning of each season.
2. Remove plastic swing seats and take indoors or do not use when the temperature drops below 32 °F.
3. Oil all metallic moving parts monthly during the usage period.
4. Check all coverings for bolts and sharp edges twice monthly during usage season to be certain they
are in place. Replace when necessary. It is especially important to do this at the beginning of each
new season.
5. Check swing seats, ropes, cables and chains monthly during usage season for evidence of
deterioration. Replacement should be made of any swing seat that has developed cracks in the
plastic seats or has exposed metal in the edges of the swing seat. If there are already exposed metal
inserts on the edge of the seat, immediately remove the seats and chains to prevent serious injury.
Ropes, cables and chains should be removed and replaced if excessive wear is found.
6. For rusted areas on metallic members such as monkey bars, hand supports, brackets, etc. Sand and
repaint, using a non lead-based paint meeting the requirements of Title 16 CRF Part 1303.
7. Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season causing
splinters to appear. Light sanding may be necessary to maintain a safe playing environment. If you
are treating your Playcenter with stain regularly, it will help prevent severe checking/splitting and other
weather damage.
8. We have applied a waterborne transparent stain to your unit. This is done for color only. Once or
twice a year, depending on your climate conditions, you must apply some type of protection (sealant)
to the wood of your unit. Prior to the application of sealant, lightly sand any “rough” spots on your set.
Please note this is a requirement of your warranty.
9. Creating and maintaining the Playcenter on a level location is very important. As your children play,
your Playcenter will slowly dig its way into the soil, and it is very important that it settles evenly. Make
sure the play set is level and true once each year or at the beginning of each play season.
10. Rake the surface periodically to prevent compaction and maintain appropriate depths.
Disposal Instructions:
When the Playcenter use is no longer desired, it should be disassembled and disposed of in such a way
that no unreasonable hazards will exist at the time the unit is discarded.
Third Party Assembly:
Customer may, in their sole discretion, elect to use a third party person or service to assemble this product.
Backyard Discovery assumes no responsibility or liability for any charge incurred by the Customer for any
assembly services’.
Please see our warranty for more information about damaged and missing part replacement coverage.
Backyard Discovery will not reimburse Customer for the price of parts purchased.
PAGE 4

PAGE 5
Owner’s Manual Play Set
OWNER PS-2010 Rev. 10/21/2009
APPENDIX A
11
X3. CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS
X3.1 The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment-related
injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving
this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly
when the injury is to the head. The surface under and around playground equipment can be a major factor in determining the
injury-causing potential of a fall. It is self evident that a fall onto a shock-absorbing surface is less likely to cause a serious
injury than a fall onto a hard surface. Playground equipment should never be placed on hard surfaces such as concrete or
asphalt and while grass may appear to be acceptable it may quickly turn to hard packed earth in areas of high traffic.
Shredded bark mulch, wood chips, fine sand or find gravel are considered to be acceptable shock absorbing surfaces when
installed and maintained at a sufficient depth under and around playground equipment.
X3.2 Table X3.1 lists the maximum height from which a child would not be expected to sustain a life-threatening head injury in
a fall onto four different loose-fill surfacing materials if they are installed and maintained at depths of 6, 9, and 12 in. However,
it should be recognized that all injuries due to falls cannot be prevented no matter what surfacing material is used.
X3.3 It is recommended that a shock absorbing material should extend a minimum of 6 ft in all directions from the perimeter of
stationary equipment such as climbers and slides. However, because children may deliberately jump from a moving swing,
the shock absorbing material should extend in the front and rear of a swing a minimum distance of 2 times the height of the
pivot point measured from a point directly beneath the pivot on the supporting structure.
X3.4 This information is intended to assist in comparing the relative shock-absorbing properties of various materials. No
particular material is recommended over another. However, each material is only effective when properly maintained.
Materials should be checked periodically and replenished to maintain correct depth as determined necessary for your
equipment. The choice of a material depends on the type and height of the playground equipment, the availability of the
material in your area, and its cost.
11This information has been extracted from the CPSC publications “Playground Surfacing — Technical Information
Guide” and “Handbook for Public Playground Safety.” Copies of these reports can be obtained by sending a postcard to:
Office of Public Affairs, U.S. Consumer Product Safety Commission, Washington, D.C., 20207 or call the toll-free hotline:
1-800-638-2772.
The American Society for Testing and Materials takes no position respecting the validity of any parent right asserted in
connection with any item mentioned in this standard. Users of this standard are expressly advised that determination of the
validity of any such parent rights, and the risk of infringement of such rights, are entirely their own responsibility.
The standard is subject to revision at any time by the responsible technical committee and must be reviewed every five
years and if not revised, either approved or withdrawn. Your comments are invited either for revision of this standard or for
additional standards and should be addressed to ASTM Headquarters. Your comments will receive careful consideration at
a meeting of the responsible technical committee, which you may attend. If you feel that your comments have not received a
fair hearing you should make your views known to the ASTM Committee on Standards. 100 Barr Harbor Drive, West
Conshohocken, PA 19428.
Information on Playground Surfacing Materials:
The following information is from the United States Consumer Product Safety Commission's
Information Sheet for playground surfacing material Also see the following website for additional
information: www.cpsc.gov/cpscpub/pubs/323.html.

Play Set Assembly Manual FAQs:
1. Does the area for the playset need to be level? Yes. Backyard Discovery recommends the playset be
positioned on a flat level area for maximum safety and durability. The stakes provided should be
used to secure it firmly to the ground.
2. What size area is recommended for the playset? Backyard Discovery recommends at least a 6’ (six
foot) perimeter around and above the playset for maximum safety.
3. What age range is appropriate for the playsets? Backyard Discovery playsets are recommended for
children ages 3 – 10 years.
4. Is the wood treated with chemicals? Backyard Discovery uses 100% Chinese Cedar wood which is
naturally bug resistant, decay and rot resistant. To help ensure your child’s safety, our wood is
completely chemical free and we do not use pressure-treated wood. The stain we use is a top coat
using a water-based product that is for appearance only.
5. How often should the playset be stained? Backyard Discovery recommends the playset be stained
once each year. A water or oil based stain can be used at the customer’s discretion.
6. Why does it seem that my swing set is developing cracks? Wood is a natural material; no two
pieces are exactly alike. Each piece has its own characteristics and personality and reacts
differently to climate changes. When any wood product is exposed to the elements, it develops
“wood checks”. A check is the radial separation ofthe wood fibers running with the grain of the
wood. These are caused by the varying temperature and moisture conditions. A check is not a
crack – it does not affect the strength or durability of the wood or structural integrity of the play
set.
7. Do Backyard Discovery playsets come with a warranty? Yes. All Backyard Discovery products carry a
1-year replacement warranty on all parts for manufacturer’s defect. Our wood carries a 5 year
warranty on rot and decay as well. Please see warranty details for more information.
8. What is the best way to get started assembling the playset? Backyard Discovery recommends
taking all the parts out of the boxes and arranging them by part number before you begin any
assembly. This will not only allow faster assembly,but will also identify any parts that may be
missing or damaged so they can be replaced before assembly. If parts are missing or need
replacement, go to www.swingsetsonline.com/support.aspx and follow the prompts to order them.
Next, read the assembly manual and get the tools ready for the job as recommended in the
manual. If the assembly manual is lost or misplaced a new one can be printed from Backyard
Discovery’s website: www.swingsetsonline.com .
9. The playset seems to rock or sway too much. What’swrong? Rocking is caused by uneven ground
or obstructions such as rocks, roots, etc. under the ground rails. These should be removed and the
ground underneath re-leveled to prevent rocking. Also ensure the playset is securely staked to the
ground using the stakes provided.
10. The 2”x 4” boards do not measure 2”x 4”. Why not? Inthe U.S. it’s common practice to describe
lumber dimensions using the rough cut sizes from the sawmill and not the finished dimensions.
Retailers, home stores, etc. all use this acceptedpractice for describing lumber dimensions.
PAGE 6

However, Backyard Discovery playsets are designed and constructed using the actual dimensions so
everything fits properly and remains so during the life of the playset.
11. The end beam is not straight up and down. Why not? This is normal. Backyard Discovery designs
playsets this way to ensure the strongest structurepossible. The slight angle adds strength and
reduces rocking and twisting.
12. The S-hooks for the swings won’t close. What is wrong? Backyard Discovery recommends placing
them on a hard surface such as concrete (don’t do this on anything that will dent such as metal or
finished wood or glass which will break!). It will take quite a few strokes, but the hooks will close.
For more information and frequently asked questions, please refer to our website at
www.swingsetsonline.com .
PAGE 7

LEISURE TIME PRODUCTS, INC GYM SETS USE A FEW STANDARD CONNECTIONS.
BECOMING FAMILIAR WITH THESE CONNECTIONS WILL SIMPLIFY ASSEMBLY
AND INSURE A SAFER PLAY PRODUCT FOR YOUR CHILDREN.
USING THE HARDWARE
Check the positioning of parts in each Step's illustration, noting which of the parts should
receive the Lock Washer and Barrel Nut. Place the Barrel Nut and Lock Washer in the hole. Align
the holes in the parts to be fastened.Start preliminary tightening of bolt into Barrel Nut by hand.
To securely tighten, turn the bolt with an Allen Wrench until the Lock Washer is fully
compressed between the head of the bolt and the Barrel Nut.
Note that in some steps the instructions say to tighten "just snug." This means to tighten the
bolt just enough to keep the parts together, but loose enough to allow the parts to move. This is
necessary to allow squaring and leveling. The bolt will be tightened securely in a following step.
All bolts and screws must be tightened securely before the playset is ready for use.
Bolt has been
screwed securely
into Barrel Nut and
Lock Washer and
the connection is
tight.
Check connec-
tions periodically for
tightness during the
life of the Gym set.
Lock Washer
WHA
Bolt Flat
Washer
Barrel Nut
How to use Safe-T-Fuse Fasteners Correct
Assembly
Do not
over tighten.
Lock Washer
SAFE- -FUSE
Patent Pending
Includes Fastener System
Typical Installation -Lag Screw: Typical Installation -Wood Screw:
• Use an electric drill or screw gun to drive screws.
• These screws are self-tapping, so no pilot
holes are required.
• Lubricate the threads of the screws
with beeswax or soap to ease
installation and minimize breaking
screws.
• It is very important to make certain
that the tops of all screws are flush
with the surface of the wood and
there are no protruding sharp edges.
• Always drill pilot holes
when using Lag
Screws. The size of
the pilot hole will be
specified in the Step.
• Tap the head of the Lag
Screw with a hammer to
start the threads into the
wood and then use an
wrench to tighten.
Lag Screw
Lock
Washer
• DO NOT over tighten• DO NOT over tighten
• DO NOT DRIVE
TOO DEEP
AND CAUSE
SPLINTERING
• DO NOT DRIVE
TOO DEEP
AND CAUSE
SPLINTERING
PAGE 8

Patriot IIPatriot II
Model
44010
Assembly Requires
Two Moderately Skilled People.
For Residential Use Only
If you need assistance with parts or have assembly questions, please call Customer Service
at 1-800-856-4445
Please read the entire instruction manual carefully before proceeding with the assembly or use of
your new gym set. SAVE THIS MANUAL for future reference in the event that you need to contact us
for assistance or replacement part information and ordering.
PAGE 9
ADVENTURE PLAYSETS

9'-6
1/2"
[2.9
m]
6'-9"
[2.1
m]
MAX
FALL
24'-2" [7.4 m]
7'-51/2"[2.3m]
19'-51/2"[5.9m]
36'-2" [11 m]
PAGE 10 - SAFE PLAY AREA
Dimensions:
• The Patriot II has One layout option.
Layout: Ground Dimension Safe Play Area*
7’-5½”x 24’-2” x 9’-6½” high 19’-5 1/2” x 36’-2” x 15’-6½” high
*Level Ground Surface - See below
• Additional accessories may increase the size of the Safe Play Area.
• Max fall height 91 ½"
General Information:
Your set has been designed and engineered for children
only and for residential use only.
A maximum of 150 lbs. per child is recommended for
play activities designed for individual use.
A maximum of 120 lbs. per child is recommended for
play activities designed for multiple child use.
A maximum of 9 children is recommended for this unit.
set.

PAGE 11- PARTS LOCATOR
Back
Right
Left
G50
A50
E5
E51
SP50
G1
G9
G13
M17
M6
M6
E5 E6
E1
N1
M3 M3
E7
G7
H6
M13
M8 M8
M12
R1
M4
M15
M19
M22
N4
M14
G3 G8
E3
G6
G11
N4
M19
M22
M20
H2
M23
M23
G14
M6
H4
H7
H8
G4
G10
F1
SC1

PAGE 12- PARTS LOCATOR
Front
Right
Left
R1
W100492
W100491
W100489
W100493
W100488 W100487
W100608 W100609
W100611
W100610
A50
SP50
E50
E51
G50
G6
E7
G8
E3
G2
K1
M9
M9
E6
G11
H2
G7
H6
H4 H7
H8
G1
G9
G4
M17
G15
M18
M10 M10
M16
E1
M24
O1
M5
E3
E4
M14
M14
W100490
M4
M15
M19
M22
N4
N4
M19
M22
M20
F1
M3
N1
G12
G8
E2

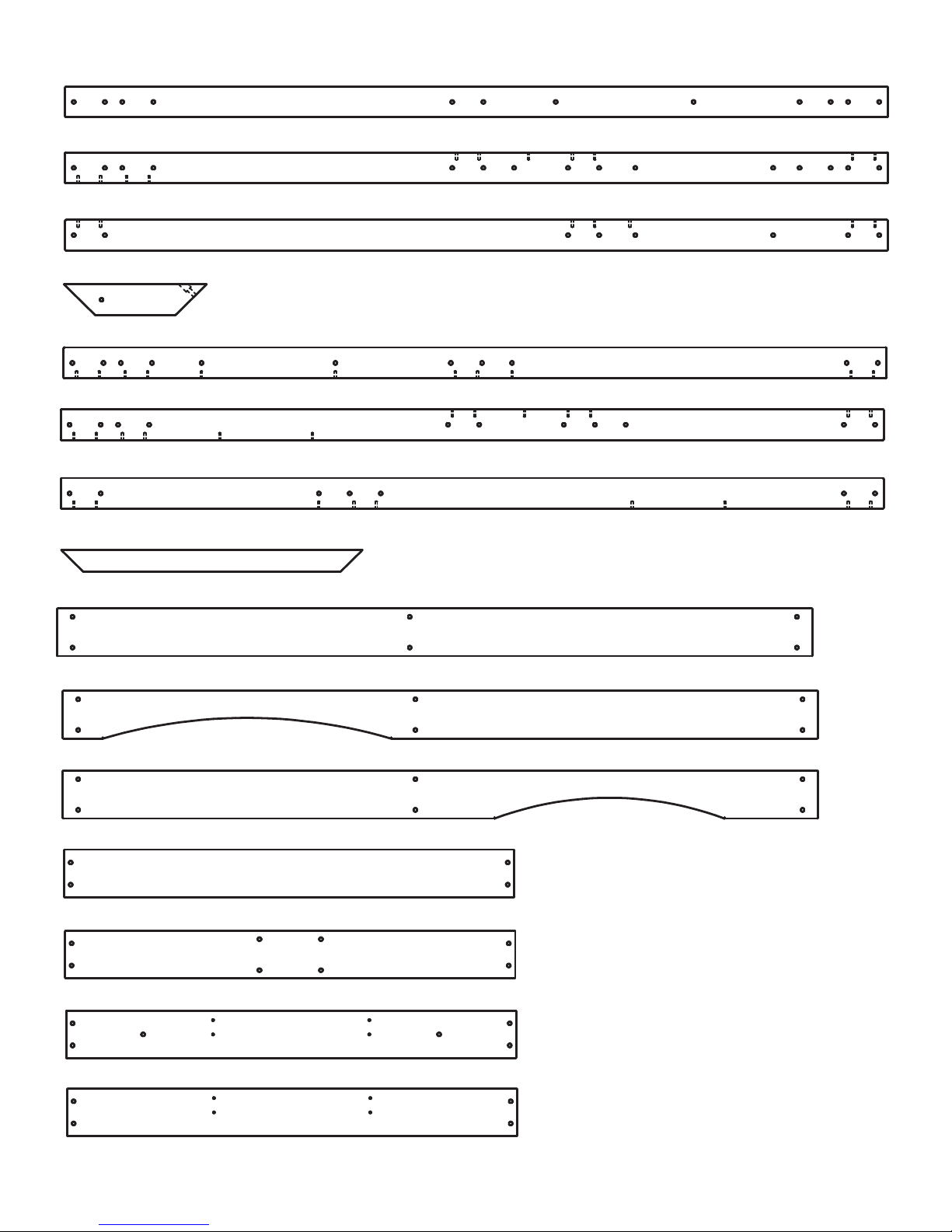

PAGE 13 - WOODEN PARTS E1 - G7
E1 - RIGHT FRONT TOWER LEG (W100612) - 1 REQ - 36 x86 x 2274 (1.375 x 3.375 x 89.5)
E2 - CENTER FRONT TOWER LEG (W100613) - 1 REQ - 36x 86 x 2274 (1.375 x 3.375 x 89.5)
E3 - LEFT FRONT TOWER LEG (W100614) - 1 REQ - 36 x86 x 2274 (1.375 x 3.375 x 89.5)
E4 - DECK BRACE (W100615) - 8 REQ - 36 x 86 x 394 (1.375 x 3.375 x 15.5)
E5 - RIGHT REAR TOWER LEG (W100678) - 1 REQ - 36 x86 x 2274 (1.375 x 3.375 x 89.5)
E6 - CENTER REAR TOWER LEG (W100679) - 1 REQ - 36 x86 x 2274 (1.375 x 3.375 x 89.5)
E7 - LEFT REAR TOWER LEG (W100714) - 1 REQ - 36 x 86 x 2274 (1.375 x 3.375 x 89.5)
F1 - ROOF RAFTER (W100616) - 6 REQ - 36 x 60 x 832(1.375 x 2.375 x 32.75)
G1 - BASE BOARD (W100617) - 2 REQ - 24 x 134 x 2088(1 x 5.25 x 82.25)
G2 - WALL RAIL (W100618) - 1 REQ - 24 x 134 x 2088(1 x 5.25 x 82.25)
G3 - WALL RAIL (W100619) - 1 REQ - 24 x 134 x 2088(1 x 5.25 x 82.25)
G4 - BASE BOARD / SAND BOX (W100620) - 3 REQ - 24 x134 x 1244 (1 x 5.25 x 49)
G5 - WALL RAIL / SWING MOUNT (W100621) - 1 REQ - 24x 134 x 1244 (1 x 5.25 x 49)
G6 - FLOOR RAIL (W100622) - 2 REQ - 24 x 134 x 1244(1 x 5.25 x 49)
G7 - FLOOR RAIL (W100623) - 4 REQ - 24 x 134 x 1244(1 x 5.25 x 49)

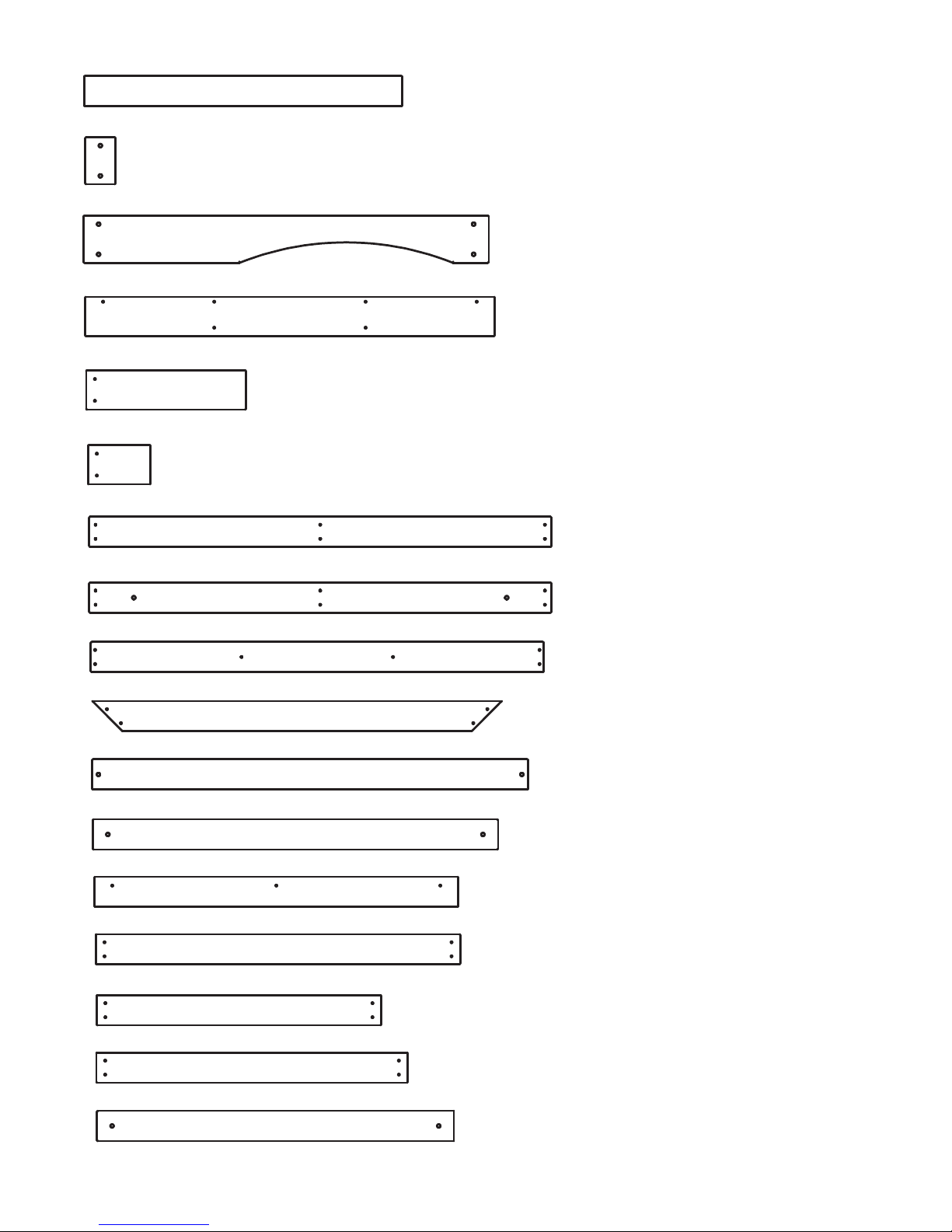

PAGE 14 - WOODEN PARTS G8 - H8
G8 - WALL RAIL (W100624) - 2 REQ - 24 x 134 x 1244(1 x 5.25 x 49)
G9 - BASE BOARD (W100625) - 2 REQ - 24 x 134 x 1156(1 x 5.25 x 45.5)
G10 - FLOOR RAIL (W100626) - 1 REQ - 24 x 134 x 1156 (1 x 5.25 x 45.5)
G11 - PICNIC TABLE TOP (W100627) - 2 REQ - 24 x 134x 1142 (1 x 5.25 x 45)
G12 - FLOOR RAIL (W100628) - 1 REQ - 24 x 134 x 1018 (1 x 5.25 x 40.125)
G13 - SAND BOX SEAT (W100629) - 2 REQ - 24 x 134 x520 (1 x 5.25 x 20.5)
G14 - FLOOR RAIL (W100792) - 1 REQ - 24 x 134 x 1018 (1 x 5.25 x 40.125)
G15 - FLOOR RAIL (W100793) - 1 REQ - 24 x 134 x 1156 (1 x 5.25 x 45.5)
H1 - FLOOR JOIST (W100630) - 2 REQ - 24 x 86 x 1156 (1 x 3.375 x 45.5)
H2 - PICNIC TABLE SEAT (W100631) - 2 REQ - 24 x 86x 1142 (1 x 3.375 x 45)
H3 - FLOOR JOIST (W100632) - 2 REQ - 24 x 86 x 1018(1 x 3.375 x 40.125)
H4 - PICNIC SEAT SUPPORT (W100633) - 2 REQ - 24 x 86 x 558 (1 x 3.375 x 22)
H6 - SEAT UPRIGHT (W100635) - 2 REQ - 24 x 86 x 482(1 x 3.375 x 19)
H7 - TABLE SUPPORT (W100636) - 2 REQ - 24 x 86 x 342 (1 x 3.375 x 13.5)
H8 - TABLE SUPPORT (W100637) - 2 REQ - 24 x 86 x 306 (1 x 3.375 x 12)

PAGE 15 - WOODEN PARTS H9 - M11
H9 - FLOOR JOIST (W100638) - 2 REQ - 24 x 86 x 908 (1 x 3.375 x 35.75)
H10 - BTM FLOOR BOARD SUPPORT (W100677) - 10 REQ -24 x 86 x 134 (1 x 3.375 x 5.25)
K1 - WALL RAIL (W100639) - 1 REQ - 16 x 134 x 1156(.625 x 5.25 x 45.5)
L1 - OUTSIDE FILLER FLOOR BOARD (W100640) - 4 REQ -16 x 112 x 1168 (.625 x 4.375 x 46)
L2 - WALL BOARD (W100641) - 4 REQ - 16 x 112 x 456(.625 x 4.375 x 18)
L3 - WALL BOARD (W100642) - 4 REQ - 16 x 112 x 178(.625 x 4.375 x 7)
M1 - ROOF CAP (W100643) - 2 REQ - 16 x 86 x 1318 (.625 x 3.375 x 51.875)
M2 - RIDGE CAP (W100644) - 2 REQ - 16 x 86 x 1318 (.625 x 3.375 x 51.875)
M3 - FLOOR BOARD (W100645) - 29 REQ - 16 x 86 x 1292 (.625 x 3.375 x 50.875)
M4 - GABLE BOARD (W100646) - 2 REQ - 16 x 86 x 1168(.625 x 3.375 x 46)
M5 - WALL RAIL (W100647) - 4 REQ - 16 x 86 x 1244 (.625 x 3.375 x 49)
M6 - WALL RAIL (W100648) - 3 REQ - 16 x 86 x 1156 (.625 x 3.375 x 45.5)
M7 - WALL CAP (W100649) - 2 REQ - 16 x 86 x 1038 (.625 x 3.375 x 40.875)
M8 - WALL BOARD (W100650) - 11 REQ - 16 x 86 x 1040(.625 x 3.375 x 41)
M9 - WALL BOARD (W100651) - 6 REQ - 16 x 86 x 812 (.625 x 3.375 x 32)
M10 - WALL BOARD (W100652) - 2 REQ - 16 x 86 x 888(.625 x 3.375 x 35)
M11 - WALL RAIL (W100653) - 1 REQ - 16 x 86 x 1018(.625 x 3.375 x 40.125)

PAGE 16 - WOODEN PARTS M12 - R1
M12 - WINDOW TRIM (W100654) - 1 REQ - 16 x 86 x 806(.625 x 3.375 x 31.75)
M13 - WALL BOARD (W100655) - 7 REQ - 16 x 86 x 616(.625 x 3.375 x 24.25)
M14 - WALL BOARD (W100656) - 9 REQ - 16 x 86 x 660(.625 x 3.375 x 26)
M15 - GABLE BOARD (W100657) - 2 REQ - 16 x 86 x 546(.625 x 3.375 x 21.5)
M16 - WALL BOARD (W100658) - 2 REQ - 16 x 86 x 532(.625 x 3.375 x 21)
M17 - WALL BOARD (W100659) - 13 REQ - 16 x 86 x 456(.625 x 3.375 x 18)
M18 - WALL RAIL (W100660) - 1 REQ - 16 x 86 x 438 (.625 x 3.375 x 17.25)
M19 - GABLE BOARD (W100661) - 4 REQ - 16 x 86 x 412(.625 x 3.375 x 16.25)
M20 - GABLE BOARD (W100662) - 2 REQ - 16 x 86 x 374(.625 x 3.375 x 14.75)
M21 - WALL RAIL (W100663) - 2 REQ - 16 x 86 x 304 (.625 x 3.375 x 12)
M22 - GABLE BOARD (W100664) - 4 REQ - 16 x 86 x 272(.625 x 3.375 x 10.75)
M23 - WINDOW TRIM (W100665) - 2 REQ - 16 x 86 x 322(.625 x 3.375 x 12.625)
M24 - WALL BOARD (W100666) - 2 REQ - 16 x 86 x 126(.625 x 3.375 x 5)
N1 - FLOOR BOARD (W100667) - 2 REQ - 16 x 60 x 1292(.625 x 2.375 x 50.875)
N3 - WALL BOARD (W100669) - 2 REQ - 16 x 60 x 456 (.625 x 2.375 x 18)
N4 - GABLE BOARD (W100670) - 4 REQ - 16 x 60 x 336(.625 x 2.375 x 13.25)
N5 - WALL BOARD (W100671) - 2 REQ - 16 x 60 x 178 (.625 x 2.375 x 7)
O1 - WALL SUPPORT (W100672) - 6 REQ - 16 x 60 x 330(.625 x 1.375 x 13)
O2 - WALL SUPPORT (W100673) - 1 REQ - 16 x 60 x 254(.625 x 1.375 x 10)
R1 - ROOF SLAT (W100674) - 12 REQ - 18 x 140 x 1394(.75 x 5.5 x 54.875)

R2 - INNER ROOF SLAT (W100785) - 2 REQ - 18 x 114 x1394 (.75 x 4.5 x 54.875)
SC1 - FLOOR BOARD (W100675) - 1 REQ - 16 x 76 x 1168 (.625 x 3 x 46)
T1 - SAFETY RAIL (W100676) - 1 REQ - 24 x 34 x 520(1 x 1.375 x 20.5)
BTM ROCK WALL BOARD (W100493) - 1 REQ - 16 x 60 x 675 (.625 x 2.375 x 26.625)
LADDER REAR SUPPORT (W100610) - 1 REQ - 16 x 86 x 488 (.625 x 3.375 x 19.25)
LADDER RUNG (W100611) - 4 REQ - 24 x 86 x 460 (1 x3.375 x 18.125)
LADDER UPRIGHT LEFT (W100608) - 1 REQ - 24 x 86 x 1290 (1 x 3.375 x 50.75)
LADDER UPRIGHT RIGHT (W100609) - 1 REQ - 24 x 86 x1290 (1 x 3.375 x 50.75)
ROCK WALL BOARD (W100489) - 5 REQ - 16 x 112 x 675(.625 x 4.375 x 26.625)
ROCK WALL BOARD (W100491) - 4 REQ - 16 x 112 x 675(.625 x 4.375 x 26.625)
ROCK WALL BOARD (W100492) - 4 REQ - 16 x 112 x 675(.625 x 4.375 x 26.625)
ROCK WALL END BOARD (W100490) - 1 REQ - 16 x 60 x 707 (.625 x 2.375 x 27.875)
ROCK WALL RAIL (W100488) - 1 REQ - 36 x 86 x 1568 (1.375 x 3.375 x 61.75)
ROCK WALL RAIL (W100487) - 1 REQ - 36 x 86 x 1568 (1.375 x 3.375 x 61.75)
A50 - SWING BEAM (W100942) - 1 REQ - 86 x 134 x 2274 (3.375 x 5.25 x 89.5)
SP50 - SWING BEAM SUPPORT (W100946) - 1 REQ - 86 x86 x 1212 (3.375 x 3.375 x 47.75)
G50 - SWING BEAM GROUND BOARD (W100947) - 1 REQ - 24 x 134 x 2346 (1 x 5.25 x 92.375)
PAGE 17 - WOODEN PARTS R2 - G50

E51 - SWING BEAM ANGLE BRACE (W100948) - 2 REQ - 36x 86 x 2260 (1.375 x 3.375 x 89)
E50 - SWING BEAM END SUPPORT (W100949) - 1 REQ - 36x 86 x 1226 (1.375 x 3.375 x 48.25)
WINDOW SHUTTER (W100786) - 3 REQ - 16 x 112 x 406 (.625 x 4.375 x 16)
WINDOW SHUTTER SLAT (W100787) - 6 REQ - 16 x 34 x 136 (.625 x 1.375 x 5.375)
PAGE 18 - WOODEN PARTS E51 - W100787
