Backyard Discovery 6013 User manual

Manufacturer: Backyard Discovery
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
Made in China
Features the fastening system.
Register your new swing set on-line @ www.swingsetsonline.com
(you will also find any updates on assembly instructions and
information to order replacement parts)
Save this assembly manual for future reference in the event that
you need to order replacement parts.
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information

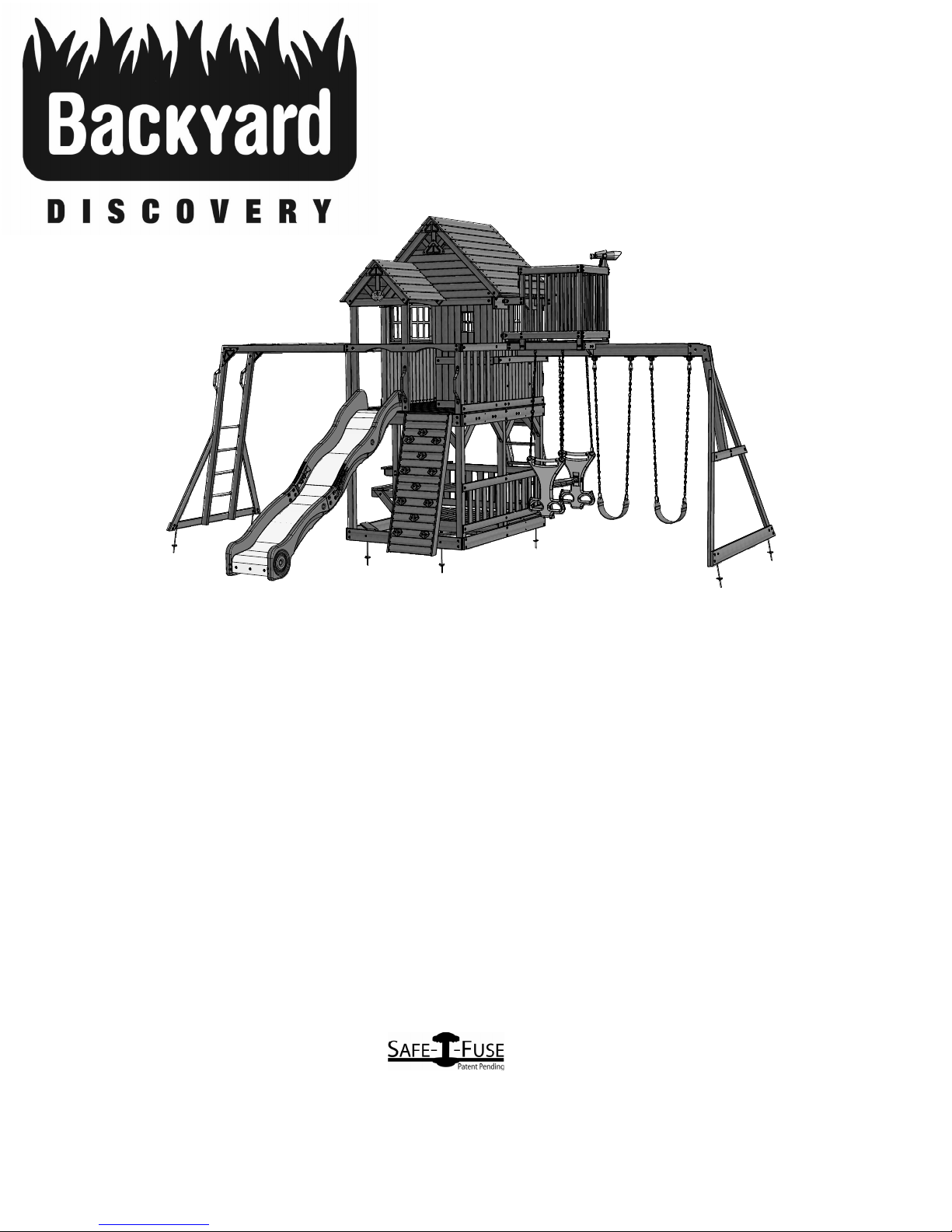

Sky Fort II
Wooden Swing Set
Model: # 6013
INS-6013-A-Sky Fort II-Eng 6/17/13

PLEASE HAVE THE FOLLOWING INFORMATION WHEN YOU MAKE YOUR CALL:
1 – MODEL NUMBER OF THE PRODUCT LOCATED ON THE FRONT OF THE ASSEMBLY MANUAL
2 – DESRIPTION OF THE PART FROM THE PARTS LIST
POR FAVOR TENGA VISIBLE LA SIGUIENTE INFORMACIÓN CUANDO LLAME:
1 - NÚMERO DE MODELO DEL PRODUCTO QUE SE ENCUENTRA UBICADO AL FRENTE DEL MANUAL
DE ENSAMBLAJE
2 - DESCRIPCIÓN DE LA PIEZA QUE SE ENCUENTRA EN LA LISTA DE PIEZAS
PLEASE READ THIS BEFORE STARTING ASSEMBLY
POR FAVOR LEA ESTAS INSTRUCCIONES ANTES DE COMENZAR EL ENSAMBLAJE
STOP
PARE
Missing A Part?
CALL US BEFORE GOING
BACK TO THE STORE!
The store where you made your purchase
does not stock parts for this item.
If you have assembly questions or if you need parts,
whether they are missing or damaged
Call Toll-Free Help Line or visit www.swingsetsonline.com
¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA!
La tienda donde realizó la compra no almacena piezas de este prod cto.
Si tiene preg ntas sobre el ensamblaje o si necesita piezas debido a q e
faltan o están dañadas
llame gratis a la línea de ay da
1-800-765-4138
• READ THE ASSEMBLY MANUAL COMPLETELY, PAYING SPECIAL ATTENTION TO THE IMPORTANT TIPS AND
SAFETY INFORMATION.
• AFTER YOU HAVE READ THE ASSEMBLY MANUAL, YOU WILL BE ABLE TO DECIDE IF YOU NEED PROFESSIONAL
HELP TO COMPLETE THE ASSEMBLY OF THE PLAYSET.
• SEPARATE AND IDENTIFY ALL PARTS TO MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED.
• IF YOU CAN’T FIND ALL OF THE PARTS, CHECK THE PACKING MATERIAL. SMALL PARTS MAY HAVE FALLEN INTO IT
DURING SHIPMENT.
• IF YOU HAVE PROBLEMS WITH THE ASSEMBLY OR IF ANY PART IS MISSING OR DAMAGED, PLEASE CALL THE
HELP LINE 1-800-765-4138 OR VISIT www.swingsetsonline.com.
• LEA EL MANUAL DE ENSAMBLAJE COMPLETAMENTE, PRESTANDO ESPECIAL ATENCIÓN A LOS CONSEJOS ÚTILES
IMPORTANTES Y A LA INFORMACIÓN SOBRE SEGURIDAD.
• DESPUÉS DE QUE HAYA LEÍDO EL MANUAL DE ENSAMBLAJE, PODRÁ DECIDIR SI NECESITA AYUDA PROFESIONAL
PARA EFECTUAR EL ENSAMBLAJE DE LA UNIDAD DE JUEGOS.
• SEPARE E IDENTIFIQUE TODAS LAS PIEZAS PARA COMPROBAR QUE DISPONE DE TODAS LAS PARTES INDICADAS.
• SI NO PUEDE ENCONTRAR TODAS LAS PIEZAS, REVISE EL MATERIAL DE EMPAQUE. ES POSIBLE QUE ALGUNAS
PIEZAS PEQUEÑAS PUEDAN HABERSE CAÍDO ALLÍ DURANTE EL ENVÍO.
• SI TIENE PROBLEMAS CON EL ENSAMBLAJE O SI ALGUNA PIEZA FALTA O ESTÁ DAÑADA, LLAME A LA LÍNEA DE
AYUDA AL 1-800-765-4138 O VISITE www.swingsetsonline.com.

Owner’s Manual Play Set
Rev5/09/12
Dear Customer:
Please read entire booklet completely before beginning the assembly process.
Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use.
The Company does not warranty any of its residential structures subjected to commercial use such as:
Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
WARNING: This Symbol points out important safety instructions which, if not followed, could endanger
the personal safety of yourself and your children and/or damage your property. You MUST read and
follow all instructions in this manual before attempting to use this playcenter.
WARNING: Children must NOT use this playcenter until unit has been completely assembled
and inspected by an adult to insure set has been properly installed and anchored.
Please follow all recommendations below. Failure to do so may result in the warranty being void and/or safety
violations that could result in serious injury. This manual contains helpful information concerning Assembly
Preparation, Installation Procedure, and Required Maintenance. Always keep the safety of your children in mind as
your play structure is being built and as your children play on the set. Before your children play on the set please
review the Operation Instructions with them to help ensure their safety.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE PLACE WHERE YOU CAN
REFER TO THEM AS NEEDED. IN ORDER TO PROVIDE YOU WITH THE MOST EFFICIENT SERVICE, IT IS REQUIRED THAT
YOU PROVIDE US WITH THE PART NUMBERS WHEN ORDERING PARTS.
For Your Records:
Please take time and fill out the information below. This information will be needed for warranty issues.
Where Purchased: ____________________
Date of Purchase: ____________________
Installation Date: _____________________
Installed by: _________________________
Tracking Number: ____________________
Tracking Number Reference Label
Tracking ID number on the carton and back of the ID plate are included for tracking purposes
associated with warranty claims.
Staple Receipt Here

Owner’s Manual Play Set
Rev5/09/12
Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height.
Positioning Your Playcenter
1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult
helper. Place in a flat area of your yard to minimize ground preparation.
2. Choose a level location for the equipment. This can reduce the likelihood of the play set
tipping over and loose-fill surfacing material washing away during heavy rains.
3. Place the equipment not less than 6 ft (1.8 m) from any structure or obstruction such as a
fence, garage, house, overhanging branches, laundry lines, or electrical wires.
4. Provide enough room so that the children can use the equipment safely. For example, for
structures with multiple play activities, a slide should not exit in front of a swing.
5. It is a good idea to place your Playcenter in an area that is convenient for adults to watch
children at play.
6. Create a site free of obstacles that could cause injuries – such as low overhanging tree
branches, overhead wires, tree stumps and/or roots, large rocks, bricks and concrete.
Additional suggestions in the Suggested Playground Surfacing Section.
7. Do not build your playset on top of surfacing material.
8. Locate bare metal platforms and slides out of direct sunlight to reduce the likelihood of serious
burns. A slide that faces north will receive the least direct sunlight.
9. Separate active and quiet activities from each other. For example, locate sandboxes away
from swings or use a guardrail or barrier to separate the sandbox from the movement of the
swings.
Suggested Playground Surfacing
Do not install home playground equipment over concrete, asphalt, packed earth, grass, carpet,
or any other hard surface. A fall onto a hard surface can result in serious injury to the
equipment user.
Do not install loose fill surfacing over hard surfaces such as concrete or asphalt.
Shredded bark mulch, wood chips, fine sand and fine gravel, are added as shock absorbing
materials after assembly. If used properly these materials can absorb some of the impact of a
child’s fall.
All surface material should extend a minimum of 6 feet in all directions around the play area.
Do not apply playground surfacing until after the unit is completely constructed. Playset should
not be built on top of surfacing.
Use containment, such as digging out around the perimeter and/or lining the perimeter with
landscape edging.
Installations of rubber tiles or poured-in-place surfaces (other than loose-fill materials)
generally require a professional and are not “do-it-yourself” projects.
Shall use Playground Surfacing Materials (other than loose-fill material) which comply with the
safety standard ASTM F1292 Standard Specification of Impact Attenuation of Surfacing
Materials within the Use Zone of Playground Equipment.

Owner’s Manual Play Set
Rev5/09/12
The following chart explains the fall height in feet from which a life threatening head injury
would not be expected
Critical Heights in feet (m) of Tested Materials
Material Uncompressed Depth Compressed Depth
6" (152mm) 9" (228mm) 12" (304mm) to 9" (228mm)
Wood Chips 7' (2.13m) 10' (3.05m) 11' (3.35m) 10' (3.05m)
Double-Shredded bark mulch 6' (1.83m) 10' (3.05m) 11' (3.35m) 7' (2.13m)
Engineered Wood Fibers 6' (1.83m) 7' (2.13m) >12' (3.66m) 6' (1.83m)
Fine Sand 5' (1.52m) 5' (1.52m) 9' (2.74m) 5' (1.52m)
Coarse Sand 5' (1.52m) 5' (1.52m) 6' (1.83m) 4' (1.22m)
Fine Gravel 5' (1.52m) 7' (2.13m) 10' (3.05m) 6' (1.83m)
Medium Gravel 5' (1.52m) 5' (1.52m) 6' (1.83m) 5' (1.52m)
Shredded Tires* 10-12' (3.0-3.6m) N/A N/A N/A
*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples produced by four manufacturers. The tests
reported critical heights, which varied from 10 feet to greater than 12 feet. t is recommended that persons seeking to install shredded tires as a protective surface request test
data from the supplier showing the critical height of the material when it was tested in accordance with ASTM F1292.
Operating Instructions:
NOTE: Your children’s safety is our #1 concern. Observing the following statements
and warnings reduces the likelihood of serious or fatal injury. Please review these
safety rules regularly with your children.
1. This Playcenter is designed for specific number of occupants whose combined weight should
not exceed a designated weight on the elevated floor or the swing area, the total Unit capacity
is outlined in the Basic Setup Dimensions section of instruction manual. The maximum fall
height and recommended play area is also available in the Basic Setup Dimensions section of
the manual for the specific unit.
2. On-site adult supervision is required.
3. Instruct children not to walk close to, in front of, behind, or between moving swings or other
moving playground equipment.
4. Instruct children to sit in and never stand on swings
5. Instruct children not to twist the chains and ropes and not to loop them over the top support
bar, since this may reduce the strength of the chain or rope.
6. Instruct children not to jump from swings or other playground equipment in motion.
7. Instruct children to not to push empty seats. The seat may hit them and cause serious injury.
8. Instruct and teach children to sit in the center of the swings with their full weight on the seats.
9. Instruct children not to use the equipment in a manner other than intended.
10.Instruct children to always go down slides feet first. Never slide head first.
11.Instruct children to look before they slide to make sure no one is at the bottom.
12.Instruct children to never run up a slide, as this increases their chances of falling.
13.The parents should dress children appropriately. (Examples would include the use of well-
fitting shoes and the avoidance of ponchos, scarfs, and other loose-fitting clothing that is
potentially hazardous while using equipment).
14.Instruct children not to climb when the equipment is wet.
15.Instruct children to never jump from a fort deck. They should always use the ladder, ramp or
slide.
16.Instruct children to never crawl or walk across the top of monkey bars.
17.Instruct children to never crawl on top of a fort roof.

Owner’s Manual Play Set
Rev5/09/12
18.Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that
they cannot be looped back on it.
19.Instruct children not to attach items to the playground equipment that are not specifically
designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet
leashes, cables and chain as they may cause a strangulation hazard.
20.Instruct children to never wrap their legs around swing chain.
21.Instruct children to never slide down the swing chain.
22.Instruct children to remove their bike or other sports helmet before playing on playground
equipment.
Maintenance Instructions:
At the beginning of each play season:
• Tighten all hardware.
• Lubricate all metallic moving parts per manufacturer’s instructions.
• Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose,
cracked, or missing.
• Check all moving parts including swing seats, ropes, cables, and chains for wear, rust, or
other deterioration. Replace as needed.
• Check metal parts for rust. If found, sand and repaint using a non Lead-based paint meeting
the requirements of 16 CFR 1303.
• Check all wood members for deterioration and splinters. Sand down splinters and replace
deteriorating wood members.
• Reinstall any plastic parts, such as swing seats or any other items that were removed for the
cold season.
• Rake and check depth of loose fill protective surfacing materials to prevent compaction and
to maintain appropriate depth. Replace as necessary.
Twice a month during play season:
• Tighten all hardware.
• Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose,
cracked, or missing.
• Rake and check depth of loose fill protective surfacing materials to prevent compaction and
to maintain appropriate depth. Replace as necessary.
• Once a month during play season.
• Lubricate all metallic moving parts per manufacturer’s instructions.
• Check all moving parts including swing seats, ropes, cables, and chains for wear, rust, or
other deterioration. Replace as needed.
At the end of each play season or when the temperature drops below 32°F:
• Remove plastic swing seats and other items as specified by the manufacturer and take
indoors or do not use.
• Rake and check depth of loose fill protective surfacing materials to prevent compaction and
to maintain appropriate depth. Replace as necessary.

Owner’s Manual Play Set
Rev5/09/12
Additional Maintenance:
• Check the swing beam and hardware every two weeks due to wood expansion and
contraction. It is particularly important that this procedure be followed at the beginning of each
season.
• Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season
causing splinters to appear. Light sand may be necessary to maintain a safe playing
environment. Treat your playset with stain regularly, to help prevent severe checking/splitting
and other weather damage.
• A waterbourne transparent stain has been applied to your playset. This is done for color only.
Once or twice a year, depending on your climate conditions, you must apply some type of
protection (sealant) to the wood of your unit. Prior to the application of sealant, lightly sand any
“rough” spots on your playset. Please note this is a requirement of your warranty.
• Assembling and maintaining the playset on a level location is very important. As your children
play, your playset will slowly dig its way into the soil, and it is very important that it settles
evenly. Make sure the playset is level and true one each year or at the beginning of each play
season.
Disposal Instructions:
When the Playcenter use is no longer desired, it should be disassembled and disposed of in such a
way that no unreasonable hazards will exist at the time the unit is discarded.
Third Party Assembly:
Customer may, in their sole discretion, elect to use a third party person or service to assemble this
product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the
Customer for any assembly services’.
Please see our warranty for more information about damaged and missing part replacement
coverage. Backyard Discovery will not reimburse Customer for the price of parts purchased.

Owner’s Manual Play Set
Rev5/09/12
APPENDIX A
Information on Playground Surfacing Materials:
The following information is from the United States Consumer Product Safety Commission’s
Information Sheet for playground surfacing material; also see the following website for additional
information: www.cpsc.gov/cpscpub/pubs/323.html.
X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY
HANDBOOK
9
X3.1 Select Protective Surfacing—One f the m st imp rtant things y u can d t reduce the likelih d f
seri us head injuries is t install sh ck-abs rbing pr tective surfacing under and ar und y ur play equipment. The
pr tective surfacing sh uld be applied t a depth that is suitable f r the equipment height in acc rdance with ASTM
Specificati n F 1292. There are different types f surfacing t ch se fr m; whichever pr duct y u select, f ll w these
guidelines:
X3.1.1 Loose-Fill Materials:
X3.1.1.1 Maintain a minimum depth f 9 inches f l se-fill materials such as w d mulch/chips, engineered
w d fiber (EWF), r shredded/recycled rubber mulch f r equipment up t 8 feet high; and 9 inches f sand r pea
gravel f r equipment up t 5 feet high. NOTE: An initial fill level f 12 inches will c mpress t ab ut a 9-inch depth f
surfacing vertime. The surfacing will als c mpact, displace, and settle, and sh uld be peri dically refilled t maintain at
least a 9-inch depth.
X3.1.2 Use a minimum f 6 inches f pr tective surfacing f r play equipment less than 4 feet in height. If
maintained pr perly, this sh uld be adequate. (At depths less than 6 inches, the pr tective material is t easily
displaced r c mpacted.) NOTE: D n t install h me playgr und equipment ver c ncrete, asphalt, r any ther hard
surface. A fall nt a hard surface can result in seri us injury t the equipment user. Grass and dirt are n t c nsidered
pr tective surfacing because wear and envir nmental fact rs can reduce their sh ck abs rbing effectiveness. Carpeting
and thin mats are generally n t adequate pr tective surfacing. Gr und level equipment such as a sandb x, activity wall,
playh use r ther equipment that has n elevated play surface – d es n t need any pr tective surfacing.
X3.1.3 Use c ntainment, such as digging ut ar und the perimeter and/ r lining the perimeter with landscape
edging. D n’t f rget t acc unt f r water drainage.
X3.1.3.1 Check and maintain the depth f the l se-fill surfacing material. T maintain the right am unt f l se-
fill materials, mark the c rrect level n play equipment supp rt p sts. That way y u can easily see when t replenish
and/ r redistribute the surfacing.
X3.1.3.2 Do not install l se-fill surfacing ver hard surfaces such as c ncrete r asphalt.
X3.1.4 Poured-In-Place Surfaces or Pre-Manufactured Rubber Tiles — Y u may be interested in using surfacing
ther than l se-fill materials – like rubber tiles r p ured-in-place surfaces.
X3.1.4.1 Installati ns f these surfaces generally require a pr fessi nal and are n t “d -it-y urself” pr jects.
X3.1.4.2 Review surface specificati n bef re purchasing this type f surfacing. Ask the installer/manufacturer f r
a rep rt sh wing that the pr duct has been tested t the f ll wing safety standard: ASTM F 1292 Standard Specificati n
fr Impact Attenuati n f Surfacing Materials within the Use Z ne f Playgr und Equipment. This rep rt sh uld sh w the
specific height f r which the surface is intended t pr tect against seri us head injury. This height sh uld be equal t r
greater than the fall height – vertical distance between a designated play surface (elevated surface f r standing, sitting, r
climbing) and the pr tective surfacing bel w – f y ur play equipment.
X3.1.4.3 Check the pr tective surfacing frequently f r wear.
X3.1.5 Placement — Pr per placement and maintenance f pr tective surfacing is essential. Be sure t :
X3.1.5.1 Extend surfacing at least 6 feet fr m the equipment in all directi ns.
X3.1.5.2 F r t -fr swings, extend pr tective surfacing in fr nt f and behind the swing t a distance equal t
twice the height f the t p bar fr m which the swing is suspended.
9
This inf rmati n has been extracted fr m the CPSC publicati ns “Playgr und Surfacing — Technical
Inf rmati n Guide” and “Handb k f r Public Playgr und Safety.” C pies f these rep rts can be btained by sending a
p stcard t the: Office f Public Affairs, U.S. C nsumer Pr duct Safety C mmissi n, Washingt n, D.C., 20207 r call the
t ll-free h tline: 1-800-638-2772.

Owner’s Manual Play Set
Rev5/09/12
The American S ciety f r Testing and Materials takes n p siti n respecting the validity f any parent right
asserted in c nnecti n with any item menti ned in this standard. Users f this standard are expressly advised that
determinati n f the validity f any such parent rights, and the risk f infringement f such rights, are entirely their wn
resp nsibility.
The standard is subject t revisi n at any time by the resp nsible technical c mmittee and must be reviewed
every five years and if n t revised, either appr ved r withdrawn. Y ur c mments are invited either f r revisi n f this
standard r f r additi nal standards and sh uld be addressed t ASTM Headquarters. Y ur c mments will receive
careful c nsiderati n at a meeting f the resp nsible technical c mmittee, which y u may attend. If y u feel that y ur
c mments have n t received a fair hearing y u sh uld make y ur views kn wn t the ASTM C mmittee n Standards.
100 Barr Harb r Drive, West C nsh h cken, PA 19428.

Rev5/20/10 BRS
Play Set Assembly Manual FAQs:
1. Does the area for the playset need to be level?
Yes. Backyard Discovery recommends the playset be positioned on a flat level area for
maximum safety and durability. The stakes provided should be used to secure it firmly to the
ground.
2. What size area is recommended for the playset?
Backyard Discovery recommends at least a 6’ (six foot) perimeter around and above the playset
for maximum safety.
3. What age range is appropriate for the playsets?
Backyard Discovery playsets are recommended for children ages 3 – 10 years.
4. Is the wood treated with chemicals?
Backyard Discovery uses 100% Chinese Cedar wood which is naturally bug resistant, decay
and rot resistant. To help ensure your child’s safety, our wood is completely chemical free and
we do not use pressure-treated wood. The stain we use is a top coat using a water-based
product that is for appearance only.
5. How often should the playset be stained?
Backyard Discovery recommends the playset be stained once each year. A water or oil based
stain can be used at the customer’s discretion.
6. Why does it seem that my swing set is developing cracks?
Wood is a natural material; no two pieces are exactly alike. Each piece has its own
characteristics and personality and reacts differently to climate changes. When any wood
product is exposed to the elements, it develops “wood checks”. A check is the radial separation
of the wood fibers running with the grain of the wood. These are caused by the varying
temperature and moisture conditions. A check is not a crack – it does not affect the strength or
durability of the wood or structural integrity of the play set.
7. Do Backyard Discovery playsets come with a warranty?
Yes. All Backyard Discovery products carry a 1-year replacement warranty on all parts for
manufacturer’s defect. Our wood carries a 5 year warranty on rot and decay as well. Please see
warranty details for more information.
8. What is the best way to get started assembling the playset?
Backyard Discovery recommends taking all the parts out of the boxes and arranging them by
part number before you begin any assembly. This will not only allow faster assembly, but will
also identify any parts that may be missing or damaged so they can be replaced before
assembly. If parts are missing or need replacement, go to

Rev5/20/10 BRS
www.swingsetsonline.com/support.aspx and follow the prompts to order them. Next, read the
assembly manual and get the tools ready for the job as
recommended in the manual. If the assembly manual is lost or misplaced a new one can be
printed from Backyard Discovery’s website: www.swingsetsonline.com.
9. The playset seems to rock or sway too much. What’s wrong?
Rocking is caused by uneven ground or obstructions such as rocks, roots, etc. under the ground
rails. These should be removed and the ground underneath re-leveled to prevent rocking. Also
ensure the playset is securely staked to the ground using the stakes provided.
10. The 2”x4” boards do not measure 2”x 4”. Why not?
In the U.S. it is common practice to describe lumber dimensions using the rough cut sizes from
the sawmill and not the finished dimensions. Retailers, home stores, etc. all use this accepted
practice for describing lumber dimensions. However, Backyard Discovery playsets are designed
and constructed using the actual dimensions so everything fits properly and remains so during
the life of the playset.
11. The end beam is not straight up and down. Why not?
This is normal. Backyard Discovery designs playsets this way to ensure the strongest structure
possible. The slight angle adds strength and reduces rocking and twisting.
12. The S-hooks for the swings won’t close. What is wrong?
Backyard Discovery recommends placing them on a hard surface such as concrete (don’t do
this on anything that will dent such as metal or finished wood or glass which will break!). It will
take quite a few strokes, but the hooks will close.
For more information and frequently asked questions, please refer to our website at
www.swingsetsonline.com.

(Level 24")
(Square)
(Tape Measure) (Claw Hammer)
(Cordless Drill or Electric Drill)
(An Adult w/ an Adult Helper) (Rubber Mallet - Optional)
(Ladder)
(Phillips Screw Driver)
(Drill Attachments:
Phillips Head)
(5/16" & 7/16" Drill Bits)
Tools Required for Installation:
(These are the tools that are generally required for assembly of our outdoor products. These tools
are not included with the outdoor product purchase.)

Important Assembly Notes
1) While assembling unit, take time before and after each phase to make sure fort is level. If fort is
not level, assembly will be difficult and improper assembly may result. Extra care must be taken to
insure the fort is square.
2) Tighten bolts securely, tighten nuts on bolts flush to the tube or member, and place caps over
exposed bolts snug to the nut.
3) Pay close attention to the ITEMS NEEDED FOR EACH PHASE. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by phase.
4) Pay close attention to make sure you are using the correct hardware in the correct phases. Using
incorrect hardware may result in improper assembly.
5) Whenever a T-nut is used, follow these directions. Place T-nut in pre-drilled hole. Tap in with hammer.
Place bolt with washers in the opposite side. Hand tighten to make sure the bolt is in the T-nut.
DO NOT over tighten.
6) Read the steps of each phase thoroughly. The written steps may include important information not
shown in the illustrations.
Basic Setup Dimensions
Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such
as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
Safe Play Zone
Safe play height: 18'-3 3/4" [5.6 m]
Maximum fall height: 7'-6 3/16" [2.3 m]
General Information:
Your set has been designed and engineered
for children only and for residential use only.
A maximum of 150 lbs. per child is
recommended for play activities designed
for individual use.
A maximum of 120 lbs. per child is
recommended for play activities designed
for multiple child use.
A maximum of 9 children is recommended
for this swing set.
'-0"
[1.8 m]
'-0"
[1.8 m]
12'-3 3/4"
[3.8 m]
21'-11 1/8"
[ .7 m]
1 '-9 7/1 "
[5.1 m]
7'- 3/1 "
[2.3 m]

Parts Identification
Wood Components
(NOT TO SCALE)
A50 - SWING BEAM - W103544
3 3/8"x5 1/4"x89 1/2" (86x134x2274)
(1)
B1 - TOWER LEG - W103452
3"x3"x89 1/2" (76x76x2274)
(1)
B2 - TOWER LEG - W103472
3"x3"x89 1/2" (76x76x2274)
(1)
B3 - TOWER LEG - W103453
3"x3"x83 1/4" (76x76x2114)
(1)
B4 - TOWER LEG - W103454
3"x3"x59" (76x76x1500)
(1)
B5 - TOWER LEG - W103471
3"x3"x59" (76x76x1500)
(1)
B6 - TOWER LEG - W103474
3"x3"x59" (76x76x1500)
(1)
B7 - FRONT LEFT CLUB HOUSE CORNER - W103486
3"x3"x53 7/8" (76x76x1370)
(1)
B8 - BACK LEFT CLUB HOUSE CORNER - W103488
3"x3"x53 7/8" (76x76x1370)
(1)
B9 - FRONT RIGHT CLUB HOUSE CORNER - W103490
3"x3"x53 7/8" (76x76x1370)
(1)
B10 - BACK RIGHT CLUB HOUSE CORNER - W103491
3"x3"x53 7/8" (76x76x1370)
(1)
B11 - SWING BEAM MOUNT - W103493
3"x3"x50 1/4" (76x76x1277)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
E1 - CLUB HOUSE LEG - W103503
1 3/8"x3 3/8"x50 1/2" (36x86x1284)
(1)
E2 - CLUB HOUSE WALL BOARD - W103512
1 3/8"x3 3/8"x50 1/2" (36x86x1284)
(2)
E3 - PORCH LEG - W103536
1 3/8"x3 3/8"x50 1/2" (36x86x1282)
(2)
E4 - ROOF RAFTER - W103519
1 3/8"x3 3/8"x50 3/8" (36x86x1278)
(4)
E5 - CROWS NEST FLOOR RAIL - W103546
1 3/8"x3 3/8"x38" (36x86x964)
(2)
E6 - DECK BRACE - W103464
1 3/8"x3 3/8"x20" (36x86x508)
(8)
E7 - PICNIC TABLE BRACE - W103481
1 3/8"x3 3/8"x17 1/2" (36x86x444)
(2)
E8 - CROWS NEST DECK BRACE - W103548
1 3/8"x3 3/8"x11" (36x86x280)
(2)
E50 - END SUPPORT - W100949
1 3/8"x3 3/8"x44 1/8" (36x86x1120)
(1)
E51 - ANGLE BRACE - W100948
1 3/8"x3 3/8"x88 3/4" (36x86x2254)
(2)
E72 - LEFT RAIL - W100036
1 3/8"x3 3/8"x61 3/4" (36x86x1570)
(1)
E73 - RIGHT RAIL - W100037
1 3/8"x3 3/8"x61 3/4" (36x86x1570)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
E74 - MONKEY BAR RAIL - W102918
1 3/8"x3 3/8"x77 1/8" (36x86x1959)
(2)
E79 - MONKEY BAR UPRIGHT - W100995
1 3/8"x3 3/8"x88 1/8" (36x86x2237)
(2)
F1 - CROWS NEST WALL SUPPORT - W103551
1 3/8"x2 3/8"x37 1/2" (36x60x952)
(2)
F2 - CROWS NEST WALL SUPPORT - W103554
1 3/8"x2 3/8"x37 1/2" (36x60x952)
(2)
G1 - TOP FLOOR RAIL - W103455
1"x5 1/4"x80" (24x134x2032)
(1)
G2 - BOTTOM FLOOR RAIL - W103456
1"x5 1/4"x80" (24x134x2032)
(2)
G3 - TOP FLOOR RAIL - W103457
1"x5 1/4"x80" (24x134x2032)
(1)
G4 - FLOOR RAIL - W103458
1"x5 1/4"x60 1/2" (24x134x1537)
(2)
G5 - FLOOR RAIL - W103459
1"x5 1/4"x60 1/2" (24x134x1537)
(3)
G6 - FLOOR JOIST - W103462
1"x5 1/4"x60 1/2" (24x134x1537)
(3)
G7 - FLOOR RAIL - W103477
1"x5 1/4"x60 1/2" (24x134x1537)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
G8 - CLUB HOUSE WALL RAIL - W103502
1"x5 1/4"x50 1/4" (24x134x1277)
(1)
G9 - BAY WINDOW HEADER - W103516
1"x5 1/4"x45 1/4" (24x134x1150)
(4)
G50 - GROUND BOARD - W100947
1"x5 1/4"x86 3/4" (24x134x2202)
(1)
H1 - WALL RAIL - W103487
1"x3 3/8"x80" (24x86x2032)
(1)
H2 - WALL RAIL - W103492
1"x3 3/8"x80" (24x86x2032)
(1)
H3 - ROOF SUPPORT RAIL - W103494
1"x3 3/8"x67 1/4" (24x86x1709)
(2)
H4 - PICNIC TABLE RAIL - W103479
1"x3 3/8"x67 1/4" (24x86x1708)
(1)
H5 - FRONT WALL RAIL - W103485
1"x3 3/8"x60 1/2" (24x86x1537)
(1)
H6 - BACK CLUB HOUSE RAIL - W103489
1"x3 3/8"x60 1/2" (24x86x1537)
(1)
H7 - FRONT CLUB HOUSE WALL RAIL - W103495
1"x3 3/8"x60 1/2" (24x86x1537)
(1)
H8 - CLUB HOUSE WALL RAIL - W103501
1"x3 3/8"x50 1/4" (24x86x1277)
(1)
H9 - PICNIC TABLE SEAT - W103478
1"x3 3/8"x35 1/2" (24x86x902)
(4)

Parts Identification
Wood Components
(NOT TO SCALE)
H10 - PICNIC TABLE SEAT RAIL - W103475
1"x3 3/8"x32" (24x86x812)
(2)
H11 - CLUB HOUSE WALL RAIL - W103498
1"x3 3/8"x29 7/8" (24x86x758)
(1)
H12 - PICNIC TABLE SUPPORT - W103476
1"x3 3/8"x28 5/8" (24x86x728)
(1)
H13 - CROWS NEST FLOOR RAIL - W103547
1"x3 3/8"x27" (24x86x686)
(1)
H14 - PORCH ROOF RAFTER - W103538
1"x3 3/8"x24 1/2" (24x86x622)
(4)
H15 - CROWS NEST FLOOR SUPPORT - W103549
1"x3 3/8"x24 1/8" (24x86x614)
(1)
H16 - PICNIC TABLE TOP SUPPORT - W103480
1"x3 3/8"x16 1/2" (24x86x418)
(1)
H17 - TOP FLOOR SUPPORT - W103463
1"x3 3/8"x3" (24x86x76)
(3)
H76 - LADDER RUNG - W100611
1"x3 3/8"x18 1/8" (24x86x460)
(5)
H77 - LEFT UPRIGHT - W100972
1"x3 3/8"x64 3/8" (24x86x1634)
(1)
H78 - RIGHT UPRIGHT - W100973
1"x3 3/8"x64 3/8" (24x86x1634)
(1)
H81 - MONKEY BAR BRACE - W100993
1"x3 3/8"x53 1/4" (24x86x1352)
(2)
H82 - MONKEY BAR GROUND BOARD - W100994
1"x3 3/8"x70 3/8" (24x86x1786)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
L1 - CROWS NEST FLOOR BOARD - W103550
5/8"x4 3/8"x27" (16x112x686)
(9)
L2 - SAND BOX SEAT - W103469
5/8"x4 3/8"x24" (16x112x610)
(2)
M1 - TOP FLOOR BOARD - W103460
5/8"x3 3/8"x81 7/8" (16x86x2080)
(16)
M2 - BOTTOM WALL RAIL - W103470
5/8"x3 3/8"x80" (16x86x2032)
(2)
M3 - TOP WALL RAIL - W103500
5/8"x3 3/8"x80" (16x86x2032)
(1)
M4 - BOTTOM WALL RAIL - W103473
5/8"x3 3/8"x60 1/2" (16x86x1537)
(1)
M5 - GABLE BOARD - W103521
5/8"x3 3/8"x59 1/2" (16x86x1510)
(2)
M6 - CLUB HOUSE WALL BOARD - W103504
5/8"x3 3/8"x53 7/8" (16x86x1370)
(1)
M7 - GABLE BOARD - W103522
5/8"x3 3/8"x52 5/8" (16x86x1338)
(2)
M8 - CLUB HOUSE WALL BOARD - W103507
5/8"x3 3/8"x50 1/2" (16x86x1284)
(7)
M9 - CLUB HOUSE WALL BOARD - W103513
5/8"x3"x50 1/2" (16x76x1284)
(1)
M10 - SOFFIT CAP - W103534
5/8"x3 3/8"x50 1/4" (16x86x1277)
(1)
M11 - CLUB HOUSE WALL RAIL - W103496
5/8"x3 3/8"x50 1/4" (16x86x1277)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
M12 - GABLE BOARD - W103528
5/8"x3 3/8"x45 7/8" (16x86x1166)
(1)
M13 - PICNIC TABLE TOP - W103482
5/8"x3 3/8"x41 1/2" (16x86x1054)
(4)
M14 - GABLE BOARD - W103529
5/8"x3 3/8"x39 1/8" (16x86x994)
(1)
M15 - CROWS NEST WALL RAIL - W103556
5/8"x3 3/8"x38 7/8" (16x86x988)
(2)
M16 - BOTTOM FLOOR BOARD - W103465
5/8"x3 3/8"x35 1/2" (16x86x902)
(16)
M17 - CENTER PICNIC TABLE TOP - W103483
5/8"x3"x35 1/2" (16x76x902)
(1)
M18 - WALL BOARD - W103506
5/8"x3 3/8"x27 1/2" (16x86x698)
(2)
M19 - CLUB HOUSE WALL BOARD - W103514
5/8"x3 3/8"x29 7/8" (16x86x758)
(4)
M20 - CLUB HOUSE WALL BOARD - W103515
5/8"x3 1/8"x29 7/8" (16x80x758)
(2)
M21 - CLUB HOUSE WALL RAIL - W103497
5/8"x3 3/8"x30 1/4" (16x86x768)
(3)
M22 - WALL BOARD - W103505
5/8"x3 3/8"x29 7/8" (16x86x758)
(23)
M23 - FRONT WINDOW WALL BOARD - W103508
5/8"x3 3/8"x35" (16x86x889)
(2)
M24 - GABLE BOARD - W103530
5/8"x3 3/8"x32 3/8" (16x86x822)
(1)
