Backyard Discovery MONTICELLO 35015 User manual

Made in China
Features the fastening system.
Save this assembly manual for future reference in the event that
you need to order replacement parts.
•Owner's Manual
•Frequently Asked Questions
•Assembly Instructions
•Warranty Information

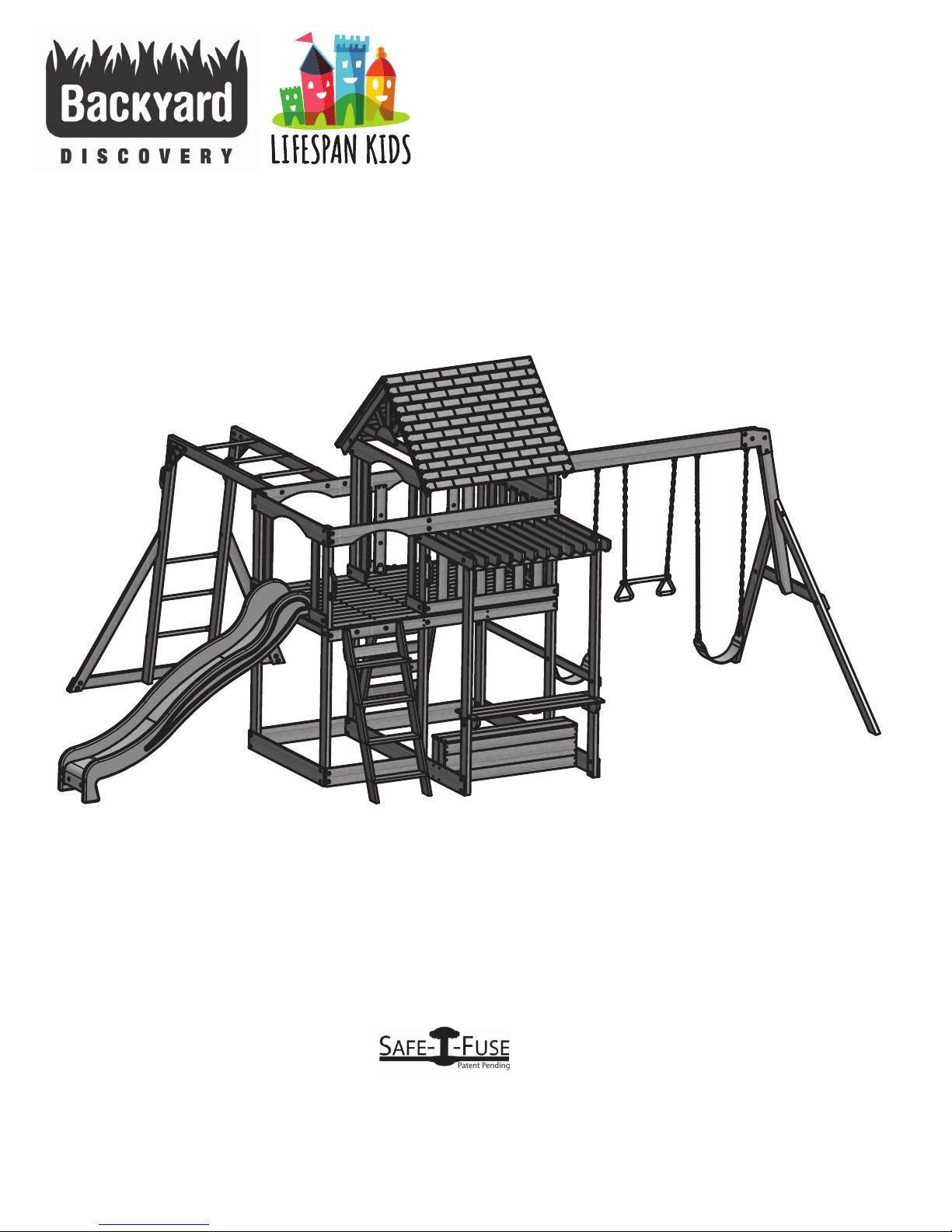

MONTICELLO
Wooden Play Set
Model: # 35015

GENERAL SAFETY INSTRUCTIONS
PURPOSE
This product is intended for outdoor, domestic use only. It is not suitable for commercial or medical use.
DANGER FOR CHILDREN
WARNING! No eating while using the product
This product may only be used with adult supervision at all times.
The packaging material is not suitable for children due to choking and suffocation hazards.
RISK OF INJURIES
Do not use the product if it is damaged or defective. If it is damaged or defective, please contact a
qualified technician.
Check the product before each use. Defective parts must be changed immediately as they can impair
the function and the safety of the product.
No more than one person per swing or per attachment.
Use the product only on even and non-slipping surfaces. Never use it near water and keep sufficient
space around for safety.
PRODUCT DAMAGE
Do not make alterations to the product. Only use original spare parts. Qualified technicians should only
carry out repairs –improper repairs can lead to danger for the user. Use this product only as described
in this manual.
Protect the product against splashes, humidity, high temperature and direct sunlight.
ASSEMBLY ADVICE
The assembly of the product must be done carefully and by an able-bodied adult. If in any doubt, ask a
technically qualified person.
Before you start with the assembly, read the instructions carefully.
Remove all packaging materials and lay down all parts on an open space. This gives you an overview
and simplifies the assembly procedure.
Check with the parts list that all parts are available. Dispose of the packaging material when the
assembly is completed.
Beware that when using tools or doing technical work, there is always a risk of injuries. Assemble the
product with care.
Create a danger free environment; for example, do not let tools lay around the workspace. Store the
packaging material in a way that cannot cause any danger.
After installing the product according to the instruction manual, ensure all screws, bolts and nuts are
correctly installed and tightened and that all joints are secure.
Reasonable space must be kept between the product and possible sources of danger, such as other
equipment swimming pools and fences.
The product must be assembled correctly before use.
Place the product on a level surface at least 2 m from any structure or obstruction such as a fence,
garage or house.
No modifications are to be made to the original product.
The product must always be used in a well-lit area.
Do not place anything under the product.
Use gloves during assembly and disassembly.
Outdoor products should be equipped with a device that in strong wind conditions avoid displacement
due to wind (e.g. steel bars in the ground or loads like sand bag or water bags).

In certain areas during winter, snow buildup and the low temperatures can damage the product. It is
recommended to remove snow buildup and to store the product indoor.
We strongly recommend visual inspections every 3 months to insure the integrity of the entire product.
Replace any parts as necessary.
SAFETY INSTRUCTIONS
The safety instructions of the product should always be considered and obeyed.
Using the product may result in permanent injury such as paralysis, or even death. Falling off the
product may lead to injuries, particularly to the back, neck or head.
No clothes with hooks or lose parts should be worn or carried during product usage in order to avoid
hooks getting caught and causing injury.
Moving the product whilst assembled may affect the integrity of the frame. Should it be necessary to
move the product, please consider the following:
1.) Force to be evenly spaced around the frame to lift the product off the ground
2.) The product must be carried horizontally
3.) Use caution whilst moving as it could bend the product frame.
Users should be familiar with the assembly manual. This manual contains assembly guidance; selected
precautionary measures as well as recommendations for servicing and maintenance of the product, in
order to ensure safe and fun usage.
It is the responsibility of the owner or the supervisor to guarantee that all users of the product are
informed sufficiently of all warning references and safety instructions.
For the supervisor:
The supervisor’s role is to make sure users are aware of all safety precautions and that these precautions are
enforced. When a supervisor is not available, the product may be disassembled or covered to limit access.
The product can be only used if it is in good condition, worn or damaged parts should be replaced.
Objects, which could be dangerous to the user, should be away from the product
Avoid unauthorized and unsupervised use of the product.
Do not use the product under influence of alcohol or drugs (incl. medicines).
Do not use the product or its attachments as a jumping platform.

Consumer Information Sheet for Playground Surfacing Materials
The US Consumer Product Safety Commission (CPSC) estimates that about 100 000 playground equipment-
related injuries resulting from falls to the ground surface are treated annually in US hospital emergency rooms.
Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the
potential to be fatal, particularly when the injury is to the head. The surface under and around playground
equipment can be a major factor in determining the injury-causing potential of a fall. It is self-evident that a fall
on to a shock-absorbing surface is less likely to cause a serious injury than a fall onto a hard surface. Playground
equipment should never be placed on hard surfaces, such as concrete or asphalt, and while grass may appear
to be acceptable, it may quickly turn to hard-packed earth in areas of high traffic. Shredded bark mulch, wood
chips, tine sand or the gravel are considered to be acceptable shock absorbing surfaces when installed and
maintained at a sufficient depth under and around playground equipment.
Table B.1 lists the maximum height from which a child would not be expected to sustain a life-threatening head
injury in a fall on to four different loose-fill surfacing materials if they are Installed and maintained at depths of
150 mm, 225 mm and 300 mm.
Table B.1: Fall height in millimetres from which a life-threatening head injury would not be expected
However, it should be recognised that all injuries due to falls cannot be prevented, no matter what surfacing
material is used.
It is recommended that a shock absorbing material extend a minimum of 1 800 mm in all directions from the
perimeter of stationary equipment such as climbing frames and slides. However, because children may
deliberately jump from a moving swing, the shock absorbing material should extend in the front and rear of a
swing a minimum distance of twice the height of the pivot point measured from a point directly beneath the pivot
on the supporting structure.
This information is intended to assist in comparing the relative shock-absorbing properties of various materials.
No particular material is recommended over another. However, each material is only effective when properly
maintained. Materials should be checked periodically and replenished to maintain correct depth as determined
necessary for the equipment in question. The choice of a material depends on the type and height of the
playground equipment, the availability of the material in a particular area, and its cost.
Type of Material
Depth of surfacing material
150mm
225mm
300mm
Double Shredded Bark
Mulch
1800
3000
3300
Wood Chips
1800
2100
3600
Fine Sand
1500
1500
2700
Fine Gravel
1800
2100
3000

Play Set Assembly Manual FAQs:
1. Does the area for the playset need to be level?
Yes. we recommend the playset be positioned on a flat level area for maximum safety and durability. The stakes provided should be used
to secure it firmly to the ground.
2. What age range is appropriate for the playsets?
The playsets are recommended for children ages 3 – 10 years.
3. Is the wood treated with chemicals?
We use 100% Chinese Cedar wood which is naturally bug resistant, decay and rot resistant. To help ensure your child’s
safety, our wood is completely chemical free and we do not use pressure-treated wood. The stain we use is a top coat using a water-
based product that is for appearance only.
4. How often should the playset be stained?
We recommend the playset be stained once each year. A water or oil based stain can be used at the customer’s discretion.
5. Why does it seemthat my swing set is developing cracks?
Wood is a natural material; no two pieces are exactly alike. Each piece has its own characteristics and personality and reacts differently
to climate changes. When any wood product is exposed to the elements, it develops “wood checks”. A check is the radial separation of
the wood fibers running with the grain of the wood. These are caused by the varying temperature and moisture conditions. A check is
not a crack – it does not affect the strength or durability of the wood or structural integrity of the play set.
6. Do the playsets come with a warranty?
Yes. All Lifespan Kids products carry replacement warranty on all parts for manufacturer’s defect.
Please see warranty detailsfor more information.
7. What is the best way to get started assembling the playset?
We recommend taking all the parts out of the boxes and arranging them by part number before you begin any assembly.
This will not only allow faster assembly, but will also identify any parts that may be missing or damaged so they can be
replaced before assembly.
8. The playset seems to rock or sway too much. What’s wrong?
Rocking is caused by uneven ground or obstructions such as rocks, roots, etc. under the ground rails. These should be removed and
the groundunderneath re-leveled to prevent rocking. Also ensure the playset is securely staked to the ground using the anchors
provided.
9. The 2”x4” boards do not measure 2”x 4”. Why not?
In it is common practice to describe lumber dimensions using the rough cut sizes from the sawmill and not the finished dimensions.
Retailers, home stores, etc. all use this accepted practice for describing lumber dimensions. However, the playset is designed and
constructed using the actual dimensions so everything fits properly and remains so during the life of the playset.
10. The end beam is not straight up and down. Why not?
This is normal. Backyard Discovery designs playsets this way to ensure the strongest structure possible. The slight angle adds strength
and reduces rocking and twisting.
11. The S-hooks for the swings won’t close. What is wrong?
We recommend placing them on a hard surface such as concrete (don’t do this on anything that will dent such as
metal or finished wood or glass which will break!). It will take quite a few strokes, but the hooks will close.

(Level 24")
(Open End Wrenches 1/2")
(Square)
(Tape Measure)
(3/8" Drive Ratchet, 1/2" STD
Sockets 1/2" Deep Sockets)
(Claw Hammer)
(Cordless Drill or
Electric Drill)
(Drill Attachments: Phillips
Head & Socket Driver)
(An Adult w/ an
Adult Helper)
(Rubber Mallet - Optional)
(Ladder)
(Phillips Screw Driver)
(1/8", 3/8",
7/16" Drill Bits)

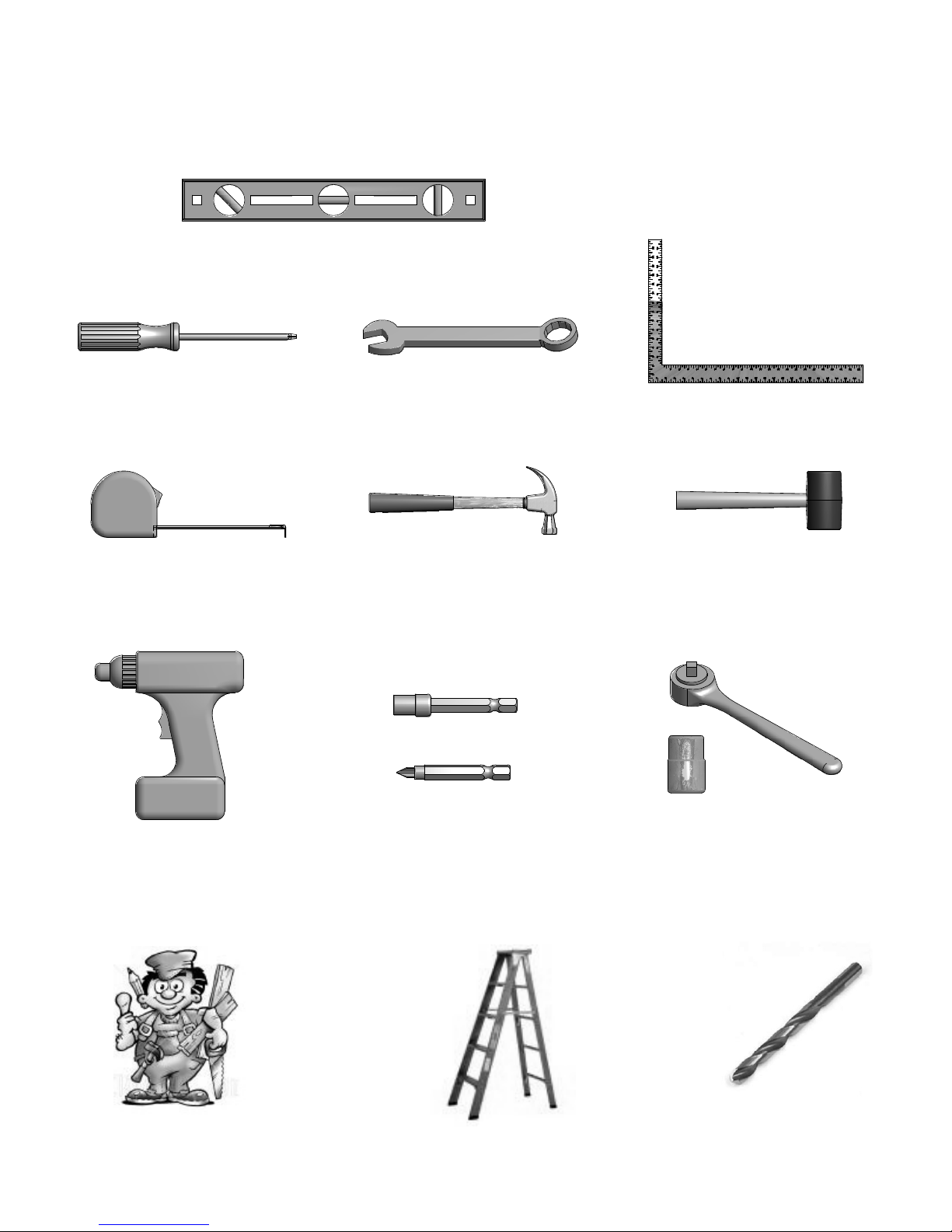

Tools Required for Installation:
(These are the tools that are generally required for assembly of our outdoor products.
These tools are not included with the outdoor product purchase.)

Important Assembly Notes
1) While assembling unit, take time before and after each phase to make sure fort is level. If fort is
not level, assembly will be difficult and improper assembly may result. Extra care must be taken to
ensure the fort is square.
2) Tighten bolts securely, tighten nuts on bolts flush to the tube or member.
3) Pay close attention to the ITEMS NEEDED FOR EACH PHASE. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by phase.
4) Pay close attention to make sure you are using the correct hardware in the correct phases. Using
incorrect hardware may result in improper assembly.
5) Whenever a T-nut is used, follow these directions. Place T-nut in pre-drilled hole. Tap in with hammer.
Place bolt with washers in the opposite side. Hand tighten to make sure the bolt is in the T-nut.
DO NOT over tighten.
6) Read the steps of each phase thoroughly. The written steps may include important information not
shown in the illustrations.

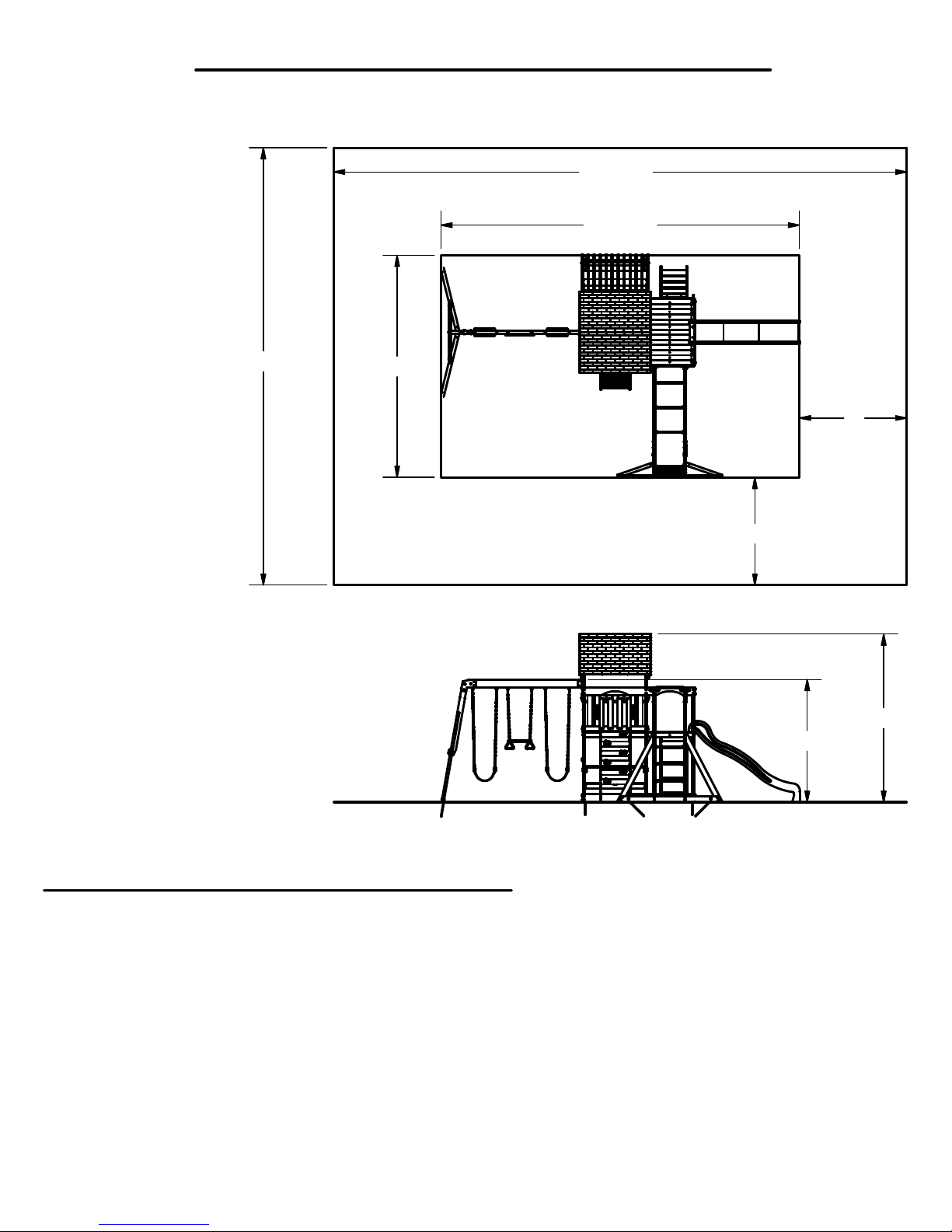

Basic Setup Dimensions
Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such
as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
Safe Play Zone
Safe play height: 15'-4 3/8" [2.9 m]
Maximum fall height: 6'-9 7/8" [2.1 m]
General Information:
Your set has bee desig ed a d e gi eered
for childre o ly a d for reside tial use o ly.
A maximum of 150 lbs. per child is
recomme ded for play activities desig ed for
i dividual use.
A maximum of 120 lbs. per child is
recomme ded for play activities desig ed for
multiple child use.
A maximum of 9 childre is recomme ded for
this swi g set.
20'- 1/8"
32'- 1/8"
12'-4 5/8"
24'-4 5/8"
6'
6'
9'-4 3/8"
6'-9 7/8"

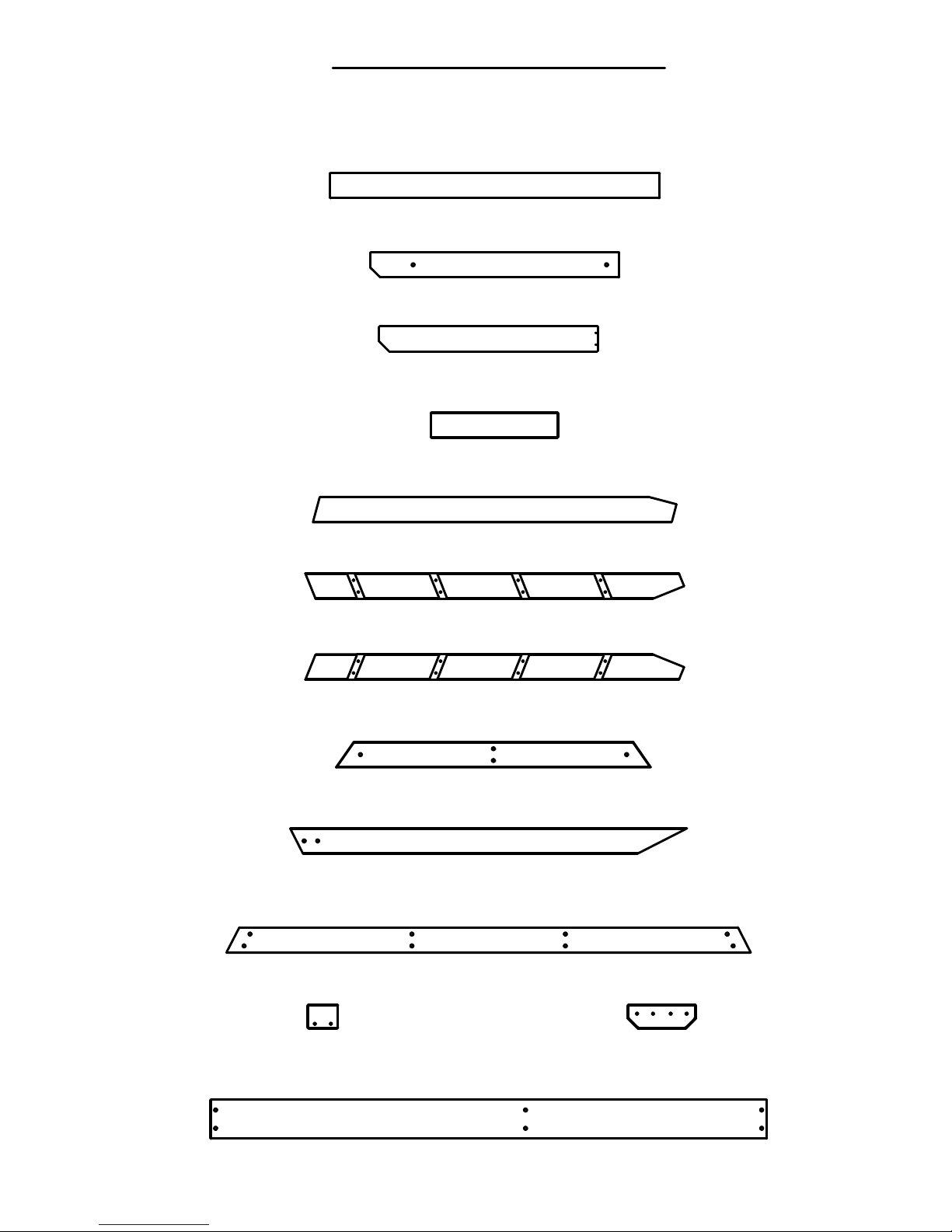

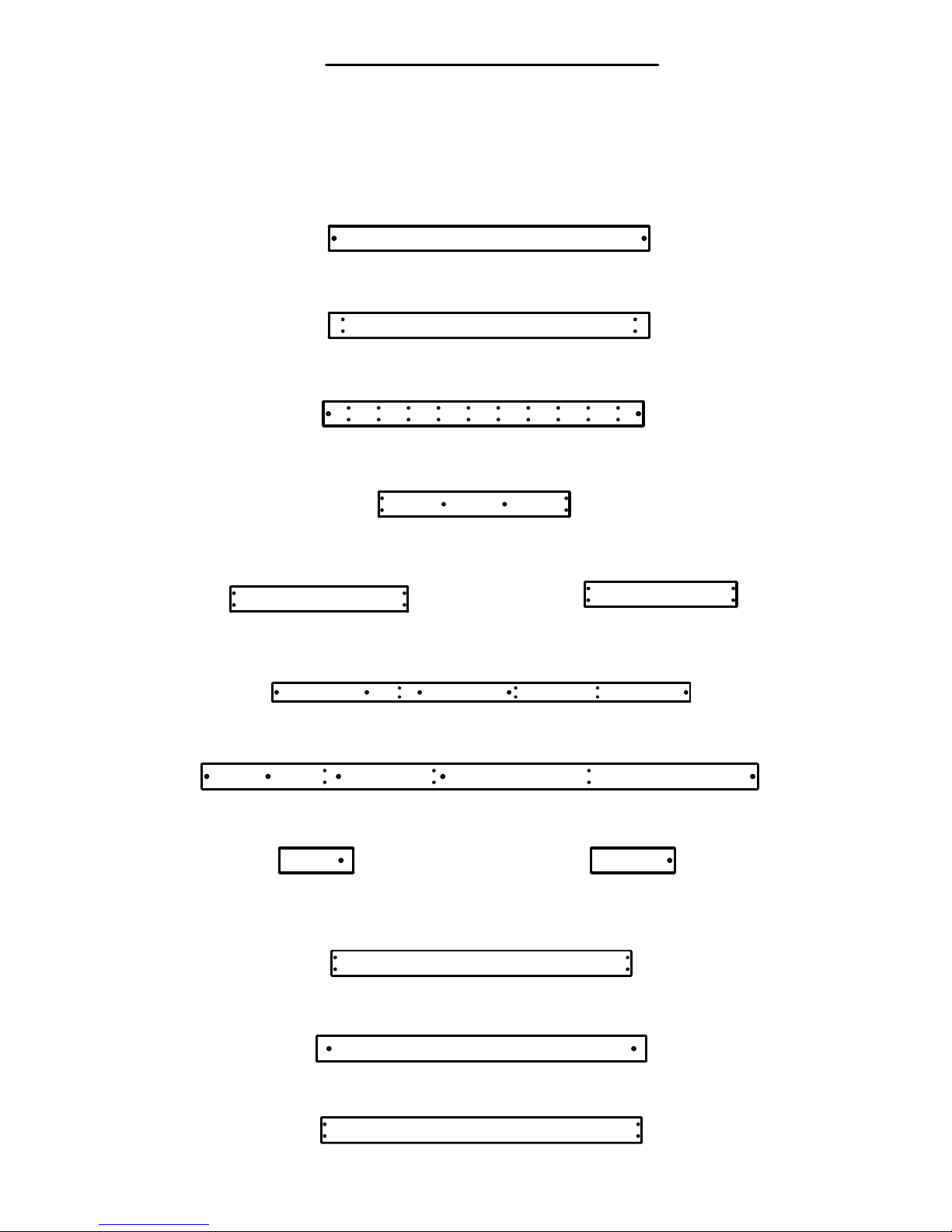

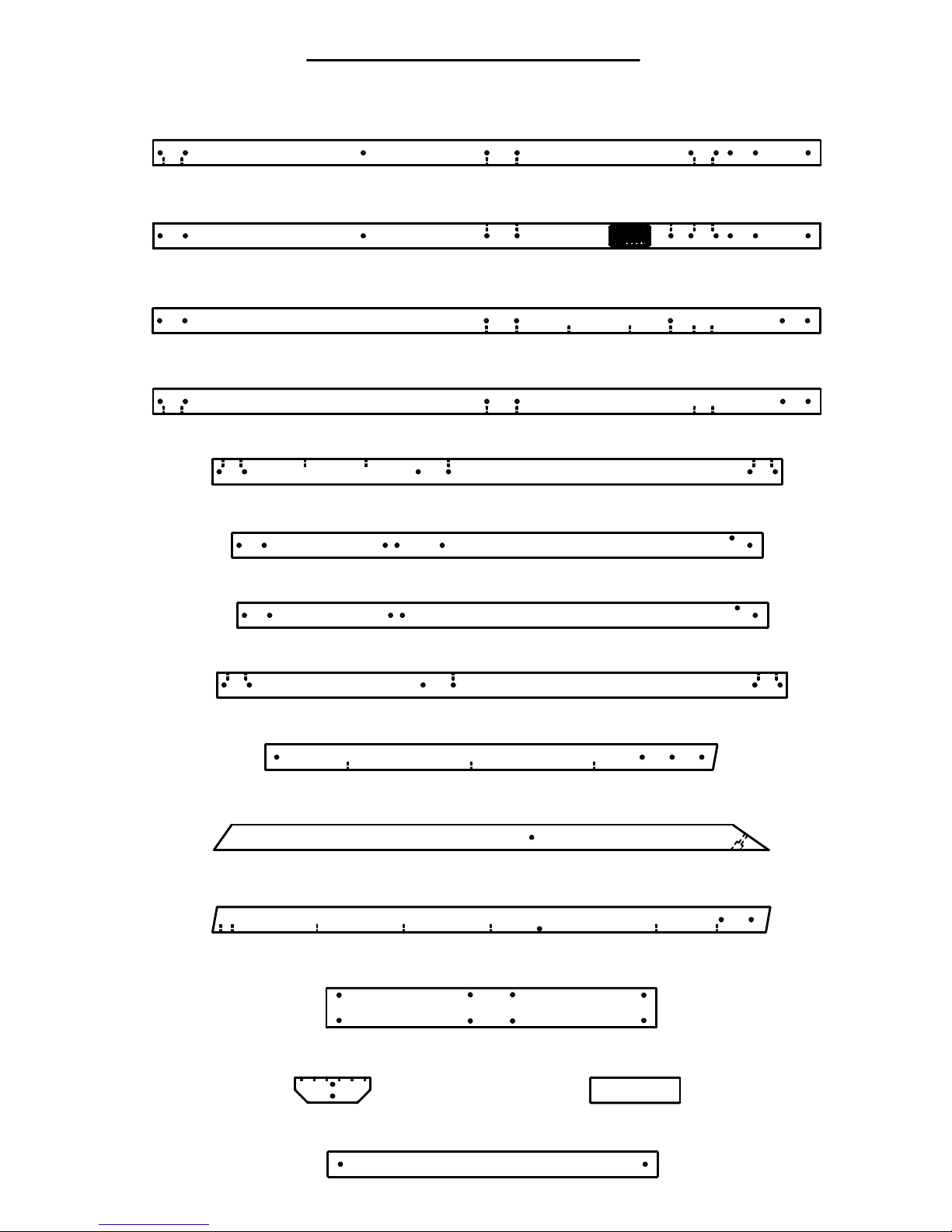

Parts Identification
Wood Components
(NOT TO SCALE)
E1 - FORT UPRIGHT - W4L05425
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
(1)
E2 - FORT UPRIGHT - W2A01681-1
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
(1)
E3 - FORT UPRIGHT - W4L05419
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
(1)
E4 - FORT UPRIGHT - W4L05418
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
(1)
E6 - PERGOLA UPRIGHT - W4L05415
1 3/8"x3 3/8"x71 1/8" (36x86x1807)
(1)
E71 - MONKEY BAR RAIL - W102369
1 3/8"x3 3/8"x60 5/8" (36x86x1539)
(2)
E78 - MONKEY BAR UPRIGHT - W102370
1 3/8"x3 3/8"x74 3/4" (36x86x1900)
(2)
E7 - PERGOLA UPRIGHT - W4L05424
1 3/8"x3 3/8"x71 1/8" (36x86x1807)
(1)
E77 - ANGLE BRACE - W4L04854
1 3/8"x3 3/8"x74 3/8" (36x86x1890)
(2)
G1 - SWING BEAM ATTACHMENT RAIL - W101163
1"x5 1/4"x44 1/4" (24x134x1124)
(1)
H1 - PICNIC SUPPORT - W4L05427
1"x3 3/8"x10 1/8" (24x86x258)
(2) H2 - TOYBOX SIDE BOARD - W4L05435
1"x3 3/8"x12" (24x86x305)
(4)
H3 - FLOOR JOIST - W101166
1"x3 3/8"x44 1/4" (24x86x1124)
(3)
E8 - FORT UPRIGHT - W4L05473
1 3/8"x3 3/8"x76 1/2" (36x86x1942)
(1)
E5 - FORT UPRIGHT - W101169
1 3/8"x3 3/8"x76 1/2" (36x86x1942)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
H5 - OUTER FLOOR SUPPORT - W101183
1"x3 3/8"x44 1/4" (24x86x1124)
(2)
H6 - PERGOLA SIDE RAIL - W4L05416
1"x3 3/8"x33 3/8" (24x86x848)
(2)
H73 - ROCK WALL RAIL - W100024
1"x3 3/8"x48 3/4" (24x86x1238)
(2)
H74 - LEFT UPRIGHT - W100608
1"x3 3/8"x50 3/4" (24x86x1290)
(1)
H81 - MONKEY BAR BRACE - W100993
1"x3 3/8"x53 1/4" (24x86x1352)
(2)
H8 - PERGOLA RAIL - W4L05417
1"x3 3/8"x29 3/8" (24x86x745)
(10)
J2 - PICNIC SUPPORT - W4L05436
1"x2 3/8"x6 3/4" (24x60x170)
(2)
J1 - FLOOR SUPPORT - W101037
1"x2 3/8"x3" (24x60x76)
(2)
H75 - RIGHT UPRIGHT - W100609
1"x3 3/8"x50 3/4" (24x86x1290)
(1)
H79 - END SUPPORT - W4L04855
1"x3 1/2"x42" (24x86x1072)
(1)
H82 - MONKEY BAR GROUND BOARD - W100994
1"x3 3/8"x70 3/8" (24x86x1786)
(1)
K1 - GROUND BOARD - W101168
5/8"x5 1/4"x74 5/8" (16x134x1896)
(1)
H50 - LADDER RUNG - W4L05474
1"x3 3/8"x17 1/8" (24x86x434)
(4)

K3 - ARCHED FORT RAIL - W101178
5/8"x5 1/4"x74 5/8" (16x134x1896)
(1)
K2 - DOUBLE ARCHED FORT RAIL - W101177
5/8"x5 1/4"x74 5/8" (16x134x1896)
(1)
Parts Identification
Wood Components
(NOT TO SCALE)
K4 - FORT GROUND BOARD - W4L05471
5/8"x5 1/4"x70 1/4" (16x134x1783)
(2)
K5 - FORT RAIL - W101164
5/8"x5 1/4"x44 1/4" (16x134x1124)
(2)
K6 - ARCHED FORT RAIL - W101174
5/8"x5 1/4"x44 1/4" (16x134x1124)
(2)
K10 - GROUND BOARD - W101173
5/8"x5 1/4"x31" (16x134x788)
(1)
K7 - TOY BOX BOARD - W4L05434
5/8"x5 1/4"x43" (16x134x1092)
(1)
L1 - TOY BOX BOARD - W4L05437
5/8"x4 3/8"x43" (16x112x1092)
(1)
M1 - FORT PICKET - W4L05420
5/8"x3 3/8"x37 3/8" (16x86x948)
(2)
M2 - FLOOR BOARD - W4L05423
5/8"x3 3/8"x75 7/8" (16x86x1928)
(11)
M3 - ROOF TRUSS - W4L05421
5/8"x3 3/8"x37 3/4" (16x86x960)
(4)

Parts Identification
Wood Components
(NOT TO SCALE)
M5 - WALL RAIL - W101187
5/8"x3 3/8"x43" (16x86x1092)
(1)
M7 - TABLE TOP BOARD - W4L05413
5/8"x3 3/8"x43" (16x86x1092)
(2)
M10 - FORT RAIL - W101190
5/8"x3 3/8"x23 7/8" (16x86x605)
(10)
M12 - FLOOR SUPPORT - W4L05441
5/8"x3 3/8"x74 5/8" (16x86x1896)
(1)
M13 - WALL RAIL - W101185
5/8"x3 3/8"x10" (16x86x254)
(4)
M11 - FORT RAIL - W101203
5/8"x3 3/8"x20 3/8" (16x86x518)
(6)
M15 - WALL RAIL - W101186
5/8"x3 3/8"x11 1/4" (16x86x287)
(2)
M14 - FLOOR SUPPORT - W4L05442
5/8"x3 3/8"x74 5/8" (16x86x1896)
(1)
M16 - PICNIC CENTER BOARD - W4L05414
5/8"x3 3/8"x40 1/8" (16x86x1020)
(1)
M17 - WALL RAIL - W4L05428
5/8"x3 3/8"x44 1/4" (16x86x1124)
(2)
M19 - TOY BOX BOARD - W4L05426
5/8"x3 3/8"x43" (16x86x1092)
(3)
M9 - HANDLE WALL RAIL - W101191
5/8"x3 3/8"x25 5/8" (16x86x652)
(2)
M8 - PERGOLA WALL RAIL - W101204
5/8"x3 3/8"x43" (16x86x1092)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
M72 - ROCK WALL SLAT - W100023
5/8"x3 3/8"x20 1/4" (16x86x514)
(1)
M77 - SLIDE BRACE - W4L04711
5/8"x3 3/8"x14 1/4" (16x86x362)
(1) M78 - CENTER SLIDE BRACE - W4L04712
5/8"x3 3/8"x14 1/4" (16x86x362)
(2)
M75 - ROCK LADDER BOARD - W4L05201
5/8"x3 3/8"x20 1/4" (16x86x514)
(6)
P1 - PERGOLA SUPPORT RAIL - W4L05422
1 3/8"x1 3/8"x40 1/8" (36x36x1020)
(1)
O1 - WALL RAIL - W4L05429
5/8"x1 3/8"x44 1/4" (16x34x1124)
(1)
N6 - TOY BOX BOARD - W4L05438
5/8"x2 3/8"x6 5/8" (16x60x168)
(1)
N5 - TOY BOX BOARD - W4L05439
5/8"x2 3/8"x8 5/8" (16x60x220)
(1)
N4 - SAFETY BOARD - W4L05440
5/8"x2 3/8"x70 1/4" (16x60x1783)
(1)
N2 - SUNBURST SPOKE - W4L05432
5/8"x2 3/8"x7 7/8" (16x60x200)
(4)
N1 - SUNBURST CROSS BRACE - W4L05433
5/8"x2 3/8"x33" (16x60x838)
(2)
N3 - VERTICAL SUNBURST SPOKE - W4L05431
5/8"x2 3/8"x12 3/8" (16x60x315)
(2)
M132 - ATTACHMENT BOARD - W4L05472
5/8"x3 3/8"x20 1/4" (16x86x514)
(1)
M103 - REAR SUPPORT - W102996
5/8"x3 3/8"x18 1/4" (16x86x462)
(1)
M102 - ATTACHMENT BOARD - W102970
5/8"x3 3/8"x18 1/4" (16x86x462)
(1)
N7 - TOY BOX GROUND BOARD - W4L05475
5/8"x2 3/8"x43" (16x60x1092)
(1)

Parts Identification
Wood Components
(NOT TO SCALE)
(2) RP2 - ROOF PANEL - W2A01675
1 3/8"x19 3/8"x48 1/4" (35x491x1224)
(2) RP1 - ROOF PANEL - W2A01676
1 3/8"x19 1/8"x48 1/4" (35x486x1224)
Y2 - END FLOOR BOARD - W101171
5/8"x4"x30 1/4" (16x102x768)
(2)
Y3 - SUNBURST HALF MOON - W4L05430
5/8"x4"x12" (16x102x306)
(2)
Y1 - END FLOOR BOARD - W101179
5/8"x4"x40 1/8" (16x102x1020)
(2)
W71 - SWING BEAM SUPPORT - W4L04856
2"x3 3/8"x49 5/8" (50x86x1260)
(1)
SB74 - SWING BEAM EXTENDED - W4L04582
2"x5 1/4"x77" (50x134x1956)
(1)

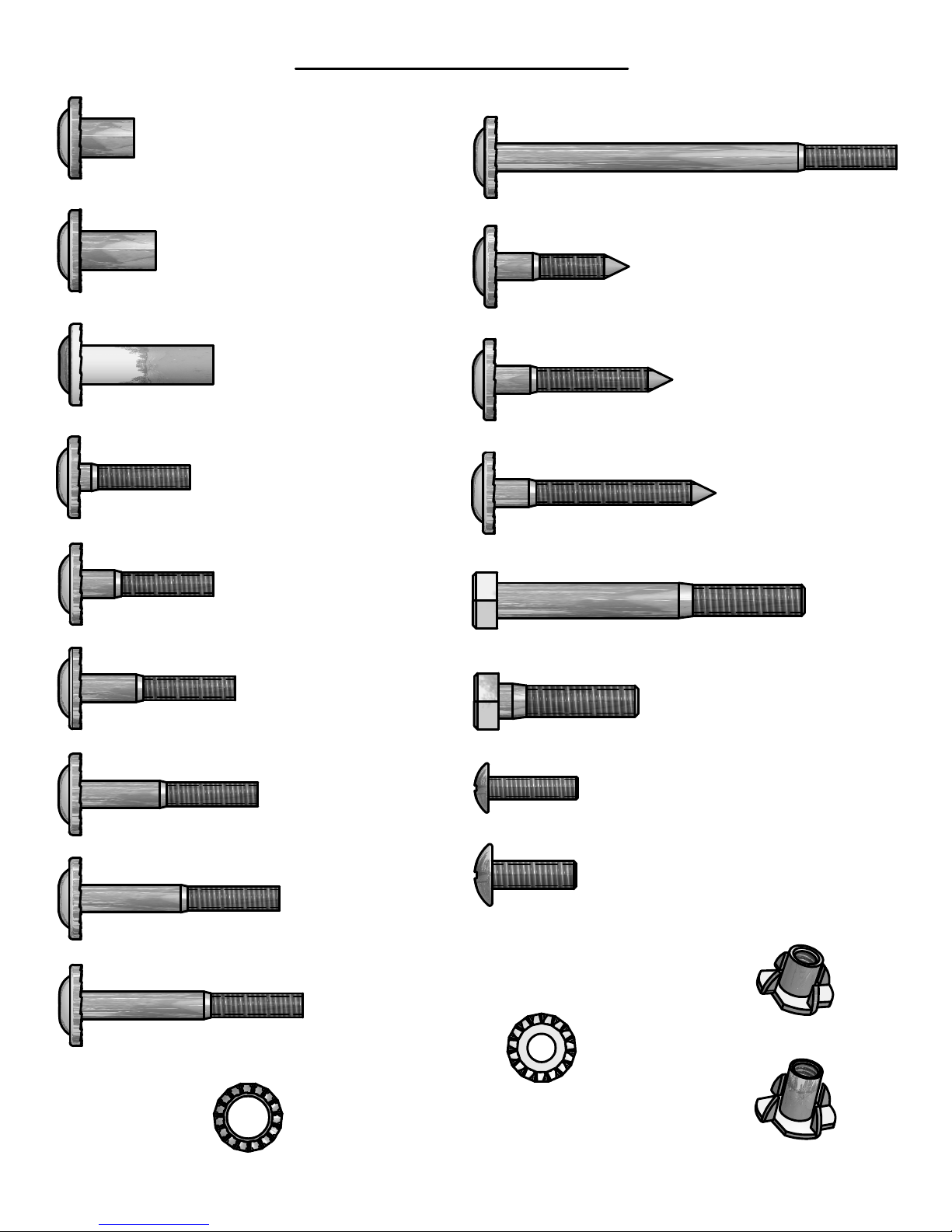

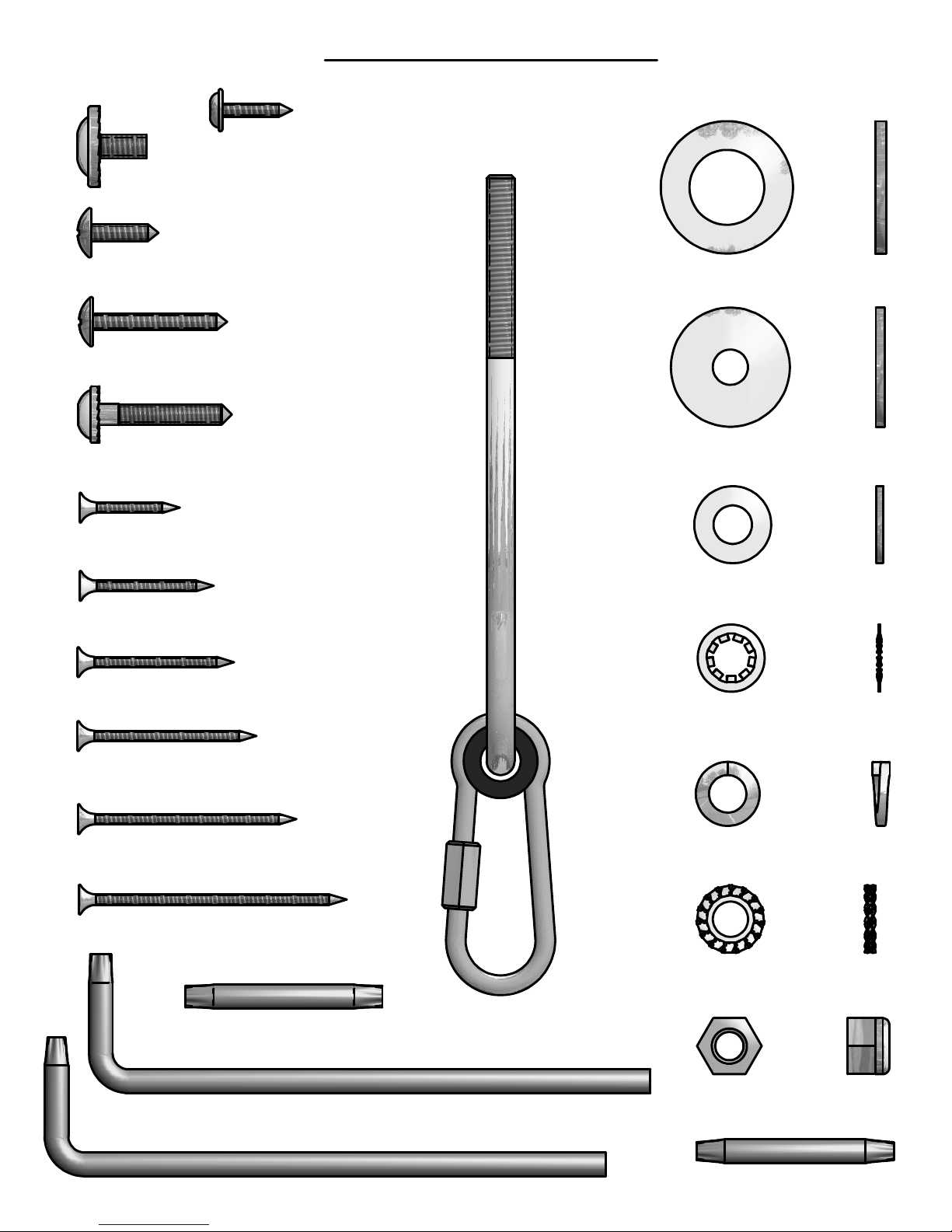

Parts Identification
Hardware
(NOT TO SCALE)
J - BOLT WH 5/16x1 3/4 - H100011
(6)
K - BOLT WH 5/16x2 - H100012
(40)
L - BOLT WH 5/16x2 1/4 - H100013
(22)
M - BOLT WH 5/16x2 1/2 - H100014
(7)
B- NUT BARREL WH 5/16x5/8 - H100004
(2)
D- NUT BARREL WH 5/16x7/8 - H100005
(13)
C - NUT BARREL WH 5/16x1 1/2 - H100006
(2)
H - BOLT WH 5/16x1 1/2 - H100010
(15)
G- BOLT WH 5/16x1 1/4 - H100009
(7)
KA - BOLT WH 5/16x4 1/2 - H100021
(1)
AN - BOLT HEX 5/16x2-3/4 - H100047
(4)
AJ - BOLT HEX 5/16x1 1/4 - H100042
(4)
BE - T-NUT 1/4 - H100072
(17)
BG - T-NUT 5/16 - H100074
(91)
AY - BOLT PTH 1/4x1 - H100061
(4)
Y - LAG SCREW WH 5/16x1 1/2 - H100026
(4)
Z - LAG SCREW WH 5/16x2 - H100027
(41)
AA - LAG SCREW WH 5/16x2 1/2 - H100028
(2)
AD - WASHER LOCK EXT 12x19 - H100031
(12)
AC - WASHER LOCK EXT 8x19 - H100030
(114)
BA - BOLT PTH 1/4x3/4 - H100063
(13)

Parts Identification
Hardware
(NOT TO SCALE)
BP - SCREW PFH 8x1 1/2 - H100086
(231)
BS - SCREW PFH 8x1 3/4 - H100089
(9)
BR - SCREW PFH 8x1 1/8 - H100088
(117)
BT - SCREW PFH 8x2 1/2 - H100090
(11)
BW - SCREW PFH 8x3 - H100092
(26)
BX - WASHER SPLIT 5/16 - H100095
(4)
BZ-SWINGHANGERQUICKLINK-H100099
(6)
CB - WASHER SAFETY 17x30 - H100103
(7)
CD - WASHER FLAT 8x27 - H100105
(17)
CE - WASHER FLAT 9x18 - H100106
(11)
CG - WASHER LOCK INT 8x15 - H100108
(24)
CH - SCREW TAPPING 14x1-1/2 - H100109
(17)
CJ - NUT LOCK 5/16 - H100110
(11)
BL - SCREW TAPPING 14x3/4 - H100083
(7)
CK - SCREW PFH 8x2 - H100111
(35)
CM - BOLT WH 5/16x1/2 - H100115
(11)
LC - LAG SCREW WH 1/4x1-1/2 - H100145
(4)
KV - WASHER LOCK EXT 6x15 - H100138
(4)
- T-40 TORX BIT - A100042
(2)
- T-40 TORX WRENCH - A100041
(2)
- T-30 TORX WRENCH - H100114
(2)
- T-30 TORX BIT - H100147
(2)
CY - SCREW PWH 8x5/8 - H100128
(2)

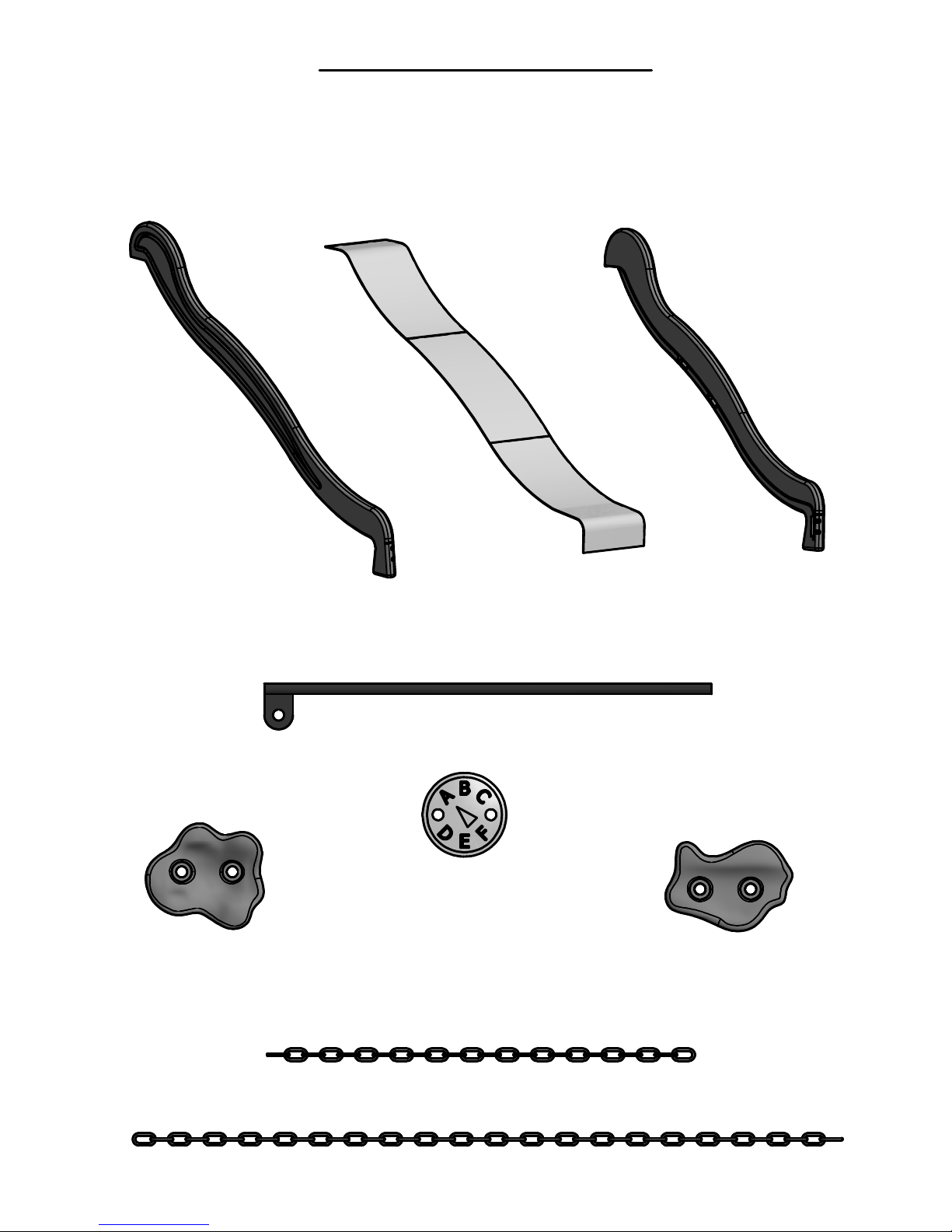

Parts Identification
Accessories
(NOT TO SCALE)
DQ - HAND GRIP GREEN PLASTIC - A100028
(6)
EJ - L BRACKET 54x67 - A100053
(7)
EC - METAL RUNG 559 - A100045
(6)
FA - QUICK LINK - A100069
(6)
GD - L BRACKET 66x66x127 - A100140
(2)
HD - SWING SEAT YELLOW - A100171
(2)
QZ - TRIANGLE PLATE 100°5 HOLE - A100294
(2)
TB - SWING BEAM EXTENSION
BRACKET-LEFT - A100325
(1)
TC - SWING BEAM EXTENSION
BRACKET-RIGHT - A100326
(1)
- TRAPEZE - A6P00034
(1)

Parts Identification
Accessories
(NOT TO SCALE)
EK-SLIDERAIL8'GREENRIGHT-A100054
(1)
-SLIDEBED8'YELLOW-A6P00033
(1)
EL-SLIDERAIL8'GREENLEFT-A100055
(1)
- GROUND STAKE REBAR - A4M00527
(8)
- LARGE GREEN HOLLOW CORE
ROCK #1 - A6P00036
(3)
- LARGE GREEN HOLLOW CORE
ROCK #2 - A6P00037
(3)
KN - CHAIN GREEN 31" - A100177
(2)
EZ - CHAIN GREEN 51.25" - A100068
(4)
SQ - "A" REVISION TAG - A100314
(1)

STEP 1
SCREW PFH 8x2
(8 PLCS)
SCREW PFH
8x2
(8)
H74
H50
H74 - LEFT UPRIGHT - W100608
1"x3 3/8"x50 3/4" (24x86x1290)
(1)
H50 - LADDER RUNG - W4L05474
1"x3 3/8"x17 1/8" (24x86x434)
(4)
4 FT LADDER WITH ATTACHMENT BOARD

STEP 2
H75
SCREW PFH 8x2
(8 PLCS)
H75 - RIGHT UPRIGHT - W100609
1"x3 3/8"x50 3/4" (24x86x1290)
(1)
SCREW PFH
8x2
(8)

STEP 3
SCREW PFH 8x1 1/2
(4 PLCS)
M103
M103 - REAR SUPPORT - W102996
5/8"x3 3/8"x18 1/4" (16x86x462)
(1)
SCREW PFH
8x1 1/2
(4)
