OWNER’S MANUAL
640691
AMBUSH iS
REVISED NOVEMBER,2015ISSUED JULY,2014

WELCOME
Thank you for purchasing this vehicle. Before driving the vehicle, please take time to read and understand this entire
Owner’s Manual. This manual contains important safety information, as well as information that will assist in maintaining
the vehicle for optimum performance.
This manual may cover the operation of several different models or show items that are optional; therefore, some illustra-
tions/images may not be representative of all models.
Most service procedures can be accomplished using common tools. Perform service procedures at intervals shown in the
Periodic Service Schedule located elsewhere in this manual.
Repair or replacement parts are available through your BAD BOY BUGGIES retailer.
The following information is needed when contacting us concerning service or parts for your vehicle:
Vehicle Model: ___________________________________________________________
VIN, PIN or Serial Number: _________________________________________________
Manufacture Date Code: ___________________________________________________

Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease its stability or increase the speed
beyond the factory specifications. Such modifications can cause serious personal injury or death. Bad Boy Buggies prohibits and dis-
claims responsibility for any such modifications or any other alteration which would adversely affect the safety of the vehicle.
Bad Boy Buggies reserves the right to incorporate engineering and design changes to products in this manual, without obligation to
include these changes on units sold previously.
The information contained in this manual may be revised periodically by Bad Boy Buggies, and therefore is subject to change without
notice.
Bad Boy Buggies DISCLAIMS LIABILITY FOR ERRORS IN THIS MANUAL, and SPECIFICALLY DISCLAIMS LIABILITY FOR INCIDENTAL
AND CONSEQUENTIAL DAMAGES resulting from the use of the information and materials in this manual.
These are the original instructions as defined by 2006/42/EC.
CONTACT US:
Bad Boy Buggies
1451 Marvin Griffin Rd.
Augusta, GA, USA 30906
FAX: [phone]
E-mail: [e-mail]
For parts and repair, contact local dealer. Dealers can be located at www.BADBOYBUGGIES.com
i
OWNER’S MANUAL
HYBRID VEHICLE
4 X 4 HYBRID UTILITY VEHICLE
AMBUSH iS
STARTING MODEL YEAR 2015
CALIFORNIA Proposition 65 Warning
WARNING: Motor vehicles may contain fuels, oils and fluids, battery posts, terminals, and related accessories which
contain lead, lead compounds and other chemicals identified by the State of California to potentially cause cancer, birth
defects and other reproductive harm. These chemicals are found in vehicles, vehicle parts and accessories, both new
and replacements. During maintenance, these vehicles generate usedoil, waste fluids, grease, fumes and particulates,
all identified by the State of California to potentially cause cancer, birth defects, and other reproductive harm.

FORWARD
ii Owner’s Manual
This vehicle has been designed and manufactured in the United States of America (USA).
The Standards and Specifications listed in the following text originate in the USA unless
otherwise indicated.
When servicing engines, all adjustments and replacement components must be per original
vehicle specifications in order to maintain the United States of america Federal and State
emission certification applicable at the time of manufacture.
The use of non-Original Equipment Manufacturer (OEM) approved parts may void the
warranty.
Failure to properly maintain batteries may void the warranty. Refer to the battery manual for
instructions on the proper maintenance and care of the batteries.
BATTERY PROLONGED STORAGE
Batteries self-discharge over time. The rate of self-discharge varies depending on the
ambient temperature, the age and condition of the batteries.
Fully charged batteries will not freeze in winter temperatures unless the temperature falls
below -75°F (- 60°C).
For winter storage, the batteries must be clean, fully charged and disconnected from any
source of electrical drain.
The battery charger may be left connected to the vehicle to maintain a full charge on the
batteries, provided the charger is plugged into an active electrical source. If power to the
electrical source is disconnected or interrupted, the battery charger will continue to check
the charge on the battery pack. This will draw power from the battery pack and eventually
drain the batteries if power is not restored in a timely manner.
The batteries must be checked and recharged as required or at a minimum of 30 day
intervals.
Check and maintain the proper fluid level in all battery cells during the storage period.
Proper fluid level is required for maximum battery performance.
BATTERY DISPOSAL
Lead-acid batteries are recyclable. Return whole scrap batteries to distributor, manufacturer
or lead smelter for recycling. For neutralized spills, place residue in acid-resistant
containers with absorbent material, sand or earth and dispose of in accordance with local,
state and federal regulations for acid and lead compounds. Contact local and/or state
environmental officials regarding disposal information.
WARRANTY
Separate inserts supplied in packaging with the vehicle provide information on Product
Warranty and on Emissions Warranty. Failure to follow instructions for emission parts
replacement may violate Federal Law (40 CFR part 1068.105 (b)) and be subject to fines and
other penalties as described in the Clean Air Act.

B
TABLE OF CONTENTS
iii
Owner’s Manual
SAFETY
GENERAL......................................................................................................................... 1
GENERAL OPERATION................................................................................................... 2
MAINTENANCE................................................................................................................ 3

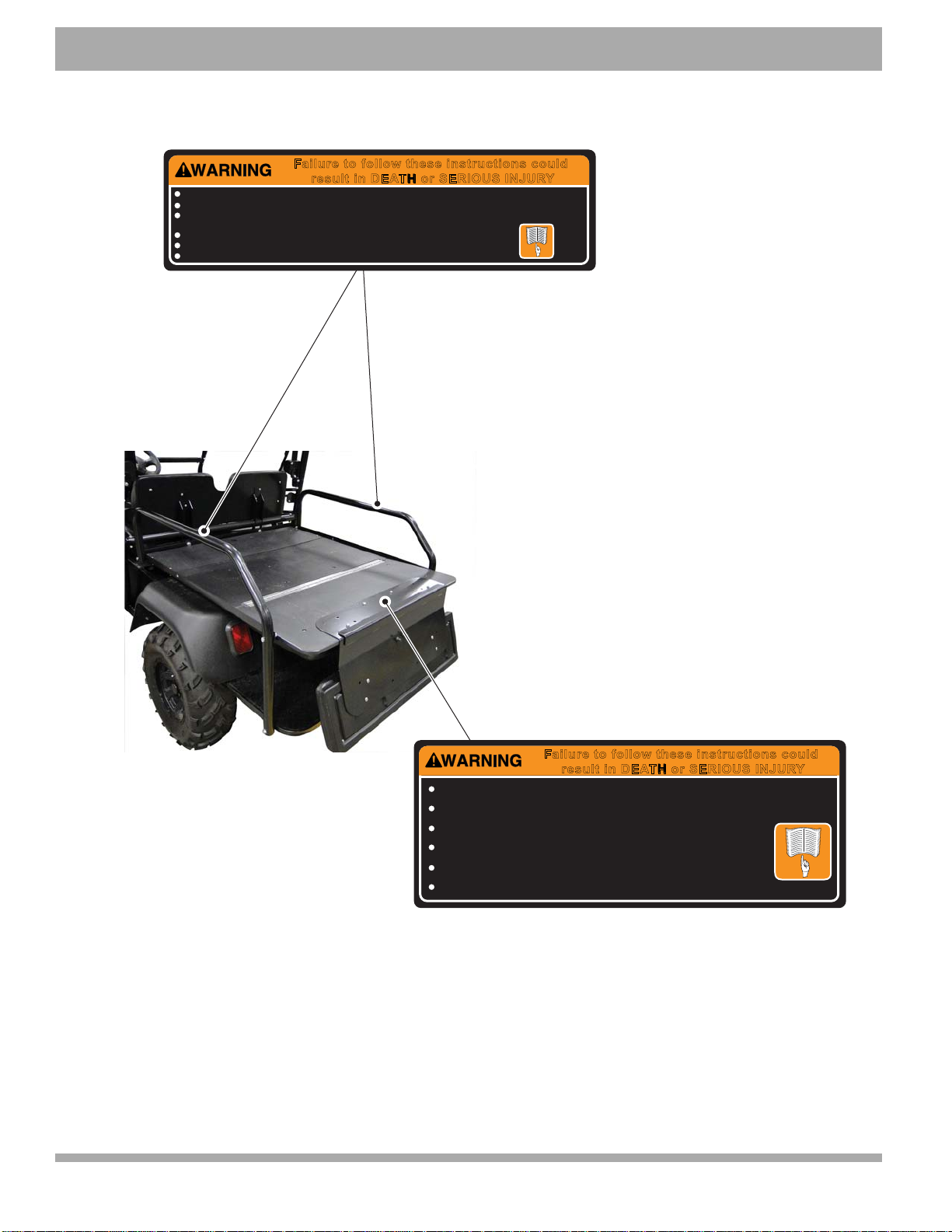

LABELS AND PICTOGRAMS........................................................................................... 4
LABELS AND PICTOGRAMS........................................................................................... 5
GENERAL SPECIFICATIONS
VEHICLE DIMENSIONS................................................................................................... 9
INTRODUCTION
FEATURES..................................................................................................................... 11
General Information .......................................................................................... 11
OPERATING PROCEDURES
PIN AND SERIAL NUMBER LOCATION........................................................................ 15
BEFORE INITIAL USE.................................................................................................... 16
PORTABLE CHARGER.................................................................................................. 17
Using the Charger .............................................................................................. 18
SEAT BELT OPERATION............................................................................................... 18
OPERATING THE VEHICLE .......................................................................................... 19
COMMON SENSE OPERATION.................................................................................... 20
ENVIRONMENTAL CONCERNS.................................................................................... 20
STARTING AND DRIVING ............................................................................................. 21
Electric Powertrain ............................................................................................. 21
Gas Powertrain .................................................................................................. 21
Starting the Vehicle on a Hill .............................................................................. 22
RUN-IN............................................................................................................................ 22
STARTING THE VEHICLE WITH DISCHARGED BATTERY......................................... 23
COASTING ..................................................................................................................... 23
FUEL............................................................................................................................... 24
FUEL TANK .................................................................................................................... 24
Early Production Fuel Tank ................................................................................ 24
Late Production Fuel Tank ................................................................................. 25
BATTERY........................................................................................................................ 25
TOWING A TRAILER...................................................................................................... 25
TERRAIN ........................................................................................................................ 25

B
iv
TABLE OF CONTENTS
Owner’s Manual
DIFFERENTIAL LOCK..................................................................................................... 26
DUMP BED...................................................................................................................... 26
REAR FACING SEAT / LOAD DECK.............................................................................. 27
WINCH OPERATION (IF EQUIPPED WITH WINCH)..................................................... 27
Winch Application ...............................................................................................27
MAINTENANCE
VEHICLE CLEANING AND CARE................................................................................... 31
TRANSPORTING VEHICLE............................................................................................ 31
ROUTINE MAINTENANCE.............................................................................................. 32
LIFTING THE VEHICLE................................................................................................... 32
LIGHT BULB REPLACEMENT........................................................................................ 33
Headlight Bulb Replacement ..............................................................................33
Taillight Bulb Replacement .................................................................................33
WHEELS AND TIRES...................................................................................................... 33
Tire Repair ..........................................................................................................33
Wheel Installation ................................................................................................34
Unidirectional Tires .............................................................................................34
WHEEL ALIGNMENT...................................................................................................... 34
Wheel Alignment .................................................................................................34
BRAKES .......................................................................................................................... 35
Master Cylinder ...................................................................................................35
Bleeding Brakes ..................................................................................................36
Parking Brake Adjustment ..................................................................................36
GAS POWERTRAIN........................................................................................................ 37
Engine .................................................................................................................37
ELECTRIC POWERTRAIN.............................................................................................. 37
System Test ........................................................................................................38
AXLES ............................................................................................................................. 38
Front and Rear Axles ..........................................................................................38
Checking the Lubricant Level ..............................................................................38
BATTERY CHARGING AND MAINTENANCE................................................................ 38
Battery Safety .....................................................................................................38
Battery Disposal ..................................................................................................39
Battery .................................................................................................................39
Battery Maintenance ...........................................................................................40

B
TABLE OF CONTENTS
v
Owner’s Manual
At Each Charging Cycle ..................................................................................... 40
Monthly ............................................................................................................... 40
Temperature Affects Battery Capacity ............................................................... 41
Electrolyte Level and Water ............................................................................... 41
Cleaning Batteries .............................................................................................. 43
Battery Removal and Installation ....................................................................... 43
Storage ............................................................................................................... 45
Battery Charging ................................................................................................ 45
BATTERY FAULT DIAGNOSIS...................................................................................... 45
HYDROMETER............................................................................................................... 46
Using A Hydrometer ........................................................................................... 47
PROLONGED STORAGE............................................................................................... 47
Battery Set and Gas Starting Battery ................................................................. 47
Gas Engine ........................................................................................................ 48
HARDWARE................................................................................................................... 48
CAPACITIES AND REPLACEMENT PARTS................................................................. 49
PERIODIC SERVICE SCHEDULE
PERIODIC SERVICE SCHEDULE ................................................................................. 51
APPENDIX A
SUBARU ENGINE OPERATORS MANUAL..................................................................... A

vi
TABLE OF CONTENTS

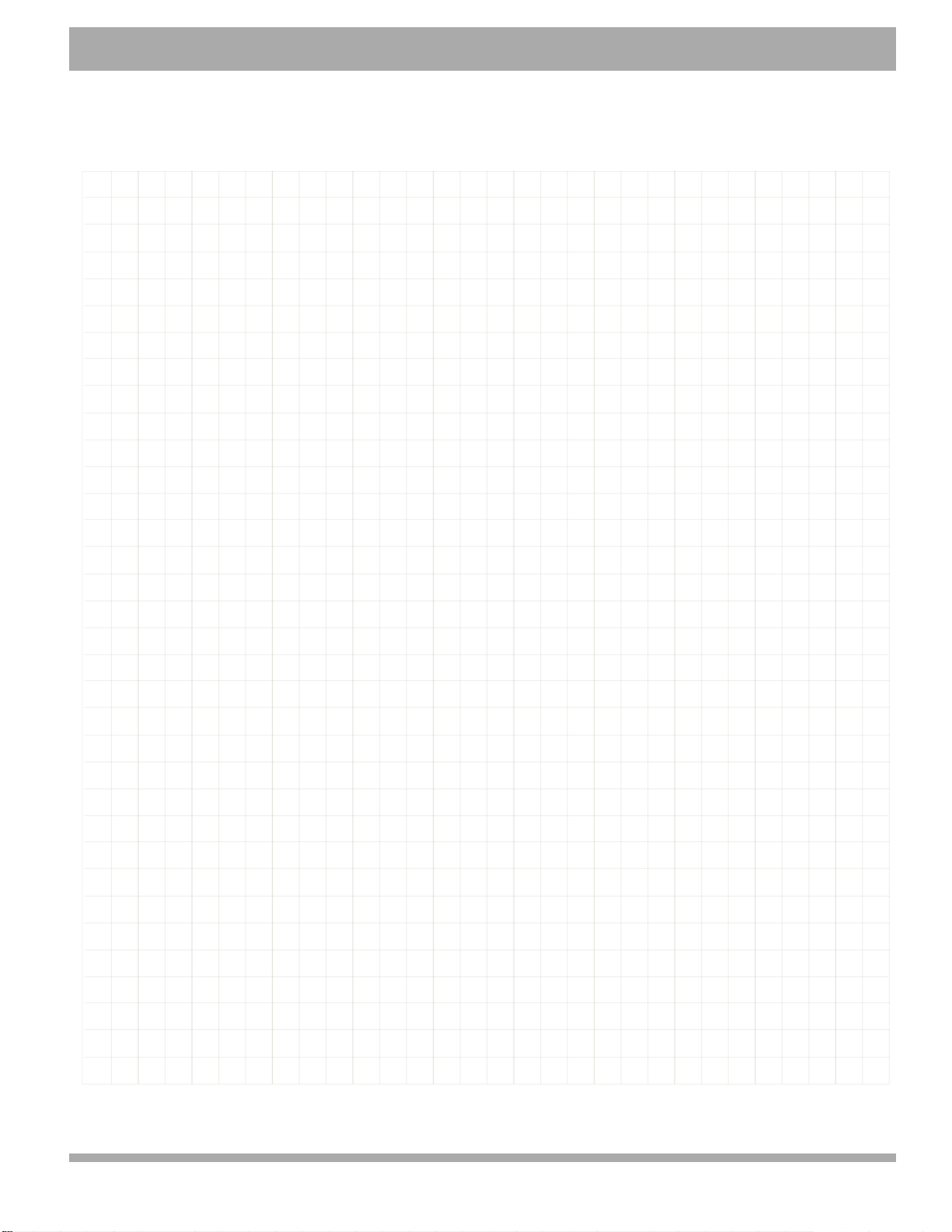

Notes:
Owner’s Manual

SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
1
Owner’s Manual
SAFETY
This manual has been designed to assist in maintaining the vehicle in accordance with procedures developed by the
manufacturer. Adherence to these procedures and troubleshooting tips will ensure the best possible service from the
product. To reduce the chance of personal injury or property damage, the following must be carefully observed:
Certain replacement parts can be used independently and/or in combination with other accessories to modify
an E-Z-GO-manufactured vehicle to permit the vehicle to operate at or in excess of 20 mph. When an E-Z-GO-
manufactured vehicle is modified in any way by the Distributor, Dealer or customer to operate at or in excess
of 20mph, UNDER FEDERAL LAW the modified product will be a Low Speed Vehicle (LSV) subject to the stric-
tures and requirements of Federal Motor Vehicle Safety Standard 571.500. In these instances, pursuant to
Federal law the Distributor or Dealer MUST equip the product with headlights, rear lights, turn signals, seat
belts, top, horn and all other modifications for LSV’s mandated in FMVSS 571.500, and affix a Vehicle Identifi-
cation Number to the product in accordance with the requirements of FMVSS 571.565. Pursuant to FMVSS
571.500, and in accordance with the State laws applicable in the places of sale and use of the product, the
Distributor, Dealer or customer modifying the vehicle also will be the Final Vehicle Manufacturer for the LSV,
and required to title or register the vehicle as mandated by State law.
E-Z-GO will NOT approve Distributor, Dealer or customer modifications converting E-Z-GO products into LSV’s.
The Company recommends that all E-Z-GO products sold as personal transportation vehicles BE OPERATED ONLY BY
PERSONS WITH VALID DRIVERS LICENSES,AND INACCORDANCE WITH APPLICABLE STATE REQUIREMENTS.
This restriction is important to the SAFE USE AND OPERATION of the product.
All customers should adhere to this SAFETYRESTRICTION, in connection with the use of all E-Z-GO products, new and
used, the Distributor or Dealer has reason to believe may be operated in personal transportation applications.
Information on FMVSS 571.500 can be obtained at Title 49 of the Code of Federal Regulations, section 571.500, or
through the Internet at the web site for the U.S. Department of Transportation - at Dockets and Regulation, then to Title
49 of the Code of Federal Regulations (Transportation).
GENERAL
All vehicles can be used for a variety of tasks beyond the original intended use of the vehicle; therefore, it is impossible to
anticipate and warn against every possible combination of circumstances that may occur. No warning can replace good
common sense and prudent driving practices.
Good common sense and prudent driving practices do more to prevent accidents and injury than all of the warnings and
instructions combined. E-Z-GO strongly suggests that all users and maintenance personnel read this entire manual pay-
ing particular attention to the CAUTIONS, WARNINGS and DANGERS contained therein.
If you have any questions regarding this vehicle, contact your E-Z-GO/CUSHMAN dealer or write to the address on the
back cover of this publication, Attention: Customer Care Department.
E-Z-GO reserves the right to make design changes without obligation to make these changes on units previously sold.
The information contained in this manual is subject to change without notice.
E-Z-GO IS NOT LIABLE FOR ERRORS IN THIS MANUAL. E-Z-GO IS NOT LIABLE FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES THAT RESULT FROM THE USE OF THE MATERIAL IN THIS MANUAL.
This vehicle conforms to the current applicable standard(s) for safety and performance requirements.
These vehicles are designed and manufactured for off-road use. They DO NOT conform to Federal Motor Vehicle Safety
Standards of the United States of America (USA) and are not equipped for operation on public streets. Some communi-
ties may permit these vehicles to be operated on their streets on a limited basis and in accordance with local ordinances.
Refer to GENERAL SPECIFICATIONS for vehicle seating capacity.
With electric powered vehicles, be sure that all electrical accessories are grounded directly to a negative (-) battery post.
Never use the chassis or body as a ground connection EXCEPT for grounding the gas engine starting battery.
Refer to GENERAL SPECIDICATIONS for vehicle seating capacity.

2Owner’s Manual
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease
it’s stability, or increase the speed or extend the stopping distance beyond the factory specifica-
tion. Such modifications can result in serious personal injury or death.
Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease it’s stability, or increase
the speed or extent the stopping distance beyond the factory specification. E-Z-GO prohibits and disclaims responsibility
for all such modifications which would adversely affect the safety of the vehicle.
Vehicles that are capable of higher speeds must limit their speed to no more than the speed of other vehicles when used
in a golf course environment. Additionally, speed should be further moderated by the environmental conditions, terrain
and common sense.
Operation of the vehicle is limited to persons above the height of 59 inches (150 cm).
GENERAL OPERATION
Read the following warnings before attempting to operate the vehicle.
To prevent personal injury or death, observe the following:
When vehicle is to be left unattended, turn key to OFF position AND REMOVE KEY.
Drive vehicle only as fast as terrain and safety considerations allow. Consider the terrain
and traffic conditions. Consider environmental factors which affect the terrain and the abil-
ity to control the vehicle.
Avoid driving fast downhill. Sudden stops or change of direction may result in a loss of
control. Use brake to control speed when traveling down an incline.
Use extra care and reduced speed when driving in poor conditions or on poor surfaces.
Stay in designated areas where provided and avoid steep slopes.
Keep feet, legs, hands, and arms inside vehicle at all times.
Avoid extremely rough terrain.
Check area behind the vehicle before operating in reverse.
Make sure the direction selector is in correct position before depressing the
accelerator pedal.
Slow down before and during turns.
Always bring vehicle to a complete stop before shifting the direction selector.
See GENERAL SPECIFICATIONS for vehicle load and seating capacity.
Read the following text and warnings before attempting to service vehicle.
In any product, components may eventually fail to perform properly as the result of normal use, age, wear, or abuse.
It is impossible to anticipate all possible component failures or the manner in which each component may fail.
A vehicle requiring repair is no longer functioning as designed and therefore could be potentially hazardous. Therefore,
use extreme care when working on any vehicle. When diagnosing, removing, or replacing any components that are not

B
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
3
Owner’s Manual
operating correctly, take time to consider the safety of yourself and others around you.
Some components are heavy, spring-loaded, highly corrosive, explosive, may produce high amperage, or reach high
temperatures. Exposure to battery acid and hydrogen gas could result in serious bodily injury. Be careful to protect
hands, face, feet, and body from injury.
Always use the appropriate tools listed in the tool list and wear approved safety equipment.
Before working on the vehicle, remove all jewelry.
Be sure no loose clothing or hair can contact moving parts.
Use care not to touch hot objects.
Wear eye protection when working on or around the vehicle. In particular, use care when working
around batteries, using solvents or compressed air.
ALWAYS:
• Use the vehicle in a responsible manner and maintain the vehicle in safe operating condition.
• Read and observe all warnings and operation instruction labels affixed to the vehicle.
• Follow all safety rules established in the area where the vehicle is being operated.
• Leave the vehicle and seek shelter when there is a risk of lightning.
• Reduce speed to compensate for poor terrain or conditions.
• Apply service brake to control speed on steep grades.
• Maintain adequate distance between vehicles.
• Reduce speed in wet areas.
• Reduce speed and use extreme caution when approaching sharp or blind turns.
• Reduce speed and use extreme caution when driving over loose terrain.
• Reduce speed and use extreme caution in areas where pedestrians are present.
MAINTENANCE
ALWAYS:
• Replace damaged or missing warning, caution or information labels.
• Maintain the vehicle in accordance with the manufacturer’s periodic service schedule.
• Ensure that repairs are performed by trained and qualified personnel.
• Follow the manufacturer’s maintenance procedures.
• Insulate any tools used within the battery area in order to prevent sparks or battery explosion.
• Use specified replacement parts, NEVER use replacement parts of lesser quality.
• Use recommended tools.
• Determine that tools and procedures not specifically recommended by the manufacturer will not compromise the
safety of personnel nor jeopardize the safe operation of the vehicle.
• Support the vehicle using wheel chocks and jack stands. NEVER get under a vehicle that is supported by a jack. Lift
the vehicle in accordance with the manufacturer’s instructions.
• Maintain the vehicle in an area away from exposed flame or persons who are smoking.
• Be aware that a vehicle that is not performing as designed is a potential hazard and must not be operated.
• Test drive the vehicle after any repairs or maintenance in a safe area that is free of both vehicular and pedestrian
traffic.
• Keep complete records of the maintenance history of the vehicle.

4Owner’s Manual
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
LABELS AND PICTOGRAMS
638040
638040
MIN 150
cm
www.badboybuggies.com
FOR INFORMATION
REFER TO OWNERS
MANUAL OR
WEBSITE
NO PUBLIC
ROAD USE
DO NOT OPERATE
UNDER DRUG/ALCOHOL
INFLUENCE
LEAVE VEHICLE
IN THREAT OF
LIGHTNING
DRIVE IN ACCORDANCE
WITH LOCAL RULES
AND REGULATIONS
REMAIN SEATED
KEEP ARMS / LEGS
WITHIN VEHICLE
WARNING USE CAUTION IN
INCLEMENT WEATHER
OPERATE FROM
DRIVERS SIDE
ONLY OCCUPANT MUST
WEAR SEAT BELTS
NO
UNATTENDED
CHILDREN
NO MORE THAN
TWO OCCUPANTS
PER SEAT
633615
H O
2
123
P
P
P
P
P
P
74093-G01
74093G01
WARNING
NO TAMPERING
KEEP HANDS OUT
DO NOT SPILL
FUEL ON HOT
ENGINE
DO NOT
EXPOSE
TO FLAME
CLEAN UP FUEL
SPILLS WITH
WATER BEFORE
STARTING ENGINE
UNLEADED
GASOLINE
NEGATIVE GROUND
BATTERY
(GAS STARTING)
SHORTING BATTERY
TERMINALS MAY
CAUSE EXPLOSION
633615
WARNING
READ THE
MANUAL
UNLOCKED
DO NOT ENGAGE
FRONT DIFFERENTIAL
LOCK WITH WHEELS TURNED
LOCKED
FRONT
DIFFERENTIAL
LOCK
REAR
DIFFERENTIAL
LOCK
MAX
14
o
/ 25%
MAX
500 lbs.
255 kg
MAX
5 in.
12 cm
P
P
MAX
100 lbs.
45 kg
74821G01
74099-G01
WARNING
READ THE
MANUAL
SECURE LOAD
MAX BED WEIGHT
500 lbs or 255 kg
MAY CAUSE
EXPLOSION
DO NOT FILL
FUEL CONTAINERS
IN TRUCK BED
MAX HEIGHT FOR
CENTER OF GRAVITY
5” OR 12 cm ABOVE FLOOR
NO PASSENGERS
IN TRUCK BED
MAX TAILGATE
WEIGHT 100 lbs
OR 45kg
HIGH CENTER OF
GRAVITY MAY CAUSE
TIP OVER
MAX SIDE
SLOPE 14°
74821G01
74099G01
DO NOT RELEASE BED
LATCH WITH ANYONE
STANDING BEHIND BED 640561
LOCATED ON BATTERY HOLD DOWN
INFORMATION
FOUND IN
OWNERS MANUAL WARNING
CORROSIVE
WARNING
EXPLOSIVE
WARNING
ELECTRIC
SHOCK
DANGER
LETHAL
VOLTAGE
DO NOT DISPOSE
OF BATTERIES IN
LANDFILL
DO NOT EXPOSE
TO OPEN FLAME
RECYCLE
BATTERIES
WEAR SAFETY
GLASSES
OPERATOR MUST
BE MIN 4 FT-11 IN
(150 CM)

B
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
5
Owner’s Manual
LABELS AND PICTOGRAMS
638040
638040
MIN 150
cm
www.badboybuggies.com
FOR INFORMATION
REFER TO OWNERS
MANUAL OR
WEBSITE
NO PUBLIC
ROAD USE
DO NOT OPERATE
UNDER DRUG/ALCOHOL
INFLUENCE
LEAVE VEHICLE
IN THREAT OF
LIGHTNING
DRIVE IN ACCORDANCE
WITH LOCAL RULES
AND REGULATIONS
OPERATOR MUST
BE MIN 4 FT-11 IN
(150 CM)
REMAIN SEATED
KEEP ARMS / LEGS
WITHIN VEHICLE
WARNING USE CAUTION IN
INCLEMENT WEATHER
OPERATE FROM
DRIVERS SIDE
ONLY OCCUPANT MUST
WEAR SEAT BELTS
NO UNATTENDED
CHILDREN
NO MORE THAN
TWO OCCUPANTS
PER SEAT
628943
633615
H O
2
123
P
P
P
P
P
P
74093-G01
74093G01
WARNING
NO TAMPERING
KEEP HANDS OUT
DO NOT SPILL
FUEL ON HOT
ENGINE
DO NOT
EXPOSE
TO FLAME
CLEAN UP FUEL
SPILLS WITH
WATER BEFORE
STARTING ENGINE
UNLEADED
GASOLINE
NEGATIVE GROUND
BATTERY
(GAS STARTING)
SHORTING BATTERY
TERMINALS MAY
CAUSE EXPLOSION
75696G01
WARNING
HOT SURFACE
75696G01
633615
WARNING
READ THE
MANUAL
UNLOCKED
DO NOT ENGAGE
FRONT DIFFERENTIAL
LOCK WITH WHEELS TURNED
LOCKED
FRONT DIFFERENTIAL
LOCK
REAR DIFFERENTIAL
LOCK
630398
LOCATED ON UNDERSIDE OF SEAT BOTTOM / LOAD DECK

6Owner’s Manual
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Failure to follow these instructions could
result in DEATH or SERIOUS INJURY
Maximum deck load is 250 lbs. (110 kg)
The center of gravity of the load must not exceed 12 inches (30 cm) above the deck floor.
The load must be as far forward as possible and secured.
Top heavy loads may cause vehicle instability or tip over.
Drive slowly straight up or down slopes and in turns.
NEVER allow passengers to ride on load deck.
628942
Failure to follow these instructions could
result in DEATH or SERIOUS INJURY
ALWAYS remain PROPERLY SEATED with SEAT BELT FASTENED and HOLDING ON.
ONLY 2 occupants on bench seat.
Children may need assistance to remain PROPERLY SEATED with SEAT BELT FASTENED
and HOLDING ON. NEVER leave children unattended.
KEEP feet, legs, hands and arms inside the vehicle at all times.
NEVER attempt to enter or exit a moving vehicle.
AVOID standing in front of or behind vehicle. 628943

GENERAL SPECIFICATIONS
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
7
Owner’s Manual
GENERAL SPECIFICATIONS
MODEL: BAD BOY BUGGIES - AMBUSH iS
TYPE: GAS / ELECTRIC PARALLEL DRIVE VEHICLE
MODEL YEAR: 2015
Part No:. 640373G01
Engine: Subaru EH72 Fuel Injection 28 hp (20.8 kW) Rated, 43.9 ci (720 cc)
z
Valve Train:
Overhead valve zFuel System: Fuel injection with electromagnetic fuel pump
zLubrication: Pressurized oil system, spin-on oil filter zIgnition: Electronic spark/magneto
zBalancer: Internal counter rotating balance shaft zAir Cleaner: Replaceable dry cartridge w/pre-filter
Electrical: Starter/Generator, solid-state regulator, 12 Volt maintenance free battery (525 CCA, 60 minute reserve)
Drive Train Gas: Automatic, continuously variable transmission (CVT). Manual locking differentials (front and rear)
Drive Train Elec:
48V (6x8V) AC with speed sensor
Brakes: 4-wheel hydraulic disc brakes. Hand operated park brake (floor mounted).
Transaxle: Differential with helical gears, ground speed governor, forward/reverse
Seating: Bench Seat
Cargo Bed:
Roto-molded cross-linked polyethelene. Lifts for access to powertrain.
Dimensions Vehicle Power Cont.
Overall Length 115.5 in (293.4 cm) Gear Selection Forward-Reverse
Overall Width 54.5 in (138.4 cm) Front Axle Ratio 14.87:1
Overall Height 51 in (130 cm) top of steering wheel Rear Axle Ratio 14.38:1 Fwd; 14.36 Rev
76 in (193 cm) from canopy Performance
Wheel Base 81.5 in (207 cm) Seating Capacity 2 Persons
Front Wheel Track 43.38 in (110 cm) Curb Weight 1791 lb (812 kg)
Rear Wheel Track
44.3
yeah Bed Load Capacity 500 lb (225 kg)
Gnd Clearance @ Differential 7 in (17.8 cm) front skid plate Vehicle load capacity 900 lb (408 kg)
Cargo Box Width (inside) 44.0 in (112 cm) Outside Clearance Circle 33.2 ft (10.1 m)
Cargo Box Length (inside) 36.0 in (91 cm) Speed (Level Ground) 2WD Elec: 25 mph ± 1 mph (40.1 kph ± 1.6 kph)
Cargo Box Depth (inside) 10.5 in (27 cm) 4WD : 25 mph ± 1 mph (40.1 kph ± 1.6 kph)
Cargo Box Capacity
9.6 cu ft (0.27 m
3
)
Towing Capacity
1200 lb (544 kg)
Cargo Box Material Roto-molded polyethylene Steering & Suspension
Vehicle Power Steering Self-compensating rack and pinion
Power Source GAS: 4 cycle, 43.9 ci (720 cc) Front Suspension Independent Mc Pherson Strut
Elec: 48V AC Motor Rear Suspension Independent Mc Pherson Strut
Valve Train V Twin Cylinder OHV Service Brake 4 wheel hydraulic disc brakes
Horsepower (kW) GAS 28 hp (20.8 kW) rated Parking Brake Hand Operated
Elec 17.2 hp (12.8 kW) Peak Front Tires Kenda 25x8-12 Uni-Directional
Electrical System Starter/Generator, solid-state regulator Rear Tires Kenda 25x11-12 Uni-Directional
Battery (Qty, Type) One 12 Volt maintenance free for starter/gen Body & Chassis
6x8 V for Elec Drive Frame Welded steel with DuraShield™ powder coat
Key Start Front Body & Finish Injection Molded TPO
Dry cartridge w/ pre-filter Rear Body & Finish Steel. Base coat/clear coat
Pressurized oil system Standard Color Matte Black
Spin-on oil filter Cargo Bed 5.9 Cu. Ft. Polyethelyne Bed
Key or Pedal Start
Air Cleaner
Lubrication
Oil Filter
Cooling System
Fuel Capacity
)XHO&DSDFLW\
Differential
Air cooled
5.3 gallon (20 L) HDUO\SURGXFWLRQtank
JDOORQ/ODWHSURGXFWLRQWDQN
Helical gears wiWK manual frontrear lock-up
PRODUCT SPECIFICATION
PRODUCT OVERVIEW
CONFIGURATION HIGHLIGHTS

8Owner’s Manual
GENERAL SPECIFICATIONS
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
VEHICLE DIMENSIONS
Maximum Recommended Side Tilt
25% or 14° Max.
Maximum Recommended Ramp Grade
25% or 14° Max.
76.5”
(194.3 cm)
112”
(284.5 cm)
113”
(287 cm)
70”
(177.8 cm)
52.5”
(133.5 cm)
43.75”
(111.1 cm)
Front and Rear Wheels
53.75”
(136.5 cm)

9
Owner’s Manual
Notes:
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
GENERAL SPECIFICATIONS

10 Owner’s Manual
GENERAL SPECIFICATIONS
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Notes:

INTRODUCTION
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
11
Owner’s Manual
INTRODUCTION
FEATURES
General Information
If the vehicle is equipped with factory installed custom accessories, some accessories remain operational with the key
switch in the ‘OFF’ position.
ALL accessories that do NOT use the accessory wiring harness MUST be connected to draw from the entire
48 Volt battery pack. A DC to DC converter is required for accessories that require voltage other than 48 volts
to operate properly.
Accessories connected to this vehicle that do not use the accessory harness must be connected to the DC to DC con-
verter.
1. Key / Direction Selector Switch
Located on the dash to the right of the steering wheel, this four position switch allows the vehicles electrical system to be
activated. It allows the operator to turn the electrical system off completely by moving the key to the OFF position; or
select Reverse, Neutral, or Forward by rotating key to the right.
2. Fuel Gauge with Low Oil Pressure Indicator
Located in the dash panel below the state of charge meter. The fuel gauge indicates the amount of gasoline in the fuel
632918
632916
4WD
GAS ENGINE REGEN
LOW
GAS
OFF
632907
12V
10Amp
MAX
326
4
578
1
9
10
NOTE: Shown with steering wheel removed.

12 Owner’s Manual
INTRODUCTION
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
tank, with ‘F’ indicating a full tank and ‘E’ indicating an empty fuel tank. The fuel gauge is equipped with a low oil pres-
sure indicator. A low engine oil pressure condition is alerted with a yellow indicator light.
3. State of Charge Meter
The illuminated state of charge meter is located in the dash. It indicates the amount of usable power in the batteries, with
‘F’ indicating a full charge on the battery pack and ‘E’indicating the batteries are low. The yellow light indicates the batter-
ies must be charged immediately.
4. Light Switch
Located on the left side of dash, this ON/OFF switch controls the lights. In the ON position, the headlights, taillights and
dash panel lights will illuminate.
5. Accessory Switch Location
Rectangular hole plugs may be removed to accommodate switches for accessory items.
6. Mode Switch
Located to the right of the key switch/direction selector, this switch permits the selection of either gas powered rear
wheel drive, electric powered front wheel drive or four wheel drive utilizing both electric and gas powertrains at the
same time.
7. Gas Engine Start Switch
Located on the dash panel to the right of the fuel gauge, this switch starts the gasoline engine when pressed with the
key switch turned to ON.
8. Regen Mode Switch
Located on the dash panel to the right of the mode switch and the gas engine start switch. The operator can switch
from high and low regen mode to suit terrain/range conditions.
9. 12 Volt Power Outlet
Located in the lower part of the dash above the cup holder, the 12 volt outlet supplies constant power for additional
equipment equipped with a 12 volt plug.
10. Cupholder
A cupholder is provided for convenience of vehicle occupants.
11. Accelerator Pedal
With the key switch set to ‘R’, ‘ON’ or ‘F’, pressing the accelerator
pedal starts the electric motor, depending upon the position of the
MODE switch.
12. Brake Pedal
The brake pedal is located on the floor to the left of the accelerator
pedal. The brake pedal function is to slow or stop the moving vehicle.
This vehicle is equipped with four wheel hydraulic disc brakes.
12
