Display and Operation of Each Function of Home Page
Numerical value Positioning Operation
Ex: If main saw blade’s present value is 0.0 and
you want to rise main saw blade to 50.0, the
operating way as follows:
Step 1: Push key to make Numeric
Keypad show up.
Step 2: Input 50, push key to finish input.
After input, system returns to home page
automatically.
Step 3: The target value 50.0 will show on
key. Push key to make the main
saw blade rise to 50.
Note: key is for executing
target value on key and single axis or
multi-axis can act simultaneously.

2
2
Micro-Motion Positioning Operation
Ex: If main saw blade’s present value is 0.0 and
you want to rise the main saw blade to 30.0, the
operating way as follows:
Step: Push key until key shows
present value 30.0.
Note: When micro-motion
positioning movement is used, key won't
show any target value.
Scoring Saw Operation
Accuracy of the scoring saw movement of this system is 0.05mm (i.e. touch it and it moves
0.05mm. The adjustable range is +/- 1mm. The following is the scoring saw operation.
Remarks: Accuracy of UP/DOWN movement of scoring saw is 0.01mm (i.e. touch it and it
moves 0.1mm) This system can memorize the last setting height of the scoring saw UP/DOWN
movement even though the power is closed. The using way: Start the scoring saw, it will
automatically rise to the last setting height. Stop the scoring saw, it will fall under the working
table. It is an optional function.
Ex: The scoring saw scoring saw forward/ backward shows 0.0 and you want to move to scoring
saw to -0.1, the operating way as follows:
Step : Push key on home page to enter the
scoring saw control page and then push key
until -0.1 shows on the left
0.10mm.
Note: Only touching key or
key can make the scoring saw up or down.

3
3
Display of Motor RPM
Motor rpm is shown on the upper right corner of the home page.
Note: This system's RPM is only for display without setting function. If rpm needs
to be changed, it is changed by changing the belt position.

4
4
Function Page Operation
Processing Editing Operation
The processing edition is a temporarily processing group provided by this system without
memory function. When power is off, the processing group will be cleared automatically. If you
want to memorize the input group, please use program page operation.
Ex: If you want to cut wooden board, please input the desired group. The
operating way as follows:
Step 1: Push key on home page to enter
the processing editing page. Push key to
release lock.
Step 2: Push key to select the desired input
group. Push key to make Numerical
Keypad show up.

5
5
Step 3: Input 35, push key to finish input.
The value input way of the tilting angle and rip
fence is the same.
Step 4: Push key to save and lock system.
Step 5: Push key to release lock.
Push key to select processing group.

6
6
Step 6: Push key to confirm all selected
groups. After confirmation, system will return to
home page automatically.
Note: When this system wants to select group key , you must first release lock
and then can select. If lock is not released, group key cannot be selected.
Step 7: After returning to home page, the
numerical value is automatically saved into target
value. Push key to start action.

7
7
Dimension Calculation Operation
When dimension calculation function is used, the
wooden board’s height, angle and distance must be
input. The height and angle as shown on A and B of
the right drawing are the necessarily input numerical
values. The calculating way as follows:
1. Input A, B and C to calculate D.
2. Input A, B and D to calculate C.
Note: A - D are machine’s saved size.
Other sizes are for calculating and are not needed by machine.
Ex 1: It's size . If you want to
cut it into your calculated size, the operating way
as follows:
Step 1: Push key on home page to enter
the processing editing page. Push key to
enter dimension calculation page and then input
the known dimension. A=50, B=45, C=80.
Note: For detailed numerical value
input way, please refer to Step 2 and Step 3 of
Processing Edit Operation.
Step 2: Push key to start calculating. After
finishing calculation, system will show the
calculated value on the page.
C
B
D
A
C
B
A

8
8
Step 3: Push key to save the calculated
result onto the target value of home page. Or
push key to return to home page but the
calculated result will be cancelled and won't be
saved into target value.
Step 4: Push key to start action.
Note: For main saw blade’s height
setting, the pre-setting height is material height +
cutting value 10mm. So, the target value of the
main saw blade UP/DOWN mentioned in step 4
shows 60.0. If material height + cutting value
exceed system’s cutting height, system will show
error data. At this time, you can input the cutting
height by yourself. Such situation is not error of
system.
Ex 2: If the total length and the desired cutting
size are known and you want to calculate the size
of the remaining material, the operating way as
follows:
Step 5: Input material height A, angle B, cutting
size D and total length G.
Push key to calculate the size of the
remaining material E and F.
Note: For detailed operating way,
please refer to Step 1 and Step 2 of Ex 1.
C
B
A
D
F
G
E

9
9
Program Page Operation
The page is a memory group function provided by this system. A~T stands for a code and each
code can memorize 5 groups, so total 100 groups.
Ex: If you want to memorize one cutting size on A area and select that group
cutting size, the operating way as follows:
Step 1: Push key on home page to enter
the group listing page. Push key
to select A area.
Step 2: Push key to release lock, input
the processing dimension A=30, B=30, C=800.
Note: For detailed value input way,
please refer to Step 2 and Step 3 of Processing
Edit Operation.
A
B
C

10
10

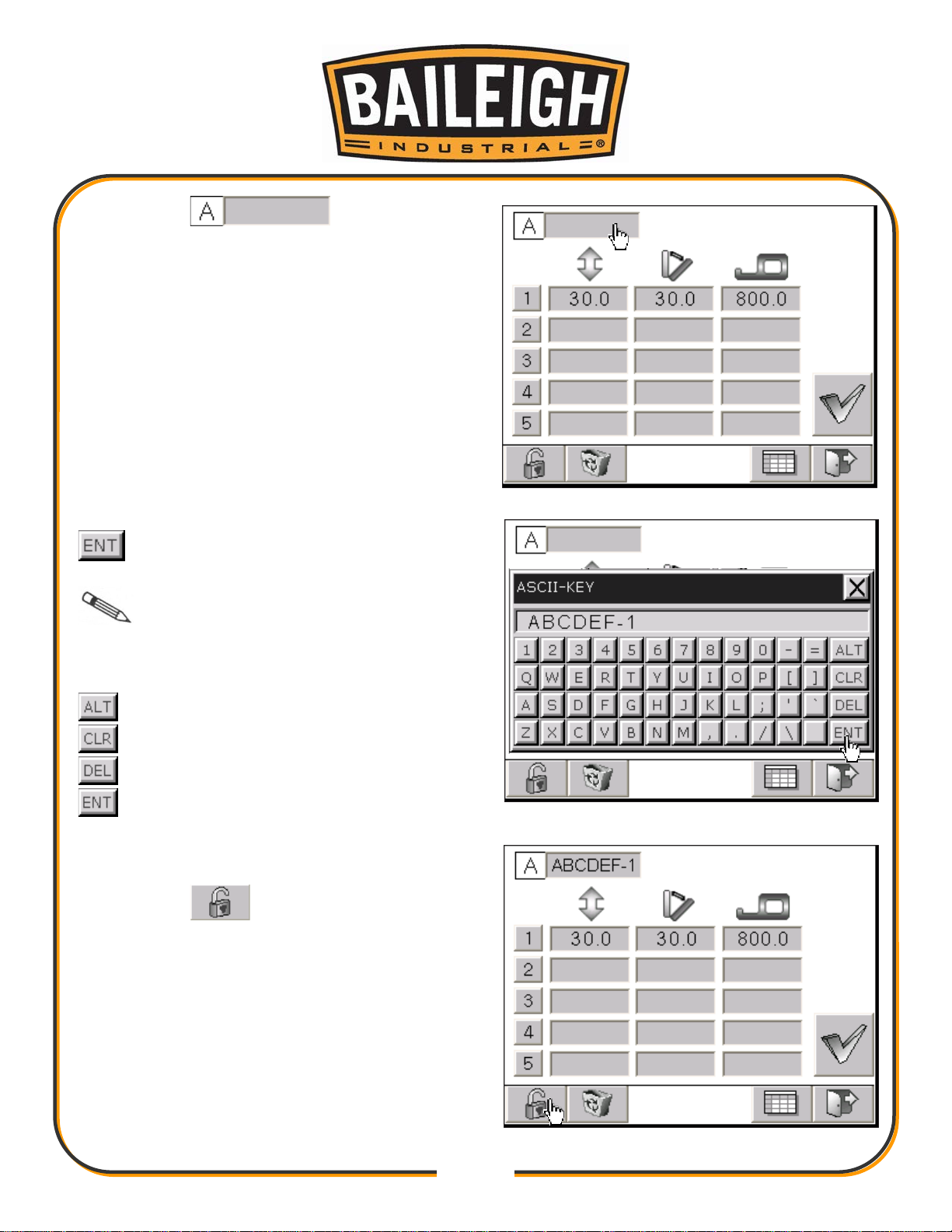

Step 3: Push to number that
group After selection, ASCII-KEY is shown up.
Step 4: Input the number to be classified, push
to finish input.
Note: The ASCII-KEY of this system
can input signs. The following is explanation of
each key.
: Sign shift key.
: Clear key.
: Return key.
: Finish key.
Step 5: Push key to save and lock data.

11
11
Step 6: Push key to release lock.
Push key to select group and then push
key to confirm the selected group. After
confirmation, the system will return to home page
automatically.
Step 7: After returning to home page, the
numerical value will be saved into the target value
automatically. Push key to start action.
Note: For main saw blade’s height
setting, the pre-setting height is material height +
cutting value 10mm. So, the target value of the
main saw blade UP/DOWN mentioned in step 4
shows 60.0. If material height + cutting value
exceed system’s cutting height, system will show
error data. At this time, you can input the cutting
height by yourself. Such situation is not error of
system.
Note: When this system wants to select group , you must first release lock and
then can select. If lock isn’t release, group key can’t be selected.

12
12
Operation of setting page
Operation of saw Blade Specification
The function is for changing saw blade specification.
Ex: If the present saw blade is 12” and you want to change it into 14”, the operating way as
follows:
Step 1: Push key on home page to enter
saw blade specification page. Push
key to edit value.
Step 2: Input 14” saw blade’s specification, push
key to finish input. For the remaining value,
the input way is the same.

13
13
Step 3: Push key to save, The setting is
completed.
Note: After the specification of main
saw blade is changed, the saw blade’s height
fence’s position, saw blade’s UP/DOWN +/- limit
parameter will be meet the specification
parameter of the present main saw blade.

14
14
Operation of Fence Size
The function is for setting rip fence size.
Ex: If the present rip fence’s size is set at 52, 92
but actually measured size is 51.9, 92 and you
want to change the setting size, the operating way
as follows:
Step 1: Push key on home page, Push
key to enter fence size page. Push
key to change rip fence’s size.
Step 2: Input the actually measured size, 51.9
and then push key to finish input.
Step 3: Push key to save. The setting is
completed.
Note: This setting will influence rip
fence’s position.

15
15
Operation of Position Correction
The function is for setting the present value of
each shaft’s position.
Ex: If the main saw blade shown on the page is 5
degree but actual angle is 0 degree, the
operating way as follows:
Step 1: Push key on home page.
Push key to enter position correction
page.
Push key to change value of angle of
main saw blade.
Step 2: Input actual angle, 0 degree and then
push key to finish input.
Step 3: Push key to save. The setting is
completed.
Note: The correction way of main
saw blade UP/DOWN and rip fence is the same
above mentioned way.

16
16
Operation of Unit Change
The function is for changing unit.
Ex: The pre-setting unit of this system is mm and you want to change it
into inch, the operating way as follows:
Step: Push key on home page.
Push key to enter unit change page. Push
key to change unit.
Operation of Language Change
This function is for language change purpose. There are English, French, Germany, Italian,
Dutch, Spanish, Portuguese and Japanese for change. EX: If the user wants to change the
preset system language English into Japanese, the operation steps are as following:
Step 1: Press button and then press
button.
Step 2: After entering the language change page,
press button to change into Japanese.
Step 3: Press button for saving the change to
complete the setting.
Note: The operation is the same as
above for other language change. Please select
the corresponding national flag for language desired.

17
17
Operation of System Page
Operation of UP/DOWN Parameter
The function is for setting each parameter of main saw blade UP/DOWN such as +/- limit value,
UP/DOWN parameter, deceleration distance.
Ex: If parameter of main saw blade UP/DOWN is 7900 and you want to change it into 7950, the
operating way as follows:
Step 1: Push key on home page to enter
system operation page. At this time, the
password input window is shown up. Push
key to let Numeric Keypad show up.
Step 2: Input the system password.
Push key to finish input.

18
18
Step 3: Push key for confirmation.
Step 4: Push key to edit parameter
value.
Step 5: Input parameter 7950. Push key to
finish input.
