Baileigh TS-1020WS User manual

OPERATOR’S
MANUAL
TABLE SAW
MODEL: TS-1020WS
© 2017 Baileigh Industrial, Inc.
REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL, INC.
IS PROHIBITED. Baileigh Industrial, Inc. does not assume and hereby disclaims any liability for any damage or loss
caused by an omission or error in this Operator’s Manual, resulting from accident, negligence, or other occurrence.
Rev. 05/2017
Baileigh Industrial, Inc.
P.O. Box 531
Manitowoc, WI 54221-0531
Phone: [phone]
Fax: [phone]
[email protected]

Table of Contents
THANK YOU & WARRANTY..........................................................................................1
INTRODUCTION.............................................................................................................3
GENERAL NOTES..........................................................................................................3
SAFETY INSTRUCTIONS ..............................................................................................4
SAFETY PRECAUTIONS ...............................................................................................7
Dear Valued Customer:................................................................................................... 7
TECHNICAL SUPPORT ............................................................................................... 10
TECHNICAL SPECIFICATIONS................................................................................... 11
INTENDED USE ........................................................................................................... 12
Tools:............................................................................................................................ 12
UNPACKING AND CHECKING CONTENTS................................................................ 13
Cleaning .................................................................................................................... 13
TRANSPORTING AND LIFTING .................................................................................. 14
INSTALLATION............................................................................................................. 14
OVERALL DIMENSIONS.............................................................................................. 16

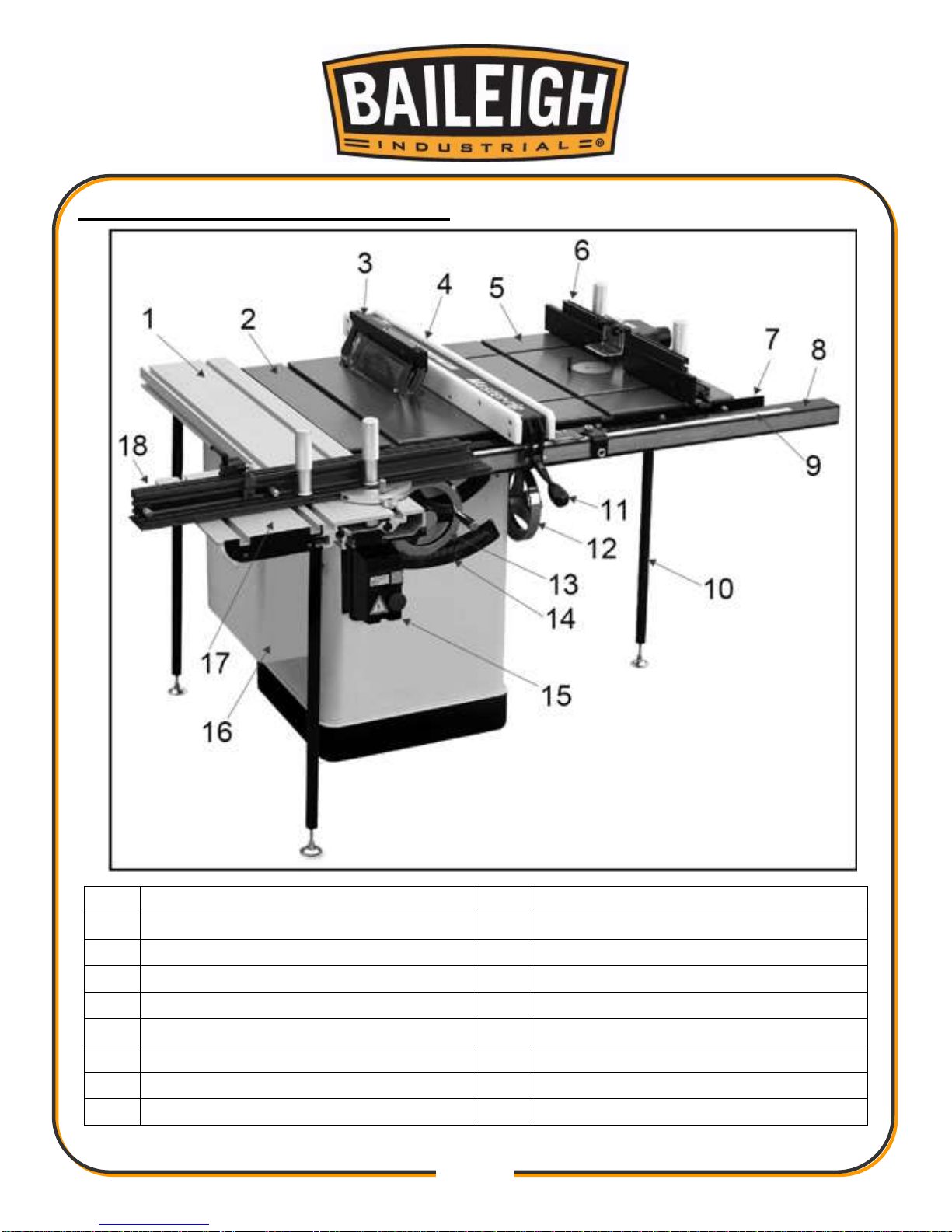

GETING TO KNOW YOUR MACHINE ......................................................................... 17
ASSEMBLY AND SET UP ............................................................................................ 18
ELECTRICAL................................................................................................................ 24
Power cord connection:............................................................................................. 25
ELECTRICAL DIAGRAM .............................................................................................. 26
ADJUSTMENT..............................................................................................................27
Blade Raising and Tilting........................................................................................... 27
Adjusting Rip Fence .................................................................................................. 27
Aligning Blade Guard Splitter or Riving Knife with Blade........................................... 28
Adjusting 45 and 90 Degree Positive Stops .............................................................. 29
Aligning Table T-slot Parallel with Blade ................................................................... 30
OPERATION................................................................................................................. 31
Safety Precautions Before Operations ...................................................................... 31
Electrical Operation...................................................................................................31
Operation................................................................................................................... 32
Crosscutting............................................................................................................... 32
Ripping...................................................................................................................... 33
MAINTENANCE............................................................................................................ 34
Cleaning .................................................................................................................... 35
Lubrication................................................................................................................. 35
Changing Belts.......................................................................................................... 35
TROUBLESHOOTING..................................................................................................36
TABLE SAW BODY BREAKDOWN.............................................................................. 38
Table Saw Body Parts List ........................................................................................ 39
ELEVATION PARTS DIAGAM...................................................................................... 40
Elevation Parts List....................................................................................................41
BLADE GUARD PARTS DIAGRAM..............................................................................43
Blade Guard Parts List .............................................................................................. 43
MITER GAUGE PARTS DIAGRAM ..............................................................................44
Miter Gauge Parts List............................................................................................... 44
RIP FENCE PARTS DIAGRAM .................................................................................... 45
Fence Parts List......................................................................................................... 45

30” RAIL PARTS DIAGRAM ......................................................................................... 46
30” Rail Parts List ...................................................................................................... 46
SWITCH PARTS DIAGRAM ......................................................................................... 47
Switch Parts List........................................................................................................ 47
INTRODUCTION...........................................................................................................48
SPECIFICATIONS........................................................................................................ 49
INVENTORY................................................................................................................. 49
ASSEMBLY................................................................................................................... 50
OPERATION................................................................................................................. 53
SLIDING TABLE PARTS .............................................................................................. 54
Sliding Table Parts List.............................................................................................. 55
SLIDING TABLE FENCE PARTS ................................................................................. 56
Sliding Table Fence Parts List................................................................................... 57
INTRODUCTION...........................................................................................................58
SPECIFICATIONS........................................................................................................ 59
INVENTORY................................................................................................................. 60
ASSEMBLY................................................................................................................... 61
Attaching Router to Router Table.............................................................................. 64
Using the Fence ........................................................................................................ 65
ROUTER TABLE PARTS.............................................................................................. 66
Router Table Parts List.............................................................................................. 66
ROUTER TABLE FENCE PARTS................................................................................. 67
Router Table Fence Parts List................................................................................... 68

1
1
THANK YOU & WARRANTY
Thank you for your purchase of a machine from Baileigh Industrial. We hope that you find it
productive and useful to you for a long time to come.
Inspection & Acceptance. Buyer shall inspect all Goods within ten (10) days after receipt thereof. Buyer’s
payment shall constitute final acceptance of the Goods and shall act as a waiver of the Buyer’s rights to inspect or
reject the goods unless otherwise agreed. If Buyer rejects any merchandise, Buyer must first obtain a Returned
Goods Authorization (“RGA”) number before returning any goods to Seller. Goods returned without a RGA will be
refused. Seller will not be responsible for any freight costs, damages to goods, or any other costs or liabilities
pertaining to goods returned without a RGA. Seller shall have the right to substitute a conforming tender. Buyer will
be responsible for all freight costs to and from Buyer and repackaging costs, if any, if Buyer refuses to accept
shipment. If Goods are returned in unsalable condition, Buyer shall be responsible for full value of the Goods.
Buyer may not return any special order Goods. Any Goods returned hereunder shall be subject to a restocking fee
equal to 30% of the invoice price.
Specifications. Seller may, at its option, make changes in the designs, specifications or components of the Goods
to improve the safety of such Goods, or if in Seller’s judgment, such changes will be beneficial to their operation or
use. Buyer may not make any changes in the specifications for the Goods unless Seller approves of such changes
in writing, in which event Seller may impose additional charges to implement such changes.
Limited Warranty. Seller warrants to the original end-user that the Goods manufactured or provided by Seller
under this Agreement shall be free of defects in material or workmanship for a period of twelve (12) months from
the date of purchase, provided that the Goods are installed, used, and maintained in accordance with any
instruction manual or technical guidelines provided by the Seller or supplied with the Goods, if applicable. The
original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of
the warranty period. The original end-user must also obtain a RGA from Seller prior to returning any Goods to
Seller for warranty service under this paragraph. Seller will not accept any responsibility for Goods returned without
a RGA. The original end-user shall be responsible for all costs and expenses associated with returning the Goods
to Seller for warranty service. In the event of a defect, Seller, at its sole option, shall repair or replace the defective
Goods or refund to the original end-user the purchase price for such defective Goods. Goods are not eligible for
replacement or return after a period of 30 days from date of receipt. The foregoing warranty is Seller’s sole
obligation, and the original end-user’s exclusive remedy, with regard to any defective Goods. This limited warranty
does not apply to: (a) die sets, tooling, and saw blades; (b) periodic or routine maintenance and setup, (c) repair or
replacement of the Goods due to normal wear and tear, (d) defects or damage to the Goods resulting from misuse,
abuse, neglect, or accidents, (f) defects or damage to the Goods resulting from improper or unauthorized
alterations, modifications, or changes; and (f) any Goods that has not been installed and/or maintained in
accordance with the instruction manual or technical guidelines provided by Seller.
EXCLUSION OF OTHER WARRANTIES. THE FOREGOING LIMITED WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. ANY AND ALL OTHER EXPRESS, STATUTORY OR IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. NO WARRANTY IS MADE WHICH
EXTENDS BEYOND THAT WHICH IS EXPRESSLY CONTAINED HEREIN.
Limitation of Liability. IN NO EVENT SHALL SELLER BE LIABLE TO BUYER OR ANY OTHER PARTY FOR
ANY INCIDENTIAL, CONSEQUENTIAL OR SPECIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, LOST
PROFITS OR DOWN TIME) ARISING FROM OR IN MANNER CONNECTED WITH THE GOODS, ANY BREACH
BY SELLER OR ITS AGENTS OF THIS AGREEMENT, OR ANY OTHER CAUSE WHATSOEVER, WHETHER
BASED ON CONTRACT, TORT OR ANY OTHER THEORY OF LIABILITY. BUYER’S REMEDY WITH RESPECT
TO ANY CLAIM ARISING UNDER THIS AGREEMENT IS STRICTLY LIMITED TO NO MORE THAN THE
AMOUNT PAID BY THE BUYER FOR THE GOODS.

2
2
Force Majuere. Seller shall not be responsible for any delay in the delivery of, or failure to deliver, Goods due to
causes beyond Seller’s reasonable control including, without limitation, acts of God, acts of war or terrorism, enemy
actions, hostilities, strikes, labor difficulties, embargoes, non-delivery or late delivery of materials, parts and
equipment or transportation delays not caused by the fault of Seller, delays caused by civil authorities,
governmental regulations or orders, fire, lightening, natural disasters or any other cause beyond Seller's reasonable
control. In the event of any such delay, performance will be postponed by such length of time as may be reasonably
necessary to compensate for the delay.
Installation. If Buyer purchases any Goods that require installation, Buyer shall, at its expense, make all
arrangements and connections necessary to install and operate the Goods. Buyer shall install the Goods in
accordance with any Seller instructions and shall indemnify Seller against any and all damages, demands, suits,
causes of action, claims and expenses (including actual attorneys’ fees and costs) arising directly or indirectly out
of Buyer’s failure to properly install the Goods.
Work By Others; Safety Devices. Unless agreed to in writing by Seller, Seller has no responsibility for labor or
work performed by Buyer or others, of any nature, relating to design, manufacture, fabrication, use, installation or
provision of Goods. Buyer is solely responsible for furnishing, and requiring its employees and customers to use all
safety devices, guards and safe operating procedures required by law and/or as set forth in manuals and instruction
sheets furnished by Seller. Buyer is responsible for consulting all operator’s manuals, ANSI or comparable safety
standards, OSHA regulations and other sources of safety standards and regulations applicable to the use and
operation of the Goods.
Remedies. Each of the rights and remedies of Seller under this Agreement is cumulative and in addition to any
other or further remedies provided under this Agreement or at law or equity.
Attorney’s Fees. In the event legal action is necessary to recover monies due from Buyer or to enforce any
provision of this Agreement, Buyer shall be liable to Seller for all costs and expenses associated therewith,
including Seller’s actual attorneys' fees and costs.
Governing Law/Venue. This Agreement shall be construed and governed under the laws of the State of
Wisconsin, without application of conflict of law principles. Each party agrees that all actions or proceedings arising
out of or in connection with this Agreement shall be commenced, tried, and litigated only in the state courts sitting in
Manitowoc County, Wisconsin or the U.S. Federal Court for the Eastern District of Wisconsin. Each party waives
any right it may have to assert the doctrine of “forum non conveniens” or to object to venue to the extent that any
proceeding is brought in accordance with this section. Each party consents to and waives any objection to the
exercise of personal jurisdiction over it by courts described in this section. Each party waives to the fullest extent
permitted by applicable law the right to a trial by jury.
Summary of Return Policy.
•10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted
after this time.
•You must obtain a Baileigh issued RGA number PRIOR to returning any materials.
•Returned materials must be received at Baileigh in new condition and in original packaging.
•Altered items are not eligible for return.
•Buyer is responsible for all shipping charges.
•A 30% re-stocking fee applies to all returns.
Baileigh Industrial makes every effort to ensure that our posted specifications, images, pricing and product
availability are as correct and timely as possible. We apologize for any discrepancies that may occur. Baileigh
Industrial reserves the right to make any and all changes deemed necessary in the course of business including but
not limited to pricing, product specifications, quantities, and product availability.
For Customer Service & Technical Support:
Please contact one of our knowledgeable Sales and Service team members at:
[phone] or e-mail us at [e-mail]

3
3
INTRODUCTION
The quality and reliability of the components assembled on a Baileigh Industrial machine
guarantee near perfect functioning, free from problems, even under the most demanding
working conditions. However if a situation arises, refer to the manual first. If a solution cannot be
found, contact the distributor where you purchased our product. Make sure you have the serial
number and production year of the machine (stamped on the nameplate). For replacement parts
refer to the assembly numbers on the parts list drawings.
Our technical staff will do their best to help you get your machine back in working order.
In this manual you will find: (when applicable)
•Safety procedures
•Correct installation guidelines
•Description of the functional parts of the machine
•Capacity charts
•Set-up and start-up instructions
•Machine operation
•Scheduled maintenance
•Parts lists
GENERAL NOTES
After receiving your equipment remove the protective container. Do a complete visual
inspection, and if damage is noted, photograph it for insurance claims and contact your
carrier at once, requesting inspection. Also contact Baileigh Industrial and inform them of the
unexpected occurrence. Temporarily suspend installation.
Take necessary precautions while loading / unloading or moving the machine to avoid any
injuries.
Your machine is designed and manufactured to work smoothly and efficiently. Following proper
maintenance instructions will help ensure this. Try and use original spare parts, whenever
possible, and most importantly; DO NOT overload the machine or make any unauthorized
modifications.
Note: This symbol refers to useful information throughout the manual.

4
4
LEARN TO RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you see this symbol
on your machine or in this manual, BE ALERT TO THE
POTENTIAL FOR PERSONAL INJURY!
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A signal word –DANGER, WARNING, or CAUTION is
used with the safety alert symbol. DANGER identifies a
hazard or unsafe practice that will result in severe Injury
or Death.
Safety signs with signal word DANGER or WARNING are
typically near specific hazards.
General precautions are listed on CAUTION safety signs.
CAUTION also calls attention to safety messages in this
manual.
IMPORTANT
PLEASE READ THIS OPERATORS MANUAL CAREFULLY
It contains important safety information, instructions, and necessary operating procedures.
The continual observance of these procedures will help increase your production and
extend the life of the equipment.
SAFETY INSTRUCTIONS

5
5
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
PROTECT EYES
Wear safety glasses or suitable eye protection
when working on or around machinery.
PROTECT AGAINST NOISE
Prolonged exposure to loud noise can cause impairment or loss of
hearing. Wear suitable hearing protective devices such as ear muffs or
earplugs to protect against objectionable or uncomfortable loud noises.
DUST HAZARD
Wear appropriate dust mask. Dust created while using machinery can
cause cancer, birth defects, and long term respiratory damage. Be aware
of the dust hazards associated with all types of materials.
DUST PARTICLES AND IGNITION SOURCES
DO NOT operate the table saw in areas where explosion risks are
high. Such areas include locations near pilot lights, open flames, or
other ignition sources.
ROTATING BLADE HAZARD
Moving saw blade may result in loss of fingers or limb. DO NOT
operate with guard removed. Follow lockout/tagout procedures
before servicing.

6
6
HIGH VOLTAGE
USE CAUTION IN HIGH VOLTAGE AREAS. DO NOT assume the
power to be off.
FOLLOW PROPER LOCKOUT PROCEDURES.
EMERGENCY STOP BUTTON
In the event of incorrect operation or dangerous conditions, the
machine can be stopped immediately by pressing the E-STOP
button. Twist the emergency stop button clockwise (cw) to reset.
Note: Resetting the E-Stop will not start the machine.
Wear Eye Protection Read Manual
Wear Ear Protection Wear Dust Mask Protection
Electric Shock Do NOT Remove Guards

7
7
SAFETY PRECAUTIONS
Wood working can be dangerous if safe and proper operating procedures are not followed. As
with all machinery, there are certain hazards involved with the operation of the product. Using
the machine with respect and caution will considerably lessen the possibility of personal injury.
However, if normal safety precautions are overlooked or ignored, personal injury to the operator
may result.
Safety equipment such as guards, push sticks, hold-downs, feather boards, goggles, dust
masks and hearing protection can reduce your potential for injury. But even the best guard won’t
make up for poor judgment, carelessness or inattention. Always use common sense and
exercise caution in the workshop. If a procedure feels dangerous, don’t try it.
REMEMBER: Your personal safety is your responsibility.
Dear Valued Customer:
•All Baileigh woodworking machines should be used only for their intended use.
•Baileigh does not recommend or endorse making any modifications or alterations to a
Baileigh machine. Modifications or alterations to a machine may pose a substantial risk of
injury to the operator or others and may do substantial damage to the machine.
•Any modifications or alterations to a Baileigh machine will invalidate the machine's warranty.
Please enjoy your Baileigh machine! ....Please enjoy it SAFELY!
1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE
MACHINE. Learn the machine’s application and limitations as well as the specific hazards.
2. Only trained and qualified personnel should operate this machine.
3. Make sure guards are in place and in proper working order before operating
machinery.
4. Kickback. Kickback happens when the piece part is thrown back toward the operator at a
high rate of speed. Before operating this saw, understand how kickback occurs, and how to
prevent it.
5. Reaching Over Saw Blade. NEVER reach behind or over the blade with either hand while
the saw is operating. If kickback of a piece part were to occur, you could amputate your
hands, arms, or fingers.
WARNING:FAILURE TO FOLLOW THESE RULES MAY RESULT IN
SERIOUS PERSONAL INJURY

8
8
6. Blade Height. Adjust the blade to the correct height above the piece part so it does not
kickback toward the operator causing injury.
7. Remove any adjusting tools. Before operating the machine, make sure any adjusting tools
have been removed.
8. Blade Guard / Riving Knife. To reduce the risk of kickback, always use the riving knife and
blade guard. Make sure they are properly installed during cutting operations.
9. Dado and Rabbet Operations. Dado and Rabbeting operations require that the blade guard
be removed. Be aware of your personal safety while the guard is off, and replace the blade
guard after these operations are completed.
10.Keep work area clean. Cluttered areas invite injuries.
11.Push Sticks and Push Blocks. When ripping narrow stock, there is a risk of your hands
and fingers contacting the rotating blade, resulting in serious personal injury.
12.Overloading machine. By overloading the machine, you may cause injury from flying parts.
DO NOT exceed the specified machine capacities.
13.Crosscutting Operations. Remove the rip fence whenever using the miter gauge to
crosscut a piece part.
14.Operator Position. If kickback occurs, the blade will eject the piece part into the path of the
operator. NEVER stand in- line with the cutting path of the blade during operation.
15.Dress appropriate. DO NOT wear loose fitting clothing or jewelry as they can be caught in
moving machine parts. Protective clothing and steel toe shoes are recommended when
using machinery. Wear a restrictive hair covering to contain long hair.
16.Awkward Positions. Avoid awkward hand and body positions where a sudden slip could
cause your hands or body to contact the spinning blade.
17.Use eye and ear protection. Always wear ISO approved impact safety goggles
18.Do not overreach. Maintain proper footing and balance at all times. DO NOT reach over or
across a running machine.
19.Damaged Saw Blades. A damaged saw blade can cause kickback. If in doubt as to the
condition of the blade, DO NOT use it.
20.Stay alert. Watch what you are doing and use common sense. DO NOT operate any tool or
machine when you are tired.
21.Check for damaged parts. Before using any tool or machine, carefully check any part that
appears damaged. Check for binding of moving parts that may affect proper machine
operation.
22.Observe work area conditions. DO NOT use machines or power tools in damp or wet
locations. Do not expose to rain. Keep work area well lighted. DO NOT use electrically
powered tools in the presence of flammable gases or liquids.
23.DO NOT bypass or defeat any safety interlock systems.

9
9
24.Know the location of the ON - OFF switch and the “E”- STOP button.
25.Removing Piece Parts. Before removing cut-offs, always turn the saw OFF, and wait for the
blade to stop turning, to avoid contact with a moving blade.
26.Control of the Piece Part. If the piece part should unexpectedly move or bind the blade,
kickback could occur. Make sure the piece part is supported by either the rip fence or the
crosscut fence. NEVER back a piece part out of a cut.
27.Supporting Piece Part. Provide adequate support to the sides and rear of the saw table for
material that is extra wide and long.
28.Keep visitors a safe distance from the work area.
29.Keep children away. Children must never be allowed in the work area. DO NOT let them
handle machines, tools, or extension cords.
30.DO NOT operate machine if under the influence of alcohol or drugs. Read warning
labels on prescriptions. If there is any doubt, DO NOT operate the machine.
31.DO NOT touch live electrical components or parts.
32.Be Sure all equipment is properly installed and grounded per national, state, and local
codes. If machine is equipped with a three-prong plug, it should be plugged into a three-hole
electrical receptacle. If an adapter is used to accommodate a two-prong receptacle, the
adapter plug must be attached to a known ground. Never remove the third prong.
33.Inspect power and control cables periodically. Replace if damaged or bare wires are
exposed. Bare wiring can kill!
34.Maintain machine in top condition. Keep clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
35.Reduce the risk of unintentional starting. Make sure switch is in “OFF” position before
plugging in power cord.
36.Never leave machine running unattended. TURN POWER OFF. Don’t leave machine until
it comes to a complete stop.
37.Make sure machine is disconnected from power supply while motor is being mounted,
connected or reconnected.
38.Saw Appropriate Material. Only use this saw for natural wood stock and wood stock
products such as particle board, plastics, laminates, and medium-density fiber board (MDF).
DO NOT try and cut metal, glass, ceramics, or products containing asbestos or lead paint.
Some of these materials contain hazardous dust and can cause severe respiratory
problems.
39.Warning: The dust generated by certain woods and wood products can be injurious to your
health. Always operate machinery in well-ventilated areas and provide for proper dust
removal. Use a wood dust collection system whenever possible.

10
10

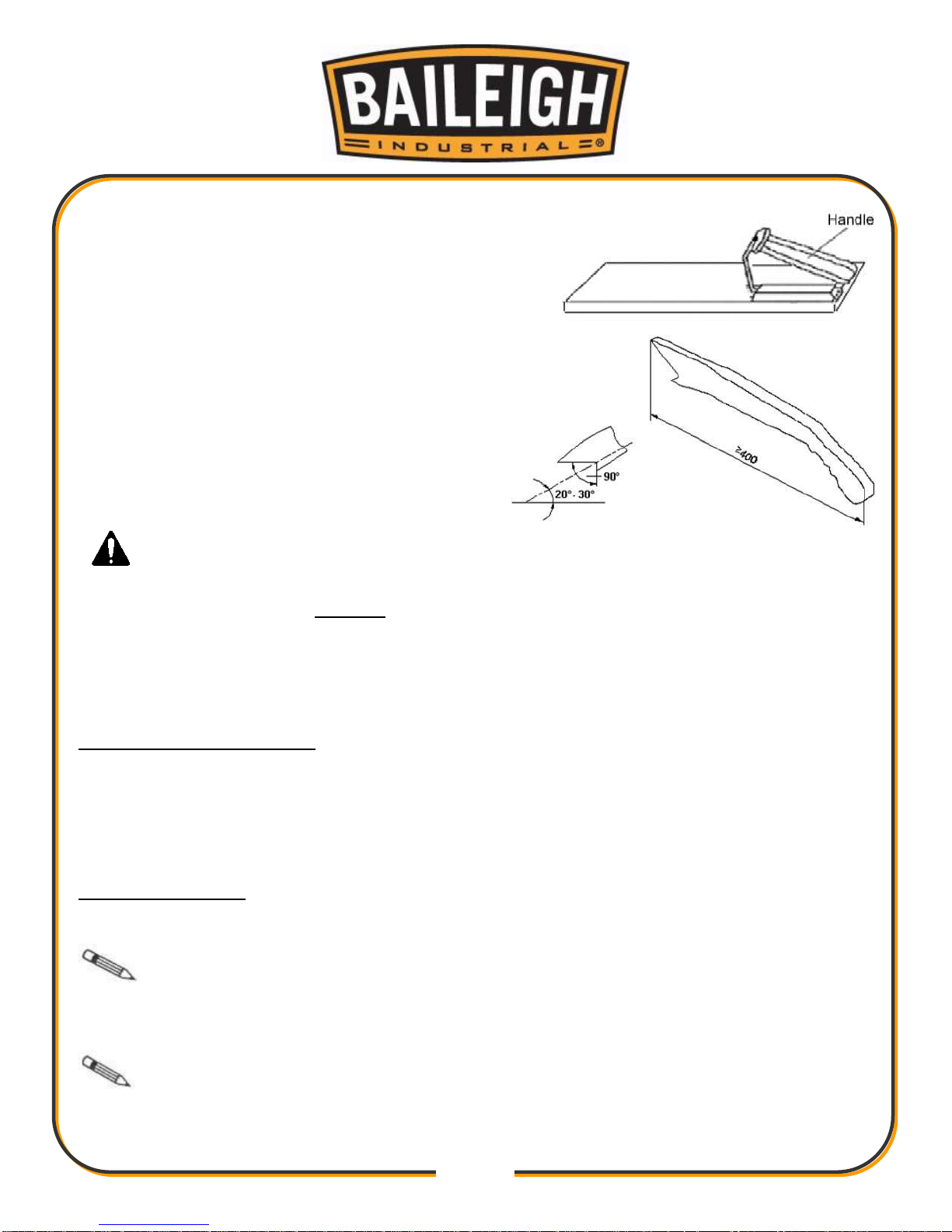

40.A push block and/or a push stick must be used if
the workpieces is less than 5” (127mm) to prevent
your hands from getting too close to the saw blade.
Push block must be used to cut narrow workpieces
and, when necessary, to push the workpiece
against the fence, a push block can be easily made
by the operator.
EMERGENCY STOP
In the event of incorrect operation or dangerous conditions, the machine can be stopped
immediately by pressing the ON/OFF switch. Remove the Safety Lockout Key insert to prevent
unauthorized startup.
TECHNICAL SUPPORT
Our technical support department can be reached at 920.684.4990, and asking for the support
desk for purchased machines. Tech Support handles questions on machine setup, schematics,
warranty issues, and individual parts needs: (other than die sets and blades).
For specific application needs or future machine purchases contact the Sales Department at:
[email protected], Phone: [phone], or Fax: [phone].
Note: The photos and illustrations used in this manual are representative only and
may not depict the actual color, labeling or accessories and may be intended to illustrate
technique only.
Note: The specifications and dimensions presented here are subject to change
without prior notice due to improvements of our products.

11
11
TECHNICAL SPECIFICATIONS
Product Dimensions
Weight
550Ibs (250kg)
Length/Width/Height
72" x 51" x 40"
Foot Print (L x W, Main Base)
20" x 20"
Electrical / Motor
Switch
Magnetic with Thermal Overload
Type
TEFC Capacitor Start Induction
Horsepower /Voltage /Phase/ Amps
3hp-230V-1 Ph-12A
Speed /Cycle
3450 RPM/60hz
Power Transfer
Triple V-Belt Drive
Blade Information
Maximum Blade Diameter
10"
Riving Knife/Spreader Thickness
0.1 (2.5mm)
Required Blade Body Thickness
0.071"-0.094" (1.8-2.4mm)
Required Blade Kerf Thickness
0.102"-0.126" (2.6-3.2mm)
Maximum Width of Dado
13/16"
Blade Tilt
Left 0-45°
Arbor Size
5/8“
Arbor Speed
4300 RPM
Arbor Bearings
Sealed and Permanently
Lubricated
Cutting Capacities
Maximum Depth of Cut At 90°
80mm (3-1/8")
Maximum Depth of Cut At 45°
55mm (2-3/16")
Maximum Rip to Right of Blade-
Standard
762mm (30")
Maximum Rip to Left of Blade
305mm (12")
Table Information
Floor to Table Height
860mm (34")
Main Table (L x W x T)
20" x 27" x 1-1/2"
Distance Front of Table to Center of
Blade
17-1/4"
Distance Front of Table to Blade
12-1/4"
Fence Information
Fence Size (L x W x H)
48" x 4-1/8" x 2-1/2"
Miter Gauge
Miter Gauge Slot Type
T-Slot
Miter Gauge Slot Type (W x H)
3/4" x 3/8"
Other Information
Dust Port Size
4"
Sliding Table
Table Size
9" x 47"
Extension Table Size
9" x 13-1⁄4"
Maximum Table Travel
55"

12
12
Maximum Crosscutting Length
38"
Weight
70lbs
Router Table
Table Size
20" x 27"
Table T-Slot Size
3⁄4" x 3⁄8"
Fence Board Size (x 2)
12-1⁄2" x 2-3⁄4"
Number of Table Inserts
2
Table Opening Size
4"
Table Insert Inside Openings
1", 2-3⁄8"
Dust Port Size
2-1⁄2"
Weight
70lbs
INTENDED USE
Table saw and the workpiece guide equipment supplied with it are intended to be used
exclusively for the following purposes:
•Laminated and unlaminated board materials (e.g. chipboard, coreboard, MDF board, ...)
•Solid wood
•Gypsum plasterboard, Cardboard, Veneer with a suitable clamping device.
•Dimensionally stable plastics (thermoset plastics, thermoplastics). Sawing these materials
does not normally involve any risks in respect of dust, chips, and thermal degradation
products.
Tools:
The chosen saw blade must be suitable both for the specific work cycle and for the specific
material.
•Only circular blades which are solid chrome vanadium (CV) or tungsten carbide tipped (TCT)
and have a diameter of 10” (255mm), arbor size 5/8” (16mm), as well as a maximum width of
13/16” (20mm) are allowed for the main saw.
•Saw blades made of high-alloy high-speed steel (HSS) are not allowed to be used.
•Saw blades and their fixing devices shall conform to EN 847-1:2005.

13
13
UNPACKING AND CHECKING CONTENTS
Your Baileigh machine is shipped complete. Separate all parts from the packing material and
check each item carefully. Make certain all items are accounted for before discarding any
packing material.
Cleaning
Your machine may be shipped with a rustproof waxy coating and/or grease on the exposed
unpainted metal surfaces. Fully and completely remove this protective coating using a
degreaser or solvent cleaner. Moving items will need to be moved along their travel path to
allow for cleaning the entire surface. For a more thorough cleaning, some parts will occasionally
have to be removed. DO NOT USE acetone or brake cleaner as they may damage painted
surfaces.
Follow manufacturer’s label instructions when using any type of cleaning product. After cleaning,
wipe unpainted metal surfaces with a light coating of quality oil or grease for protection.
Important: This waxy coating is NOT a lubricant and will cause the machine to
stick and lose performance as the coating continues to dry.
WARNING: SUFFOCATION HAZARD! Immediately discard any plastic
bags and packing materials to eliminate choking and suffocation hazards to children
and animals.
If any parts are missing, DO NOT place the machine into service until the missing
parts are obtained and installed correctly.
WARNING: DO NOT USE gasoline or other petroleum products to clean
the machine. They have low flash points and can explode or cause fire.
CAUTION: When using cleaning solvents work in a well-ventilated area.
Many cleaning solvents are toxic if inhaled.
GAS

14
14
TRANSPORTING AND LIFTING
IMPORTANT: Lifting and carrying operations should be carried out by skilled workers,
such as a truck operator, crane operator, etc. If a crane is used to lift the machine, attach the
lifting chain carefully, making sure the machine is well balanced.
Follow these guidelines when lifting with truck or trolley:
•The lift truck must be able to lift at least 1.5 –2 times
the machines gross weight.
•Make sure the machine is balanced. While
transporting, avoid rough or jerky motion, and maintain
a safe clearance zone around the transport area.
•Use a fork lift with sufficient lifting capacity and forks
that are long enough to reach the complete width of
the machine.
•Remove the securing bolts that attach the machine to
the pallet.
•Approaching the machine from the side, lift the machine on the frame taking care that there
are no cables or pipes in the area of the forks.
•Move the machine to the required position and lower gently to the floor.
•Level the machine so that all the supporting feet are taking the weight of the machine and no
rocking is taking place.
INSTALLATION
IMPORTANT:
Consider the following when looking for a suitable location to place the machine:
•Overall weight of the machine.
•Weight of material being processed.
•Sizes of material to be processed through the machine.
•Space needed for auxiliary stands, work tables, or other machinery.
•Clearance from walls and other obstacles.
•Maintain an adequate working area around the machine for safety.
•Have the work area well illuminated with proper lighting.
•Keep the floor free of oil and make sure it is not slippery.

15
15
•Remove scrap and waste materials regularly, and make sure the work area is free from
obstructing objects.
•It is important to maintain free area around the machine, which is required for the working
place. If any long material is machined, it is necessary to have a sufficient room in front of
the machine as well behind it in the places of material input and output.
•LEVELING: The machine should be sited on a level, concrete floor. Provisions for securing it
should be in position prior to placing the machine. The accuracy of any machine depends on
the precise placement of it to the mounting surface.
•FLOOR: This tool distributes a large amount of weight over a small area. Make certain that
the floor is capable of supporting the weight of the machine, work stock, and the operator.
The floor should also be a level surface. If the unit wobbles or rocks once in place, be sure to
eliminate by using shims.
•WORKING CLEARANCES: Take into consideration the size of the material to be
processed. Make sure that you allow enough space for you to operate the machine freely.
•POWER SUPPLY PLACEMENT: The power supply should be located close enough to the
machine so that the power cord is not in an area where it would cause a tripping hazard. Be
sure to observe all electrical codes if installing new circuits and/or outlets.
It is important to maintain free area of 36” (914mm) around the machine, which is required for
the working place. If any long material is machined, it is necessary to have a sufficient room in
front of the machine as well behind it in the places of material input and output.
Before beginning assembly, take note of the following precautions and suggestions
•The machine is bolted to the pallet. Before attempting any of the assembly procedures
remove all of the loose parts and hardware from the inside of the machine and unbolt the
machine from the pallet.

16
16
OVERALL DIMENSIONS

17
17
GETING TO KNOW YOUR MACHINE
1
Sliding table
10
Leg
2
Main table
11
Fence lock Handle
3
Blade Guard
12
Blade Tilt Hand wheel
4
Fence
13
Blade Height Hand wheel
5
Router table
14
Table Tilt Scale
6
Router table fence
15
On/Off Switch
7
Front Rail
16
Motor Cover
8
Front Rail Tube
17
Extension Table
9
Scale
18
Sliding Table Fence
