Bailey 9920 User manual

Model 9920
Bailey Basic Stationary Mat Table
Product Manual
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Mail: P.O. Box 130, Lodi, OH 44254-0130
Shipments: 118 Lee St., Lodi, OH 44254
www.baileymfg.com
B0518

Important
Read This First
Bailey Manufacturing Company is proud of the
reputation we have earned as a leader in the
physical, occupational, and sports medicine industry
for over 60 years. Our products are made from the
highest quality materials and built in the USA by
skilled craftsmen.
Prior to shipping, this product was thoroughly
inspected to ensure the highest quality standards and
your total satisfaction. If you experience any
problems, please follow the instructions outlined in
the Warranty & Support Section of this manual.
Contact either your dealer or Bailey at 1-800-321-
8372.
Please take a moment now and record the following
information for future reference:
Date of Purchase [delivery date]:
Bailey Dealer:
Packing Slip #:
Serial Number:
Date of Manufacture:
Model Number:

BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Model 9920 Basic Stationary Mat Table Page 3
Contents: Pages:
Product Section 4 thru 8
General Information 4
Parts 4, 5
Assembly 6
Safety 6
Operation 7
Maintenance & Cleaning 8
Troubleshooting 8
Inspection & Service Logsheet 13
Warranty & Support Section 9 thru 12
Warranty Terms 9
Product Support & Assistance 10
Damage & Loss In Transit 11
Returns 12

General Information:
Read entire Product Manual before using this product. If you
have any questions regarding the following information,
please contact a Bailey Customer Service Representative at
1-800-321-8372.
Features & Specifications, Model 9920 [4’x7’]:
• Standard Black Soft Vinyl upholstery meets flammability
specifications of CA Standards 117 E.
• Medium density, 2” thick anti-bacterial foam padding for
patient comfort.
• Convenient 20” total fixed height.
• Maximum static load capacity of 500 lb. / 227 kg.
Parts:
Your new Bailey Basic Stationary Mat Table is shipped
“knocked down”, with all hardware and parts needed for final
assembly. Inspect the unit carefully, immediately upon
removal from packaging, to ensure that the unit is in good
condition and all materials are present before starting
assembly.
Note: Bailey Manufacturing Company waives any
responsibility for concealed freight damage not reported
within five (5) days of receiving shipment.
Refer to Product Warranty and Support Section of this
Manual for more information.
Read entire Product Manual before assembling or using this
product. Check Parts Location Diagram [Figure 1] and parts
list on opposite page to verify receipt of all material.
Refer to Figure 1 on opposite page and identify the
components. Remove Hardware Kit and Legs, which are
fastened to the back of the Table Top for shipping.
Page 4 Model 9920 Basic Stationary Mat
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]

Model 9920 Basic Stationary Mat Table Page 5
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Table Top
and Apron
Assembly
Corner Legs
Hardware Kit,
attached to
Corner Brace
Figure 1
Mat Table Parts Location
Parts [cont’d]:
The following Hardware Kit is packaged in a poly bag with the
Table:
• (4) EA. # 2401 Lag Bolt, 3/8 x 4”
• (4) EA. # 3597 Lockwasher, 3/8
• (4) EA. # 3610 SAE Flatwasher, 3/8
The following parts and hardware are fastened to the back of
the Table:
• (4) EA. Mat Table Corner Legs
Note: Angle Brackets and Tapping Screws that are used
to retain the Corner Legs during shipment are not
needed for assembly and may be discarded.

Assembly:
The following minimum tools are required:
• 9/16” Wrench
Any of these additional tools will make assembly easier:
• 9/16” socket and drive ratchet
[Refer to Figure 2, opposite page]:
Place the Table Top and Apron Assembly upside down on a
smooth, clean surface. Place one Corner Leg in each corner
at the gap in the Apron, with the notch and starter hole facing
inside towards the Corner Brace. Attach each of the four (4)
Corner Legs using one (1) Lag Bolt, Lockwasher and
Flatwasher as shown in Figure 2. Tighten each Lag Bolt
gradually and in sequence between the four corners until the
Lockwasher flattens out and the Corner Leg is drawn
securely into the Apron gap.
Note: Tightening each corner fully before starting the next
one may result in a warped or distorted Table. If this occurs,
loosen all Lag Bolts until Table flattens out, and gradually
retighten Lag Bolts in sequence.
Turn Mat Table upright and place in location to be used. The
floor should be flat and level as possible.
Check all fasteners and components for proper tightness and
fit. Your Mat Table is now ready to use.
Safety:
Be safe! Never attempt to assemble or move a table yourself;
always seek assistance. Avoid placing the table against walls
or in contact with other equipment in order to eliminate pinch
points. Always observe Table Static Load Ratings as stated
on page 4.
Page 6 Model 9920 Basic Stationary Mat
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]

Model 9920 Basic Stationary Mat Table Page 7
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Corner Leg
Figure 2
Mat Table Corner Leg Assembly
Table Top and
Apron Assembly
#2401
Lag Bolt
Corner Brace
#3597
Lockwasher
#3610
Flatwasher
Notch with
starter hole
Operation:
Mat tables may be grouped together to form larger areas for
treatment or exercise. When using the table alongside a
wheelchair or with a prothesis, take care to minimize contact
with the upholstery corners and sides. This will avoid
punctures and abrasion in the upholstery.

Page 8 Model 9920 Basic Stationary Mat
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Maintenance & Cleaning:
Regularly inspect components for wear and proper
adjustment. Should the unit need attention, remove from
service until the unit is returned to its original condition. A
convenient Inspection and Service Logsheet is provided on
page 13 for recordkeeping.
To help keep your table in good condition, clean as required
using abrasive free and solvent free products. Test any
cleaner or disinfectant on a small, inconspicuous location
before using. Discontinue use if surface softens, discolors, or
loses gloss.
Never use any cleaners or disinfectants containing solvents
on product surfaces. Check their Material Safety Data Sheet
and consult the manufacturer with any questions. Some
chemicals will severely shorten the life of your vinyl
upholstery and lacquer coated finishes.
For light soiling, upholstery manufacturers recommend liquid
dish soap and water, or liquid cleanser and water applied
sparingly with a soft bristle brush. For difficult stains or
disinfection, use a solution of 10% household bleach [sodium
hypochlorite] and 90% water applied sparingly with a soft
white cloth. Rinse with water dampened cloth to remove any
remaining soap, cleanser or bleach solution.
Troubleshooting:
Your new Bailey Basic Stationary Mat Table will provide
years of reliable service. In the event the Table does not
function correctly, inspect all components for tightness and
proper condition.
For detailed information or component replacement, contact
Bailey Customer Service at the number on this page. Have
your date of purchase and Bailey Dealer information
handy for faster service.

Model 9920 Basic Stationary Mat Table Page 9
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Two Year Limited Warranty:
Bailey Manufacturing Company warrants its Bailey Basic
products [Model 9900 Series] to be free of defects in
materials, workmanship, or design under normal use and
service conditions for two years after the date of original
purchase. Resale products and components manufactured by
others will carry the warranty of the manufacturer. If the
product and/or equipment should become defective within the
designated warranty period, Bailey Manufacturing Company
will repair or replace it (at our option) free of charge, including
return transportation to you, provided you deliver the
equipment or product prepaid to Bailey Manufacturing
Company at 118 Lee Street, Lodi, Ohio 44254. Please
receive “authorization” before returning product to the factory,
as Bailey Manufacturing Company will not accept collect
shipments. Bailey Manufacturing Company reserves the right
to repair or replace component parts without return of the
entire unit.
This warranty does not include damage resulting from
accident, abuse, or misuse of the product and expressly
excludes normal wearing of parts or defect caused by
transportation, accident, fire, flood, alteration, or negligence.
Bailey’s warranty liability is limited to that stated above; other
than the warranty stated above, there are no warranties
expressed or implied. Bailey will have no responsibility for
consequential or incidental damages.

Page 10 Model 9920 Basic Stationary Mat
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Product Support:
Bailey Manufacturing Company is totally committed to
producing the finest quality physical, occupational, and sports
medicine products. Our goal is your total satisfaction. If you
experience any problems, please feel free to contact a Bailey
Customer Service Representative at 1-800-321-8372
between the hours of 8:30 AM and 4:30 PM Eastern Time
weekdays.
The following information is provided to help ensure that your
experience with Bailey is a positive one. Please read this
information carefully before you unpack or begin assembly.
If You Need Assistance:
To provide the best possible service to our customers and
dealers, warranty claims should be made directly to Bailey.
Since Bailey is in the best position to solve the customer’s
problem, it will speed up the process and help ensure total
customer satisfaction. Should you encounter any problem
with our products or services, please contact a Bailey
Customer Service Representative at 1-800-321-8372
between the hours of 8:30 AM and 4:30 PM Eastern Time,
weekdays. Please have the date of purchase and Bailey
dealer information recorded inside the front cover of this
manual, or a copy of your packing list available to help our
customer service representative provide you with the fastest
service. In most cases, you will also want to notify your dealer
to enable them to provide any further assistance.

Model 9920 Basic Stationary Mat Table Page 11
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Damage or Loss in Transit:
All of our equipment is thoroughly inspected and carefully
packed before leaving our plant. It is receipted for by the
carrier as having been shipped in good condition. Any loss or
damage which occurs to the equipment in route will be solely
through negligence of the carrier and all claims must be filed
directly with the carrier. Important; If a shipment is delivered
to you in a visibly damaged condition or in a quantity that is
less than is enumerated on the Bill of Lading or delivery
receipt, insist on a notation of this damage or shortage by the
delivering carrier’s agent on the delivery receipt or freight bill.
When a shipment has been delivered to you in apparent good
condition, but upon opening the containers or crate, damage
is discovered, notify the delivering carrier immediately upon
discovery. This notification must be made within 5 days of
receipt of the shipment. Insist upon an inspection and
inspection report. You must retain all packaging, including the
carton or crate in which the damaged item was shipped, until
inspection has been made. All claims must be made by you,
the consignee, directly to the carrier or its agents.

Returns:
Merchandise to be returned must have proper authorization.
Please contact your dealer for assistance with this procedure.
A reference (return authorization or RA) number is to be
clearly marked on all cartons and correspondence. Freight
charges are to be prepaid, as collect shipments are not
accepted. Items must be in the original packaging and
returned within 30 days of the invoice date. Returns that are
not the result of a warranty claim are subject to a restocking
fee of 20% to cover inspection and handling. Any damage
due to use, mishandling, or improper packing of the return will
be noted and deducted from the credit issued. Special order
items may not be returned for credit. Bailey Customer Service
Representatives will complete a “Returned Merchandise
Information” form to clearly identify all information concerning
the returned merchandise.
Specifications:
Due to continuous improvements in design, materials, and
construction techniques, specifications in the Bailey catalog
are subject to change without notice. In all cases, the
equipment shipped will be of equal or superior quality. Bailey
Manufacturing Company also reserves the right to
discontinue the manufacture of any product at such time as
we consider necessary.
Customer Service:
When service is required, it is nearly impossible to place a
value on it. For that reason we have an extremely competent
Customer Service Department available to assist you with
answers to your questions or recommendations in your
planning process. In the unlikely event that a product may be
in need of repair, our staff will assist with prompt identification
of the required replacement part. Have the date of purchase
and the name of your Bailey dealer handy for reference.
Please contact us at 1-800-321-8372 between the hours of
8:30 AM and 4:30 PM Eastern Time weekdays for
assistance.
Page 12 Model 9920 Basic Stationary Mat
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]

BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Model 9920 Basic Stationary Mat Table Page 13
Inspection & Service Logsheet
DATE BY DESCRIPTION

Page 14 Model 9920 Basic Stationary Mat
BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]

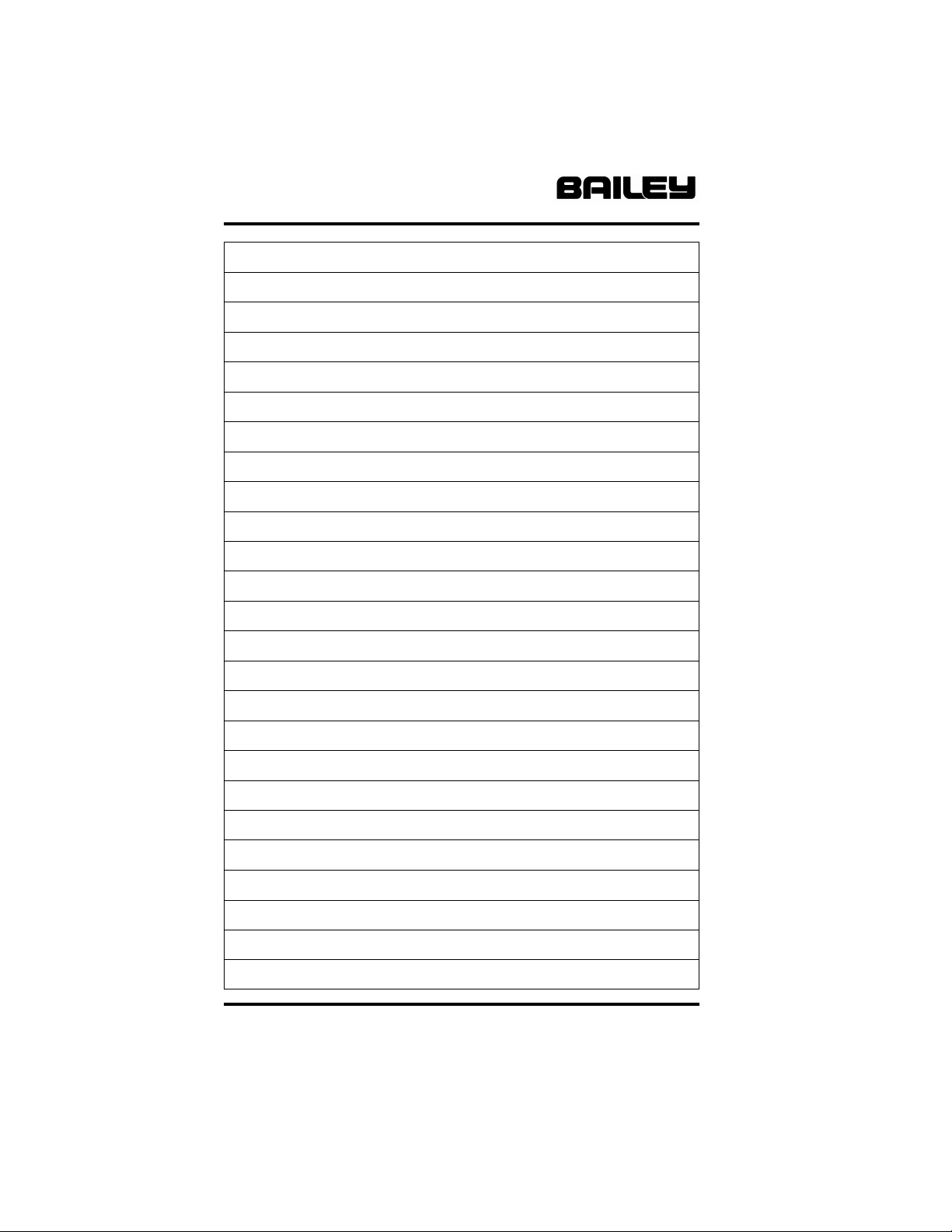

NOTES

BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Model 9920 Basic Stationary Mat Table Page 15
NOTES

BAILEY MANUFACTURING COMPANY
800-321-8372 • FAX: [phone]
Mail: P.O. Box 130, Lodi, OH 44254-0130
Shipments: 118 Lee St., Lodi, OH 44254
www.baileymfg.com
