BainUltra BAIN DE VILLE User manual

BAIN DE VILLETM
INSTALLATION INSTRUCTIONS
IMPORTANT INFORMATION FOR THE INSTALLER AND THE OWNER
TO BE KEPT BY THE OWNER

3
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | BAIN DE VILLETM
TABLE OF CONTENTS
SAFETY INSTRUCTIONS .................................................................................................................................................. 4-5
INTEGRATED WASTE & OVERFLOW AND CABLE DRIVEN WASTE & OVERFLOW KITS.............................................................. 7
INTEGRATED OVERFLOW CONNECTION
PVC PIPE .................................................................................................................................................................. 8
BRASS PIPE ............................................................................................................................................................... 9
CABLE DRIVEN ....................................................................................................................................................... 10
BEDDING AND DRAIN POSITION .................................................................................................................................... 11
LEVELING AND TURBINE LOCATION ............................................................................................................................... 12
SECURING ..................................................................................................................................................................... 13
FRAMING INSTRUCTIONS ................................................................................................................................................ 14
REMOTE MOUNTING
REMOTE TURBINE CONNECTION ........................................................................................................................... 15-16
REMOTE TURBINE - ELECTRICAL CONNECTIONS ...........................................................................................................17
THERAPIES - ELECTRICAL CONNECTIONS ................................................................................................................... 18
ELECTRICAL DIAGRAMS .................................................................................................................................................. 19
CUTTING TEMPLATES OF REMOTE CONTROLS ................................................................................................................. 20

4 1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © December 2019 BainUltra Inc. All rights reserved. 45200689
BAIN DE VILLETM | SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
PERTAINING TO RISKS OF FIRE, ELECTROCUTION OR PERSONAL INJURY
READ AND FOLLOW ALL INSTRUCTIONS • SAVE THESE INSTRUCTIONS
THIS DOCUMENT SUPERCEDES THE INSTALLATION INSTRUCTION IN THE OWNER’S MANUAL.
WARNING
• Risk of hyperthermia; people using medication and/or having an adverse medical history should consult a physician before using
a Hydro-thermo massage®bathtub equipped with a heater.
• Risk of hyperthermia and possible drowning: do not use a Hydro-thermo massage bathtub equipped with heater immediately follow-
ing strenuous exercise.
• Risk of fetal injury; pregnant or possibly pregnant women should consult a physician before using a Hydro-thermo massage bathtub
equipped with a heater.
• Risk of accidental injury or drowning; do not use drugs or alcohol before or during the use of a Hydro-thermo massage bathtub
equipped with a heater.
• Use this unit only for its intended purposes or as described in this manual. Use only accessories or devices recommended by the manu-
facturer.
• Risk of hyperthermia and possible drowning. Check and adjust water temperature before use. Water temperature exceeding 100ºF
(38ºC) may be harmful to your health.
• To reduce the risk of injury, as with any other conventional bath, do not allow children or physically impaired people to use this unit
unless they are closely supervised at all times.
• To avoid injury, exercise care when entering or exiting the Thermomasseur®.
• The Geysair should always be connected to the hot water intake. If it is not the case, then, the Geysair should be deactivated via the
bath control.
RISK OF ELECTRICAL SHOCK
• Disconnect electric power before servicing.
• Do not permit electrical appliances (hair dryer, lamp, telephone, radio, television, etc.) within 5’ (1,5 m) of the Thermomasseur.
• Before using the Thermomasseur, its installation should be completely finished so that a bather cannot accidentally come in contact
with electrical components (turbine and power module).
• For indoor use only.

5
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | BAIN DE VILLETM
IMPORTANT SAFETY INSTRUCTIONS
PERTAINING TO RISKS OF FIRE, ELECTROCUTION OR PERSONAL INJURY
READ AND FOLLOW ALL INSTRUCTIONS • SAVE THESE INSTRUCTIONS
THIS DOCUMENT SUPERCEDES THE INSTALLATION INSTRUCTION IN THE OWNER’S MANUAL.
ELECTRICAL CONNECTIONS:
• Never drop or insert objects into any openings.
• The Thermomasseur must be connected only to a supply circuit that is protected by a 20 amp class A ground fault circuit interrupter
(GFCI). Optional therapies such as Chromatherapy and/or 2nd heated backrest and/or WarmTouchShell®must be connected to a supply
circuit that is protected by a 15 amp class A ground fault circuit interrupter (GFCI). This interrupter is supplied by a certified electrician
and must be tested on a regular basis in accordance with manufacturer’s instructions. The GFCI ground must be connected. If defec-
tive, do not use the Thermomasseur. Disconnect immediately and call a certified electrician.
• Use 12 AWG (for 20 amp dedicated circuit) and 14 AWG (for 15 amp dedicated circuit) copper conductors that resist temperatures of at
least 194 °F (90 °C)
• Canada only: for permanently connected units. A green-colored terminal (or a wire connector marked g., gr., ground or grounding) is
provided within the terminal compartment (not applicable if unit supplied with an electric plug).
To reduce the risk of electrocution, connect this terminal or connector to the grounding terminal of your electric service or supply panel
with conductor equivalent in size to the circuit conductors supplying the equipment and be 12 AWG or more.
• All electrical connections must be carried out by a certified electrician and must respect federal, provincial/state, and local building codes
and regulations.
• Install in accordance with manufacturer’s installation instructions.
• For Geysair-equipped baths using remote turbine installation (not mounted on the bath), grounding continuity must be tested
between the bath grounding terminal and the bath power supply. Failure to perform the grounding continuity test could
result in serious personal injury.
WATER LEAK TEST - IMPORTANT
• Once plumbing is fully installed and before beginning any other work, fill the ThermoMasseur with water to overflow
level and wait 30 minutes. Check all plumbing hook-ups and bath for leaks. BainUltra is not responsible for any water
damage caused by improper installation (see Warranty section in the Owner’s Manual).

6 1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © December 2019 BainUltra Inc. All rights reserved. 45200689
BAIN DE VILLETM | INSTALLATION INSTRUCTIONS
BAIN DE VILLETM

7
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | BAIN DE VILLETM
TITRE

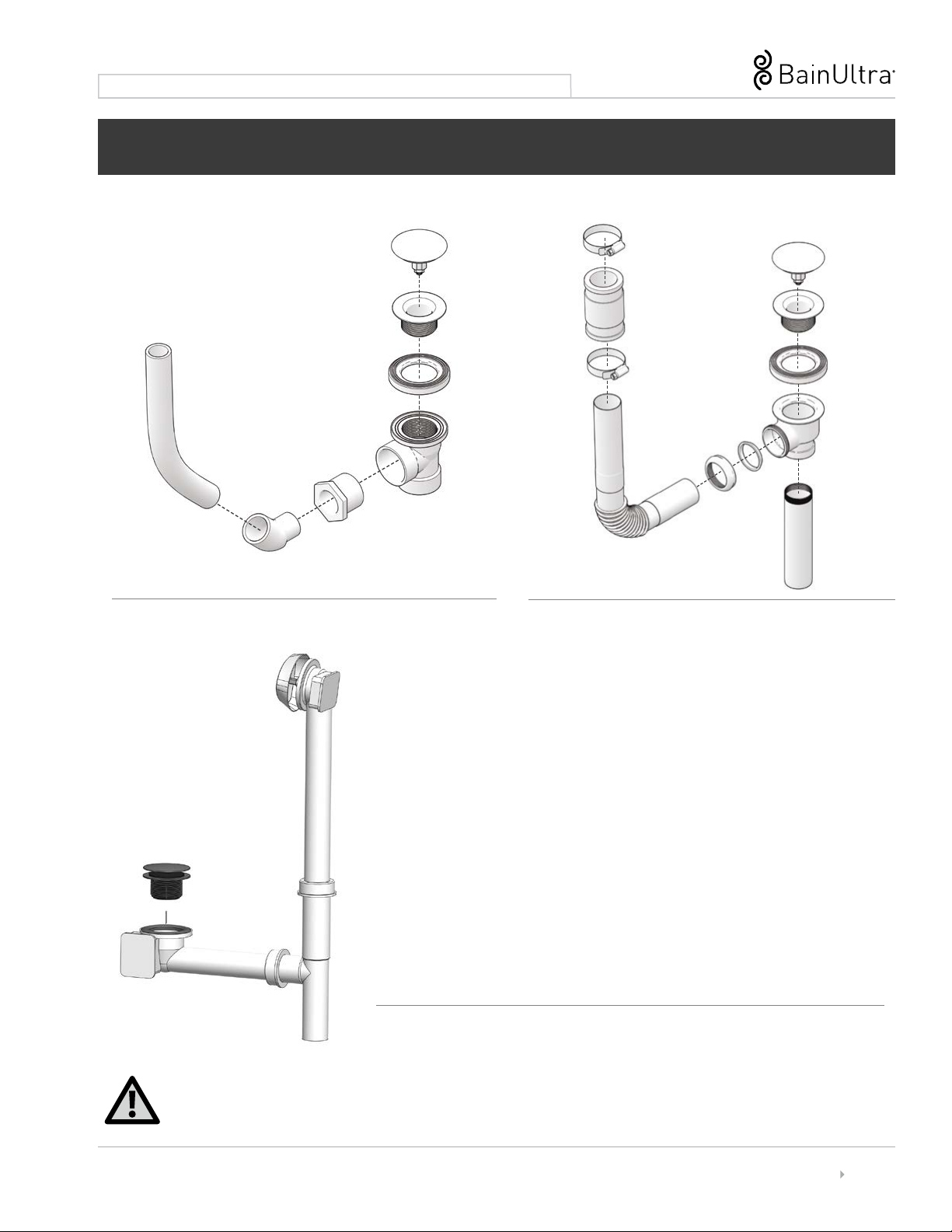

PVC WASTE & OVERFLOW KIT
THE LENGTH OF THE PIPE MAY VARY DEPENDING ON THE BATHTUB MODEL
INTEGRATED WASTE & OVERFLOW AND CABLE DRIVEN WASTE & OVERFLOW KITS
CABLE DRIVEN WASTE & OVERFLOW KIT (For front overflow tub)
BRASS WASTE & OVERFLOW KIT

8 1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © December 2019 BainUltra Inc. All rights reserved. 45200689
BAIN DE VILLETM | INSTALLATION INSTRUCTIONS

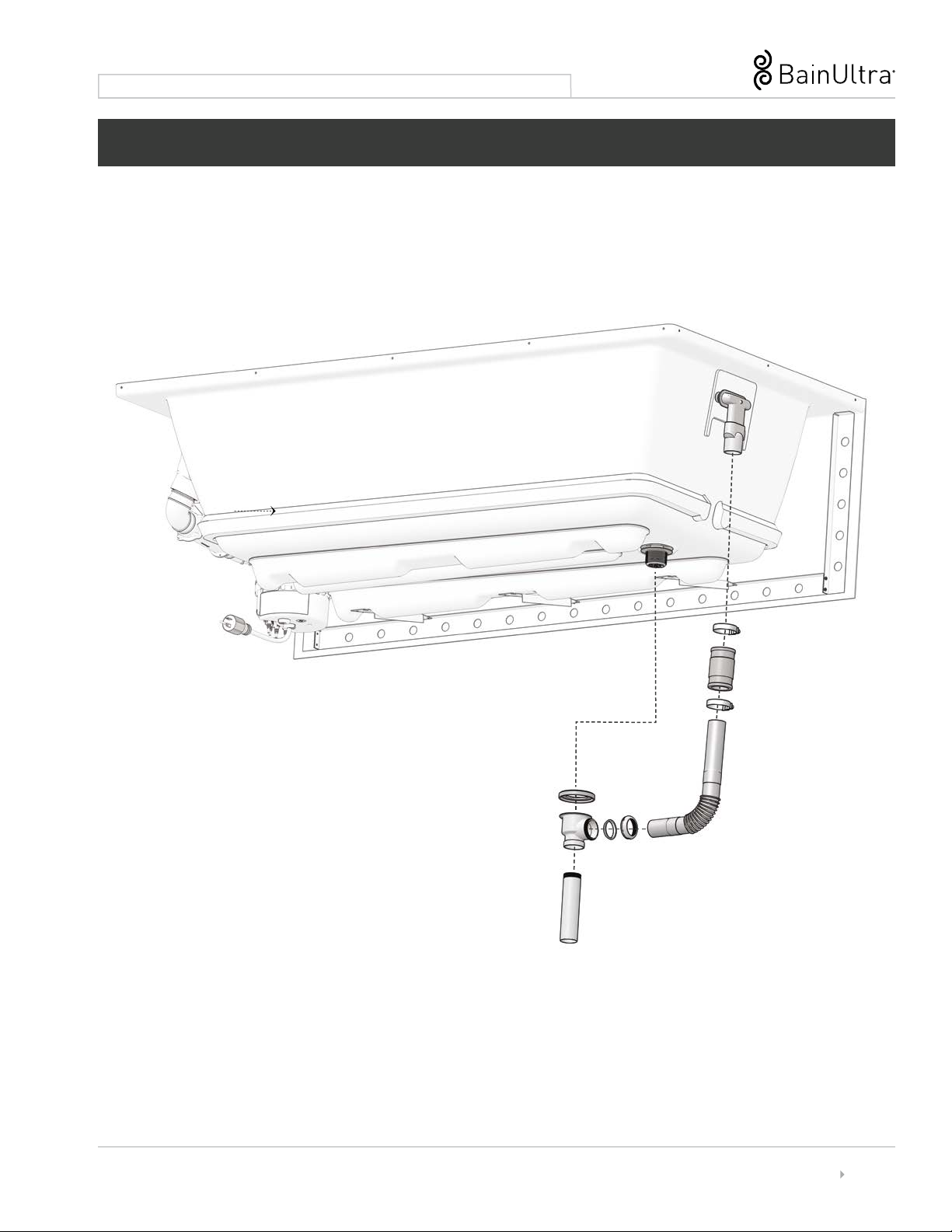

INTEGRATED OVERFLOW CONNECTION - PVC PIPE

9
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | BAIN DE VILLETM
INTEGRATED OVERFLOW CONNECTION - BRASS PIPE

10 1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © December 2019 BainUltra Inc. All rights reserved. 45200689
BAIN DE VILLETM | INSTALLATION INSTRUCTIONS
CABLE DRIVEN WASTE AND OVERFLOW CONNECTION

11
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | BAIN DE VILLETM

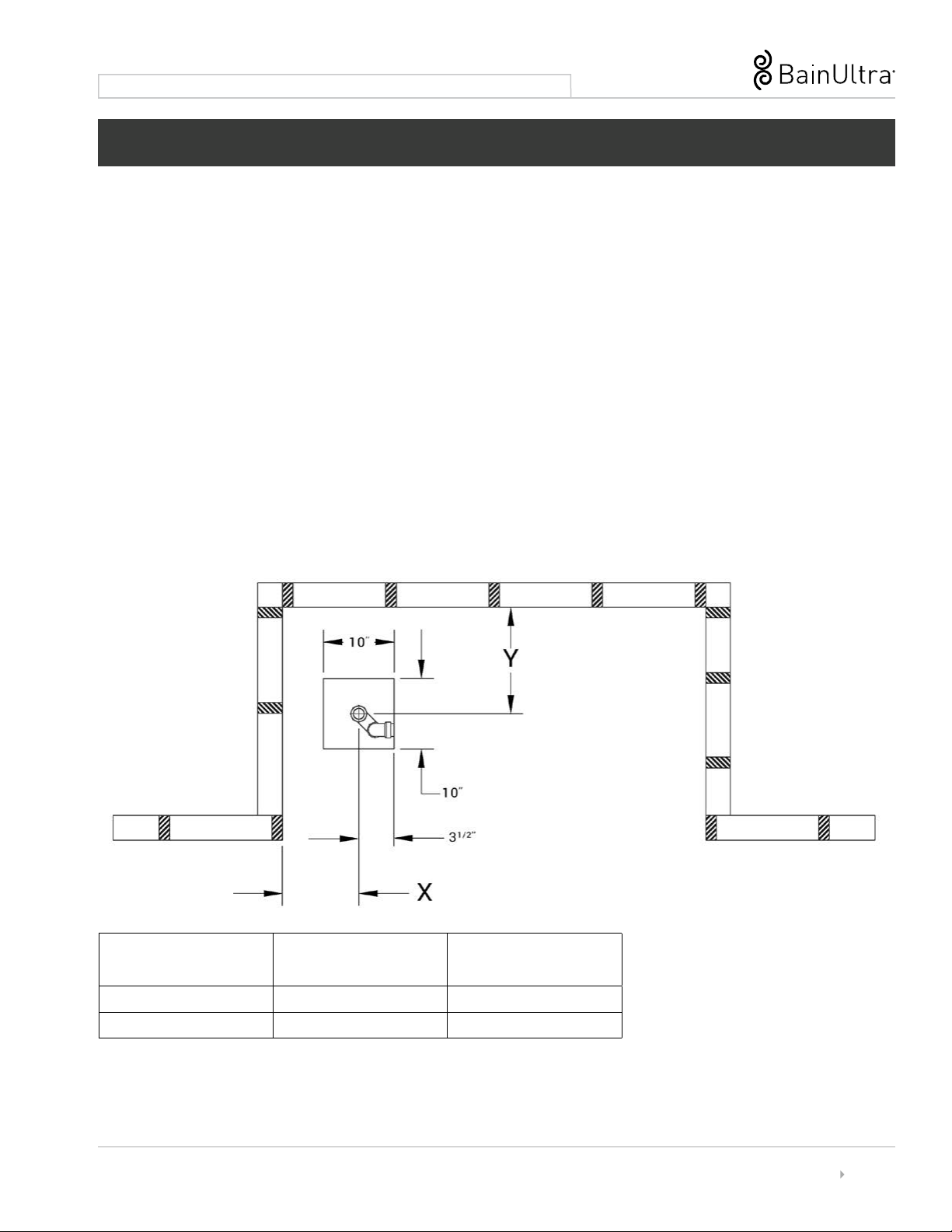

BEDDING AND DRAIN POSITION
Model DIMENSION X DIMENSION Y
Bain de Ville 6030 10 - 3/8” 14 - 1/8”
Bain de Ville 6632 10 - 7/8” 15 - 1/8”
DRAIN POSITION
BEDDING
Before installing, ensure that the floor underneath the
bath can support 1,500 lbs (680 kg). The bath may
sit directly on the floor. However, the bath may also be
installed on a bed of concrete. For this type
of installation, it is recommended that you insulate
the concrete between two sheets of plastic, one on floor
and the other underneath bath.

12 1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © December 2019 BainUltra Inc. All rights reserved. 45200689
BAIN DE VILLETM | INSTALLATION INSTRUCTIONS
LEVELING AND TURBINE LOCATION

13
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | BAIN DE VILLETM
SECURING

14 1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © December 2019 BainUltra Inc. All rights reserved. 45200689
BAIN DE VILLETM | INSTALLATION INSTRUCTIONS
FRAMING INSTRUCTIONS
Ceramic tiles
Plywood

15
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | BAIN DE VILLETM
TURBINE REMOTE INSTALLATION
SUGGESTED INSTALLATION
Parts not included

16 1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © December 2019 BainUltra Inc. All rights reserved. 45200689
BAIN DE VILLETM | INSTALLATION INSTRUCTIONS
TURBINE REMOTE INSTALLATION
SITE PREPARATION
TURBINE REMOTE INSTALLATION
1. A 1 ½ inch ID pipe has to run from the tub, back to the turbine location. This pipe can be PVC Tigerflex (spa hose) or rigid PVC or ABS.
2. Maximum distance is 15 feet from the tub, indoors, in a room temperate setting (not outdoors or in a non-temperature controlled area).
3. The minimum size for the turbine enclosure must be: 16’’ x 16’’ x 16’’.
4. Make sure to leave access for servicing needs.
5. The enclosure should have a minimum 4x2 inch opening so the turbine works properly. Not doing so will starve the turbine of air.
It will eventually fail and void its warranty.
6. A 20 Amp GFCI (12AWG) 120V dedicated line is needed for the turbine (Geysair is powered by the turbine). If you have additional
options on the bath (one or more) a second dedicated line is needed, 15 Amp GFCI 120V (14AWG).
GEYSAIR®
1. Geysair is installed on the bathtub at the factory and must not be relocated. It gets its power from your turbine. So per your local
electrical code, you may have to use a solid core wire (14AWG) and run it in between the turbine location and the bathtub.
This may require a proper conduit for high voltage wires if installed in a cement slab for example.
2. Geysair is connected to the hot water supply that goes to your bathtub faucet. It uses a 3/8 compression thread.
LED (CHROMATHERAPY)
1. The power modules (inMix module, Litestreme) have to be installed next to the turbine.
2. The wires have to be sent from the tub back to the turbine location.
LED: Low voltage for the Chromatherapy .
For further questions, please contact our Technical Support .......................................................................... 1 888 763-4444

17
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | BAIN DE VILLETM

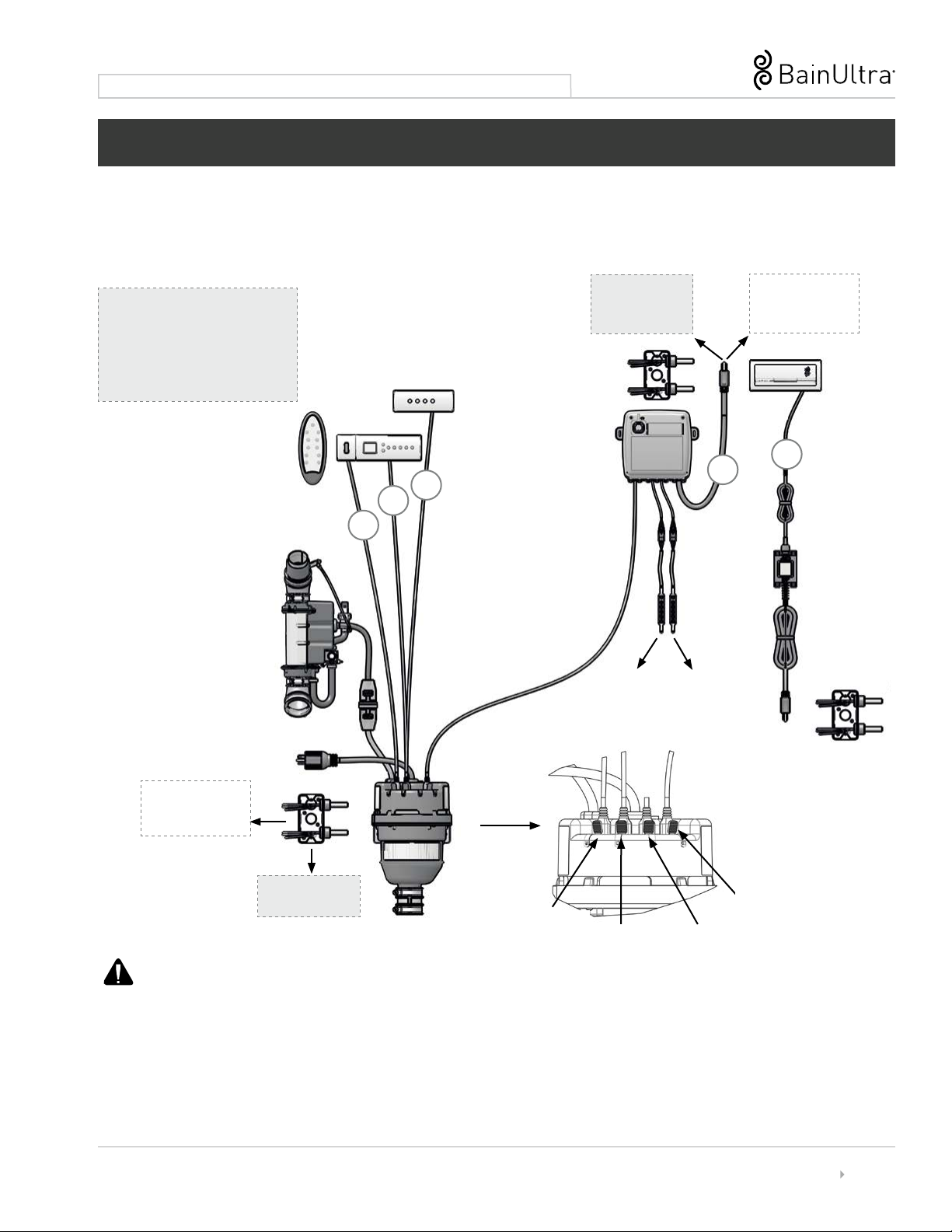

REMOTE TURBINE - ELECTRICAL CONNECTION
WARNING
• All electrical connections must be carried out by a certified electrician and must respect federal, provincial/state, and local building codes and regulations.
• Electrical power should be turned on only after all the low voltage wires are connected to turbine.
• If this step has not been done, simply disconnect main breaker that is linked to turbine.
• Turbine must be located in a clean and dry space.
• Geysair component cannot be remote mounted. Must never be unplugged.
• SEE P. 19 FOR ELECTRICAL DIAGRAMS / VOIR P. 18 POUR SCHÉMAS ÉLECTRIQUES.
A : AromaCloud® Aromatherapy
B : Chromatherapy (LED)
C : Mia®
D : MiaPlus®(Option)
E : MiaMulti®(Option)
To GFCI OUTLET
(United States)
Geysair
Inmix
module
AromaCloud
To GFCI OUTLET
(United States)
B
C
A
D
E
To Left LED To Right LED
Junction Box
(Canada)
Junction Box
(Canada)
White (IR)
Infrared
Purple (CO)
LED
Orange (C1)
MiaPlus
Green (IO)
WTS

18 1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © December 2019 BainUltra Inc. All rights reserved. 45200689
BAIN DE VILLETM | INSTALLATION INSTRUCTIONS

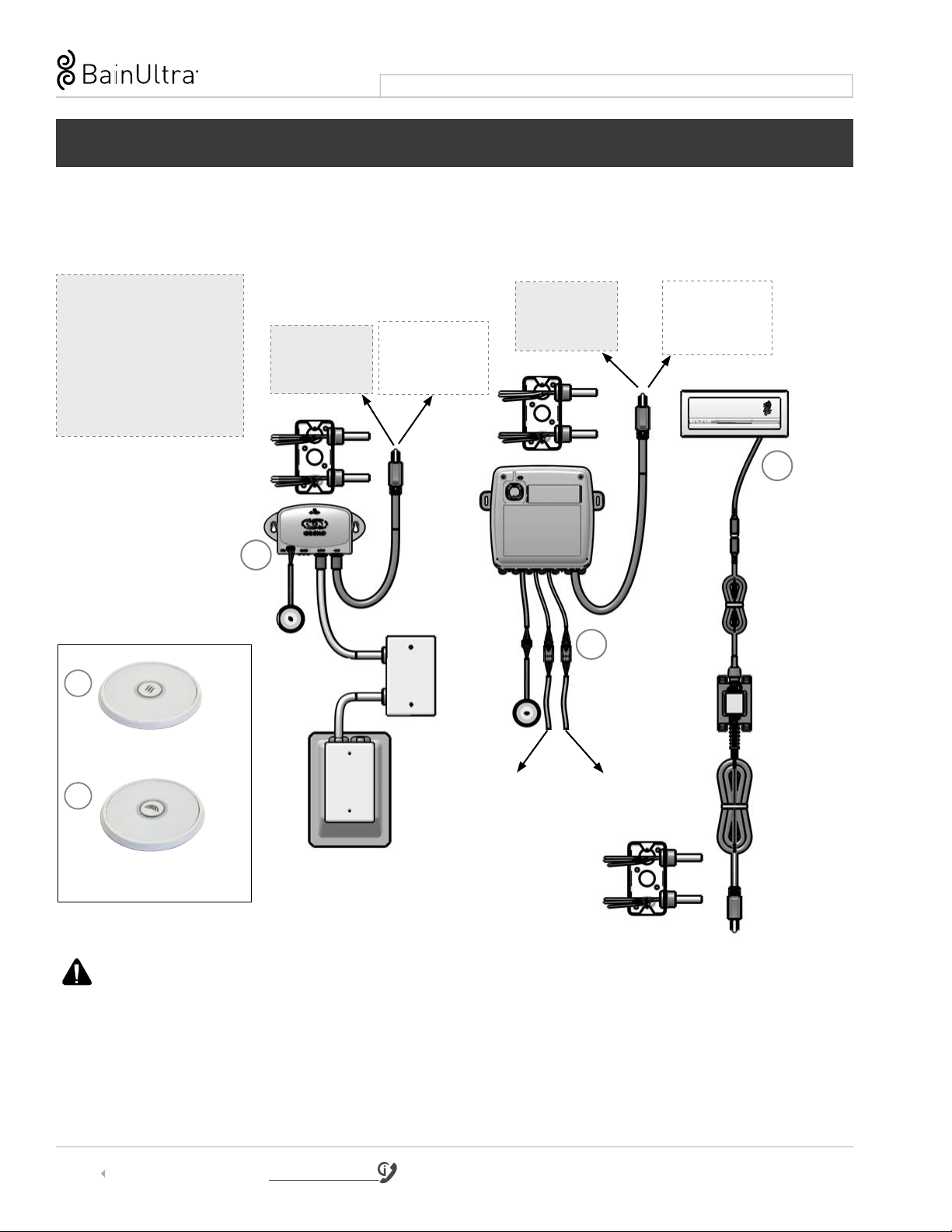

THERAPIES - ELECTRICAL CONNECTIONS (TUB)
• SEE P. 19 FOR ELECTRICAL DIAGRAMS.
To GFCI OUTLET
(United States)
To GFCI OUTLET
(United States)
To Left LED
Junction Box
(Canada)
Junction Box
(Canada)
A : WarmTouchShell®
B : Chromatherapy (LED)
C : DOT WarmTouchShell®
D : DOT Chromatherapy (LED)
E : AromaCloud® Aromatherapy
Litestreme
Inmix
module
AromaCloud
A
B
E
C
D
DOT WarmTouchShell®(WTS)
DOT Chromatherapy (LED)
To Right LED
WARNING
• All electrical connections must be carried out by a certified electrician and must respect federal, provincial/state, and local building codes and regulations.

19
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | BAIN DE VILLETM

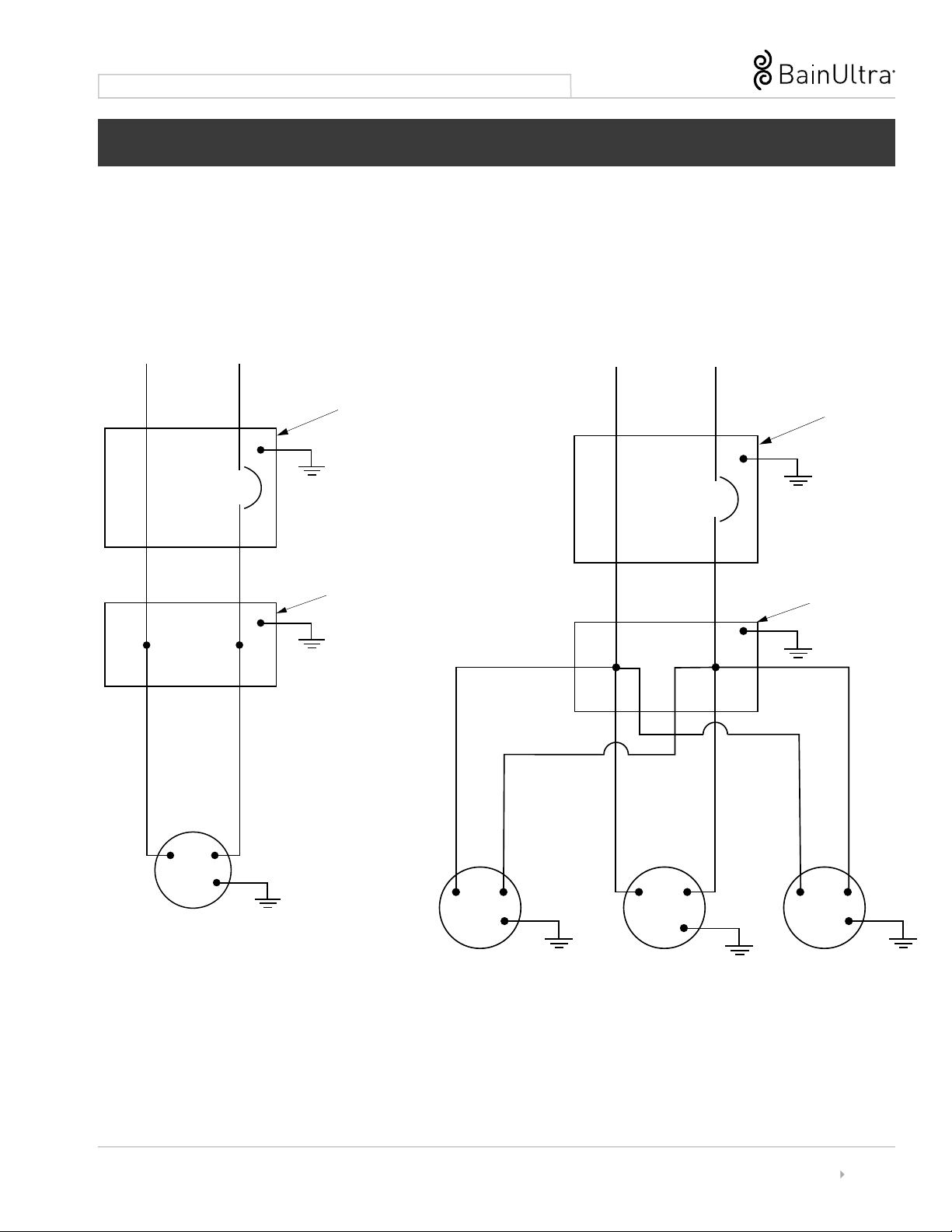

ELECTRICAL DIAGRAMS
15A CIRCUIT
20A CIRCUIT
NEUTRAL N L LOAD
NEUTRAL N L LOAD
GROUND
FAULT CIRCUIT
INTERRUPTERS
GROUND
FAULT CIRCUIT
INTERRUPTERS
JUNCTION
BOX
JUNCTION
BOX
TURBINE WITH GEYSAIR
(FOR MIAPLUS®, MIAMULTI®)
TURBINE WITHOUT GEYSAIR
(FOR MIAPLUS®, MIAMULTI®)
N L
N L
20A THERMOMASSEUR®& 15A THERAPIES
15A CIRCUIT
AIRSTREME
(WARMTOUCHSHELL®)
N L N L
NEUTRAL N L LOAD
INMIX MODULE
(CHROMATHERAPY)
GROUND
FAULT CIRCUIT
INTERRUPTERS
JUNCTION
BOX
N L
AROMACLOUD®
(AROMATHERAPY)

20 1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © December 2019 BainUltra Inc. All rights reserved. 45200689
BAIN DE VILLETM | INSTALLATION INSTRUCTIONS

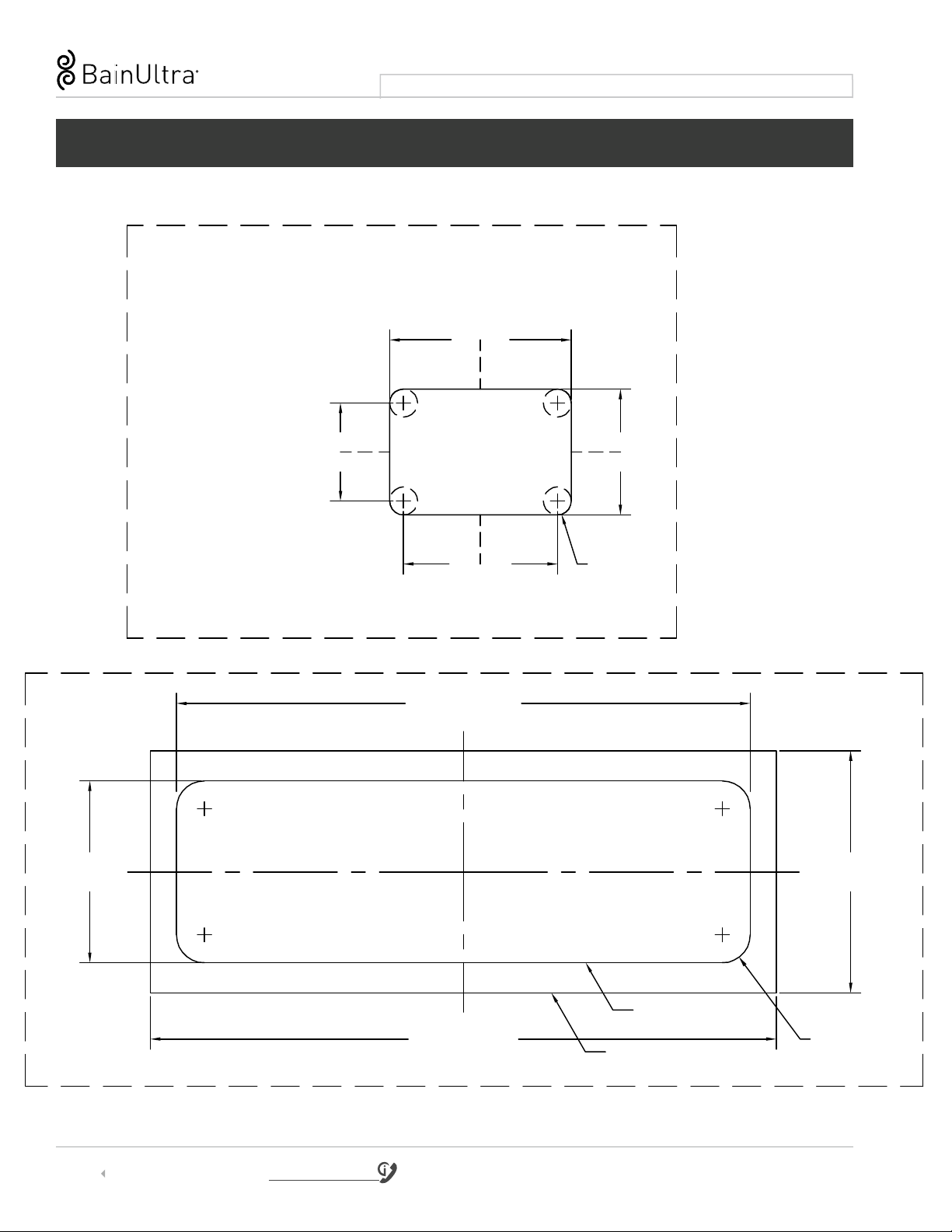

CUTTING TEMPLATES FOR REMOTE INSTALLED THERAPIES
CUTTING TEMPLATES / GABARITS DE PERÇAGE
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
Certains produits, spécifications et services mentionnés dans le présent manuel sont décrits dans des demandes de brevets en instance ou protégés par des brevets.
OPALIATM
CUTTING TEMPLATES / GABARITS DE PERÇAGE
OPALIATM
CUTTING TEMPLATES / GABARITS DE PERÇAGE
2
3
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Du lundi au jeudi, De 8 h à 20 h (HE) . Vendredi de 8 h à 17 h (HE)
Printed in Canada. Copyright © March 2017 BainUltra Inc. All rights reserved. 45200655
Imprimé au Canada. Copyright © mars 2017 BainUltra inc. Tous droits réservés.
11.313"
[28.7 cm]
1.063"
[2.7 cm]
R0.125"
[R0.3 cm]
0.813"
[2.1 cm]
11.063"
[28.1 cm]
1.625"
[4.1 cm]
1.125"
[2.9 cm]
1.375"
[3.5 cm]
0.875"
[2.2 cm]
R0.125"
[R0.3 cm]
1.625"±0.04"
[4.1 cm±0.1 cm]
5.125"±0.04"
[13.0 cm±0.1 cm]
R0.250"
[R0.6 cm]
5.591" [14.2 cm]
Control cut-out
Trou du contrôle
Control outline
Contour du contrôle
2.165"
[5.5 cm]
AIR INTAKE - OPENING
PRISE D'AIR - OUVERTURE
MIAPLUS & MIAMULTI
Trou pour infrarouge MiaMulti®
Cut-out for MiaMulti®infrared



11.313"
[28.7 cm]
1.063"
[2.7 cm]
R0.125"
[R0.3 cm]
0.813"
[2.1 cm]
11.063"
[28.1 cm]
1.625"
[4.1 cm]
1.125"
[2.9 cm]
1.375"
[3.5 cm]
0.875"
[2.2 cm]
R0.125"
[R0.3 cm]
1.625"±0.04"
[4.1 cm±0.1 cm]
5.125"±0.04"
[13.0 cm±0.1 cm]
R0.250"
[R0.6 cm]
5.591" [14.2 cm]
Control cut-out
Trou du contrôle
Control outline
Contour du contrôle
2.165"
[5.5 cm]
AIR INTAKE - OPENING
PRISE D'AIR - OUVERTURE
MIAPLUS & MIAMULTI
Trou pour infrarouge MiaMulti®
Cut-out for MiaMulti®infrared



11.313"
[28.7 cm]
1.063"
[2.7 cm]
R0.125"
[R0.3 cm]
0.813"
[2.1 cm]
11.063"
[28.1 cm]
1.625"
[4.1 cm]
1.125"
[2.9 cm]
1.375"
[3.5 cm]
0.875"
[2.2 cm]
R0.125"
[R0.3 cm]
1.625"±0.04"
[4.1 cm±0.1 cm]
5.125"±0.04"
[13.0 cm±0.1 cm]
R0.250"
[R0.6 cm]
5.591" [14.2 cm]
Control cut-out
Trou du contrôle
Control outline
Contour du contrôle
2.165"
[5.5 cm]
AIR INTAKE - OPENING
PRISE D'AIR - OUVERTURE
MIAPLUS & MIAMULTI
Trou pour infrarouge MiaMulti®
Cut-out for MiaMulti®infrared



CUTTING TEMPLATES / GABARITS DE PERÇAGE
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
Certains produits, spécifications et services mentionnés dans le présent manuel sont décrits dans des demandes de brevets en instance ou protégés par des brevets.
OPALIATM
CUTTING TEMPLATES / GABARITS DE PERÇAGE
OPALIATM
CUTTING TEMPLATES / GABARITS DE PERÇAGE
2
3
1 800 463.2187 Monday to Thursday from 8 a.m. to 8 p.m. (EST) .Friday from 8 a.m. to 5 p.m. (EST)
Du lundi au jeudi, De 8 h à 20 h (HE) . Vendredi de 8 h à 17 h (HE)
Printed in Canada. Copyright © March 2017 BainUltra Inc. All rights reserved. 45200655
Imprimé au Canada. Copyright © mars 2017 BainUltra inc. Tous droits réservés.
11.313"
[28.7 cm]
1.063"
[2.7 cm]
R0.125"
[R0.3 cm]
0.813"
[2.1 cm]
11.063"
[28.1 cm]
1.625"
[4.1 cm]
1.125"
[2.9 cm]
1.375"
[3.5 cm]
0.875"
[2.2 cm]
R0.125"
[R0.3 cm]
1.625"±0.04"
[4.1 cm±0.1 cm]
5.125"±0.04"
[13.0 cm±0.1 cm]
R0.250"
[R0.6 cm]
5.591" [14.2 cm]
Control cut-out
Trou du contrôle
Control outline
Contour du contrôle
2.165"
[5.5 cm]
AIR INTAKE - OPENING
PRISE D'AIR - OUVERTURE
MIAPLUS & MIAMULTI
Trou pour infrarouge MiaMulti®
Cut-out for MiaMulti®infrared



11.313"
[28.7 cm]
1.063"
[2.7 cm]
R0.125"
[R0.3 cm]
0.813"
[2.1 cm]
11.063"
[28.1 cm]
1.625"
[4.1 cm]
1.125"
[2.9 cm]
1.375"
[3.5 cm]
0.875"
[2.2 cm]
R0.125"
[R0.3 cm]
1.625"±0.04"
[4.1 cm±0.1 cm]
5.125"±0.04"
[13.0 cm±0.1 cm]
R0.250"
[R0.6 cm]
5.591" [14.2 cm]
Control cut-out
Trou du contrôle
Control outline
Contour du contrôle
2.165"
[5.5 cm]
AIR INTAKE - OPENING
PRISE D'AIR - OUVERTURE
MIAPLUS & MIAMULTI
Trou pour infrarouge MiaMulti®
Cut-out for MiaMulti®infrared



11.313"
[28.7 cm]
1.063"
[2.7 cm]
R0.125"
[R0.3 cm]
0.813"
[2.1 cm]
11.063"
[28.1 cm]
1.625"
[4.1 cm]
1.125"
[2.9 cm]
1.375"
[3.5 cm]
0.875"
[2.2 cm]
R0.125"
[R0.3 cm]
1.625"±0.04"
[4.1 cm±0.1 cm]
5.125"±0.04"
[13.0 cm±0.1 cm]
R0.250"
[R0.6 cm]
5.591" [14.2 cm]
Control cut-out
Trou du contrôle
Control outline
Contour du contrôle
2.165"
[5.5 cm]
AIR INTAKE - OPENING
PRISE D'AIR - OUVERTURE
MIAPLUS & MIAMULTI
Trou pour infrarouge MiaMulti®
Cut-out for MiaMulti®infrared



WALL INSTALLED
