Baja Silueta BSBSI36CTM User manual

Manual de Instrucciones
Baja Silueta Inverter
Lea atentamente todo este manual
antes de utilizar su nuevo equipo de aire acondicionado.
Modelos: (DC Series)
BSBSI36CTM
BSBSI48CTM
BSBSI60CTM
IMPRESO EN
PAPEL ECOLÓGICO
Rev. 28AGO17

ii
Part 1 General Information........................................................................................... 1
Part 2 Indoor Units........................................................................................................ 7
Part 3 Outdoor Units................................................................................................... 22
Part 4 Installation........................................................................................................ 33
Part 5 Electrical Control System................................................................................ 53
※The specifications, designs, and information in this book are subject to change without notice for
product improvement.

General Information
General Information 1
Part 1
General Information
1. Model Lists .................................................................................................2
2. External Appearance..................................................................................3
2.1 Indoor Units..........................................................................................3
2.2 Outdoor Units.......................................................................................4
3. Nomenclature.............................................................................................5
4. Features......................................................................................................6

Model Lists
2 General Information
1. Model Lists
1.1 Indoor Units
R410A
Capacity multiplied by 1000Btu/h
Type
Function
12
18
24
30
36
48
60
High static pressure
duct Cooling and heating ● ● ●
1.2 Outdoor Units
Universal Outdoor unit Model Compressor type Compressor Brand Matched indoor units
BSBSIC36CTM Rotary DC Inverter GMCC BSBSIE36CTM
BSBSIC48CTM Rotary DC Inverter BSBSIE48CTM
BSBSIC60CTM Rotary DC Inverter BSBSIE60CTM
GMCC
GMCC

External Appearance
General Information 3
2. External Appearance

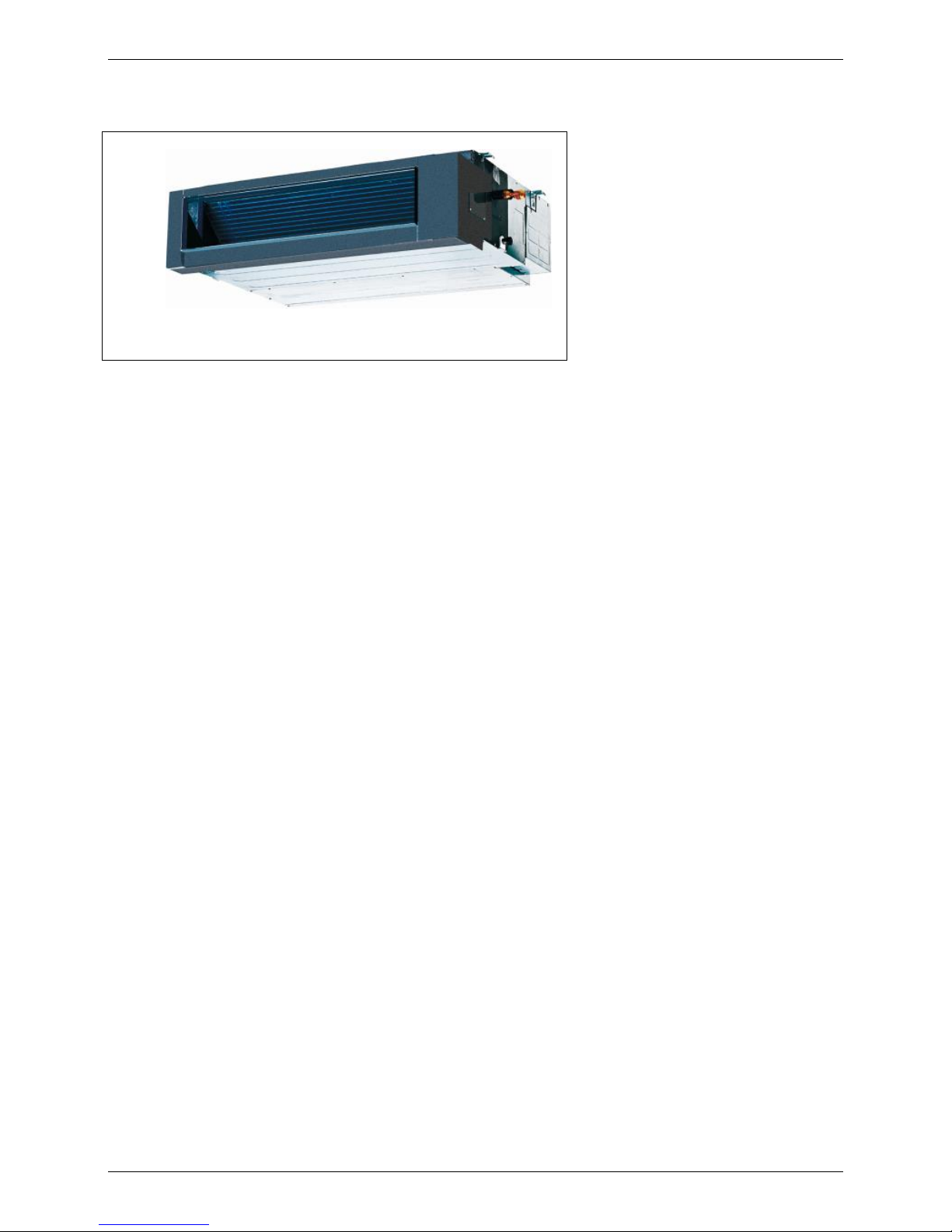

2.1 Indoor Units
Duct

External Appearance
4 General Information
2.2 Outdoor Units
Single fan outdoor unit Double fan outdoor unit

Nomenclature
General Information 5
3. Nomenclature
3.1 Indoor Unit
3.2 Outdoor Unit
B M BS I E 24 C T M
B M BS I C 24 C T M

Features
6 General Information
4. Features
4.1 Universal outdoor unit design
Indoor unit with the same capacity can match with the same outdoor unit.
4.2 High efficiency and energy saving.
Thanks to the DC inverter technology and optimized piping system, the EER and COP of whole
series can easily reach A-class.
4.3 Full range of products from 12K to 60K, including Med duct(A5), cassette, console, ceiling and floor,
more choice for you
4.4 Low ambient kit is standard for outdoor units (except 12K)
4.5 Network control function is standard for the indoor units (except 12K)
4.6 Standard auto restart function and follow me function
4.7 Cassette, ceiling & floor, console and compact cassette with standard remote controller, wire controller
and CCM for optional. Med Duct with standard wired controller, remote controller and CCM for
optional.
4.8 Standard anti-cold air function
4.9 Standard auto defrosting function
4.10 Standard self-diagnose function.
4.11 Standard timer function and sleep mode function controlled by controller.

¡Error! No hay texto con el estilo especificado en el documento.
¡Error! No hay texto con el estilo especificado en el documento. 7
Part 2
Indoor Units
Duct Type
1. Features.........................................................................................................8
2. Dimensions .................................................................................................11
3. Service Space..............................................................................................12
4. Wiring Diagrams .........................................................................................13
5. Static Pressure............................................................................................14
6. Electric Characteristics..............................................................................16
7. Sound Levels...............................................................................................17
8. Accessories.................................................................................................18
9. The Specification of Power ........................................................................19
10. Field Wiring ...............................................................................................20

Features
8 Duct Type
1. Features

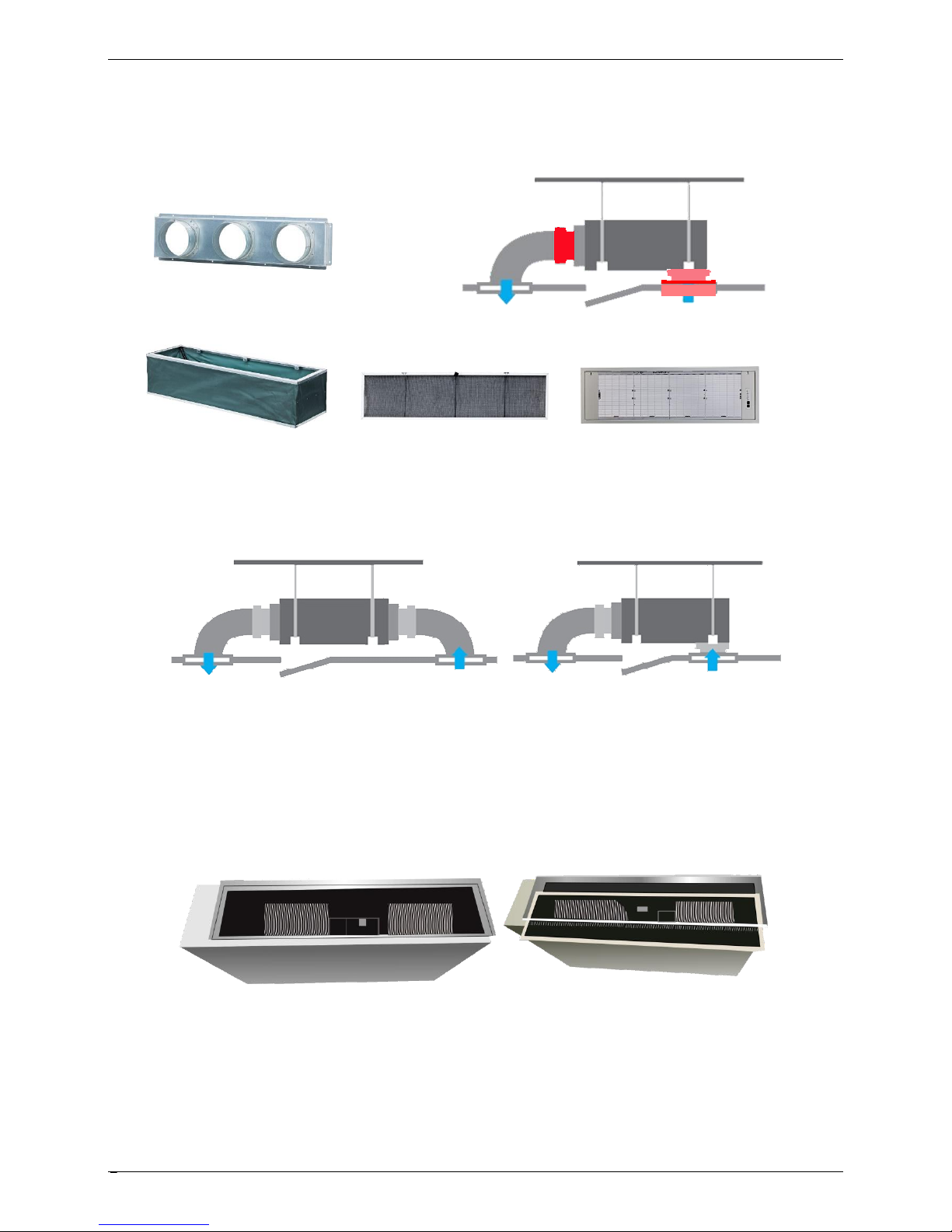

1.1 Installation accessories: (Optional)
Front Board, Canvas Air Passage, Filter, Panel, for easy installation
1.2 Easy Installation: Two air inlet styles (Bottom side or Rear side)
Air inlet from rear is standard for all capacity; air inlet from bottom is optional.
The size of air inlet frame from rear and bottom is same, it’s very easy to move the cover from bottom to
rear side, or from rear to the bottom, in order to matching the installation condition.
1.3Easy maintenance
Clean the filter (Optional, standard product without filter)
It is easy to draw out the filter from the indoor unit for cleaning, even the filter is installed in rear side or
bottom side.
Front Board
Canvas Air Passage
Filter (Standard) Panel (Standard)
Air intake from rear (Standard)
Air intake from bottom (Optional)
Replace the motor or centrifugal fan
Remove the ventilated panel firstly. Remove a half of blower housing and take out the motor with
centrifugal fan. Directly remove two bolts, and then replace the motor or centrifugal fan easily.

Features
9
1.4Reserved remote on-off and central control ports
Reserved remote on-off ports and central control ports, can connect the cable of an on-off controller or a
central controller to realize remote on-off control function or group control function.
1.5Built-in drain pump (Optional):
Built-in drain pump can lift the water to 750mm upmost. It’s convenient to install drainage piping under
most space condition.
Motor
Blower Housing
Ventilated Panel
Remote on-off ports Central control ports
750mm upmost

Features
10 Duct Type
1.6Built-in display board
The standard indoor unit can be controlled by wired controller.
There is a display board with a receiver in the E-box. Move out the display, and fix it in other place, even
in the distance of 10m. The unit will realized remoter control.
The wired controller and the display board can display the error code or production code when the chips
detect some failure.
Display
Wired Controller (Optional) Remote Controller (Standard)

Dimensions
11
2. Dimensions
A
C
B
D
J
I
K
Air filter (Standard )
air inlet from rear side
air inlet from bottom side
FE
G
H
Electric control box
Air filter ( optional )
L
4-install hanger
Gas side
Liquid side
M
W1
W2
H1
H2
Test mouth & Test cover
25 Drain connecting pipe
( for pump )
Fresh air intake
25 Drain pipe
25 Drain pipe
U nit: mm
Model(Btu/h)
Outline dimension(mm) Air outlet opening size Air return opening size Size of install
hanger Size of refrigerant pipe
A B C D E F G H I J K L M H1 H2 W1 W2
18K 920 210 635 570 65 713 35 119 815 200 80 960 350 120 143 95 150
24K 920 270 635 570 65 713 35 179 815 260 20 960 350 120 143 95 150
36K 1140 270 775 710 65 933 35 179 1035 260 20 1240 500 120 143 95 150
48K/60K 1200 300 865 800 80 968 40 204 1094 288 45 1240 500 175 198 155 210

Service Space
12 Duct Type

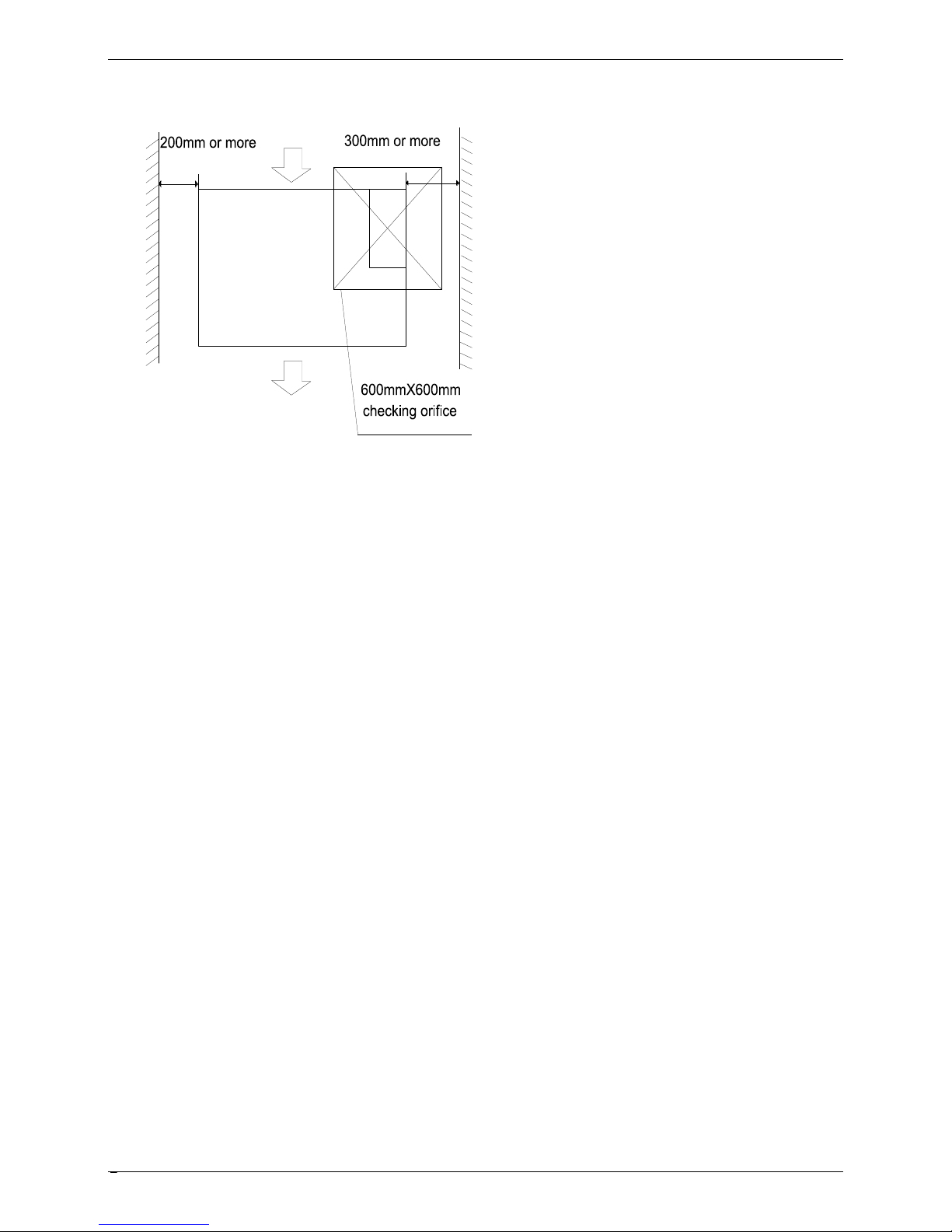

3. Service Space
Ensure enough space required for installation and maintenance.

Wiring Diagrams
13

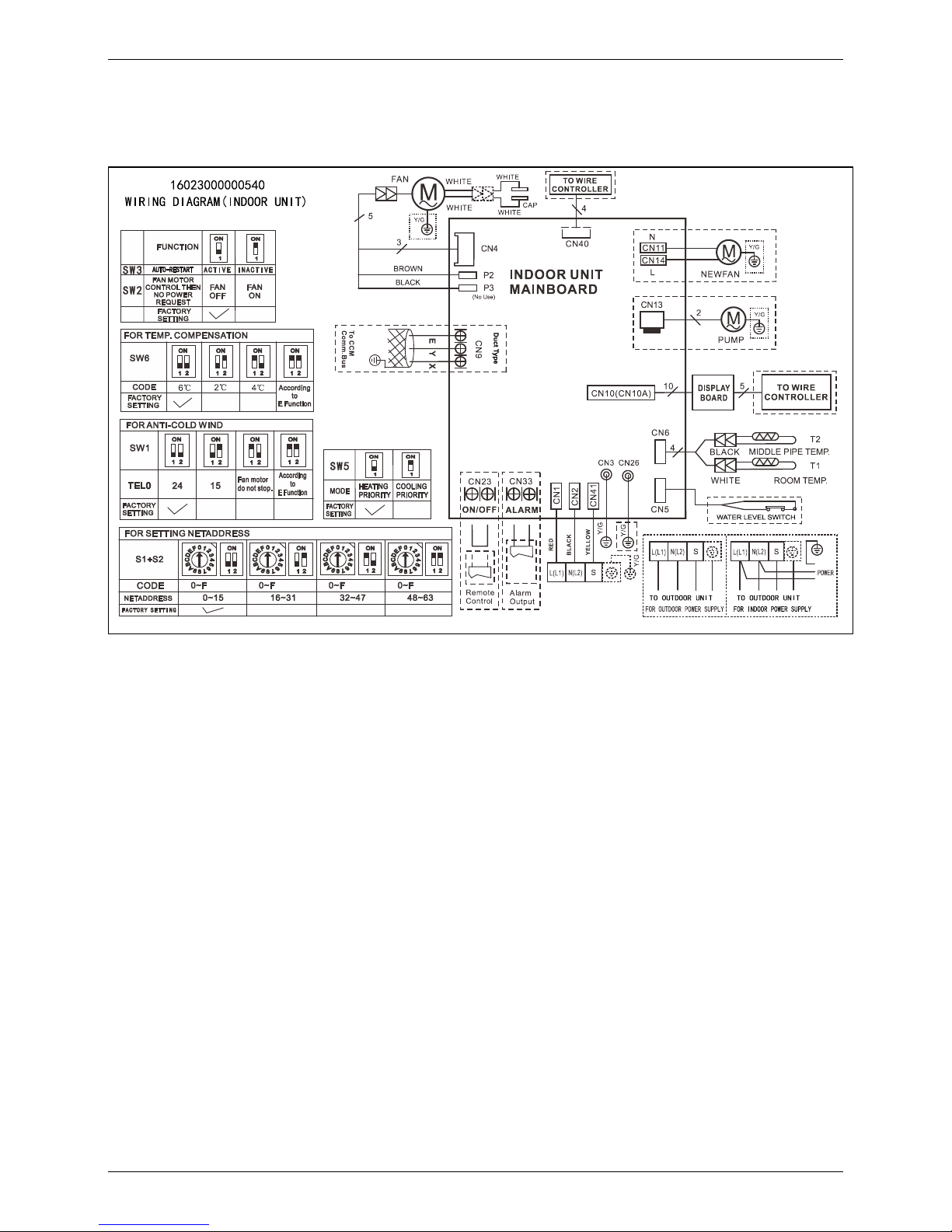

4. Wiring Diagrams
BSBSIE36CTMBSBSIE48CTMBSBSIE60CTM

Static Pressure
14 Duct Type

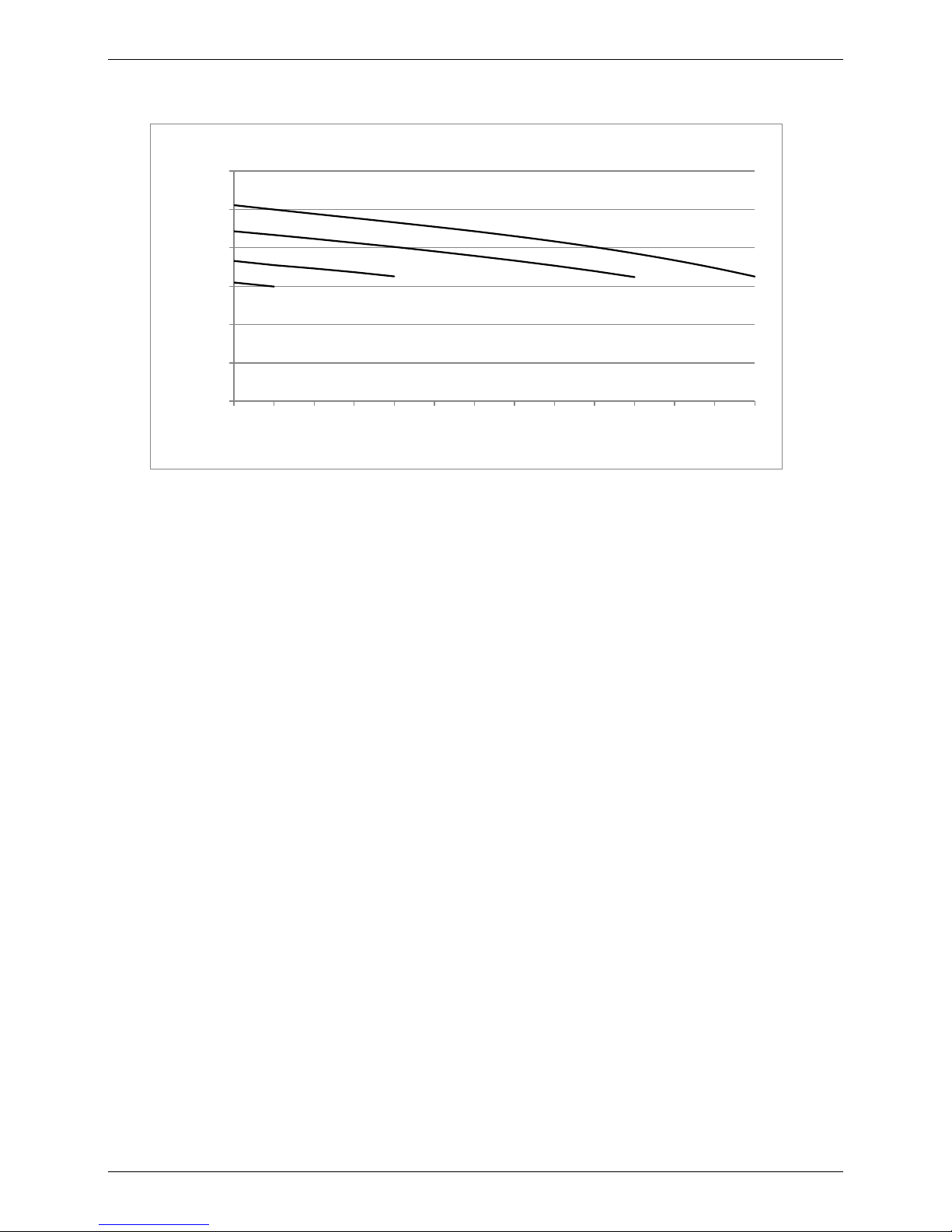

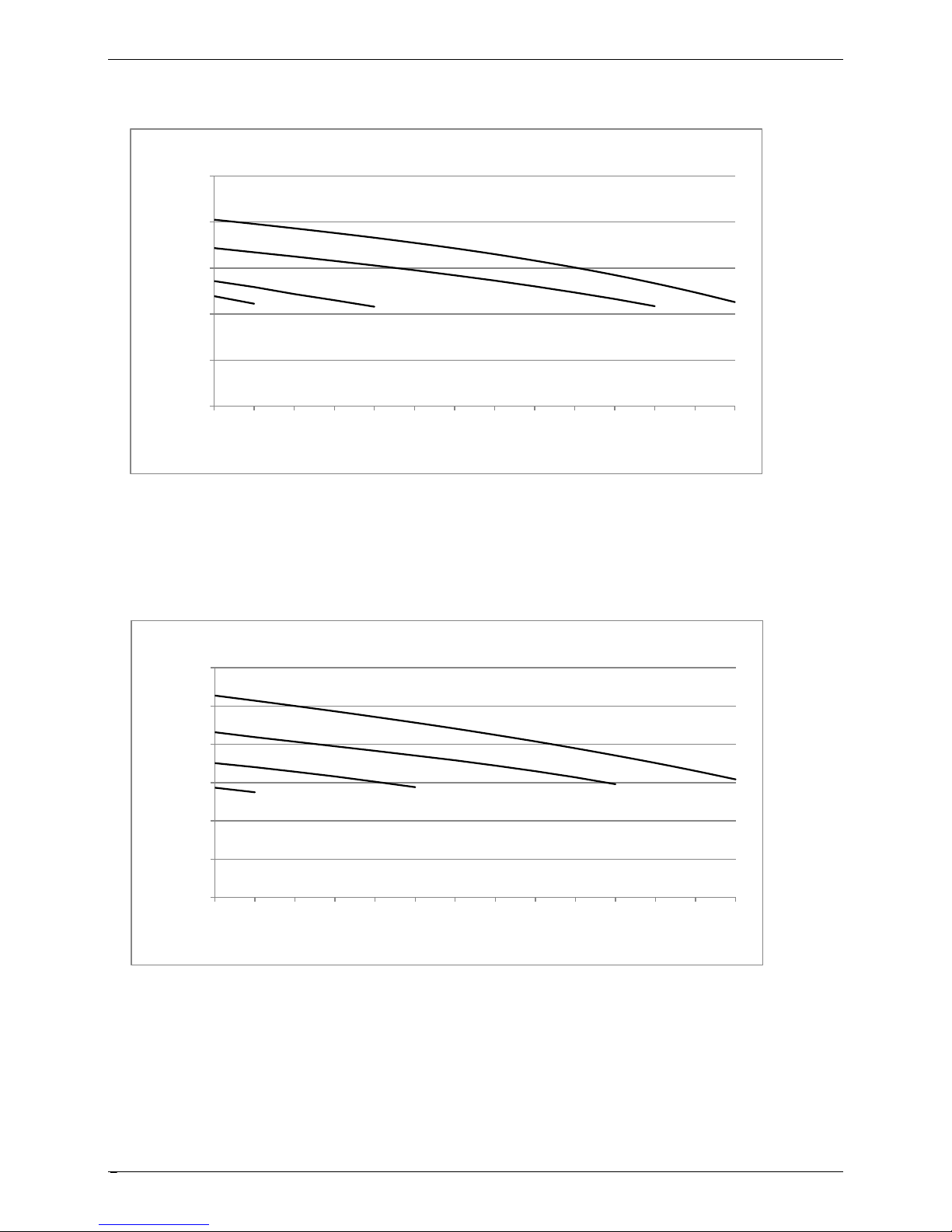

5. Static Pressure
0
500
1000
1500
2000
2500
010 20 30 40 90 100 110 120 130
Air flow rate (m3/h)
50 60 70 80
External static pressure (Pa)
36K
0
500
1000
1500
2000
2500
3000
010 20 30 40 90 100 110 120 130
Air flow rate (m3/h)
50 60 70 80
External static pressure (Pa)
48K

Static Pressure
15
0
500
1000
1500
2000
2500
3000
010 20 30 40 90 100 110 120 130
Air flow rate (m3/h)
50 60 70 80
External static pressure (Pa)
60K

Electric Characteristics
16 Duct Type
6. Electric Characteristics
Model
Indoor Unit
Hz
Voltage
Min.
Max.
BSBSIE36CTM
50
220-240
198
254
BSBSIE48CTM
50
220-240
198
254
BSBSIE60CTM
50
220-240
198
254

Sound Levels
17
7. Sound Levels
Suction
Discharge
Microphone
1.4m
Concealed Duct Type
DuctDuct
Model
Noise level dB(A)
H
M
L
BSBSIE36CTM48
44
38
BSBSIE48CTM48 42 39
BSBSIE60CTM49 44 42

Accessories
18 Duct Type

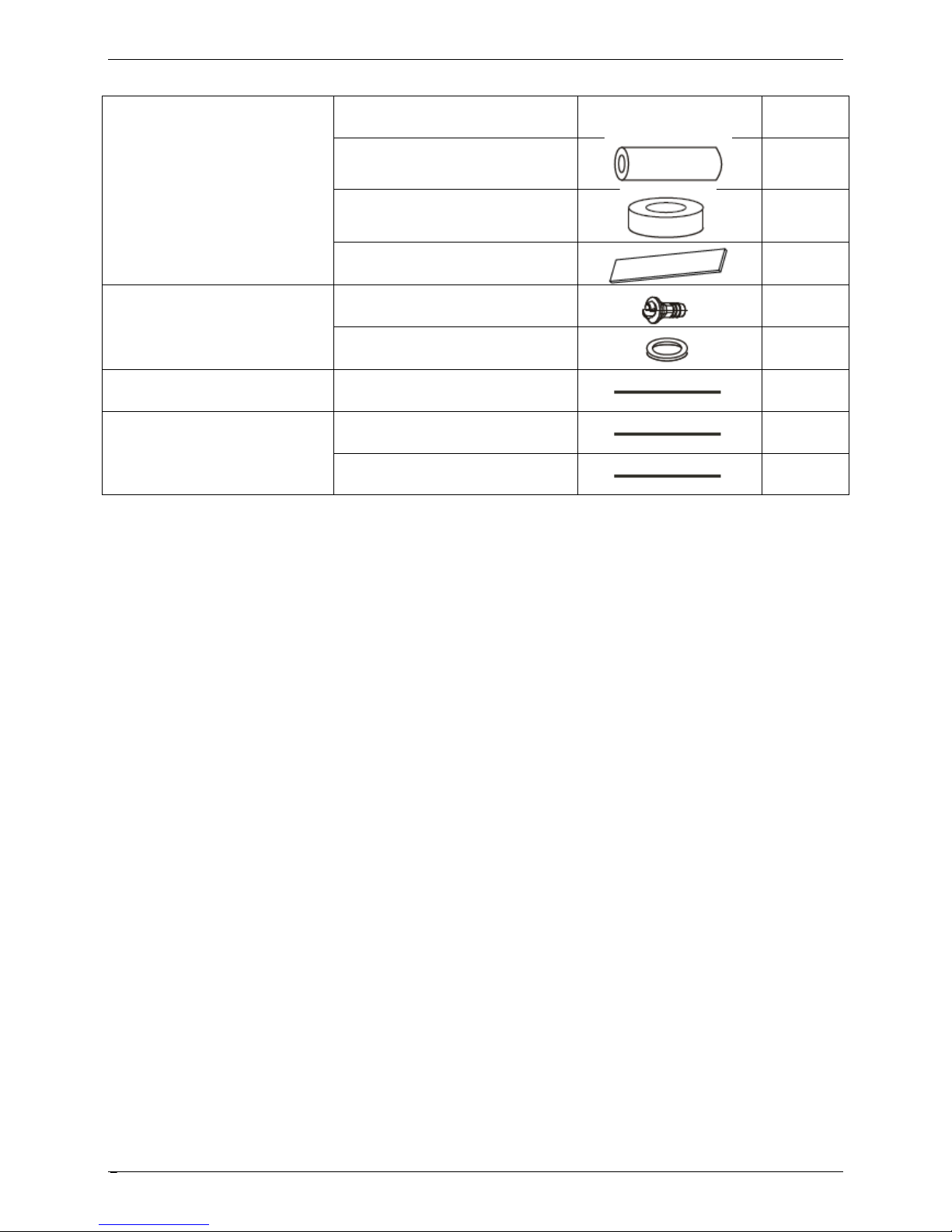

8. Accessories
Tubing & Fittings
Name
Shape
Quantity
Soundproof / insulation sheath
2
Binding tape
1
Seal sponge
1
Drainpipe Fittings
(for cooling & heating)
Drain joint
1
Seal ring
1
Wired controller & Its Frame
Wired controller
1
Others
Owner，s manual
1
Installation manual
1
