BAK BAKFlip G2 Assembly instructions

Any damaged or missing parts?
INSTALLATION SHEET
Parts will be shipped to you directly. Call 844-779-8986
Mon - Fri 8:30 am - 7 pm EST or email [email protected]
12
Make sure the
clamp is inserted
all the way up
into the rail and
clamp teeth are
alinged to rail
slots to ensure
a secure grip.
3Make sure
the rail is
clamped
square as
shown.
Start at the
front, and
place the
first clamp
approx 6 to 9
inches back.
4
Close tailgate.
Place BAKFlip rail
on truck bed with
silver bracket all
the way forward
and toward the
center of bed as
shown. Refer to
enclosed Spacing
& Shimming Sheet
for more details.
Rails should be
completely level.
If the truck does
not have a drop
in bedliner, install
the cab/bulkhead
seal (weather
strip). Wipe paint -
ed surface with
isopropyl alchol
before applying.
If the truck has a
drop in bedliner,
no seal will be
needed.
NOTE: Some drop in liners may require trimming
in the corners to fit the rail in the opening.
TOOLS RECOMMENDED
9/16 Wrench or socket
7/8 Drill bit & drill (optional)
Philllips screwdriver
SELECT SYSTEMS ONLY! (not pictured)
8 x Angle shims
2 x Spacer shims
•
1 HARDWARE BAG INCLUDING
• 6 x Clamps (8’ ft trucks incl.
8 ea)
• 2 x Elevator bolt (w-large
flat head)
• 4 x Rubber washers
• 2 x Large flat washers
• 2 x Lock washers
• 2 x Star knobs (thumb screws)
• 2 x Buckle ends
• 4 x Machine screws
• 4 x Threaded posts
PARTS INCLUDED IN YOUR KIT
• 1 x Hard folding cover assembly
• 3 x D Shaped cab bumpers
• 1 x Bulkhead seal
(¾ x ¾ x truck width)
• 1 Pair rails (L&R)
•
•
•
2 x Drain hoses
2 x Prop rods
2 x Prop rod clips
• 1100 N. Glenstone Ave. Suite 140, Springfield, MO 65802 • 844-779-8986 • bakindustries.com Part# 318A0029 Rev. 1.8.2020BAK Industries Laurmark Enterprises, Inc., 2020
•

10 ft/lbs
6
5
9
Set the cover in the folded position on the rails
towards the front of cab.
7
Place the 2nd
clamp near the
center of the
rail. See steps 4
and 5 to ensure
the clamp goes
on correctly.
(8’ beds-evenly
space 2 clamps
between ends).
10
Part# 318A0029 Rev. 1.8.2020
© Laurmark Enterprise, Inc. 2020

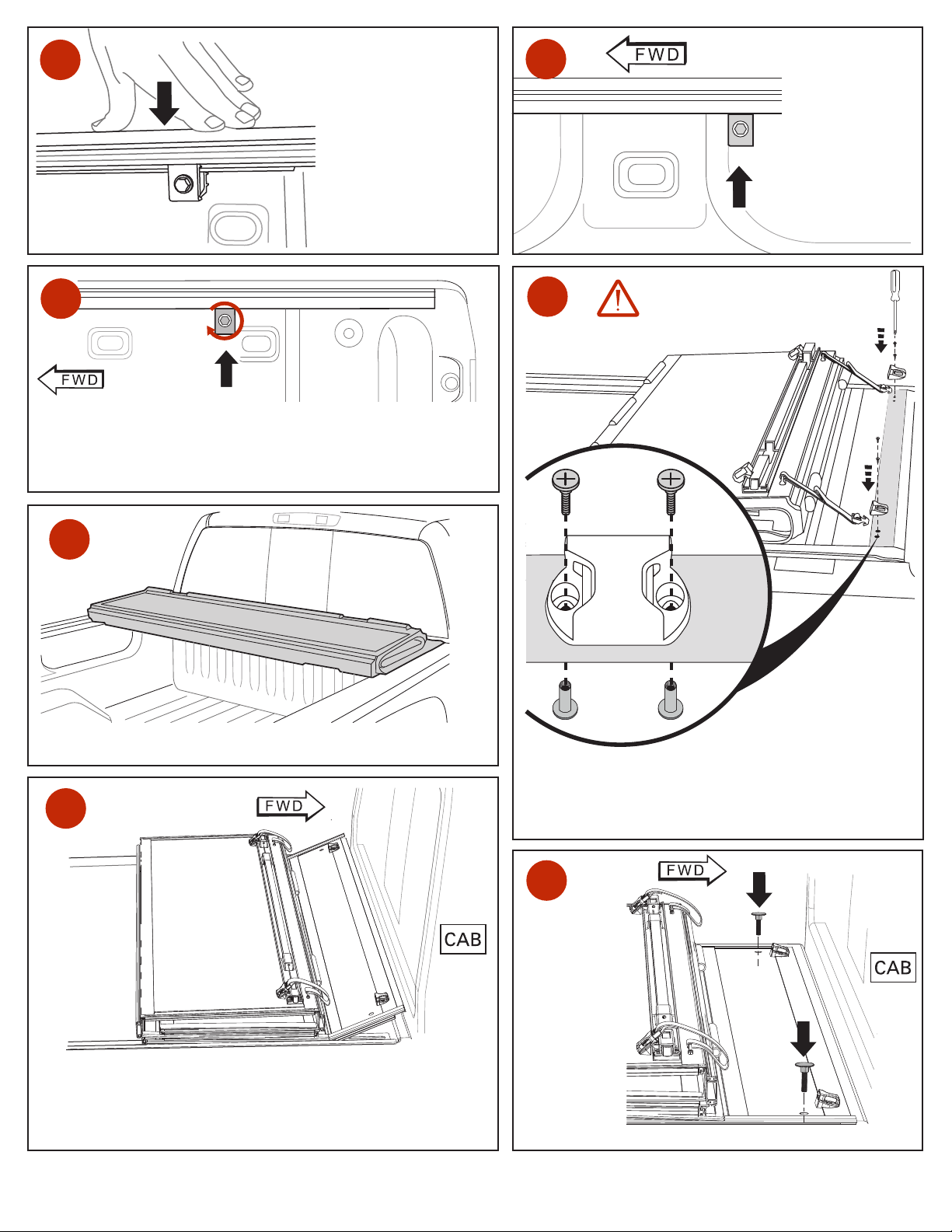

Apply downward pressure to the
rail when tightening the clamp to
ensure the rail sets flush and
seals properly.
A second set of hands
may help.
Place the rear clamp approximately 6 inches (152 mm) from the
tailgate. Tighten all of the clamps until snug. Then torque an
additional 1/2 turn, (10 ft-lbs).
Repeat steps 2-7 on the opposite side.
8IMPORTANT
Before placing the cover on the truck, use a screwdriver
to install the two buckle ends into the pre-drilled holes on
the front header panel with the provided machine screws
and threaded posts
DO NOT use a screw gun, securely tighten by hand only.
The small panel faces forward, toward the cab and folds down
over the slotted rail brackets. The front panel must sit just inside
the bulkhead rail with the seal resting on top of the bulkhead.
Fold the panel down and align it so it is setting squarely on the
rails and align the mounting holes with the slotted rail brackets.
• 1100 N. Glenstone Ave. Suite 140, Springfield, MO 65802 • 844-779-8986 • bakindustries.com BAK Industries
11
Insert the large
flat bolt through
the front panel
and the slotted
bracket on each
side.

13
14 15
Unfold the cover towards the tailgate. Make sure the cover
fits squarely between the rails.
16
18
Once
positioned,
fold cover over
toward cab
and tighten
the knobs
until the lock
washer flattens
out and locks
the knob
securely to
the bracket.
Route the front drain
hoses from the end
of the rail out through
manufacturer avail -
able bed plug. Simply
remove these plugs
or drill a 7/8” hole
through the plastic.
If you have a drop
in plastic bedliner,
simply run the drain
tubes behind or under
the liner.
12
Assemble the washers from
underneath and loosely tighten
the knob. Do not over tighten.
The large flat bolt goes down
through the front panel on each
side. Underneath the cover, the
order of washers is as follows:
rubber washer first, then large
flat stainless washer, then the
lock washer, and finally the 5 star
finger knob as shown to the left.
Attach the
drain tubes
to the rails
after cover
installation.
17
19 1.0”, (25.4mm)
Install the three cab bumpers along the top edge of the cover
where it meets the truck cab.
No closer than
1”, (25.4mm) to
the edge of the
panel.
The cover’s aluminum frame should fit
just inside the tailgate when the
adjustment is made correctly
(approx. 1/4”, 6.4 mm clearance).
The rear edge of the cover
and tailgate seal should rest
on top of the tailgate.
Part# 318A0029 Rev. 1.8.2020
© Laurmark Enterprise, Inc. 2020
• 1100 N. Glenstone Ave. Suite 140, Springfield, MO 65802 • 844-779-8986 • bakindustries.com BAK Industries

22 23
Sometimes, your side seals of your cover
will appear to be wrinkled shortly after
initially installing the cover. To assist seals
in laying flat you can leave your truck in the
sun, or to expedite, just apply heat with a
hair dryer or heat gun.
21
20
DO NOT ATTEMPT TO DRIVE WITH THE TAIL PANEL
IN THE PARTIALLY OPEN POSITION!
IMPORTANT
safe operation and use

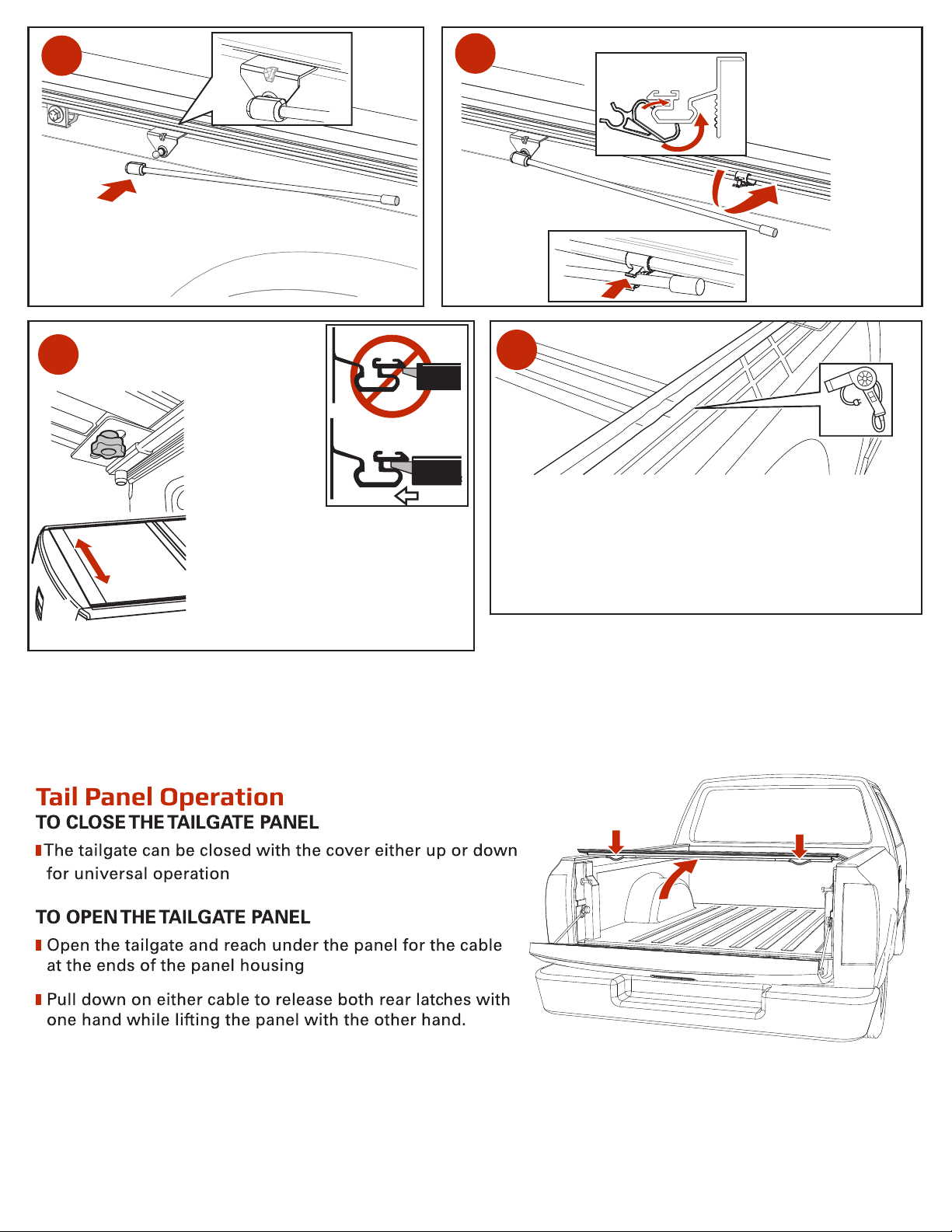

Clip the prop rod clip onto the cover rail.
Install the prop rod.
Snap the knuckle end onto the bracket.
Check to see that the cover panel
latches make proper contact with
the side rails.
Start by hooking the top
edge into the rail slot,
then slide the bottom
under the rail section.
One on both sides.
Clip the prop rod into
the clip for storage
when not in use.
Adjust the cover
side to side by
loosening the knobs
tightened in Step 16,
adjust the cover to
maintain good
engagement, then
carefully open the
cover and re-tighten
the knobs.
Part# 318A0029 Rev. 1.8.2020
© Laurmark Enterprise, Inc. 2020
• 1100 N. Glenstone Ave. Suite 140, Springfield, MO 65802 • 844-779-8986 • bakindustries.com BAK Industries

IMPORTANT
safe operation and use
IMPORTANT NOTICE
While driving, cover must be completely flat and secure with all latches in the closed position OR
completely folded up (all panels) and secured at the cab. DO NOT DRIVE with cover partially opened.
Tonneau Cover Positions While Operating Vehicle
Prior to vehicle operation, tonneau cover MUST be properly secured.
CLOSED POSITION
All panels must be closed and FULLY LATCHED to tonneau side rail.
All panels must be flat and latches engaged
FOLDED UP POSITION
To drive with your cover in the folded up position, simply make use of the
provided tie down straps and buckles provided with your cover. Ensure BOTH
buckle clips are fully inserted into the buckle ends located on the front header
panel of the cover and adjust the straps to ensure the cover is secure during
vehicle operation. The clips should be secured in the storage position,
as shown in Figure 1, when not in use.
FLIPPED UP POSITION
A) Fold the cover open and lift it until its vertical or
past 90 degrees towards your truck cab. Then release
the prop rod that is attached to your rail. Fold the
prop rod over and position it firmly against the
vertical plate on the underside of your cover.
Then slide the prop rod locks downward
and tighten the knobs to lock into position.
Do this on both sides of the cover.
B) Your cover should be firmly in
position with little to no movement
once the prop rods are locked.
FOLDED UP POSITION
FLIPPED UP: B
FLIPPED UP: A
STORAGE
POSITION
FOR CLIP
Remove any snow or foreign
matter before folding cover.
Do NOT tow your vehicle from the
rear with this cover on your truck.
Additional Important Operating Tips
The bed cover MUST be free of foreign material including snow and ice
before opening panels.
Do NOT tow your vehicle from the rear with the bed cover on your truck.
Do NOT operate vehicle with objects on top of cover.
FAILURE TO FOLLOW THESE CAUTIONS MAY RESULT IN
SEVERE DAMAGE AND WILL VOID YOUR WARRANTY!
FIGURE 1
Part# 318A0029 Rev. 1.8.2020
© Laurmark Enterprise, Inc. 2020
• 1100 N. Glenstone Ave. Suite 140, Springfield, MO 65802 • 844-779-8986 • bakindustries.com BAK Industries

Warranty
BAK® Industries (“BAK”) warrants your BAKFlip Hard Folding Cover to be structurally free from defects in material and
workmanship for the period as outlined in the table below from the retail date of purchase. Warranty registration must
be on file and/or proof of original purchase (detailed and dated receipt) required for warranty service. Warranty is non-
transferable and applies to the original purchaser of the BAK product only.
BAK reserves the right to determine whether a product needs to be repaired or replaced. No labor or service allowance
is given or implied. The warranty will be void if the product has been damaged by accident, unreasonable use, neglect,
improper service/installation/removal, modifications, acts of God or normal wear and tear or other causes not arising out
of defective materials or workmanship. BAK assumes no liability for injury, loss, incidental or consequential damages.
BAK reserves the right to substitute an entire replacement system or provide other remedies than those listed in this
warranty for discontinued products or other reasons. Shipping charges will apply for any repair or replacement.
BAK is committed to providing you with our best service at all times. Please feel free to contact us should you require any
assistance with your BAK product.
CARE AND MAINTENANCE
BAK Flip tonneaus are made from durable materials and require simple care to ensure a long life of performing well and
looking great.
Cleaning the Top (Washing)
Standard automotive soap and water with a soft sponge or cloth is recommended for cleaning. Shammy dry to keep
the finish polished and brilliant. Wax is NOT recommended as it tends to fill in cracks and crevices, which may affect the
textured panel finish. Do NOT use any harsh cleaners or abrasives.
Treating the Vinyl Top
3M 303 Aerospace Protectant may be used to keep the vinyl surface clean and protected from the elements and will also
remove any water spots that may have developed. 303 Aerospace not only protects against fading, discoloration and
cracking from harmful UV rays, but repels dust and stains. Simply spray on and wipe dry for a beautiful, matte finish that
protects your cover from road grime and dust.
Maintenance
It is recommended that you periodically check your cover is securely attached to your truck bed. Inspect the clamps and
front mounting bolts to ensure they were properly installed and have not come loose or knocked out of adjustment
during operation. Covers that are used with high frequency or that are subject to the vibrations and impact from rough
roadways can cause the cover to require adjustment.
Lubricating the Latches
It is recommended that you periodically inspect and service the latches on each panel. Clean away any excess dirt or
grime and lubricate with silicone spray. Ensure the latches move freely in and out to properly engage the side rail and
provide proper performance with optimum security. Be careful not to overspray the cover. Wipe away any excess around
PRODUCT WARRANTY PERIOD
BAKFlip G2 3 Year Limited Warranty
BAKFlip MX4 5 Year Limited Warranty
BAKFlip FiberMax 3 Year Limited Warranty
BAKFlip F1 5 Year Limited Warranty
REGISTER Y OUR
WARRANTY
NOW AT
BAKINDUSTRIES.COM
the latch location.
