Bakers Pride Cyclone GDCO-E1 Single User manual

Model GDCO-E1
with optional casters
SPECIFICATIONS
STANDARD FEATURES
OPTIONS & ACCESSORIES
CERTIFICATIONS

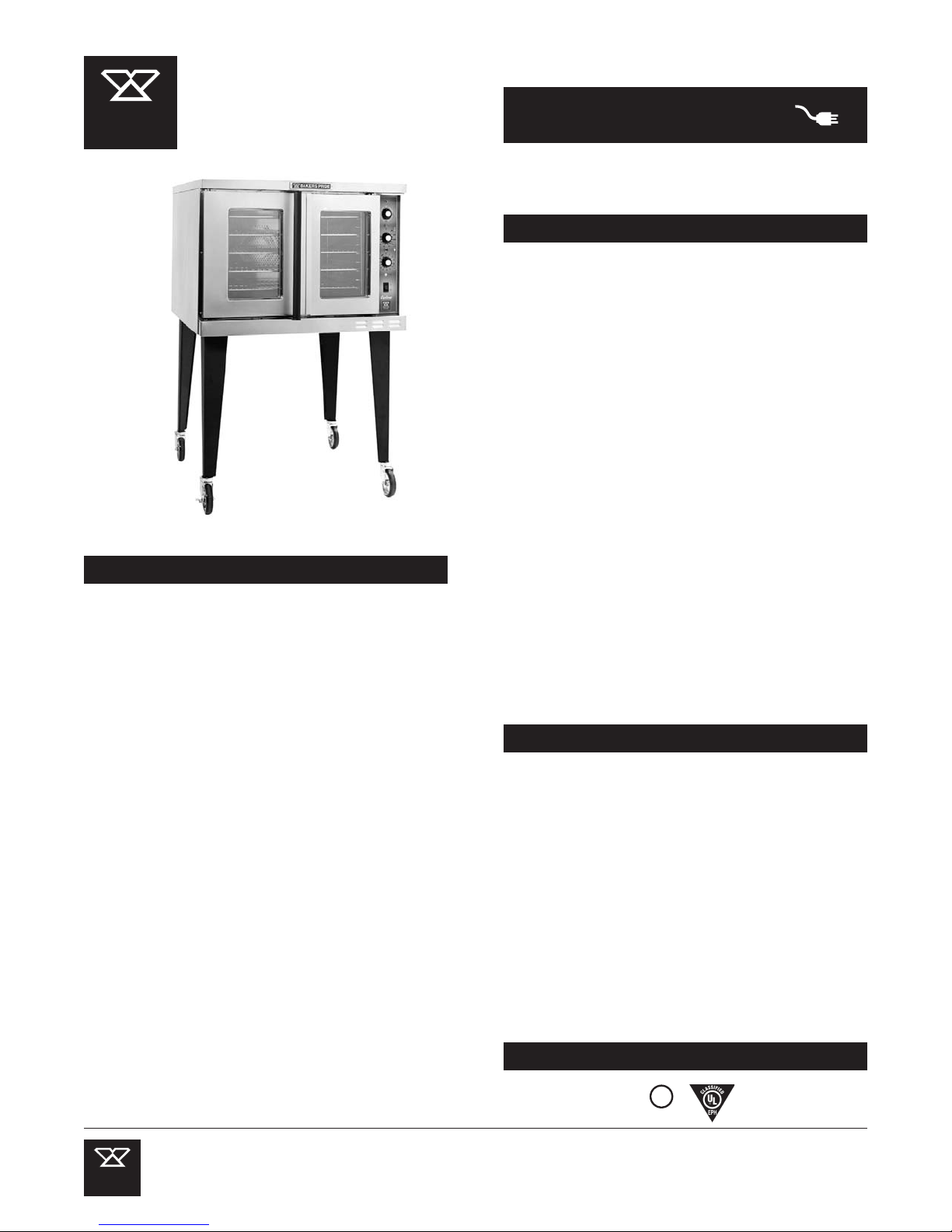

Full-size electric, forced air, single and double deck convection type
oven. Standard specifications include 10.5 KW per deck, a two-
speed fan with cool down and our patented wheel-within-a-wheel
enhanced air flow system powered by an energy saving 1/4 HP air
cooled fan motor.
Door interlock switch automatically turns the fan and heating
elements off when the oven door is open. A manual rotary switch
will turn the fan on when the door is open for quick cool-down. The
60 minute timer has a continuous ring alarm with manual shut-off.
The indicator light glows when the heating elements are on.
The oven interior measures 29" wide (737mm) by 20" high
(508mm) by 22 1/4" deep (567mm). The cooking chamber is
porcelain enamel over heavy gauge steel with removable 11-
position rack guides with 1 5/8" spacing (41mm) and 5 heavy-duty
adjustable chrome-plated racks.
The oven exterior measures 38 1/8" wide (968mm) by 38" deep
without handle (963mm) and 41 15/16" deep with handle
(1065mm) by 26 7/8" (683mm) high. Front, top, sides and trim are
constructed with stainless steel. Single oven legs are 31 3/8" tall
with casters and 27 5/8” (702mm) with adjustable bullet
feet and finished with Durable Black Powder Coating.
Dual doors are 60/40 split-type with double-pane thermal glass,
synchronized operation, stainless steel seals and a single left
mounted "Cool Touch" handle. Doors are fabricated with stainless
steel inside-and-out, and fully insulated with 2" of industrial grade
insulation. Interior oven lights are standard.
(797mm)
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
Energy efficient 10.5 KW oven direct forced air heat system
208v or 220v-240v, 60hz; 50hz, 1 or 3 phase
Electronic temperature control
Double-pane thermal glass door windows
Interior oven lights
60-Minute continuous ring timer with manual shut-off
150°F (65°C) to 550°F (288°C) temperature range
1/4 HP air-cooled two-speed fan motor
Cool down fan mode
Elements-on and temperature-ready indicator lights
Porcelain enamel oven interior with cove corners
11-Position removable rack guide with 1 5/8" spacing
5 Heavy-duty, positive-stop, chrome-plated wire racks
Stainless steel front, top & sides
Black Powder Coated legs with adjustable bullet feet
Stainless steel, 60/40 split synchronized doors, with single left
mounted handle
Stainless steel door seals
Stacking kit for double ovens
Front mounted, hinged control panel for easy service access
Heavy-duty industrial grade insulation in top, sides, back &
doors
Limited 2-year parts, labor & door warranty
q
q
q
q
q
q
q
q
q
q
Moisture injection with front panel controls
Computerized programmable controls with LED display for
integrated use of Cook & Hold, pulse fan speed and fan cycle
Open rack stand with rack supports and solid stainless steel
under shelf (wire racks sold separately)
Stainless steel undershelf (single ovens only)
Additional oven racks
Heavy-duty caster set, two with caster locks
Perforated rear panel
Solid doors
Stainless steel legs with or without casters
International voltages, 50hz
BAKERS
PRIDE
qModel GDCO-E1 Single
qModel GDCO-E2 Double
Cyclone
BAKERS
PRIDE
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
SERIES
ELECTRIC CONVECTION OVENS
Job ____________ Item # ___________
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax [phone]
www.bakerspride.com
UL
®
C
LISTED
US

BAKERS
PRIDE
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
TSW: 05/08
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax [phone]
www.bakerspride.com
SHIPPING INFORMATION
POWER SUPPLY
Model
Model
GDCO-E1
GDCO-E2
GDCO-E1
514
10.5
10.5
10.5
10.5
30
26
48
44
30
26
48
44
3
3
1
1
208
220-240
208
220-240
45.93 43
DOUBLE Shipped in two cartons as per above specifications
Each oven requires separate electrical connections
48 1/4 34234 1.29 1092 1226 864
Shipping Weight Carton Size Carton Dimensions
Lbs.
28
24
—
—
Line 3
Cubic Feet Inches
Line 1 Line 2
Amps
Width Depth Height
Inches Inches
Kilos
KW
Cubic Meters
Voltage
mm
Phase
mm mm
MINIMUM CLEARANCES
Suitable for installation on combustible floors when
installed on factory supplied legs or casters
Right
Left
Rear
1
1
3
NA
NA
NA
25
25
76
NA
NA
NA
Inches Inches
Vent Hood Direct Venting
mm mm
1425
1425
1425
1425
748
748
748
748
850
850
850
850
1725
1725
1725
1725
RPM-highRPM-low
Fan — 50 HZ Fan — 60 HZ
RPM-low RPM-high
ALL DIMENSIONS NOMINAL
FRONT VIEW
SIDE VIEW
Single Unit
FRONT VIEW
Double Unit
62"
(1575mm)
41 15/16"
(1065mm)
8 1/4"
(210mm)
38 1/8"
(968mm)
29" (737mm) Interior38"
(963mm)
26 7/8"
(682mm)
TOP VIEW
NOTE:
NOTE:
20"
508mm
22 1/4"
567mm
58 1/4"
(1480mm)
31 3/8"
(797mm) Legs with adjustable
bullet feet are 27 5/8" tall
(702mm)
minimum
Legs with
adjustable
bullet feet
are 5 1/2"
(140mm)
minimum
and
6"
(152mm)
maximum
