Balcrank 4120-001 Instruction Manual
SERVICE BULLETIN SB4028
New Release 1/03
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
Operation, Installation,
Maintenance and Repair Guide
Lowrider Truck Drain
Model #4120-001
2
GENERAL SAFETY
1) Use the equipment only for its intended
use. This equipment is intended for collection
of motor oil, transmission uid, antifreeze,
and gear oils only. Any other use or collection
of any other uids could result in damage to
the equipment or serious bodily injury.
2) Never alter or modify any parts of this
product; doing so may cause damage and/or
personal injury.
3) Always read and follow the fluid
manufacturers’s recommendations regarding
the use of protective eye wear, clothing,
gloves, and other personal equipment.
4) Comply with all applicable local, state,
national re, electrical, and safety regulations.
Dispose of waste uids according to all local,
state, and national guidelines.
5) Do not lift this product or lift the unit to drain
uids without mechanical assistance.
IMPORTANT
!
Read these safety warnings and
instructions in this manual
completely, before assembly and use of this truck
drain. It is the responsibility of the purchaser
to retain this manual for reference. Failure to
comply with the recommendations stated in this
manual could damage the truck drain and void
factory warranty.
Airborne particle hazards.
Wear ear and eye protection.
WARNING
!
!WARNING
Do not step on or stand on truck
drain.
The grate could collapse or the truck
drain could roll out from under you.
WARNING
!
You must have the discharge port
secured with a closing connector
(I.E. ball valve or dry break coupler.)
before using.
WARNING
!
WARNING
!
1) If you are using this unit with an evacuation
system, make sure the pumping system
is installed according to the manufacturer’s
recommendation.
2) Drain only the following liquids into the
truck drain: motor oil, transmission uid,
antifreeze, and gear oil.
3) Provide fresh air ventilation to avoid the
buildup of ammable fumes.
4) Extinguish all open ames in the work area.
5) Do not smoke in the work area.
WARNING
!
Do not drain caustic or ammable
products.
Do not expose the tank to any source of heat.
Do not do any welding on the tank.
While draining high temperature oils, keep
hands, face, and other body areas protected.
3
Model 4120-001 Lowrider Truck Drain has
a capacity of 25 gallons. It easily rolls on
three 6-inch rubber-tired wheels with roller
bearings. The hinged tee handle steers the
front wheel for maneuvering. The double
bafes and catch lip help prevent oil from
splashing out. It has an 1” NPT drain port
with plug for draining. Model 4120-002 is an
optional kit for drain outlet. Optional model
4140-015 is a used oil hose kit that couples
with the optional 1120-009 diaphragm pump
for evacuation.
Capacity..................................25 gal/94.6 ltr
Tank dimensions:
Height .......................................... 8 in/20 cm
Width ......................................... 24 in/61 cm
Length........................................ 30 in/76 cm
Height with Wheels................ 9.5 in/24.1 cm
Drain Outlet ................1 in NPT/2.5 cm NPT
Dry Weight.............................75 lbs./34 kgs.
SPECIFICATIONS
GENERAL DESCRIPTION
Model 4120-002
Hook-up of optional 4140-015 and 1120-009 for use with the
truck drain evacuation.
4

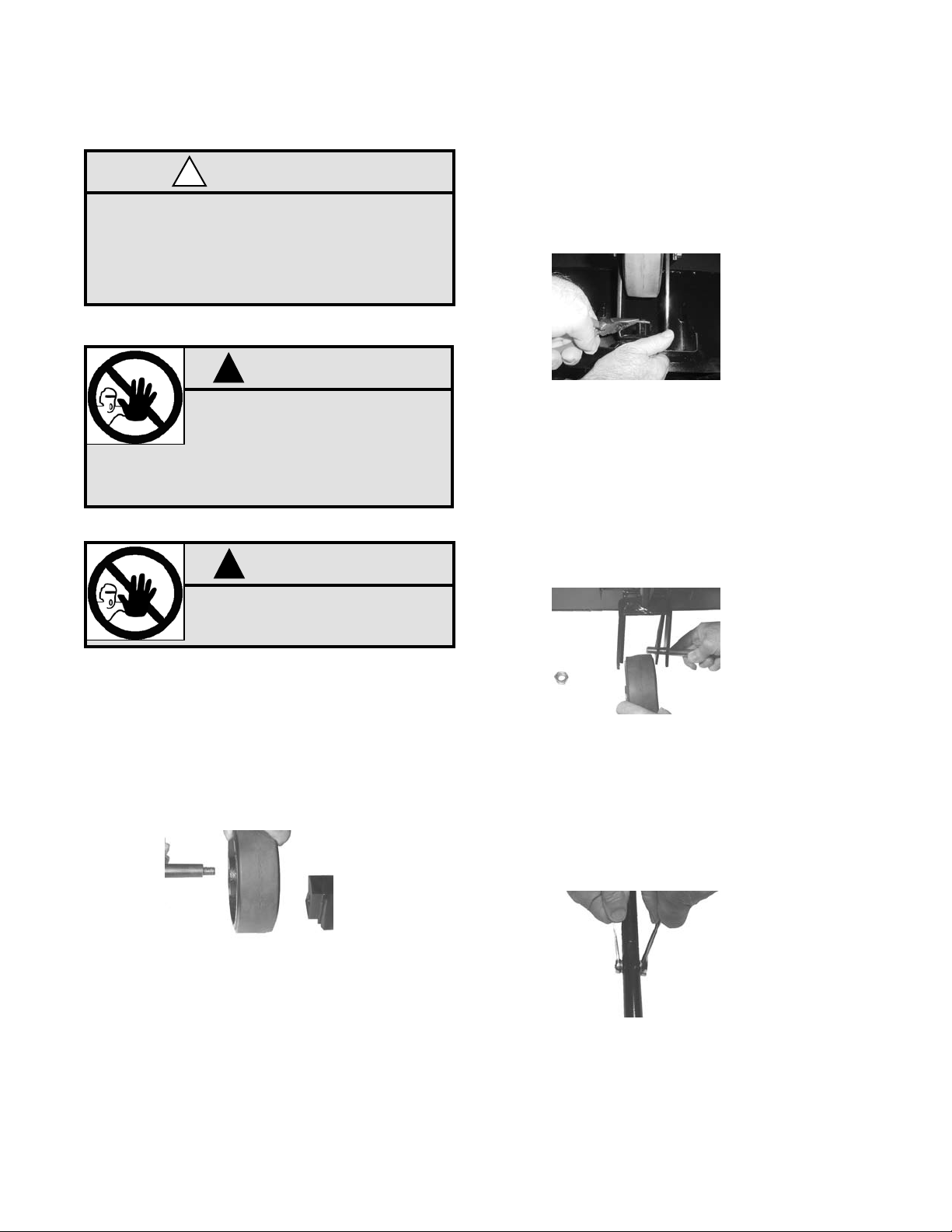

3) Attach front wheel and bottom part of tee
handle to the front wheel bracket. With the
curve of the tee handle turned to the truck
drain, align the tee handle, bracket and wheel
so that the 5” long bolt will slide through all.
Tighten with lock nut. (See Figure #3)
Figure #3
4) Attach top part of tee handle. Slide upper
tee handle onto lower part and slide bolt
through all, then tighten with lock nut. (See
Figure #4)
Figure #4
5) Install a closing connector (I.E. ball valve
or dry break coupler). Place grill on truck
drain.
2) Attach front bracket. Slide bracket onto pin
located on the front of the truck drain with
forks facing forward. Insert cotter pin through
hole and bend ears back. (See Figure #2)
Figure #2
1) Attach the two back wheels. Slide the 2”
long bolt through sleeve and insert through
wheel. Thread bolt into nut which is pre-
attached on truck drain frame. (See Figure
#1)
Figure #1
ASSEMBLY
!WARNING
Never remove the grill or
insert a nger into the drain
port when vacuum evacuation of the
contents is being performed.
Caution
!
This rolling truck drain is intended for
use only on at horizontal surfaces.
Sloped surfaces can cause the rolling
truck drain to move out of position.
!WARNING
Do not lift this product with-
out mechanical assistance.
5
OPERATION
Draining uids into the drain
The truck drain must have a port closing
device connected before use. If using optional
kit 4120-002, attach thread adapter to drain
outlet then the dry break coupler. Use sealant
to insure a leak- free connection.
1) Make sure the grill is in place before
use. This allows the user to drain lters and
prevents the loss of plugs and tools in the
drain.
2) Using the handle, position the drain under
the vehicle where the oil will be drained.
Once in place, position the handle out of
the trafc area. Failure to do so could
cause a tripping hazard.
Emptying uids from the drain
Position the truck drain where it will be emp-
tied. Make sure you use an approved waste
container.
1) If using gravity to drain, remove drain plug
or open ball valve and allow the uid to drain
into the waste container.
2) If using the optional evacuation kit 4140-015
and 1120-009 pump, couple the hose from
the pump to the coupler on the drain and start
the pump.
3) After emptying the drain, replace drain
plug or close ball valve. If evacuated with
pump, turn off pump and disconnect hose.
CAUTION
!
The Lowrider truck drain is designed to
hold up to 25 gallons of used oil before
draining the system. The level of oil should
never exceed the height of the grate.
Always be sure there is enough room in
the drain before additional oil is added. It
is recommended that the uid is drained
frequently to avoid the risk of spilling and
emissions of waste materials and gases
from the uids.
Hook-up of optional 4140-015 and 1120-009
for use with the truck drain for evacuation.
6

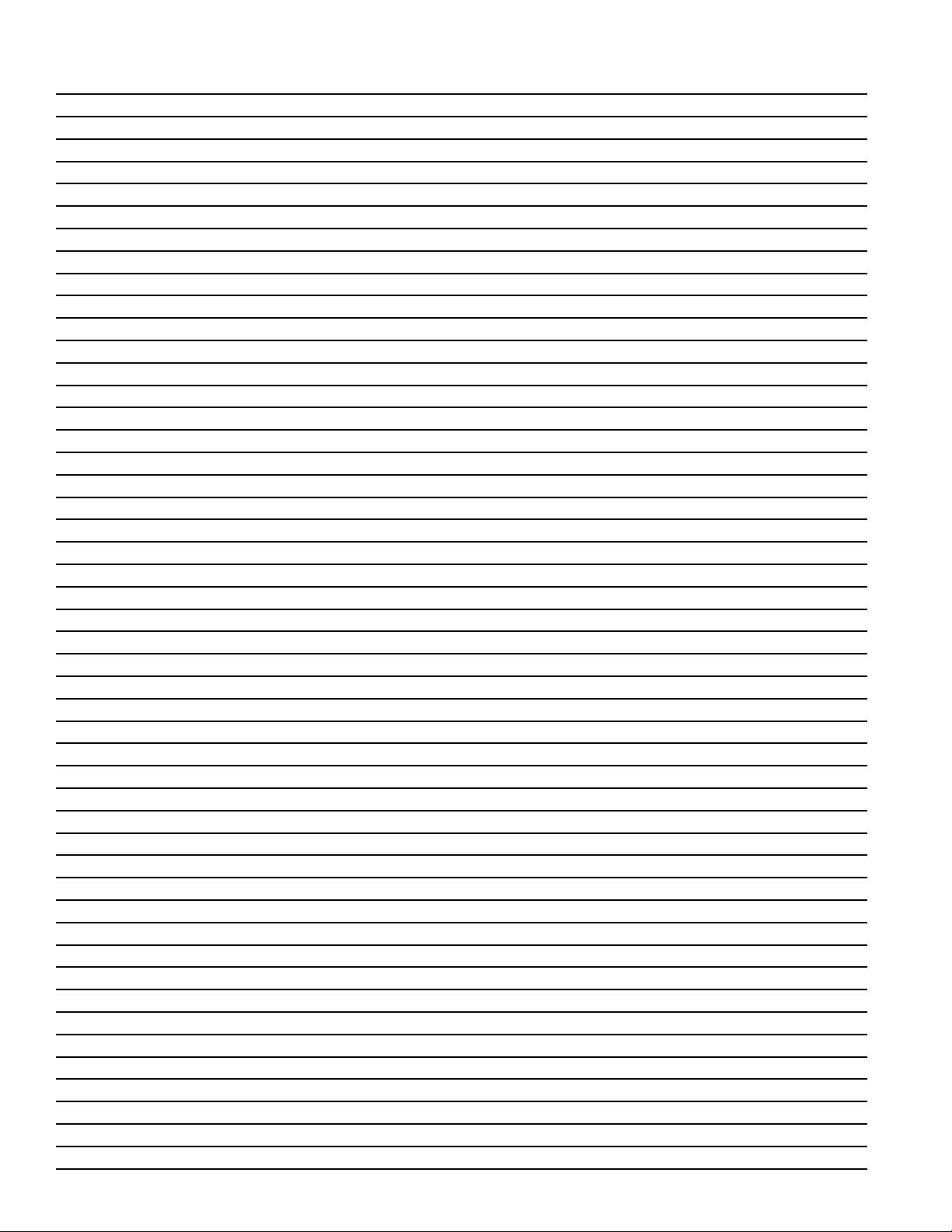

Notes:
7
Notes:
Balcrank Corporation
Weaverville, NC 28787
800-747-5300
800-763-0840 Fax
www.balcrank.com
Distributed by:
SERVICE BULLETIN SB4028
New Release 2/03
831368
Balcrank Lubrication Equipment Warranty Statement
All Balcrank equipment sold by authorized Balcrank distributors is warranted to their original customer to be free from defects in materials and workmanship
for a period of one year from the date of sale to that customer. Selected Balcrank equipment carries warranty terms for a more extended period as dened in
the Balcrank Lubrication Equipment & Accessories User Price List, wherein a “lifetime” warranty represents a warranty period of thirty years. Within the initial
one-year warranty period, Balcrank will repair or replace all Balcrank equipment determined by Balcrank to have defective materials or workmanship. For
equipment carrying more extended warranties, Balcrank will repair or replace the product including parts and labor during the rst full year and will provide
parts only for the remainder of the warranty period.
This warranty applies only to equipment installed and operated according to applicable Balcrank Service Bulletins and Installation Instructions.
Any equipment claimed to be defective must be returned, freight prepaid, to an Authorized Balcrank Service Center (ASC). Upon receiving candidate warranty
equipment from a customer, ASC will: 1) diagnose to determine the warrantable condition of the equipment, 2) submit, prior to repair or replacement, a
request to Balcrank for warranty authorization, then 3) in cooperation with Balcrank, proceed with repair locally or forward the equipment to Balcrank and
obtain replacement. If the part(s) or equipment items are found defective upon inspection by Balcrank, they will be repaired or replaced, and then will be
returned to the ASC. If Balcrank nds the claimed part(s) or equipment not to be defective, the ASC will receive written authorization from the original
customer, and then repair them for a reasonable charge to the customer, which will include all applicable parts, labor, and return transportation costs.
Optionally, the customer may submit certain eligible products directly to Balcrank for warranty return by using Balcrank Lubrication Equipment Direct Service
Warranty Procedure. Eligible products are dened in the Balcrank Lubrication Equipment & Accessories User Price List. Refer to the Balcrank web site www.
balcrank.com for a copy.
Any equipment returned to Balcrank must have the Warranty Service Claim number (WSC#) clearly marked on the outside of the carton. Balcrank’s sole
responsibility is for defects in material and workmanship, and Buyer’s sole and exclusive remedy hereunder, shall be limited to repair or replacement of the
defective part or equipment.
This warranty does not cover, nor shall Balcrank be liable for repair or replacement of parts or equipment resulting from general wear and tear through use,
or damage or failure caused by improper installation, abuse, misapplication, abrasion, corrosion, insufcient or improper maintenance, negligence, accident,
alteration, or substitution of non-Balcrank parts.
Furthermore, the Warranty for Lubrication Equipment and Accessories does not cover the following specic conditions:
• Failure or damage to equipment caused by dirt or debris in compressed air lines and uid lines. This includes, but is not limited to, clogged inlet lters,
strainers, or regulators; uid meters; control handles; uid tips; and valves.
• Failure of normal wear parts including but not limited to: o-rings, packings, seals and valves unless originally improperly installed by the factory.
• Products placed in applications for which their use was not intended. Examples include but are not limited to Lubricant pump being used to pump
solvents, or placing equipment intended strictly for indoor use outdoors
• Damage to equipment resulting from operation above and beyond Balcrank’s recommendations.
• Leaks at air and uid ttings and connections.
• Damage caused by thermal expansion whenever adequate pressure relief was not included in the system.
• Loose suction tubes on pumps.
• Incorrect hose reel spring tension, requiring adjustment.
THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL BALCRANK BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL, OR OTHER DAMAGES OF SIMILAR
NATURE, INCLUDING BUT NOT LIMITED TO LOST PROFITS, LOST PRODUCTION, PROPERTY DAMAGE, PERSONAL INJURY, WHETHER SUFFERED
BY BUYER OR ANY THIRD PARTY, IRRESPECTIVE OF WHETHER CLAIMS OR ACTIONS, LEGAL OR EQUITABLE, FOR SUCH DAMAGES ARE BASED
UPON CONTRACTS, WARRANTY, NEGLIGENCE, STRICT LIABILITY, OR OTHERWISE. ANY CLAIM OR ACTION FOR BREACH OF WARRANTY MUST
BE BROUGHT WITHIN TWO (2) YEARS FROM THE DATE OF SALE TO THE ORIGINAL CUSTOMER.
