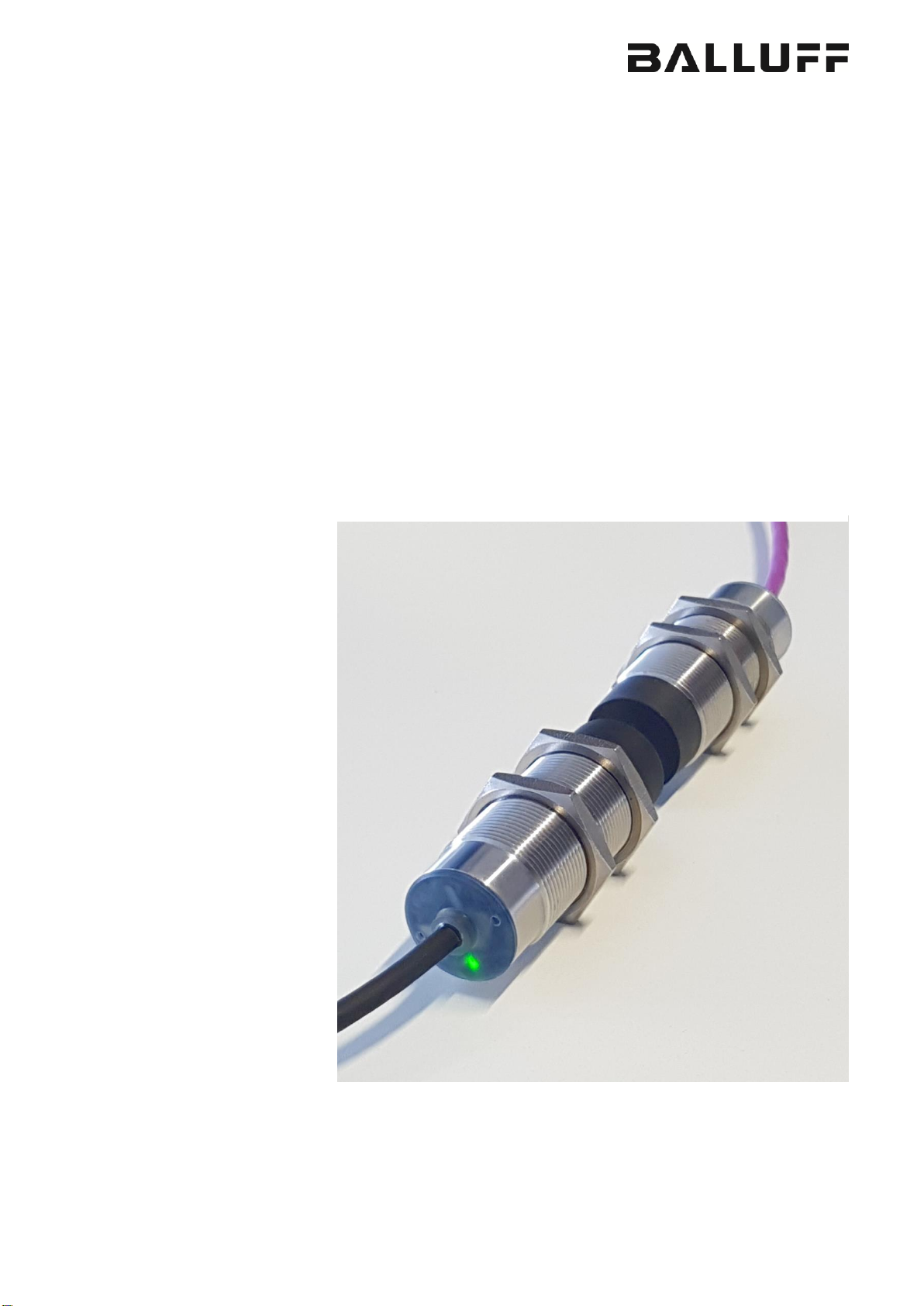

Balluff BIC 1I12-P2A25-M30MI1-BPX05-110 User manual

BIC 1I12-P2A25-M30MI1-BPX05-110
BIC 2I12-P2A25-M30MI1-BPX03-010
User´s Guide

www.balluff.com
1
Table of Contents
1Safety 2
Installation and Commissioning 2
General Safety Notes 2
Dangerous Voltage 2
Proper Use 2
Safety Notes 2
Protection from Electromagnetic Fields 3
2System Overview 4
Topology 4
Block Diagram 4
Base Display 4
Timing Diagram 5
3Installation 6
Transmission Distance 6
Mutual Interference 6
Offset 6
Installation in Metal 6
Angular Offset 7
Commissioning 7
InZone Output 7
4Technical Data 8
Base 8
LED 8
Mechanical Data 8
Electrical Data 8
Terminal Assignment 8
Remote 9
Mechanical Data 9
Electrical Data 9
Terminal Assignment 9
5Attachment 10
Ordering Information 10

www.balluff.com
2
1 Safety
Installation and
Commissioning
Attention!
Installation and startup shall be performed by trained technical personnel only.
Skilled specialists are people who are familiar with the work such as installation
and the operation of the product and have the necessary qualifications for these
tasks. Damage due to unauthorized tampering or improper use shall render the
warranty and liability claims towards the manufacturer invalid. The user is
responsible for ensuring compliance with safety and accident prevention
regulations applicable in specific cases.
General Safety
Notes
Commissioning and Inspection
The user assumes responsibility for compliance with applicable local safety regulations.
The user guide must be read carefully before commissioning.
The system may not be used in applications where personal safety is dependent upon
device function.
Intended Use
Warranty and liability claims towards the manufacturer are rendered invalid by damages due
to:
•unauthorized tampering
•improper use
•use, installation, handling contrary to the regulations in this user guide.
User Responsibilities!
This equipment is an AMV Class A device. Such devices can cause radio interference. The
user must take appropriate precautionary measures for use. The device may only be
operated with a specifically permitted power supply. Only permitted wiring may be
connected.
Malfunctions
In the event of defects and device malfunctions that cannot be rectified, the device must be
taken out of operation and protected against unauthorized use.
Dangerous
Voltage
Attention!
Before working on the device, switch off its power supply.
Proper Use
Attention!
Inductive coupling systems (BIC) are devices for contact-free energy and signal
transmission in industrial environments.
Use is particularly not allowed:
•in explosive environments,
•in applications in which the safety of
people or machines can be affected by transmitted signals (safety-related
circuits).
Safety Notes
Caution!
Metal objects may not cross Zones A, B, C or between active
base and remote surfaces. Fire Hazard!

www.balluff.com
3
1Safety
Protection from
Electromagnetic
Fields
Protection from Electromagnetic Fields during Operation and
Assembly
The permitted values in accordance with VDE 0848 part 3-1 are
maintained starting at a distance of ≥ 10 mm. The magnetic fields emitted
by the BIC system may pose a health hazard to persons with medical aids
such as a pacemaker. The minimum distance for such persons is ≥ 15 mm.
The operator is responsible for ensuring that this minimum distance is also
maintained by suitable measures during operation.
Note
In the interest of continuous improvement of the product,
Balluff GmbH reserves the right to change the technical data of the product and
the content of these instructions at any time without notice.

Balluff Inductive Coupler
BIC 1I12-P2A25-M30MI1-BPX05-110 (Base)
BIC 2I12-P2A25-M30MI1-BPX03-010 (Remote)
www.balluff.com
4

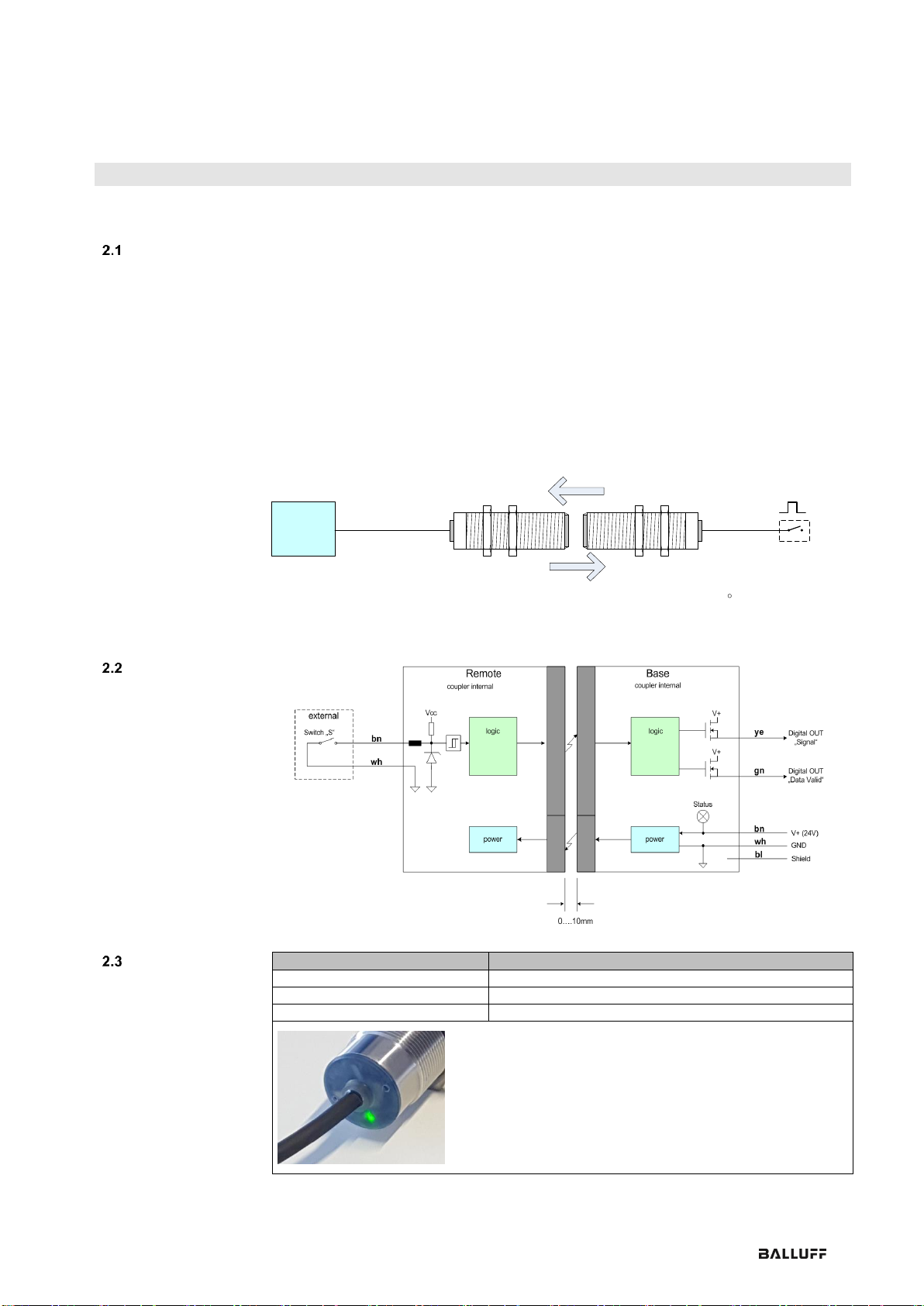

2 System Overview
Topology
Functionality
The inductive coupler system consists of a Base- as well as a Remote-Unit and allows a signal
transmission by an air gap. If the Remote is in the transmission range of the Base the signal is
transmitted via. inductive coupling and the digital signal is transmitted to the control unit. At the
same time the Base unit powers the Remote unit with the required operating voltage (depence
on distance and angular offset of Base and Remote). The inductive coupling between Base
and Remote is displayed via. the signal “In Zone” at the LED. The signal “In Zone” will be
transmitted to the control unit.
The inductive coupler system has an internal temperature monitoring which protects the
system from overheating. After triggering the temperature monitoring the automatic restart
takes place as soon as the system has cooled down. For visualization of the operating state
LED´s are integrated in Base- and Remote-Unit.
Signal
Power
SPS Base Remote
The components are located in an IP 67 protected stainless steel housing (1.4305)
Block Diagram
Base Display
Signaling
Function
green, static
Supply voltage OK Remote coupled
green, flashing slowly
Supply voltage OK, no remote
green, rapidly flashing
Overload/short-circuit

www.balluff.com
5
2System Overview

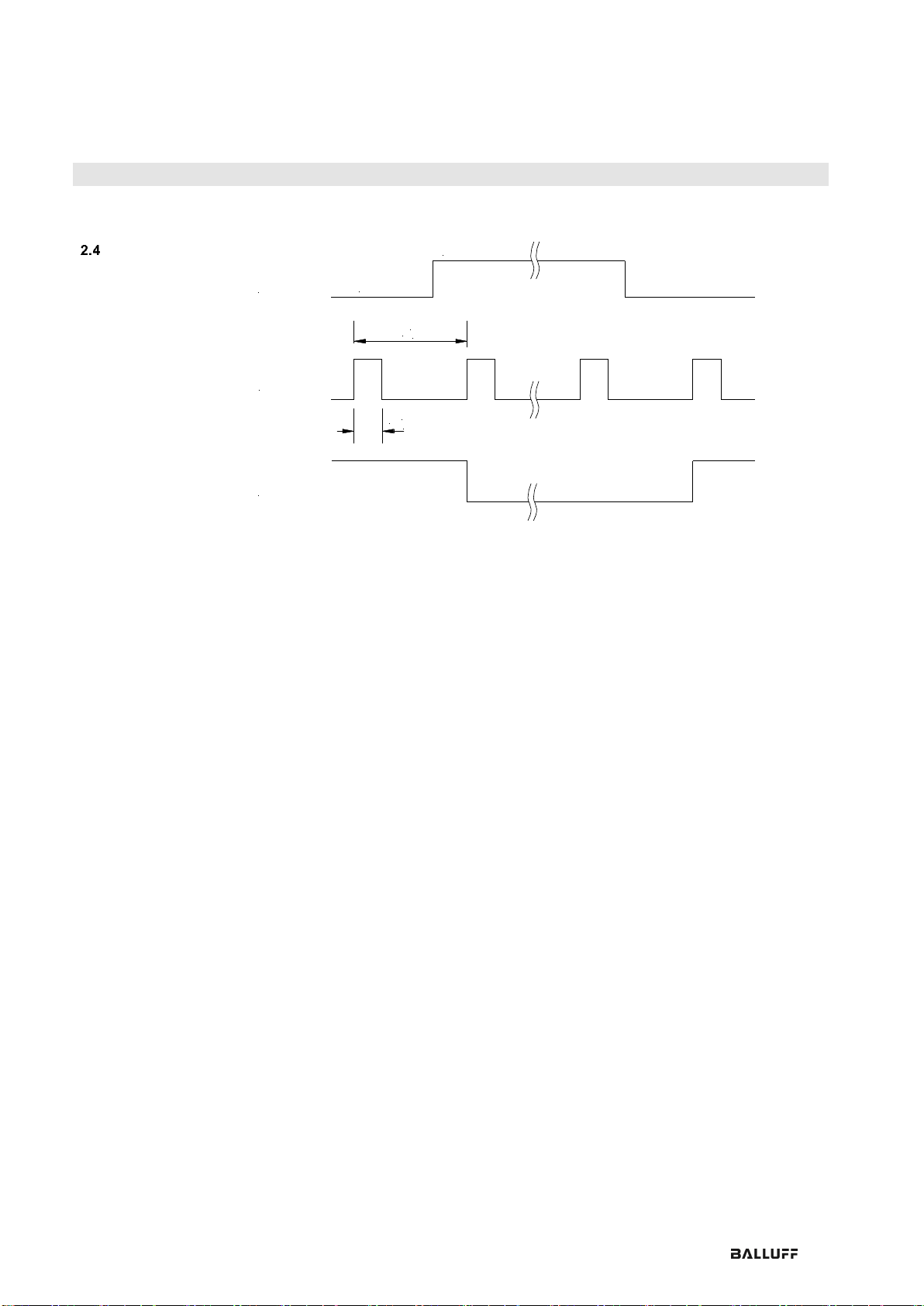

Timing Diagram
REMOTE
Switch "S" "S"closed
"S"open
BASE
"Data Valid"
BASE
"Signal"
t
t
rotate
DAV
*
**
trotate depends on the rotating speed.
Customer's specification: maximum rotating speed of 44 rpm and mounting position (radius
= 600 mm) => trotate=1.37s
**tDAV = 50 msec

Balluff Inductive Coupler
BIC 1I12-P2A25-M30MI1-BPX05-110 (Base)
BIC 2I12-P2A25-M30MI1-BPX03-010 (Remote)
www.balluff.com
6
3 Installation
Transmission
Distance
Attention!
Improper assembly can negatively impact the system and lead to damages.
The distances indicated for installation must be observed.
Compliance with permitted transmission distances is required for fault-free operation of the
BIC system:
Y
Y (mm)
≤ 10
Mutual
Interference
The indicated minimum distances must be observed to avoid mutual influence between
neighboring base and remote:
A (mm)
≥ 40 mm
Offset
Permitted distances / axial offset
X (mm)
Y (mm)
≤ 3
≤ 10
Installation in
Metal
Attention!
Device damage due to induction effects!
Metallic objects on the coil cap cause the objects to be heated.
•Install the components so that no metallic objects can collect on the coil
cap.
When installing the device in metal, the indicated minimum distances to the surrounding
sides of the metal object must be observed; otherwise, the transmission distance between
transmitter and receiver changes. The transmission distance can also be influenced by the
type of metal.
A (mm)
B (mm)
C (mm)
 4
 30
 20

www.balluff.com
7
3Installation
Angular Offset
The permitted angular offset ensures functionality even in difficult installation positions:
−
Distance D (mm)
Angle X
1
15°
4
8°
10
0°
Commissioning
Attention!
Device damage due to incorrect voltage supply!
Malfunctions may occur if the ripple is too high or if the output voltage is not
regulated.
➢Use only approved, regulated voltage supplies.
Attention!
The remote (receiver) may be damaged by voltage spikes if cables that are too
long are used!
➢To satisfy the EMC requirements, the cable on the receiver must not be
longer than 10 m.
➢Of a longer cable is used nonetheless, take all possible measures to
protect the receiver from over-voltage peaks.
Note
Operate base coupler (BIC 1I12-P2A25-M30MI1-BPX05-110) exclusively with
remote coupler (BIC 2I12-P2A25-M30MI1-BPX03-010).
Commissioning is only possible after complete assembly of an entire transmission chain
between base and remote.
For safety reasons, components must always be installed in a de-energized state.
The BIC system is designed so that a supply voltage reversal on the base will not cause
any damage. The base signal outputs may not under any circumstance be applied to the
supply voltage!
For safety reasons, we recommend limiting the primary 24 V supply for the BIC system on
the base to 0.5 A.
The remote system is secured against shorting; the base sends an "InZone" signal for
monitoring/checking the connection structure between base and remote. This can be
interpreted by the SPS as "sensor data transmission valid"
InZone Output
The output is active as soon as the remote is within the base transmission range. As long as
the signal is active, the relevant information is valid at the outputs and the LED is on.

Balluff Inductive Coupler
BIC 1I12-P2A25-M30MI1-BPX05-110 (Base)
BIC 2I12-P2A25-M30MI1-BPX03-010 (Remote)
www.balluff.com
8

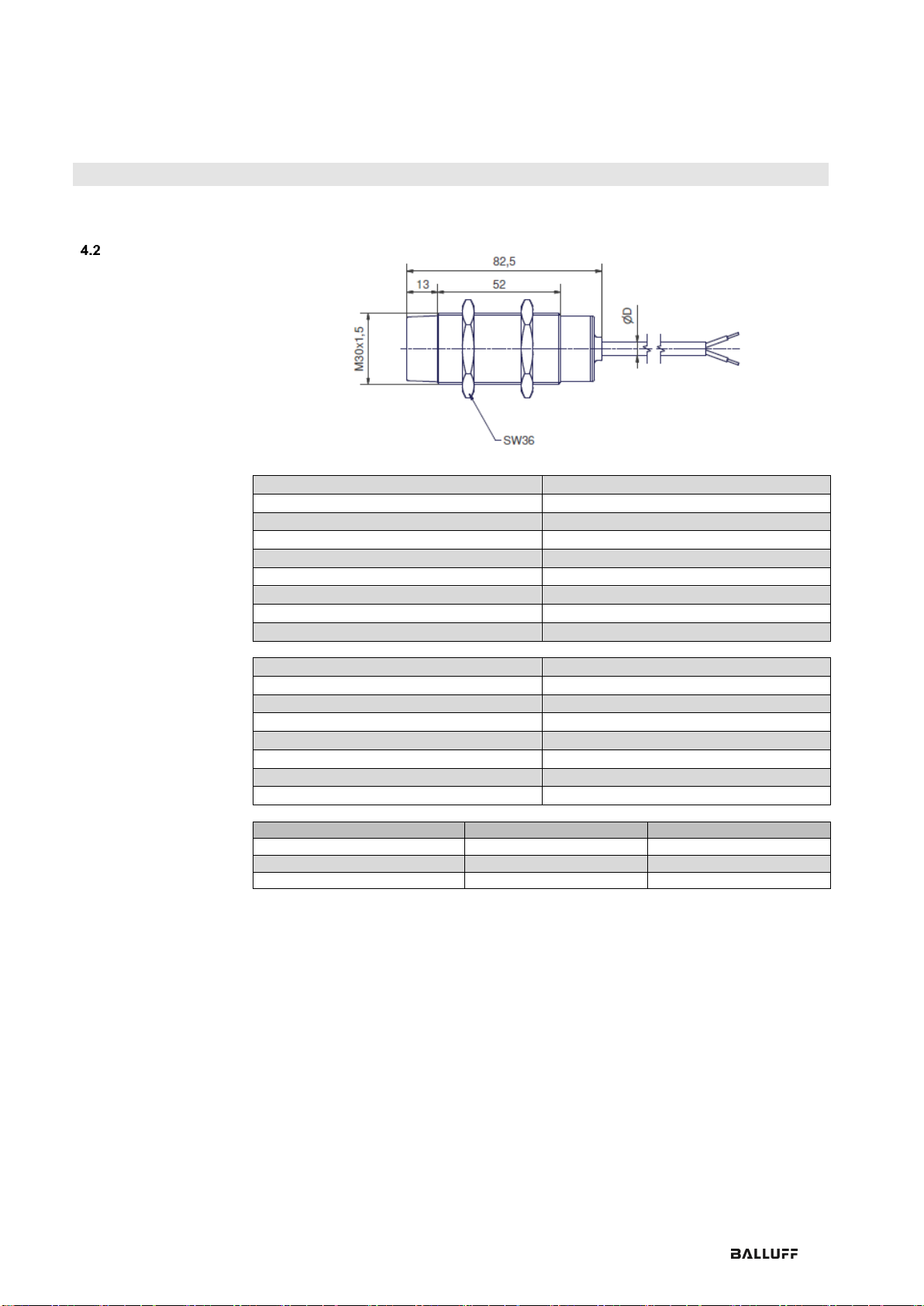

4 Technical Data
Base
LED
LED
Display
Function
green
static
Connection established
slowly flashing
Power on, no remote found
rapidly flashing
Overload/short-circuit
Mechanical
Data
Housing material
Stainless steel (1.4305)
Sensing surface material
PA66
Housing degree of protection
IP 67
Dimensions (d x l in mm)
M30 x 82.5 mm
Thread pitch
M30 x 1.5 mm
Weight (with cable)
120 g (600 g)
Operating temperature
-40°C … 50°C
Storage temperature
-40°C … 70°C
Installation type
Not flush
Electrical Data
Operating voltage
24 V ± 10%
Current drain
max. 300 mA
No-load current
max. 100 mA
Overload protection
Yes
Short-circuit protection
Yes
Polarity reversal protection
Yes
Number of digital outputs
2 x PNP + DAV
max. current load for outputs
50 mA
Operational readiness
10 ms
Transmission frequency
max. 40 Hz
Cable type
PUR, 4 wire 2 x 0.75 + 2 x 0.14 shielded
Cable length
11 m
Cable diameter D
5.6 mm
Least bending radius
10 x D
Terminal
Assignment
Color
Signal
Signal Type
brown
+ 24 V
Power IN
white
GND
Power RTN
green
Data valid
Digital OUT 0/24 V
yellow
Signal
Digital OUT 0/24 V
blue
Shield

www.balluff.com
9
4Technical Data
Remote
Mechanical Data
Housing material
Stainless steel (1.4305)
Sensing surface material
PA66
Housing degree of protection
IP 67
Dimensions
M30 x 82.5 mm
Thread pitch
M30 x 1.5 mm
Weight (with cable)
120 g (160 g)
Operating temperature
-40°C … 50°C
Storage temperature
-40°C … 70°C
Installation type
Not flush
Electrical Data
Operational
≥ 2.5 ms
Switching frequency
max. 40 Hz
Short-circuit protection
Yes
No. of digital inputs
1
Cable type
PUR, 2 strands 2 x 0.5 shielded
Cable length
1 m
Cable diameter D
5.6 mm
Least bending radius
10 x D
Terminal
Assignment
Color
Signal
Signal Type /
brown
Signal IN (S+)
Digital IN
white
Signal GND (S-)
Digital RTN
blue
Shield

Balluff Inductive Coupler
BIC 1I12-P2A25-M30MI1-BPX05-110 (Base)
BIC 2I12-P2A25-M30MI1-BPX03-010 (Remote)
www.balluff.com
10
5 Attachment
Ordering
Information
Product Name
Item Number
BIC 1I12-P2A25-M30MI1-BPX05-110 (Base)
BIC007Z
BIC 2I12-P2A25-M30MI1-BPX03-010 (Remote)
BIC0080

www.balluff.com
www.balluff.com
Balluff GmbH
Schurwaldstrasse 9
D-73765 Neuhausen a.d.F.
Germany
Phone [phone]
Fax [phone]
[email protected]
No. 939250-726 EN •02.130491 •Edition K20 •Replaces Edition D18 •Subject to modification
