Bambi HT3 Service manual

HT Range Operators Handbook
HT & HTS models
Covering Models:-
BAMBI AIR COMPRESSORS LTD
152 Thimble Mill Lane
Heartlands
Birmingham
B7 5HT
Tel: 0121 322 2299
Fax: 0121 322 2297
Email: sales@bambi-air.co.uk
www.bambi-air.co.uk
HT3
HT15
HT24
HT3-2P
HT15-2P
HT24-2P
HTS5

Operating Manual
Your Bambi Air Compressor is a precision engineered product.
By following these simple steps you will ensure years of trouble free use.
Parts & Service are available from your Bambi dealer.
It is important to quote Model, Type & Serial Number in all communications.
The substitution of parts not manufactured nor approved by Bambi can impair
performance, service life and create potential mechanical or personnel hazards and
will invalidate your warranty.
Bambi reserves the right to modify the contents of this operating booklet without
notice and the information is in no way binding on the company.
Warranty
Provided the operating instructions have been followed, and the compressor has
been properly maintained, Bambi HT compressors are guaranteed against faulty
workmanship for a period of 1 year.
The air receiver is guaranteed for 5 years.
The guarantee does not cover damage by misuse, incorrect parts or service.
Contact Bambi Air Compressors or your retailer for further information.

1) Safety Precautions
What you must do:
• Read these instructions before using
your air compressor.
• Ensure the compressor has been
installed, electrically connected
and piped in by a properly qualified
person.
• Ensure the compressor is kept upright
at all times.
What you must not do:
• Do not attempt any maintenance on the
compressor until it has been isolated
from the power supply.
• Do not attempt any work on the
compressor until the air receiver and
pipe work systems are depressurised.
• Compressed air is dangerous if
misused and can prove fatal. Avoid
any bodily contact with compressed
air.
• During operation the motor will become
quite hot to the touch. Avoid contact
to prevent burns.
• Never tamper with the pressure relief
valve.
• Never lubricate the oil free motor or
pump assembly; this will cause
severe damage.
• Never obstruct cooling fans or outlet
vents.
2) Siting The Compressor
What you must do:
• Provide adequate protection from the
weather.
• Site the compressor level in both
planes.
• Allow access for maintenance all
around the compressor.
• Site in a dry area, avoiding damp or
humid conditions. The site must be
dust free, well ventilated and have a
cool ambient temperature. 0 to 40°C
should be regarded as the minimum
and maximum allowable ambient.
What you must not do:
• Enclose the compressor or allow hot
air generated by the motor to re-
circulate around the compressor.
Ensure there is 30cm clearance
around the compressor
• Restrict air flow around the end cover
ventilation grilles.
Important !
These compressors generate heat.
Never restrict any of the ventilation grilles
otherwise serious damage may occur.
Electrical Connections
Where applicable, compressors are supplied with a moulded plug in accordance with
national standards.
Never remove the moulded plug.
110v/60Hz models wired in accordance
with US Standard –
White = neutral
Black = live,
Yellow = earth
220v/50Hz models wired in accordance
with European Standard –
Blue = neutral
Brown = live,
Yellow & Green Stripe = earth
1

Operation
Starting & Stopping
Plug the compressor into an outlet socket of nominal voltage.
All models other than HTS5
Switch the compressor on using the red button on top of the pressure switch.
The compressor will start running and automatically switch off at the preset pressure.
HTS5
Switch the compressor on by turning the red off/auto switch on the front of the case to
auto.
As air is used the pressure drops and the motor will restart at the preset pressure.
Approx 2 Bar differential.
Note!
Each time the compressor switches off, you will hear a short hiss of air. You are
hearing the unloader valve discharging the residual delivery pipe pressure.
This is normal.
Adjusting Outlet Pressure
Use the pressure regulator to adjust the outlet pressure.
To increase line pressure, rotate the black knob [red on HT3 and HTS5] in a clockwise
direction; to decrease turn anti clockwise. On some models it is possible to lock the
setting by pushing the knob down until it “clicks” home.
On some models there are two pressure gauges.
The larger gauge indicates the air receiver pressure, the smaller gauge indicates the
air outlet pressure.
The pressure gauge on the HT3 and HTS5 indicates the air outlet pressure.
NOTE!
NEVER unplug the compressor when running. Always switch off using the red
button on the pressure switch or case to ensure the compressor discharges.
Failure to do so will cause damage and will invalidate your warranty.
2

Routine Maintenance
Refer to preventative maintenance section for frequency. [Page 4]
Draining the Air Receiver
Drain water condensate from air receiver at a pressure of no more than 2 Bar.
Slowly open the drain tap provided to allow water to flow out.
Close drain tap when all water has drained off.
The drain tap for the HTS5 is situated on the underside of the case.
Draining the Filter/Regulator Unit
(where fitted)
Slowly open the drain screw provided to allow water to flow out.
Close drain screw when all water has drained off.
Note !
Waste water condensate must be handled in accordance with national environmental rules.
Check Pressure Relief Valve
Ensure the air receiver is not pressurised.
Unscrew the knurled end of the pressure relief valve until an audible “click” is heard.
Retighten without using excessive force.
The pressure relief valve on the HTS5 can be accessed by removing the case.
Note !
Isolate power supply before removing case.
Technical
We recommend the compressor has a maximum 50% duty cycle to prolong pump life.
Note !
The motor must never be allowed to run continuously otherwise it will overheat and
may become damaged.
Do not ignore air leaks. All air connections must be leak free to prevent the
compressor from over heating.
The compressor is fitted with a thermal overload. In the event of excessive
temperature, the motor will switch off. After about 50 minutes when the motor has
cooled it will automatically reset.
You must find the cause of the overload and rectify this before continuing to use the
compressor.
Check for -
• Drain tap not closed properly
• Air leaks on the pneumatic fittings
• Compressor not the correct size for the work load
• Cooling fan cover vent restricted
If problems persist contact your dealer.
3

Technical Specification
HT Pump Specification 220v 110v
Motor Kw / Hp 0.55 / 0.75 0.55 / 0.75
Voltage 220/240 110
Frequency Hz 50 60
RPM 1400 1700
Displacement l/min 105 125
HT-2P Pump Specification
Motor Kw / Hp 0.55 / 0.75 0.55 / 0.75
Voltage 220/240 110
Frequency Hz 50 60
RPM 2800 3300
Displacement l/min 144
HTS Pump Specification
Motor Kw / Hp 0.55 / 0.75
Voltage 220/240
Frequency Hz 50
RPM 1400
Displacement l/min 105
Preventative Maintenance
Operation Daily Weekly Annually 2 Years 5 Years
Drain Air Receiver •
Replace Air Intake Filter •
Check Pressure Relief Activation •
Clean Ventilation Grilles •
Check Piston Ring •
Above are to be considered minimum frequency
175
4

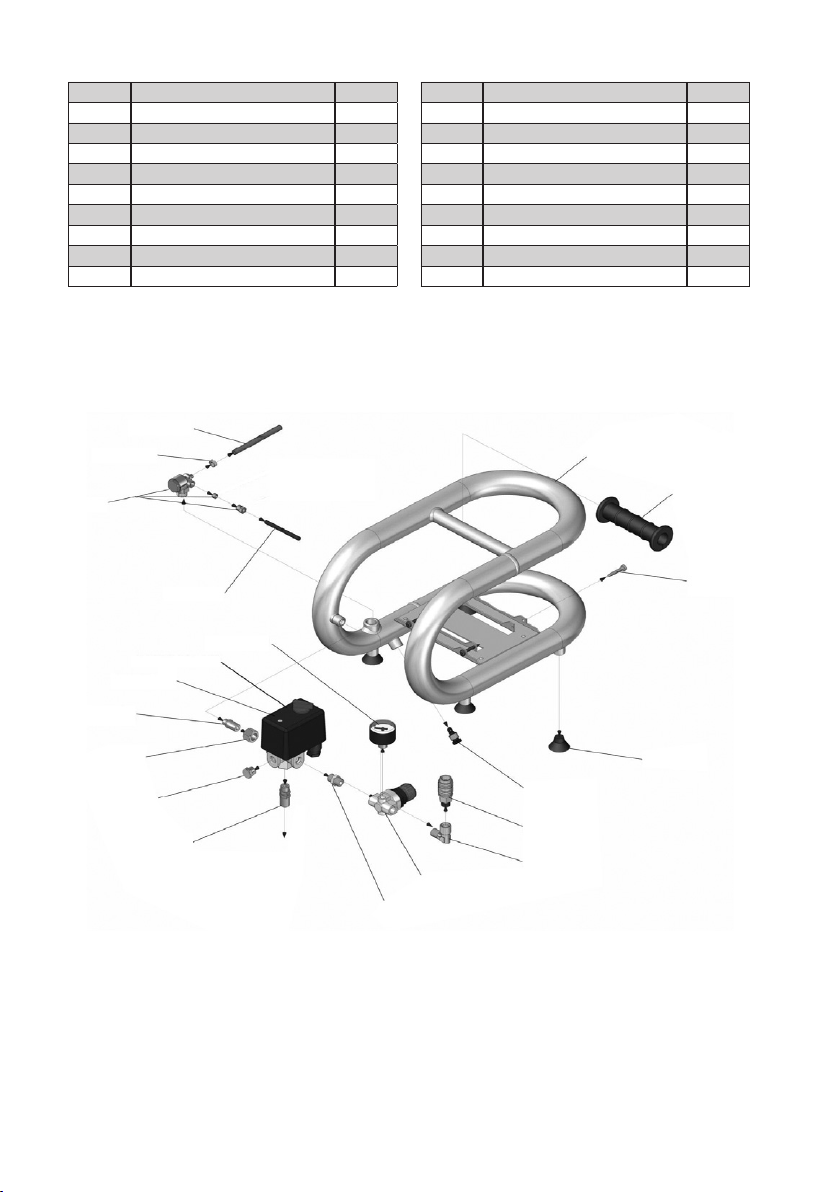

HT3 Vessel spares
Ref No. Description Part no.
1 Nylon Tube [Red] BPB1181
2 Tube Clamp BPB1153
3 Non-Return Valve BPB0964
4 Nylon Tube [Blue] BPB1180
5 Pressure Gauge BPB1077
6 Pressure Switch BPB0997
7 Adaptor BPB1179
8 Nut BPB1178
9 Plug BPB0019
10 Safety Valve BPB1084
11 Nipple BPB1078
12 Regulator BPB1157
13 Elbow BPB1139
14 Quick Release Coupling BPB1156
15 Drain Tap BPB1177
16 Rubber Foot BPB0996
17 Screw BPB0891
18 Rubber Handle BPB1176
19 3-Litre Vessel BPB1175
1
3
5
7
8
9
13
12
14
15
16
17
18
19
2
6
4
11
10
5

Ref No. Description Part no.
1 Pressure Switch BPB1074
2 Safety valve BPB1084
3 1/4BSP Adaptor BPB1078
4 Filter/Regulator - 10 micron BPB1080
5 40mm Pressure gauge BPB1077
6 50mm Pressure gauge BPB1081
7 1/4BSP MFM T piece BPB1095
8 On/off valve BPB1079
9 1/4BSP MF elbow BPB1139
10 1/4BSP MM elbow BPB0448
11 200mm delivery pipe BPB0879
12a Oil-free pump 240v BPB0883
12b Oil-free pump 2P 240v BPB0884
12c Oil-free pump 110v BPB0970
12d Oil-free pump 2P 110v BPB0971
13 HT 15 Tank assembly
HT 24 Tank assembly
BPB0470
BPB0472
14 Drain tap, tube and clamp BPB1138
15 1/4BSP MF elbow BPB1139
16 1/4BSP Non-return valve BPB1086
17 T-piece MFF BPB1109
18 1BSP Inspection plug BPB0243
19 Inspection plug seal BPB0502
20 1/4BSP M Push-in tube fitting BPB0043
21 6mm Black nylon tube BPB0203

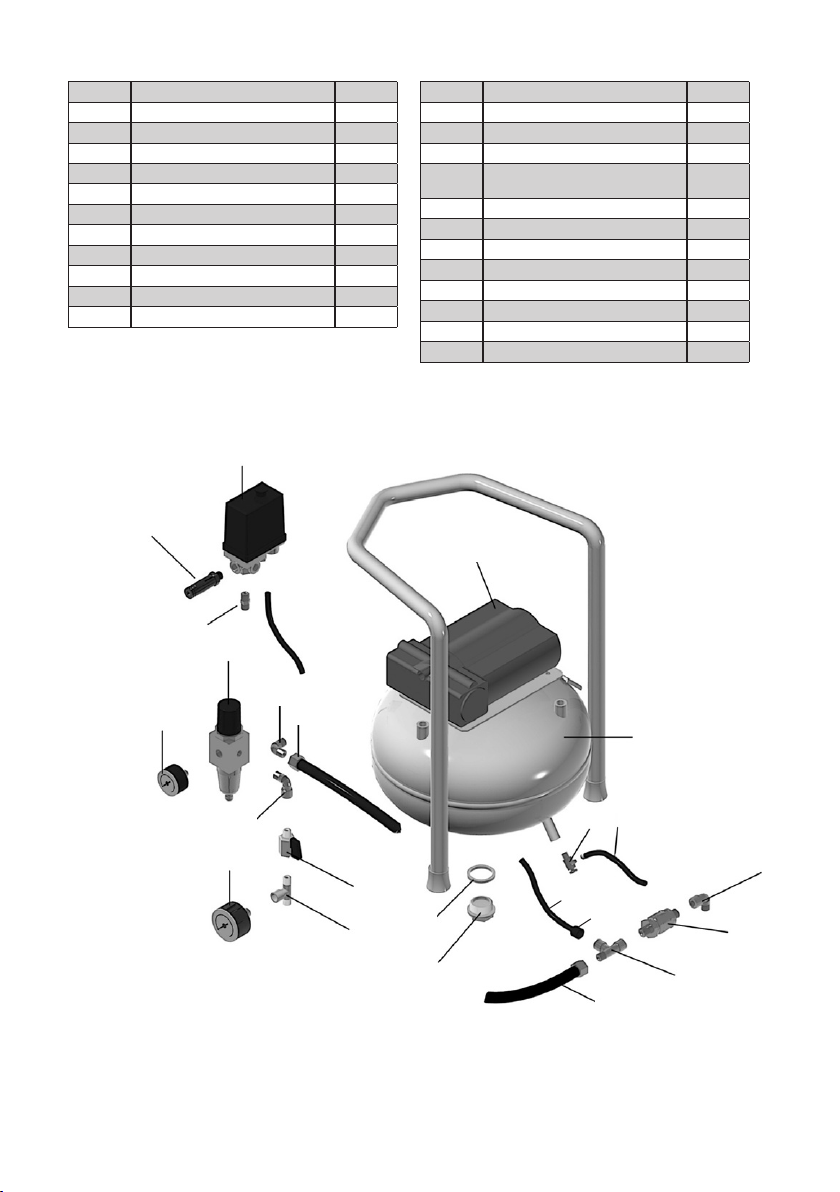

HT15 and 24 spares
1
3
5
7
8
9
11
13
12
14
15
16
17
18
19
2
10
6
4
11
20
21
6

HTS Cabinet spares
Ref No. Description Part no.
1 Nut BPB1171
2 Mounting Plate BPB0898
3 Anti-Vibration Mount BPB1172
4 Acoustic Foam Base BPB1169
5 Acoustic Foam Base BPB1168
6 Nut BPB1167
7 Base Panel [Black] BPB1166
8 Rubber Foot BPB1165
9 Washer BPB1164
10 Screw BPB1163
11 Tube Fitting BPB1158
12 Pressure Gauge BPB1077
13 Regulator BPB1157
14 Elbow BPB1139
15 Quick Release Coupling BPB1156
16 Nylon Tube [Blue] BPB1159
17 Nylon Tube [Red] BPB1155
18 Tube Clamp BPB1153
19 Reducer BPB1154
20 Tee Piece BPB1109
21 Safety Valve BPB1084
22 Elbow BPB0952
23 Tube Clamp BPB1153
24 Nylon Tube [Nat.] BPB1152
25 Pressure Switch BPB0997
26 Plug BPB0019
27 Nut BPB1151
28 Acoustic Foam Top BPB1150
29 External Top Panel [White] BPB1149
30 Screw BPB1148
31 Screw BPB1147
32 Handle BPB1182
33 Screw BPB1174
34 Screw BPB1173
35 5-Litre Vessel [Black] BPB1162
36 Drain Tap O Ring BPB1161
37 Drain Tap BPB1160
38 Non-Return Valve BPB0964
39 Threaded Washer BPB1170
1
3
5
7
8
910
11
13
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37 38
39
2
4
6
1
31
1
7

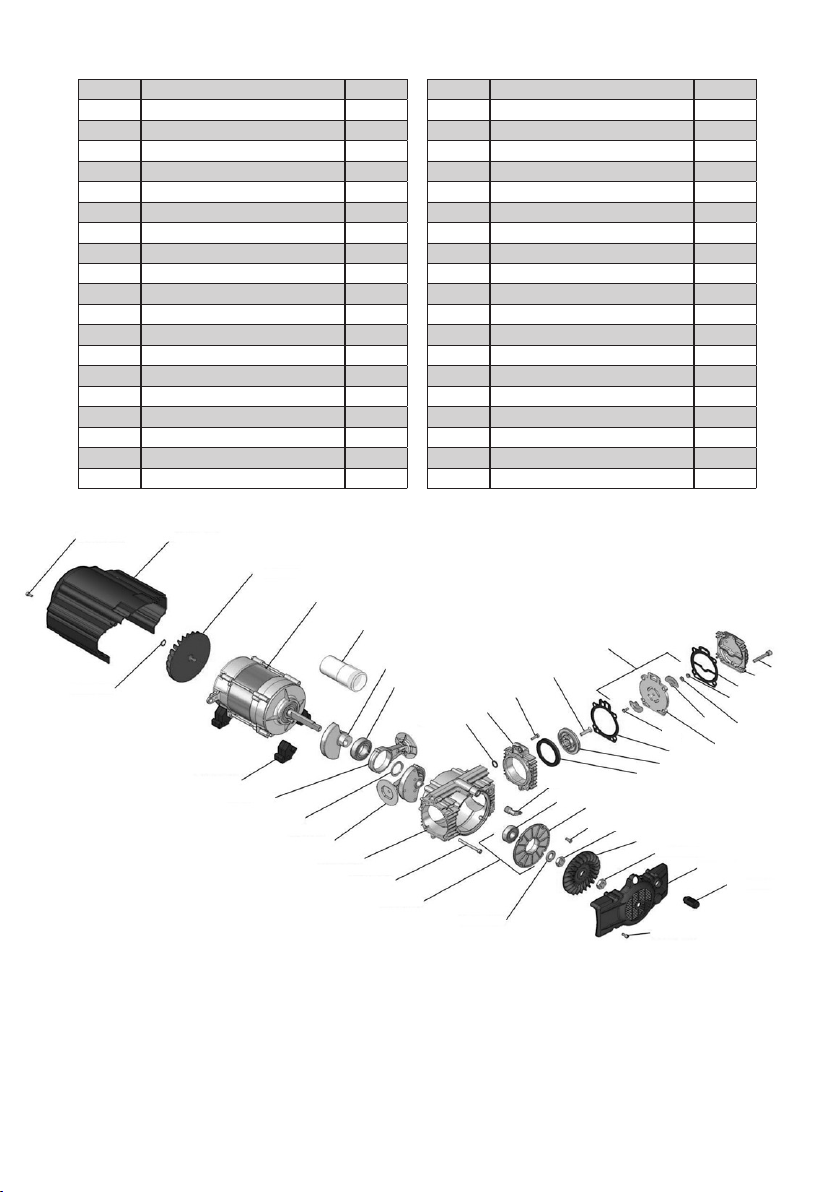

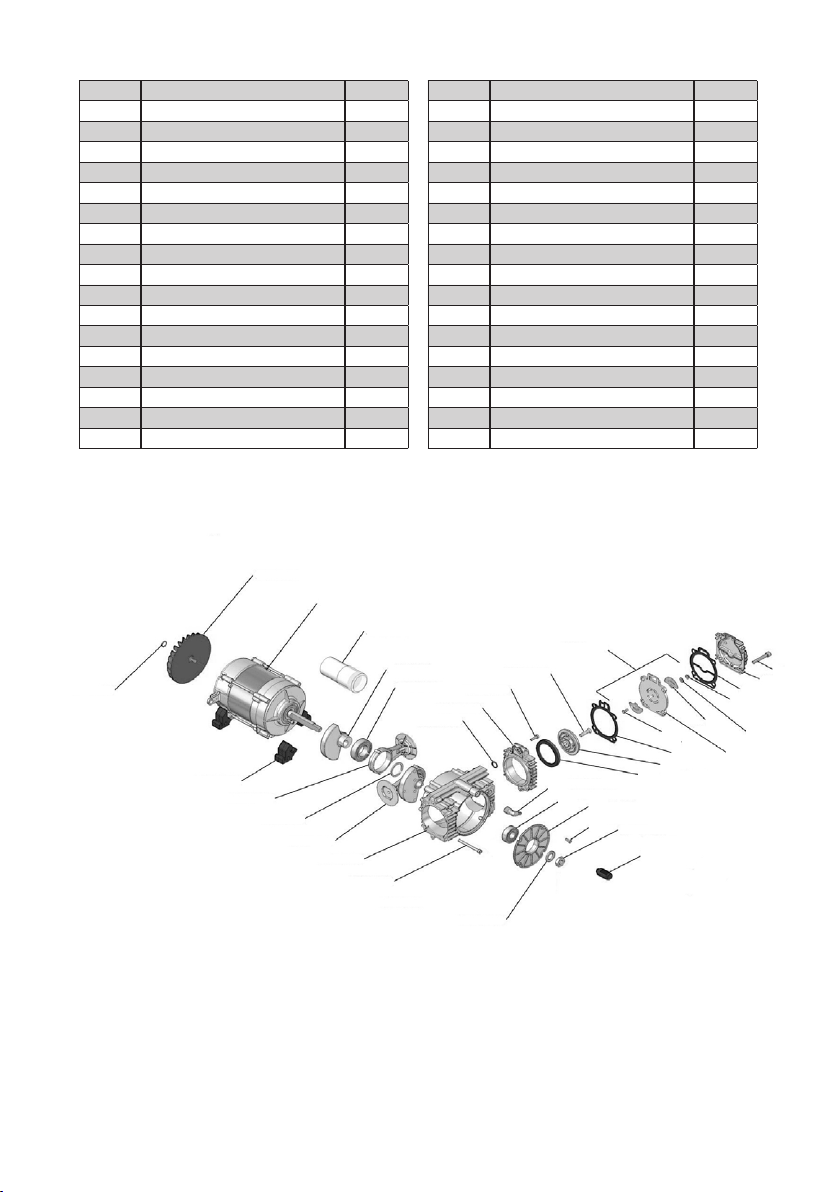

HT Pump spares
Ref No. Description Part no.
1 Screw BPB0962
2 Fan/Motor cover - black BPB0930
3 Circlip BPB0929
4 Motor Fan BPB0928
5 Motor N/A
6 Capacitor 20mfd BPB0927
7 Crank BPB0931
8 Con Rod bearing BPB0932
9 Anti-Vibration mount BPB0926
10 Con Rod BPB0933
11 Washer BPB0934
12 Con Rod [complete] BPB0935
13 Crankcase BPB0963
14 Bolt BPB0954
15 Washer BPB0957
16 O Ring BPB0936
17 Cylinder BPB0937
18 Cylinder screw BPB0938
19 Screw - Piston Top BPB0940
20 Valve Plate [complete] BPB0946
21 Cylinder Head Bolt BPB0951
22 Cylinder head BPB0950
23 Cylinder Head Gasket BPB0949
24 Valve Plate Nut BPB0683
25 Valve Plate Washer BPB0684
26 Valve outlet BPB0944
27 Valve Plate only BPB0945
28 Valve Plate bolt BPB0687
29 Valve Plate Gasket BPB0942
30 Piston Top BPB0941
31 Piston Seal BPB0623
32 Elbow BPB0952
33 Bearing BPB0953
34 Flange BPB0955
35 Bolt BPB0956
36 Nut BPB0958
37 Air Intake Filter BPB0961
38 Pump fan BPB0959
39 Pump fan cover BPB0960
3
5
6
7
8
9
11
13
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
34
35
36
4
10 33
12
36 38
39
37
1
8

HTS Pump spares
Ref No. Description Part no.
1 Circlip BPB0929
2 Motor Fan BPB0928
3 Motor N/A
4 Capacitor 20mfd BPB0927
5 Crank BPB0931
6 Con Rod bearing BPB0932
7 Anti-Vibration mount BPB0926
8 Con Rod BPB0933
9 Washer BPB0934
10 Con Rod [complete] BPB0935
11 Crankcase BPB0963
12 Bolt BPB0954
13 Washer BPB0957
14 O Ring BPB0936
15 Cylinder BPB0937
16 Cylinder screw BPB0938
17 Screw - Piston Top BPB0940
18 Valve Plate [complete] BPB0946
19 Cylinder Head Bolt BPB0951
20 Cylinder head BPB0950
21 Cylinder Head Gasket BPB0949
22 Valve Plate Nut BPB0683
23 Valve Plate Washer BPB0684
24 Valve outlet BPB0944
25 Valve Plate only BPB0945
26 Valve Plate bolt BPB0687
27 Valve Plate Gasket BPB0942
28 Piston Top BPB0941
29 Piston Seal BPB0623
30 Elbow BPB0952
31 Bearing BPB0953
32 Flange BPB0955
33 Bolt BPB0956
34 Nut BPB0958
35 Air Intake Filter BPB0961
1
3
4
5
6
7
9
11
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
32
33 34
35
2
831
9

Issue 1: 11/12
10
This manual suits for next models
6
Table of contents
Other Bambi Air Compressor manuals
Popular Air Compressor manuals by other brands

Sullair
Sullair ES-6 5H Operator's manual and spare parts list

Ingersoll-Rand
Ingersoll-Rand CENTAC Series troubleshooting guide

ULTIMATE SPEED
ULTIMATE SPEED UMK 10 C2 Operation and safety notes translation of the original instructions

Embraco
Embraco Scroll SE6015GS-O installation instructions

Makita
Makita MAC2400 owner's manual

Parkside
Parkside PKO 270 A1 Operation and safety notes
