MD R a n g e O p e r a t o r s H a n d b o o k
Covering
Models:-
MD35/20
MD75/80
MD75/150
MD75/150V
MD75/250
MD75/250V
MD150/500
MD225/1000

Operating Manual
Your Bambi Air Compressor is a precision engineered product.
By following these simple steps you will ensure years of trouble free use.
Parts & Service are available from your Bambi dealer.
It is important to quote Model, Type & Serial Number in all communications.
The substitution of parts not manufactured or approved by Bambi can impair
performance, service life and create potential mechanical or personnel hazards and
will invalidate your warranty.
Bambi reserves the right to modify the contents of this operating booklet without
notice and the information is in no way binding on the company.
Warranty
Provided the operating instructions have been followed and the compressor has been
properly maintained Bambi compressors are guaranteed against faulty workmanship
for a period of 1 year.
The air receiver is guaranteed for 5 years.
The guarantee does not cover damage by misuse, incorrect parts or service.
Contact Bambi Air Compressors or your retailer for further information.

1
Safety Precautions
What you must do
Read these instructions before using
your air compressor.
Ensure the compressor has been
installed, electrically connected
and piped in by a properly qualified
person.
Ensure the compressor is kept
upright at all times.
What you must not do
Do not attempt any maintenance
on the compressor until it has been
isolated from the power supply.
Do not attempt any work on the
compressor until the air receiver
and pipe work systems are
depressurised.
Compressed air is dangerous if
misused and can prove fatal. Avoid
any bodily contact with compressed
air.
During operation the motor will
become quite hot to the touch.
Avoid contact to prevent burns.
At no time must the oil temperature
be allowed to exceed 100°C.
Never tamper with the pressure relief
valve.
Never change the oil when the
compressor is still warm. Take
necessary precautions to avoid
contact with the skin.
•
•
•
•
•
•
•
•
•
Bambi SB42/46 compressor oil does not
contain hazardous components and is
not required to be labelled dangerous,
according to the Classification,
Packaging and Labelling of Dangerous
Substances regulation:
[CPL]Regulation 1984
Siting The Compressor
What you must do
Provide adequate protection from
the weather.
Site the compressor level in both
planes.
As larger models are heavy, ensure
the surface has sufficient load
bearing capacity.
Allow access for maintenance all
around the compressor.
Site in a dry area, avoiding damp or
humid conditions. The site must be
dust free, well ventilated and have
a cool ambient temperature. 35°C
should be regarded as the maximum
allowable ambient.
What you must not do
Enclose the compressor or allow
hot air generated by the motor to re-
circulate around the compressor.
•
•
•
•
•
•
Electrical Connections
All 220/240 volt compressors, except Model 225/1000 are supplied with a moulded
plug in accordance with national standards.
Never remove the moulded plug.
Wired in accordance with European Standard –
Blue = neutral Brown = live Yellow & Green Stripe = earth
Model 225/1000 requires a dedicated 20 amp power supply.

2
Operation
Refer to exploded parts diagrams and illustrations when reading this section.
Oil level
Your Bambi compressor is shipped without oil for transit. Before use you must fill the
motor to the correct level.
Model 35/20
Remove oil filler plug - see fig 1
Pour oil into motor until correct level is reached - indicated on the oil sight glass,
approx 500cc - see fig 2
Refit the oil filler plug - but do not over-tighten.
Models 75/80 to 225/1000
Remove air intake filter housing by pulling gently out of intake tube - see fig 9
Pour oil into motor through the tube until the correct level is reached indicated on
the oil sight glass, approx 900cc - see fig 2
Refit air intake filter to intake tube
Note!
Always use Bambi SB42/46 compressor oil. Failure to do so will invalidate your warranty.
Starting & Stopping
Plug the compressor into an outlet socket of nominal
voltage and fitted with a 13amp fuse.
Note!
Model 225/1000 requires a dedicated 20 amp power supply.
Switch the compressor on using the red button on top of the pressure switch. Pull
knob up to switch on, push down to switch off – see fig 3.
The compressor will start running and automatically switch off at the preset pressure.
As air is used the pressure drops and the motor will restart at the preset pressure.
Approx 2 Bar differential.
Note!
Never tamper with the pressure switch settings, these are factory set.
Adjusting Outlet Pressure
Use the filter regulator to adjust the outlet pressure. The 40mm pressure gauge
indicates the selected pressure. To increase line pressure rotate the black knob on
top of the filter regulator in a clockwise manner, to decrease turn anti clockwise. It is
possible to lock the setting by pushing the knob down until it “clicks” home – see fig 4.
•
•
•
•
•
•
•

3
Routine Maintenance
Draining the Air Receiver
Drain condensate from air receiver at a pressure of no more than 2 Bar.
Slowly open the drain tap provided to allow water to flow out – see figs 7 & 8.
Close drain tap when all water has drained off.
Do not overtighten, this will damage the tap seal.
Automatic drains where fitted do not require draining, however the drain bottle will
require emptying.
Draining the Filter/Regulator Unit
Slowly open the drain screw provided to allow water to flow out – see fig 5.
Close the drain screw when all water has drained off.
Note !
The waste condensate must be handled in accordance with national environmental rules.
Check Pressure Relief Valve
Ensure the air receiver is not pressurised. Unscrew the knurled end of the pressure
relief valve until an audible “click” is heard. Retighten without using excessive force
– see fig 6.
Technical
The compressor has a maximum 50% duty cycle. The motor must never be allowed
to run continuously otherwise it will overheat and may become damaged.
Do not ignore air leaks. All air connections must be leak free to prevent the
compressor from over heating.
The compressor is fitted with a thermal overload. In the event of excessive
temperature the motor will switch off. After about 50 minutes when the motor has
cooled it will automatically reset.
Note !
You must find the cause of the overload and rectify this before continuing to use the
compressor.
Check for -
Drain tap not closed properly
Air leaks on the pneumatic fittings
Compressor not the correct size for the work load
•
•
•

4
Preventative Maintenance
Operation Daily Weekly Monthly Annually
Drain air receiver < 15 Litres •
Drain air receiver > 15 Litres •
Drain filter regulator •
Check oil level •
Change oil •
Replace air intake filter •
Replace filter regulator element •
Check pressure relief activation •
Above are to be considered minimum frequency
Technical Specification
Type 35 Pump Specification
Voltage 220/240 110
Motor Kw / Hp 0.37 / 0.5 0.44 / 0.5
Frequency Hz 50 60
Amps 2.4 6
Watts 340 446
Displacement l/min 50 60
FAD@ 6 Bar 33 39
Type 75 Pump Specification
Voltage 220/240 110
Motor Kw / Hp 0.5 / 0.5 0.64 / 0.5
Frequency Hz 50 60
Amps 3.6 7.8
Watts 500 733
Displacement l/min 78 94
FAD@ 6 Bar 54 64

5
Capacitor
Overload
protector
To pressure
switch
Start relay
BLACK
BROWN
BLACK
BLUE
BLACK
Wiring Diagram
75 Pump unit
Wiring Diagram
35 Pump unit

6
MD35/20
Ref No. Description Part no.
1 4 litre vessel BPB1094
2 Filter regulator BPB1080
3 Regulator gauge BPB1077
4 1/4” Male/Female elbow BPB1139
5 On/off valve BPB1079
6 1/4” Male/Female/Female Tee BPB1109
7 1/4” Male / 1/4” Male adaptor BPB1078
8 Vessel pressure gauge BPB1081
9 200mm delivery pipe BPB1102
10 250mm drain tube BPB0414
Ref No. Description Part no.
11 Non-return valve BPB1086
12 1/4”Male / 1/4” Male adaptor BPB1078
13 1/4” Drain tap BPB1138
14 Pressure switch BPB1074
15 1/4” 10 Bar relief valve BPB1084
16 Handle insert BPB0078
1
3
5
6
7
8
9
10
11
13
12
14
15
16
2
4

7
1
3
5
6
7
8
9
10 11
13
12
14
15
16
17
18
2
4
Ref No. Description Part no.
1 8 litre vessel BPB1100
2 Black round tube insert BPB0076
3 235mm Nylon syphon tube BPB0028
4 Inspection plug seal BPB0502
5 Inspection plug BPB0255
6 Drain tap BPB1138
7 250mm drain tube BPB0414
8 Pressure switch BPB1074
9 1/4” 10 Bar relief valve BPB1084
10 1/4”Male / 1/4” Male adaptor BPB1078
Ref No. Description Part no.
11 1/4”Male/Female elbow BPB1139
12 On/off valve BPB1079
13 1/4” Male/Male/Female tee BPB1095
14 Filter regulator BPB1080
15 Regulator gauge BPB1077
16 Vessel pressure gauge BPB1081
17 200mm delivery pipe BPB1102
18 Non-return valve BPB1086

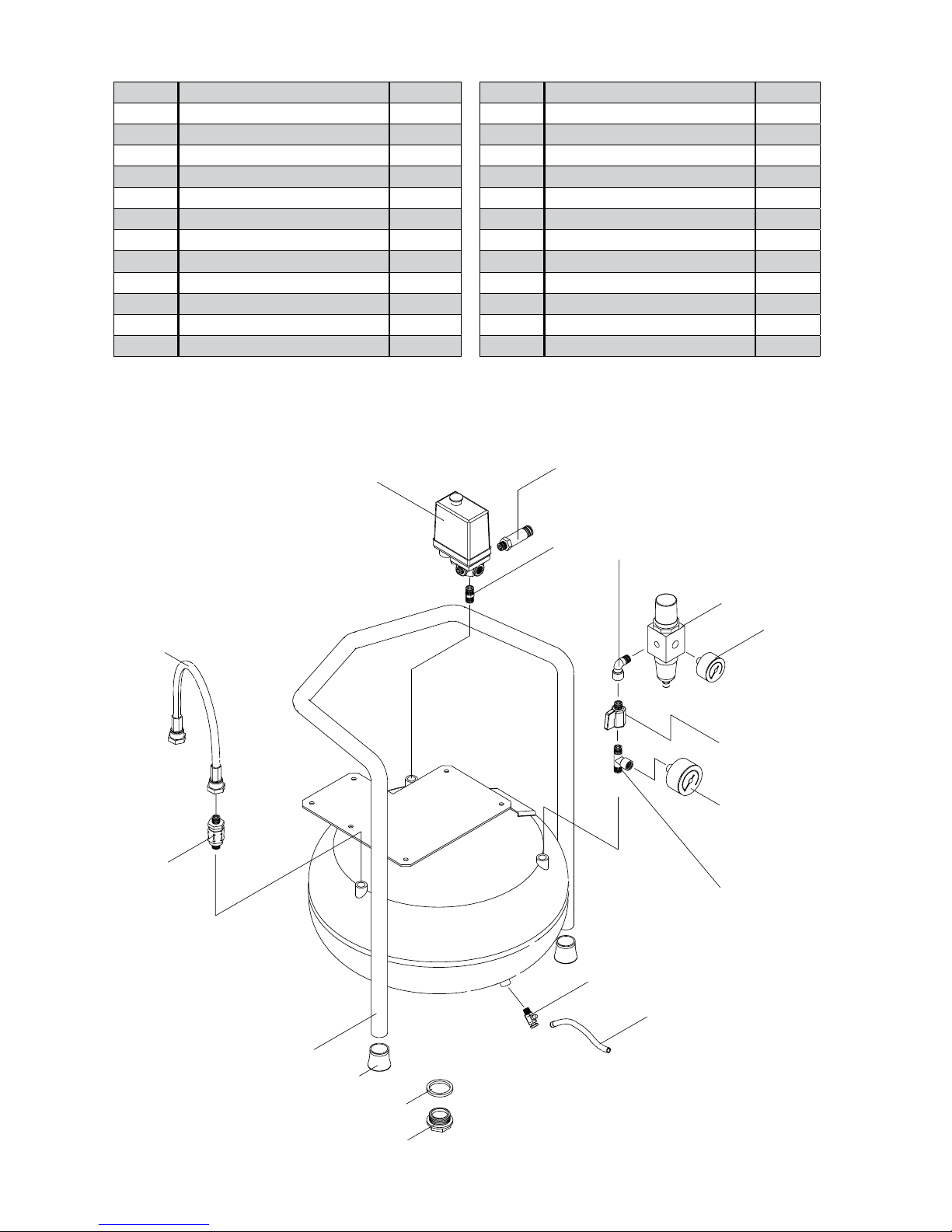

MD75/80

1
3
5
6
7
8
9
10
11
13
12
14
15
16
17
18
19
2
4
8

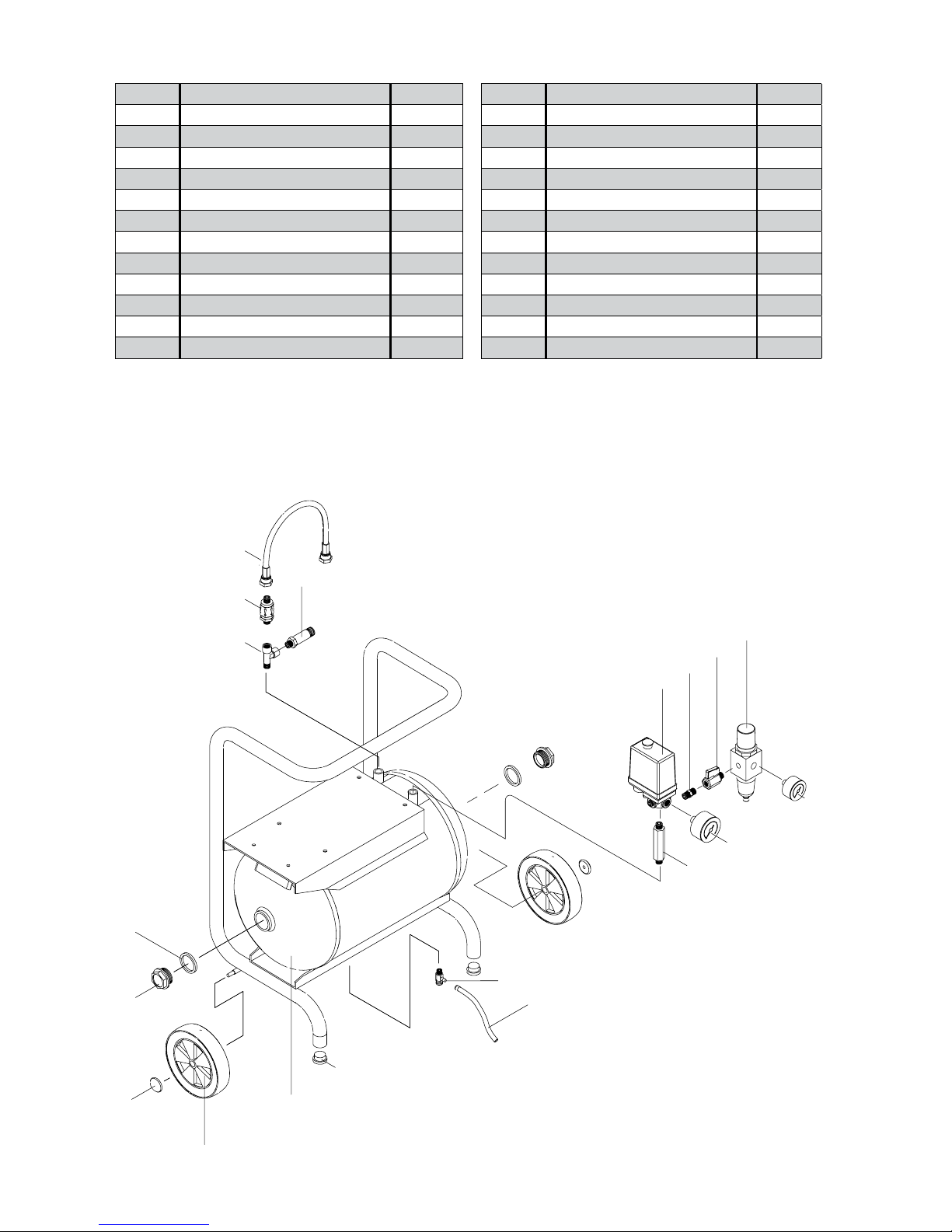

MD75/150
Ref No. Description Part no.
1 15 litre vessel BPB1099b
2 140mm wheel BPB1144
3 Starlock washer BPB1091
4 Inspection plug BPB0243
5 Inspection plug seal BPB0502
6 1/4” Male/Female/Female tee BPB1109
7 Non-return valve BPB1086
8 200mm Delivery pipe BPB1102
9 1/4” 10 Bar relief valve BPB1084
10 Pressure switch BPB1074
11 1/4” Male / 1/4” Male adaptor BPB1078
12 On/off valve BPB1079
Ref No. Description Part no.
13 Filter regulator BPB1080
14 Regulator gauge BPB1077
15 Vessel pressure gauge BPB1081
16 1/4” Extension BPB0152
17 Drain tap BPB1138
18 250mm drain tube BPB0414
19 Black round tube insert BPB0076

9
Ref No. Description Part no.
1 15 litre vessel BPB1099
2 Non-return valve BPB1086
3 500mm delivery pipe BPB1087a
4 Pressure switch BPB1074
5 1/4” 10 Bar relief valve BPB1084
6 1/4”Male / 1/4”Male adaptor BPB1078
7 1/4” Male/Female elbow BPB1139
8 Filter regulator BPB1080
9 Regulator gauge BPB1077
10 On/off valve BPB1079
Ref No. Description Part no.
11 Vessel pressure gauge BPB1081
12 1/4” Male/Male/Female Tee piece BPB1095
13 Drain tap BPB1138
14 250mm drain tube BPB0414
15 Inspection plug BPB0243
16 Inspection plug seal BPB0502
17 Rubber foot BPB0247

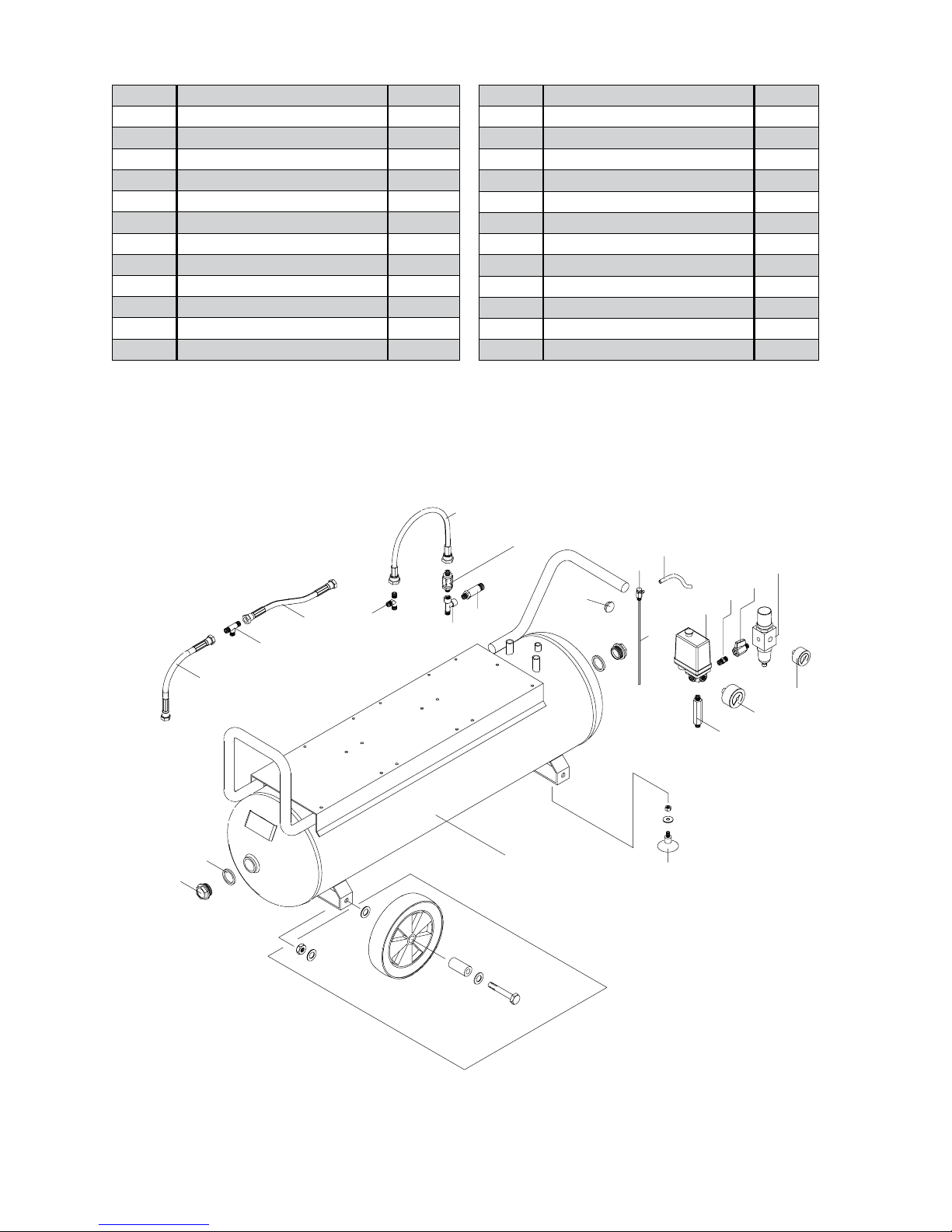

MD 75/150V
1
3
5
6 7
8
9
10
11
13
12
14
15
16
17
2
4

10
1
3
5
7
8
9
10
11
13
12
14
15
16
17
18
19
4
6
2

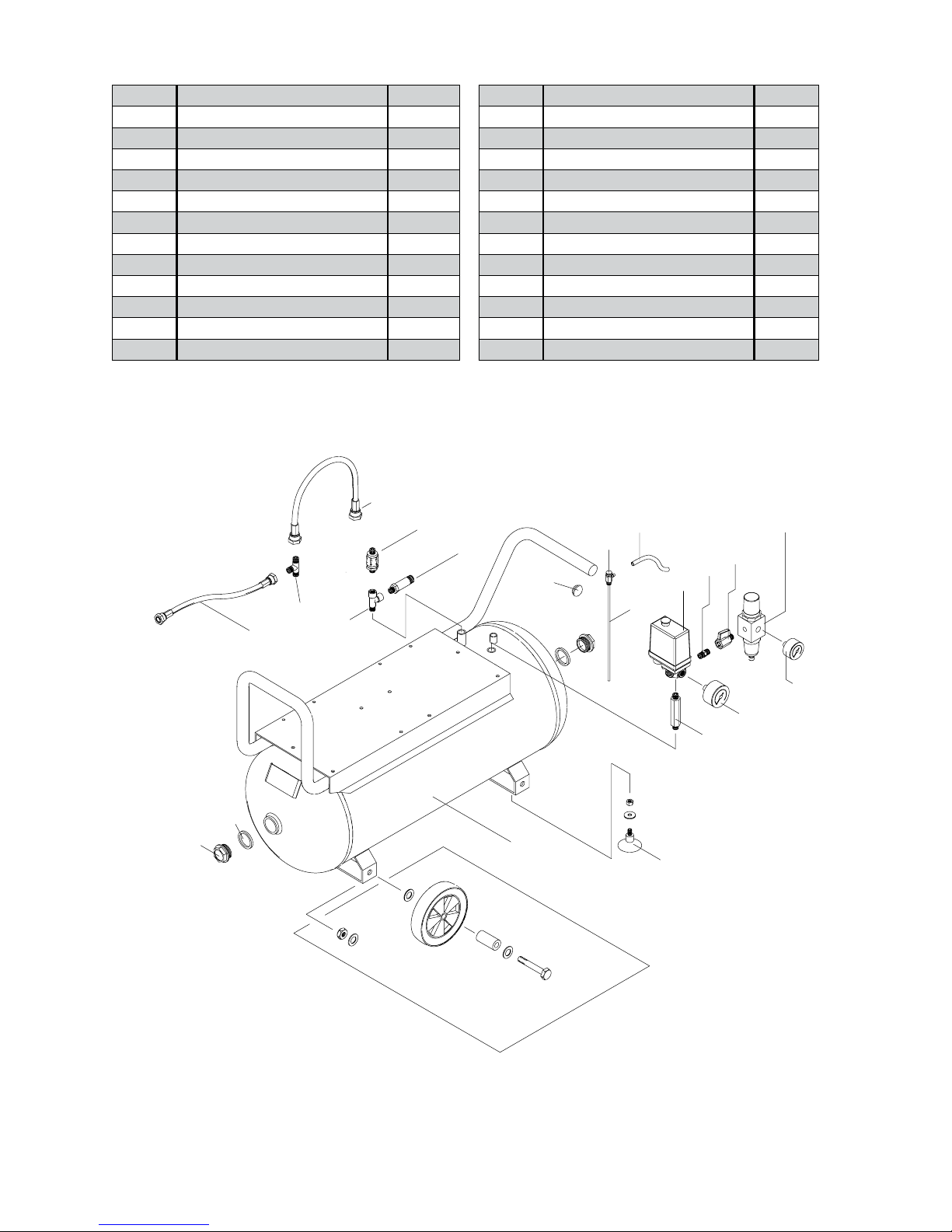

MD75/250
Ref No. Description Part no.
1 24 litre vessel BPB1088b
2 Inspection plug seal BPB0502
3 Inspection plug BPB0243
4 200mm Delivery pipe BPB1102
5 Non-return valve BPB1086
6 1/4” 10 Bar relief valve BPB1084
7 1/4” Male/Female/Female tee BPB1109
8 Handle insert BPB0076
9 Drain tap BPB1138
10 250mm drain tube BPB0414
11 Siphon tube BPB0029
12 Pressure switch BPB1074
Ref No. Description Part no.
13 1/4” Male / 1/4” Male adaptor BPB1078
14 On/off valve BPB1079
15 Filter regulator BPB1080
16 Regulator gauge BPB1077
17 Vessel pressure gauge BPB1081
18 1/4” Extension BPB0152
19 Wheel kit BPB0157
20 Wheel kit BPB0157
20

11
1
3
5
7
8
9
10
11
13
12
14
15
16
17
4
6
2
MD 75/250V
Ref No. Description Part no.
1 24 litre vessel BPB1088
2 Non-return valve BPB1086
3 500mm Delivery pipe BPB1087a
4 Pressure switch BPB1074
5 1/4” 10 Bar relief valve BPB1084
6 1/4” Male / 1/4” Male adaptor BPB1078
7 1/4” Male/Female elbow BPB1139
8 Filter regulator BPB1080
9 Regulator gauge BPB1077
10 On/off valve BPB1079
11 Vessel pressure gauge BPB1081
12 1/4” Male/Male/Female tee BPB1095
Ref No. Description Part no.
13 Drain tap BPB1138
14 250mm drain tube BPB0414
15 Rubber foot BPB0247
16 Inspection plug seal BPB0502
17 Inspection plug BPB0243

12
1
3
5
6
7
8
9
10
11
13
12
14 15 16
2
4
21
22
17
18
19
20
MD150/500
Ref No. Description Part no.
1 50 litre vessel BPB1097
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 300mm Delivery pipe BPB1087
5 1/4” Male/Female/Male tee BPB0158
6 200mm Delivery pipe BPB1102
7 1/4” Male/Female/Female tee BPB1109
8 Non-return valve BPB1086
9 1/4” 10 Bar relief valve BPB1084
10 Handle insert BPB0076
11 Drain tap BPB1138
12 250mm drain tube BPB0414
Ref No. Description Part no.
13 Siphon tube BPB0034
14 Pressure switch BPB1074
15 1/4” Male / 1/4” Male adaptor BPB1078
16 On/off valve BPB1079
17 Filter regulator BPB1080
18 Regulator gauge BPB1077
19 Vessel pressure gauge BPB1081
20 1/4” Extension BPB0152
21 Wheel kit BPB0157
22 Wheel kit BPB0157

13
1
3
5
6 7
8
9
10 11
13
12
14
15
16
23
24
2
4
21
22
17 18 19
20
MD225/1000
Ref No. Description Part no.
1 100 litre vessel BPB1105
2 Inspection plug BPB0243
3 Inspection plug seal BPB0502
4 300mm Delivery pipe BPB1087
5 1/4” Male/Male/Female tee BPB1095
6 300mm Delivery pipe BPB1087
7 1/4” Male/Male/Female tee BPB1095
8 300mm Delivery pipe BPB1087
9 Non-return valve BPB1086
10 1/4” Male/Female/Female tee BPB1109
11 1/4” 10 Bar relief valve BPB1084
12 Handle insert BPB0076
Ref No. Description Part no.
13 Drain tap BPB1138
14 250mm Drain tube BPB0414
15 Siphon tube BPB0035
16 Pressure switch BPB1074
17 1/4” Male / 1/4” Male adaptor BPB1078
18 On/off valve BPB1079
19 Filter regulator BPB1080
20 Regulator gauge BPB1077
21 Vessel pressure gauge BPB1081
22 1/4” Extension BPB0152
23 Wheel kit BPB0604
24 Wheel kit BPB0604

14
37
2
3
4
5
6
7
8
9
10
11
14
15
16
17 18
19
20
21
23 24
26
27
28
30
31
33
34
35
36
40
13
12
29
39
38
32
25
1
22
41
42
7
Motor / Pump Parts:
75 model
Ref No. Description Part no.
1 Mounting set BPB1008
2 Bottom casing BPB1011
3 Large rubber gasket BPB1007
4 Closing ring BPB1005
5 Bearing bolt BPB1025
6 Mounting spring BPB1038a
7 Delivery gasket BPB1026
8 Delivery mufflers BPB1128
9 Pressure pipe BPB0132
10 Pressure pipe bolt BPB1027
11 Pressure pipe horse shoe BPB0108
12 Stator 110v BPB0799
12 Stator 240v BPB1023
13 Stator bolt [4 off] BPB1022
14 Small rubber gasket BPB1006
15 Top casing BPB1004
16 Cylinder block BPB1012
17 Air filter BPB1003
18 Overload clip BPB1001b
19 Overload cover BPB1001b
20 Overload gasket BPB1001b
21 Overload BPB1001a
22 Con rod & washers BPB1013a
23 Split pin BPB1015
24 Gudgeon pin BPB0100
25 Con rod washers BPB0102
26 Piston rings (2) BPB1013c
27 Valve plate gasket BPB1014
28 Valve plate BPB1015
29 Cylinder head gasket BPB1016
30 Cylinder head BPB1017
31 Bottom bearing BPB1024
32 Con rod bolt BPB0103
33 Con rod & washers BPB1013a
34 Piston & rings BPB1013b
35 Cylinder head bolt [4] BPB1018
36 Sight glass BPB1009
37 Sight glass seal BPB1010
38 Electrical cabinet back BPB1002f
39 Electrical cabinet cover BPB1002e
40 Electrical cabinet BPB1002
41 Start relay 240v BPB1002a
41 Start relay 110v BPB1002d
42 Capacitor 240v BPB1002b
42 Capacitor 110v BPB1002g

15
Motor / Pump Parts:
35 model
21
23
24
26
27 28
30
31
29
32
25
2
3
4
5
67
8
9
10
11
14
15
16 17
18
19
20
13
12
1
22
Ref No. Description Part no.
1 Oil filler plug BPB0079
2 Oil filler plug seal BPB0098
3 Top casing BPB1058
4 Closing ring BPB1059
5 Sealing gasket BPB1057
6 Air intake filter BPB1003
7 Capacitor - 220/240v BPB1051
7 Capacitor - 110v BPB0137
8 Terminal box cover BPB1047
9 Terminal box cover clip BPB1048
10 Start relay - 220/240v BPB1053
10 Start relay 110v BPB0138
11 Overload 220/240v BPB1052
11 Overload - 110v BPB0139
12 Mounting set (4) BPB1055
13 Sight glass BPB1009
14 Sight glass seal BPB1010
15 Bottom casing BPB1056
16 Outlet elbow BPB0065
17 Delivery pipe gasket BPB1042
18 Delivery bolt BPB1039
19 Delivery pipe BPB1041
20 Sealing ring bolt/nut BPB1060
21 Bearing bolt (3) BPB1028
22 Bearing BPB1029
23 Gasket BPB1044
24 Mounting spring (3) BPB1038
25 Valve plate gasket BPB1033
26 Valve plate BPB1034
27 Cylinder head gasket BPB1035
28 Cylinder head BPB1036
29 Cylinder head bolt (4) BPB1037
30 Stator bolt (4) BPB1032
31 Stator - 220/240v BPB1031
31 Stator - 110v BPB0334
32 Motor block BPB1030

ON
OFF
Fig 1
Fig 3 Fig 4
Fig 5
+
_
16
“Click”
Fig 2
SB 42/46
a

Fig 6
17
Fig 6
Fig 8 Fig 9
Fig 7
“Click”
SB42/46

Issue 1: 11/06
