Band-it ZT1844 User manual

ZT1844
Model No: __________________________
Serial No: __________________________
DEALER:
Name: _____________________________
Address: ___________________________
City/State: __________________________
Phone No: __________________________
Delivery Date: _______________________
Engine Make: _______________________
Serial No: __________________________
Clutch Make: ________________________
Model: ___________ S/N _____________
Copyright 2/19
MODEL ZT1844
OPERATING & PARTS MANUAL
6750 Millbrook Rd. • Remus, MI 49340 • 1-989-561-2270
MANUFACTURED BY BANDIT INDUSTRIES, INC
PHONE: [phone]
PHONE: [phone] IN USA
FAX: [phone] ~ SALES DEPT.
FAX: [phone] ~ PARTS/SERVICE
WEBSITE: www.banditchippers.com
ATTENTION:
Depending on what replacement parts you are ordering, we will need the following information:
STUMP GRINDER COMPONENTS
Serial Number
Model Number of Stump Grinder
ENGINE COMPONENTS
Brand
Engine Serial Number
Engine Model Number

WARNING
!
ADVERTENCIA
!
Breathing diesel engine
exhaust exposes you to
chemicals known to the
State of California to cause
cancer and birth defects or
other reproductive harm.
• Always start and
operate the engine in a
well-ventilated area.
• If in an enclosed area,
vent the exhaust to the
outside.
• Do not modify or tamper
with the exhaust system.
• Do not idle the engine
except as necessary.
For more information go to:
www.P65warnings.ca.gov/diesel
Respirar gases de escape de
motores diesel le expone a
quÍmicos conocidos por el estado
de California como causales de
cáncer y defectos congénitos u
otros daños reproductivos.
Para mayor informaciÓn visite:
www.P65warnings.ca.gov/diesel
• Siempre encienda y opere el
motor en áreas bien ventiladas.
• Si está en un área cerrada,
ventile escape hacia el exterior.
• No modi que ni altere el
sistema de escape.
• No deje el motor en ralentÍa no
ser que sea necesario.
SPW-46 8/18
SPW-47 8/18
Cancer and
Reproductive
Harm
WARNING
!
ADVERTENCIA
!
Cáncer y daño
reproductivo
www.P65warnings.ca.gov
CALIFORNIA PROPOSITION 65

Copyright 2/17 FORM #WV-124

I have inspected this equipment and nd it in correct working condition. To the best of my knowledge,
the customer and his/her personnel are aware of, and agree to the above procedures.
Signed: ________________________________________________________ Date: ______________
(Dealer Representative)
The equipment has been thoroughly checked by the above named dealer representative, and I am
satised with his/her instructions. I have also read, understand, and agree to reverse side of page.
Signed: ________________________________________________________ Date: ______________
(Customer)
WARRANTY VALIDATION FORM
(STUMP GRINDER)
PURCHASER / OWNER INFORMATION:
Company Name __________________________________ Contact Name _____________________
Mailing/Street Address _______________________________________ City _______________________
State ___________________ Zip Code _______ Country ______________ Telephone Number(__) ________
E-mail ____________________________ Machine Model No. _______ Date Put Into Service ______
Machine Serial No. ____________________ Machine Work Order No. ________ Machine Hours _______
Engine Make _________________ Engine Serial No. __________________ Machine Color _______
DEALER / SELLER INFORMATION:
Dealer/Seller Name _______________________________ Contact Name _____________________
Mailing/Street Address _______________________________________ City _______________________
State ___________________ Zip Code _______ Country ______________ Telephone Number( __) ________
IMPORTANT - WARRANTY WILL BE DEEMED NULL AND
VOID IF THIS FORM IS NOT FILLED OUT COMPLETELY AND
ACCURATELY AND RETURNED TO THE CUSTOMER DATA
DEPARTMENT WITHIN 10 DAYS OF EQUIPMENT DELIVERY
1. _____ The customer has received instruction and fully understands all operational, safety and maintenance requirements
of the equipment.
2. _____ The customer has received instruction and fully understands that everyone within 100 feet of the machine must
wear proper personal safety equipment including hard hat, face shield, safety glass, gloves, ear protection and/or other
items per OSHA and ANSI requirements.
3. _____ The customer has received instruction and fully understands the equipment maintenance schedules and procedures.
The customer understands that it is their responsibility to perform scheduled maintenance that includes periodic relief valve
adjustments,retighteningallfastenersasneeded,periodiccleaningofowdivider,clutchandbeltadjustments,andotheritems.
4. _____ The customer has received instruction and fully understands not to reach near the cutter head with hands or feet
ortobelocatedneardebriseldwithenginerunning.
5. _____ The customer has received instruction and fully understands that the operators must always be located within
easy reach of all control and shut down devices.
6. _____ The customer has received instruction and fully understands to not start grinding a stump without checking for power
lines, water lines, sewer lines, phone lines, etc.
7. _____ The customer has received instruction and fully understands the purpose of and how to operate the shut
down/shut-o󰀨devices,andwillnotattempttooverrideanysafetydevicesorguards.
8. _____ The customer has received instruction and fully understands that before performing any maintenance on the
machine the ignition key must be removed, the cables must be completely disconnected from the battery, the cutter head
must have come to a complete stop, and the cutter head lock must be installed. The customer understands they must
allow the necessary time for the cutter head to come to a complete stop before opening the cutter head guard or start any
maintenance or service procedures. If applicable the customer has received instruction and fully understands the purpose
of the beltshield inspection hole and that they are never to attempt any maintenance or service procedures until visually
conrmingthebeltshavecometoacompletestop.
9. _____ The customer has received instruction and fully understands the machine is not to be operated without the factory
approved cutter head guard in place, the machine is not to be operated with any type of make shift cutter head guard, and
the machine is not to be operated under any circumstances with the cutter guard open or unsecured.
10. _____ The customer has reviewed and fully understands limited warranty, and all written and visual instructions.
11. _____ The customer has received instruction and fully understands that warranty will not apply if the machine is operated
with replacement parts or equipment not manufactured or recommended by Bandit Industries, Inc.
12. _____ The customer has received, been advised, and understands the manuals, and the Safety/Service video supplied
with the grinder. A video is supplied for equipment models as available.
13. _____ All Danger, Warning and Operational decals are properly displayed on equipment and fully understood by customer.
14. _____ The customer has been instructed, understands, and agrees that all potential operators must: See the supplied
video, be instructed on all the Danger, Warning and Operational decals, read the manual and follow the procedures.
Customer Data Department
6750 Millbrook Road
Remus, MI, USA 49340
Phone: [phone] in USA
Phone: [phone]
Fax: [phone]
Website: www.banditchippers.com

All of the employees that build your equipment strive to manufacturer the very best quality product on
themarket.Wewouldappreciateyoure󰀨ortsinlettingusknowhowwearedoing.
Wewouldlikeyoutooperateyourmachineforthirty(30)daysandthenlloutthisquestionnaireandmailittous.
This will help us to keep producing a good product and improving our products through your recommendations.
DATE PURCHASE: ______________________
MODEL: ________________________________
SERIAL NUMBER: _______________________
DEALER NAME: ________________________
_______________________________________
Copyright 4/17 FORM #Q-112
TO BE RETURNED AFTER THIRTY (30)
DAYS OF OPERATION
Please return to: Customer Data Department
6750 Millbrook Road
Remus, MI 49340
Phone: [phone] in USA
Phone: [phone]
Fax: [phone]
Website:www.banditchippers.com
STUMP GRINDER / FORESTRY MOWER
QUALITY REPORT
1. Did your machine perform to your expectations? _______________________________________
2. Was the machine delivered on schedule? _____________________________________________
3. Wasthepaintcolorandnishtoyoursatisfaction?______________________________________
4. Was machine equipment as ordered? ________________________________________________
5. Did all welds appear to be high quality? ______________________________________________
6. Was the overall machine to your liking? ______________________________________________
7. What problems have you experienced? ______________________________________________
8. Have any components regularly loosened that caused problems? __________________________
9. Does the hydraulic system seem to have adequate power? ______________________________
10. Is the machine manufactured to accommodate service in an adequate manner? If not, please explain:
_______________________________________________________________________________
11. General comments and/or suggestions: ________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
12. Would you like to be contacted concerning more of our equipment? ________________________
YOUR COMPANY: ________________________________
NAME: __________________________________________
ADDRESS: ______________________________________
CITY: ___________________________________________
STATE & ZIP: _____________________________________
PHONE: ( ____ ) _________________________________
E-MAIL: _________________________________________


Bandit
1Copyright 12/18
MODEL ZT1844 TABLE OF CONTENTS
TABLE OF CONTENTS
ANY PART, PORTION, DESIGN, NUMBER, SPECIFICATION, AND/OR DIMENSION IN THIS
MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE BY THE MANUFACTURER.
NOTICE
PAGE
INTRODUCTION & WARRANTY........................................................... 2

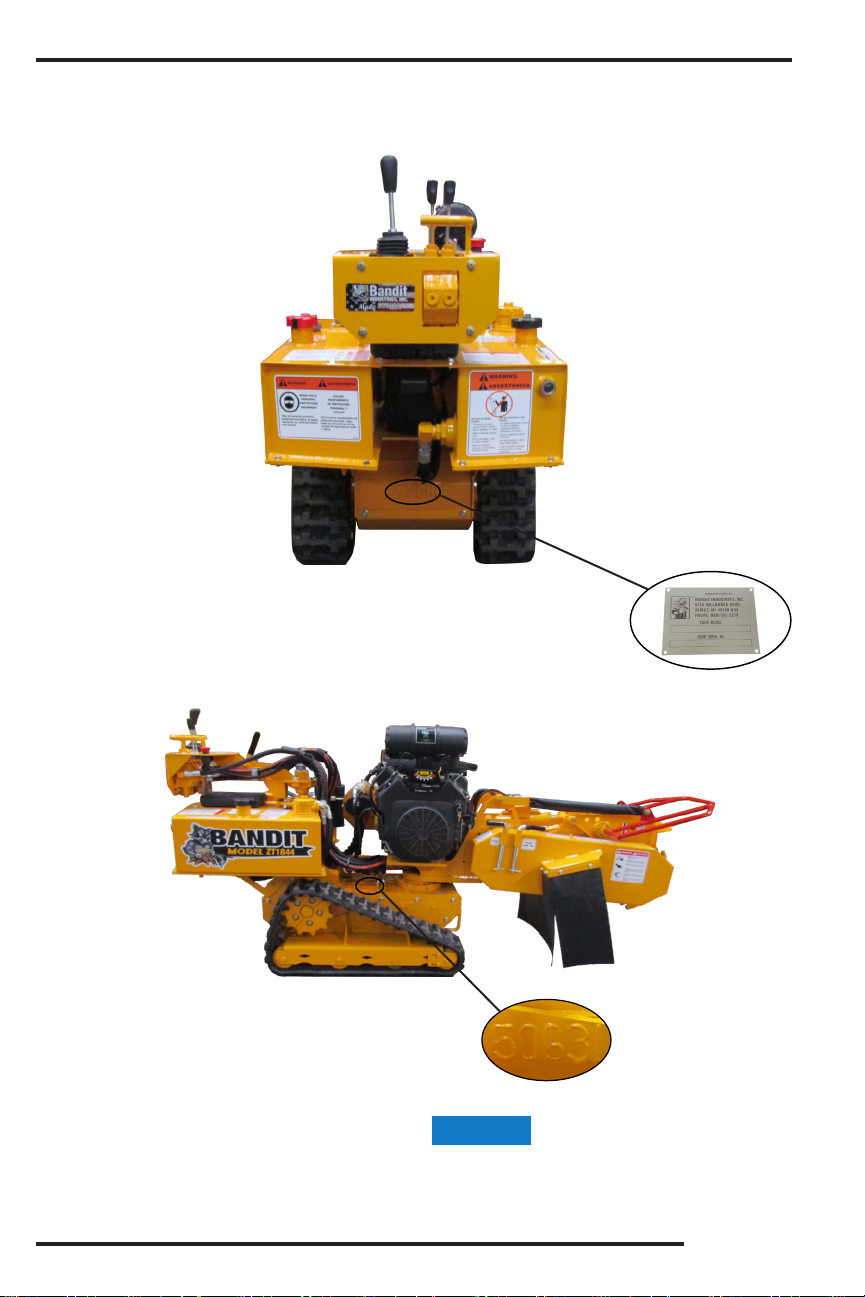

SERIAL NUMBER LOCATIONS............................................................ 6
SAFETY PROCEDURES........................................................................ 7

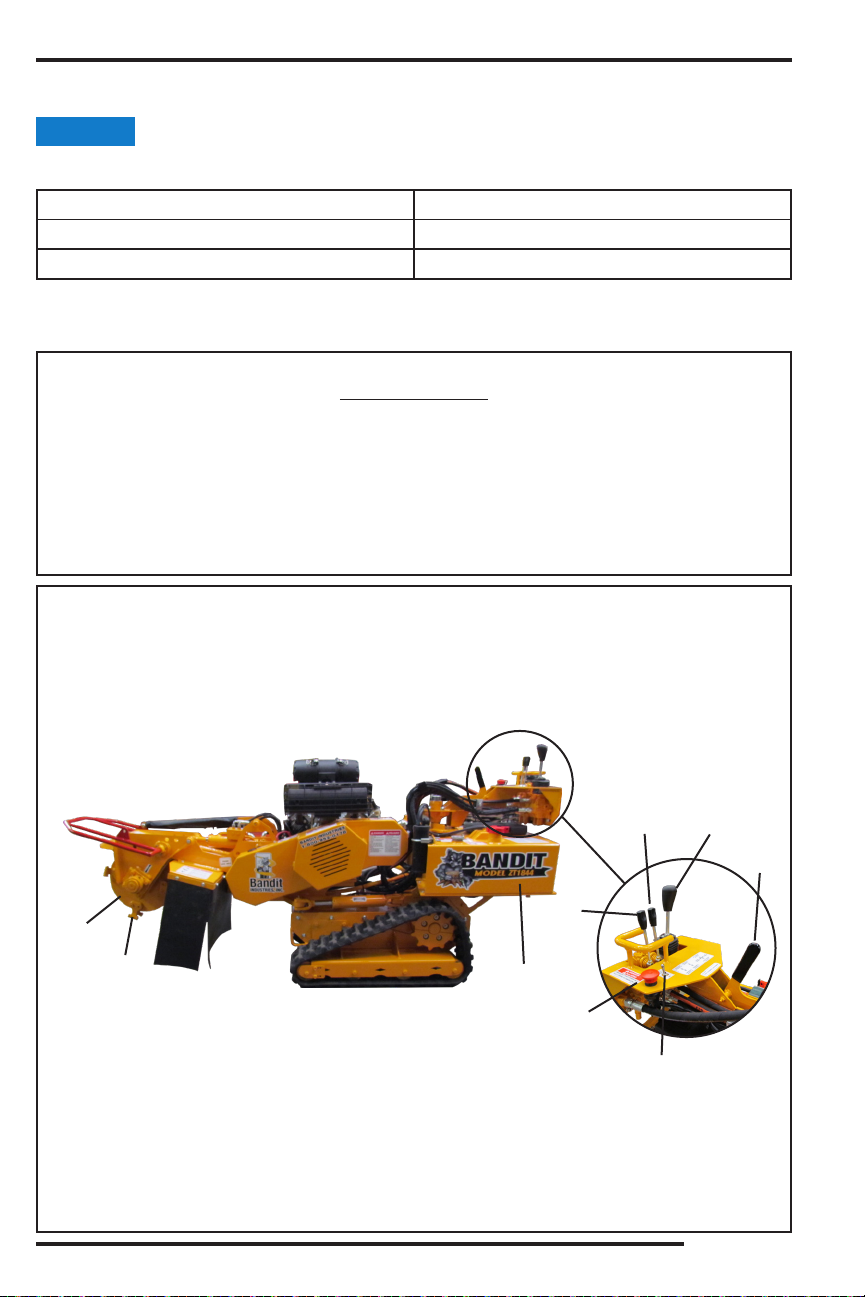

EQUIPMENT SPECIFICATIONS ........................................................... 12
DECALS................................................................................................... 13
CONTROLS............................................................................................. 17
MACHINE OPERATION ......................................................................... 22
TRANSPORTATION PROCEDURES.................................................... 24
MAINTENANCE ...................................................................................... 26
HYDRAULICS ......................................................................................... 38
ELECTRICAL .......................................................................................... 46
REPLACEMENT PARTS........................................................................ 47
ENGINE SIDE COMPONENTS ...................................................... 48
CUTTER WHEEL SIDE COMPONENTS ....................................... 50
FRAME COMPONENTS.................................................................. 52
SWING OUT & TANK COMPONENTS .......................................... 54
CUTTER WHEEL BAR COMPONENTS........................................ 56
SERVICE RECORD ................................................................................ 57
OGURA CLUTCH MANUAL .................................................................. 59

Bandit
2
Copyright 12/18
INTRODUCTION
Thepurposeofthismanual is toprovidetheuserwith specicationsandproceduresfor the
operation, maintenance and repair of this BANDIT product. As with any piece of equipment, safety
should always be a constant thought while the machine is being operated, serviced or stored.
In order to highlight this consideration, the material which addresses safety is proceeded by the
following signal words:
The equipment is designed and manufactured in accordance with the latest product industry
standards. This alone does not prevent injury. It is the operator’s responsibility to use good
judgement and follow the warnings and instructions as indicated in this manual, on the machine
and follow all safety standards per ANSI and OSHA instructions.
Improper use of the product can result in severe personal injury. Personnel using the equipment
mustbequalied,trainedandfamiliarwiththeoperatingproceduresasdenedinthismanual,
prior to operating the product.
It is the responsibility of the owner or employer to ensure that the operator is trained and practices
safe operation while using and servicing the machine. It is also the owner’s responsibility to provide
and follow a regularly scheduled preventative maintenance and repair program on the product,
usingonlyfactoryapprovedreplacementparts.Anyunapprovedrepairsormodicationsmay
not only damage the machine and its performance, but could result in severe personal injury.
Unapprovedrepairsormodicationswillvoidwarrantyandeliminatemanufacturerofanyliability
claims. Consult the equipment manufacturer with any questions.
Each machine is shipped with a manual, a customer’s check sheet on the product, and any
available parts & service manuals on component parts not produced by this manufacturer.
Additional copies of these manuals and check sheets can be purchased from the manufacturer,
or through the dealer. Engine parts, service and maintenance manuals MUST be purchased
through the engine manufacturer or their dealer.
TheproducerofthisBanditproductreservestherighttomakeanymodicationsorrevisionsto
thedesignorspecicationsofitsmachinewithoutadvancenotice.Theproduceralsoreserves
the right to change machine and part prices as needed without advance notice.
NOTICE
WARNING
!
WARNING
!
Signal Word Likelihood of Occurrence Degree of Potential
Injury or Damage
Will occur if warning is ignored
Can occur if warning is ignored
Will or can occur if warning is ignored
Important, but not hazard related
Severe
Minor
Minor to Severe
Severe
CAUTION
!
NOTICE
DANGER
!
WARNING
!
INTRODUCTION & WARRANTY

Bandit
6
Copyright 12/18
MODEL ZT1844
TYPICAL SERIAL NUMBER AND/OR
WORK ORDER NUMBER LOCATIONS
1. W/O # on top of frame.
2. S/N in between the tracks on the frame. The engine information is located on the
engine block.
SERIAL NUMBER LOCATIONS
NOTICE
2
1

Bandit
7Copyright 12/18
MODEL ZT1844
Before starting the machine, take a minute to
check a few things. The grinder should be in an
area restricted from people passing by. This area
around the grinder must be free of all objects that
can obstruct your movement when working with the
grinder. The machine should be checked for loose
tools or foreign objects, especially in the grinding
area. All tools not in use should be secured in a tool
box.
The words Danger, Warning, Caution,
and Notice are used on the safety decals and
throughout this manual, to make you aware of the
safety procedures. These procedures are very
important, read and obey them.
YOUR SAFETY IS VERY IMPORTANT TO US!
This machine is equipped with safety decals,
guards and designs for your protection.
Don’t ever take the machine for granted, always be
cautious and careful when operating your equipment.
Read and follow all the instructions in your
manual thoroughly. Your safety is dependent on
your knowledge of how to operate and maintain this
machine. You may obtain additional copies of this
manual from your Bandit Dealer.
Before operating machine, you must have all
potentialoperators;readandunderstandmanuals
and decals, watch the video and follow the
recommendations.
Regardless of how hard a manufacturer tries to
produce a safe machine, accidents still happen.
Normally accidents are caused by people making
mistakes. They do not read the manual, they ignore
warning decals or do not use lockouts provided for
their safety. This normally happens after the person
has become accustomed to the machinery. In the
initial start up and operation of the machinery, they
are cautious, they are very careful because they do
not understand the machine.
This equipment is intended for use by adults
who have been properly trained and are physically
capable of operating the machine safely. Never
allow minors to operate this machine. Never operate
anymachinewhileundertheinuenceofdrugsor
alcohol. Never operate equipment that is in need of
repair or adjustment. Keep children, bystanders and
animals clear of working area.
There must be at least two qualified and
trained operators at the work site. They must be
positioned in safe working locations, following safety
procedures and instructions, and aware of each
others whereabouts. There must, also, be at least
two people on site during maintenance and service
procedures in case an accident should occur.
! ! !
DANGER
!
Operators must
at all times be located within easy
reachofallcontrolandshut-o󰀨deviceswhentheunit
is running. They must be attentive and prepared to
activate the devices.
Torn or loose clothing is more likely to get caught
in moving machinery parts. Keep such items as long
hair, shirt sleeves, and shirt tails properly contained.
Avoid wearing necklaces, rings, watches, and
especially neckties while operating this machinery.
Make sure the machine is in excellent condition, and
all the guards are in place, tight and secure.

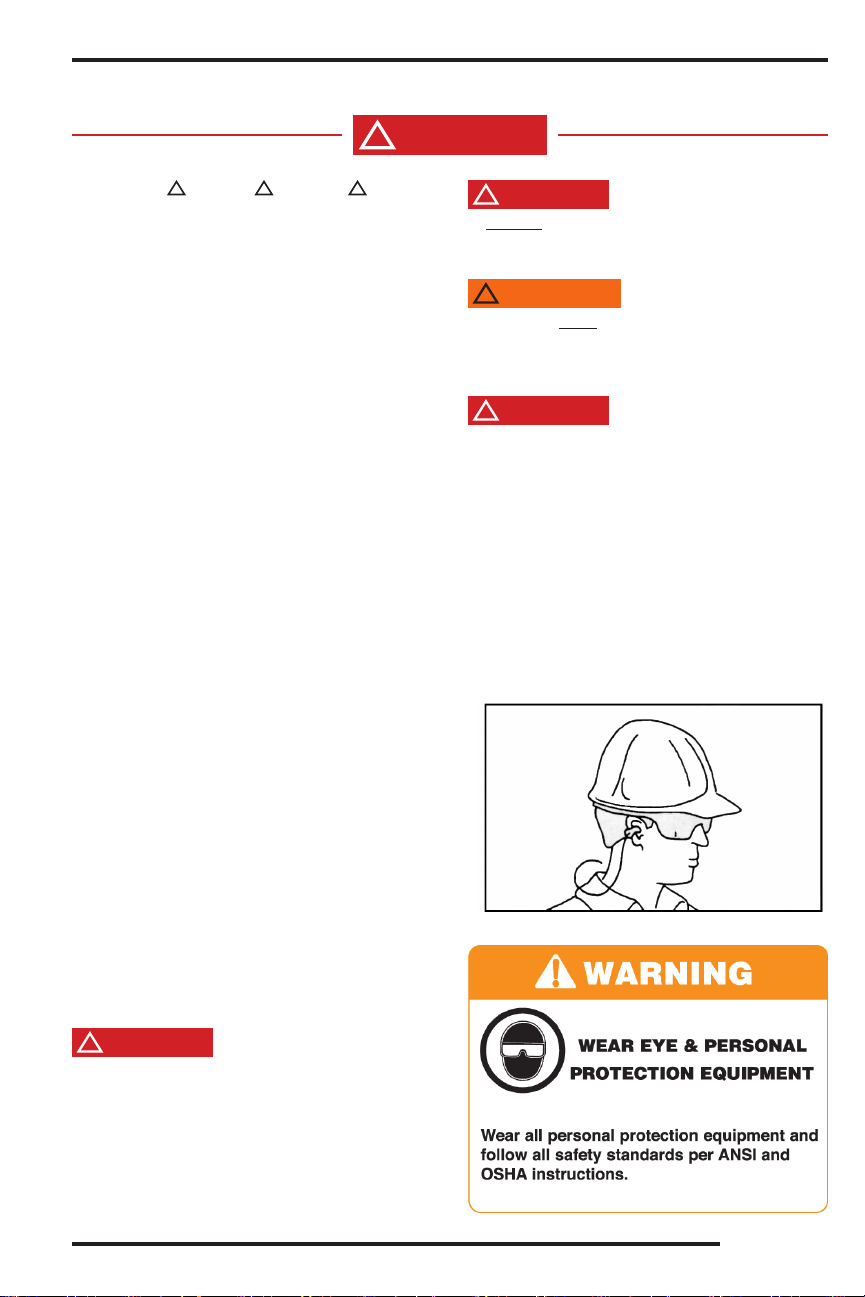

Wear all personal protection equipment (PPE)
and follow all safety standards per ANSI and OSHA
instructions. Examples of PPE equipment: hard hat,
face shield, safety glasses, gloves, ear protection,
etc.Always keep a fully charged re extinguisher
with the machine while operating or servicing the
machine.
SAFETY PROCEDURES
DANGER
!
DANGER
!
WARNING
!
NEVER
sit, stand, lay, climb or ride anywhere
on this machine while it is running, operating, or in
transit. You will be injured.
DANGER
!
SAFETY PROCEDURES

Bandit
8
Copyright 12/18
MODEL ZT1844
SAFETY PROCEDURES
SAFETY PROCEDURES
It is very important after you have operated a new
machine for approximately an hour to shut down the
machine and recheck all nuts and bolts. It is normal
for nuts and bolts to loosen once on a new piece of
machinery. If you tighten them now, there is a good
possibility they won’t loosen again. Certain nuts and
bolts should be checked periodically such as cutter
teethbolts,etc.fortorqueandt.
Most of the nuts used on the Bandit Grinder are
self locking. After a nut or bolt has been removed
vetimes,itshould bereplacedto ensureproper
tightness. This is especially critical on the cutter tooth
bolts!
After the engine is started, let the grinder wheel
turn at the lowest RPM’s possible. Listen for any type
of noise that is foreign. Any steel on steel noise is
foreign.Ifyouhearanoise,stoptheengine,ndthe
problemandxit.
It is very important after you have operated a new
machine for approximately an hour to shut down the
machineandrecheckallhydraulicttings.Relieve
all pressures and retighten as needed.
DO NOT GO NEAR HYDRAULIC LEAKS! High
pressure oil easily punctures skin causing serious
injury,gangrene,ordeath.Avoidburns fromuid.
Hotuidunderpressure cancausesevere burns.
DONOTusengersorskintocheckforleaks.Lower
load or relieve hydraulic pressure before loosening
ttings. Relieve all pressure in the system before
disconnecting the lines, hoses, or performing other
work.Useapieceofcardboardtondleaks.Never
use your bare hands. Allow system to cool down to
ambient temperature before opening any coolant or
hydraulic oil system.
In cold weather situations let your hydraulic
system idle for approximately 15 minutes to allow
the system to warm up to operating temperature.
WARNING
!
WARNING
!
Keep the machine in good condition. Be sure the
machine is in good operating condition and that all
safety devices, including guards and shields are
installed and functioning properly. Visually inspect
the machine daily before starting the machine. Refer
to the “Daily Start Up & Maintenance”. Make no
modicationstoyourequipmentunlessspecically
recommended or requested by Bandit Industries Inc.
DANGER
!
DO NOT operate this machine unless all hydraulic
control devices operate properly. They must function,
shift and position smoothly and accurately at all
times. Faulty controls can cause personal injury!
WARNING
!
Before attempting any type of maintenance,
disengage clutch or cutter wheel engagement, wait
for the cutter wheel to come to a complete stop,
position and lock the cutter wheel arm in the transport
position, turn o󰀨 engine, remove the ignition key,
make sure the ignition key is in your possession,
install the cutter wheel lock pin, wait 2 minutes then
disconnect the battery.
ALWAYS install the lock pin into the cutter lock
tube before working on the grinder.
Simply slide the lock pin into the cutter wheel lock
tube. This is to ensure that the cutter wheel cannot
be started while you are working on the grinder. If
for some reason the cutter wheel would start to turn,
it would simply hit the lock pin.
Never use jumper cables during freezing
temperatures. Tow the machine inside and allow
the battery time to warm up. If the machine must
be started outside, inspect the battery acid for ice
formation. Explosion will occur with a frozen battery.
If the machine is going to be operated in excessively
cold conditions, a larger cold cranking amp battery
may be needed to ensure proper and prompt
starting.Neverusejumpercablesinaconnedor
unventilated area. Battery acid fumes are explosive.
Battery acid can cause severe burns. Never expose
anopen ameor sparknear thebattery.Keepall
burning materials away from the battery. When
servicing the battery, shield eyes and face, and do
not smoke. Service in a well ventilated area.
DANGER
!
WARNING
!
DANGER
!
DO NOT operate this machine indoors! Exhaust
fumes can be fatal. Never refuel while the machine is
running. Never refuel in the shop or building. Always
refuel in a well ventilated area, away from sparks
or open ames, DO NOT SMOKE. Extinguish all
smoking materials. Wipe up all spilled fuel before
restartingtheengine.Donotllabove1/2”(12.7mm)
from top of tank for diesel engines and 2” (50mm)
from the top of the tank for gasoline engines.
To obtain the most from your machine, for the least
amount of cost, it is a good practice to set up and follow
a scheduled preventative maintenance program. It will
eliminate many possible problems and down time.

Bandit
9Copyright 12/18
MODEL ZT1844

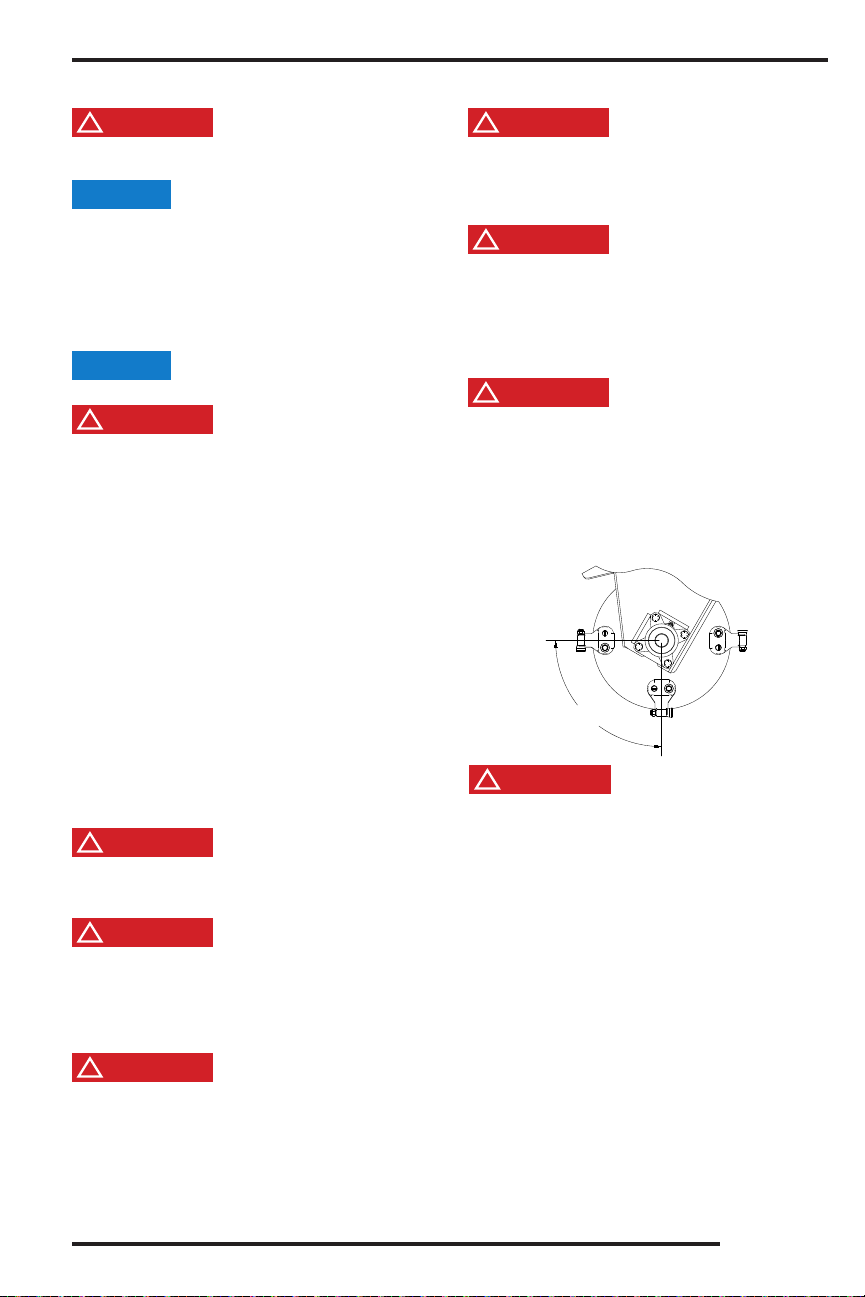

90°
CUTTING AREA
SAFETY PROCEDURES
SAFETY PROCEDURES
Avoid moving parts. Keep hands, feet, and clothing
away from power driven parts. Keep all guards and
shields in place and properly secured.
DANGER
!
DANGER
!
Never grind materials that might contain wires,
stones, nails, or other metal objects which may damage
the teeth and become dangerous projectiles. Remove
all rocks and stones from stump grinding area.
 DONOTgonearorin-linewiththedebriseldof
the stump grinder while in operation. While grinding
stumps,thechipsandportionsofthestumpyfrom
the cutter wheel and can cause severe injury.
DANGER
!
DANGER
!
Do not attempt to start the engine, engage
the cutter wheel or engage the engine PTO
(power-take-o󰀨)systemonthismachineifthecutter
wheel is jammed or frozen in place. If you do, you will
damage or ruin the drive belts, the hydraulic system,
and/or the PTO which will not be covered under
warranty and will cost you down time and money.
NOTICE
Do not work on the machine if the engine is
running with the clutch or cutter wheel disengaged.
Injury or death may occur if the clutch or cutter wheel
was engaged.
Your machine may or may not be equipped with a
clutch. If equipped with a clutch, make sure to study
the original clutch manufacturer’s manual that is
provided with the machine and follow its instructions
for operation, service, and adjustments. It will be quite
costly if a few minutes are not taken daily, weekly,
and monthly to keep the clutch serviced as required.
The operator must take care in the engagement
and disengagement of the clutch or cutter wheel,
engine RPM must always be at idle.After engagement
raise engine RPM to full throttle. Engaging and
disengaging the clutch or cutter wheel at high engine
RPM will quickly and excessively wear out the clutch,
belts, or hydraulic components. If equipped, refer to
clutch manufacturer’s manual for proper service and
operation.
DANGER
!
DO NOT start to grind a stump unless you are
completely sure there are not any utility lines in
the area above or below the ground level where
you are grinding. Always contact the utility locating
service in your area or local utility companies to mark
underground utility lines.
DANGER
!
Engage and disengage cutter wheel at low rpm.
NOTICE
DO NOT go near the rotating cutter wheel for any
reason. DO NOT go near the cutter wheel while the
engine is running or the cutter wheel is coasting to a
stop. Contact with a rotating cutter wheel will result
in serious bodily injury or death.
For optimum performance, the stump should be cut
with the portion of the cutter wheel shown below.
NEVER UNDERCUT THE STUMP
. Undercutting
the stump may cause severe kickback, vibration
and component damage.
NEVER CUT THE STUMP
FROM THE TOP
. The cutter wheel will throw debris
up and toward the operator, instead of down and
under the machine.
DANGER
!
DO NOT start the engine with the clutch or cutter
wheel engaged.
DANGER
!
The stump must be cut as low to the ground as
possible to reduce the amount of grinding material
and debris in the work area.
If the grinding material starts to interfere with the
machine operation, follow the steps below before
removing any grinding material. Never remove any
grinding material with cutter wheel running. Contact
with a rotating cutter wheel will result in serious bodily
injury or death.
1. Disengage the cutter wheel.
2. Position the machine away from the stump.
3. Before attempting any type of maintenance,
disengage clutch or cutter wheel engagement, wait
for the cutter wheel to come to a complete stop,
position and lock the cutter wheel in the transport
position, turn o󰀨 engine, remove the ignition key,
make sure the ignition key is in your possession,
install the cutter wheel lock pin, wait 2 minutes then
disconnect the battery.
4. Clear the grinding material away from the
stump.
5. Start the machine and reposition it at the stump
before engaging the cutter wheel.
DANGER
!

Bandit
10
Copyright 12/18
MODEL ZT1844
SAFETY PROCEDURES
SAFETY PROCEDURES
Check laws and regulations. Know and obey all
federal, state, and local laws and regulations that
apply to your work situation and the transportation
of a machine this size.
WARNING
!
CLEAN MACHINE OF ALL DEBRIS!
DO NOT
leave this machine unattended until all potential re
debrisisremoved, noreorsmoldering exists,and
hot spots are cold. The engine creates many hot
spots including: exhaust manifold, exhaust, turbo (if
equipped), etc. Remove all ammable debris such
as wood, chips, leaves, oils, fuels, etc. from engine
exhaust, engine turbo (if equipped), beside, around,
and under engine, around and under tanks, inside
belt shields and guards, inside battery and tool
boxes, inside cabinets (if equipped), and anywhere
materialscollect.ALWAYSkeepseveraltypeA:B:Cre
extinguishers operational and on the job at all times.
WARNING
!
WARNING
!
Sparks can occur if cutter teeth strike rocks,
metal, or other hard objects.
 DO NOT use in high or very high re hazard
severity zones.
Operation of this equipment may create sparks
thatcanstartresarounddryvegetation.Aspark
arrester may be required. The operator should
contact local re agencies for laws or regulations
relatingtorepreventionrequirements.
Do Not continue to operate the machine if the
cutter wheel stalls. Immediately lift cutter wheel out
of the stump, dirt, etc. and start again with less bite.
Prolonged cutter wheel stall will ruin the hydraulic
components or belts, creating extreme heat and
possiblerehazard.
WARNING
!
Before performing maintenance on the machine
remove all debris, oil, grease, water, snow, ice, etc.
from all machine surfaces.
WARNING
!
DANGER
!
Keep hands clear of all pinch points.
DANGER
!
Do not touch hot machine surfaces. The machine
surfaces may be hot due to the machine operating
recently or the machine setting in the sunlight.
WARNING
!
Unless going through a narrow passageway or
gate, always keep the dual tires installed or the tracks
expanded for machine stability.

Bandit
11Copyright 12/18
MODEL ZT1844
Do not attempt to operate the machine on an ascending or descending slope of more than 25° or 46% or
a side slope of more than 17° or 30%, it is Dangerous and could be Fatal. This is the maximum slope grade
the machine can be operated on if the hydraulic system, self propelled undercarriage, and engine are running
at maximum performance and good traction is sustained.
IF MACHINE IS EQUIPPED WITH A SELF PROPELLED UNDERCARRIAGE
Machines equipped with undercarriage tracks are shipped with a manual from the track manufacturer.
Refer to it for service, operation, and safety information.
SAFETY PROCEDURES
SAFETY PROCEDURES
WARNING
!

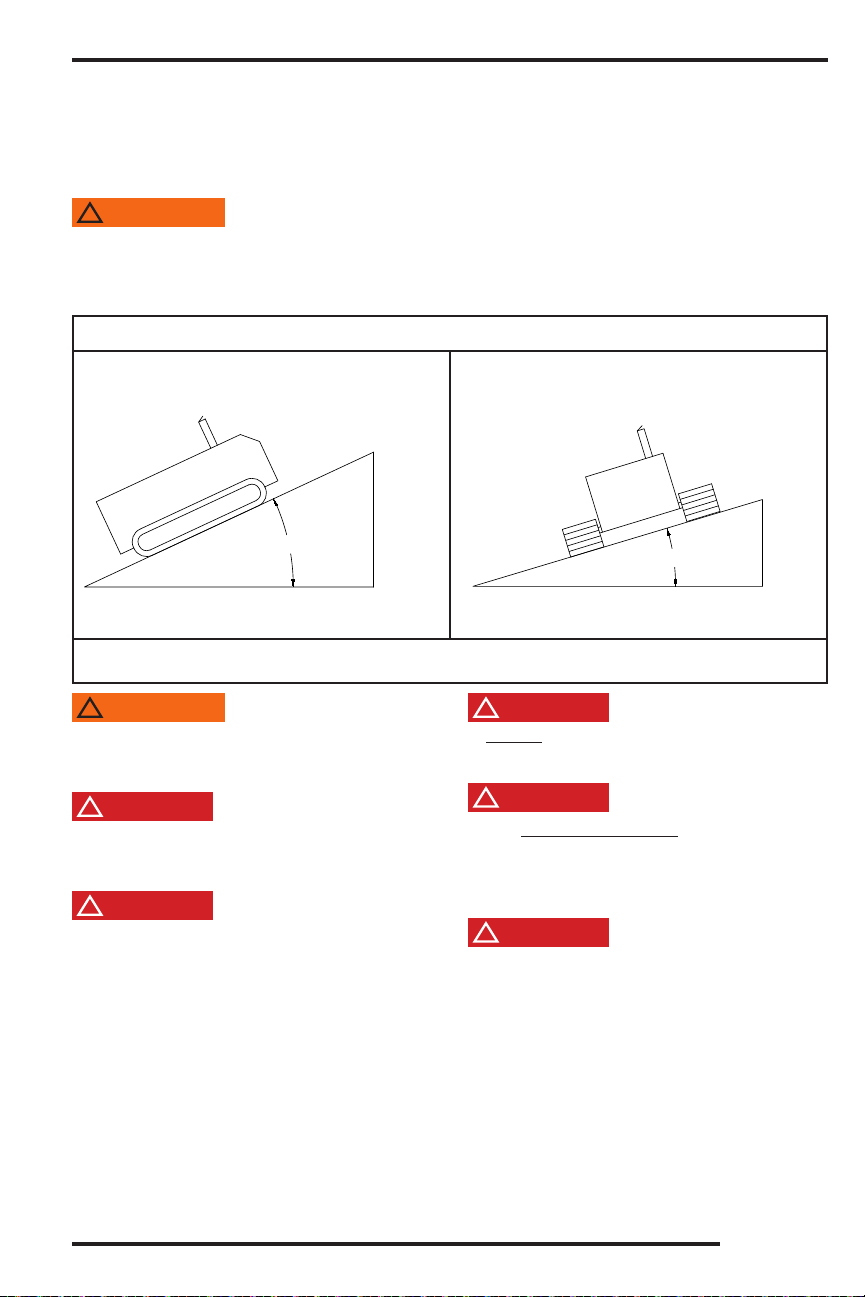

25° MAX.
17° MAX.
Maximum Slope Grade
Diagram shows percentage to degree of slope.
Percentage is in vertical feet for every 100 horizontal feet.
Ascending or Descending Slope Side Slope
100 FT. (30.5 m) 100 FT. (30.5 m)
46 FT.
(14 m)
(46%) 30 FT.
(9.1 m)
(30%)
25° MAX.
17° MAX.
The machine should never be parked on a slope
at any time. The machine can coast or creep causing
equipment damage and/or personal injury.
Make sure everyone is clear of machine before
moving the machine. Stay clear of
undercarriage
travel system
when the machine is moving.
DO NOT entangle feet or hands in undercarriage
travel system.
NEVER
sit, stand, lay, climb or ride anywhere
on this machine while it is running, operating, or in
transit. You will be injured.
Use EXTREME CAUTION
when traveling over
non-level surface! This machine can tip over or tip
backwards on non-level surface. You will cause
engine damage, machine damage and possible
personal injury!
Any increase from the specified maximum
operating angles may cause loss of lubrication
function and damage the engine.
DANGER
!
DANGER
!
DANGER
!
DANGER
!
DANGER
!
WARNING
!

Bandit
12
Copyright 12/18
MODEL ZT1844
Approximate Dimensions & Weights
(Dimensions & Weights will vary depending on optional equipment)
EQUIPMENT SPECIFICATIONS
EQUIPMENT SPECIFICATIONS
ZT1844
Height 48” (1.2 m)
Length 100” (2.5 m)
Width 29” (0.7 m)
Weight 26.5 Hp 1420 lbs. (640kg)
38 Hp 1540 lbs. (700kg)
Cutter Wheel Height 22” (0.6 m)
Cutter Wheel Depth 12” (0.3 m)
Fuel Tank Capacity 7 gal. (26L)
Hydraulic Tank Capacity 7 gal. (26L)
Cutter Wheel Diameter 18” (0.5 m)
Number of Teeth 8

Bandit
13Copyright 12/18
MODEL ZT1844 DECALS
DECAL LOCATIONS
DO NOT go near the rotating cutter wheel
for any reason. DO NOT go near the
cutter wheel while the engine is running
or the cutter wheel is coasting to a stop.
Contact with a rotating cutter wheel will
result in serious bodily injury or death.
D-63 1/17
DANGER
!

Bandit
14
Copyright 12/18
MODEL ZT1844
Decal locations may vary, these are general locations.
DECALS
DECAL LOCATIONS
3,20,21,22
6,13,25,34,35
32
12,15,19,28,36
6
1,30
33
5,7,29,31
8,31
1,4,12
2,9,12
6,12,19
23
11
23
26
12

Bandit
15Copyright 12/18
MODEL ZT1844
LOCATION NUMBER DESCRIPTION
DECALS
DECAL LOCATIONS
Modicationsand/oradditionsofdecalstothislistwillhappen.
Consult chipper dealer or manufacturer for most current decal package.
Some decals are for optional equipment. Decal locations may vary, these are general
locations. If any decals become damaged, replace immediately.
NOTICE
1. SPD-02 Moving Parts...
2. SPD-20 Flying Objects Stand Clear...
3. SPD-22 Emergency Shut Down Only
4. SPD-28 Do Not Insert Fingers...
5. SPD-30 Do Not Sit, Stand, Lay, Climb...
6. SPD-36 ...Debris Field...
7. SPD-38 Do Not Entangle Feet...
8. SPD-39 Do Not Operate...
9. SPD-63 Do Not Go Near Cutter Wheel...
10. SPD-69 Do Not Start To Grind A Stump...
11. ID-67 Bandit Industries Inc...USA
12. INST-12 Grease Daily - Single Arrow
13. INST-53 Hydraulic Oil...Hydrex XV...
14. INST-73 Cutter Head Lock Hole
15. INST-74 Cutter Head Lock Pin
16. INST-81 Swing Speed Controls
17. INST-101 Canada Engine Decal
18. INST-111 Frame Lock Hole
19. INST-112 Frame Lock Pin
20.  INST-180 CutterWheelOn/O󰀨
21. INST-365 Joystick Functions
22. INST-366 Swing-Out Console Lock
23. INST-393 Grease Weekly - Double Arrow
24. INST-395 Grease Yearly
25. N-02 Maintain Lubrication...
26. SPN-06 Decal Maintenance...
27. N-33 Engine Oil Lubrication...Break-In...
28. N-71 Patents
29. N-72 Service Required Under Beltshield
30. SPW-01 Do Not Go Near Oil Leaks...
31. SPW-03 Gasoline Fuel Only...
32. SPW-04 Frozen Battery Can Explode...
33. SPW-08 Wear Personal Protection...
34. SPW-28 ...Fire Hazard...
35. SPW-43 Do Not Attempt...Slope of More Than...
36. SPW-47 Proposition 65
37. 900-8911-97 Bandit Model ZT1844 Logo & Safety Decal Kit - English/Spanish
38. 900-1912-53 Bandit Model ZT1844 Logo & Safety Decal Kit - English Only

Bandit
16
Copyright 12/18
MODEL ZT1844
EXAMPLES:
Decals located on your Bandit equipment contain useful information to assist you in operating your equipment
safely. Some of the decals on your machine and their location are shown in this section.
It is very important that all decals remain in place and in good condition on your machine. Please follow
the care and instructions given below:
1. You should use soap and water to keep your decals clean. Never use mineral spirits or any other
abrasive cleaners.
2. Immediately replace any missing or damaged decals. The location the decal is going to be
applied to must be clean and dry, and at least 40°F (5°C) before applying decal.
3. When the need arises to replace a machine component with a decal attached, be sure and replace
the decal.
4. Replacement decals are available, and can be purchased from the manufacturer or your Bandit Dealer.
 5. Peelbackabouthalfofthebackerpaperonthedecal.Positionitontheat,dry,cleansurfaceso
  itissmoothandsecure.Peelo󰀨theremainderofthebackerpaperasyoucontinuetostickthe
decal on the surface.
6. Rub decal from the center outward to remove air bubbles and to secure contact.
7. Combination English / Spanish decals are typically standard. Other foreign language decals are
available and may be purchased. Send translated decals required to Bandit Industries, Inc.
DECALS
DECALS

Bandit
17Copyright 12/18

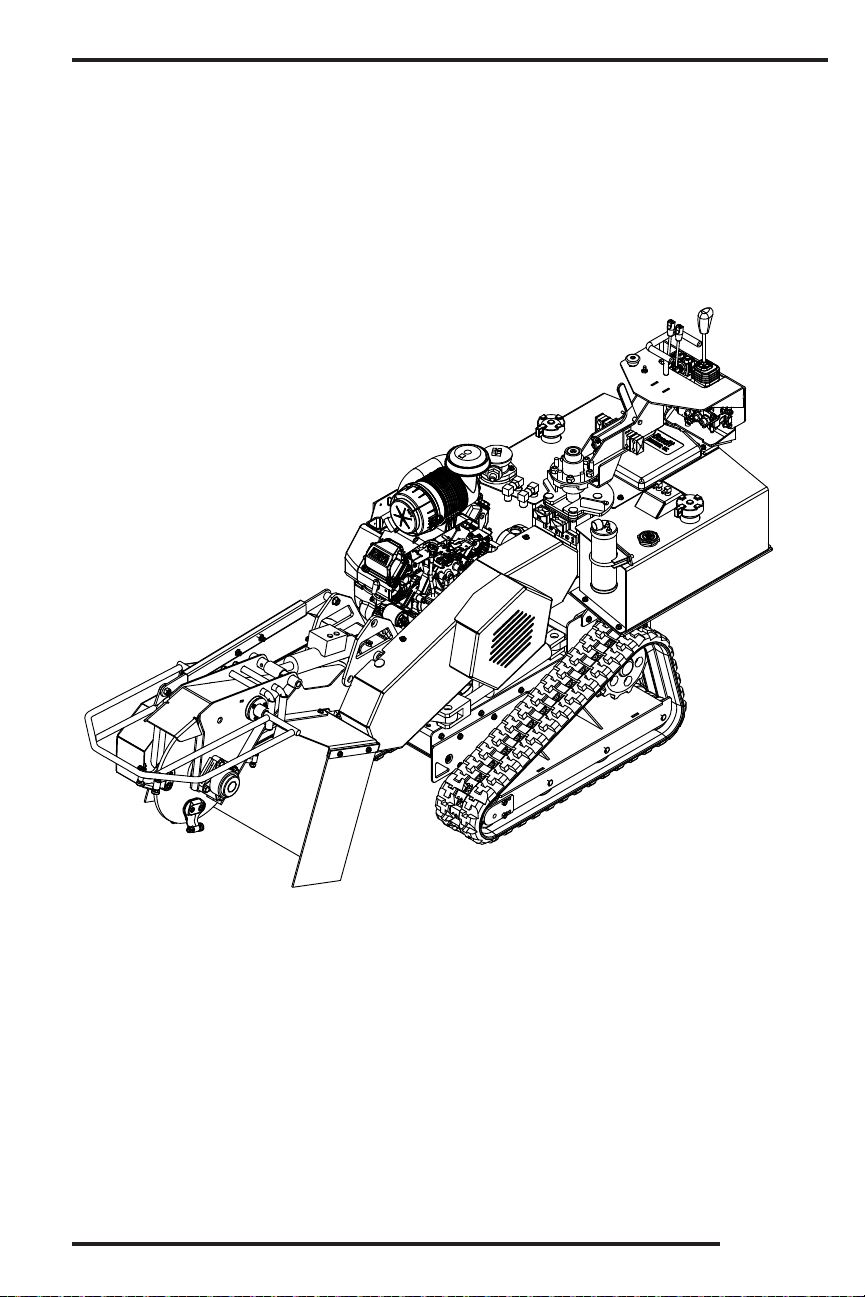

MODEL ZT1844 CONTROLS
MACHINE ORIENTATION REFERENCE
RIGHT LEFT
BACK
FRONT

Bandit
18
Copyright 12/18
MODEL ZT1844
ENGINE OPERATING SPEEDS
Refer to the Completion/Check Sheet, that is shipped with the machine for the correct engine
rpm. If needed, contact your local dealer or Bandit Industries.
NOTICE
CONTROLS
Some Current Engine Types Maximum RPM
Kohler CH740 26.5 Hp EFI 3600
Kohler CH980 38 Hp EFI 3600
CONTROLS & COMPONENTS
LOCATION SHOWN
Basic Location of Controls & Components
1. Cutter Head Up / Down & Swing Left / Right
2. Left Track Forward / Reverse
3. Right Track Forward / Reverse
4. Emergency Stop Button
5. CutterWheelOn/O󰀨Switch
6. Swing Out Lock
7. Throttle Up / Down Lever
8. Ignition Switch
9. Level Gauge
10. Tach / Hour Meter
11. Hydraulic Tank
12. Fuel Tank
13. Cutter Wheel
14. Cutter Wheel Teeth
15. Nose Bar
16. Swing Speed Control
1
2
3
4
6
5
12
13
14
