BandLuxe AirBank M100 User manual
BANDRICH
BandLuxe AirBank 64G/128G
User Manual
BandLuxe
©2017 Copyright by BandRich Co., Ltd. All rights reserved. BandRich, the logo and
WritFun are trademarks and/or registered trademarks of BandRich Co., Ltd.
Modifications and errors excepted.
English Version
M100 User Manual
www.BandRich.com
Page: 1
Contents
1.Inside Box........................................................................................................................................3
1.1 Device(BandLuxe AirBank)................................................................................................3
1.2 Micro USB Cable..................................................................................................................3
1.3 Quick Start Guide..............................................................................................................4
2.Buttons & LEDs................................................................................................................................5
2.1 Button Function..................................................................................................................5
2.2.1Power Indicator (Red)....................................................................................................5
2.2.2 WiFi Indicator(Blue/Green)........................................................................................6
2.3 Micro USB..............................................................................................................................6
3.Attention..........................................................................................................................................7
3.1 Attention..............................................................................................................................7
3.2 Connecting............................................................................................................................7
4.Connect iOS APP With Device......................................................................................................8
4.1 System Requirements..........................................................................................................8
4.2 Install..................................................................................................................................8
4.3 Function............................................................................................................................10
1.Homepage..........................................................................................................................10
2.Setting............................................................................................................................10
3.Category(Music, Photos, Video, Documents)........................................................12
4.Cloud Platform(DropBox, Google Drive)................................................................13
5.Youtube(Play,Download)..............................................................................................13
6.Backup/Restore(Contacts, Music, Pictures, Video, Documents)....................14
5.Connect PC With Device..............................................................................................................15
5.1 System Requirements........................................................................................................15
5.2 Function..............................................................................................................................15
6.Product Specification................................................................................................................16
M100 User Manual
www.BandRich.com
Page: 2
About
Thanks for using Bandluxe Airbank as your personal iOS storage. As a cloud media
center, Airbank connects with your iphone and PC through WiFi and also manages
files and backup your iPhone. 。
M100 User Manual
www.BandRich.com
Page: 3
1.Inside Box
1.1 Device(BandLuxe AirBank)
1.2 Micro USB Cable
Figure 1.1
Figure 1.2
M100 User Manual
www.BandRich.com
Page: 4
1.3 Quick Start Guide
Figure 1.3
M100 User Manual
www.BandRich.com
Page: 5
2.Buttons & LEDs
2.1 Button Function
Power:
a.Holding power for 3 seconds to turn device on/off ;
b.To factory reset device, turn on the device press and hold the button for 30
seconds, till the LED light blink.‘’For the password reset’’
WiFi Band Switch:
a.Short press for twice to switching band between 2.4G and 5G.
2.2.1Power Indicator (Red)
LED
ON
Blink(cont.)
Blink(Flash)
Red
Fully Charge
Charging
Battery low
Figure 2.2.1
M100 User Manual
www.BandRich.com
Page: 6
2.2.2 WiFi Indicator(Blue/Green)
LED
ON
Blink(cont.)
Blue
2.4G
File Sending
Green
5GBand
File Sending
2.3 Micro USB
When the Micro USB cable is connected, your computer will be a flash drive.
(WiFi function can not be used at this time)
Figure 2.2.2
Figure 2.3
M100 User Manual
www.BandRich.com
Page: 7
3.Attention
3.1 Attention
1. Please fully charge for the first time.
2. Please use the power adapter that came with your device.
3. Power usage up to 5 hours but depends on different operating condition.
4. Do not attempt to disassemble or change the battery on your device.
Warranty will be void due to human factor.
5. Do not expose your device to extreme high temperature or dip in water.
6. If the device is not in connecting, it will be automatically power off
after being idle for 15 minutes.
7. Press reset button while system crashed or no response then power on again.
3.2 Connecting
1. Airbank supports WiFi function, range: 5 meters.
2. Please follow below instructions to start pairing Airbank:
a. For PC:Power on Airbank first and connect to your PC via USB cable.
b. For iPhone: Search and install Airbank at App Store (iOS) then turn WiFi on to
connect with Airbank.
3. When the device is connected, you can start using Airbank.
M100 User Manual
www.BandRich.com
Page: 8
4.Connect iOS APP With Device
4.1 System Requirements
BandLuxe AirBank App should be installed on iOS 9.0 version and above.
4.2 Install

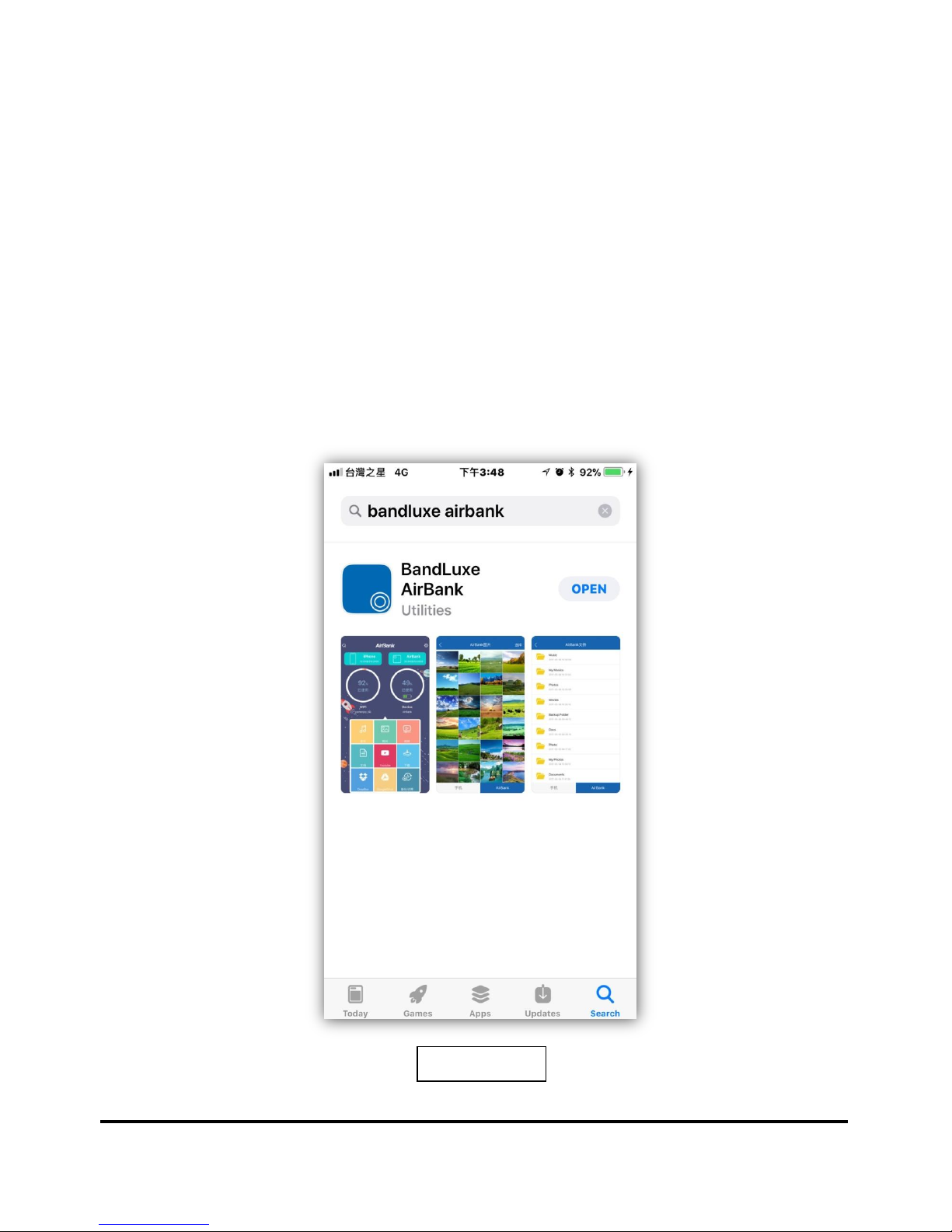

a. Search and install “Airbank” at App Store
Figure 4.2.1
M100 User Manual
www.BandRich.com
Page: 9
b. Starting Airbank for the first time.
iPhone Settings > Turn WiFi on > select airbank_xxxxxx > input password:
28146688.
Figure 4.2.2
M100 User Manual
www.BandRich.com
Page: 10
4.3 Function
1.Homepage
Description:
1.Search 2.Setting 3.Storage capacity and Airbank battery level
4.The name of connecting with WiFi and device
5. Music 6. Photos 7. Video 8. Documents 9.Youtube 10.Status
11.Sign In DropBox/ GoogleDrive 12.Backup/Restore
Figure 4.3.1
M100 User Manual
www.BandRich.com
Page: 11
2.Setting
WiFi Hotspot Setting：Connect to Internet and Device
Clear Cache：Delete DNS Cache
Feedback：Website Feedback
App Version：Current App Version
Firmware Upgrade：Upgrade to the lastest Version
GoogleDrive : Logout with GoogleDrive
DropBox : Logout with DropBox
Figure 4.3.2
M100 User Manual
www.BandRich.com
Page: 12
3.Category(Music, Photos, Video, Documents)
In this category you can view files from either Airbank or iPhone for copy,
restore, delete and play.
Figure 4.3.3
Figure 4.3.4
M100 User Manual
www.BandRich.com
Page: 13

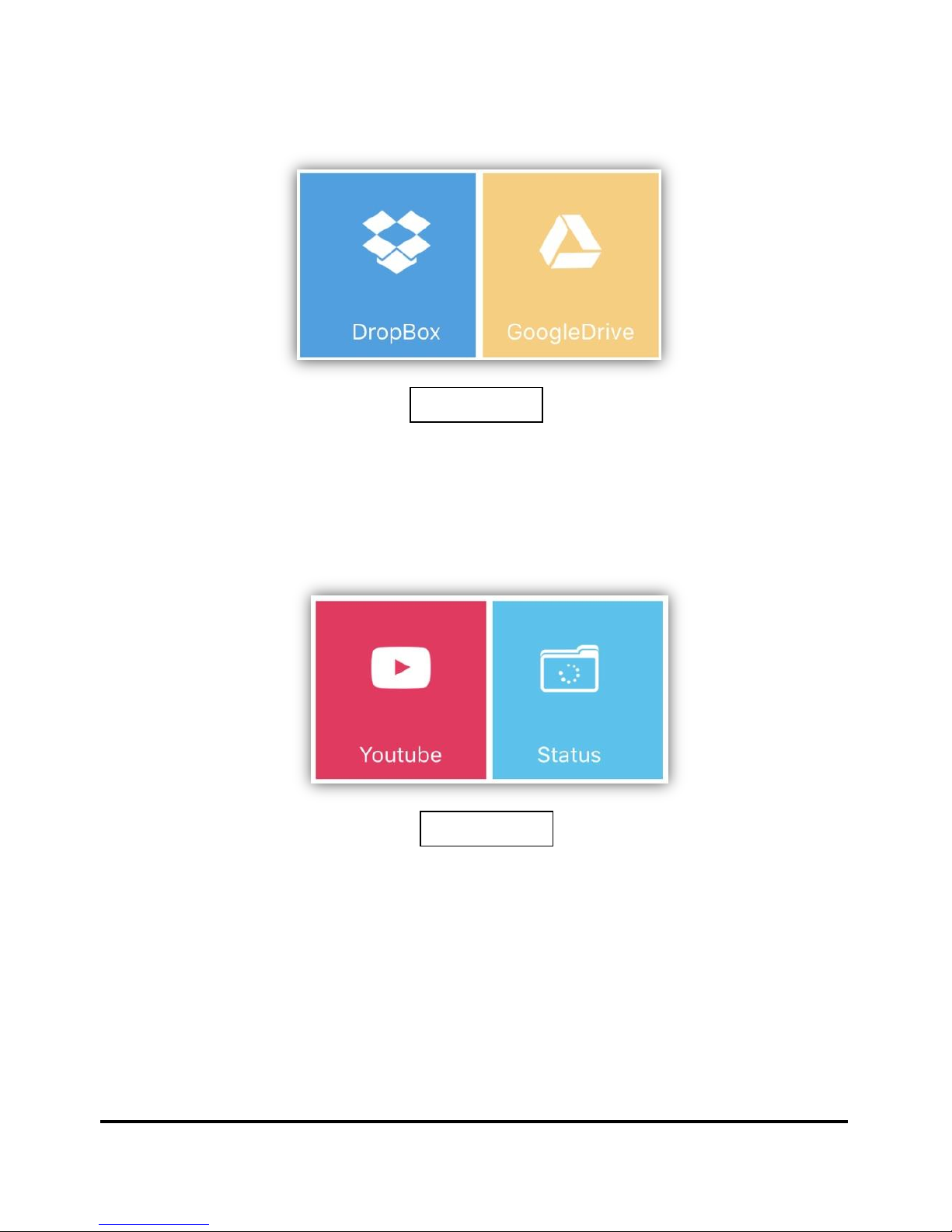

4.Cloud Platform(DropBox, Google Drive)
By signing in your account you can directly backup and restore via this function.
5.Youtube(Play,Download)
By this function you can play and download youtube video. And check the download
progress by status.
Figure 4.3.3
Figure 4.3.6
M100 User Manual
www.BandRich.com
Page: 14
6.Backup/Restore(Contacts, Music, Pictures, Video,
Documents)
By this function you can backup or restore contacts, music, pictures, videos and
documents files from Airbank and iphone.
Figure 4.3.7
Figure 4.3.8
M100 User Manual
www.BandRich.com
Page: 15
5.Connect PC With Device
5.1 System Requirements
Computers with USB ports and running Windows XP or later.
5.2 Function
When Micro USB cable is connected, your computer becomes an external storage
device.(WiFi function can not be used at this time)
M100 User Manual
www.BandRich.com
Page: 16
6.Product Specification
Size
60x60x12mm
Weight
51g
Memory
64G / 128G
Battery
Li-polymer / 3.7V 1400mAh
WiFi
802.11 b/g/n/ac / 2.4GHz/5GHz
USB
Micro USB / DC input 5V/500mA
Check the link for more information:http://www.bandrich.com/
BandRich Inc.
6F-2., No.71, Zhouzi St., Neihu Dist., Taipei City 11493, Taiwan (R.O.C.).
鉅瞻科技股份有限公司 台灣 台北市內湖區洲子街 71 號6樓之 2
