Bang & Olufsen BeoLab 9 User manual

BeoLab 9
Guide

WARNING: To reduce the risk of fire or
electric shock, do not expose this appliance
to rain or moisture. Do not expose this equip-
ment to dripping or splashing and ensure
that no objects filled with liquids, such as
vases, are placed on the equipment.
To completely disconnect this equipment
from the AC Mains, disconnect the mains
plug from the wall socket. The disconnect
device shall remain readily operable.
The lightning flash with arrowhead symbol
within an equilateral triangle, is intended
to alert the user to the presence of un-
insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the
literature accompanying the product.

Contents
Daily use, 4
Information about how to use the loudspeakers, about the built-in protection
system, and how to clean the loudspeakers.
Set up the loudspeakers, 5
Important information to consider before setting up the loudspeakers.
Cable connections, 6
Information about the sockets, switches, cables, and how to connect the
loudspeakers to your system.
Adapt your loudspeakers to your room, 8
Find out about the POSITION switch, and how to set it in order to adapt each
loudspeaker to its surroundings (bass alignment).
This Guide describes how to set up
a pair of loudspeakers and prepare
them for use. The Guide provides
useful information when you set
up the loudspeakers for the first
time, and later, if you have to
move or rearrange your setup.
Follow the instructions in this
Guide carefully.
3

Daily use
When you have finished setting up
the loudspeakers as described on
the following pages, connect the
entire system to the mains supply.
The indicators light up in red,
indicating that the loudspeakers
are in standby, ready to be used.
The loudspeakers are designed to
be left in standby mode when not
in use.
Switching on and off
When you switch on your system, the loud-
speakers switch on simultaneously, and the
indicator lights turn green. When you switch
the system off again the loudspeakers also
switch to standby.
Cleaning the loudspeaker
Clean dusty surfaces using a dry, soft cloth.
If necessary, remove grease stains or persistent
dirt with a soft, lint-free cloth which you have
dipped in lukewarm water and wrung rmly.
Never use a vacuum cleaner to clean the
exposed speaker membrane in the acoustic
lens. However, the front cloth may be cleaned
with a vacuum cleaner with a brush nozzle,
and set to the lowest level.
Never use alcohol or other solvents to clean any
parts of the loudspeaker!
Loudspeaker protection
Each loudspeaker is equipped with a thermal
protection system which prevents damage from
overheating. If an error occurs – or the speaker
units become overheated – the system auto-
matically switches the loudspeaker to standby,
and the indicator light turns yellow.
To restore the sound:
> Disconnect the loudspeaker from the mains
supply.
> Allow the system time to reset or cool down
(approximately 3–5 minutes).
>
Reconnect the loudspeaker to the mains supply.
Should the problem persist, contact your
Bang & Olufsen retailer.
4
The indicator light is positioned behind the
exposed speaker membrane in the acoustic lens.
NOTE! Prolonged listening at high volume
levels may cause hearing damage.

Set up the loudspeakers
We recommend that you follow
this procedure when you set up
the loudspeakers:
– Disconnect your system from the
mains supply.
– Connect your loudspeakers and set
the switch marked LINE–RIGHT–LEFT
on each loudspeaker as explained in
‘Cable connections’ (pp. 6–7).
– Set the switch marked FREE–WALL–
CORNER to the correct setting on
each loudspeaker. This is explained
in ‘Adapt the loudspeakers to your
room’ (pp. 8–9).
– Connect your entire system to the
mains supply again.
Cautions
– Make sure that the loudspeakers are placed
and connected in accordance with the
instructions in this Guide. To prevent injury,
use Bang & Olufsen approved stands and
wall brackets only!
– The loudspeakers can only be switched off
completely by disconnecting them from the
mains supply. Therefore, connect the loud-
speakers to an easily accessible wall socket.
– Do not attempt to open the loudspeakers.
Leave such operations to qualified service
personnel!
– The loudspeakers are designed for indoor use
in dry, domestic environments only, and for
use within a temperature range of 10–40º C
(50–105º F).
– For optimum sound quality, do not place the
loudspeakers enclosed in a small space, and
never place anything directly in front of the
loudspeakers.
– Place the loudspeakers with the front facing
your favourite listening position.
5
The loudspeakers must be placed standing
upright on the base on a firm and level surface.

Cable connections
The loudspeakers can be used with
Bang & Olufsen audio, video and
link systems. They may also be
connected to non-Bang & Olufsen
systems.
For specific information about the
sockets on your system, refer to
the Guide enclosed with the system.

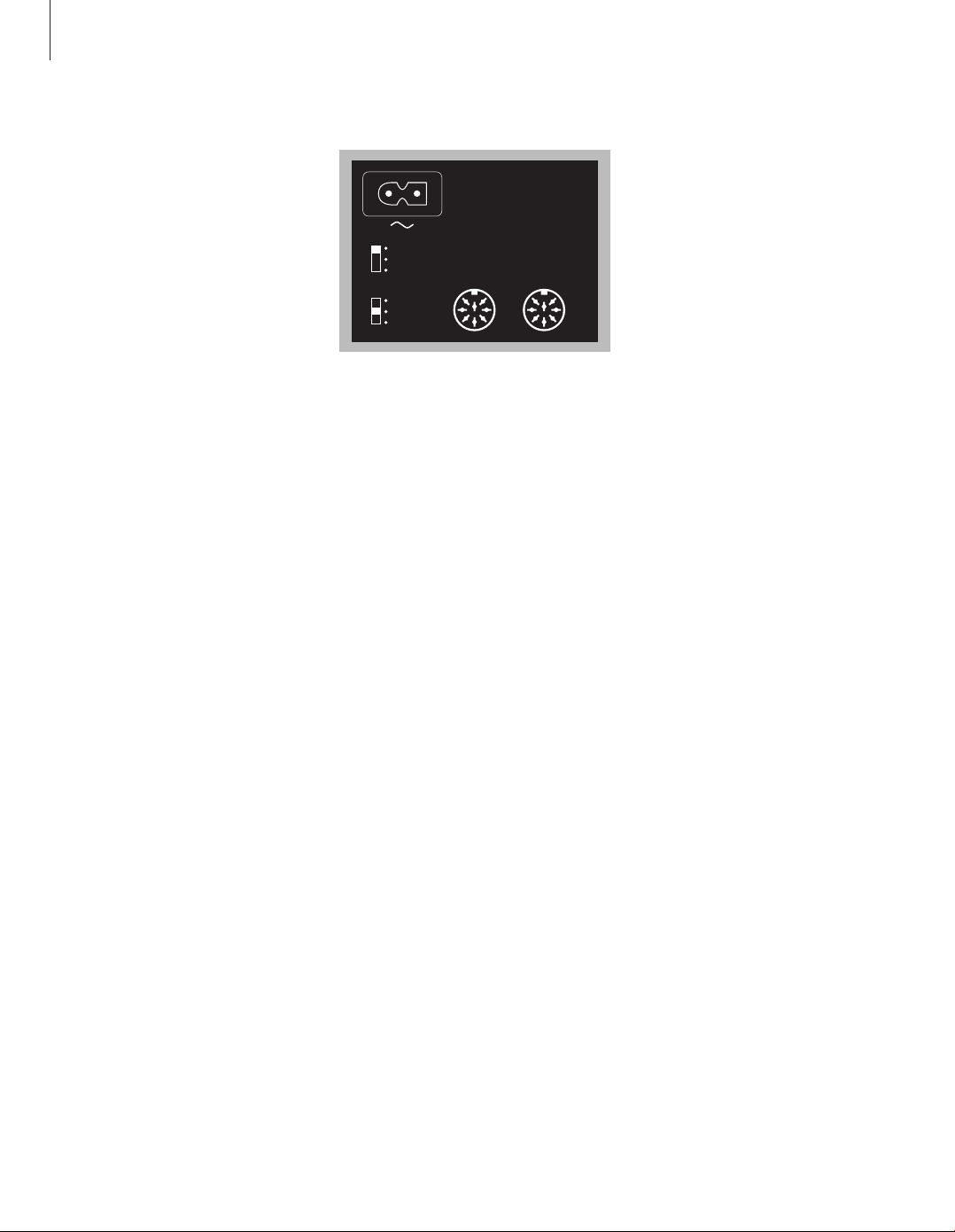

Connection panel
FREE–WALL–CORNER switch
This switch has three settings. Which setting
to use depends on the placement of the
loudspeakers. This is explained in ‘Adapt the
loudspeakers to your room’ (pp. 8–9).
LINE–RIGHT–LEFT switch
This switch has three settings. Set the switch
to RIGHT or LEFT, when connecting the
loudspeakers to a Bang &Olufsen system.
Set the switch to LINE when connecting the
loudspeakers to a non-Bang & Olufsen system.
POWER LINK sockets
These sockets are used for connection to a
Bang & Olufsen system. However, if the switch
marked LINE–RIGHT–LEFT is set to LINE, you may
use one of the Power Link sockets to connect
the loudspeaker to a non-Bang & Olufsen system.
~
Socket for connection to the mains supply.
Connection to Bang & Olufsen systems
Use Bang & Olufsen Power Link cables to
connect the loudspeakers to your system.
Set the LINE–RIGHT–LEFT switch to RIGHT
and LEFT (the right and left sound channel),
respectively.
Connection to non-Bang & Olufsen systems
Use a special adapter with an ordinary phono/
RCA plug in one end, and a DIN-plug in the
other (‘Cable for line signal’ – optional accessory,
available from your Bang & Olufsen retailer).
Set the LINE–RIGHT–LEFT switch to LINE.
The supplied plug and mains cord are specially
designed for the product. Do not change the
plug and if the mains cord is damaged, you
must buy a new one from your Bang &
Olufsen retailer.
POWER LINK
FREE
WALL
CORNER
LINE
RIGHT
LEFT
6
The sockets and the two switches are located
on the rear of the loudspeaker. Remove the
cover to get access to the sockets and switches.

Securing the cables: For safety reasons, the
mains lead must be fastened to the loudspeaker.
To do so, tug the mains lead behind the small
bracket on the connection panel. Then run all
cables behind the clamp, and tighten the two
screws.
Cover for the connection panel: To remove
the cover, grip it along the left and right edges
– as indicated by the two arrows.
When you have made all the connections and
secured the cables, fasten the cover again by
inserting the four pegs on the rear of the cover
into the corresponding holes on the loudspeaker.

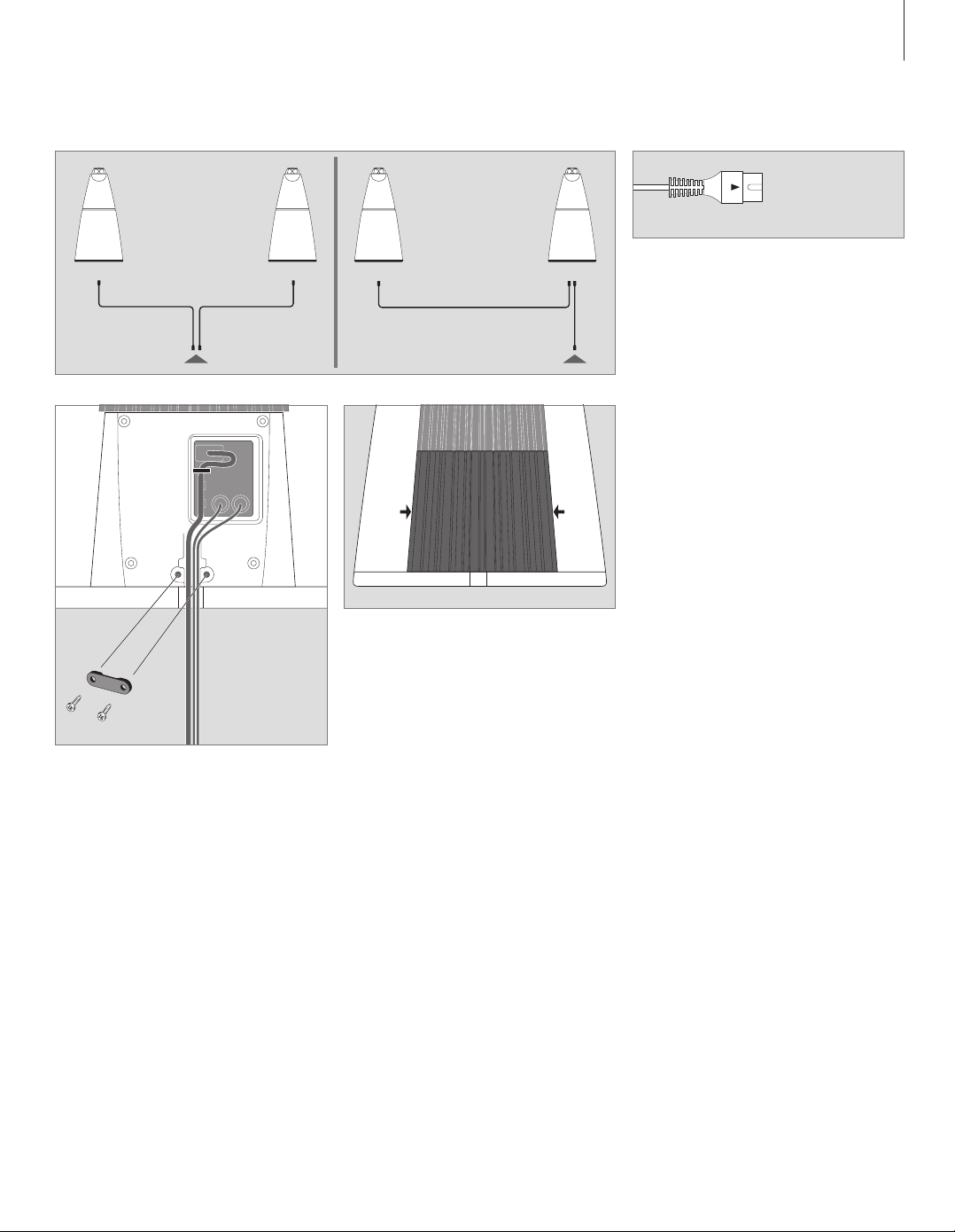

Power Link cables: The cables must be of the
type which are marked with a triangle on the
plug. Do not use any of the old type of Power
Link cables, as this will cause noise, and thus
not give optimum sound quality!
Power Link connections: These connections
carry both the right and left sound signals.
Therefore, you can:
1Run a Power Link cable from your
Bang & Olufsen system directly to
each loudspeaker.
Or
2Run a Power Link cable from your
Bang & Olufsen system to the first
loudspeaker, and then run another
Power Link cable to the next loudspeaker.
This will often help to minimise cable clutter.
Power Link
Mk 3
LEFT RIGHT
1
LEFT RIGHT
2
7

Adapt the loudspeakers to your room
The loudspeakers may be placed
almost anywhere in you room.
However, the most natural sound
is obtained if they are set up as
explained on these pages.
The Acoustic Lens Technology
system ensures better balance in
the high tone frequencies coming
directly from each loudspeaker,
and the sound reflected by the
room. The system also ensures
correct tonal balance in the whole
area in front of the loudspeaker.
The FREE–WALL–CORNER switch
When a loudspeaker is placed in a corner
or close to a wall, the bass level is boosted
compared to the bass level from a loudspeaker
placed in a more free-standing position.
To remove this excessive bass boost, set the
switch marked FREE–WALL–CORNER to ensure
that the bass level suits the placement of the
loudspeaker. The appropriate switch setting
depends on the distance from the loudspeaker
to the walls and corners of the room.
Use the guidelines mentioned here, and the
illustration and the examples on the next page,
when deciding which of the three POSITION
switch setting to select – on each loudspeaker.
FREE
Use this setting if the loudspeaker is placed
more than 20 cm (8") from the wall, and no
closer to a corner than 65 cm (26") – shown
by the large light grey area in the illustration
on the next page.
WALL
Use this setting if the loudspeaker is placed less
than 20 cm (8") from the wall, and no closer
to a corner than 65 cm (26") – shown by the
grey areas along the walls in the illustration on
the next page.
CORNER
Use this setting if the loudspeaker is placed in
a corner – shown by the dark grey areas in the
illustration on the next page.
8
Acoustic Lens Technology –
manufactured under license
from Sausalito Audio Works.

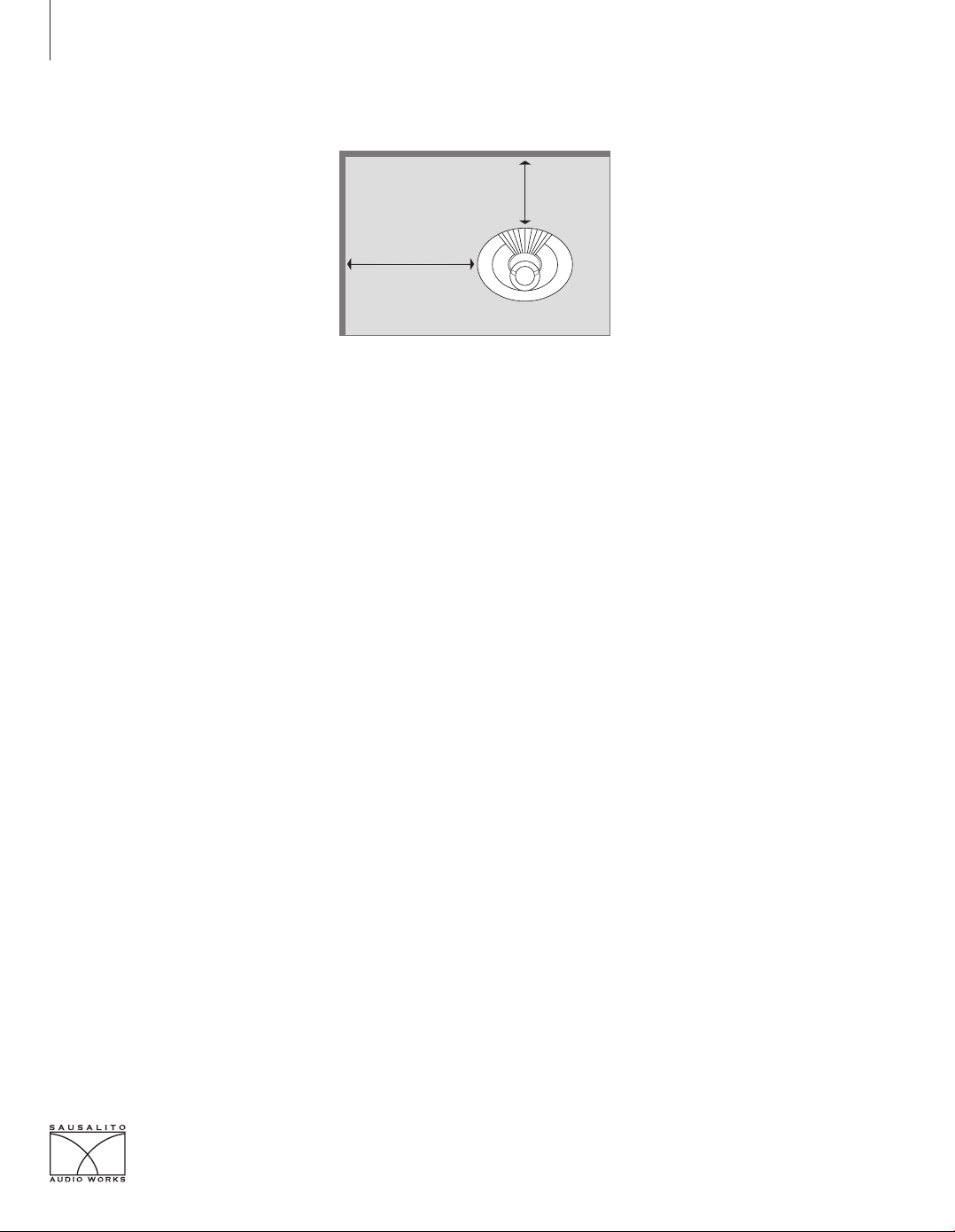

How to measure? The distances referred to
are measured as shown here (the loudspeaker
seen from above).

If you have a BeoLab 2 subwoofer setup …
As explained in the BeoLab 2 Guide, the
subwoofer has a setup switch which can be
set to 1, 2or 3. The settings of this switch
will adapt the output from BeoLab 2 to the
sensitivity levels of different loudspeakers.
If you set up a pair of BeoLab 9 loudspeakers in
a system with BeoLab 2, we recommend that
you set the BeoLab 2 SETUP switch to 1.
FREE
WALL
CORNER
9
Position zones: The three settings
(FREE–WALL–CORNER) corresponds to the
position zones marked in different shades of
grey shown here. The position zones and the
examples shown below, are meant as guidelines
– you may, of course, set the switch to any of
the three settings you prefer.
Example 3: As in example 2, one loudspeaker
is placed against the wall, and the other is
placed in a corner. The shape of the room
has no influence on which setting to select.
Therefore, the left loudspeaker should be set
to WALL, and the right loudspeaker should be
set to CORNER.
Example 1: The loudspeakers are placed in
one end of the room, but not against the back
wall, and not near the side walls. Therefore,
the switch should be set to FREE on both
loudspeakers.
Example 2: One loudspeaker is placed against
the wall, and the other is placed in a corner.
Therefore, the left loudspeaker should be set to
WALL, and the right loudspeaker should be set
to CORNER.

Waste Electrical and Electronic Equipment
(WEEE) – Environmental protection
Electrical and electronic equipment, parts and
batteries marked with this symbol must not be
disposed of with normal household wastage;
all electrical and electronic equipment, parts
and batteries must be collected and disposed
of separately. When disposing of electrical and
electronic equipment and batteries by use of
the collection systems available in your country,
you protect the environment, human health
and contribute to the prudent and rational use
of natural resources. Collecting electrical and
electronic equipment, batteries and waste
prevents the potential contamination of nature
with the hazardous substances which may be
present in electrical and electronic products
and equipment.
Your Bang & Olufsen retailer will advise you of
the correct way of disposal in your country.
If a product is too small to be marked with the
symbol, it will appear in the User Guide, on the
Guarantee certicate, or on the packaging.
10
Technical specications, features and the
use thereof are subject to change without
notice.
3507912 Version 1.0 1211

This product is in conformity with
the provisions of the Directives
2004/108/EC and 2006/95/EC.
All Bang & Olufsen products comply with
applicable environmental legislation
throughout the world.
For the US-market only!
NOTE: This equipment has been tested and
found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
– Consult the retailer or an experienced
radio/TV technician for help.
For the Canadian market only!
This class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.
