Bang & Olufsen Celestial BOC80 Series User manual

Installation Manual
BOC80 Series
Celestial™Collection
BOC86, BOC82DT, BOC82

Table of Contents
Introduction 1
Specifications 2
Dual Tweeter 3
What’s Included 4
Tools & Items 4
Wire Recommendation 4
Speaker Placement 5
About Speaker Wire 6
Installing the Wire 6
Wire Routing 7
Cutting the Hole 8
Installing the Bayonet Ring 8
Connecting the Wire 9
Installing the Speaker 9
Testing & Adjustments 10
Installing the Grille 10
Troubleshooting 11
Technical Assistance 12
Warranty 13
Return Process 14

1
Thank you for purchasing the Celestial™ 8 In-Ceiling Speaker. Origin Acoustics and
Bang & Olufsen take pride in providing you with high quality products. All of our
speakers are designed to have excellent sound quality, longevity, and a simple
installation process.
This instruction booklet covers the necessary information for a smooth installa-
tion, including: the tools you will need, step-by-step instructions for installation,
troubleshooting tips for any errors that may occur, and all warranty information.
If for any reason you experience problems or if you have installation questions
please call us at [phone]. Hours of operation are 8:00am to 5:00pm (Pacific
Time), Monday through Friday.
Introduction

2
Model BOC86 BOC82DT/SUR BOC82
Part Number SCBOC80600 SCBOC2T802 SCBOC80200
Woofer Cone Glass Fiber IMG IMG
Woofer
Diameter
8” (203mm) 8” (203mm) 8” (203mm)
Mid-Range
Dome
Glass Fiber - -
Mid-Range
Diameter
4” (102mm) - -
Tweeter Dome Silk DPSD Silk DPSD Silk DPSD
Tweeter
Diameter
1” (25mm) 1” (25mm) 1” (25mm)
Frequency
Response
34 Hz - 20 kHz 38 Hz - 20 kHz 38 Hz - 20 kHz
Impedance 6 ohm Minimum 6 ohm Minimum 6 ohm Minimum
Power
Handling
50 - 175 Watts 50 - 125 Watts 50 - 125 Watts
Diameter 9.61” (244mm) 9.61” (244mm) 9.61” (244mm)
Grille Diameter 10” (254mm) 10” (254mm) 10” (254mm)
Cutout
Diameter
8.75” (222mm) 8.75” (222mm) 8.75” (222mm)
Mounting
Depth
5.59” (142mm) 4.29”(109mm) 4.13”(105mm)
Specifications

3
In this mode, one channel is fed into both tweeters to be distributed throughout
the area. This way in a multiple-speaker setup, one speaker can be a dedicated
le speaker and another a dedicated right.
Surround (Dipole)
The Dual Tweeter models can be used for either one channel (surround) or two
channels (stereo). A switch is located on the back of the speaker to select which
mode to use. One of the inputs is labeled for surround. This is the input that
should be used if you’re only using one channel.
Dual Tweeters
In this mode, two channels are fed into the speaker: one channel for each tweeter.
This setup is ideal for small rooms such as walk-in closets and bathrooms, as well
as oddly-shaped areas such as hallways. With both le and right channels in one
speaker, only one speaker is needed in smaller rooms. In areas like hallways, both
channels can be evenly distributed throughout the area with multiple speakers.
Stereo (Dipole)
If you are using a dual tweeter speaker in stereo mode (i.e. there are two wires
connected to the speaker: one for the le channel and one for the right), do not
set the switch to surround mode. This could damage the amplifier.
Warning

4
Speaker Bayonet Ring Grille Template
What’s Included
• Drywall Saw
• Speaker Wire
• Pencil
• Wire Stripper
• Measuring Tape
• Drill
• Drill Bit ⅛” (3mm)
• Stiff Wire
• Stud Finder
• Fish Tape
Tools & Items
The gauge of wire used can have an impact on the performance of your speakers.
Use a multi-stranded wiring designed for amplifier to speaker connections. Which
gauge to select depends on the length of wire to be used on any particular speak-
er. The longer your run is, the larger your wire size must be.
Wire Recommendation
Wire Length Wire Gauge
0 -100’ (0 - 30m) 16 (1.5mm²)
50 - 150’ (15 - 45m) 14 (2.5mm²)
Over 100’ (30m) 12 (4mm²)

5
Ideally, the two speakers should be
placed an equal distance from the lis-
tener. If the room has a lower ceiling,
the speakers can be closer together.
Also, if the speaker placement is in-
tended for standing (as opposed to
sitting) listeners, the speakers can be
closer together.
Auxiliary Room (2 Speaker Placement)
The Le Rear (LR) and Right Rear (RR)
speakers should be installed just be-
hind the listener, one on either side.
The Center Channel (CC) speaker
should be placed above and slightly
in front of the television, with the Le
Front (LF) and Right Front (RF) speak-
ers placed equidistant to either side.
Home Theater (7 Speaker Placement)

6

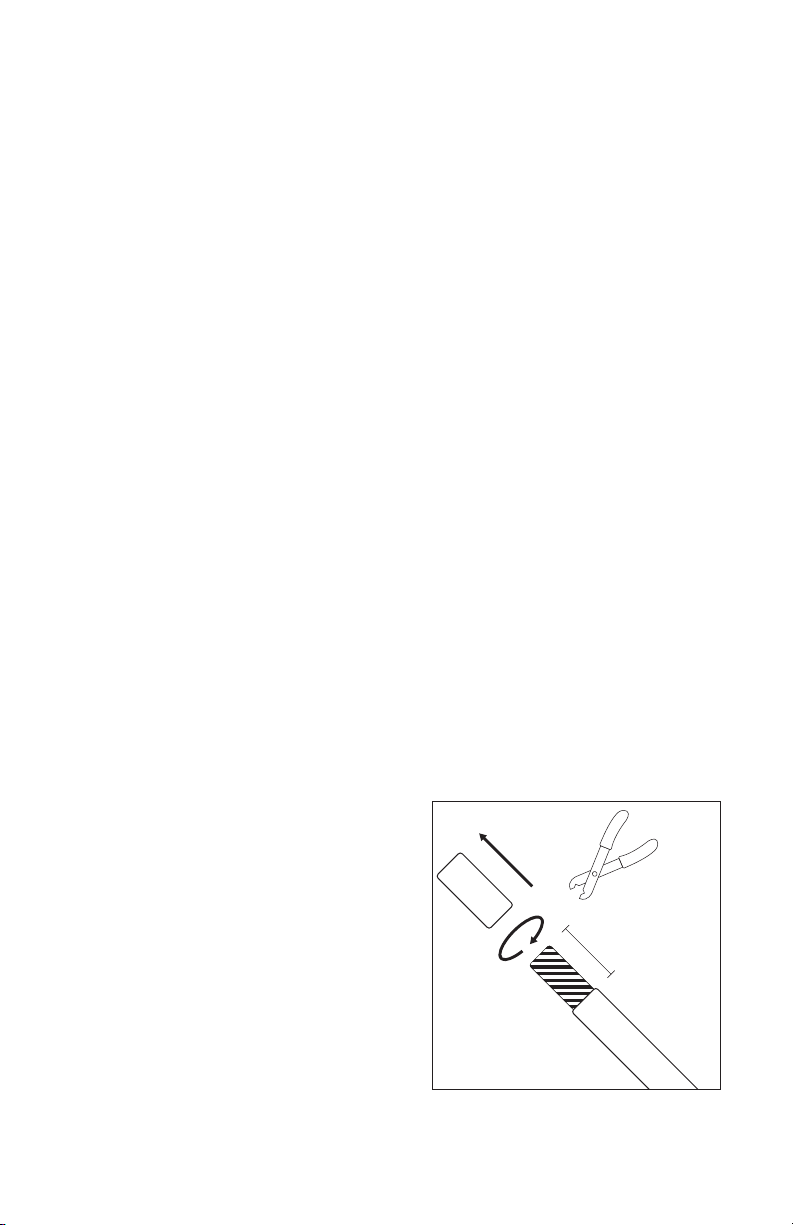

Strip ¼ to ½ inches (6 to 12 mm) of the
insulation o both ends of the wire. To
avoid stray strands, twist them at the
end. Connect the wire to the amplifier,
and make sure the wire connected to
the le speaker output will be routed
to the le speaker, right output to right
speaker, etc.
1. Installing the Wire
Use a two conductor wire that allows you to identify one conductor from the oth-
er. This designation may be obvious or as subtle as a ridge on one conductor.
It’s crucial that you keep track of which wire you use for positive (+) and negative
(-). Typically if the wires are colored red and black, the red wire is used for positive
and the black wire is used for negative, but sometimes other colors or patterns
are used. You can choose whichever color of wire you want to be positive and
negative as long as you remain consistent throughout the install.
On both your amplifier and your speaker the connectors will be identified as red
for positive and black for negative. It is very important to look carefully at the
speaker wires and be certain that the same wire that is attached to the positive
connector in the amplifier is attached to the positive connector in the speaker.
About Speaker Wire
0.25 - 0.5”
(6 - 12mm)
Speaker
Wire

7
Plan how you’ll route the wire to the desired speaker location. There are several
methods for routing the wire, and you may need to combine several of them.
Wire Routing
One option is to li up the carpet and
route “tape wire” under the carpet.
Under the Carpet
The wire can be routed behind the
baseboard by cutting a groove out of
the back of the baseboard, or by buy-
ing special baseboard designed for
concealing wires.
Behind the Baseboard
When available, you can route the wire
through an attic or crawlspace.
Attic or Basement
When running wires through a wall, be
sure to avoid all obstacles such as AC
wiring, pipes, and ducts.
Through Walls
If these speakers are being installed in a new home during construction, the
installation process will be a bit dierent (although much simpler). For these
situations, it’s recommended you purchase a bracket. Instructions on how to
install the speakers are provided with the bracket, or can be found on our web-
site. Visit www.originacoustics.com for more information.
For New Construction

8

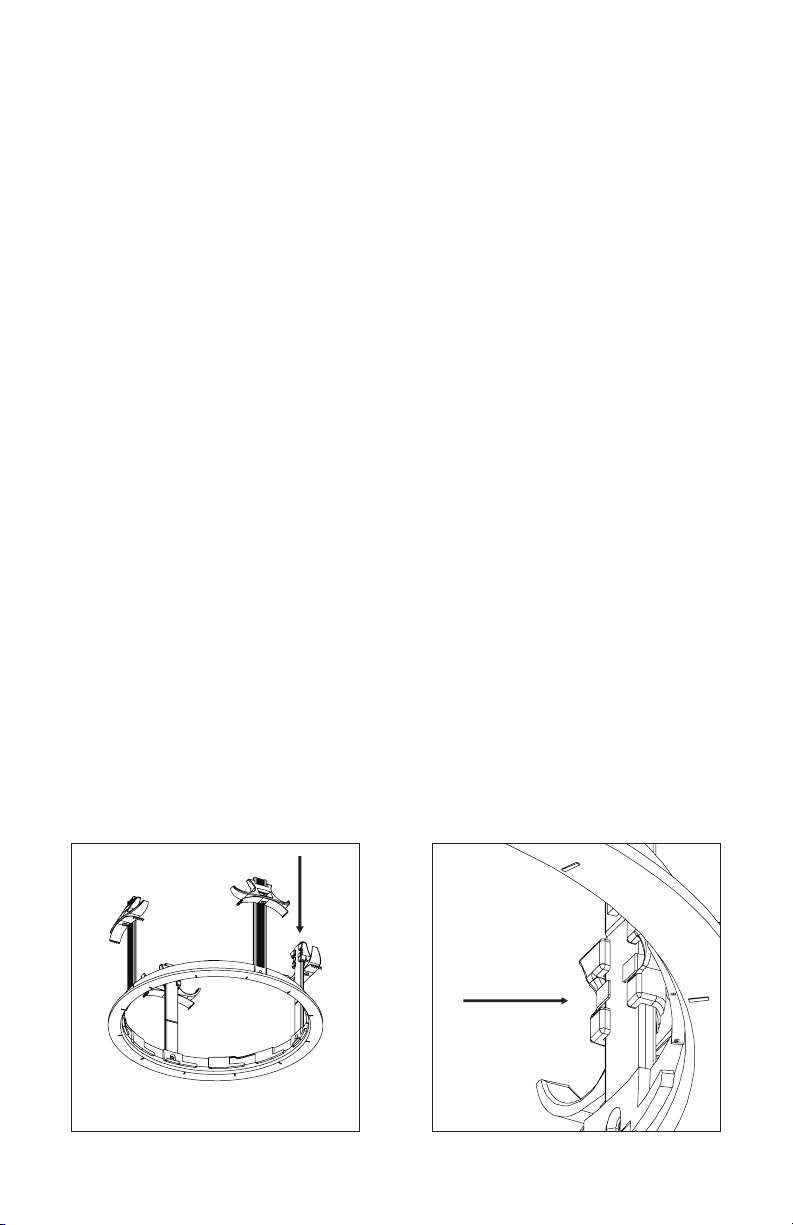

Adjust the clips so that they’re positioned at the top of the rail. If they’re not al-
ready there you can do this by pushing the metal release tabs on the inside of the
rail and pulling the clips to the top of the rails. Insert the bayonet ring into the hole
in the ceiling by gently bending the rails inward. Reach inside the bayonet ring
and push the clips down so that the bayonet ring is firmly in place, but not too
tight. If the bayonet ring needs to be removed, reach inside and push the release
tabs to reset the clips The bayonet ring can now be taken out.
When you’ve decided on the locations for all of the speakers, use the template to
trace a circle lightly in pencil where the hole should be. (Refer to the Specifications
section for cutout sizes.) If you’re unsure on whether there may be obstacles (such
as pipes or wires) where you plan on installing the speaker, drill a ⅛ inch hole
in the center of the circle, then put a bent coat hanger through the hole to feel
around. Use a keyhole or drywall saw to cut the hole.
2. Cutting the Hole
Push Tabs
Against Rail
3. Installing the Bayonet Ring
(Unlocked)
Bayonet Ring

9

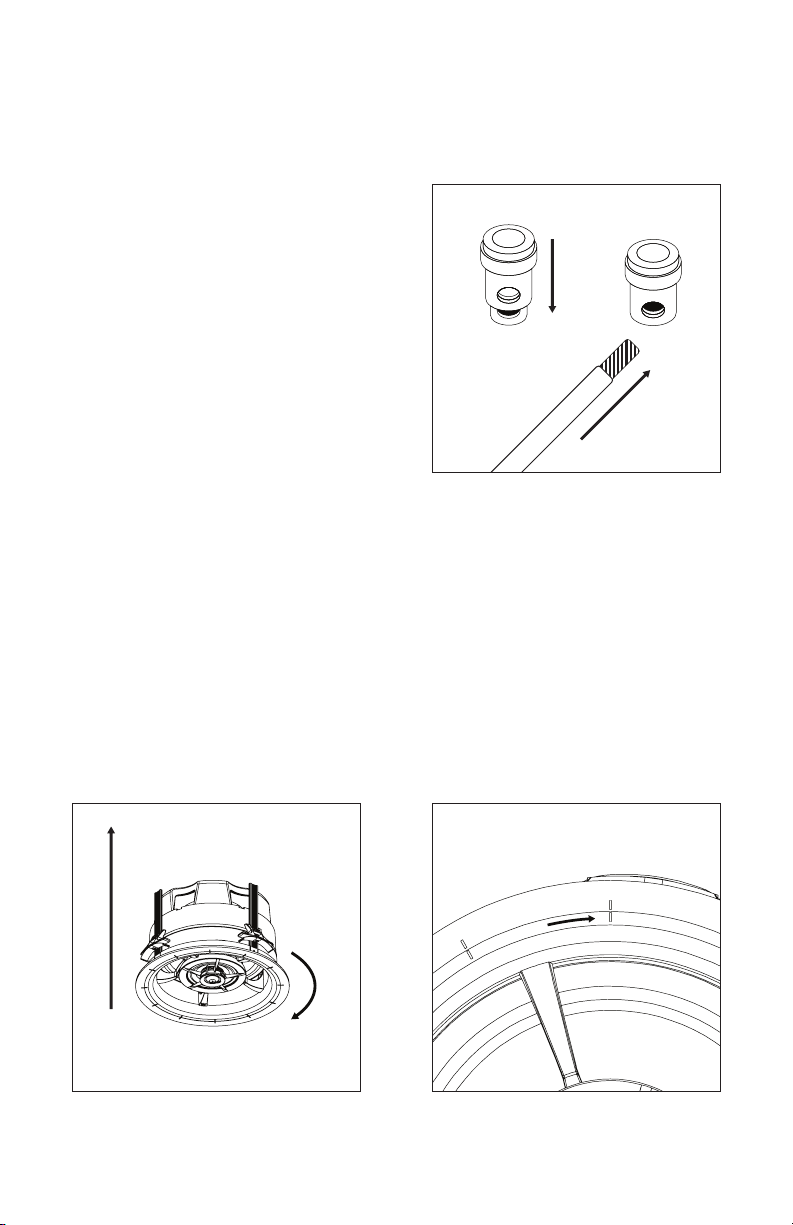

Twist Clockwise
to Lock
1. Fit into Ring
2. Twist into Ring

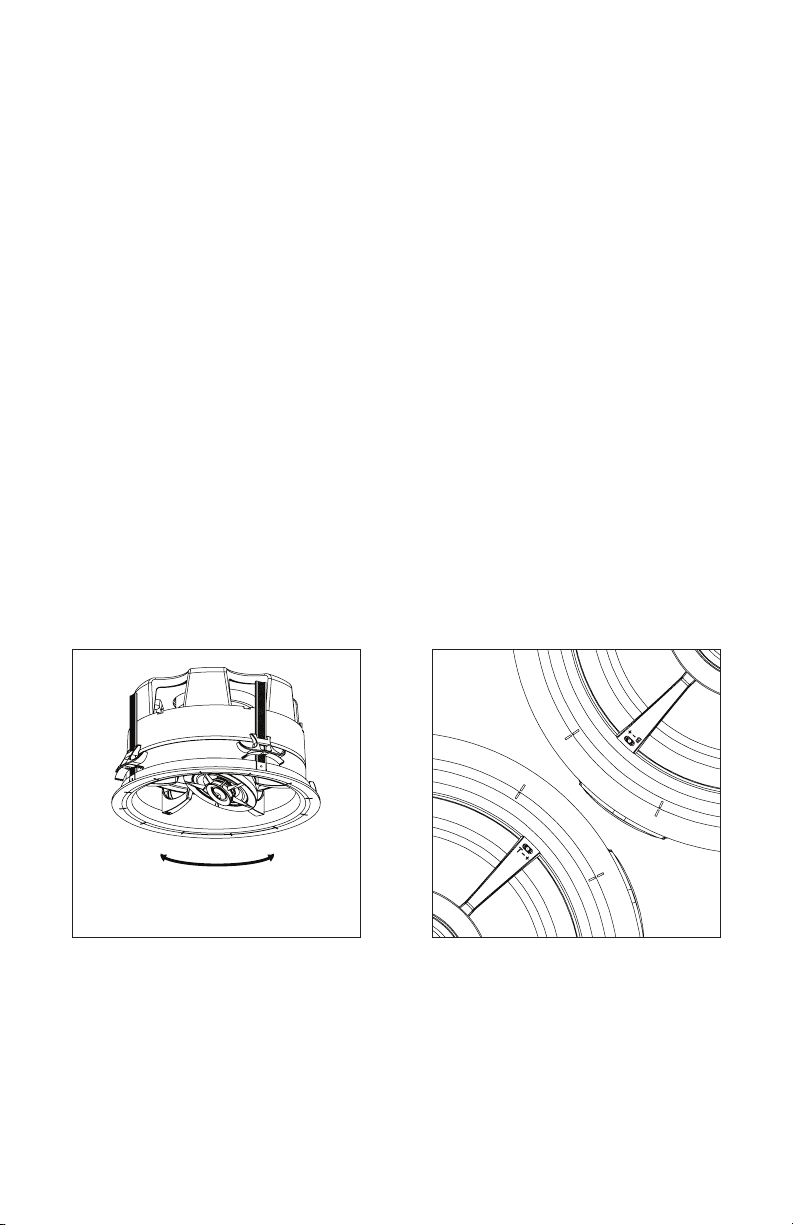

Fit the speaker into the bayonet ring, and twist it clockwise into place. When the
lines on the speaker line up with the lines on the bayonet ring, this means the
speaker is tightly in place. Be sure that the lines line up, otherwise there’s a risk
that the speaker will fall out of the ceiling.
5. Installing the Speaker
Push down to open the connector.
Insert the wires into the connectors,
making sure that the positive wire is
being attached to the red connec-
tion and the negative wire is being
attached to the black connection. If
the wires are switched, speaker perfor-
mance will be drastically impacted.
4. Connecting the Wire
Speaker
Wire
Connector

10
Aimable
The midrange (BOC86 only) and tweeter can be pivoted to direct the sound to-
wards the listening area. Or for a more diused surround sound experience, the
rear speakers can be aimed towards the wall. To aim the tweeter, gently apply
pressure to the rim with your thumbs to pivot the tweeter. To aim the midranges
(BOC86 only), gently apply pressure to the rim and pivot it in the desired direction.
Subject to which speaker is being used, there are two switches: one to adjust the
treble, and one to adjust the bass. Depending on the area the speaker will be
installed, bass and treble are aected by its surroundings. When the room has a
lot of hard surfaces bass & treble are bounced and reflected through the room, if
the room has soer surfaces the bass & treble are absorbed. Adjust for the desired
acoustic balance for each room.
6. Testing & Adjustments
Fit the grille over the speaker. The grille uses magnets to be held in place.
7. Installing the Grille

11
If you have a problem, try isolating it first. For example, if you’re playing a DVD
and there is no sound, try replacing the DVD with an MP3 player to see if you get
sound. If it does work, then the problem is with the television, DVD player, or the
cables connecting them. If it doesn’t work, the problem will be with the amplifier,
speakers, or those cables.
Troubleshooting
Problem Possible Cause
No Sound The volume may be turned down or muted. Check the volume
settings on both the amplifier and the source (television/com-
puter/CD player/etc.)
No Sound Make sure the proper source is selected on the amplifier or re-
ceiver.
No Sound Check the cord connecting the amplifier with the source. The
cord may be damaged or plugged into the wrong input or out-
put.
No Sound Check the wires connecting the amplifier with the speakers.
Make sure they’re connected properly and not damaged in any
way.
Poor Sound
Quality
If you hear something like static, or the sound is cutting in and
out, check the audio cables. If the problem increases when a
cable is being moved, then the cable is most likely faulty or not
connected properly.
Poor Sound
Quality
Today’s audio systems may have several places to adjust the
volume, for example your MP3 player may have a volume con-
trol, and your amplifier may also have one. Check to be certain
that the volume isn’t turned up past 80% on any device.
Poor Sound
Quality
Try changing sources to be certain that the selection you’ve
chosen is a good quality recording.

12
If you have any questions or concerns about installing or using this product, you
can reach us through one of the following methods:
Phone: [phone]
Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri
Email: [e-mail]
If you are having technical trouble, please include the model number and briefly
explain what steps you took to resolve the problem in your email, or be prepared
to answer these questions over the phone. If you are considering returning the
product, it’s required that you contact Origin Acoustics prior to any return at-
tempts. This way we can determine if the issue can be resolved without returning
the product, or if needed we can provide instructions and support for the return
process.
Technical Assistance

13
Origin Acoustics warrants to the original retail purchaser only that this Origin
Acoustics product will be free from defects in materials and workmanship, pro-
vided the speaker was purchased from an Origin Acoustics authorized dealer.
If the product is determined to be defective, it will be repaired or replaced at Ori-
gin Acoustics’ discretion. If the product must be replaced yet it is no longer man-
ufactured, it will be replaced with a model of equal to or greater value that is the
most similar to the original. If this is the case, installing the replacement model
may require mounting modifications; Origin Acoustics will not be responsible for
any such related costs.
Limited Lifetime Warranty
This warranty may not be valid if the product was purchased through an unautho-
rized dealer. This warranty only applies to the individual that made the original
purchase, and it cannot be applied to other purchases. The purchaser must be
prepared to provide proof of purchase (receipt). This warranty will not be valid if
the identifying number or serial number has been removed, defaced, or altered.
Requirements & Warranty Coverage

14
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modifications by anyone other than
Origin Acoustics or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated maximum of the unit
• Damage inflicted during the return shipment
Not Covered by Warranty
Before making any return attempts, it is required that you first contact Origin
Acoustics. Return product to Origin Acoustics or your dealer, either in person or by
mail. It’s preferable if the product is returned in the original packaging. If this isn’t
possible, the customer is responsible for insuring the shipment for the full value
of the product.
This warranty is in lieu of all other expressed or implied warranties. Some states
do not allow limitations on implied warranties, so this may not apply depending
on the customer’s location. (For more information, see Magnuson-Moss Warranty
Act.)
Return Process

www.originacoustics.com • 844-674-4461 • www.bang-olufsen.com
©2017 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole
property of Origin Acoustics. ©2017 Bang & Olufsen. All copyrighted, trademarked and patented elements
mentioned herein are the sole property of Bang & Olufsen.
