BANGTAN Sunshade CYM-LD8 User manual

BANGTAN Sunshade User Manual
사용 전반드시 이사용설명서를 읽고 제품을 안전하게 사용하세요.
사용설명서의 그림은 다를 수있으며, 사용자에게 통보 없이 일부 변경될
수있습니다.
CONTENTS
포장 내용물 ----------------------
제품사양 -------------------------
장착 가능 도어규격 -------------
각부의 명칭 ---------------------
장착순서 및방법 ---------------
제품 각도조절 방법 -------------
제품 고정 방법 ------------------
올바른 장착과 잘못된 장착 -----
장착 및사용시 주의사항 --------
제품사용 TIP ---------------------
A/S를의뢰하시기 전에 ----------
고장점검요령 및조치사항 ------
제품보증서 -----------------------
CONTENTS
Package Contents ----------------------------- 2
Product Specifications------------------------- 3
Door standard for mounting------------------ 3
Name of each part---------------------------- 4
Mounting order and method----------------- 5
How to adjust the angle of the product----- 6
How to fix the product------------------------ 7
Correct and Incorrect Mounting-------------- 8
Cautions when installing and using---------- 8
Product TIP------------------------------------ 9
Before requesting A / S----------------------- 10
Troubleshooting and Measures-------------- 10
Product Warranty ---------------------------- 11
Please read this manual carefully before using the product. Illustrations
in this user's guide may differ and are subject to change without notice..
BANGTAN Sunshade User Manual

○Package contents
Steel Plate(2 pcs) Gell Pad(2pcs) Small Shoes(2 pcs)
User Manual
BANGTAN Sunshade
Accessories for installation
Steel Plate
Small Shoesl
Gell Pad
BANGTAN Sunshade User Manual

Product Name
BANGTAN Sunshade
Model
CYM-LD7, CYM-LD8, CYM-LS7, CYM-LS8, CYM-LW7, CYM-LW8, CYM-RD7, CYM-
RD8, CYM-RS7, CYM-RS8, CYM-RW7, CYM-RW8
Product Size
42cm(Width) ×38cm(Height) ×4.7cm(Thickness)
Product Material
ABS+PC, STEEL, PES
Weight
0.64 kg (Packing box included 1.12 kg)
Accessories
2 pedestals, 2 gel pads, 2 auxiliary magnet plates
Manufacture / Seller
CY Sunshade
○Product specification
Door Standard
Front window
height
Rear window
height
31∼37cm
35∼42cm
Rear window height
Front window height
31cm
※ Measuring standard: Length from the top of the window
frame to the bottom of the window frame
Door trim plane portion
Door frame plane portion
○Door standard
Front Rear
- The left and right pillars (pillars) of the product should be adjusted with an adjusting device to maintain the
vertical position

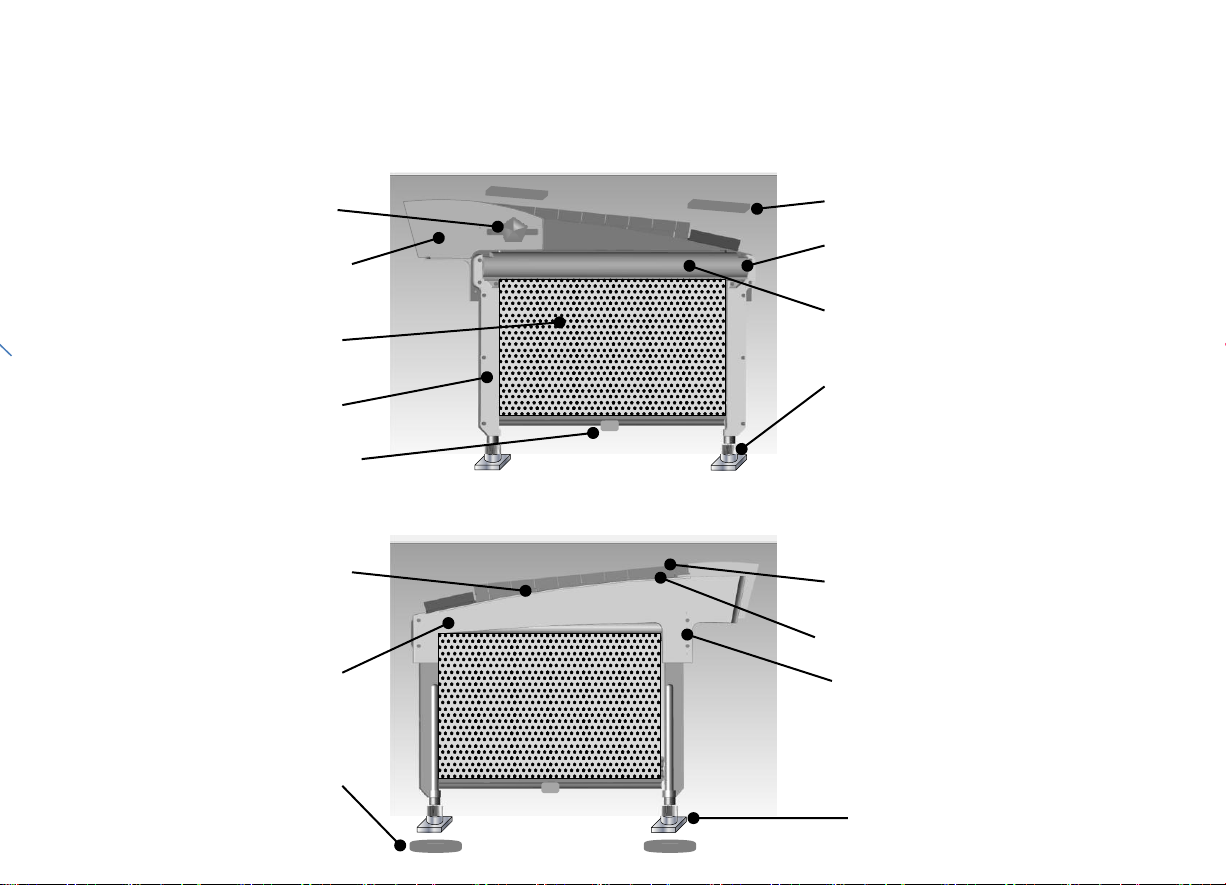

○Name of each part
Neodymium Magnet with Door Frame
Shade cover
Articulated
Sunshade roller cover
Auxiliary Sunshade Cover
Shoes(Pedestal)
Mesh sunshade fabric
Sunshade Height Adjustment Lever
Sunshade Sliding Filler
Filler height adjustment
lever
Sunshade roller
Sunshade main cover angle /
height adjustment
Sunshade Main Cover Height
Adjustment Lever
Door frame shape joint
Anti-Adhesion Gel Pad
Steel Plate for Door Attachment
(For vehicles with plastic door trim)
<Inside>
<Outside>

○Installation procedure and method (based on left driver's seat)
1. Open the door about a second
2. Attach the magnet on the top of the product to the frame on
the upper after adjust the stand so that it is 1 cm from the
end of the door, and then close the door.
(※ Note: If the upper frame is covered with plastic cover,
enclosed steel plate product magnet position stick to
the top frame exactly in two places)
3. Articulated lever (A), height adjustment lever (B) and auxiliary
shade cover (C) set it to fit the window frame so that the left and
right columns are vertical. Tighten.
- If the shape of the door trim seat where the shoes are placed
may be unstable, you put the enclosed gel pad under the base,
tighten it.
- Matches with the door weather strip end when adjusting the
auxiliary shade cover length
4. Tap or push and pull the product with a little force and
make sure there are no breaks.
1cm
Articulated lever(A)
Height adjustment lever(B)
auxiliary shade cover (C))

○How to adjust the product angle (multi-joint lever, parking plate angle)
How to adjust
Method 1
Adjust the multi-joint height adjusting lever (A) and (B) up and down to fit the door frame
Method 2
Move the two fastening pieces for elevation or low angle and carry out method 1 as necessary.
☞It is set to the middle angle (2, 5) at the factory.
1. At the time of factory shipment, most products are set to the center angle and the highest height, which are suitable for the
window frame of a vehicle. The height can be adjusted to fit the window frame.
2. However, if the upper shape of the window frame is high or low angle depending on the vehicle model, the initial setting is done
in the following two ways. Please use it after.
A
High Angle Low Angle
3rd hole
6th hole
High
Middle
Low
B
1st hole
4th hole

○How to fix the product (Door frame at the top of the window, Base at the bottom of the
window)
Window
Door frame
Door trim
Gell Pad
Articulated
shoes
Door frame above the window
Shoesl under the window
Weather Strip
Correct and incorrect mounting of the shoes
(×) (○) (×) (○)

( ○) ( ×) ( ×) ( ×)
Left pillar is tilted Left and right pillars are
tilted
Structural mismatch
between product and
vehicle (boxed vehicle)
Left and right columns
are vertical
Incorrect mounting
Correct mounting
○Correct and incorrect mounting
○Things to check when installing and using
- The left and right pillars (pillars) of the product should be adjusted with the adjusting device to maintain the vertical state.
- When raising and lowering the sunscreen, be sure to wrap the center handle with your thumb and finger stop.
(※ If you hold both ends of the sunshade and operate it excessively, the sunshade will be entangled and cause a malfunction.
- The tightening force of the product may loosen during use. This is a natural phenomenon.
Make sure that you do not break off the window sill
- Since the shape of the door trim is different depending on the vehicle, the contact state of the pedestal may be somewhat
unsatisfactory. If this happen, please insert the enclosed gel pad between the shoes and the door trim and tighten it to
increase the adhesion
- When lowering the window and using the product, do not lower the window completely and leave about 2cm for safety.

○제품사용 TIP
○Product use tip
Auxiliary sunshade
cover
Adjusting the length so
that there is no gap
with the door frame will
effectively block the
shading effect and wind
noise.
Bellows
. If the window height is
low, cut the bellows with
the cutter knife to the
required length and use
The height adjustment
lever It's much easier.
Filler height
adjustment lever
Tightening occasionally
can prevent product
loss due to loss of
tightening force.
Sunshade Height
Adjustment Lever
When raising, lowering or
locking the sunshade, it is
convenient to use your
thumb, finger and middle
finger around the handle
at the same time.
Window
Do not open the window
completely for safety while
driving with windows open

○Before requesting A / S
○Troubleshooting Tips and Measures
Phenomenon
Checking Point
Take action
The product drops out when I open or
close the door
If the product is loosened, it
may come off by shock when
opening or closing the door.
Retighten the height adjustment
lever
Sunshade is off the rails and not
operated
When unloading the sun
awning, holding down one end
without forcing it to the center
of the handle will cause it to
fall off.
Using the thumb and cognition, pull
the awning from the inside and the
outside and pull the awning cloth up
to the center.
Phenomenon
Checking Point
Take action
There is a friction sound when I lower
the sunscreen
To fix the sunshade at the
desired position, it is normal
operation sound with friction
sound between the teeth
formed in the filler and the
operating lever.
It looks like the product is tilted
This phenomenon occurs when
the product is not initially set
up even when the vehicle's
inclination angle is high or low.
First, adjust the joints to adjust both
sides of the filler so that they are
vertical. If that doesn't work, change
the sunshade cover to a high or low
angle.

When requesting repair, please present the warranty with the date of purchase to ensure sufficient service.
Product Name
BANGTAN Sunshade
Model Name
CYM-LD7, CYM-LD8, CYM-LS7, CYM-
LS8, CYM-LW7, CYM-LW8, CYM-RD7,
CYM-RD8, CYM-RS7, CYM-RS8, CYM-
RW7, CYM-RW8
Purchase date
Manufacturing number
Where to buy
Customer name
주소
1. In case of defects in manufacturing or normal use within the warranty period of this product, you can get service
by free of charge.
2. In the following cases, you will be charged for service even during the warranty period.
- damage or malfunction due to user's fault or mishandling
- damage and breakdown caused by arbitrary disassembly and misassembly
- damage or malfunction caused by accident or natural disaster
- damage caused by repair or modification of the product through your dealer or our service center.
-. If there is no warranty or no date of purchase and distributor
3. The warranty period of this product is 1 year.
4. We will repair any product damage or failures that are not covered by the warranty.
Sunshade
www.bangtansunshade.com
Manufacturer and seller: CY Sunshade co ltd
Address : 20, Seonsuchon-ro 165ben-gil, Haeundae-gu, Busan, Korea
A/S Enquiry : 82-51-504-8889
FAX Number : 82-51-504-8880
○Product Warranty
