Bar@drinkstuff CW-65D User manual

WINE COOLER
CW-65D INSTRUCTION MANUAL
PLEASE READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE USE.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN BODILY
INJURY, AND/OR PROPERTY LOSS.
RETAIN INSTRUCTION MANUAL FOR FUTURE USE.

1
Index
I. STRUCTURE …………...........................................................................2
II. TECHNICAL DATA ……………………….................................................2
III. GENERAL SAFETY PRECAUTIONS…………………............................3
IV. OPERATION OF REFRIGERATOR……………………………….……....4
V. PARTICULAR PRECAUTIONS…………………………………………….5
VI. MAINTENANCE……………………………………………….…………..…5
VII. TROUBLESHOOTING……………………………………………...........…6
VIII. ELECTRIC PRINCIPLE DIAGRAM……………………………..…….……7
IX. DISPOSAL………………………………………………………………...….7
X. GUARANTEE………………………………………………………………...7

2
I. STRUCTURE
Ⅱ .TECHNICAL DATA
Model
Capacity
Rating
power
Rating
Voltage
Frequency
Cooling
Temp.
Product
Size(mm)
Net
weight
CW-65D
65L
130W 0.9A
220-240V
50 Hz
Upper：7-12 °C(45°F -54°F)
Lower：12-18°C(54°F -65°F)
450X525X730
22.87Kg
2
15
3
4
6
Temperature Display
UPPER ZONE
Temperature Display
LOWER ZONE
Temp.+/Temp.-
UPPER ZONE
Temp.+/Temp.-
LOWER ZONE
Fahrenheit LED
Celsius LED

3
III. GENERAL SAFETY PRECAUTIONS
●After removing the wine cooler from the package, make sure it is in good
condition. In case of doubt, do not use it and contact an authorized service
centre.
●This wine cooler must only be used as it is intended. The manufacturer will not
compensate for any damage due to improper use or repairs made by unqualified
personnel.
●Before cleaning the wine cooler, make sure it is unplugged. Never clean the unit
with an acid preparation, medical, dilution, gasoline, oil or any other kind of
chemical substance that could damage the refrigerator.
●Repair should only be made by authorized service centres.
Caution：
1. To reduce the risk of fire, replace only with same type fuse.
2. Free standing installation only.
3. Do not use extension cords.
Warning:
1. If the supply cord is damaged, it must be replaced by the manufacturer or
service agent or similarly qualified person in order to avoid hazard.
2. Please screw off the door before disposing of the appliance.
3. Please keep the appliance away from any flammable substances.
4. To avoid a hazard due to the instability of the appliance, it must be fixed
according to the instructions.
5. Do not use electrical appliances inside the food storage compartments of the
appliance.
6. Children should be supervised to ensure that they do not play with the
appliance.
7. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
8. Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.

4
I Ⅴ . OPERATION OF REFRIGERATOR
.Clean the inside before use.
For first time use (or if the appliance has not been used for a long period of
time), you should adjust the temperature to minimum and have the cabinet
empty running for 2 hours, and then put your wine in it and adjust the desired
temperature.
When the power is connected, cooling system starts to work. The TEMP-ADJ
button is set on certain position, which means that if the temperature in the
wine cooler reaches the point set, Self-control Temperature System stops
cooling system so the temperature in the cabinet rises gradually.
When the inside temperature rises above the set point, Cooling Self-control
Temperature starts to work again, the cellar enter into cooling cycles.
The upper zone temperature is adjusted in the range of 7℃—12℃in the
cabinet，and the lower zone temperature is adjusted in the range of 12℃—18℃
in the cabinet, when you want to change the temperature in the cabinet, You
can push “Temp +” and “Temp -” to the temperature, press the setting key
again to stop the flashing, the temperature will be set. The actual temperature
inside the wine cellar will be displayed after 3 seconds of the setting around.
You can push the “°C/°F” button to switch between Celsius and Fahrenheit or
push the “Lamp” button to control the light inside.
NOTE:
After you setting the temperature, the LED display will return to show the
temperature in the cooler, but it could turn to the point that you have set gradually.

5
V. PARTICULAR PRECAUTIONS
Please unplug the wine cellar before moving.
If there is a long distance to move, please use a cart for delivery
Please check if all the parts are ready before installation.
In order to function at its potential, this wine cooler needs to be placed on flat
floor, with 5cm spaces at each side and 10 cm at the backside.
The height of the wine cooler is adjustable by adjusting the four legs, but
cannot be over 20 mm of each.
Keep ventilation holes clear, and keep at a distance of 50 mm from
surroundings.
Please keep away from the heat resources or gas.
Avoid direct sunshine and high temperature.
Do not place heavy articles on the top of the cellar.
VI. MAINTENANCE
●Shut off power supply before cleaning cabinet.
●Take out wines and shelves, and then clean the cabinet with clean water.
●Do not use soap or detergent for the cabinet.
●Clean the cellar regularly.

6
VII. TROUBLESHOOTING
Symptoms
Possible cause
Solutions
No cooling
Plug not put in
Low voltage
Fuse broken
Put in the plug
Ensure normal voltage
Change fuse
Not cold enough
temperature
inside
The wine cooler is
near heat source;
Poor ventilation;
Fans don’t work;
Keep the wine cooler away
from sunshine or other heat
source;
Place the wine cooler on the
place with good ventilation and
Keep things away from the
fans;
Check whether the plug is
connected or change the fan;
Moisture build
on inter or
exterior wine
cooler
High humidity
Gap between cabinet
and door gasket
Prolonged or
frequent door
openings
Please use a soft and dry cloth
to clean the dew.
Ensure door gaskets for
proper seal.
Reduce time and frequency
when door is open
Dew on the glass surface
If the weather is wet or in rainy days, there may be some dew on the wine cellar
surface. It is a normal case and adjusting the temperature of the wine cellar to
reduce the dew. The higher temperature inside the wine cellar results in less dew on
the glass door. Please use a soft dry cloth to clean the dew.

7

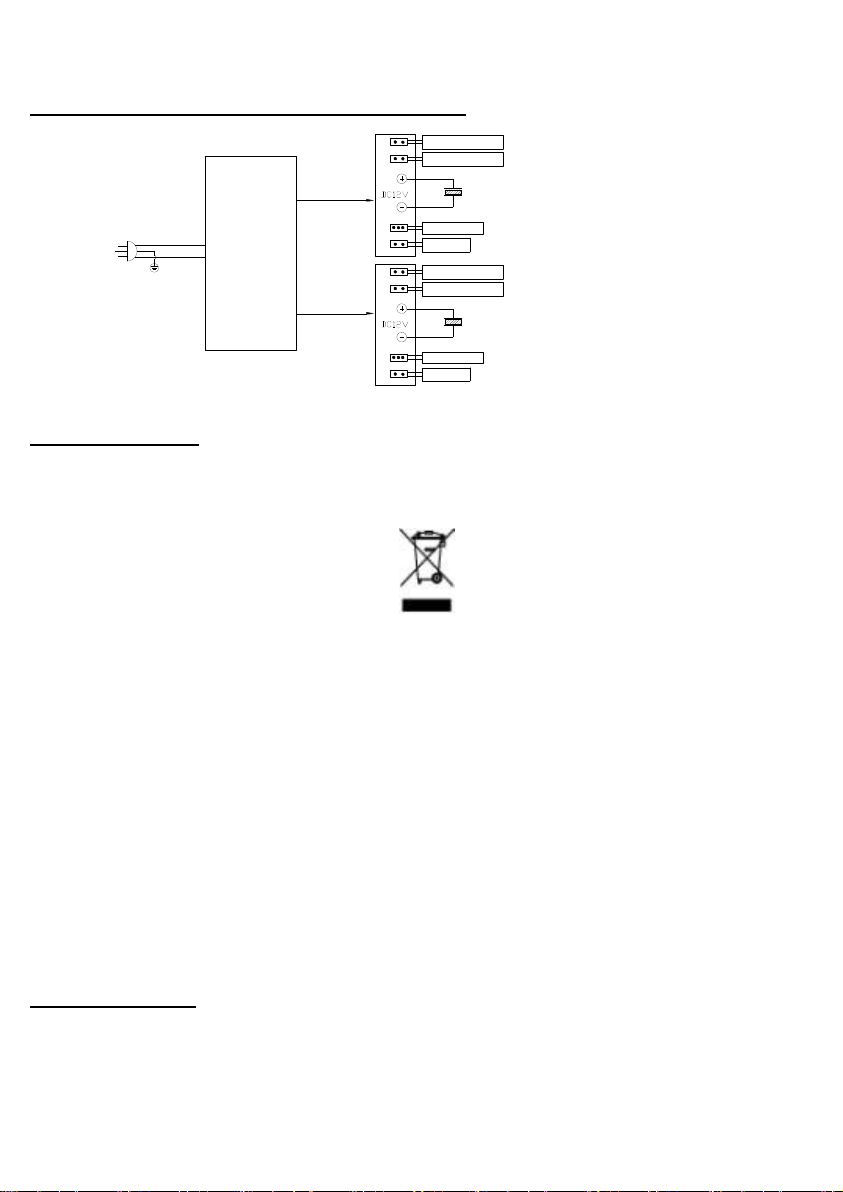

VIII ． ELECTRIC PRINCIPLE DIAGRAM
AC INPUT
SMPS MODULE /
TEMP. CONTROL PCB
THERMOELECTRIC MODULE
TEMP. ADJ.
HEAT SINK FAN
DISPLAY
COLD FAN
THERMOELECTRIC MODULE
TEMP. ADJ.
HEAT SINK FAN
DISPLAY
COLD FAN
UPPER ZONE
LOWER ZONE
Ⅸ． DISPOSAL:
Do not dispose this product as unsorted municipal waste. Collection of such waste
separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal there are several possibilities:
a) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
b) The disposal of your old appliance must follow the legal guide lines of the country
where the appliance has been disposed.
c) As old product contains valuable resources, they can be sold to scrap metal
dealers.
Disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.
X ． Guarantee:
The guarantee of the wine cooler is regulated by the representative distribution
organization, in the country where the appliance has been purchased. The supplier
where you bought the appliance can give additional information.

8
You need the original purchase receipt and the date of purchase at any case, to be
able to use your guarantee.
