1. Safety
1. SAFETY
About this chapter
Read this chapter attentively. It contains important information to prevent personal injury while servicing an TF-20 display on-site.
Furthermore, it includes several cautions to prevent damage to the TF-20 tile. Ensure you understand and follow all the safety
guidelines, safety instructions and warnings mentioned in this chapter before performing any servicing on the TF-20 display. After
this chapter additional “warnings” and “cautions” are given depending on the servicing procedure. Read and follow these “warnings”
and “cautions” as well.
Overview
• Servicing safety instructions
R59770270 TF-20 21/05/2008 3

1. Safety
1.1 Servicing safety instructions
WARNING:Servicingmustbedonebyauthorizedandqualified technical personnel only, which are thor-
oughly familiar with the product and all of the proper safety checks of this product.
Personal protection
WARNING:Ensure you understand and follow all the safety guidelines, safety instructions, warnings and
cautions mentioned in this manual.
WARNING:Be aware of suspended loads.
WARNING:Wear a hard hat to reduce the risk of personal injury.
WARNING:Be careful while working with heavy loads.
WARNING:Mind your fingers while working with heavy loads.
Safety precautions:
• Follow all servicing and safety instructions mentioned in the servicing procedures.
• Unplug the tile AC power cord from the AC power source and wait about 10 minutes before start any servicing to the tile. This
to allow the capacitors to discharge.
• Some boards contains electrostatically sensitive devices (ESD). Take the necessary precautions to prevent the incidence of
component damage caused by static electricity.
• Do not modify and/or replicate any component. Barco uses specific materials and manufacturing processes in order to achieve
part strength. No other parts then Barco parts are allowed.
Additional on-site servicing safety precautions:
• Fence off a restricted area of at least 3 meters around the LED-wall using an eye-catching fence and “KEEP OUT” signs. This
to prevent unauthorized persons coming near the LED-wall during servicing.
• Inspect the complete LED-wall for security, wear, deformation, corrosion, and any other circumstances that may effect the load
handling capability of the part.
• Both hands must be free for servicing TF-20 tiles in a LED-wall. Therefore the use of a ladder to access a tile is forbidden. Only
the use of a scaffold or a Z-lift is allowed.
• Do not use the stacker system of the LED-wall to climb into the TF-20 display. Always use a scaffold or Z-lift to perform any
servicing or repairing to the display.
• In case of removing an TF-20 LED module out of a tile, ensure the module is secured with a safety cable to the LED-wall
structure.
• Take the necessary precautions to prevent water intrusion inside the TF-20 tile due to weather conditions.
4R59770270 TF-20 21/05/2008

2. General information
2. GENERAL INFORMATION
About this chapter
This chapter gives an overview of all the parts inside a TF-20 tile and the internal connections between the different boards. Futher-
more, a list is given with all the available spare parts and service kits.
Overview
• Service overview
• Service components of a 3x1 tile
• Service components of a 3x2 tile
• Re-sync/controller unit connections
• Internal wiring diagram of a 3x2 tile
• Internal wiring diagram of a 3x1 tile
• Startup sequence of an TF-20 display system
• Spare part and service kits
R59770270 TF-20 21/05/2008 5

2. General information
2.1 Service overview
Front and back access

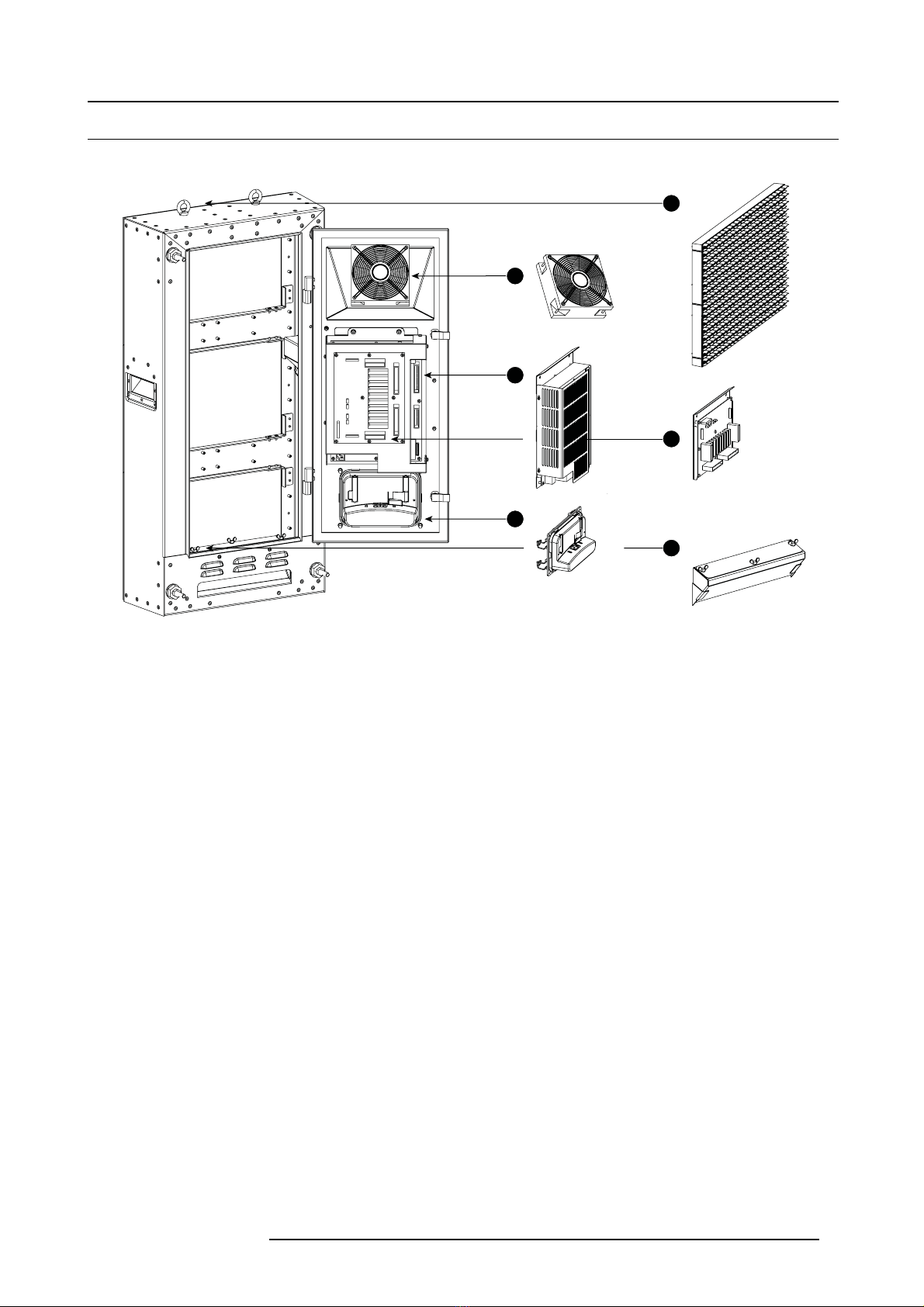

A TF-20 display can consist of two different types of tiles. Each type of tile can have front or back access for service reasons.
Front access Back access
3x1 tile Illustration 1 Illustration 2
3x2 tile Illustration 3 Illustration 4
•Front access:
Front access means that service on the TF-20 tile happens from the front side of the tile. To access the components inside the
tile, several or all frames have to be removed.
•Back access:
Back access means that service on the TF-20 tile happens from the back side of the tile. To access the components inside the
tile, one or two doors are provided which can easily be opened using a quick lock.
12
3 4
Image 2-1
6R59770270 TF-20 21/05/2008

2. General information
2.2 Service components of a 3x1 tile

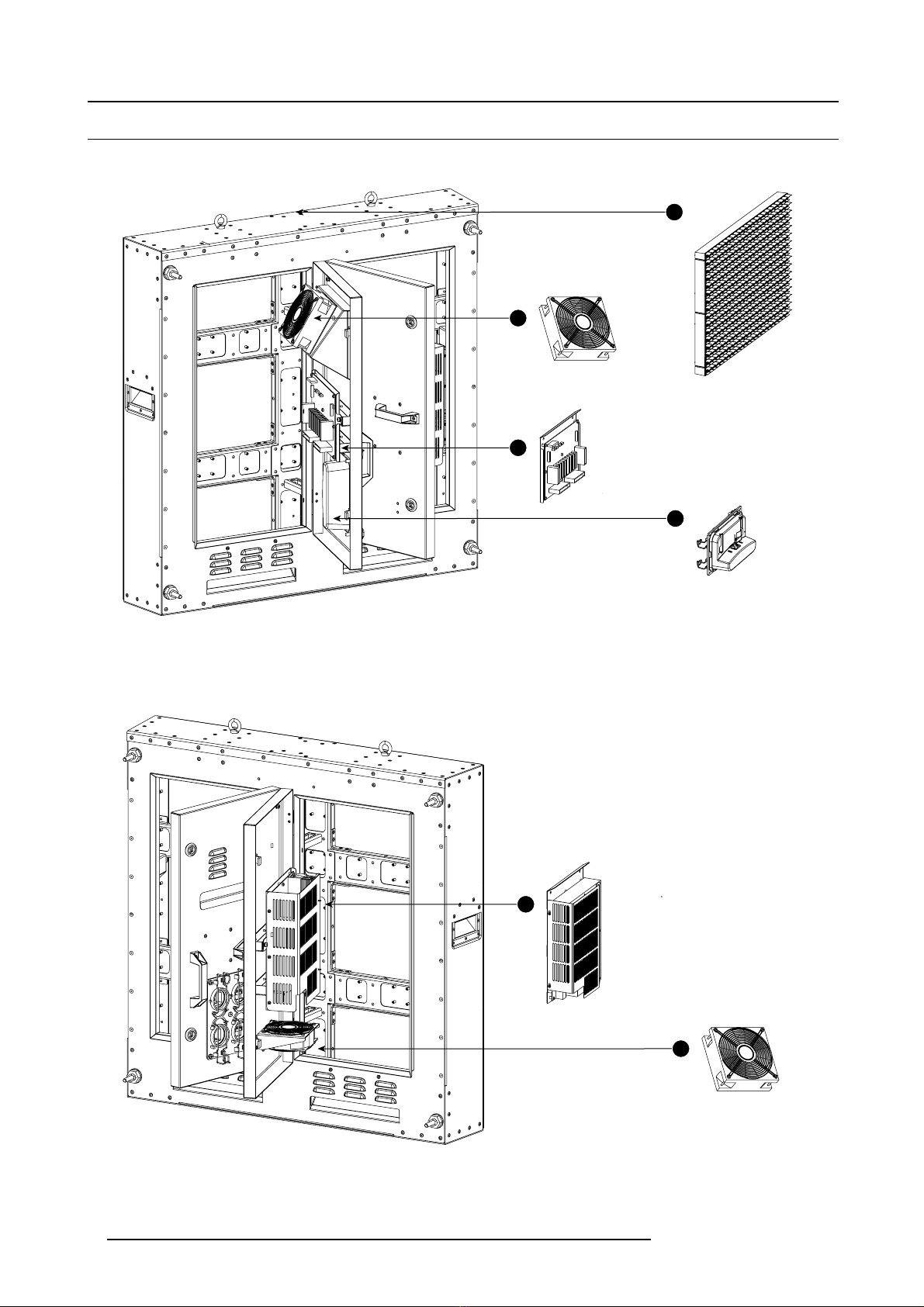

Service components of a 3x1 tile
4
2
1
3
5
6
Image 2-2
1 LED-frame
2 External fan with dust filter
3 PSU (Power Supply Unit)
4 PDB (Power Distribution Board)
5Dustfilter
6 Re-sync/controller unit
R59770270 TF-20 21/05/2008 7

2. General information
2.3 Service components of a 3x2 tile
Service components of a 3x2 tile
3
2
1
4
Image 2-3

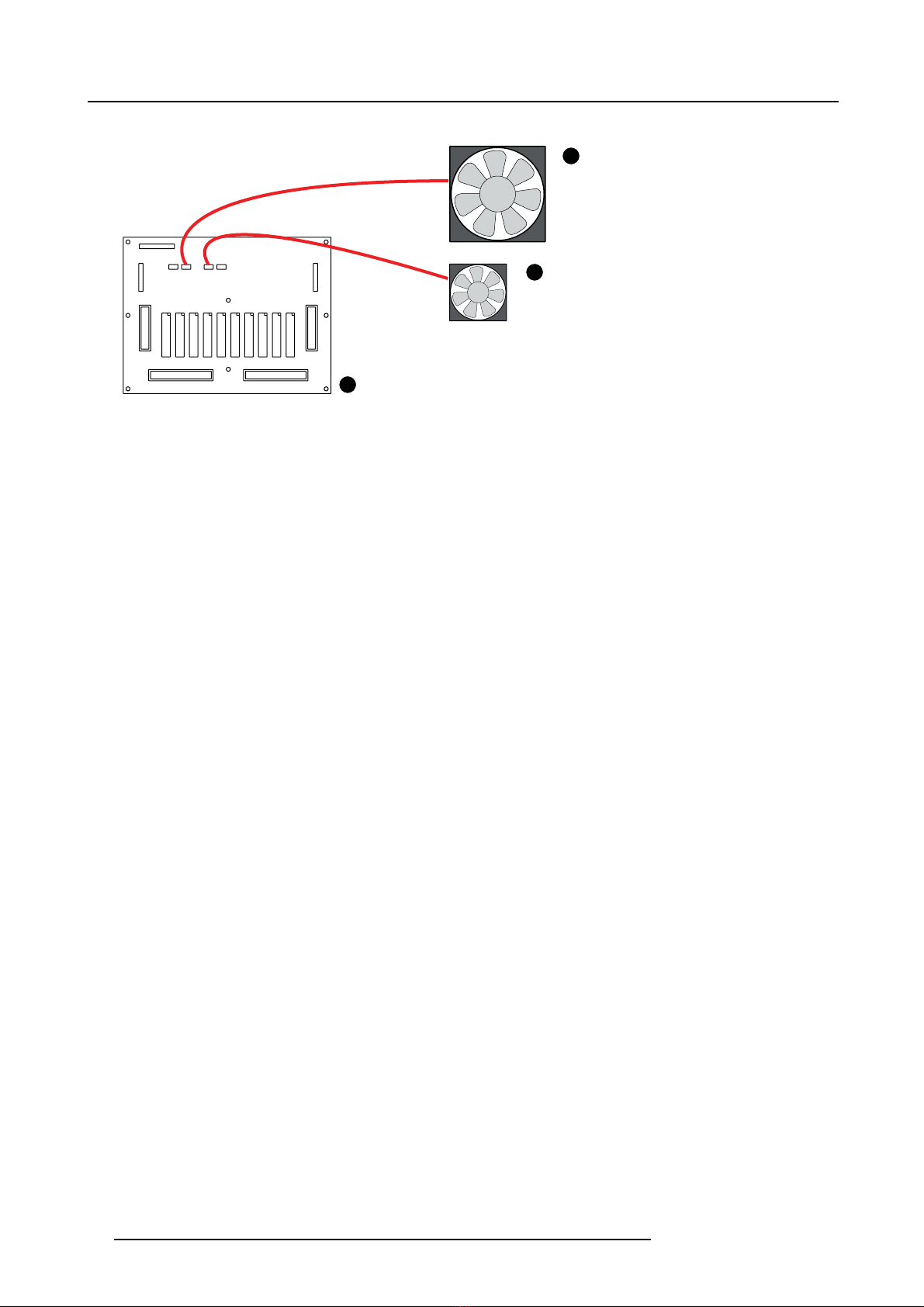

1 LED-frame
2 External fan with dust filter
3 PDB (Power Distribution Board)
4 Re-sync/controller unit
6
5
Image 2-4
5 PSU (Power Supply Unit)
6 Internal fan
8R59770270 TF-20 21/05/2008

2. General information
7
Image 2-5
7Dustfilter
R59770270 TF-20 21/05/2008 9

2. General information
2.4 Re-sync/controller unit connections
Re-sync/controller unit connections
D1
D2
P
S
Image 2-6

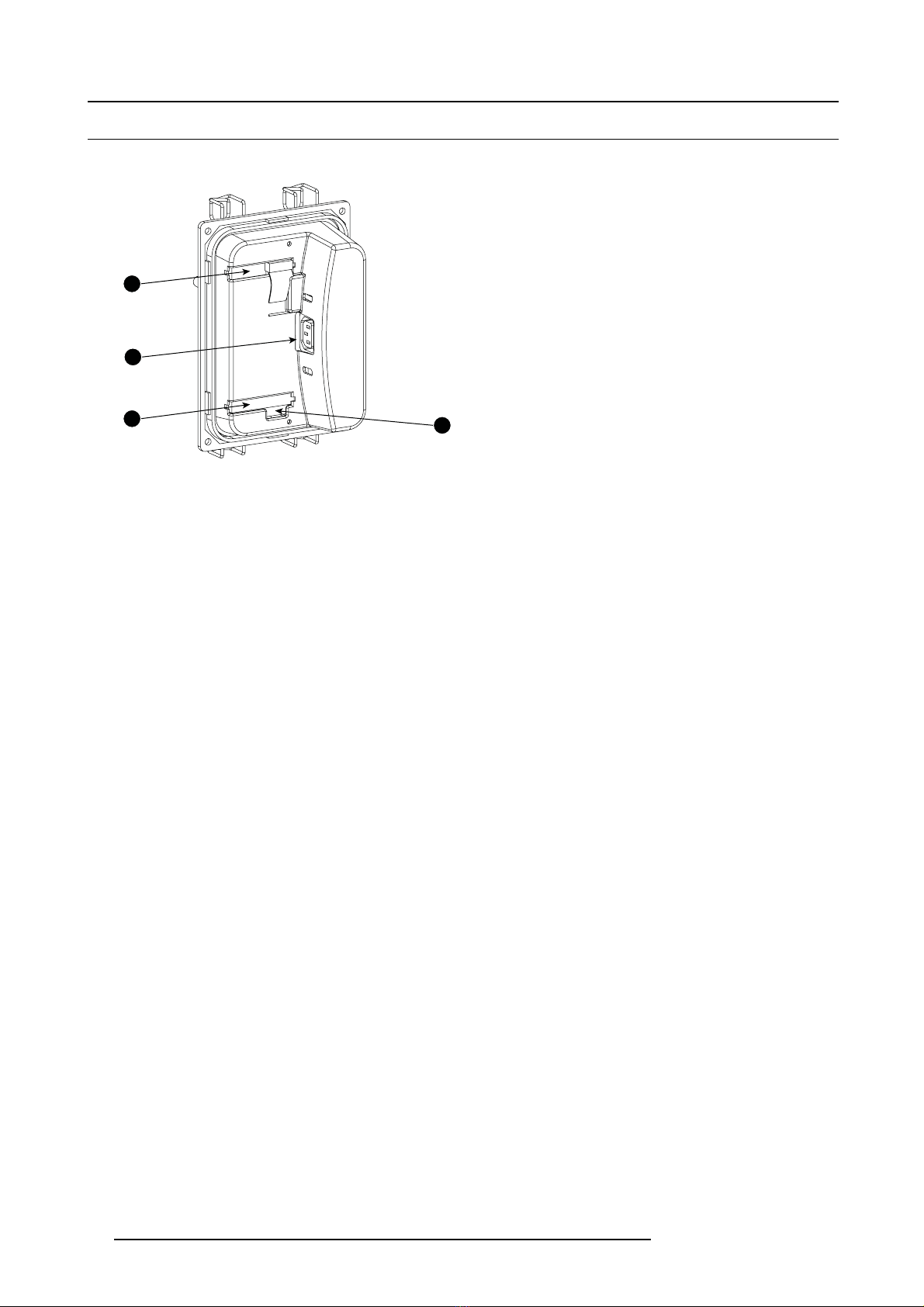

D1 Data socket 1 TF-20 re-sync/controller unit
P Main power socket
D2 Data socket 2 TF-20 re-sync/controller unit
S Low voltage supply socket of the TF-20 re-sync/controller unit
10 R59770270 TF-20 21/05/2008

2. General information
2.5 Internal wiring diagram of a 3x2 tile

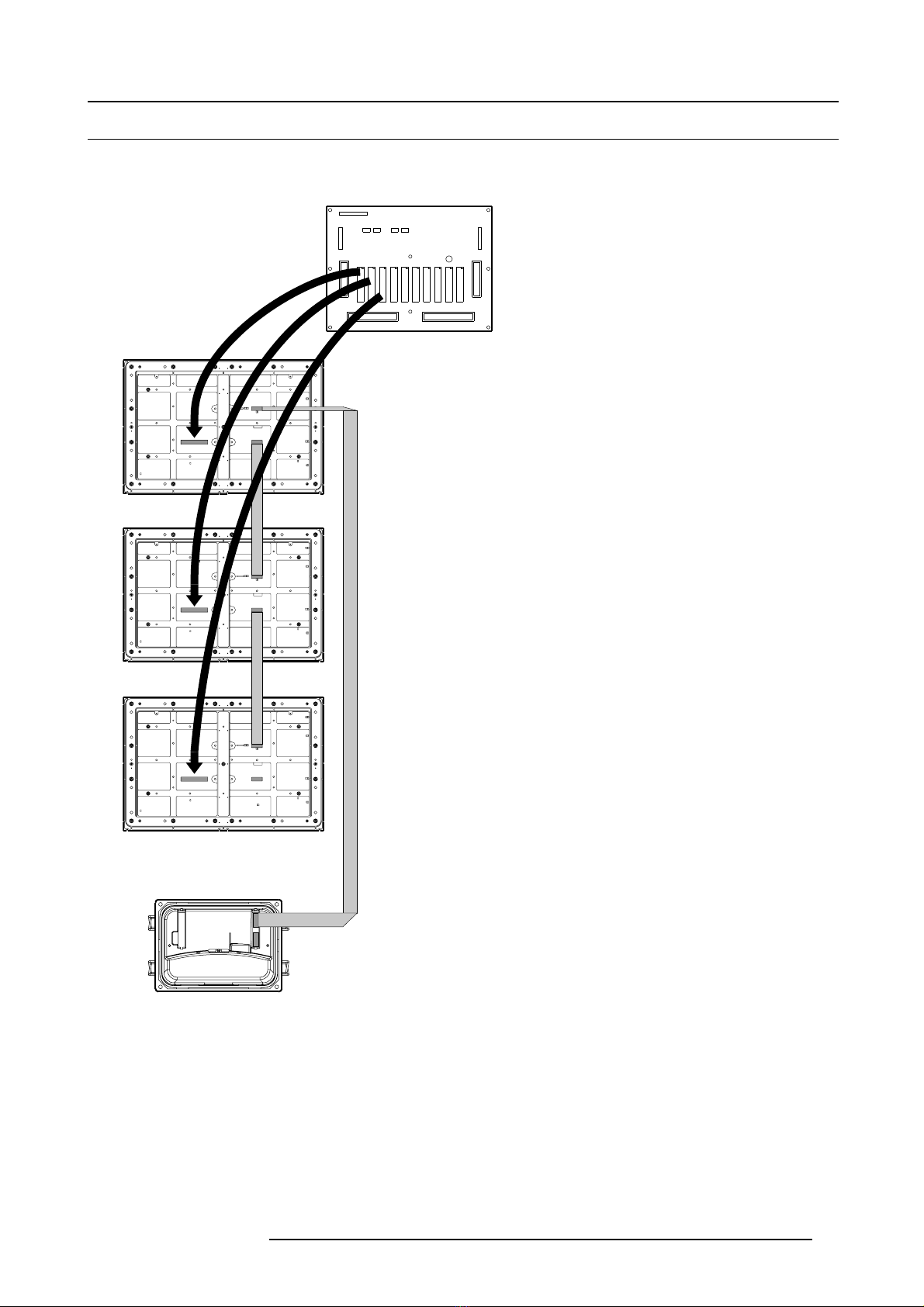

3x2 tile wiring diagram
Internal wiring between LED-frames, controller and power distribution unit (seen from the back of the TF-20 tile)
Re-sync/controller unit
LED-FRAME 1
LED-FRAME 2
LED-FRAME 3
LED-FRAME 4
LED-FRAME 5
LED-FRAME 6
Power
distribution unit.
Image 2-7
R59770270 TF-20 21/05/2008 11

2. General information
Fan connections of a 3x2 tile
1
2
3
Image 2-8
1 PDB (Power Distribution Board)
2 External fan
3 Internal fan
12 R59770270 TF-20 21/05/2008

2. General information
2.6 Internal wiring diagram of a 3x1 tile
3x1 tile wiring diagram
Internal wiring between LED-frames, controller and power distribution unit (seen from the back of the TF-20 tile).
Re-sync/controller unit
LED-FRAME 1
LED-FRAME 2
LED-FRAME 3
Power
distribution unit.
Image 2-9
R59770270 TF-20 21/05/2008 13

2. General information
Fan connections of a 3x1 tile
1
2
Image 2-10
1 PDB (Power Distribution Board)
2 External fan
14 R59770270 TF-20 21/05/2008

2. General information
2.7 Startup sequence of an TF-20 display system
The first two steps of the startup sequence are done manually.
Startup sequence:
1. Switch on the main power to the SLite tiles.
Note: Nothing happens yet.
2. Power up the digitizer.
- The digitizer generates a START signal for the first tile.
- The digitizer places video content, of the last selected input slot, on the data line to the LED display.
3. The START signal triggers the re-sync/controller unit of the first tile to start up on the line voltage provided on the data cable.
- The re-sync/controller unit transfers the START signal to an ON signal for the local SMPS.
- The green LED on the re-sync/controller unit remains off.
- The red LED on the re-sync/controller unit will only light up in case there is no video content present on the incoming data line.
- The re-sync/controller unit delays the START signal about half a second before sending it to the next tile. This is necessary
to reduce the inrush current of the complete TF-20 display. This delayed START signal will activate the next tile and so on.
4. The ON signal from the re-sync/controller unit triggers the local SMPS to start up.
- The four internal fans starts to turn.
5. The power distribution unit starts up.
- The power distribution unit generates +15V and +8V.
- The +15V red LED and the +8V red LED goes on.
6. The controller starts up.
- The controller generates the local +5V and the local +8V line voltage.
- The +5V red LED on the controller unit goes on.
- The local +8V line voltage supports the line voltage on the data cable to supply the resync-unit.
7. The controller unit starts to initialize.
- The yellow LED on the controller unit lights up continuously.
- The green LED(s) on the controller unit starts lighting up after the FPGA(s) are configured.
- The Yellow LED on the controller unit starts to flash (half a second on, half a second off) indicating the controller is completely
and correctly initialized.
8. The LED driver receives data from the controller.
- The yellow LED on the LED drivers goes on.
9. The TF-20 tile shows video content.
R59770270 TF-20 21/05/2008 15

2. General information
2.8 Spare part and service kits
General
Barco provides several kits for servicing TF-20 tiles. Below you find an order list of existing spare part and service kits. In the future
new kits can be added to this list. Contact Barco to get an updated list.
Order info Description
B3247061K Internal fan kit
B3247071K External fan kit
R7665001K LED-frame kit
R8368591K Shader repair kit
B362804K Screw kit
R838004K Dust filter kit
R837030K PDB (Power Distribution Kit)
R837027K PSU (Power Supply Unit) kit
R857574K Re-sync/controller unit kit
R861775K Tooling kit
Contains all, standard and TF-20 specific, tools required for optimal installation and servicing.
Z3472067K Data cable kit
Z3472142K Power cable kit
16 R59770270 TF-20 21/05/2008
