Barco D320LITE Instruction sheet

EVENTS
D320LITE DIGITIZER
R9851560
INSTALLATION GUIDELINES
29042003 R5976471/00

Barco nv Events
Noordlaan 5, B-8520 Kuurne
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Visit us at the web: www.barco.com
Printed in Belgium

Changes
Barco provides this manual “as is” without warranty of any kind, either expressed or implied, including but
not limited to the implied warranties or merchantability and fitness for a particular purpose. Barco may make
improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time
without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made
to the information in this publication; these changes are incorporated in new editions of this publication.
Guarantee and Compensation
Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee.
On receipt, the purchaser must immediately inspect all delivered goods for damage incurred during transport, as
well as for material and manufacturing faults Barco must be informed immediately in writing of any complaints.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software
on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of
compliant, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.
If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase
price or cancellation of the contract. All other claims, in particular those relating to compensation for direct or
indirect damage, and also damage attributed to the operation of software as well as to other services provided
by Barco, being a component of the system or independent service, will be deemed invalid provided the damage
is not proven to be attributed to the absence of properties guaranteed in writing or due to the intent or gross
negligence or part of Barco.
If the purchaser or a third party carries out modifications or repairs on good delivered by Barco, or if the goods
are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the trans-
fer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the
purchaser will be rendered invalid. Not included in the guarantee coverage are system failures which are at-
tributed to programs or special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as
well as normal maintenance are not subject to the guarantee provided by Barco either.
The environmental conditions as well as the servicing and maintenance regulations specified in the this manual
must be complied with by the customer.
Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise
be recorded, transmitted or stored in a retrieval system without the prior written consent of BARCO.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights
of their respective holders. All brand and product names mentioned in this manual serve as comments or
examples and are not to be understood as advertising for the products or their manufactures.
Federal Communication Commission (FCC Statement)
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfer-
ence when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area may
cause harmful interference, in which case the user will be responsible for correcting any interference.

1. Safety
1. SAFETY
1.1 Important Safety Instructions
Instructions:
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do NOT submerge fully or partly in water or other liquids.
• Clean only with materials or chemicals that are inert, nonabrasive, noncorrosive and non-marking.
Consult the manufacturer for further advice should any doubts exist regarding any cleaning procedure.
• Do not block ventilation openings. Install in accordance with the manufacturers instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding type plugs/sockets. If the provided
sockets / plugs are damaged then replacement of the defective parts must be undertaken immediately.
• Protect the power/data cords from being walked on or pinched particularly at plugs, convenience re-
ceptacles, and the point where they exit from the apparatus. Replace damaged power/data cords
immediately.
• Only use attachments/accessories specified by the manufacturer.
• Disconnect the power to this apparatus during lightning storms or provide suitable additional lightning
protection. Unplug this apparatus when unused for long period of time.
• Refer all servicing to qualified service technicians/personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, the apparatus does
not operate normally, or has been dropped.
• Use only with systems or peripherals specified by the manufacturer, or sold with the apparatus. Use
caution during lifting/moving or transporting to avoid damage by possible tipping.
R5976471 D320LITE DIGITIZER 29042003 1

1. Safety
1.2 Important Warnings
Important Warnings:
•Risk of electric shock:
Image 1-1
Risk of electrical shock
Risk of electric shock. Do not open. To reduce the risk of electric shock, do not remove cover (or
back). No user-serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with an arrowhead within a triangle is intended to tell the user that parts inside this
product may cause a risk of electrical shock to persons.
The exclamation point within a triangle is intended to tell the user that important operating and/or
servicing instructions are included in the technical documentation for this equipment.
•Maximum ambient temperature:
The maximum recommended ambient temperature for this equipment is 40 C.
•Flammable materials:
Keep flammable materials away from the installation (such as curtains). A lot of energy is transferred
into heat. The installation should be such that the amount of air flow required for safe operation of the
equipment is not compromised. Proper ventilation must be provided.
•This equipment MUST be earthed:
In order to protect against risk of electric shock, the installation should be properly grounded. Defeat-
ing the purpose of the grounding type plug will expose you to the risk of electric shock. This apparatus
must be grounded (earthed) via the supplied 3 conductor AC power cord. (If the supplied power cord
is not the correct variant, consult your dealer.)
•Power system:
It is recommended to use a TN-S power distribution system (a power distribution system with a sep-
arate neutral and grounding conductor) in order to avoid large ground currents loops due to voltage
differences in the neutral conductor. The total electrical installation should be protected by an appro-
priate rated disconnect switch, circuit breakers and Ground Fault Current Interrupters. The installation
shall be done according to the local electrical installation codes. In Europe special attention should be
given to EN 60364, the standard for electrical installation of buildings. In Germany VDE 0100 should
be adhered to.
•Mains cords:
The power cords delivered with this system have special properties for safety. They are not user
serviceable. If the power cords are damaged, replace only with new ones. Never try to repair a power
cord.
2R5976471 D320LITE DIGITIZER 29042003

1. Safety
•Use of an extension cord:
If an extension cord is used with this product, make sure that the total of the ampere ratings on the
products plugged into the extension cord does not exceed the extension cord ampere rating. Also
make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
•Cabinet openings:
Never push objects of any kind into this product through cabinet slots as they may touch dangerous
high voltage points or short out parts that could result in a risk of fire or electrical shock.
Never spill liquid of any kind on the product. Should any liquid or solid object fall into the cabinet,
unplug the set and have it checked by qualified service personnel before resuming operations.
R5976471 D320LITE DIGITIZER 29042003 3

1. Safety
4R5976471 D320LITE DIGITIZER 29042003

2. Introduction
2. INTRODUCTION
2.1 General functionality
Overview
The D320Lite is avideo processing device, designed to driveexclusively Barco LEDwalls. The D320Lite is
capable of handling all standard output formats like SVGA, XGA, SXGA and UXGA on an analog RGBHV
and digital DVI output.
The D320Lite Digitizer allows you to control up to 2 sources on one display. Seamless switch from source
to source or display sources together, overlay them, customize them. With analog and digital outputs
which allow for the control of displays, as well as built-in-control software, the D320Lite gives you control
over everything from basic set-up to configuration and advanced feature control.
Image 2-1
System overview
2.2 Order info D320Lite Digitizer
Order info:
Article No. Description
R9851560 D320Lite Digitizer
2.3 Technical summary
Summary
Type Value
Input slots 2 input slots, front accessible, auto sensing and hot swappable
Compatibility Barco LED walls
Output DVI-A, Barco LED protocol
Scalability Chaining for more inputs, stacking for more displays
R5976471 D320LITE DIGITIZER 29042003 5

2. Introduction
Type Value
Flexibility User defined input
Scaler 2 input channels [Data-Video] fully independent scalable to desired
output resolution
Z-order control Instant modification of Z-order control, for each output window
Window Positioning Intuitive positioning interface
Connectors RS 232 [RJ 11] — Ethernet [RJ 45]
Effects Anamorphic imaging, Chroma keying [per input], Alpha keying [per
input], Z-order control, Windowing/ View ports
Ruggedness IP 10
Dimensions D320Lite 486 x 482 x 53 (W x D x H)
Dimensions D320Lite input
Units 41 x 181 x 103 (W x D x H)
Weight ±7kg
Operating Temperature 0ºC<>45ºC
Power consumption 130 Watt max at 85–264 Volt (50–60 Hertz)
6R5976471 D320LITE DIGITIZER 29042003

2. Introduction
2.4 Dimensions of the D320Lite Digitizer
Dimensions
Image 2-2
R5976471 D320LITE DIGITIZER 29042003 7

2. Introduction
8R5976471 D320LITE DIGITIZER 29042003

3. Physical Installation of the D320Lite Digitizer
3. PHYSICAL INSTALLATION OF THE
D320LITE DIGITIZER
3.1 Installation requirements
Requirements
• The D320Lite Digitizer should not be placed in a built-in installation or enclosure unless proper venti-
lation is provided.
• When using the unit in a multi-unit rack assembly or closed assembly, the ambient temperature inside
the assembly may not exceed the maximum rated ambient temperature of the Digitizer. The instal-
lation should be such that the amount of air flow required for safe operation of the equipment in not
compromised.
• When building in the D320Lite Digitizer into a rack with cover door, beawarethataspaceof8,5cmis
needed between the indicated reference and the cover door. This space is needed to guide the input
cables to the inputs.
Image 3-1
A Reference
• The D320Lite Digitizer will require that air flows freely in vent holes. Blocking these holes will greatly
reduce the reliability of the unit and lead to the possibility of overheating.
• The D320Lite Digitizer should operate from an AC power source. The D320Lite Digitizer is equipped
with Power Supply Autoranging from 85 to 264 volt (50–60 Hertz).
• When installed in a rack, the mounting should be such that no hazardous condition is achieved due
to uneven mechanical loading.
• When the mains switch located on the back of the D320Lite Digitizer is not accessible due to rack
mounting, the socket outlet supplying the rack shall be installed near the equipment and be easily
accessible or a readily accessible disconnect device shall be incorporated in the fixed wiring. When
using a rack in an installation is advisable to log the serial number of the device and to activate the
warranty figure by registering utilizing the included form.
• Do not place the D320Lite Digitizer on an unstable cart, stand or table. The device may fall, causing
serious damage to it.
R5976471 D320LITE DIGITIZER 29042003 9

3. Physical Installation of the D320Lite Digitizer

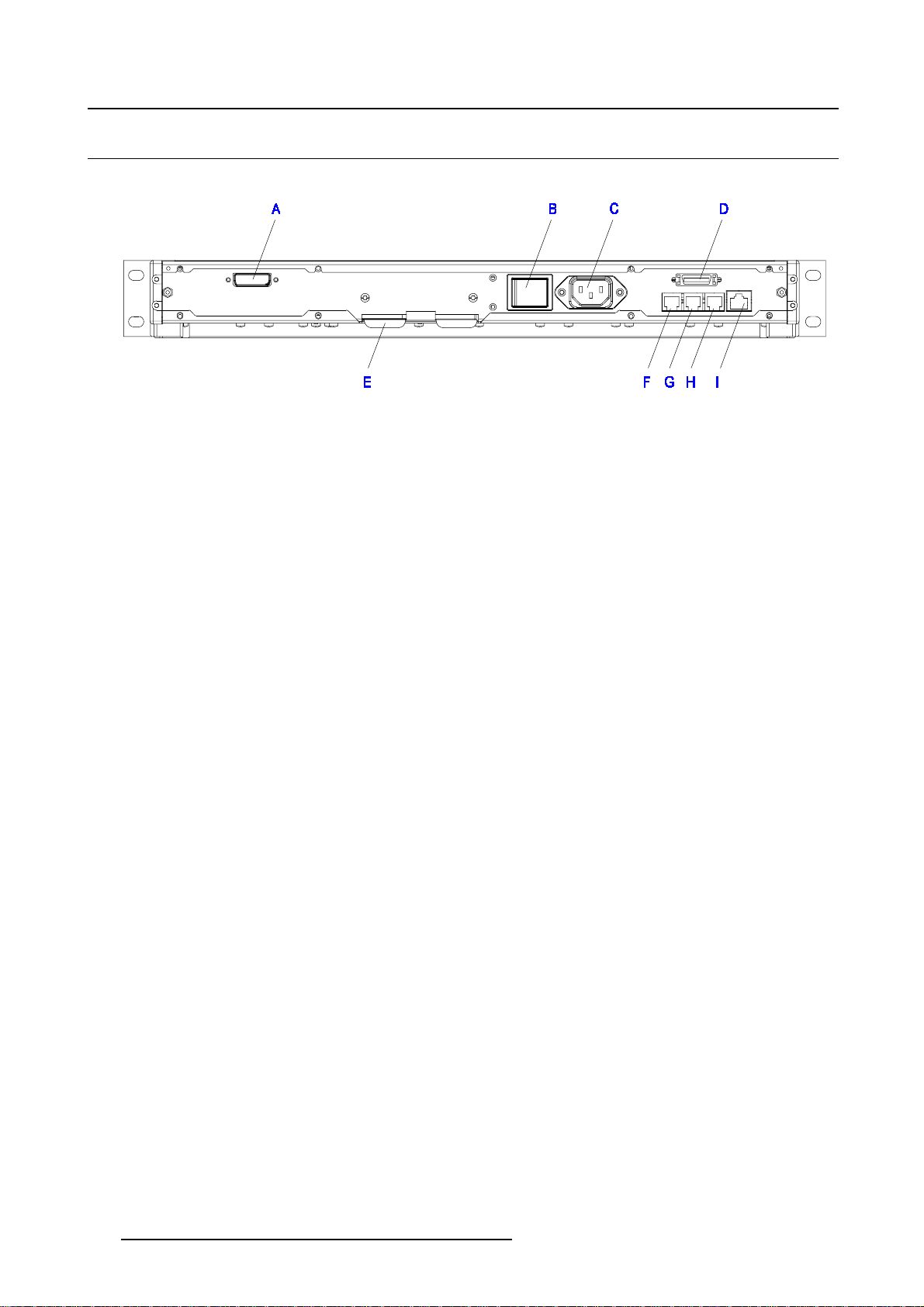

3.2 Connections
Rear panel inputs/outputs
Image 3-2
A LED-WALL / PROJECTOR OUTPUT
BPowerSwitch
C Power input
D Not used
E Retractable dust filter
F COM1 : RS232 input
G Not used
H Not used
I TCP-IP : Ethernet LAN connector
10 R5976471 D320LITE DIGITIZER 29042003

3. Physical Installation of the D320Lite Digitizer
•A : LED-WALL / PROJECTOR OUTPUT (DVI output connector with 3 functions)
- LED wall out (Barco proprietary protocol).
- RGB HV out (analog).
- DVI digital out. (DVI compliant, eg: monitor, projector, plasma, ... )
•B : Power switch
- The power ON/OFF switch is provide on the rear side of the Digitizer.
oSwitchpressedto1=theunitstarts.
oSwitch pressed to 0 = unit totally switched off.
•C : Power input
- Autoranging from 90 to 260 VAC / 130 Watt.
•D:Notused
•F : Retractable dust filter
- The fan intake grill of the Digitizer has a retractable dust filter. This filter can be retracted from the
back of the unit. Check the filter for good functionality on a regular basis. Never allow this filter to
become blocked up and never operate the unit without a good working air filter in place.
•G : COM1 : RS232 input
- Direct master.
- RS232 input port for communication links with local PC.
•H:Notused
•I:Notused
•J : TCP-IP : Ethernet LAN connector
- For future use.
3.3 Removing and inserting a D320Lite Digitizer input module
There is no need to switch off the D320Lite Digitizer to remove or insert an input module.
The input modules are hot swappable.
How to remove an input module from the D320Lite Digitizer
1. Push in the release button underneath the input module which you want to remove. At the same time
pull out the input module by the grip handle. (image 3-3)
Image 3-3
How to insert an input module into the D320Lite Digitizer
1. Gently slide in the input module into a free input slot with the grip handle at the top.
2. Locking in the module by pushing the input module completely into the D320Lite Digitizer until a definite
click is audible.
R5976471 D320LITE DIGITIZER 29042003 11

3. Physical Installation of the D320Lite Digitizer
Maximum two HDSDI input modules may be inserted in one D320Lite Digitizer.
12 R5976471 D320LITE DIGITIZER 29042003

4. Input modules
4. INPUT MODULES
Overview
• DVI input module
• SDI input module
• HDSDI input module
• CVBS / S-VID input module
• YUV / RG(s)B input module
• RGB analog input module
• Dummy input module
4.1 DVI input module
Technical info:
• Computer generated graphical source.
•DVIdatain.
• 162 MHz pixel clock.
• Resolution from VGA to UXGA/60 Hz.
• DVI compliant.
• DVI loop through.
• Amber LED (upper LED on the front side) will be lit indicating module start up.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.
Image 4-1 Image 4-2
Order info:
Article No. Description
R9850960 D320Lite Digitizer DVI input module
R5976471 D320LITE DIGITIZER 29042003 13

4. Input modules
4.2 SDI input module
Technical info:
•SDIdatain.
• SDI loop through.
• 270Mbit/s transmission (SMPTE 259M-C).
• 525/625 interlaced.
•Coax(75Ohm).
• Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or
intermittent film detection.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.
Image 4-3 Image 4-4
Order info:
Article No. Description
R9850970 D320Lite Digitizer SDI input module
4.3 HDSDI input module
Maximum two HDSDI input modules may be inserted in one D320Lite Digitizer.
14 R5976471 D320LITE DIGITIZER 29042003

4. Input modules
Technical info:
• HDSDI data in (SMPTE292M).
• HDSDI loop through (SMPTE292M).
•Coax(75Ohm).
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.
• Supported HDSDI standards:
- Progressive:
o1280x720/60/1:1/ (SMPTE 296M)
o1280x720/59.94/1:1/ (SMPTE 296M)
o1920x1080/30/1:1/ (SMPTE 274M)
o1920x1080/29.97/1:1/ (SMPTE 274M)
o1920x1080/25/1:1/ (SMPTE 274M)
o1920x1080/24/1:1/ (SMPTE 274M)
o1920x1080/23.98/1:1/ (SMPTE 274M)
- Interlaced:
o1920x1035/60/2:1/ (SMPTE 260M)
o1920x1035/59.94/2:1/ (SMPTE 260M)
o1920x1080/60/2:1/ (SMPTE 274M)
o1920x1080/59.94/2:1/ (SMPTE 274M)
o1920x1080/50/2:1/ (SMPTE 274M)
o1920/1080/50/2:1 (1250)/ (SMPTE 295M)
o1920x1080/24/Segmented/ (SMPTE 274M)
o1920x1080//23.98/Segmented/ (SMPTE 274M)
Image 4-5 Image 4-6
Order info:
Article No. Description
R9850980 D320Lite Digitizer HDSDI input module
R5976471 D320LITE DIGITIZER 29042003 15

4. Input modules
4.4 CVBS / S-VID input module
Technical info:
• Video (BNC)
- CVBS : 1Vpp ±3dB (0,7V Video +0,3V Sync) 75 Ohm termination.
- BNC loop through connector.
• S-Video (4 pins DIN)
- Y : 1Vpp ±3dB (0,7V Video +0,3V Sync) 75 Ohm termination.
- U/V : 0,7Vpp ±3dB 100% color base, 75 Ohm termination.
- Chroma : Multi-Standard (PAL / SECAM / NTSC).
- 4 pins DIN loop through connector.
• Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or
intermittent film detection.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.
Image 4-7 Image 4-8
Order info:
Article No. Description
R9850920 D320Lite Digitizer CVBS / S-VID input module
4.5 YUV / RG(s)B input module
Technical info:
• Component Video (BNC)
- R-Y : 0,7Vpp ±3dB 75 Ohm termination.
- Ys : 1Vpp ±3dB (0,7V Luma +0,3V Sync) 75 Ohm termination.
- B-Y : 0,7Vpp ±3dB 75 Ohm termination.
• RG(s)B (BNC)
- R : 0,7Vpp ±3dB 75 Ohm termination.
- G(s) : 1Vpp ±3dB (0,7Vpp G + 0,3Vpp Sync) 75 Ohm termination.
- B : 0,7Vpp ±3dB 75 Ohm termination.
• 3 BNC’s loop through connectors.
• Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or
intermittent film detection.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the
system acknowledges the module.
16 R5976471 D320LITE DIGITIZER 29042003
