Bard WL253 User manual

Manual 2100-407A
Page 1 of 16
Models: WL253
WALL MOUNTED PACKAGED
AIR CONDITIONER
INSTALLATION
INSTRUCTIONS
Manual No.: 2100-407A
Supersedes: 2100-407
File: Volume III, Tab 16
Date: 07-25-06
Bard Manufacturing Company, Inc.
Bryan, Ohio 43506
Since 1914...Moving ahead just as planned.

Manual 2100-407A
Page 2 of 16
CONTENTS
Getting Other Information 3
Wall Mount General Information
Model Nomenclature .............................................. 4
Shipping Damage ................................................... 6
General................................................................... 6
Duct Work............................................................... 7
Filters...................................................................... 7
Fresh Air Intake ...................................................... 7
Condensate Drain................................................... 7
Installation Instructions
Wall Mounting Information...................................... 8
Mounting the Unit ................................................... 8
Wiring - Main Power ............................................. 11
Wiring - Low Voltage ............................................ 11
Figures
Figure 1 Unit Dimensions ..................................... 5
Figure 2 Fresh Air DamperAssembly................... 7

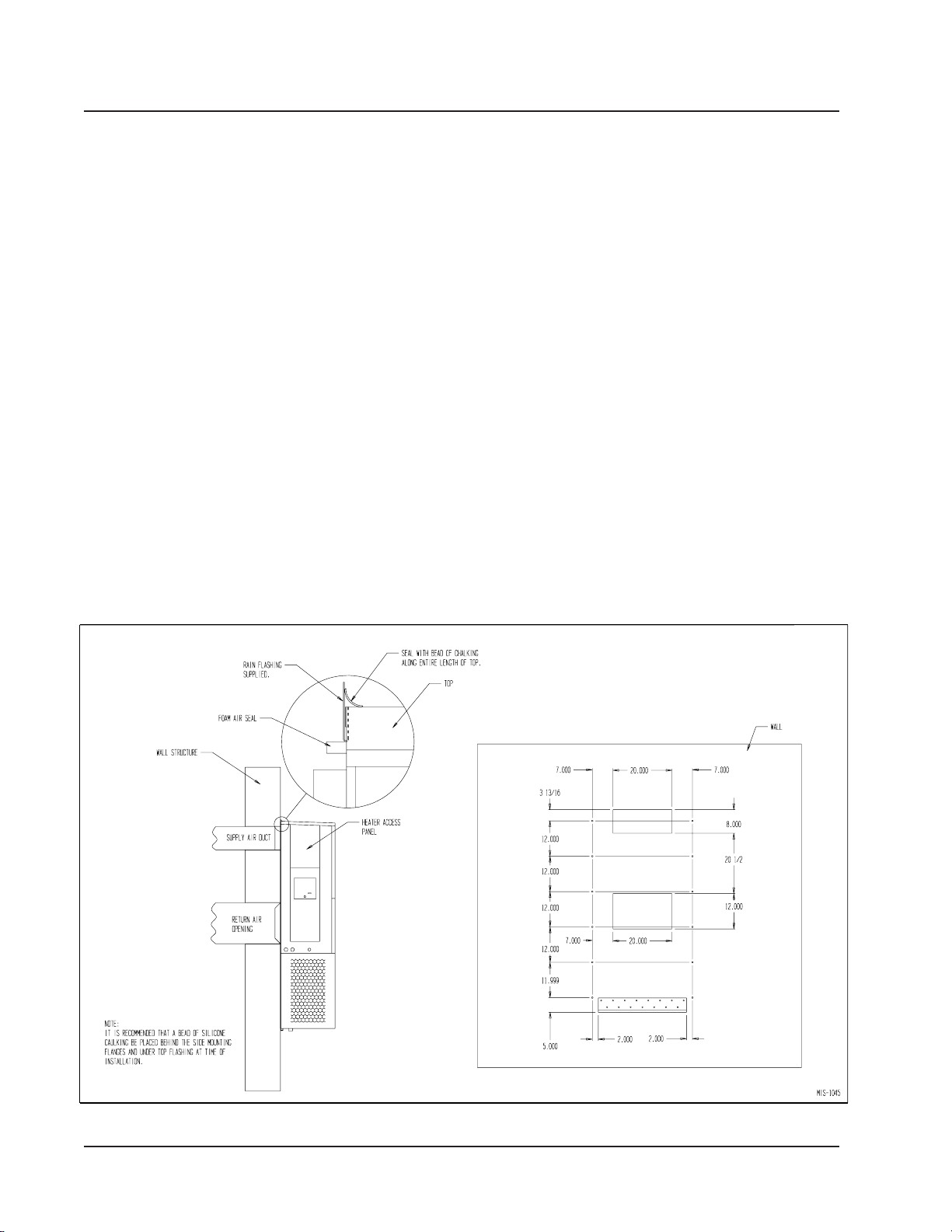

Figure 3 Mounting Instructions ............................. 8
Figure 4 Wall Mounting Instructions ..................... 9
Figure 5 Wall Mounting Instructions ..................... 9

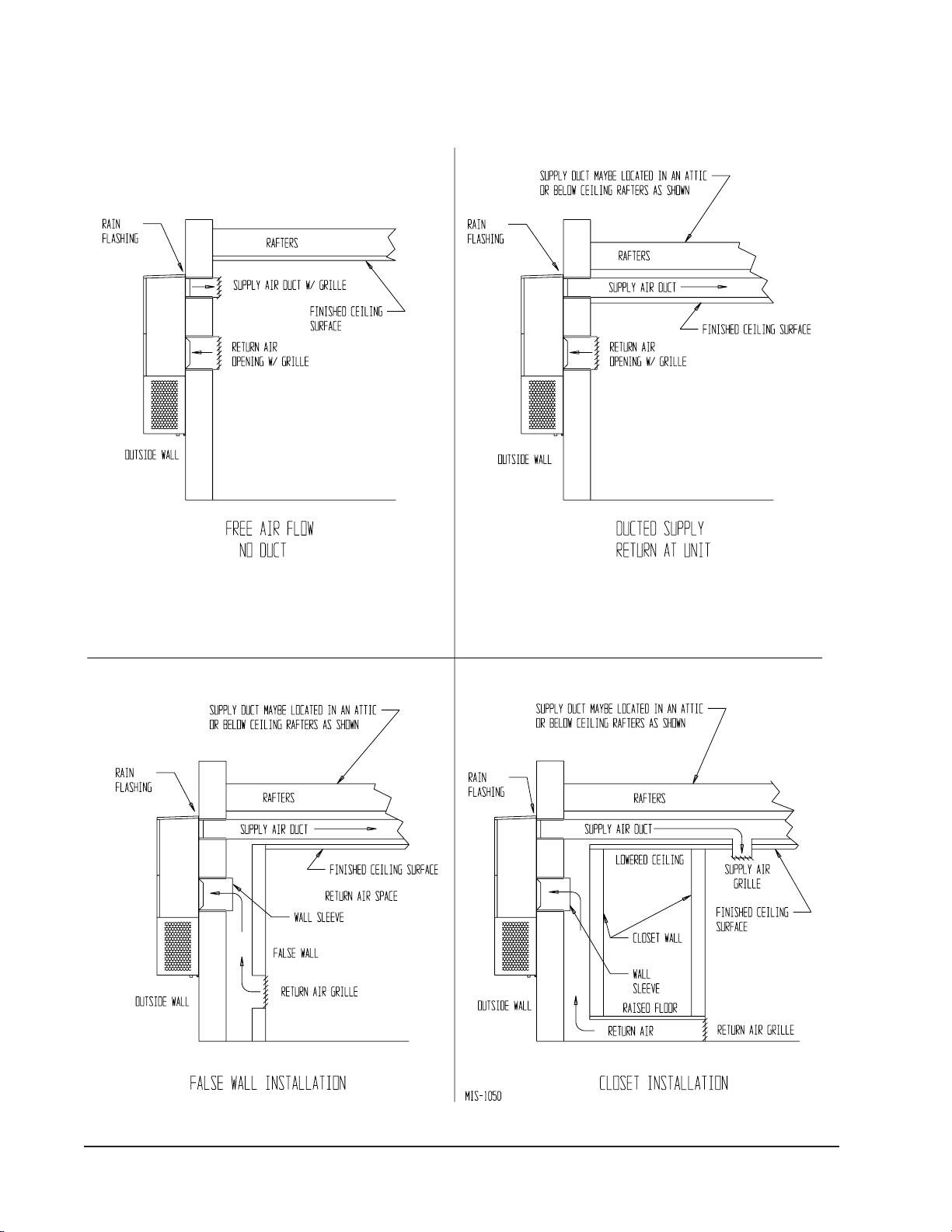

Figure 6 Common Wall Mounting Installations ... 10
Figure 7 Low Voltage Wiring Diagram ................ 12
Figure 8 Fan Blade Setting................................. 15
Start Up
Important Installer Note ........................................ 13
High Pressure Switch ........................................... 13
Three Phase Scroll Compressor Start Up
Information............................................................ 13
Phase Monitor ...................................................... 13
Service Hints ........................................................ 13
Sequence of Operations....................................... 13
Compressor Control Module................................. 14
Adjustments .......................................................... 14
Pressure Service Ports......................................... 14
Troubleshooting
Fan Blade Setting Dimensions ............................. 15
Removal of Fan Shroud........................................ 15
Refrigerant Charge ............................................... 15
Tables
Table 1 Electrical Specifications ............................ 4
Table 2 Electric Heat Table .................................... 6
Table 3 Thermostat Wire Size ............................. 11
Table 4 Wall Thermostat ...................................... 11
Table 5 Fan Blade Dimension.............................. 15
Table 6 Suction Line Temperatures ..................... 15
Table 7 Indoor Blower Performance CFM............ 15
Table 8 CFM and ESP ......................................... 15
Table 9 Maximum ESP of Operation.................... 15
Table 10 Cooling Pressure - Outdoor Temp.......... 16
Table 11 Optional Accessories.............................. 16

Manual 2100-407A
Page 3 of 16
GETTING OTHER INFORMATION AND PUBLICATIONS
These publications can help you install the air
conditioner or heat pump. You can usually find these at
your local library or purchase them directly from the
publisher. Be sure to consult current edition of each
standard.
National Electrical Code ...................... ANSI/NFPA70
Standard for the Installation .............. ANSI/NFPA90A
of Air Conditioning and Ventilating Systems
Standard for Warm Air ...................... ANSI/NFPA 90B
Heating and Air Conditioning Systems
Load Calculation for ............................ACCA Manual J
Residential Winter and Summer Air Conditioning
Duct Design for Residential .............. ACCA Manual D
Winter and Summer Air Conditioning and Equipment
Selection
FOR MORE INFORMATION, CONTACT
THESE PUBLISHERS:
ACCA Air Conditioning Contractors of America
1712 New Hampshire Avenue NW
Washington, DC 20009
Telephone: [phone]
Fax: [phone]
ANSI American National Standards Institute
11 West Street, 13th Floor
New York, NY 10036
Telephone: [phone]
Fax: [phone]
ASHRAE American Society of Heating Refrigerating,
and Air Conditioning Engineers, Inc.
1791 Tullie Circle, N.E.
Atlanta, GA 30329-2305
Telephone: [phone]
Fax: [phone]
NFPA National Fire Protection Association
Batterymarch Park
P.O. Box 9101
Quincy, MA 02269-9901
Telephone: [phone]
Fax: [phone]

Manual 2100-407A
Page 4 of 16
WALL MOUNT GENERAL INFORMATION
1 Maximum size of the time delay fuse or HACR type circuit breaker for protection of field wiring conductors.
2 Based on 75°C copper wire. All wiring must conform to NEC and all local codes.
3 These “Minimum Circuit Ampacity” values are to be used for sizing the field power conductors. Refer to the National
Electric Code (latest revision), Article 310 for power conductor sizing.
CAUTION: When more than one field power conductor circuit is run through one conduit, the conductors must be
derated. Pay special attention to Note 8 of Table 310 regarding Ampacity Adjustment Factors when more
than 3 conductors are in a raceway.
AIR CONDITIONER WALL MOUNT MODEL NOMENCLATURE
NOTE: For 0 KW & circuit breakers (230/208 Volt) or pull disconnects (460 Volt) applications, insert 0Z in the KW field of the model number.
CONTROL MODULES
J - Standard
on All Models
REVISIONS
MODEL NUMBER
CAPACITY
25 - 2 Ton w/scroll
VOLTS & PHASE
A - 230/208/60/1
B - 230/208/60/3
C - 430/60/3
KW
FILTER OPTIONS
X - 1-InchThrowaway
W - 1-Inch Washable
P - 2-InchPleated
COLOR OPTIONS
X - Beige(Standard)
1 - White
2 - Mesa Tan
4 - Buckeye Gray
5 - Desert Brown
8 - Dark Bronze
COIL OPTIONS
X - Standard
1 - Phenolic Coated Evaporator
2 - Phenolic Coated Condenser
3 - Phenolic Coated Evaporator
and Condenser
OUTLET OPTIONS
X - Front (Standard)
VENTILATION OPTIONS
X - Barometric Fresh Air Damper
B - Blank-off Plate
M - Motorized Fresh Air Damper
V - Commercial Ventilator Motorized with Exhaust
E - Economizer (Internal) - Fully Modulating with Exhaust
TABLE 1
ELECTRICALSPECIFICATIONS
TIUCRICELGNIS
ledoM stloVdetaR esahPdna
rebmuN rewoPdleiF stiucriC
3
muminiM tiucriC yticapmA
1
mumixaM lanretxE roesuF tiucriC rekaerB
2
rewoPdleiF eziSeriW
2
eriWdnuorG eziS
Z0A-352LW 50A 80A 01A
1-802/032
1
1
1
1
81035465 52035406 0101
8
6
01010101
Z0B-352LW 60B 3-802/032 1
14122 0252 2101 2101
WL 25 3— A10 X X X X X J

Manual 2100-407A
Page 5 of 16
FIGURE 1
UNIT DIMENSIONS (IN INCHES)
ledoM htdiW )W( htpeD )D( thgieH )H(
ylppuSnruteR
EFGIJKLMNOPQRSTABCB
52LW03.33521.71365.0788.788.9188.1188.9100.5305.8157.5265.0257.6260.8252.9200.7236.231.4360.2255.0191.400.2100.5
FRONT VIEW
LEFT SIDE VIEWBACK VIEW

Manual 2100-407A
Page 6 of 16
These instructions and any instructions packaged with
any separate equipment required to make up the entire
air conditioning system should be carefully read before
beginning the installation. Note particularly “Starting
Procedure” and any tags and/or labels attached to the
equipment.
While these instructions are intended as a general
recommended guide, they do not supersede any national
and/or local codes in any way. Authorities having
jurisdiction should be consulted before the installation is
made. See Page 3 for information on codes and
standards.
Size of unit for a proposed installation should be based
on heat loss calculation made according to methods of
Air Conditioning Contractors of America (ACCA). The
air duct should be installed in accordance with the
Standards of the National Fire Protection Association for
the Installation of Air Conditioning and Ventilating
Systems of Other Than Residence Type, NFPA No.
90A, and Residence Type Warm Air Heating and Air
Conditioning Systems, NFPA No. 90B. Where local
regulations are at a variance with instructions, installer
should adhere to local codes.
SHIPPING DAMAGE
Upon receipt of equipment, the carton should be
checked for external signs of shipping damage. If
damage is found, the receiving party must contact the
last carrier immediately, preferably in writing,
requesting inspection by the carrier’s agent.
GENERAL
The equipment covered in this manual is to be installed
by trained, experienced service and installation
technicians.
The refrigerant system is completely assembled and
charged. All internal wiring is complete.
The unit is designed for use with or without duct work.
Flanges are provided for attaching the supply and return
ducts.
These instructions explain the recommended method to
install the air cooled self-contained unit and the
electrical wiring connections to the unit.
TABLE 2
ELECTRIC HEAT TABLE
sledoMA-352LWB-352LW
1-0421-8023-0423-802
WKAUTBAUTBAUTBAUTB
58.02560,711.81008,21
83.33003,728.82574,02
016.14031,432.63006,52
64.41005,025.21063,51

Manual 2100-407A
Page 7 of 16
FIGURE 2
FRESHAIR DAMPER ASSEMBLY
FILTERS
A 1-inch throwaway filter is supplied with each unit.
The filter slides into position making it easy to service.
This filter can be serviced from the outside by removing
the service door. A 1-inch washable filter and 2-inch
pleated filter are also available as optional accessories.
The internal filter brackets are adjustable to
accommodate the 2-inch filter by bending the metal tabs
holding the 1-inch filter down. There are two tabs on
each side of the filter.
FRESH AIR INTAKE
All units are built with fresh air inlet slots punched in
the service panel.
If the unit is equipped with the fresh air damper
assembly, the assembly is shipped already attached to
the unit. The damper blade is locked in the closed
position. To allow the damper to operate, the maximum
and minimum blade position stops must be installed.
See Figure 2.
All capacity, efficiency and cost of operation
information as required for Department of Energy
“Energyguide” Fact Sheets is based upon the fresh air
blank-off plate in place and is recommended for
maximum energy efficiency.
The blank-off plate is available upon request from the
factory and is installed in place of the fresh air damper
shipped with each unit.
CONDENSATE DRAIN
A plastic drain hose extends from the drain pan at the
top of the unit down to the unit base. There are
openings in the unit base for the drain hose to pass
through. In the event the drain hose is connected to a
drain system of some type, it must be an open or vented
type system to assure proper drainage.
DUCT WORK
All duct work, supply and return, must be properly sized
for the design air flow requirement of the equipment.
Air Conditioning Contractors of America (ACCA) is an
excellent guide to proper sizing. All duct work or
portions thereof not in the conditioned space should be
properly insulated in order to both conserve energy and
prevent condensation or moisture damage.
Refer to Table 9 for maximum static pressure available
for duct design.
Design the duct work according to methods given by the
Air Conditioning Contractors of America (ACCA).
When duct runs through unheated spaces, it should be
insulated with a minimum of one inch of insulation. Use
insulation with a vapor barrier on the outside of the
insulation. Flexible joints should be used to connect the
duct work to the equipment in order to keep the noise
transmission to a minimum.
A 1/4 inch clearance to combustible material for the first
3 feet of duct attached to the outlet air frame is required.
See Wall Mounting Instructions and Figures 3, 4, 5 & 6
for further details.
Ducts through the walls must be insulated and all joints
taped or sealed to prevent air or moisture entering the
wall cavity.
Any grille that meets the 5/8 inch louver criteria may be
used. It is recommended that Bard Return Air Grille
Kit RG-2 through RG-5 or RFG-2 through RFG-5 be
installed when no return duct is used. Contact
distributor or factory for ordering information. If using
a return air filter grille, filters must be of sufficient size
to allow a maximum velocity of 400 fpm.
NOTE: If no return air duct is used, applicable
installation codes may limit this cabinet to
installation only in a single story structure.
CAUTION
Some installations may not require any return
air duct.A metallic return air grille is required
with installations not requiring a return air
duct. The spacing between louvers on the
grille shall not be larger than 5/8 inches.

Manual 2100-407A
Page 8 of 16
WALL MOUNTING INFORMATION
1. These units are secured by wall mounting brackets
which secure the unit to the outside wall surface at
both sides. A bottom mounting bracket is provided
for ease of installation, but is not required.
2. On wood-frame walls, the wall construction must be
strong and rigid enough to carry the weight of the unit
without transmitting any unit vibration.
3. Concrete block walls must be thoroughly inspected to
insure that they are capable of carrying the weight of
the installing unit.
MOUNTING THE UNIT
1. Two holes for the supply and return air openings
must be cut through the wall as shown in Figure 3.
2. Locate and mark lag bolt locations and bottom
bracket location, if desired. See Figure 3.
INSTALLATION INSTRUCTIONS
3. Mount bottom mounting bracket, if used.
4. Hook top rain flashing under back bend of top. Top
rain flashing is shipped attached to the back of the
unit on the right side.
5. Position unit in opening and secure with 5/16 lag
bolts; use 7/8" diameter flat washers on the lag bolts.
6. Secure rain flashing to wall and caulk across entire
length of top. See Figure 3.
7. For additional mounting rigidity, the return air and
supply air frames or collars can be drilled and
screwed or welded to the structural wall itself
(depending upon wall construction). Be sure to
observe required clearance if combustible wall.
Additional clearance may be required to meet local or
national codes.
8. On side-by-side installations, maintain a minimum of
20 inches clearance on left side to allow access to
heat strips and control panel and to allow proper
airflow to the outdoor coil.
FIGURE 3
MOUNTING INSTRUCTIONS

Manual 2100-407A
Page 9 of 16
FIGURE 5
WALL-MOUNTING INSTRUCTIONS
FIGURE 4
WALL-MOUNTING INSTRUCTIONS
SEE FIGURE 3 – MOUNTING INSTRUCTIONS FOR OPENING SIZES
SEE UNIT DIMENSIONS
FIGURE 1 FORACTUAL
DIMENSIONS

Manual 2100-407A
Page 10 of 16
FIGURE 6
COMMON WALL-MOUNTING INSTALLATIONS

Manual 2100-407A
Page 11 of 16
WIRING — MAIN POWER
Refer to the unit rating plate for wire sizing information
and maximum fuse or “HACR Type” circuit breaker
size. Each outdoor unit is marked with a “Minimum
Circuit Ampacity”. This means that the field wiring
used must be sized to carry that amount of current.
Depending on the installed KW of electric heat, there
may be two field power circuits required. If this is the
case, the unit serial plate will so indicate. All models
are suitable only for connection with copper wire. Each
unit and/or wiring diagram will be marked “Use Copper
Conductors Only”. These instructions must be adhered
to. Refer to the National Electrical Code (NEC) for
complete current carrying capacity data on the various
insulation grades of wiring material. All wiring must
conform to NEC and all local codes.
The electrical data lists fuse and wire sizes (75ºC
copper) for all models, including the most commonly
used heater sizes. Also shown are the number of field
power circuits required for the various models with
heaters.
The unit rating plate lists a “Maximum Time Delay
Relay Fuse” or “HACR Type” circuit breaker that is to
be used with the equipment. The correct size must be
used for proper circuit protection and also to assure that
there will be no nuisance tripping due to the momentary
high starting current of the compressor motor.
The disconnect access door on this unit may be locked
to prevent unauthorized access to the disconnect. To
convert for the locking capability, bend the tab located
in the bottom left hand corner of the disconnect opening
under the disconnect access panel straight out. This tab
will now line up with the slot in the door. When shut, a
padlock may be placed through the hole in the tab
preventing entry.
Five (5) wires should be run from thermostat subbase to
the 24V terminal board in the unit. A five conductor, 18
gauge copper, color-coded thermostat cable is
recommended. The connection points are shown in
Figure 7.
TABLE 3
THERMOSTAT WIRE SIZE
remrofsnarT AVALFeguaGeriW
mumixaM niecnatsiD teeF
553.2eguaG02 eguaG81 eguaG61 eguaG41 eguaG21 5406 001 061 052
NOTE: The voltage should be measured at the field
power connection point in the unit and while
the unit is operating at full load (maximum
amperage operating condition).
TAP RANGE
240 253 – 216
208 220 – 187
WIRING — LOW VOLTAGE WIRING
230/208V – 1 phase and 3 phase equipment dual
primary voltage transformers. All equipment leaves the
factory wired on 240V tap. For 208V operation,
reconnect from 240V to 208V tap. The acceptable
operating voltage range for the 240V and 208V taps are:
TABLE 4
WALLTHERMOSTAT
tatsomrehTserutaeFetanimoderP
750-3048 )3511D0225HT(
taeHegats1;looCegats1 elbammargorP-noNcinortcelE revoegnahclaunaMrootuA
850-3048 )1511D0225HT(
taeHegats2;looCegats2 elbammargorP-noNcinortcelE revoegnahclaunaMrootuA
940-3048 )083-39F1(
taeHegats2;looCegats2 cinortcelEelbammargorP revoegnahclaunaMrootuA

Manual 2100-407A
Page 12 of 16
FIGURE 7
LOW VOLTAGE WIRING DIAGRAM

Manual 2100-407A
Page 13 of 16
IMPORTANT INSTALLER NOTE
For improved start-up performance, wash the indoor
coil with a dishwater detergent.
HIGH PRESSURE SWITCH
The WL253 models are supplied with a remote reset
high pressure switch. If tripped, this pressure switch
may be reset by turning the thermostat off then back on
again.
THREE PHASE SCROLL COMPRESSOR
START UP INFORMATION
Scroll compressors, like several other types of
compressors, will only compress in one rotational
direction. Direction of rotation is not an issue with
single phase compressors since they will always start
and run in the proper direction.
However, three phase compressors will rotate in either
direction depending upon phasing of the power. Since
there is a 50-50 chance of connecting power in such a
way as to cause rotation in the reverse direction,
verification of proper rotation must be made. All three
phase units incorporate a phase monitor to ensure
proper field wiring. See the Phase Monitor section in
this manual.
Verification of proper rotation must be made any time
a compressor is changed or rewired. If improper
rotation is corrected at this time there will be no
negative impact on the durability of the compressor.
However, reverse operation for over one hour may have
a negative impact on the bearing due to oil pump out.
NOTE: If compressor is allowed to run in reverse
rotation for several minutes, the compressor's
internal protector will trip.
All three phase ZR3 compressors are wired identical
internally. As a result, once the correct phasing is
determined for a specific system or installation,
connecting properly phased power leads to the same
Fusite terminal should maintain proper rotation
direction.
Verification of proper rotation direction is made by
observing that suction pressure drops and discharge
pressure rises when the compressor is energized.
Reverse rotation also results in an elevated sound level
over that with correct rotations, as well as, substantially
reduced current draw compared to tabulated values.
The direction of rotation of the compressor may be
changed by reversing any two line connections to the
unit.
PHASE MONITOR
All units with three phase compressors are equipped
with a 3 phase line monitor to prevent compressor
damage due to phase reversal.
The phase monitor in this unit is equipped with two
LEDs. If the Y signal is present at the phase monitor
and phases are correct the green LED will light.
If phases are reversed, the red fault LED will be lit and
compressor operation is inhibited.
If a fault condition occurs, reverse two of the supply
leads to the unit. Do not reverse any of the unit factory
wires as damage may occur.
SERVICE HINTS
1. Caution homeowner to maintain clean air filters at all
times. Also, not to needlessly close off supply and
return air registers. This reduces airflow through the
system, which shortens equipment service life as well
as increasing operating costs.
2. Check all power fuses or circuit breakers to be sure
they are the correct rating.
3. Periodic cleaning of the outdoor coil to permit full
and unrestricted airflow circulation is essential.
SEQUENCE OF OPERATION
COOLING – Circuit R-Y makes at thermostat pulling in
compressor contactor, starting the compressor and
outdoor motor. The G (indoor motor) circuit is
automatically completed on any call for cooling
operation or can be energized by manual fan switch on
subbase for constant air circulation. On all 230 volt
units, there is a one-minute off delay on the blower
motor. 460 volt models do not have an off delay.
HEATING – Circuit R-W1 make at the thermostat
pulling in heat contact for the strip heat and blower
operation. On a call for second stage heat, R-W2 makes
bringing on second heat contactor, if so equipped.
START-UP

Manual 2100-407A
Page 14 of 16
COMPRESSOR CONTROL MODULE
The compressor control module is optional on the
models covered by this manual. The compressor control
is an anti-short cycle/lockout timer with high and low
pressure switch monitoring and alarm relay output.
Adjustable Delay On Make And Break Timer
On initial power up or any time power is interrupted to
the unit, the delay on make period begins, which will be
2 minutes plus 10% of the delay on break setting. When
the delay on make is complete and the high pressure
switch (and low pressure switch if employed) is closed,
the compressor contactor is energized. Upon shutdown,
the delay or break timer starts and prevents restart until
the delay on break and delay on make periods have
expired.
During routine operation of the unit with no power
interruptions the compressor will operate on demand
with no delay.
High Pressure Switch and Lockout Sequence
If the high pressure switch opens, the compressor
contactor will de-energize immediately. The lockout
timer will go into a soft lockout and stay in soft lockout
until the high pressure switch closes and the delay on
break time has expired. If the high pressure switch
opens again in this same operating cycle, the unit will
go into manual lockout condition and the alarm relay
circuit will energize. Recycling the wall thermostat
resets the manual lockout.
Low Pressure Switch, Bypass, and Lockout
Sequence
If the low pressure switch opens for more than 120
seconds, the compressor contactor will de-energize and
go into a soft lockout. Regardless the state of the low
pressure switch, the contactor will reenergize after the
delay on make time delay has expired. If the low
pressure switch remains open, or opens again for longer
than 120 seconds the unit will go into manual lockout
condition and the alarm relay circuit will energize.
Recycling the wall thermostat resets the manual lockout.
Alarm Relay Output
Alarm terminal is output connection for applications
where alarm relay is employed. This terminal is
powered whenever compressor is locked out due to HPC
or LPC sequences as described.
NOTE: Both high and low pressure switch controls are
inherently automatic reset devices. The high
pressure switch and low pressure switch cut out
and cut in settings are fixed by specific air
conditioner or heat pump unit model. The
lockout features, both soft and manual, are a
function of the Compressor Control Module.
ADJUSTMENTS
Adjustable Delay on Make and Delay on Break
Timer
The potentiometer is used to select Delay on Break time
from 30 seconds to 5 minutes. Delay on Make (DOM)
timing on power-up and after power interruptions is
equal to 2 minutes plus 10% of Delay on Break (DOB)
setting:
0.5 minute (30 seconds) DOB = 123 second DOM
1.0 minute (60 seconds) DOB = 126 second DOM
2.0 minutes (120 seconds) DOB = 132 second DOM
3.0 minutes (180 seconds) DOB = 138 second DOM
4.0 minutes (240 seconds) DOB = 144 second DOM
5.0 minutes (300 seconds) DOB = 150 second DOM
During routine operation of the unit with no power
interruptions, the compressor will operate on demand
with no delay.
Typical Settings for Dual Unit Installation:
Unit 1: DOB set at 2 minutes, and DOM is 132 seconds
Unit 2: DOB set at 4 minutes, and DOM is 144 seconds
PRESSURE SERVICE PORTS
High and low pressure service ports are installed on all
units so that the system operating pressures can be
observed. Pressure tables can be found later in the
manual covering all models. It is imperative to match
the correct pressure table to the unit by model number.

Manual 2100-407A
Page 15 of 16
TROUBLESHOOTING
REMOVAL OF FAN SHROUD
1. Disconnect all power to unit.
2. Remove the screws holding both grills – one on each
side of unit – and remove grills.
3. Remove screws holding fan shroud to condenser and
bottom – 9 screws.
4. Unwire condenser fan motor.
5. Slide complete motor, fan blade, and shroud
assembly out the right side of the unit.
6. Service motor/fan as needed.
7. Reverse steps to reinstall.
REFRIGERANT CHARGE
The correct system R-22 charge is shown on the unit
rating plate. Optimum unit performance will occur with
a refrigerant charge resulting in a suction line
temperature 6 inches from compressor) as shown in
Table 6.
The suction line temperatures shown in Table 6 are
based upon 80ºF dry bulb/67ºF wet bulb (50 percent
R.H.) temperature and rated airflow across the
evaporator during cooling cycle.

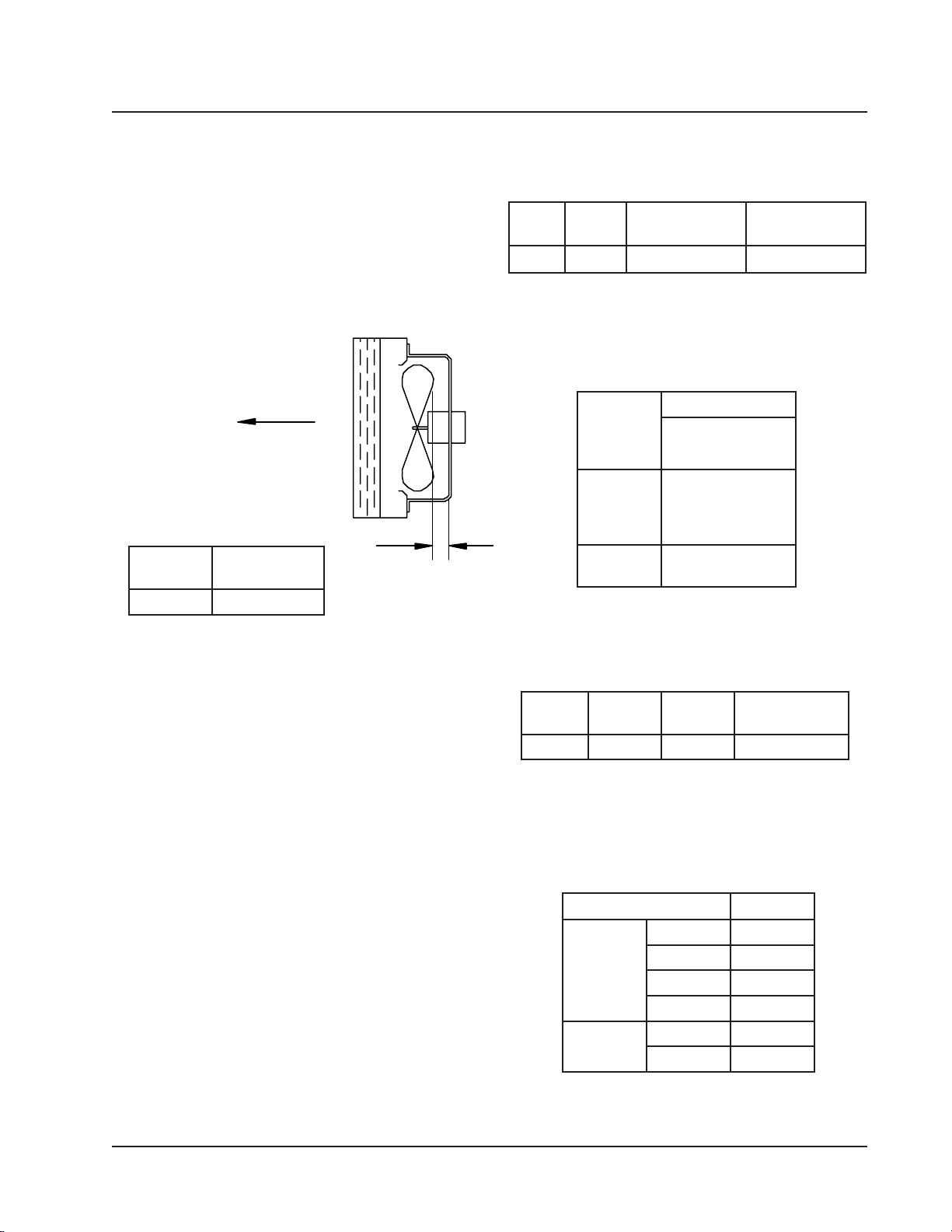

FAN BLADE SETTING DIMENSIONS
Shown in the drawing below are the correct fan blade
setting dimensions for proper air delivery across the
outdoor coil.
Any service work requiring removal or adjustment in the
fan and/or motor area will require that the dimensions
below be checked and blade adjusted in or out on the
motor shaft accordingly.
TABLE 6
SUCTION LINE TEMPERATURES
ledoM detaR wolfriA 59
o
FerutarepmeTDO 28
o
FerutarepmeTDO
352LW00865-4536-16
TABLE 7
INDOOR BLOWER PERFORMANCE
CFM AT 230V
.P.S.E Hni
2
O
352LW
V032
yrDteW
0.1.2.3. 0201 069 568 028 579 509 008 537
4.5. 537 516 056 535
TABLE 8
CFM AND ESP
* Rated CFM and ESP on high speed tap.
ledoM detaR *MFC detaR *PSE dednemmoceR egnaRwolfriA
352LW00802.059-007
TABLE 9
MAXIMUM ESP OF OPERATION
ELECTRIC HEAT ONLY
Values shown are for units equipped with
standard 1" throwaway filter or 1" washable
filter. Derate ESP by .15 for 2" pleated filters.
ledoMPSE
352LW
Z0A05.
50A05.
80A05.
01A05.
352LW 00B05.
60B05.
"A"
AIRFLOW
FIGURE 8
FAN BLADE SETTING
TABLE 5
FAN BLADE DIMENSION
ledoM noisnemiD A
352LW00.1

Manual 2100-407A
Page 16 of 16
Low side pressure ± 2 PSIG
High side pressure ± 5 PSIG
Table based upon rated CFM (airflow) across the evaporator coil and should be found under section titled “Refrigerant Charge”
elsewhere in manual. If there is any doubt as to correct operating charge being in the system, the charge should be removed, system
evacuated, and recharged to serial plate instructions.
TABLE 10
COOLING PRESSURE – OUTDOOR TEMPERATURE °F
ledoM riAnruteR erutarepmeTerusserP5708580959001501011511
352LW
BD57 BW26 ediSwoL ediShgiH 27212 37422 57932 67452 87962 97782 97503 18423 28443
BD08 BW76 ediSwoL ediShgiH 77712 87032 08542 18062 38672 48492 58313 78233 88353
BD58 BW27 ediSwoL ediShgiH 08522 18832 38452 48962 68682 78403 88423 09443 19563
TABLE 11
OPTIONALACCESSORIES
traP rebmuNnoitpircseDA-352LWB-352LW
2-POBetalPffOknalBXX
2-DAFBrepmaDriAhserFcirtemoraBXX
2-DAFMrepmaDriAhserFdezirotoMX
X
2-VRCrotalitneVmooRlaicremmoCXX
B2-MFIEesuahxEhtiwrezimonocEXX
51-CMCtiKtratSXA/N
