Barth lococube PeopleCounter PC-10 User manual

BAR
H
Elektronik GmbH
®
1/4
9021-0035-A
08.06.2020
A
Page:
Document:
Date:
Revision:
lococube®
PeopleCounter PC-10 MANUAL
(EN)
© 2020 BARTH Elektronik GmbH | Im Depot 1-3 | D-49838 Lengerich | www.barth-elektronik.de | [e-mail]
® BARTH and lococube are registered trademarks of BARTH Elektronik GmbH. All rights reserved to make changes without prior notice.
TABLE OF CONTENT
lococube®
PeopleCounter PC-10
MANUAL (EN)
SAFETY INSTRUCTIONS �������������������������������������������������1
DESTINATED USE �������������������������������������������������������������1
DISCLAIMER ���������������������������������������������������������������������1
1 Product Features ���������������������������������������������������2
2 Get Started �������������������������������������������������������������2
3 Get Running �����������������������������������������������������������2
4 Get Support ������������������������������������������������������������3
5 Appendix �����������������������������������������������������������������3
5.1 Specications ..........................................................3
5.1.1 Genera l ....................................................................3
5.1.2 Power supply ...........................................................3
5.1.3 Interfaces .................................................................3
5.1.4 Security features ......................................................3
5.1.5 Program and data memory .....................................4
5.1.6 Electrical connection ...............................................4
5.1.7 Electromagnetic compatibility (EMC) ......................4
5.1.8 Environmental conditions ........................................4
5.1.9 Weight and dimensions ...........................................4
5.1.10 Certications & Approvals .......................................4
5.1.11 Ordering information ...............................................4
5.2 Disposal ...................................................................4
5.3 Conformity declaration ............................................4
SAFETY INSTRUCTIONS
This manual contains notices which you should observe
to ensure your own personal safety, as well as to protect
the product and the connected equipment. These notices
are highlighted in the manual by a warning symbol and are
marked as follows according to the level of danger:
Only qualied personnel should be
allowed to install and work on this
equipment� Qualied persons are
dened as persons who are authorized
to commission, to ground and to tag
circuits, equipment and systems in
accordance with established safety
practices and standards�
Take care to avoid capsizing!
This can cause harmful injury to children
and adults!
Turn off the power supply before
performing any wiring operations!
Short circuits can be harmful, critical and
can cause explosions and serious burns!
Please read this manual carefully and
observe all safety instructions!
DESTINATED USE
The People Counter PC-10 is designed for ‚Social
Distancing‘ applications, counting and limiting the
number of people in a room using a simple trafc light
system combined with a buzzer�
DISCLAIMER
BARTH®assumes no liability for usage and functiona-
lity of the PeopleCounter PC-10 in case of disregarding
this manual� The strict accordance of this manual is
important since the installation methods, peripheral
connections, usage and maintenance can not be cont-
rolled by BARTH®� Therefore BARTH®assumes no liabi-
lity for any claim�

BAR
H
Elektronik GmbH
®
2/4
9021-0035-A
08.06.2020
A
Page:
Document:
Date:
Revision:
lococube®
PeopleCounter PC-10 MANUAL
(EN)
© 2020 BARTH Elektronik GmbH | Im Depot 1-3 | D-49838 Lengerich | www.barth-elektronik.de | [e-mail]
® BARTH and lococube are registered trademarks of BARTH Elektronik GmbH. All rights reserved to make changes without prior notice.
1 Product Features
• People Counter with trafc light display and buzzer
• ‚Social Distancing‘ as ‚Plug and Count‘ solution“
• Access monitoring to protect customers and employees
• Ideal for retail, catering, pharmacies & service providers
• Easy control about current and maximum people trafc
• Maximum limit of people can be easily set via Touch HMI
• High quality aluminum stele with stainless steel base
• Fast and easy setup in less than 5 minutes
• No internet or WiFi required
• Mains socket (90-230VAC) is sufcient for operation
• Dimensions (LxWxH): 350x360x1180mm
• Weight: 12kg
2 Get Started
The PeopleCounter is designed for
counting persons in one row, using one
area for entrance and exit�
Separated entrance and exit applications
are not supported�
Passing more than on person the People-
Counters light beam will cause counting
errors!
ROOM
PC-10
MIRROR <6m
PEOPLE
3 Get Running
1Mounting light beam
Unpack the PeopleCounter
and mount the light beam
bracket on the left aluminium
strut prole showing to the
backside of the People-
Counter. Tighten the two
screws using a 4mm hex key.
The red arrow shows the
direction of the light beam.
2Install the PeopleCounter
Place the PeopleCounter on
the right hand side in front of
the room on a plane surface,
taking care to not exceed the
light beam maximum distance
of 6m (PeopleCounter to
mirror). Ensure that light
beams points right-angled to
the place where the mirror will
be mounted.
3DC Connection
Connect the DC power
supply connector of the
PeopleCounter to the 12V
AC/DC Adaptor.
4Power Supply
Plug-In the 12V Adaptor and
power-up the PeopleCounter.
After connection you should
hear the buzzer. The signal
tone indicates power-up
state with need of setup the
PeopleCounter.

BAR
H
Elektronik GmbH
®
3/4
9021-0035-A
08.06.2020
A
Page:
Document:
Date:
Revision:
lococube®
PeopleCounter PC-10 MANUAL
(EN)
© 2020 BARTH Elektronik GmbH | Im Depot 1-3 | D-49838 Lengerich | www.barth-elektronik.de | [e-mail]
® BARTH and lococube are registered trademarks of BARTH Elektronik GmbH. All rights reserved to make changes without prior notice.

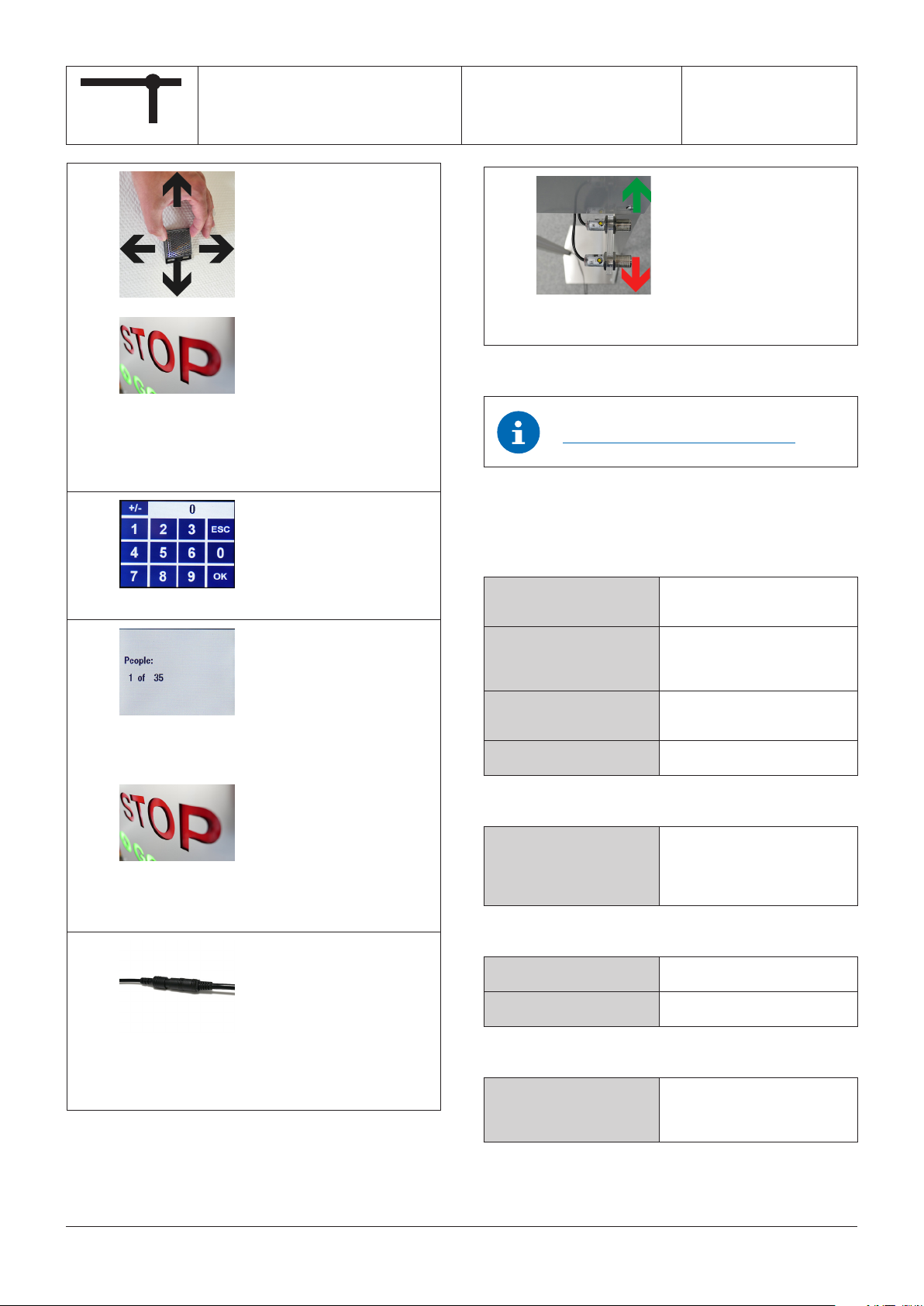

5Mirror Setup
Ensure that light beams
points right-angled to the
place where the mirror will
be mounted. Take the mirror
and move it with a maximum
distance of 6m in the light
beam direction and observe
‚STOP‘ and ‚GO‘ trafc lights.
Only if both trafc lights are
off, the correct setup has
been reached and the mirror
is placed properly. Move
the mirror twice to nd safe
operation area and then x it
to the wall. Aviod moving the
PeopleCounter now which
would cause malfunction and
the need of a new setup.
6Setup people limit
To setup the maximum
allowed number of people in
the room, simply type in the
desired value, clearing with
‚ESC‘ and confrming with
‚OK‘.
7Operation
After successful setup the
PeoplyCounter is ready to
operate and the buzzer shuts
down. The Touch-LCD shows
the current number of people
in the room and also the
preset maximum value.
During normal operation the
green ‚GO‘ is lighted.
If the maximum number of
people is reached, the red
‚STOP‘ light appears.
If a person enters the room
during red ‚STOP‘ light, the
buzzer sounds and indicates
prohibited access.
8Repowering
If the PeopleCounter is recon-
nected to the mains (after
power supply interruption or
shut-down) the people limit
has to be set again.
Automatic restoring the value
is not provided due to the
unknown number of people in
the room after shut-down.
9People count correction
To manually correct the
number of people in the room
(in case of countig errors or
setup failures) simply move
you hand in direction of the red
arrow to increase the number
of people or in direction of the
green arrow to deacrease the
number of people.
4 Get Support
Detailed product support is availabe on:
https://barth-elektronik.com/support
5 Appendix
5.1 Specications
5.1.1 General
Hardware design
and contruction
Heavy duty strut prole based
construction (BOSCH Rexroth®
System.
Controller and HMI Internal lococube® mini-PLC
STG-800 with CAN bus and
5 I/Os
DMA-15 Touch HMI 2,4“ color
Sensor Two SICK® visible light barrier
beam sensors connected to
mini-PLC
Signal lights 5x Power LED modules 12V/3W
directly driven by mini-PLC
5.1.2 Power supply
Operating voltage external:
100..240VAC/50/60Hz 0.7A
internal:
12VDC 2.08A
Adaptor Art. No. 0043-0041
5.1.3 Interfaces
CAN (internal) CAN 2.0A/B:
11/29 bit ID, base frame format
TTL232 (internal) 3.3V TTL level, cong: 8N1
Baud rates: 2400 to 115.2 kbit/s
5.1.4 Security features
Security Features System and independent WD
Fail safe oscillator
Power on/down reset
Supply voltage supervisor

BAR
H
Elektronik GmbH
®
4/4
9021-0035-A
08.06.2020
A
Page:
Document:
Date:
Revision:
lococube®
PeopleCounter PC-10 MANUAL
(EN)
© 2020 BARTH Elektronik GmbH | Im Depot 1-3 | D-49838 Lengerich | www.barth-elektronik.de | [e-mail]
® BARTH and lococube are registered trademarks of BARTH Elektronik GmbH. All rights reserved to make changes without prior notice.
5.1.5 Program and data memory
Memory Flash program memory: 256 kB
SRAM: 32 kB
EEPROM: 8kB, >1M write cycles
5.1.6 Electrical connection
Electrical connection DC connector 2.1/5.5mm
5.1.7 Electromagnetic compatibility (EMC)
Electrostatic discharge
(ESD) on IN1 to IN5
20 kV air discharge
30 kV contact discharge
(IEC/EN 61 000-4-2, level 3)
Electrostatic discharge
(ESD) on OUT1 to OUT5
8 kV (human body model)
(MIL-STD883D)
Electromagnetic elds Field strength 10 V/m
(IEC/EN 61000-4-3)
CAN bus terminals
(CANH, CANL to GND)
IEC 61000-4-2:
Unpowered Contact Discharge
±15000 V
IEC 61000-4-2:
Powered Contact Discharge
±8000 V
5.1.8 Environmental conditions
Operation temperature -10 to +50 °C
(IEC 60068-2-1/2)
Storage temperature -10 to +50 °C
(IEC 60068-2-1/2)
Relative humidity 5 to 90% non-condensing
(IEC 60068-2-30)
Air pressure (in operation) 500 to 1500 hPa
Degree of protection IP 20, indoor use only
5.1.9 Weight and dimensions
Weight 12 kg
Dimensions 350 x 360 x 1180 mm (LxWxH)
5.1.10 Certications & Approvals
PeopleCounter PC-10:
2004/108/EG
2004/108/EC
2014/30/EU
lococube® mini-PLC:
File No. E489238
UL 61010-1, 3rd Edition, May 11,
2012, Revised April 29 2016,
CAN/CSA-C22.2 No. 61010-
1-12, 3rd Edition, Revision dated
April 2016
File No. E489238
UL 61010-2-201 Ed.1 January
24, 2014, Revision dated
February 20, 2017
CAN/CSA C22.2 No. 61010-2-
201:14 Ed.1, February 2014
CANopen®
Vendor ID: 46Ah
lococube® mini-PLC:
Cert. No. E1-10R-058717
ECE R 10, Rev. 5
(for nominal 12V automotive
applications)
5.1.11 Ordering information
Ordering information lococube® PeopleCounter PC-10
Art. No. 0059-0010
GTIN 4251329406066
5.2 Disposal
If you wish to nally dispose of the
product, ask your local recycling centre
or dealer for details about how to do
this in accordance with the applicable
disposal regulations�
5.3 Conformity declaration
For the following designated product it is hereby conrmed,
that the construction in that technical design brought by us
in trafc corresponds to the standards specied below. In
the event of any alternation which has not been approved
by us being made to any device as designated below, this
statement shall thereby be made invalid.
Description lococube® PeopleCounter
Type / Art� No� PC-10
Directive CE
2004/108/EG relating to-
electromagnetic
compatibility (EMC)
Applied norms:
2004/108/EG
2004/108/EC
2014/30/EU
RoHS Directive
2011/65EU
We herby declare that our
product is compilant to the RoHS
Directive on restriction of the use
of certain hazardous substances
in electrical and electronic appli-
ances.
BARTH®Elektronik GmbH
Lengerich, 05.06.2020
Dipl.-Ing. (FH) D. Barth, CEO
