Barton 95528 Original instruction manual

30QT ALUMINUM TURKEY DEEP FRYER POT AND GAS STOVE
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 95528
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: [phone] MON-FRI 9AM TO 3PM PST

IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric re and/or serious injury. Save all warnings and instructions for future reference.
SAFETY
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure
to follow the safety rules and other basic safety precautions may result in serious personal injury.
1
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
DO NOT allow persons to operate or assemble the product until they have read this manual and have
developed a thorough understanding of how it works.
DO NOT modify this product in any way. Unauthorized modication may impair the function and/or
safety and could affect the life of the product. There are specic applications for which the product was
designed.
NEVER operate this appliance unattended.
NEVER operate this appliance within 10 ft (3 m) of any structure, combustible material or other gas
cylinder.
NEVER operate this appliance within 25 ft (7.5 m) of any ammable liquid.
DO NOT leave this appliance unattended while in use. The user must remain in the immediate area of the
product and have a clear view of the product at all times during operation.
Keep children and pets away from burners at all times.
For use with a 20lb Propane Tank only, not for use with natural gas or other gas source. Any alterations
may cause severe injury or even death.
For OUTDOOR use only. DO NOT use in a building, garage or any other enclosed area. DO NOT use in
or on recreational vehicles or boats. NEVER use this appliance as a heater.
DO NOT operate appliance under ANY overhead construction. Keep a minimum clearance of 10 feet (3
m) from the sides, front and back of appliance to ANY construction. Keep the area clear of all combustible
material and ammable liquids, including wood, dry plants and grass, brush, paper, and canvas.
In case there is a re, call the local re department or dial 911. Stay clear from ames. DO NOT attempt
to extinguish an oil or grease re with water.
Use only accessories, such as cooking vessels recommended by the manufacturer, to allow safe and
proper performance of the product. Never use a cooking vessel larger than the capacity and diameter
recommended by the manufacturer.
This product is not intended for commercial use.

IMPORTANT SAFETY INFORMATION
2
Use ONLY on a level, stable non-combustible surface like bricks, concrete or dirt. DO NOT use this
appliance on any surface that will burn or melt like wood, asphalt, vinyl, or plastic.
Keep the fuel supply hose away from any heated surfaces.
To prevent accidental res, before using the appliance ensure that the hose is not damaged and all joints
and connections are not leaking by turning on the cylinder valve, leave the burner valve closed, and apply
a soapy solution to the joints and connections. If a continuous hissing sound is heard, or if the soapy
solution bubbles, there is a leak. DO NOT use the appliance if there is a leak. Replace the faulty parts.
Extinguish all open ames before connecting the gas supply to the appliance and before checking for
leaks.
Use appliance only with LP (propane) gas and the regulator/valve assembly supplied. • Installation must
conform with local codes, or in their absence with National Fuel Gas Code, NFPA 54/ANSI Z223.1.
Handling and storage of LP cylinders must conform to LP Gas Code NFPA/ANSI 58. Appliance is not
for use in or on recreational vehicle and/or boats.
Before opening LP tank valve, check the coupling nut for tightness. When appliance is not in use, turn off
control knob and LP tank valve on supply cylinder.
NEVER use LP tank if visibly rusted, damaged, or out of date.
If you notice grease or other hot material dripping from appliance onto valve, hose or regulator, turn off
gas supply at once. Determine the cause, correct, clean and inspect valve, hose and regulator before
continuing. Perform a leak test.
Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts
or leaks, the hose must be replaced prior to the appliance being put into operation. See product sheet for
hose & regulator information.
DO NOT block holes in bottom or sides of appliance.
ALWAYS close LP tank valve and remove coupling nut before moving LP tank form specied operating
position.
NEVER store a spare LP tank under or near appliance or in enclosed areas. NEVER ll the cylinder
beyond 80% full. An overlled spare LP tank is hazardous due to possible gas released from the safety
relief valve. Failure to follow these instructions exactly could cause a re resulting in death or serious
injury.
If you see, smell, or hear escaping gas, immediately get away from the LP tank/appliance and call your
re department.
Combustion by-products produced when using this product contain chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm.
Turn OFF all control knobs and LP tank valve. Turn coupling nut counterclockwise by hand only – DO
NOT use tools to disconnect. Install safety cap onto LP tank valve. ALWAYS use cap and strap supplied
with valve. Failure to use safety cap as directed may result in serious personal injury and/or property
A disconnected LP tank in storage or being transported must have a safety cap installed (as shown).
DO NOT store an LP tank in enclosed spaces such as a carport garage, porch, covered patio or other
building. NEVER leave an LP tank inside a vehicle, which may become overheated by the sun.
Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the
appliance.

3
IMPORTANT SAFETY INFORMATION
The LP tank used with your appliance must meet the following requirements: Purchase LP tanks only
with these required measurements: 12” (30.5cm) (diameter) x 18” (45.7cm) (tall) with 20 lb. (9 kg.)
capacity maximum. Be constructed and marked in accordance with specications for LP tank of the U.S.
Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres and Tubes for the Transportation of Dangerous Goods. The propane cylinder used with this
appliance must include a collar to protect the cylinder valve.
LP tank valve must have: Type 1 outlet compatible with regulator or appliance. Safety relief valve. • UL
listed Overll Protection Device (OPD). This OPD safety feature is identied by a unique triangular hand
wheel. Use only tanks equipped with this type of valve. LP tank must be arranged for vapor withdrawal.
LP gas is non-toxic, odorless and colorless when produced. For Your Safety, LP gas has been given an
odor (similar to rotten cabbage) so that it can be smelled.
LP gas is highly ammable and may ignite unexpectedly when mixed with air.
Leak test must be repeated each time LP tank is exchanged or relled. DO NOT smoke during leak test.
DO NOT use an open ame to check for gas leaks.
Appliance must be leak checked outdoors in well-ventilated area, away from ignition sources such as gas
red or electrical appliances. During leak test, keep appliance away from open ames or sparks.
Use a clean paintbrush and 50/50 soap and water solution. Use mild soap and water. DO NOT use
household cleaning agents. Damage to gas train components can result. Brush soapy solution onto all
weld seams and entire valve area.
SAVE THESE WARNINGS
NEVER use a stove of any kind to heat your home.
NEVER attempt to move the fryer while it is lit. Turn off and disconnect propane prior to moving. Failure
to do so may cause a leak in the connections and could easily cause a re or explosion with future use.
DISCONTINUE USE IF THERE IS ANY SIGNS OF DAMAGE OR WEARING THAT MAY BE UNSAFE,
Including but not limited to wearing on the regulator or hose, wearing or damage to plate support, damage
or loose wheels/base.
PRODUCT INFORMATION

4
PRODUCT INFORMATION
Outdoor Camping Propane Double Burner Stove 2 Folding Cook Cooking Station
Stand Picnic BBQ Grill 87,000 BTU
The Barton Outdoor Turkey Fryer is great for deep frying your turkey is the best way to seal in all of the natural
juices without making the bird greasy or fatty. This set includes poultry rack that holds your bird in place to
ensure even oil distribution for a perfectly fried turkey every time. The top of the rack has a convenient loop
to lift the turkey when you’re ready to remove it from the hot oil.
FEATURES
55,000 BTU
Included long probe thermometer measures from 50-500 degrees Fahrenheit
Included marinade injector allows you to impart your signature avors
Mounted propane burner design lets you easily secure propane gas tanks safely underneath the burner
This kit features a round, black painted steel stand to make sure the hot contents stay inside
Adjustable 5PSI Gas Regulator pressure
Portable and lightweight for outdoor cooking frying and cooking
Primary Material: Aluminum, Steel Propane Fuel: LPG Ignition Type: Manual
Maximum BTU: 55,000 Cooking Area: 34”(W) x 17”(L). Certication: CSA
Overall Dimensions: 15-1/2”(W) x 15-1/2”(L) x 19-3/4”(H)30qt capacity frying pot

5

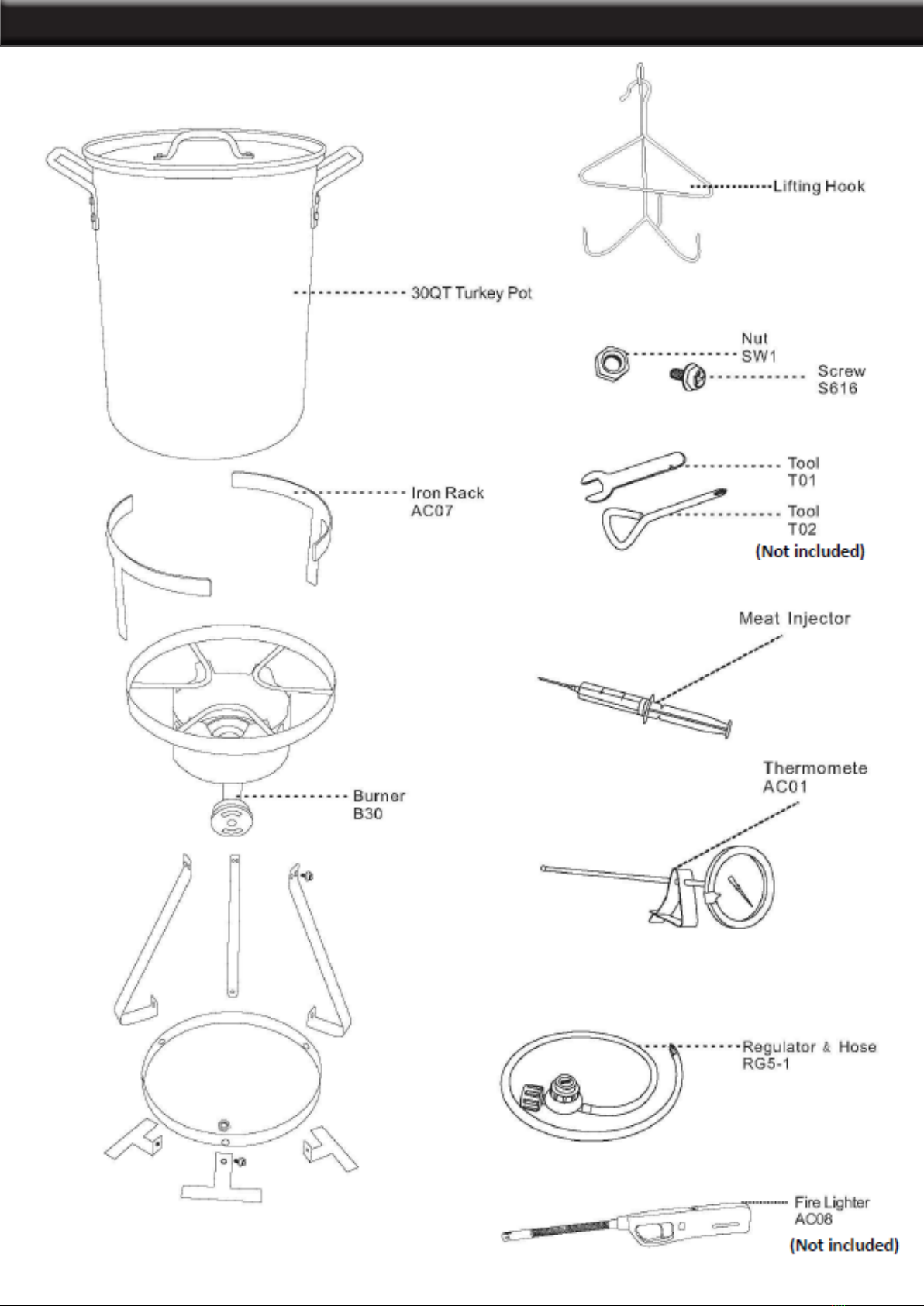

PARTS OPERATION

6

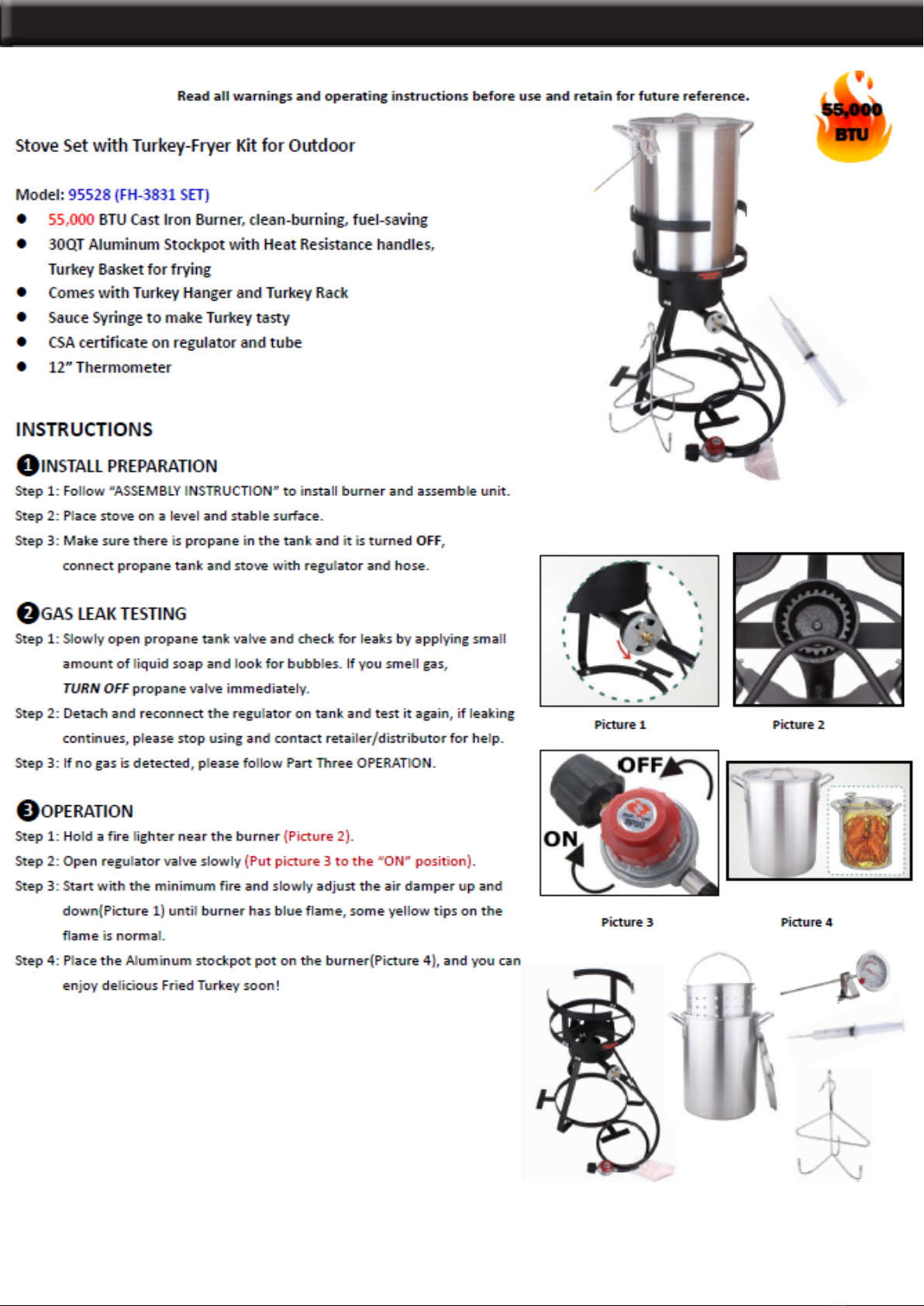

OPERATION

7
ASSEMBLY OF NOTE

8
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually as
replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
OF NOTE
PRODUCT MADE IN CHINA
