Barton 99931 Original instruction manual

13QT AIR FRYER
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 99931
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: [phone] MON-FRI 9AM TO 3PM PST

IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may result
in electric re and/or serious injury. Save all warnings and instructions for future reference.
1
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
DO NOT modify this product in any way. Unauthorized modication may impair the function
and/or safety and could affect the life of the product. There are specic applications for which
the product was designed.
DO NOT leave this appliance unattended while in use. The user must remain in the immediate
area of the product and have a clear view of the product at all times during operation.
This appliance is only intended for indoor household use. DO NOT use it outdoors.
To protect against electrical shock do not immerse cord,plugs, or the main unit housing in water
or other liquid.
Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or
taking off parts.
Close supervision is necessary when any appliance is used by or near children.
DO NOT touch hot surfaces. Use handles or knobs.
DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions
or has been damaged in any manner. Return appliance to the nearest authorized service facility
for examination, repair or adjustment.
The use of accessory attachments not recommended by the appliance manufacturer may
cause injuries.
DO NOT use outdoors.
DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
DO NOT place on or near a hot gas or electric bumer, or in a heated oven.
Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
To disconnect, turn any control to off, then remove plug from wall outlet.
DO NOT use appliance for other than intended use.
Use extreme caution when removing tray or disposing or hot grease.
DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical
parts, creating a risk of electric shock.
Oversize foods or metal utensils must not be inserted in a toaster-oven as they may create a re
or risk of electric shock.
High temperature in fryer inner chamber during operation, please do not put plastic dishes or
bowls or protection lm into it.
Extreme caution should be exercised when using containers constructed of other than metal or
glass.
DO NOT place anything on the top of appliance.

IMPORTANT SAFETY INFORMATION
2
A re may occur if the toaster-oven is covered or touching ammable material, including
curtains, draperies, walls, and the like, when in operation. DO NOT store any item on top of the
appliance when in operation.
DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical
parts involving a risk of electric shock.
DO NOT store any materials, other than manufacturers recommended accessories, in this oven
when not in use.
DO NOT place any of the following materials in the oven: paper, cardboard, plastic, and the
like.
DO NOT cover crumb tray or any part of the oven with metal foil. This will cause overheating of
the oven.
When stop using, press the power on/off button to turn off (for electric control model) or adjust
the knob of timer to off position, which also auto turns off after setting time (for mechanical
control model).
DO NOT immerse the power cord, plug or housing in water or under the tap during cleaning, to
avoid of make damage or occur danger.
Avoid any liquid enter the appliance to prevent from electric shock or short-circuit.
DO NOT cover the air and outlet of the appliance during working.
Some parts of the appliance have high temperature during operation, e.g. Basket, toast rack,
tray, etc. Please use the instead of hand touching directly.
Make sure that your output voltage corresponds the voltage stated on the rating label of the
appliance.
Before using, please check the power cord of appliance and the accessories. DO NOT use with
any damage.
Children should be supervised to ensure that they do not play with the appliance and keep it
out of reach of children.
DO NOT let cord hang over the sharp edge of counter.
DO NOT plug in the appliance or operate the control panel with wet hands.
DO NOT place or use the appliance on or near combustible materials such as tablecloth, curtain
or wallpaper, in order to avoid something burning.
DO NOT place the appliance against wall or other appliances all around 10cm of space required
to remain.
During the operation frying hot steam will exhaust through the hind side air outlet. Keep your
hands and face at a safe distance from the steam and the air outlet openings. Also be careful
of hot steam and air when you remove the basket tray toast rack from the appliance.
If the pre-set time is too long, the food will be burnt and smokes and would release from air
outlet, Plug off immediately and clean the food and oil of the basket, toast rack and tray.
After using the fryer, please press the power button, then pull the plug from the socke, avoid
direct strong pulling power cord.
Unplug the appliance from outlet when it is not in use or before cleaning. Allow it to cool down
rst. And then make cleaning.
DO NOT use any accessories provided by non-native.

3
IMPORTANT SAFETY INFORMATION PARTS
SAVE THESE WARNINGS!
This appliance is intended to be used in household. DO NOT use outdoors.
Clean and wipe dry the basket, toast rack and tray, before putting the food inside.
The appliance with built-in safety switch. Only the cooking window component propulsion in
correct place，it can be switched to standby mode.
Always unplug the appliance while not using.
This appliance has a polarized plug(one blade is wider than the other). To reduce the risk of
electric shock, this plug is, intended to t into a polarized outlet only one way, lf the plug does
not t fully into the outlet, reverse the plug. lf it still does not t, contact a qualied electrician.
DO NOT attempt to modify the plug in any way.
A) A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk
resulting from becoming entangled in or tripping over a longer cord.
B) Longer detachable power-supply cords or extension cords are available and may be used if
care is exercised in their use.
C) If a longer detachable power-supply cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance;
2) The cord should be arranged so that it will not drape over the countertop or tabletop where
it can be pulled on by children or tripped over unintentionally.

4

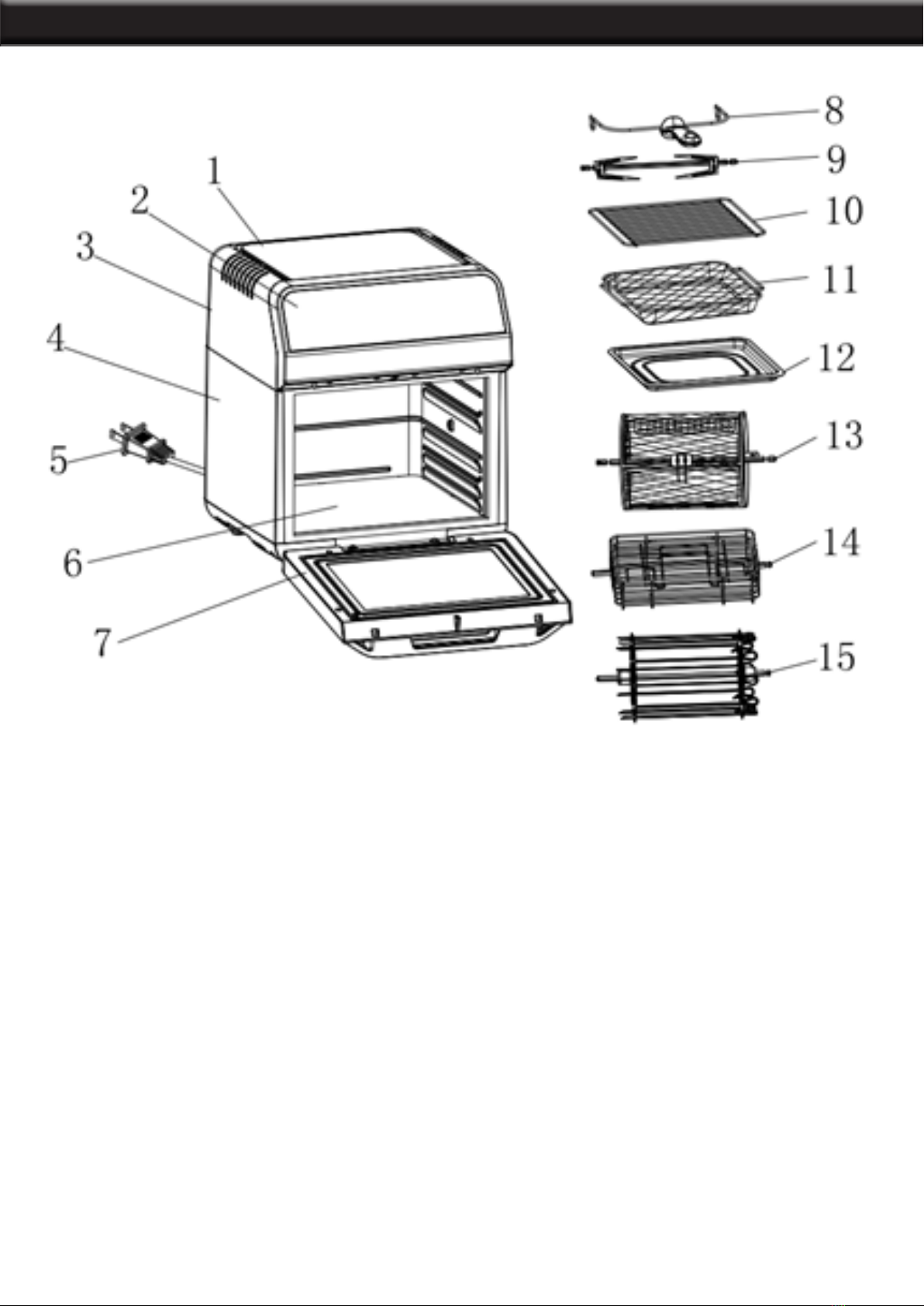

PARTS
1. Top cover
2. Control Panel
3. Upper Cover
4. Housing
5. Power Cord
6. Inner Chamber
7. Door
8. Basket Tong
9. Rotisserie Fork
10. Wire Rack
11. Mesh Basket
12. Drip Tray
13. Rolling Cage
14. Steak Cage
15. Skewer Rack
• Choose proper accessories for different cooking.
• Please use the glove to take out the wire rack/mesh basket or tray after cooking
nished.

5
OPERATION OPERATION
Product usage instructions for accessories:
1. Place the appliance On a horizontal surface. keep 10cm at least empty space from the back
and sides and pay attention keep machine away from curtains /wall covering and other
combustible materials.

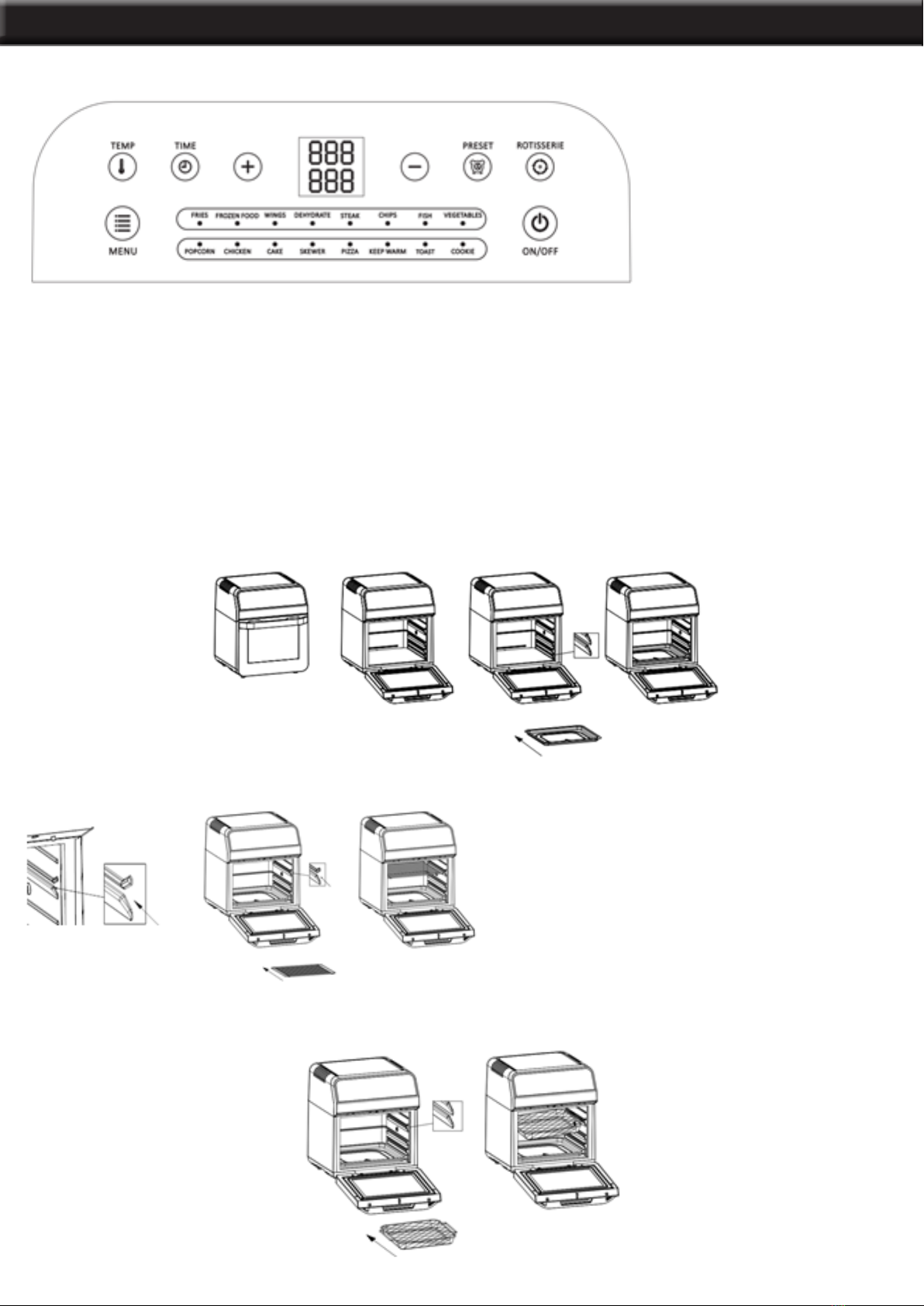

CONTROL PANEL
2. Drip Tray: Opening front door, put drip tray into the unit according to the directions shown in the
gure below:
3. Wire Rack: Insert the wire rack into the unit according to the directions shown in the gure below:
NOTE: Choose proper accessories for different
cooking. Please use a glove to take out the
drip tray or wire rack after cooking nished.
4. Mesh Basket: Put the food into the mesh basket, put it into the inner chamber, and close the
door. As below

6
OPERATION
5. Skewer Rack: After llling the food into separate skewer rack as picture step1 to step8, put them
into the inner chamber,then close the front door.
6. Cage Tong and Rolling Cage
Please always keep the drip tray stay in the lowest layer for gathering oil from fried food.
DO NOT keep the food close to the heat pipe, keep the distance of 40mm at a minimum, as the
food may get bigger after heating, depending on the actual situation.
There is a Safety switch Shows in Pic. Only when the door is closed can
the machine work properly,If the switch is not touched, the display
screen will display “-”.
BEFORE FIRST USE:
1. Remove all packaging materials, stickers and labels.
2. Clean the basket and all other accessories with hot water, dish washing liquid, and a non-
abrasive sponge.
3. Wipe the inside and outside of the appliance with a cloth.
4. The appliance with built-in safety switch, as shown in the picture. Only the cooking window
component propulsion in correct place, it can be switched to standby mode.

OPERATION OPERATION
USING THE APPLIANCE
Use the rotisserie fork, rolling cage, steak cage, skewer rack and cage tongs. As shown in the gure
below:
Product operating instructions
1. When the power is turned on, the buzzer rings, and the digital screen ashes with all the indicator
lights and screens to display the black screen.
2. Press the “ON/OFF” button, indicator light and digital screen light up ,unit into standby mode.
3. In standby mode , except the “ ON / OFF “ Menu “ Preset “ key , all other keys are locked .
4. in standby mode,if no any operation within 60 seconds ,machine will be shut down automatically.
5. In.Press the “Menu” to enter into the function selection mode, select a correct function, press the
“ON/OFF” key, then machine will go into the working mode.
Menu function selection
1. Press key, each time you press the key, the corresponding function menu ashes. When
selected, press key, the cooker starts.
2. Here is our menu combination, and you can also change cooking time and temperature
according to actual needs.
7
FRIES: 430°F for 25 mins
FROZEN FOOD: 180°F for 10 mins
WINGS: 390°F for 15 mins
DEHYDRATE: 160°F for 8 hours
STEAK: 360°F for 12 mins
CHIPS: 430°F for 20 mins
FISH: 360°F for 15 mins
VEGETABLES: 360°F for 12 mins
POPCORN: 430°F for 10mins(Need to preheat for 2 minutes)
CHICKEN: 430°F for 30 mins
CAKE: 360°F for 30 mins
SKEWER: 390°F for 15 mins
Cooking Times:
PIZZA: 360°F for 15 mins
KEEP WARM: 180°F for 30 mins
TOAST: 390°F for 4 mins
COOKIES: 360°F for 12 mins
NOTE: The larger the serving of roasted chicken or food, the longer it takes to increase the time and
temperature, depending on the actual situation.

OPERATION
8
Setting of cooking time and temperature
1. Press after the key, if you need to reset the cooking temperature and time, press key,
you can change cooking time and cooking temperature.
2. When adjusting the cooking temperature, the digital screen ashes, adding and decreasing the
cooking temperature by “+” and “-”. With each click, change 10 degrees Fahrenheit. You can press
the key for a long time, and the temperature changes rapidly at 10 degrees Fahrenheit.
The temperature can be adjusted in the range of 120 degrees Fahrenheit 430 degrees Fahrenheit.
(dry fruit function temperature range is 120 degrees Fahrenheit 160 degrees Fahrenheit)
3. When setting cooking time, the digital screen ashes, adding and decreasing cooking time by
“+” and “-”. With each click, change in 1 minute, you can press the key for a long time, the time
changes at a rate of 10 minutes. The cooking time range is 1 min 60 minutes (except for 8 hours of
dried fruit function)
Pause function: During cooking, as long as the door is opened, the cooker will stop automatically.
In this case, only in addition to the key response, the other keys will be locked. Close
the door, the cooker will continue the previous cooking work.
NOTE: When opening the door in the working state of the appliance for pause function, if didn’t
close the door within 10 minutes, the appliance enters the state of shutdown, showing “black
screen”, and the machine is in the state of shutdown (closed door is also in this state).
Tip: During cooking, turn the food regularly or irregularly to help cook more evenly and cook better.
Note: in the cooking process, the net basket, oil plate, layer frame, the temperature is very high, can
not be touched directly by hand.
Rotating function: This function makes the food even more heated. Pressing the will ash the
corresponding icon indicator in the control panel. Press again to cancel scrolling. This rolling cooking
mode is off by default.
Use of roasted rotisserie fork . As shown below:

OPERATION
NOTE: The total weight of chicken should not exceed 2.7lb, more than 2.7lb, please use the fried
basket, as the rotation will be scraped to the bottom of the oil plate;
The position where the chicken legs and wings open should be bound with things.
It is best to bake a few holes in the chicken legs when baking, because the meat on the chicken
legs is thick and the heat is hard to penetrate.
Finish Cooking
1. When the appliance is done, a “drop” “drop” “drop” sounds and the heater stops working, but its
fan continues to operate for 1 minute until the internal center temperature drops.
2. Open the front door and use insulated gloves to remove the basket and food and put it on a safe
horizontal level.
NOTE: When you take the basket out of the utensils, don’t touch the basket with your hands. Burn
your hands carefully.
Tip: If the ingredients after cooking are not very good, just put the basket back in the box and add
a few more minutes to cook. Pour cooked food on a plate or tableware.
3. After cooking , press the power button to turn off the power supply and pull the power cord off
the wall.
Cleaning and maintenance
NOTE: Be sure to unplug this appliance before cleaning.
• Clean the basket, wire rack, drip tray etc with water or washing-up liquid after using.
• Wipe the appliance with soft moist cloth.
•DO NOT immerse the power cord, plug and the appliance’s body into water or other liquid, it may
cause damage of appliance, re, electric shock or injury to persons.
After drying, assemble all parts and then place it in dry, clean, no corrosive environment.
IMPORTANT: This product must not be disposed together with the domestic waste. This product
has to be disposed at an authorized place for recycling of electrical and electronic appliances.
By collecting and recycling waste, you help save natural resources, and make sure the product is
disposed in an environmental friendly and health way.
OF NOTE
9

10
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually as
replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
OF NOTE
PRODUCT MADE IN CHINA
