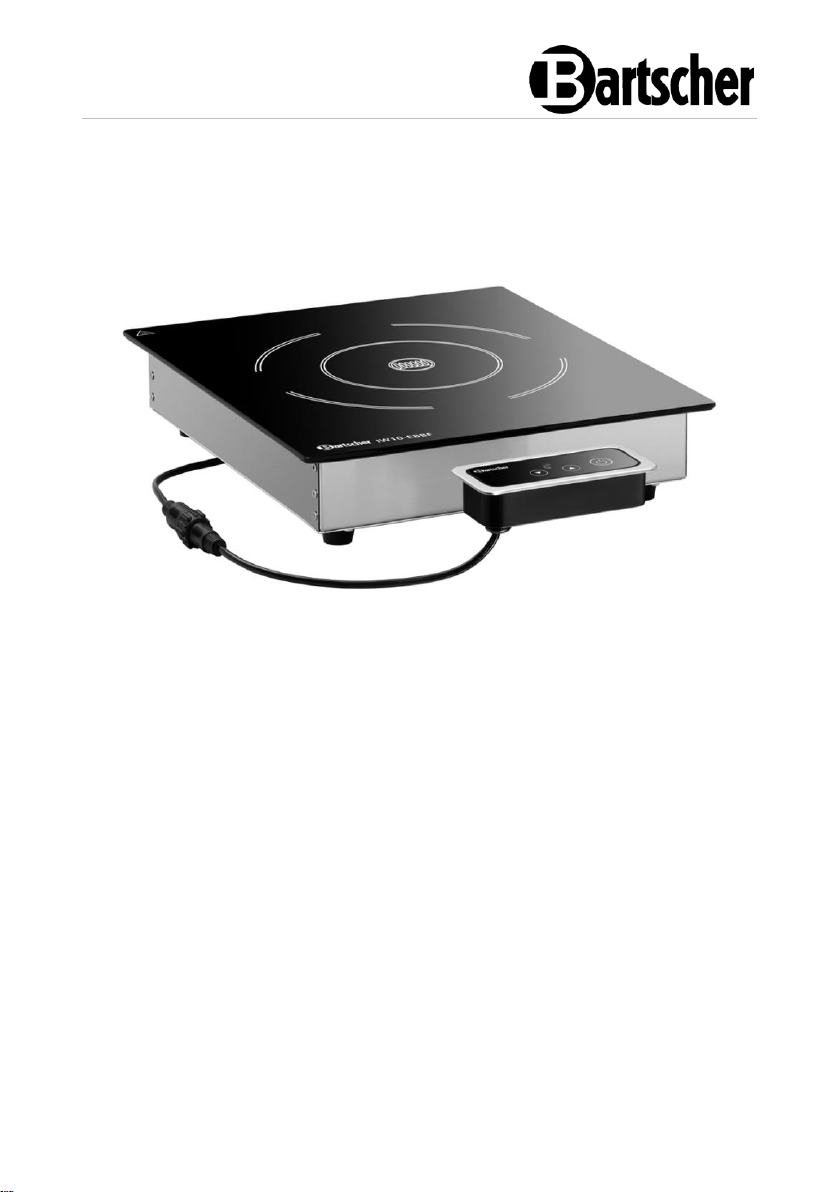

Bartscher IW10-EBBF User manual

IW10-EBBF
105996

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2019-08-27
EN

105996 1 / 20
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of signal words.....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended use............................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and warranty...............................................................................7
2.2 Copyright protection.................................................................................7
2.3 Declaration of conformity.........................................................................7
3Transport, packaging and storage.................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical data...............................................................................................9
4.1 Technical specifications...........................................................................9
4.2 List of components of the appliance....................................................... 10
4.3 Functions of the appliance..................................................................... 10
5Installation and operation ............................................................................11

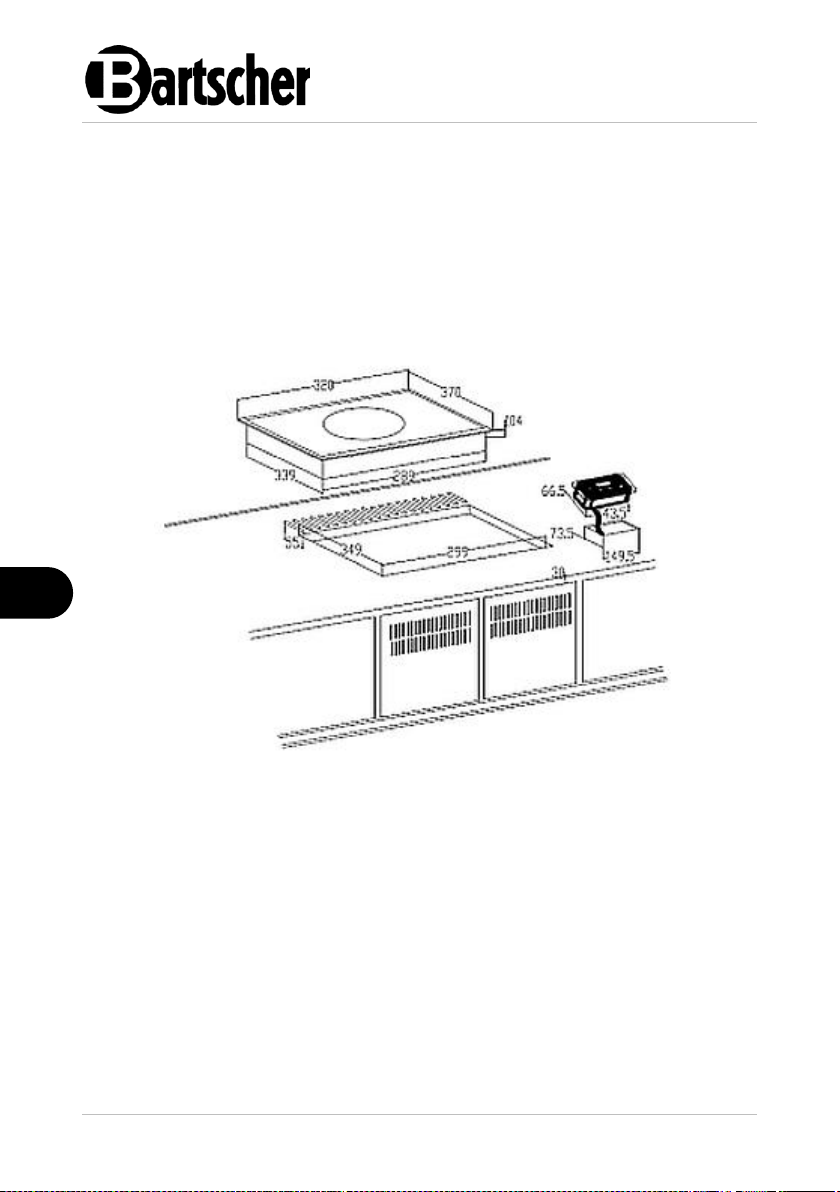

5.1 Installation..............................................................................................11
5.2 Operation............................................................................................... 13
6Cleaning ......................................................................................................16
6.1 Safety Instructions for cleaning..............................................................16
6.2 Cleaning.................................................................................................16
7Possible Malfunctions..................................................................................17
8Disposal....................................................................................................... 18

Safety
2 / 20 105996
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung f ürd as sichere und sac hgerechte Arbeite n mitd emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung is t Bestandteil des Pro dukts und muss in u nmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienungs-, W artungs- und Reinigungsp ersonal jederzeit z ugänglich auf¬be wahrt werden. Wenn das Ger äta n eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
105996 3 / 20
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 20 105996
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Flammable materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Electromagnetic Fields
•Magnetized items, e.g. credit cards, data storage devices or calculators, may
not be placed in an immediate vicinity of the switched on appliance. Magnetic
field might damage them.
•Do not open the bottom cover!
•Cookware should always be placed in the middle of the cooking area, so that
pot bottom covered the electromagnetic field to the maximum extent.
•Scientific researches proved that induction cookers pose no threat.
Nevertheless, people with cardiac pacemaker should keep a distance of at least
60 cm from the working appliance.
Safety of Induction Plate Operation
•During operation, the heating area is getting very hot.
Information: Induction cooker does not generate heat in the process of
cooking. Nevertheless, the temperature of cookware heats up the heating
area and the surface remains hot after use. Do not touch any hot surfaces
of the appliance.

Safety
105996 5 / 20
EN
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
•Do not put metal kitchen utensils, lids, knifes nor any other metal objects on the
heating area. These objects might heat up after switching the appliance on.
•Remember that wearable items, e.g. rings, watches etc., may heat up when they
are close to the cooker’s plate.
•In order to avoid overheating, do not place any aluminium foil or metal plates on
the heating surface of the appliance.
•Do not heat up sealed containers, e.g. canned food, on the heating area of the
induction cooker. Resulting overpressure may cause explosion (rupture) of a
container or a can. The canned food is best to open it, put it in a pot filled with
water and place the pot on a heating area in order to heat it up.
•The heating area is made of a temperature-resistant glass. In case of damage,
even if it is only a small fracture, the device should be immediately disconnected
from the power supply and you should contact the service company.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.

Safety
6 / 20 105996
EN
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Heating-up foods and keeping them warm with the use of suitable plates.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Heating-up flammable, hazardous to health and volatile, etc. liquids and
materials.

General information
105996 7 / 20
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, packaging and storage
8 / 20 105996
EN
3 Transport, packaging and storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical data
105996 9 / 20
EN
4 Technical data
4.1 Technical specifications
Name:
Induction warming plate IW10-EBBF
Item No.:
105996
Material:
Stainless steel
Number of heating stations:
1
Max. power, in W:
1000
Temperature range, min.–max., in °C:
50 - 100
Number of temperature levels:
6
Temperature setting intervals, in °C:
10
Power supply:
1 kW / 230 V / 50 Hz
Glass plate dimensions (W x D), in mm:
320 x 370
Dimensions (W x D x H), in mm:
320 x 370 x 80
Weight in kg:
3,5
We reserve the right to implement technical modifications!
Version / Characteristics
•Type of heating station: induction
•Control: temperature
•Possibility to be built in
•Cookware detection
•Digital display
•Protection against overheating
•ON/OFF button
•Indicator light: ready for operation
•Control: electronic, touch
•Separate control panel, cord length: 0.75 m
•May also be used as a table-top appliance
•3 appliances may be connected in sequence in 1 power circuit

Technical data
10 / 20 105996
EN
4.2 List of components of the appliance
1. Heating area
2. Glass heating plate
3. Control panel
4. Feet (4)
5. Multi-position screw connector
6. Housing
4.3 Functions of the appliance
The induction heating plate is intended for keeping food warm using appropriate
cookware.

Installation and operation
105996 11 / 20
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•Do not place the appliance in the vicinity of devices or objects that are sensitive
to magnetic fields (e.g. radio, television, etc.).
•Leave at least 5 -10 cm clearance from flammable walls and other objects.

Installation and operation
12 / 20 105996
EN
Built-in Installation
The appliance and the control panel are designed to be installed in a work table
board. During installation, follow these indications:
1. For installation, select a work table board that is heat resistant to avoid
deformation due to the heat radiation of the appliance.
2. Make sure that the thickness of the work table board meets the required load-
bearing capacity.
3. Cut 2 openings in the work table board according to the diagram below.
4. Provide sufficient ventilation around the appliance and make sure that the
ventilation holes are not obstructed.
NOTE: A safe distance between the heating area and a cupboard above
the appliance should be at least 760 mm if no extractor hood is provided
for.

Installation and operation
105996 13 / 20
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Do not use the appliance with an external timer or remote control.
•Appliance power cord and control panel cord are routed under the appliance.
•Connect the control panel and the induction heating plate with the multi-position
screw connector.
5.2 Operation
Method of Operation of Heating Plates
In induction cookers the electric voltage is applied to a conductive coil under the
glass. This generates magnetic field, which being a physical effect, heats the
bottom of a cookware directly.
This translates to savings of time and energy, as —contradictory to traditional
heating areas —there is no heating up of a heater and then of the glass heating
plate.
Another advantage of the technical features described above is the very short
cooking time.
Additionally, inflow of heat changes instantly with every change of settings and it
may be controlled precisely. The induction heating plate reacts to changes in
settings as fast a gas cooker, for the energy is delivered immediately to a pot,
without the need to prior heating up of other materials.
The induction technology combines the speed of reaction with a basic benefit of the
current, making it possible to precisely control heat inflow.

Installation and operation
14 / 20 105996
EN
Suitable Cookware
•Iron cookware
•Enamelled iron cookware
•Steel or enamelled cast iron pots/pans
•Cast iron pots/pans
•Cookware made of 18/0 stainless steel
and aluminium if marked as suitable for
induction (mind the description of the
cookware)
Due to a specific way the induction plate operates,
only cookware/containers with a bottom subject to
magnetization are suitable.
To obtain better results, use only
cookware/containers with a diameter of 20–28 cm.
Not Suitable Cookware
•Containers with bulged bottoms
•Aluminium, brass, copper cookware
unless they are clearly indicated as
suitable for induction
•Pots/pans with a diameter below 12
cm
•Cookware with feet
•Ceramic cookware
•Glass cookware

Installation and operation
105996 15 / 20
EN
Control Panel
1. Digital display
2. Indicator light: ready for operation
3. ON/OFF button
4. Setting value increase button
5. Setting value decrease button
1. Before the first use, clean the device according to the instructions included in
section 6. “Cleaning”.
2. Place an appropriate cookware/container with food on the heating plate.
3. Plug the appliance into a suitable grounded socket.
The acoustic signal sounds. The device is now in STANDBY.
4. Press the ON/OFF switch on the control panel to switch the appliance on.
The power indicator light over the ON/OFF switch is lit.
5. using the arrow button on the control panel select a temperature level within the
range of 1–6.
The temperature may be set with 10°C increments.
The set temperature level will be shown in the digital display.
Maximum power amounts to 1,000 W.
6. When the intended effect is obtained or when the appliance will not be used,
switch it off with the ON/OFF switch.

Cleaning
16 / 20 105996
EN
NOTE: The induction cooker switches off automatically when no new
setting has been introduced for 2 hours. The fan operates for some time to
cool down the electronics.
Overheating Protection
The device is equipped with overheating protection. When the critical temperature
is exceeded, the appliance will switch off for safety reasons.
NOTE: Never place an empty pot on the heating area. Heating up an empty
cookware/container activates the overheating protection system; an audio
signal will sound and the appliance will turn off. The digital display will
show “E02“ error code.
In such a case, remove the cookware/container from the heating area and leave the
appliance for a few minutes to cool down. Then you may freely start using the
appliance again.
6 Cleaning
6.1 Safety Instructions for cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Clean the appliance regularly after the end of each working day, or more
frequently if needed.
2. Wipe the heating area, housing and control panel with soft, damp cloth and mild,
non-scrubbing washing agent.
3. Ventilation slots at the rear and bottom of the appliance should not be
obstructed with dirt or dust. Clean them regularly with a brush or a blower.
4. After cleaning, dry and polish the surface with a soft and dry cloth.

Possible Malfunctions
105996 17 / 20
EN
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
Error code
Cause
Solution
E0
No cookware or not suitable
cookware.
Place an appropriate cookware /
container with food on the
heating plate.
E01
The internal temperature of
the induction heating plate is
to high or the internal fan
does not work.
Maintain at least 10 cm clearance
between the ventilation slot and
walls or other devices.
Pull the plug out. Wait for the
appliance to cool off. After
cooling off, switch the appliance
on as usual. Check and clean the
air inlet and the valve, provided
they are obstructed.
E02
Temperature of a cookware is
too high. Overheating
protection was triggered.
Remove the cookware from the
heating plate. Wait for the
appliance to cool off.
E03
Input voltage is too high or too
low.
Make sure that the device is
connected to the right input
voltage.

Disposal
18 / 20 105996
EN
8 Disposal
Electrical appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
