Bartscher Panini-MDI 1R User guide

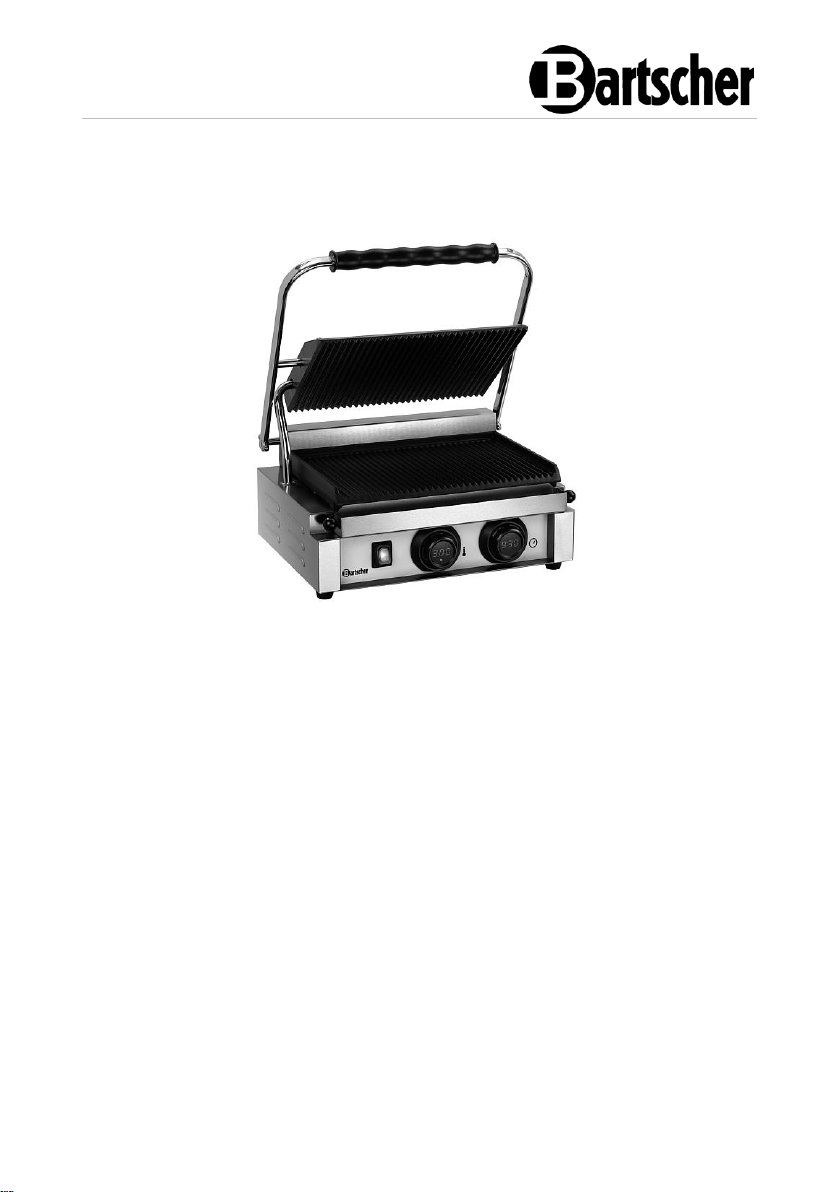

“Panini-MDI“ 1R - 1GR - 1G
A150974 - A150976 - A150979

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2019-09-30
EN

A150974 1 / 20
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of signal words.....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended use............................................................................................5
1.4 Unintended use........................................................................................5
2General information.......................................................................................6
2.1 Liability and warranty...............................................................................6
2.2 Copyright protection.................................................................................6
2.3 Declaration of conformity.........................................................................6
3Transport, packaging and storage.................................................................7
3.1 Delivery check .........................................................................................7
3.2 Packaging................................................................................................7
3.3 Storage....................................................................................................7
4Technical data...............................................................................................8
4.1 Technical specifications...........................................................................8
4.2 List of components of the appliance.......................................................10
4.3 Functions of the appliance..................................................................... 10
5Installation and operation ............................................................................11
5.1 Installation..............................................................................................11
5.2 Operation............................................................................................... 12
6Cleaning ......................................................................................................16
6.1 Safety Instructions for cleaning..............................................................16
6.2 Cleaning.................................................................................................16
7Possible Malfunctions..................................................................................17
8Disposal....................................................................................................... 18

Safety
2 / 20 A150974
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung f ürd as sichere und sac hgerechte Arbeite n mitd emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung is t Bestandteil des Pro dukts und muss in u nmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienungs-, Wartungs- und Reinigu ngspersonal jed erzeitz ugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
A150974 3 / 20
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.
•Always completely unwind the power cord.

Safety
4 / 20 A150974
EN
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Flammable materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot surfaces
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Operating personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Supervised usage only
•Only supervised appliance may be used.

Safety
A150974 5 / 20
EN
•Always remain in an immediate vicinity of the appliance.
Improper use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used in a technically flawless condition, providing for
safe use.
•The appliance may only be used with connections in a technically flawless
condition, providing for safe use.
•The appliance may only be used clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not attempt to modify nor alter the appliance.
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Grilling of suitable food products.
1.4 Unintended use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.

General information
6 / 20 A150974
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, packaging and storage
A150974 7 / 20
EN
3 Transport, packaging and storage
3.1 Delivery check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical data
8 / 20 A150974
EN
4 Technical data
4.1 Technical specifications
Name:
Contact grill "Panini-MDI" 1R
Item No.:
A150974
Material:
stainless steel
Grill plate material:
cast iron, enamelled
Number of grill units:
1
Grill surface design:
ribbed
Temperature range in °C:
50 - 300
Degree of protection:
IPX3
Power supply:
2,2 kW / 230 V / 50-60 Hz
Dimensions of top plate (W x D), in mm:
340 x 220
Dimensions of bottom plate (W x D), in
mm:
360 x 285
Dimensions (W x D x H), in mm:
410 x 400 x 200
Weight in kg:
18,3
Name:
Contact grill "Panini-MDI" 1GR
Item No.:
A150976
Material:
stainless steel
Grill plate material:
cast iron, enamelled
Number of grill units:
1
Grill surface design:
ribbed at top, smooth at the bottom
Temperature range in °C:
50 - 300
Degree of protection:
IPX3
Power supply:
2,2 kW / 230 V / 50-60 Hz
Dimensions of top plate (W x D), in mm:
340 x 220
Dimensions of bottom plate (W x D), in
mm:
360 x 285
Dimensions (W x D x H), in mm:
410 x 400 x 200
Weight in kg:
18,5

Technical data
A150974 9 / 20
EN
Name:
Contact grill "Panini-MDI" 1G
Item No.:
A150979
Material:
stainless steel
Grill plate material:
cast iron, enamelled
Number of grill units:
1
Grill surface design:
smooth
Temperature range in °C:
50 - 300
Degree of protection:
IPX3
Power supply:
2,2 kW / 230 V / 50-60 Hz
Dimensions of top plate (W x D), in mm:
340 x 220
Dimensions of bottom plate (W x D), in
mm:
360 x 285
Dimensions (W x D x H), in mm:
410 x 400 x 200
Weight in kg:
18,1
We reserve the right to implement technical modifications!
Version / Characteristics
•Temperature control: electronic, in 1°C increments
•Timer
•Audible signal when the time expires (0 –9:30 minutes)
•Digital display
•Control: knob
•ON/OFF switch
•Indicator lights: ON/OFF, heating
•Grease collection tray
•The set includes: 1 cleaning brush
<Endergebnis>

Technical data
10 / 20 A150974
EN
4.2 List of components of the appliance
1. Handle
2. Top grill plate
3. Bottom grill plate
4. Ventilation openings
5. Feet (4x)
6. Push rotary time control knob
7. Push rotary temperature control
knob
8. ON/OFF switch with integrated power
indicator light (green)
9. Housing
10.Grease collection tray
11.Cable through
12. Handle guard
13.Cleaning brush
4.3 Functions of the appliance
Contact grills with grill plates (smooth or ribbed) featuring optimum heat conductivity
and simple, intuitive operation with the push rotary control knobs with digital
displays, equipped with a timer and audible signal are designed for grilling suitable
food products.

Installation and operation
A150974 11 / 20
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•Leave at least 20 cm clearance from flammable walls and items.

Installation and operation
12 / 20 A150974
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Do not use the appliance with an external timer or remote control.
5.2 Operation
WARNING!
Risk of burns!
When in use, the grill plates and external surfaces of the appliance get
very hot.
Do not touch hot surfaces.
When operating the appliance, you may touch just the handle or the
control elements (temperature controller, ON/OFF switch).
Before the first use
1. Before use, clean the appliance, observing instructions in section 6 “Cleaning”.
2. Insert the grease collection tray at the front of the appliance, under the grill
plate.
3. Before the first use, heat the open appliance up without grilled products for
approx. an hour with temperature set to 180 °C –200 °C. Observe indications in
the “Switching on” section.
Due to post-production remains, there may be a smoke produced during heating up.
This is, however, no threat to the user and is not sign of any defect of the appliance.
That smoke will not occur during the next use. Ensure proper ventilation during first
heating.
4. Moisten the grill plates with food oil three or four times.

Installation and operation
A150974 13 / 20
EN
•Setzen Sie de n Schaltkasten mit Heizelement vorsichtig auf d en hinteren Rand des Gerätes. S worzeń w doln ej części s krzynki rozdzi elczej musi wcho dzić w otwór w urz ądzeniu głó wnym. W taki spos ób skrzynka ro zdzielcza jest prawidłowo ust awiona.
Control panel
The contact grill is operated with 3 control elements:
–ON/OFF switch
–Push rotary time control knob (at the right side of the control panel)
–Push rotary temperature control knob (at the left side of the control
panel)
Design of the push rotary control knobs
Push rotary control knob
Digital display
Indicator light
The push rotary control knobs are integrated with digital displays that allow reading
the set (used the most recently) time and temperature.
Indicator lights evidence the operating modes.
Settings
Temperature setting
Temperature is set with the push rotary control knob (at the left side of the control
panel). The temperature may be set with 1 °C increments in the range of 50 °C –
300 °C.
Time setting
The duration of work of the appliance is set with the push rotary time control knob
(at the right side of the control panel). The time may be set in the range of 1–9:30
minutes.
The timer is activated via pressing the time control knob.
The set time is counted down in 1 second increments, until '0:00' is displayed.
Then, the audible signal is heard; it must be confirmed via pressing of the push
rotary time control knob.

Installation and operation
14 / 20 A150974
EN
The appliance does not switch into the Standby mode, but it keeps heating. The
previously set time is displayed again on the digital display and another product
may be prepared with the use of the same setting.
The appliance may also be used without the timer if the push rotary time control
knob is not activated via pushing it.
It takes approx. 10 minutes to heat the appliance up to 200 °C.
Switching on
1. Connect the appliance to a single grounded socket.
The digital displays of the rotary control knobs light up immediately and show the
most recently used temperature and time settings.
Indicator lights are off.
2. Set the parameters by rotating the respective push rotary control knobs.
The indicator light of the temperature control is lit until the set temperature is
reached; then, it is lit only during the re-heating process.
During operation, you may freely adjust both time and temperature through rotating
the respective push rotary control knobs.
Food preparation
WARNING!
Risk of scalding by hot steam!
When opening the appliance, a hot steam may escape.
Always open the appliance with caution, using the handle.
Risk of burning by hot fat or fat splashes!
Protect your hands and face from possible fat splashes!
1. Open the appliance using the handle and lift the top grill plate.
2. Depending on the product to be grilled, the grill plates should be greased with a
small amount of edible oil to prevent product burning.
3. Put the food products prepared for grilling on the grilling plate.
4. Close the appliance using the handle.
There is no need to flip the grilled products, as both grill plates are heated up.
5. Watch the product during grilling process until the grilling process is finished.
6. When the grilling process is finished, rotate the push rotary temperature control
knob as long as '0:00' is displayed on the digital display.
7. Remove the grilled food from the grill plate.

Installation and operation
A150974 15 / 20
EN
8. If the appliance is not longer used, ON/OFF switch should be set to the “O“
position.
9. Disconnect the appliance from the socket (pull the plug out).
Grease collection tray
1. Observe the grease collection tray during operation.
2. The grease collection tray should be removed and emptied regularly. When the
appliance, grease collection tray and its content have cooled sufficiently, remove
the tray.
Safety thermostat
The appliance is equipped with the safety thermostat, which activates when the
appliance is overheated and disconnects the appliance.
When the safety thermostat is activated, proceed the following way:
–Disconnect the appliance from the socket (pull the plug out).
–Wait for the appliance to cool down.
–Press the RESET pin located at the bottom of the appliance.
If over a short period of time, the safety thermostat activates again, contact the
service company.
Regulation of the handle / top grill plate
If the handle will not remain stable in the raised position or will drop, perform the
following steps:
1. Screw out the screw located in the rear
area of the handle guard.
2. Remove the guard.
3. Tighten the screws in the brass block
with the provided Allen wrench.

Cleaning
16 / 20 A150974
EN
6 Cleaning
6.1 Safety Instructions for cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. Clean the appliance daily.
2. Clean the appliance when it has cooled down only; clean without using water or
with a cloth moistened in water.
CAUTION!
Make sure that the moisture, oil, or fat do not enter the appliance.
3. Clean the housing, the handle and the outside of the top grill with a damp cloth.
In case of stubborn soiling, use a mild cleaning agent.
4. Clean the internal surface of the grill plates with a soft, damp cloth and mild
cleaning agent.
5. Larger soilings from ribbed grill plates should be removed with the provided
cleaning brush.
6. In the case of more stubborn soilings, grease the inside of the warm grill plates
with oil and leave it for a couple of minutes.
7. Wipe the internal surface of the ribbed grill plates with a damp cloth.
8. Then dry the grill plates thoroughly using a soft cloth.
CAUTION!
Wait for the grease collection tray and its content cooled down before you
start cleaning.
9. Wash the removable grease collection tray with warm water and mild cleaning
agent.
10.Dry the grease collection tray and reinstall it in the appliance.

Possible Malfunctions
A150974 17 / 20
EN
11.After cleaning, dry and polish the surface with a soft cloth.
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
Error
Possible Cause
Solution
The appliance is
connected to the
power supply; the
appliance is switched
on but the green
indicator light in the
ON/OFF switch is off.
Abnormal or interrupted
power supply.
Check the power supply and
the cable for damage or faults.
Electric power supply
safety fuse damaged.
Check the fuse, connect the
appliance to another socket.
No power supply.
Check electric power supply.
The safety thermostat
tripped.
Leave the appliance to cool
down and press the RESET
pin located at the bottom of
the appliance.
The appliance is
connected to the power
supply, switched on,
but the digital displays
of the push rotary
control knobs do not
show any values.
Plug improperly
inserted into a socket.
Remove the plug and insert it
properly in the socket.
The push rotary
temperature or time
control knob is not
activated.
Press one of the push rotary
control knobs.

Disposal
18 / 20 A150974
EN
Error
Possible Cause
Solution
The appliance is
connected to the power
supply, switched on, but
the grill plates are not
heating up.
Temperature is not set.
Set the temperature.
Damaged heaters in
the grill plates.
Contact the service company.
The appliance is
connected to the power
supply, switched on,
but it does not operate.
The safety thermostat
tripped.
Disconnect the appliance from
the power supply. Wait for the
appliance to cool down. Press
the RESET pin at the bottom
side of the appliance.
If the safety thermostat trips
again, contact the service
company.
When malfunctio nc annot be re moved:
- do not open the housing;
- inform the service co mpany orc ontact the supplier a ndpr ovide the follo wingda ta:
type of malfunction;
When malfunction cannot be removed:
–do not open the housing;
–inform the service company or contact the supplier and provide the following
data:
–type of malfunction;
–code number and serial number (to read from the rating plate of the
device).
8 Disposal
Electrical appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
