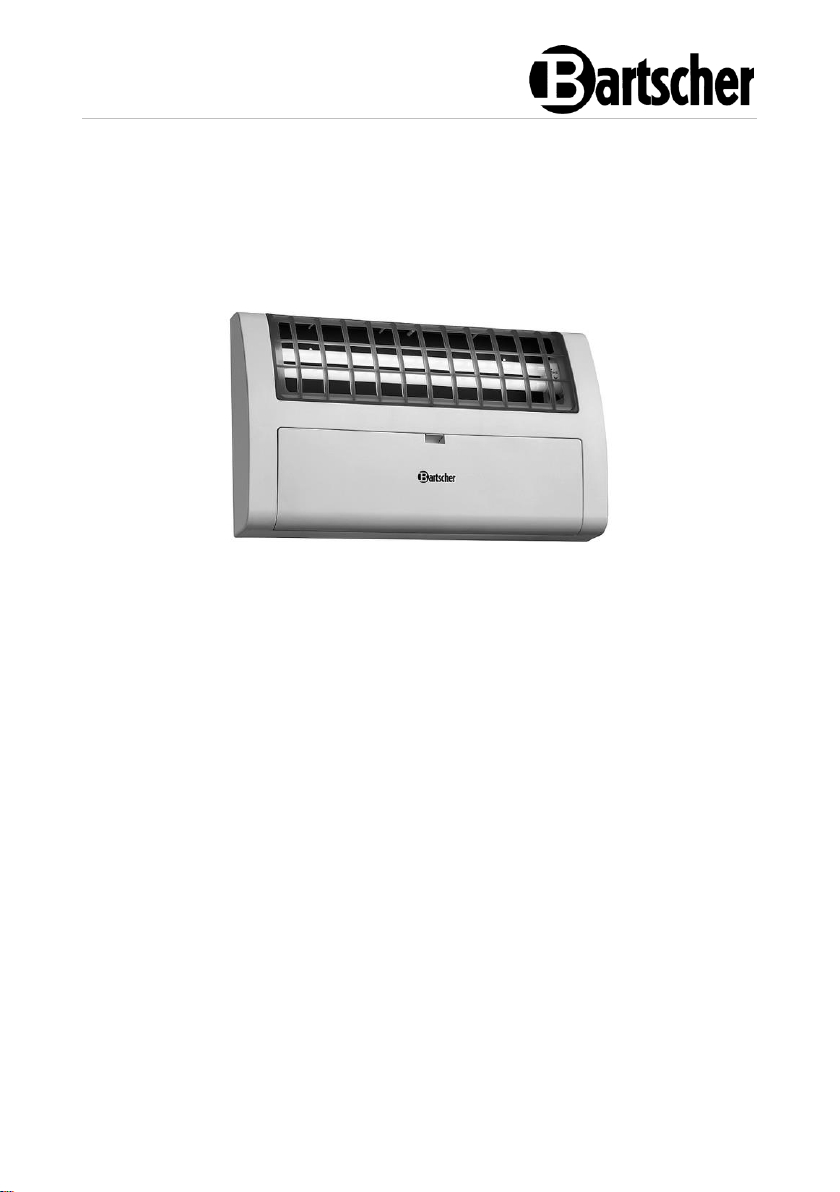

Bartscher IF-150 User manual

IF-150
300350

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2022-09-08
EN
2

300350 1 / 16
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................5
1.4 Unintended Use.......................................................................................5
2General information.......................................................................................6
2.1 Liability and Warranty ..............................................................................6
2.2 Copyright Protection ................................................................................6
2.3 Declaration of Conformity ........................................................................6
3Transport, Packaging and Storage................................................................7
3.1 Delivery Check.........................................................................................7
3.2 Packaging................................................................................................7
3.3 Storage....................................................................................................7
4Technical Data...............................................................................................8
4.1 Technical Specifications ..........................................................................8
4.2 Functions of the Appliance.......................................................................8

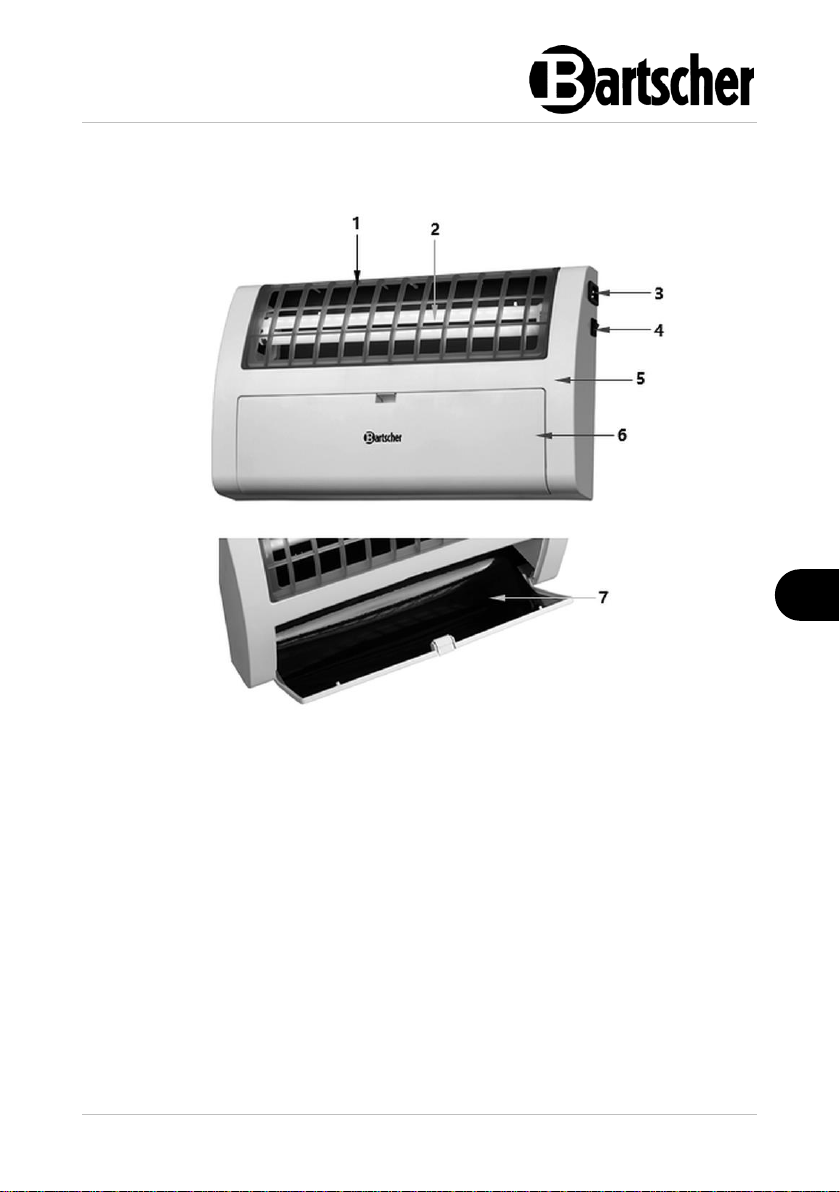

4.3 List of Components of the Appliance .......................................................9
5Installation and operation ............................................................................10
5.1 Installation..............................................................................................10
5.2 Operation...............................................................................................12
6Cleaning ......................................................................................................15
6.1 Safety Instructions for Cleaning.............................................................15
6.2 Cleaning.................................................................................................15
7Disposal....................................................................................................... 16

Safety
2 / 16 300350
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung für d as sichere und sac hgerechte Arbeite n mitd emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung ist Bestandt eild es Produkts und muss i n unmittelbarer Nähe d es Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
300350 3 / 16
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 16 300350
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.
Operating personnel
•This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.

Safety
300350 5 / 16
EN
•Children should be supervised to ensure that they are not playing with or
switching the appliance on.
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–For use in living areas, restaurants, hotels and offices.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Using outdoors, in barns, stables and similar buildings.

General information
6 / 16 300350
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
300350 7 / 16
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
8 / 16 300350
EN
4 Technical Data
4.1 Technical Specifications
Name:
Insect trap IF-150
Art. No.:
300350
Material:
plastic
Effective radius, approx., in m:
15
Light output:
1 x 36 W
Connected load:
0,036 kW | 220-240 V | 50/60 Hz
Adhesive film dimensions (W x D), in
mm:
390 x 270
Dimensions (W x D x H), in mm:
480 x 80 x 281
Weight, in kg:
1,8
We reserve the right to implement technical modifications.
Version / Characteristics
•Version: wall-mounting
•Colour: white
•Insect killing method: adhesive film
•UV-A fluorescent lamp
•Protection class: 1 with PE
•Fixing material
<Endergebnis>
4.2 Functions of the Appliance
The noise-free, hygienic insect trap has a large effective range and attracts insects
using UV light. Insects are securely trapped on the adhesive film behind it, which
can be replaced easily.
