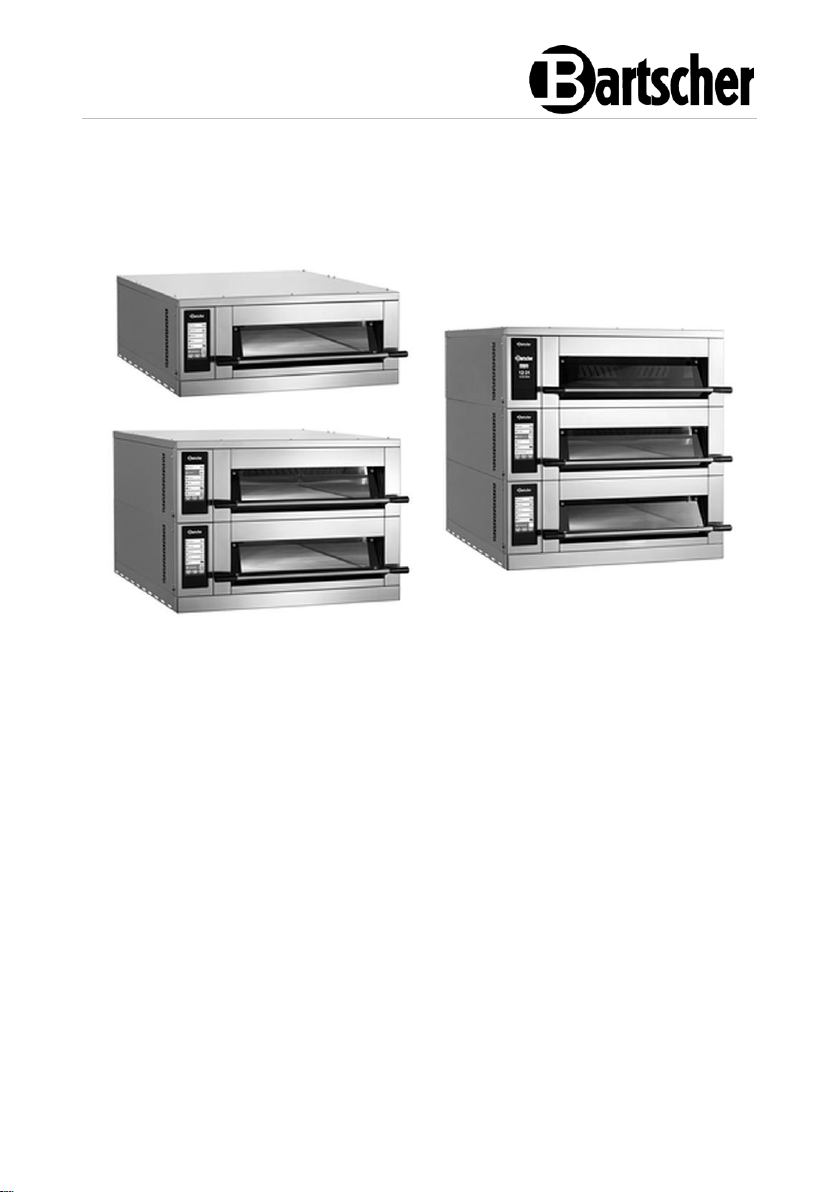

Bartscher CL6040-1 User guide

CL6040-1 / CL6080-1 / CL6080-2 /
CL6080-3
117910 - 117911 - 117912 - 117913

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2022-09-09
EN
2

117910 1 / 68
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................7
1.4 Unintended Use.......................................................................................7
2General information.......................................................................................8
2.1 Liability and Warranty ..............................................................................8
2.2 Copyright Protection ................................................................................8
2.3 Declaration of Conformity ........................................................................8
3Transport, Packaging and Storage................................................................9
3.1 Delivery Check.........................................................................................9
3.2 Packaging................................................................................................9
3.3 Storage....................................................................................................9
4Technical Data.............................................................................................10
4.1 Technical Specifications ........................................................................10
4.2 Functions of the Appliance.....................................................................16
4.3 List of Components of the Appliance .....................................................17
5Installation Instructions................................................................................18
5.1 Unpacking and Positioning ....................................................................18
5.2 Electrical Connection.............................................................................21
5.3 Water Connection..................................................................................23
6Operating Instruction...................................................................................26
6.1 Operation...............................................................................................30
7Cleaning and Maintenance..........................................................................65
7.1 Safety Instructions for Cleaning.............................................................65
7.2 Cleaning.................................................................................................65
7.3 Maintenance ..........................................................................................67
8Disposal....................................................................................................... 68

Safety
2 / 68 117910
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die Voraussetzu ng für das sichere und sac hgerechte Arbeite n mit dem Gerät. Darüber hin aus müssen die für den Eins atzbereich des G erätsg eltenden örtlich enU nfallverhütungs vorschriften und allgem einen Sicherheitsb estimmungen eing ehalten werden. Diese Bedienungsa nleitungi st Bestandt eild es Produkts und muss i n unmittelbarer Nähe d es Geräts für das In¬stall ations-, Bedienu ngs-, Wartungs- und R einigungspersonal jed erzeit zugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
117910 3 / 68
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 68 117910
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot Surfaces
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.

Safety
117910 5 / 68
EN
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Supervised Usage only
•Only supervised appliance may be used.
•Always remain in an immediate vicinity of the appliance.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.

Safety
6 / 68 117910
EN
Warning Signs on the Appliance
DANGEROUS VOLTAGE
Dangerous voltage inside. Contact leads to electric shock or burns.
Before performing maintenance and cleaning works, the system
must be switched off and locked.
Failure to observe these instructions may result in serious injury.
RISK OF BURNS!
This symbol indicates situations where persons must be careful not
to touch any hot external surfaces of the oven during operation.
Failure to observe these instructions may result in serious injury.
RISK OF BURNS —hot water and steam!
This symbol indicates situations in which persons must take care
not to come into contact with hot water on surfaces and steam
which may be generated when the oven is in operation.
Failure to observe these instructions may result in serious injury.
RISK OF BURNS —hot steam!
This symbol indicates situations in which persons must take care
not to come into contact with hot steam which may escape during
the operation of the oven.
Failure to observe these instructions may result in serious injury.
RISK OF BURNS —handling hot sheets with products!
This symbol indicates situations where persons must be careful
when handling hot sheets with hot products and liquids that may fall
or spill on a person during loading or unloading. The sticker is part
of the scope of supply of the appliance and must be placed at a
height of 1.6 m above the installation surface.
Failure to observe these instructions may result in serious injury.

Safety
117910 7 / 68
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Baking bread, buns
–Baking cakes
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Processing of unsuitable food products
–Heating of rooms
–Drying clothes
–Storage of flammable objects
–Heating up and warming up of liquids and materials that are flammable,
hazardous to health, volatile, etc.

General information
8 / 68 117910
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
117910 9 / 68
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
10 / 68 117910
EN
4 Technical Data
4.1 Technical Specifications
Version / Characteristics
•Series: CL
•Equipment connection: 3 NAC
•Heating type: top/bottom heating element
•Independent adjustment of top / bottom heating element
•Steam generator: external Steam-Box
•Steaming:
–set in a program
–manual
•Parameters per baking phase:
–pre-hating
–baking time
–top/bottom heating element
–steaming intensity
–vapour extraction position
•Manual baking time extension
•Automatic switch-on via timer
•Automatic pre-heating
•USB port
•Internal lighting: LED
•Control: touch
•Display:
–7" LCD display
–program
–timer settings
–date and time
•Features:
–programs with all parameters can be copied within the menu
–programs from other appliances can be imported

Technical Data
117910 11 / 68
EN
•Important indication:
–installation kit LBO100 is required for the operation of the appliance in
single mode (in the case of installation of the appliance in combination
with other appliances, the appropriate installation kit must be selected)
–connection of a softener at the water inlet is always required
–in the case of water pressure of 35 mbar and more, a pressure reducer is
required
We reserve the right to implement technical modifications.
Name:
Deck oven CL6040-1
Art. No.:
117910
Material:
stainless steel
Baking chamber material:
stainless steel
Number of baking chambers:
1
Capacity, in mm:
1 x 600 x 400
Baking chamber dimensions (W x D x H),
in mm:
680 x 420 x 200
Loading height, in mm:
140
Temperature range, max., in °C:
300
Temperature control, in °C increments:
1
Heating power output, in kW:
2,4
Steam generator output, in kW:
1,5
Number of programs: pre-installed / for
programming / manually set:
15 / 84 / 1
Number of baking phases:
6
Time setting, from–to, in min.:
1 - 99
Water connection:
R 3/4“
Water supply temperature range, in °C:
10 - 40
Connected load:
4,8 kW | 400 V | 50/60 Hz
Dimensions (W x D x H), in mm:
980 x 900 x 470
Weight, in kg:
98,0

Technical Data
12 / 68 117910
EN
Name:
Deck oven CL6080-1
Art. No.:
117911
Material:
stainless steel
Baking chamber material:
stainless steel
Number of baking chambers:
1
Capacity, in mm:
1 x 600 x 800 / 2 x 600 x 400
Baking chamber dimensions (W x D x H),
in mm:
680 x 840 x 200
Loading height, in mm:
140
Temperature range, max., in °C:
300
Temperature control, in °C increments:
1
Heating power output, in kW:
4,8
Steam generator output, in kW:
1,5
Number of programs: pre-installed / for
programming / manually set:
15 / 84 / 1
Number of baking phases:
6
Time setting, from–to, in min.:
1 - 99
Water connection:
R 3/4“
Water supply temperature range, in °C:
10 - 40
Connected load:
6,5 kW | 400 V | 50/60 Hz
Dimensions (W x D x H), in mm:
980 x 1330 x 470
Weight, in kg:
140,0

Technical Data
117910 13 / 68
EN
Name:
Deck oven CL6080-2
Art. No.:
117912
Material:
stainless steel
Baking chamber material:
stainless steel
Number of baking chambers:
2
Capacity, in mm:
2 x 600 x 800 / 4 x 600 x 400
Baking chamber dimensions (W x D x H),
in mm:
680 x 840 x 200
Loading height, in mm:
140
Temperature range, max., in °C:
300
Temperature control, in °C increments:
1
Heating power output, in kW:
9,6
Steam generator output, in kW:
3
Number of programs: pre-installed / for
programming / manually set:
15 / 84 / 1
Number of baking phases:
6
Time setting, from–to, in min.:
1 - 99
Water connection:
R 3/4“
Water supply temperature range, in °C:
10 - 40
Connected load:
13,8 kW | 400 V | 50/60 Hz
Dimensions (W x D x H), in mm:
980 x 1330 x 820
Weight, in kg:
240,0

Technical Data
14 / 68 117910
EN
Name:
Deck oven CL6080-3
Art. No.:
117913
Material:
stainless steel
Baking chamber material:
stainless steel
Number of baking chambers:
3
Capacity, in mm:
3 x 600 x 800 / 6 x 600 x 400
Baking chamber dimensions (W x D x H),
in mm:
680 x 840 x 200
Loading height, in mm:
140
Temperature range, max., in °C:
300
Temperature control, in °C increments:
1
Heating power output, in kW:
14,4
Steam generator output, in kW:
4,5
Number of programs: pre-installed / for
programming / manually set:
15 / 84
Number of baking phases:
6
Time setting, from–to, in min.:
1 - 99
Water connection:
R 3/4“
Water supply temperature range, in °C:
10 - 40
Connected load:
20,6 kW | 400 V | 50/60 Hz
Dimensions (W x D x H), in mm:
980 x 1330 x 1170
Weight, in kg:
337,0

Technical Data
117910 15 / 68
EN
Appliance Label Description
There are labels on the appliance with important information about the oven and
hazardous areas, as shown in the following figure.
Fig. 1
A
Baking chamber
protection
B
Hood connection
C
Steam generator
protection
D
Water connection
E
Grounding
connection
F
High voltage
G
Internet
connection
H
USB connection
I
Rating plate

Technical Data
16 / 68 117910
EN
4.2 Functions of the Appliance
Baked goods from a deck oven are baked on the traditional fireclay brick with
separately adjustable top and bottom heating elements.
The deck oven distinguishes itself with small temperature losses even with the
steaming function. External steam generation system of Steam-Box and fireclay
brick are a guarantee of practically unchanged temperature in the baking chamber.
99 programs, 6 baking phases and 6 parameters ensure that work proceeds quickly
and without complications.

Technical Data
117910 17 / 68
EN
4.3 List of Components of the Appliance
Fig. 2
1. Internal LED lighting
2. Top heating element
3. Thermal processing chamber
ventilation openings
4. Housing
5. Appliance door
6. Door handle
7. Fireclay brick
8. Bottom heating element
9. Control panel
10.USB connection
11.Ventilation openings

Installation Instructions
18 / 68 117910
EN
5 Installation Instructions
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
5.1 Unpacking and Positioning
Place of Installation
•The appliance is designed to operate in closed rooms and may not be used in
open air nor subject to unfavourable atmospheric conditions.
•The appliance may be used in properly ventilated room in order to avoid
excessive accumulation of harmful substances in the air.
•In order to evacuate the hot fumes and odours escaping from the baking
chamber, an industrial ventilation hood (or other system ensuring adequate
evacuation of the vapours) must be installed above the appliance.
•To ensure fire safety, a fire extinguisher must be installed near the appliance.
•We recommend installing a fire alarm near the oven.
•The surface under the appliance must feature load-bearing capacity suitable for
the appliance's weight with maximum load.
•Place the appliance on a stable, even, dry surface that features water resistance
and high temperature resistance.
•The installation place must be easily accessible and sufficiently spacious to
allow easy operation of the appliance.
•The room in which the appliance will be installed must be prepared in
accordance with the manufacturer's instructions. The end customer must
provide:
–a location with adequate minimum clearance from walls and ceiling
