OPERATING MANUAL
for
Long Shaft Pump
Magnum LP / LE

Operating Manual for BAUER Long Shaft Pump 2
Introduction
Thank you very much for purchasing a BAUER Long Shaft Pump!
We have pleasure to present to you a BAUER long shaft pump that features state-of-art technology and top
quality. This manual describes how to operate and maintain your BAUER long shaft pump. For reasons of
clearness and due to the many possibilities, this manual does not contain everything down into detail. In
particular, it cannot possibly deal with every conceivable aspect of operation and maintenance.
If you need further information or if you are faced with any special problem for which this manual does not give
sufficient details, please do not hesitate to contact BAUER company at Kowaldstraße 2, A-8570 Voitsberg for
the information you need.
We should also like to emphasise that the contents of this operating manual do neither form part of nor alter in
any way any previous or existing agreement, promise or legal relationship. Commitments on the part of BAUER
are based solely on the respective purchase contract, which also contains the complete and only valid warranty
arrangement. Said contractual terms of warranty are neither extended nor limited by the contents of the present
operating manual.
All information contained in the present manual is based on the latest product details available at the time of
printing.
BAUER reserves the right to change without notice, without assuming any liability!
BAUER long shaft pumps are designed for safe and reliable performance provided they are operated in
compliance with the present instruction manual. In spite of the simplicity of the pump we therefore request that
you read this manual carefully before putting your BAUER long shaft pump into operation! All instructions
given for handling, operating and servicing the pump must be strictly observed. On condition that these
instructions are followed the pump will operate trouble-free to your full satisfaction for many years!
Non-observance of our instructions may cause personal injury or damage to the equipment!
Please make this manual available to your operating personnel. You are kindly requested to state the pump
type and serial number of the submersible motor pump in all inquiries, correspondence, warranty problems or
parts orders. These details are specified on the nameplate.
We hope you will enjoy working with your BAUER long shaft pump!
This operating manual is considered an integral part of the long shaft pump. Suppliers of new and used
submersible motor pumps are advised to put down in writing that this manual was handed over together with
the pump.

Operating Manual for BAUER Long Shaft Pump 3
Product details
Type designation: Long shaft pump
Type number: Magnum LP / LE
Serial number1:
Dealer: Name:
Address:
ph./fax:
Date of delivery:
Manufacturer: Röhren- und Pumpenwerk BAUER Ges.m.b.H.
Kowaldstr. 2
A - 8570 Voitsberg
Tel.: [phone] - 0
Fax: [phone]
www.bauer-at.com
Owner or operator: Name:
Address:
ph. / Fax:
Note: Please make a note of the type and serial number of your long shaft pump and its accessories! Be sure
to specify these details every time you contact your dealer.
1In all warranty claims and correspondence relating to this machine it is essential to specify the complete serial
number group including all letters. This applies to the machine itself and to any components involved. We
cannot emphasise this point often enough.

Operating Manual for BAUER Long Shaft Pump 4
General safety instructions
Symbols and terms
The CE symbol that has to be affixed on the machine by the manufacturer outwardly
demonstrates compliance of the machine with the directives for machines and other relevant
EU directives.
This “Warning” symbol refers to important safety instructions in this manual.
Whenever you see this symbol be aware of possible injury hazards. Read the note
following the symbol very carefully and inform the other operators accordingly..
Non-observance of this instruction may cause damage to or destroy the machine or
individual components..
NOTE! It is important to observe this note or condition!
Qualified operators are persons who on account of their training, experience and instruction as well as their
knowledge of relevant standards, rules, precautions to be taken for accident prevention and operating
conditions, have been authorised by the person in charge of plant safety to perform the individual tasks
required, and in doing so are able to recognise and avoid potential hazards. Among other things, knowledge of
first-aid procedures is also required.
Product liability
As defined by the product liability law every farmer is also an entrepreneur!
According to §9 PHG (Product Liability Law), liability for damage to corporeal things caused by defective
products is expressly excluded. This exclusion of liability also applies to parts not manufactured by BAUER
itself but purchased from external suppliers.
Duty to furnish informationEven if the customer passes on the machine later-on he is obliged to hand
the operating manual on to the new receiver too. The receiver of the machine must be instructed with reference
to the mentioned regulations.
Intended use
• BAUER long shaft pumps are built exclusively for normal use in agricultural applications (intended use).
• Any use beyond such normal use is considered non-conforming. Manufacturer is not liable for damage
resulting from such non-conforming use, the sole liability for damage from non-conforming use lies with the
user.
• Intended use also includes compliance with the manufacturer’s operating, maintenance and service
instructions.
• The BAUER long shaft pump may be used and operated only by persons who are familiar with the device
and aware of the hazards involved.
• All rules relevant for accident prevention as well as any other generally valid specifications and regulations
relating to safety, work medicine and traffic law must be strictly observed.
• Unauthorised modification of the machine releases the manufacturer from liability for damage resulting
therefrom.
WARNING!
CAUTION!

Operating Manual for BAUER Long Shaft Pump 5
Table of Contents
1 GENERAL INSTRUCTIONS FOR SAFETY AND ACCIDENT PREVENTION................................................6
2 GENERAL ....................................................................................................................................................................9
3 DESCRIPTION ..........................................................................................................................................................10
4 ASSEMBLY ON LIFT POLE...................................................................................................................................10
5 TRANSPORT..............................................................................................................................................................12
6 SETTING UP WITH THE LIFT POLE ..................................................................................................................12
7 SETTING UP WITH THE SUPPORT FOR PIT EDGE........................................................................................14
8 PUTTING INTO OPERATION................................................................................................................................14
9 STIRRING WITH STIRRING NOZZLE................................................................................................................14
10 PUMPS ....................................................................................................................................................................15
11 SERVICE AND MAINTENANCE.......................................................................................................................16
12 TECHNICAL DATA..............................................................................................................................................17
13 FAULT DESCRIPTION........................................................................................................................................18
14 EU CONFORMITY CERTIFICATE...................................................................................................................19

Operating Manual for BAUER Long Shaft Pump 6
1 General instructions for safety and accident prevention
Check the machine for operational safety before every start-up.
1. In addition to the instructions contained in this manual, all specifications generally valid for safety and
accident prevention must be observed!
2. The warning and instruction signs affixed to the machine give very important instructions for safe operation.
Observing them serves your own personal safety!
3. Never put the machine into operation unless all guards and safety devices are completely mounted and in
their proper working position!
4. Acquaint yourself with all equipment components and controls as well as their respective functions before
starting to work. It is too late when the device is already running!
5. The operator’s clothes should fit tightly. Avoid wearing loose clothes!
6. When handling slurry always keep in mind that the gasses produced are highly toxic and extremely
explosive in combination with oxygen. Therefore, open fires, light tests, sparking and smoking are strictly
forbidden!
7. Utmost care is required with regard to gasses in slurry and dung channels at open valves to the preliminary
pit, before the main pit, or at cross channels. The same applies to mixing and withdrawal points when
mixers or pumps are running!
8. When handling slurry always ensure sufficient ventilation!
9. Keep the machine clean to avoid fire hazards!
Tractor-driven machines
1. Before starting inspect the area around the machine (Children) ! Make sure your view is unrestricted!
2. Riding on the machine during transport is forbidden!
3. Couple the machine according to instructions and fasten it only at the specified points!
4. Be especially careful when coupling the machine to the tractor or uncoupling it!
5. Always adjust the supports in the proper position when coupling or uncoupling the machine (stability)!
6. Always mount balancing weights properly at the points provided!
7. Observe restrictions pertaining to axle load, total weight, and transport dimensions!
8. Inspect and mount all items required for transport such as lighting, warning signals and possible safety
devices!
9. Mounted or trailed machines as well as balancing weights influence road behaviour, steering and braking
capacity. Therefore make sure that proper steering and braking are possible!
10.Consider the projection and/or centrifugal mass of the machine when driving in curves!
11.It is forbidden to stay in the working range of the machine while it is operating !
12.Keep out of the turning and swivelling range of the machine!
13.Only operate hinged hydraulic frames when nobody is in the swivel range!
14.Externally powered machines (e.g. hydraulic) bear a crushing and shearing hazard!
15.Nobody is allowed between the tractor and the implement unless the tractor is secured by the parking brake
and /or wedges under the wheels!
16.Hinged supports must always be folded up and secured before driving away!
17.Secure the machine and the tractor against rolling!
Tractor-mounted machines:
1. Before a machine is linked to or detached from the three-point linkage, the control device must be shifted to
a position in which unintentional lifting or lowering is impossible!
2. When using the three-point linkage the linkage parameters of both tractor and attached machine must
correspond, if not, they have to be matched accordingly!
3. The three-point linkage bears crushing and shearing hazards!
4. When operating the external control of the three-point linkage never step in-between tractor and the
machine!
5. When the machine is in the transport position always make sure that the tractor’s links are always properly
secured on the sides.
When driving on the road with the machine lifted the control lever must be locked against lowering!

Operating Manual for BAUER Long Shaft Pump 7
Trailed machines
1. When a machine is coupled to the drawbar make sure that the coupling point provides sufficient flexibility!
Power take-off (applies only to PTO driven machines)
1. It is not allowed to use any other types of PTO drive shafts except those prescribed by the manufacturer!
2. Drive shaft guard tube and guard cone as well as the PTO guard – also on the machine side - must be
mounted and in good working order!
3. When using a PTO drive shaft always observe the specified overlap in transport and working position!
4. Never connect or disconnect the PTO drive shaft unless the PTO is stopped, the engine turned off, and the
ignition key pulled out!
5. Make sure the drive shaft is always connected and secured properly!
6. Attach safety chain to keep the drive shaft guard from rotating with the shaft!
7. Before you turn on the PTO make sure that the selected tractor PTO speed corresponds with the permissible
implement speed!
8. Before starting the PTO make sure that nobody is standing in the danger zone of the machine!
9. Never turn on the PTO when the engine is turned off or during a transport drive!
10.When working with the PTO nobody is allowed near the turning PTO or drive shaft!
11.Warning! The PTO shaft may continue turning due to its centrifugal mass after the PTO has been turned off!
Keep clear of the machine during this time and do not touch until the PTO shaft stands absolutely still!
12.For cleaning, greasing, or adjusting the PTO driven implement or drive shaft, PTO and engine must be
switched off and the ignition key pulled out!
13.Place the disconnected drive shaft on the provided support!
14.When drive shaft has been removed put the guard on the PTO shaft!
15.If a defect occurs repair it immediately before starting to work with the machine!
Hydraulic system
1. Hydraulic system is under high pressure!
2. When connecting hydraulic cylinders and motors, make sure the hydraulic hoses are connected as
specified!
3. Before coupling the hydraulic hoses with the tractor’s hydraulic system make sure that the entire hydraulic
system is pressureless both on the tractor and implement side !
4. Inspect the hydraulic lines at regular intervals and replace them immediately in case of defects or ageing.
Replaced hoses must comply with the technical specifications of the implement manufacturer!
5. When looking for leaks use only suitable equipment because of the injury hazard involved!
6. Liquids emerging under high pressure (hydraulic oil) may penetrate the skin and cause serious injuries! An
injured person must see a doctor immediately! Danger of infection!
7. Before working on the hydraulic system the machine must be lowered, the system depressurised and the
engine turned off!
Electric-driven implements
1. All work beyond normal maintenance of the implement should be performed only by a professional
electrician!
2. Defective or broken plugs and sockets must be replaced by a professional electrician!
3. Never pull a plug out of the socket at the flexible electric cord!
4. Extension cables for power supply should be used only temporarily! Never use such lines permanently as a
substitute for the required fixed installations!
5. Flexible lines laid across traffic areas on the farm must have at least 5 m ground clearance!
6. Always turn off the power supply before you do any work on the machine!
7. Check all electric lines for visible defects before you put the machine into operation! Replace defective
cables and do not start the machine before that!
8. Never use electric-driven implements in damp situations or locations exposed to fire hazard unless they are
adequately protected against moisture and dust!
9. Covering electric motors may cause heat concentration with high temperatures which could destroy the
operating equipment and cause fires!

Operating Manual for BAUER Long Shaft Pump 8
Hand-operated devices (valves)
1. Because of the slurry gasses produced in the lines, no slurry is allowed to remain in closed pipelines –
bursting hazard!
2. Lay the pipelines with sufficient inclination and make sure that the selected closing order of valves allows all
lines to be drained completely!
3. Protect the valves against unauthorised handling!
4. If a valve gets jammed do not apply force! Use only the operating levers supplied with the implement!
5. Observe the permissible maximum operating pressure of valves and pipelines when pumps are operated!
6. Service only when the tanks are empty!
Maintenance
1. Never perform any maintenance, service or cleaning work or fault elimination steps unless the drive is
turned off and the engine is standing still!
2. Check proper fit of all nuts and bolts regularly and tighten them, if necessary.
3. If maintenance work is required on the lifted machine always secure it by means of appropriate supports!
4. When exchanging tools with cutting edges always use proper tools and wear safe protective gloves.
5. Dispose of oil, grease and filters according to local laws and regulations!
6. Always turn off power before working on the electric system!
7. Before electric welding on the tractor and mounted machines the generator and battery cables must be
disconnected!
8. Spare parts must meet manufacturer’s minimum technical specifications! This is the case for instance with
original spare parts for instance!

Operating Manual for BAUER Long Shaft Pump 9
2 GENERAL
BAUER products are designed and manufactured carefully and subject to a system of continuous quality
control. MAGNUM slurry pumps fully meet the requirements of the agricultural practice. They are best suited
for delivering all kinds of slurries from thin liquid manure to viscous mixtures containing solids such as straw,
fibres or clots. A special chopper guarantees trouble-free performance without blockages. Short set-up times,
easy handling and maximum performance reliability are further advantages of this pump series. Pump drive is
electric by means of a three-phase submersible motor.
In order to be able to work efficiently with the maintenance-friendly long shaft pump it is helpful to operate it in
connection with a lift pole or transport trolley.
Depending on the respective type of application, you can use either the lift pole alone, or the lift pole with
coupling foot and rising main.
Although the pump is simple in design you should study this manual carefully and strictly observe all operating
and service instructions contained. On this condition your slurry pump will operate to your full satisfaction for
many years!
Make this manual available to all operators handling the equipment. Serial number and pump type are stamped
in on the nameplate. Please specify these data in your inquiries, correspondence, warranty matters and parts
orders. We warrant for this pump according to our General Terms of Sale.

Operating Manual for BAUER Long Shaft Pump 10
3 DESCRIPTION
The long shaft pump MAGNUM LE consists of a pump with a robust cutter and a top draw-in, the drive pipe
running in oil bath and a drive shaft with multiple bearings.
The riser pipe can be equipped with one or two stirring nozzles and is also available without a stirring nozzle
The stirring nozzle is mounted on a pivot together with the three-way cock and has the function to destroy the
floating layer and to homogenise the slurry. It can be vertically and horizontally turned via rods with a lever.
Changing from mixing to pumping is also done via a lever with rods with a rotary valve. This is also possible
during the operation.
The pump can be inserted into open and closed pits with a minimum opening of 0,6 m x 0,8 m.
The pump can be transported, inserted and operated by one person. For the transport mount a lift pole with two
wheels and a link it into the trailer hitch of the tractor with a detachable drawbar.
For the operation the drawbar is detached and the lift pole hung into the tractor hydraulic system.
A cable winch mounted to the lift pole helps to lift, lower and swivel the pump.
The pump is driven from the tractor via a PTO shaft, the bevel gear system, the drive shaft (LP) onto the
impeller or an electric motor flanged onto the drive shaft (LE) with a motor capacity of 11, 15 or 18,5.
The motors are equipped with a star-delta switch.
NOTE!
The motor cable should be connected to the switch only by a qualified technician.
Perform a check-up according to the wiring diagram !
ATTENTION! When connecting to the power supply, make sure that the connecting cable is
amply dimensioned and the motor’s direction of rotation is correct.
.
4 Assembly on lift pole
For transport reasons the pump and the lift pole are delivered separately. Both components therefor have to be
assembled before putting into operation for the first time.
Detach the guiding clamps from the pump support.

Operating Manual for BAUER Long Shaft Pump 11
Insert the pump with the
drive pipe showing
downward into the support of
the lift pole..
Fold up the support fork and
lock with the stop pin.
Mount the guiding clamp(s) again with the locking lever.
Take off the cable pulley from the drive pipe of the pump
(by detaching the split pin).
Slightly unwind the cable on the cable winch and insert
into the cable pulley and push it back onto the bolt, then
secure with disc and split pin.
If the locking lever is lifted or not engaged, move the pump with the cable winch until it rests in the gap ...
The pump is now ready for operation.

Operating Manual for BAUER Long Shaft Pump 12
5 Transport

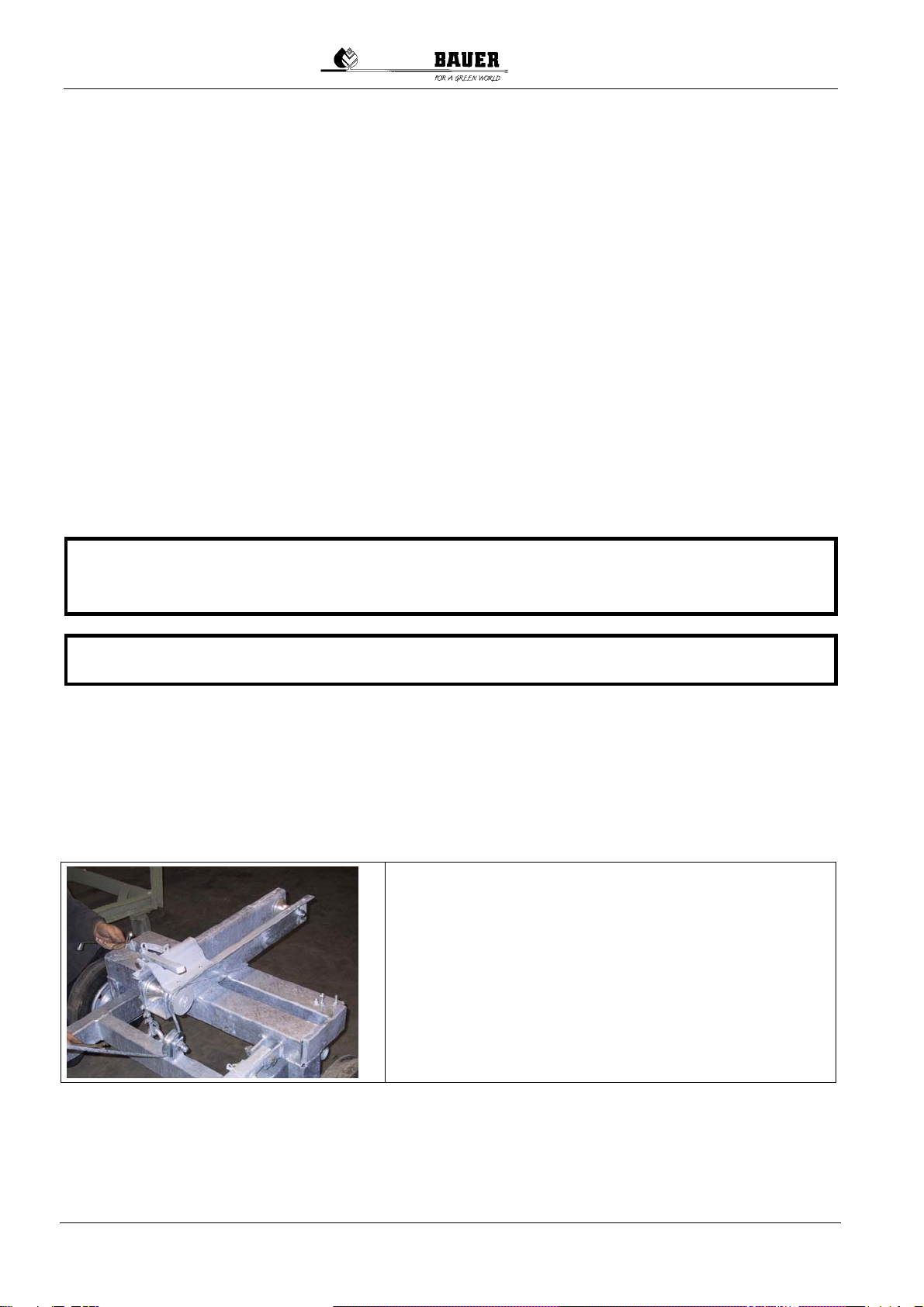

For transport the lift pole with pump is linked to the trailer hitch of the tractor through a push-on drawbar .
or hung into the tractor hydraulic system.
For this purpose, detach the drawbar.
Connect the bolts of the lifting pole to the
lower hinged arms of the tractor hydraulic
system (secure with the split pin)
or
hook in the tool bar directly below the two
hooks.
6 Setting up with the lift pole
Approach the pit/ pit opening with the pump at the rear.

Operating Manual for BAUER Long Shaft Pump 13
Take out the stop pins of the
support fork and of the swivel
device.
...
Swing out the pump now slowly with
the help of the cable winch and
lower it by lifting the locking lever.
For small pit openings alternately
operate the cable winch and
reverse the tractor to swing it into
the pit.
When the pump is in its vertical
position, re-insert the stop pin into
the swivel device and lock.
Set the pump on the lift pole.
By lifting the locking lever of the
drive shaft, the height of the pump
can be adjusted.

Operating Manual for BAUER Long Shaft Pump 14
7 Setting up with the support for pit edge
Put the pump down to the ground of the pit, adjust it into a
vertical position and fix it with a clamp around the drive shaft to
the traverse. The girder and a if necessary, a working platform,
is fixed to the pit/container.
8 PUTTING INTO OPERATION
• When putting an electric pump (LE) into operation for the first time, check that the nominal voltage
coincides with the voltage given on the nameplate.
• Before connecting the motor, check the phase sequence for the direction of rotation of the motor.
• When connecting the motor, observe the regulations in force for electric resources.and the
instructions of the manufacturer of the drive (e.g. protectiv motor switch, main switch maybe
lockable).
Before putting into operation check the oil level at the control screw drive shaft and
bevel gear system (LP)! (quality and quantity see technical data)
9 STIRRING WITH STIRRING NOZZLE
From the top via the cutter the slurry gets into the pump and via the stirring nozzle it is pumped back into the pit.
If you have a slurry with a floating layer, lower the pump until the stirring nozzle dives into the floating layer. In
this position you reach the best stirring capacity.
If you have slurry with a strong bottom layer or sediment (e.g. pig slurry) the pump has to be lowered further.
The stirring procedure should be conducted until the slurry is completely homogenized.
WARNING!

Operating Manual for BAUER Long Shaft Pump 15
If tractor-driven
Connect with the PTO shaft. The overload protection has to be on
the tractor side.
Warning: Cutting to length, section pipe over-lapping, and
maintenance see separate instructions for PTO shaft. The bending
of the PTO shaft shall not be more than 30 ° .
The stirring device has three levers.
The function of the lever in the middle is to horizontally swivel the
pressure line including the stirring nozzle.
The lever to the left of it has the function to vertically swivel the
stirring nozzle.
The lever to the right of it has the function to switch the three-way
cock from mixing (lever up) to pumping (lever down) or both.
The position of the levers can be set with the clamping bolts.

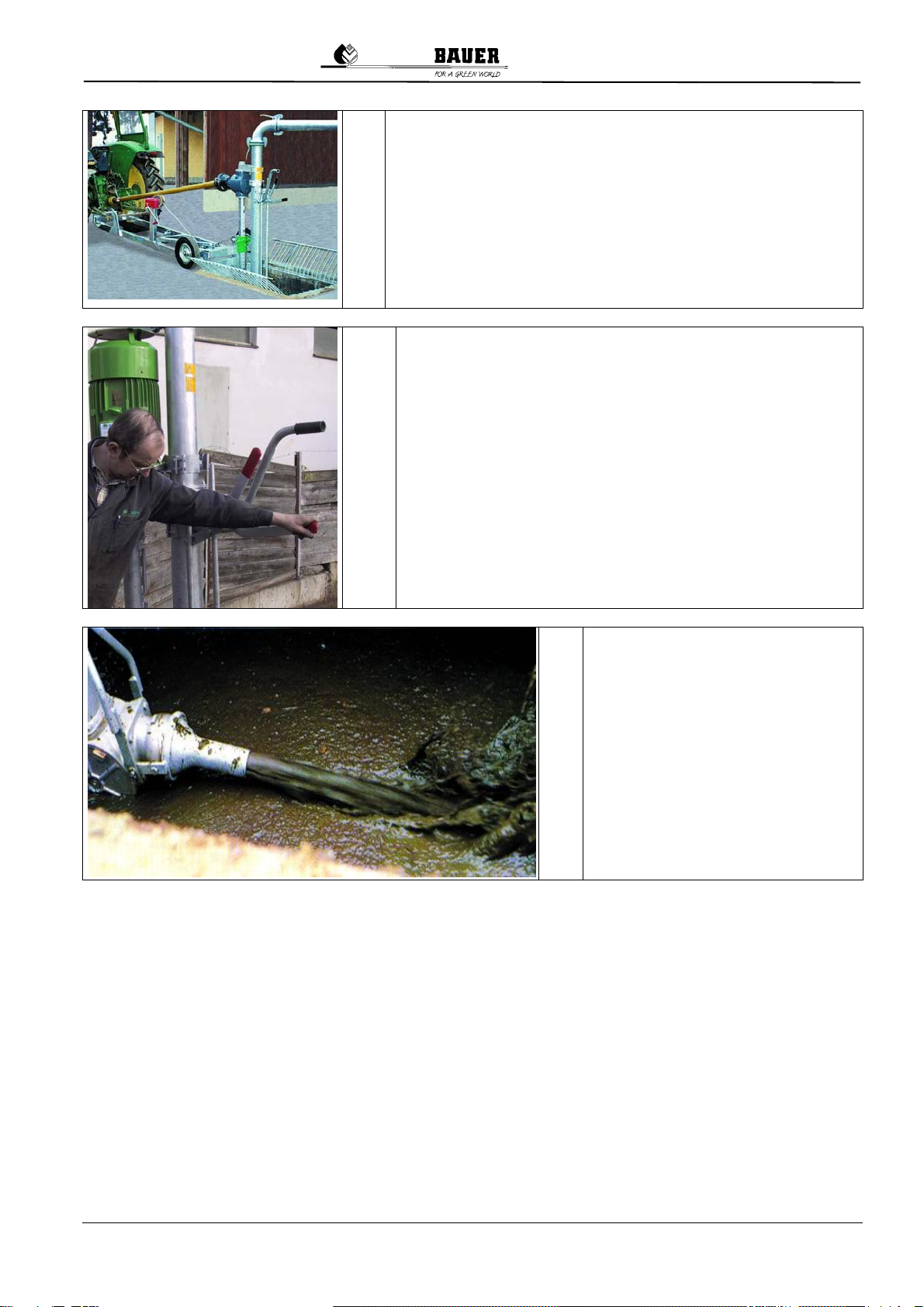

Lower the pump until the stirring
nozzle dives into the floating layer.
By repeatedly swivelling the stirring
nozzle hence and forth, the time to
homogenize the pit content can be
reduced essentially.
10 Pumps
When the pit content is stirred evenly, the delivery can start. To do this, the delivery/pressure line has to be
connected.
Warning: The pump can only be lifted or lowered with the cable winch while the PTO shaft is at a standstill.
To pump, press the lever for the rotating valve down and fix with the tommy screw.
Warning: After coupling the tractor PTO shaft, only gradually increase the speed of rotation so that the pressure
line does not pressure hammer because of the sudden pressure.
While distributing the slurry, under normal conditions, it is only necessary to briefly mix every 3 hours.

Operating Manual for BAUER Long Shaft Pump 16
11 Service and Maintenance
It cannot be stressed often enough that maintenance essentially increases the lifetime of any equipment.
Clean the pump with all its accessories immediately after finishing the work. The
slurry has not dried yet and can therefore be rinsed off easily.

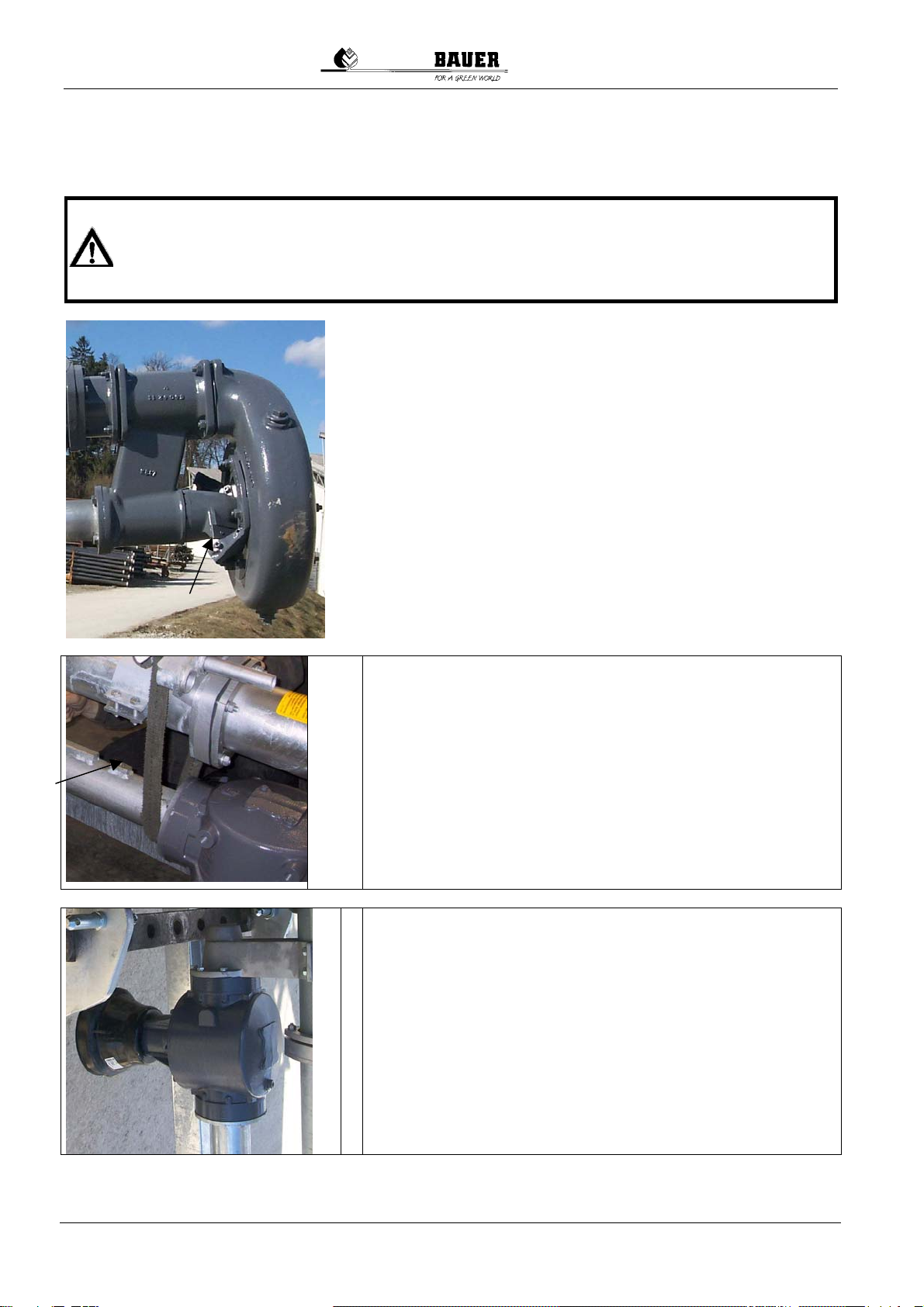

Inspect the cutting edges of the knives. Theiy are constructed in a
way that they can be used four times before they have to be
sharpened again.
If you take off a knife and then put it on again, take care that the
spacing between 2 cutting edges is between 0,1 mm to max. 0,3
mm.
This gap allows an optimal chopping up of the solid components in
the slurry. It can be adjusted with the knife supports on the spiral
housing.
To lubricate the bearings of the drive shaft, the drive pipe is filled
with oil type Shell HDS 1/20 (quantity see technical data) up to the
screw plug at the side of the pipe.
Change the oil for the first time after approx. 50 operating hours,
every further change only has to be conducted on the occasion of a
repair. An oil level check should be conducted every 200 operating
hours and can be done at the upper upper screw plug. Fill up, if
there is a minor oil loss. If there is a major oil loss, find out what the
reason is and repair the damage. Check particularly the sealing of
the lower shaft bearings.
The gear box is filled with 2 liter oil type Spirax 90 EP up to the
Kontrollschraube. Change the oild for the first time after 50
operating hours, every further change has to be conducted after
800 to 1000 operating hours.
All other bearings and sliding parts also at the lifting pole should be
lubricated on a regular basis.
WARNING!

Operating Manual for BAUER Long Shaft Pump 17
If possible, store the pump under a roof to protect it against the weather. In areas, where it gets frosty during the
winter, empty the pump housing by removing the plugs at the lowest part of the pump housing.
ATTENTION!
Important to observe:
Keep stones, iron and wooden pieces, binder twine, plastic bags etc. away from the
slurry pit.
Before doing work around the cutting knives, it is important to stop the tractor (LP)
and disconnect the PTO shaft and the power supply (LE).
Oil leaking during the standstill of the pump between the bearing body and the knife
hub shows that the sealing of the drive shaft at the lower bearing is worn-out and
must be replaced immediately. Otherwise there will be severe and costly damages
to the pump.
Observe the local laws and regulations when disposing of pumps and pump parts as a result of repair and
maintenance works or putting out of operation. This is especially valid for the treatment of medium remains in
the pump body.
12 TECHNICAL DATA
Model LP 55 LE 11 LE 15 LE 18,5
Input speed 1/min Max 640 1450
Motor power output KW 40 11 15 18,5
Discharge capacity m³/h 40 – 360 40 – 240 40 – 270 40 – 300
Manometric head m 28,5 – 9 17 – 4 20 – 6 22 - 7
Required minimum pit opening m 0,6 x 0,8
Oil filling volume gear box SAE 90 Liter 2 N/A
Oill filling volume drive pipe SAE 20
Liter betw. 8 l at 2 m and 13 l at 5 m (length of the model)
The technical data, pcitures and measurements are not binding. They cannot be the basis for claims. We
reserve the right to modify the equipment without making corrections to the present instruction manual

Operating Manual for BAUER Long Shaft Pump 18
13 FAULT DESCRIPTION
Fault Cause Remedy
The pump does not deliver Impeller blocked Remove foreign object
Cutter bell blocked Remove foreign object
Excessive difference in elevation
between pump and distributing
device
Reduce difference in elevation.
Wrong direction of rotation (LE) Reverse direction of rotation.
Shear pin at the PTO shaft broken
(LP) Replace shear pin
Excessive solids content. Add water
The discharge capacity drops. Excessive counter pressure. Remove foreign object.
Excessive solids content. Add water

Operating Manual for BAUER Long Shaft Pump 19
14 EU CONFORMITY CERTIFICATE
according to the EU Directive for Machines 89/392/EWG, Annex II A
We, Röhren- und Pumpenwerk BAUER Gesellschaft m.b.H.
Kowaldstraße 2, A - 8570 Voitsberg - Austria
Tel. [phone] - 0, Telefax: [phone] - 320 /-340
herewith declare that in respect of its conception and construction and in the types and styles marketed by our
company, the machine mentioned below fully complies with the relevant fundamental provisions for safety and
health as stipulated in the EU directives.
Any modification of this machine without our prior express consent renders this certificate invalid.
Designation of the machine: Bauer Long shaft pump
Basic models: Magnum LP / LE
This range of machines has been designed and built in compliance with the standard:
EN 809
including also the normative references to EN 292-1 - 1991, EN 292-2 – 1991, EN 294 - 1992 and EN 349.
Technical Director
Voitsberg, 01.07.2002
