Bauhn AP-014 User manual

INSTRUCTION MANUAL
Model Number AP-014
HD LED Projector
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS

i
Congratulations on choosing to buy a BAUHN® product.
All products brought to you by BAUHN®are manufactured to the highest standards
of performance and safety and, as part of our philosophy of customer service and
satisfaction, are backed by our comprehensive 1 Year Warranty. We hope you will
enjoy using your purchase for many years to come.
Welcome

ii
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Remote Control
1 POWER: Switch the product
on or to standby.
2 FLIP: Switch image up/
down, rear up or rear down.
3 ZOOM: Shrink or enlarge the
picture.
4 HDMI: Switch to HDMI
source.
5 SOURCE: Select the source
(AV/Component/PC-RGB/
HDMI/USB)
6 NUMBER BUTTONS (0-9)
7 : Move fast backward
(USB mode).
8 / / / : Navigate the
OSD in menu pages and in
USB mode (not applicable to
this model).
9 : Skip backward.
10 AV: Switch to AV mode.
11 SAV: Not applicable to this
model (S-video mode).
12 OK: Confirm settings in the
OSD menu pages and in
USB mode.
13 YPbPr: Switch to
Component mode.
14 : Skip forward.
15 : Move fast forward (USB
mode).
16 VGA: Switch to PC-RGB
mode.
1 28
30 29
2 27
3 26
24
25
23
22
21
20
4
5
6
7 19
8 18
9 17
10 16
11 12 13 14 15

iii
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Remote Control (Cont.)
1 28
30 29
2 27
3 26
24
25
23
22
21
20
4
5
6
7 19
8 18
9 17
10 16
11 12 13 14 15
17 USB: Switch to USB
mode.
18 : Stop playback (in
USB mode).
19 : Play and pause (USB
mode).
20 Recall: Not applicable to
this model (in TV mode).
21 -/--: Not applicable to
this model (in TV mode).
22 RETURN: Return, or go
back, or exit in the OSD
menu.
23 MENU: Enter the menu.
24 INFO: View current
source information
and access OSD menu
options in USB mode.
25 / / / : Navigate
the menu, or adjust
parameters.
26 16:9 /4:3: Select screen
ratio.
27 SLEEP: Enter Sleep
mode.
28 MUTE: Mute the sound.
29 CH+/-: Not applicable to
this mode (in TV mode).
30 VOL+/-: Increase/
decrease volume.

iv
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Remote Control (Cont.)
Installing Batteries
Press down the retaining catch at the back of the remote control and take off the
cover to the battery compartment. Insert two AAA batteries into the recess, following
the markings inside the compartment. Put back the cover of the battery compartment
and push in gently until it clicks securely into place.
Using the Remote Control
Point the remote control directly towards the remote control sensor at the front of the
projector. The remote control has a range of up to 6 metres from the projector at an
angle of up to 30 degrees.
The remote control will not operate if its path is blocked. Make sure there are no any
obstacles between the projector and the remote control.
If the projector does not work when using the remote control from a close range, you
need to replace the batteries.
NOTE:
• Only use fresh batteries of the required size and type. Old batteries will decrease the
sensitivity of the remote control.
• Do not leave the remote control exposed to sunlight or very bright light, as this will
decrease its sensitivity. Do not leave it in very hot or humid conditions.
• Do not drop, apply shock or step on the remote control. Do not spill water on the unit.
• If you do not intend to use the remote control for an extended period of time,
remove the batteries to prevent possible leakage and corrosion.
Battery Precautions
• CAUTION: Danger of explosion! Make sure to insert the batteries correctly and use
only suitable batteries of the same type.
• Replacement: Always replace both batteries at the same time. Never mix old and
new batteries, different types of battery (alkaline, zinc carbon or rechargeable), or
rechargeable batteries of different capacities. Mixing different types of battery could
cause leakage or rupture.
• Handling: Do not attempt to short-circuit, disassemble or throw batteries into a fire.
• Charging: Note that there are chargeable and nonchargeable batteries. Do not
attempt to charge nonchargeable batteries.
• Storage: Keep batteries out of children’s sight and reach.
• Disposal: Dispose of batteries promptly and properly, observing any local
hazardous waste regulations. Do not burn or bury them.

1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
v
Contents
Welcome i
Remote Control ii
Warranty Details 1
General Safety Instructions 2
Product Overview 4
Controls and Connections 5
Getting Started 8
Basic Operations 11
Menu Settings 13
FAQs 17
Other Useful Information 19
Repair and Refurbished Goods or Parts Notice 21

1
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
HD LED Projector
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for
a period of 12 months from the date of purchase. Defects that occur within this
warranty period, under normal use and care, will be repaired, replaced or refunded at
our discretion, solely at our option with no charge for parts and labour. The benefits
conferred by this warranty are in addition to all rights and remedies in respect of
the product that the consumer has under the Competition and Consumer Act 2010
and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and to compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.

2
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
General Safety Instructions
Read this manual thoroughly before first use and keep it in a safe place for future
reference, along with the warranty card, purchase receipt and carton. The safety
precautions enclosed herein reduce the risk of fire, electric shock and injury when
correctly adhered to. Follow all instructions and take notice of all warnings to reduce
the risk of fire or electric shock.
Important Warnings and Cautions!
• To prevent contact with high voltage components
inside, do not attempt to open the cover or the back of
this product. There are no user-serviceable parts inside
this product.
• Do not repair the unit yourself. Only have it serviced by
qualified personnel.
• Do not expose this product to water, rain, moisture or
dust. Do not use it anywhere near water or where water
splashes or drips; do not touch the power plug with
wet hands.
Electrical Safety and Cord Handling
• Voltage: Before installing this appliance, make sure your outlet voltage corresponds
to the voltage stated on the appliance rating label.
• Power cord: Only use this appliance with the cord and plug supplied, and do not
overload the power outlet.
• Protect the power cord: Do not let the cord hang over the edge of a table or
counter, or touch any hot surface. Do not allow anything to rest on or roll over the
power cord. Run any cords so that no one steps on or trips over them. Do not run
the cord near heat-producing appliances such as radiators, stoves or irons, as the
excessive heat could melt the insulation and expose live wires.
• Damaged cord: When the power cord is damaged, it must be replaced by the
manufacturer or similarly qualified personnel in order to avoid a hazard. Contact our
after sales support line in order to avoid a hazard.
• Earthing plug: The power cord of the projector is equipped with an earthing plug.
Ensure your electrical outlet is properly earthed to the ground. If unsure, consult a
qualified electrician or a service representative. Do not, under any circumstances,
cut or remove the third grounding prong from the power plug.
• Disconnect: Unplug the unit from the power outlet after use to avoid possible
damage during electrical storms, or when the equipment will be unattended
or unused for a long period of time. Always grasp the plug, not the cord, when
disconnecting the unit. Pulling the cord can damage the internal wires and may
cause a fire.

3
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
General Safety Instructions (Cont.)
Usage Conditions and Restrictions
• Installation: Follow the instructions in this manual when installing and adjusting this
product. Only adjust those controls that are covered in this instruction manual, as
improper adjustment of other controls may result in damage.
• Location: Place the product on a straight, rigid and stable surface. Do not place it
on carpet. Do not place it on top of another appliance that may cause overheating
(for example, a receiver or amplifier).
CAUTION: When installing the unit, make sure to place it:
• Away from heat sources, radiators or other products that produce heat.
• Away from areas with high temperatures, high humidity or direct sunlight.
• Away from excess dirt and dust.
• Away from any items that may damage it, such as naked flame sources (lit
candles) or objects containing water.
• Away from open windows and any place where water may get into the unit and
damage it.
• Temperatures: Temperatures should not fall below 0°C and exceed 35°C when
operating the projector, and the equipment should be stored at between 20°C and
70°C.
• Ventilation: Proper ventilation around the projector is necessary for the projector to
work. Take care not to block ventilation openings. Make sure the ventilation grilles
are free of dust and nothing is obstructing the airflow, otherwise the projector may
overheat and activate the overheat protection, which will shut it off.
• Accessories: The use of accessory attachments not recommended by the
appliance distributor may result in fire, electric shock or personal injury.
• Cleaning: Unplug the projector from the power supply before cleaning it. Only
wipe it with a wrung out damp cloth. Do not use chemical cleaners. Wash the filter
regularly.
• Children: Supervise young children to ensure they do not play with the product.
Close supervision is always necessary when an appliance is used by or near
children.
• Usage restriction: This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instructions concerning
use of the appliance by a person responsible for their safety.
• Liability: Improper installation or use can result in electrical shock and/or material
damage. We accept no liability for any damage resulting from inappropriate use or
installation, or noncompliance with these instructions.
Warning: High Brightness Lamp!
The projector lamp is very bright! Do not stare at or look directly at the light, and
supervise children to ensure they do not stare at the light.

4
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS

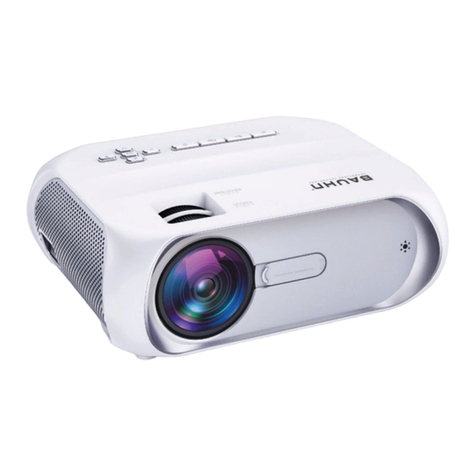

Product Overview
Front Panel
10 11
1
2
3
4
5
1 Menu: Open or close the menu
2 Play / pause (USB mode)
3 AV/TV: Switch sources (AV, Component, PC-RGB, HDMI, USB)
4 Indicator light: Red: Standby mode Green: Working mode
5 Direction buttons: Adjust parameters (same as with the remote control)
6 Power: Switch the projector on or to standby mode
7 Volume+: Increase volume
8 OK: Confirm an action
9 Volume-: Decrease volume
10 Focus lens: Rotate to obtain clear and focused images on the projector
screen
11 Height adjustment: Turn to adjust projection height
12 Cool air intake: Air intake grille for ventilation
13 IR receiver: Point the remote control at this infra-red sensor
Top View: Control Panel
6
12 13
7
8
9

6
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Controls and Connections (Cont.)
Right Panel
Left Panel
1 R/C speaker:
Right channel
speaker
2 Cool air input
ventilation
3 L/C speaker:
Left channel
speaker
1
2 3
4
Bottom Panel
4 Airintakelter:
Using pliers,
carefully grip the
two latches and
pull out the filter
for cleaning

7
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Connecting Equipment
1. HDMI connection
Connect the external device’s HDMI port to the projector's HDMI port using a
HDMI cable.
2. VGA connection
Connect the computer's VGA port to the projector's VGA port using the supplied
VGA cable.
3. Component (YPbPr) connection
Connect the external device’s YPbPr sockets to the projector's YPbPr sockets
using component video cables.
4. Video (CVBS) connection
Connect the external device’s video port to the projector's video port using the
composite video cable.
5. Audio-in L/R connection
When using component and composite video connections, connect the external
device’s Audio-out L/R sockets to the projector’s Audio-in L/R sockets using the
2x RCA audio cable to play the sound from projector speakers.
NOTE: We highly recommend using external device to play sound.
6. USB connection
Connect your USB flash drive to the projector's USB ports.
7. Audio-out L/R connection
Connect the projector’s Audio-out L/R sockets to the external audio device’s
Audio-in L/R sockets using the 2x RCA audio cable.
Controls and Connections (Cont.)

8
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Getting Started
Projector Setup
We recommend setting up the projector as illustrated below.
NOTE
In order to get the best possible image quality, do not expose the projector or the
projector screen to direct sunshine or other strong light. If you use the projector
during the day, darken the room to enhance the projected image.
(Speakers and subwoofers not included.)

9
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Standard Setting (Front Projection)
• Place the projector on a stable surface and make sure that nothing is blocking
the ventilation openings at the front, back, sides and underneath the appliance.
Keep a distance of at least 30cm to any object that could potentially obstruct
ventilation.
• Place the projector at the distance appropriate for the screen size, as listed in the
table below:
Screen
Dimension
(Diagonal)
Screen Ratio
16 : 9
Screen Ratio
4 : 3
63" 2.2m 2.5m
72" 2.4m 2.75m
86" 2.9m 3.28m
100" 3.3m 3.75m
120" 3.9m 4.5m
NOTE: The data may have 3% error, due to the image size according to the projector
and screen. If the distance is less than 2m or more than 5m, the image may
appear unclear.
NOTE
Please check the following pictures for keystone distortion and turn the keystone
correction knob to obtain the rectangular picture.
Getting Started (Cont.)

10
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Getting Started (Cont.)
Installation Method
• Contact a professional service technician to mount this projector to a ceiling.
Follow the instruction below for the correct projector positions.
WARNING!
• This projector might get damaged beyond repair when it is incorrectly mounted
on a ceiling, or incorrectly installed on a surface, or installed on an inappropriate
surface. It may also inflict damage to people nearby.
• This projector can only be used in an environment with a temperature not
exceeding the range of 0-35°C. The projector may malfunction if temperatures
vary outside the normal operating rage.
• Ensure there is sufficient ventilation around the projector, otherwise this projector
might overheat, which could be hazardous.
• If the projector interior temperature gets too hot, the machine will shut off auto-
matically to protect the projector from overheating. To ensure it works properly,
ensure to clean the front filter of the projector regularly, as required (see page 19).
• The sharpness of the screen might be affected when the projector is being used
in a brightly-lit, dusty, wet, humid or smoke-filled environment.
• When you use the projector for the first time, it may project an unclear image.
Please refer to the image adjustment section (page 11) for help.
1 - Front Projection Ceiling Mount
2 - Front Projection Table Mount
3 - Rear Projection Ceiling Mount
4 - Rear Projection Table Mount

11
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Basic Operations
Switchon/switcho
Make sure the remote control has two AAA size batteries correctly installed.
• Switch the POWER switch at the back of the projector to the ON position. The
power indicator light will turn red.
• Press the POWER button on the remote control (or on the control panel at the top
of the projector). The indicator light will turn green.
• About two seconds after switching on, the projector lamp will start working.
• During use, pressing the POWER button (on the remote control or on the top
control panel) will switch the projector to standby mode. The indicator light will
turn red. The fan will may be operating for up to 5 minutes in order to cool the
system. It will eventually switch off.
• When you have finished using the projector, press the POWER button at the back
of the unit before disconnecting it from the power supply.
Image Adjustment
When using the projector for the first time, the image may appear faint or it may be
trapezoid. To correct this, adjust the lens focus or correct keystone distortion.
Focus adjustment
Rotate the lens into the projector, then rotate it out slowly. At the same time, carefully
look at the resolution point. Stop rotating the lens when the image is clear.
NOTE: Make sure to stop rotating the lens when you feel it cannot rotate anymore,
otherwise it may break.
Keystone correction
If a projected picture has keystone distortion, correct the image with the keystone
correction knob (see below). The image becomes trapezoid shape when the screen or
projector is not levelled. In such a case, reposition the projector to improve its angle to
the screen. However, the circumference of the image may not be focused.
FAN OPERATION
Fans inside the projector switch on and off automatically to regulate the temperature
inside the appliance. When the projector is working, the fans rotate at different
speeds, so the fan noise can vary, which is normal. When the projector is working,
do not pull out the power cable. If the fans suddenly stop working, the projector
interior temperature may remain very high, which could damage the projector.

12
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Basic Operations (Cont.)
Select an input source
• Press the TV/AV button on the top panel, or the SOURCE button on the remote
control, to display the input source list.
• Press the / buttons to select the desired input source, and then press OK to
confirm your selection.
Volume control
• Press the VOL+/- button to adjust the volume level.
• Press the MUTE button to mute the sound, press it again to restore sound.
NOTE: We highly recommend using an external sound source to complement the
image from the projector.
Sleep time setting
• Press the SLEEP button on the remote control repeatedly to select the desired
sleep time directly (available options: Off, 10min, 20min, 30min, 60min, 90min,
120min, 180min, 240min).
Video and audio settings
• Press the [16:9 4:3] button repeatedly to select the desired video size directly
from the following options: Auto, 4:3, 16:9 (Available sizes may vary for different
input sources.)
NOTE: If there is no signal, pressing this button will be ineffective and the available
video size may be different for different input sources.
USB mode
• First, insert a USB memory device into the USB port.
• Change the input source to USB mode by pressing the USB button on the remote
control.
• Press the / buttons to move the cursor to select photo, music, video or text
mode and press OK to enter it.
• Use the / / / buttons to select the desired folder or file, then press OK to
open the folder or start playing the file. Pressing the button will play all the files
in the folder.
• Press the INFO button on the remote control to display the on-screen playback
control tool bar; press the button to exit the playback control tool bar.

13
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Menu Setting
Menu Setting Method
Use the buttons on top of the projector or on the remote control to access menu
settings.
• Press the MENU button to enter the main menu.
• Use the / buttons to navigate through the menu options: Picture, Sound,
Time, System, Application (see picture 1).
• Once you are in the desired menu, use the / buttons to access the submenu
options you want to adjust (see picture 2).
• Press OK to confirm, or use the / buttons to adjust the submenu option
parameters.
• After having made the adjustment, press the MENU button to go back to
the previous OSD page and to exit out. Otherwise the menu page will exit
automatically after a period of inactivity.
• Repeat the steps above until you have finished adjusting all the parameters.
Picture 1 Picture 2

14
1300 886 649 Model: AP-014 Product Code: 47263 10/2014
www.tempo.org
AUS
Menu Setting (Cont.)
Appendix 1
In User mode, the following image settings may be changed manually:
Appendix 2
The height and width of the projected image will be different under different aspect
modes.
Picture Mode Standard / Mild /
User (Appendix 1) /
Dynamic
Colour
Temperature
Cool / Medium / Warm
/ User (Red/Green/
Blue)
Aspect Auto / 4:3 / 16:9
(Appendix 2)
Noise Reduction Off / Low / Mid / High
/ Default
Contrast 0~100 Image contrast adjustment
Brightness 0~100 Image brightness adjustment
Colour 0~100 Image colour adjustment
Sharpness 0~100 Image sharpness adjustment
Picture Menu
