Instructions for use
KDA 3710

GB GR

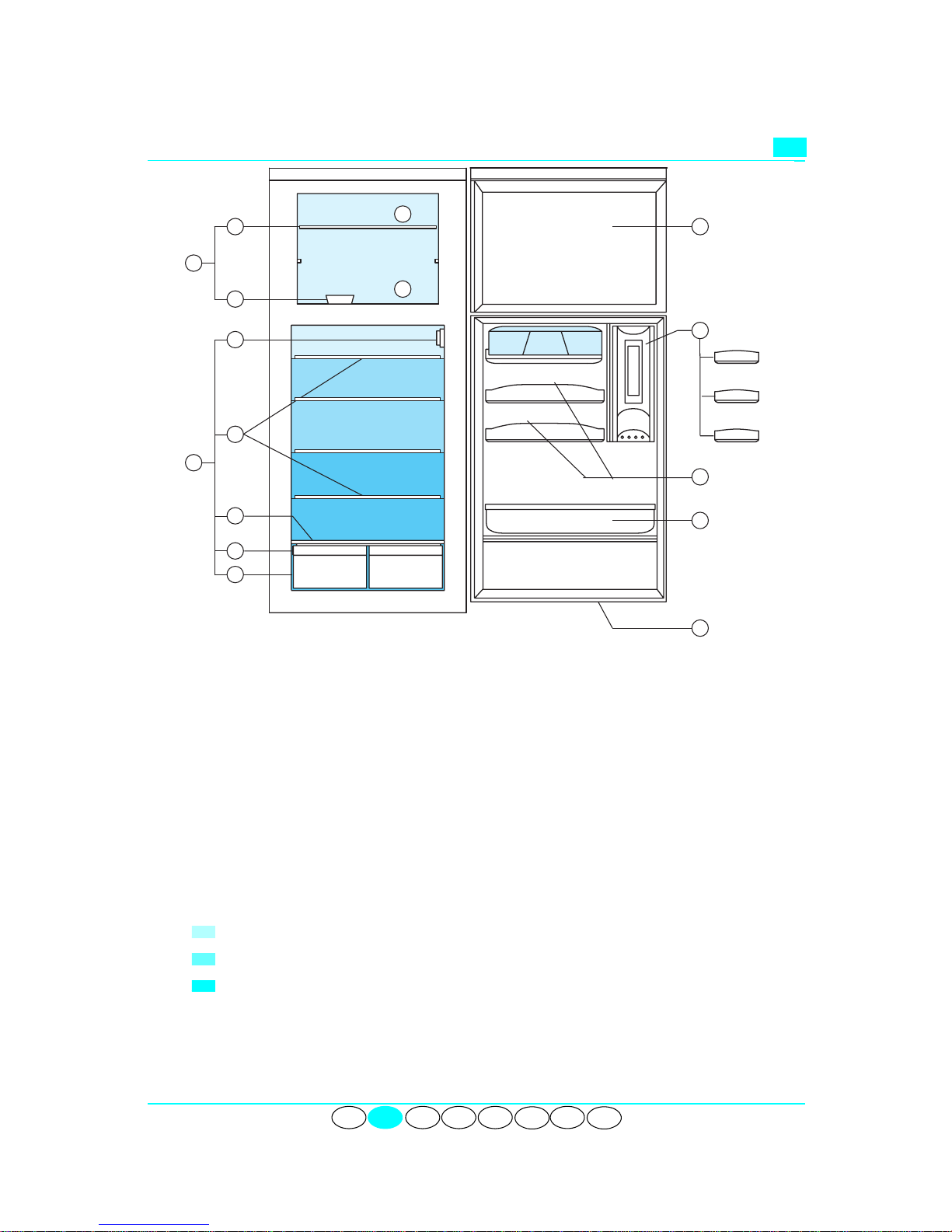

PRODUCT SHEET GB
PID F NL E
A. Refrigerator compartment
1. Crisper drawer
2. Crisper shelf
3. Shelves / Shelf area
4. Thermostat control knob/light
5. Door trays
6. Drinks dispenser or door trays
(depending on model)
7. Bottle rack
8. Rating plate (at the side of crisper
drawer)
B. Freezer compartment
9. Grid
10. Area for freezing
11. Area for storing frozen foods
12. Ice cube tray (inside the compartment)
13. Freezer compartment inner door
14. Removable magnetic seal
Least cold zone
Intermediate temperature zone
Coldest zone
Note: The number of shelves and shape of accessories may vary, depending on the model.
All shelves, door trays and racks are removable.
Warning: refrigerator accessories must not be washed in a dishwasher.
9
12
B
4
3
2
8
1
A
13
7
14
5
6
10
11

5019 100 33049 GB GRPID F NL E
The Refrigerator/Freezer is switched on by means of the thermostat located inside the refrigerator
compartment. The thermostat also serves to adjust the temperature in both the refrigerator and freezer
compartments.
Refrigerator/Freezer compartment controls
A. Thermostat knob
B. Light switch
C. Light diffuser
D. Thermostat control reference
E. Light bulb (max 15 W)
Thermostat set to zOff (no refrigeration, no light)
Thermostat set to1-3 coldest ambient temperature (10-17°C)
Thermostat set to 3-5 intermediate ambient temperature (18-31°C)
Thermostat set to 2-4 least cold ambient temperature (32-38°C)
The average recommended thermostat setting is 3.
The refrigerator can operate at ambient temperatures between +10°C and +38°C. Optimal performance is
obtained at temperatures between +16°C and +38°C.
Note: The ambient air temperature, the frequency of door opening and the position of the appliance can
affect the internal temperatures of the refrigerator. These factors must be taken into account when setting
the thermostat.
Removing the light diffuser
1 - Hold the diffuser as shown and squeeze it slightly
2 - Slide it towards the rear of the appliance

.

11
CONTENTS GB
BEFORE USING YOUR APPLIANCE PAGE 12
PROTECTING THE ENVIRONMENT PAGE 12
HINTS FOR SAVING ENERGY PAGE 13
PRECAUTIONS AND GENERAL
RECOMMENDATIONS PAGE 13
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT PAGE 14
HOW TO OPERATE THE FREEZER COMPARTMENT PAGE 15
HOW TO DEFROST THE REFRIGERATOR
COMPARTMENT PAGE 16
HOW TO CLEAN AND DEFROST THE FREEZER
COMPARTMENT PAGE 16
MAINTENANCE AND CLEANING PAGE 17
TROUBLE-SHOOTING GUIDE PAGE 17
AFTER-SALES SERVICE PAGE 18
INSTALLATION PAGE 18
33110Gb.fm5 Page 11 Monday, June 28, 1999 3:50 PM

12
Your new appliance is exclusively for domestic
use.
Thefreezercompartment canbeused
for freezing fresh and cooked food, making ice
cubes, and storing frozen food; defrost is
operated manually.
The refrigerator compartment, which has an
automatic defrost feature, is used for the
storage of fresh food and beverages.
To get the most out of your new appliance,
read the user handbook thoroughly. The
handbook contains a description of the
appliance and useful tips for storing food.
Keep this handbook for future consultation.
1. After unpacking the appliance, make sure
that the door shuts properly.
Any damagemust bereportedto yourdealer
within 24 hours after delivery of the
appliance.
2. Wait at least two hours before connecting
the appliance tothepower supply in order
to ensure the refrigerant circuit is fully
efficient.
3. Appliance installation and electrical
connections must be carried out by a
qualified electrician, in accordance with the
manufacturer's instructions and local
regulations.
1. Packaging
The packaging material is entirely recyclable,
and is marked with the recycling symbol($).
Follow local regulations for scrapping.
Keep the packaging materials (plastic bags,
polystyrene parts, etc.) out of reach of children,
as they are potentially dangerous.
2. Appliance
The appliance is made from recyclable
materials.Disposeof theapplianceinconformity
with local environmental regulations.
Make the appliance unusable by cutting off the
power cord. The appliance mustbe consigned to
an authorised collection centre for the recovery
of refrigerant gas.
Information:
This appliance does not contain CFCs (replaced
with R134a) or HFCs (replaced with R600a -
Isobutane). For more information, refer to the
rating plate affixed to the appliance.
BEFORE USING YOUR APPLIANCE
PROTECTING THE ENVIRONMENT
33110Gb.fm5 Page 12 Monday, June 28, 1999 3:50 PM

13
•Use the thermostat to set the correct
temperature in accordance with the
indications on the enclosed product chart.
•Installation in an area exposed to direct
sunlight or in proximity to heat sources will
increase power consumption and should
therefore be avoided.
•For built-in appliances, ensure air vents are
not obstructed (see section “Maintenance
and Cleaning”).
•For free-standing appliances, remove dust
from the condenser at the back of the
appliance at least once a year (see section
“Maintenance and Cleaning”).
•Do not place hot food in the refrigerator.
•Limitthe number of times therefrigerator and
freezer compartment doors are opened.
•Defrost the appliance at least twice a year.
•Use the refrigerator compartment only for
storingfreshfoodandbeveragesandusethe
freezer compartment only for storing frozen
food, freezing fresh food and making ice
cubes.
•Do not cover or obstruct the air vents of the
appliance.
•Do not store liquids in glass containers in the
freezer compartment - danger of bursting.
•Donoteaticecubesoricelolliesimmediately
after taking them out of the freezer
compartment - risk of “cold” burns.
•Do not allow children to play or hide inside
the appliance - risk of becoming entrapped
and suffocating.
•Before servicing or cleaning the appliance,
unplug it from the mains or disconnect the
electricity supply.
•The power cable can only be replaced by an
authorised person.
Declaration of conformity
•This appliance is intended to come into
contact with foodstuffs and conforms to
D.L. 108 of 25.01.1992 (European Directive
89/109/EEC).
Information
Appliances with Isobutane (R600a)
Isobutane is a naturally occurring low
environmental impact gas. Caution is required,
however, because Isobutane is inflammable.
Therefore, it is essential to ensure that
refrigerant pipelines are not damaged.
HINTS FOR SAVING ENERGY
PRECAUTIONS AND GENERAL RECOMMENDATIONS
33110Gb.fm5 Page 13 Monday, June 28, 1999 3:50 PM

14
Switching on the appliance
Plug in the appliance.
The thermostat knob in the refrigerator
compartmentisusedtoadjustthetemperaturein
the refrigerator compartment; no temperature
adjustment is required for the freezer
compartment.
Temperature adjustment
1. To ensure correct operation and the best
possible food storage in both compartments,
set the thermostat in accordance with the
indications on the enclosed product
chart.
2. To alter the temperature in the refrigerator
compartment set the thermostat knob to:
•lower
numbers 1-2 if you require HIGHER
temperatures;
•numbers 3-4 for INTERMEDIATE
temperatures.
• higher numbers 5-7 for LOWER
temperatures.
Thermostat setting on l: all functions of the
applianceincludingthe interior light are switched
off.
Defrosting of the refrigerator compartment is
completely automatic.
Note:
Internal temperatures are affected by room
temperature, frequency of door opening and the
position of the appliance Thermostat settings
must be regulated according to these factors.
Using the refrigerator compartment
Position the food as shown in the figure.
A Cooked food
B Fish, meat
C Fruit and vegetables
D Bottles
EEggs
F Cheese
Notes:
•The space between the shelves and the rear
wall of the refrigerator compartment must be
unobstructed to allow air circulation.
•Do not place food in direct contact with the
rear wall of the refrigerator compartment.
•Do not place hot food in the refrigerator.
•Store liquids in closed containers.
Note:
Storing vegetables with high water content
can cause condensation to form on the glass
shelf of the crisper: this will not affect the
correct operation of the appliance.
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
33110Gb.fm5 Page 14 Monday, June 28, 1999 3:50 PM

15

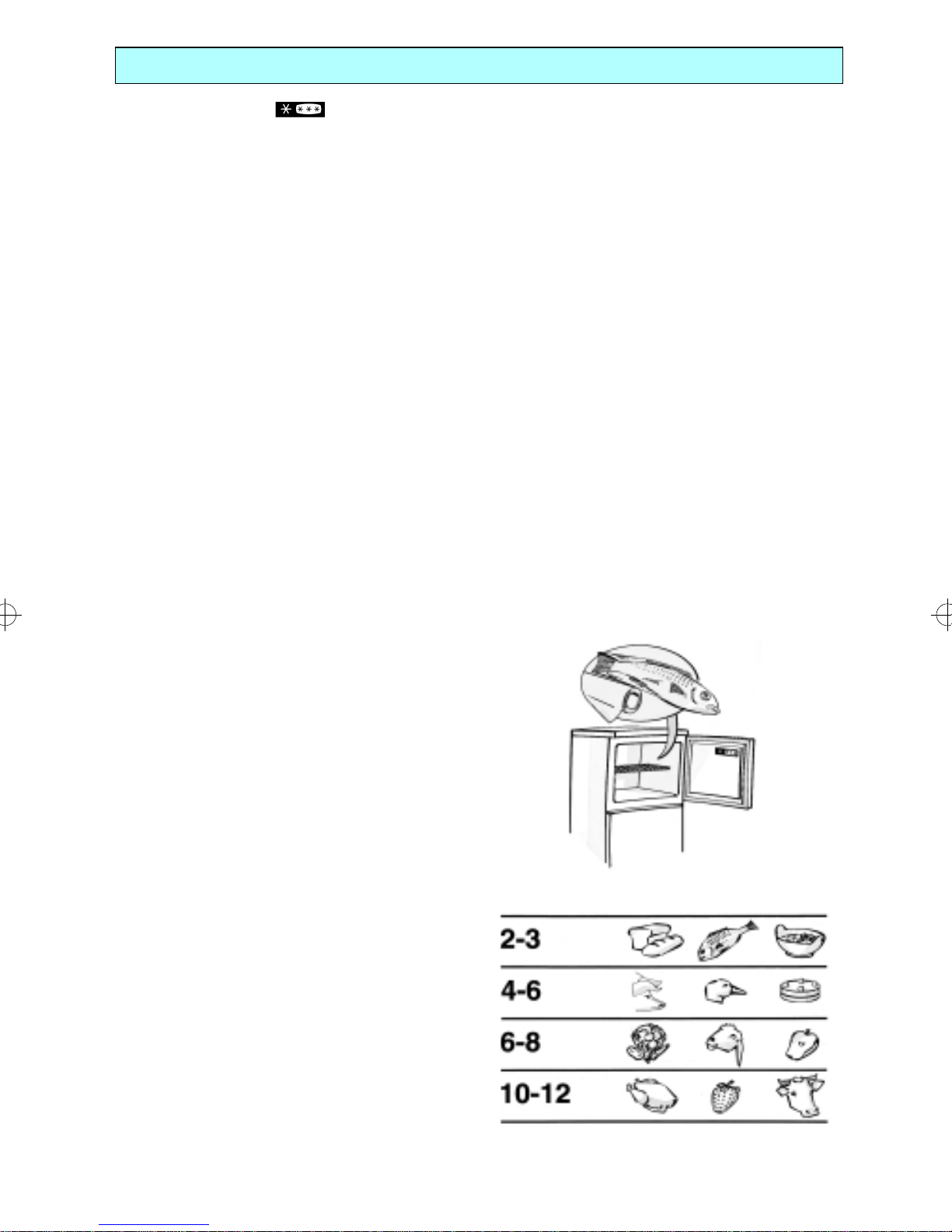

The appliance has a star freezer
compartment.
Food can be stored for the time indicated on
the packaging. The freezer can also be used
to freeze fresh food by positioning it on the
racks; place frozen food in the lower basket
so that there is no contact with fresh food
that has yet to be frozen.
The amount of fresh food that can be frozen
in 24 hours is indicated on the rating plate.
(positioned at the side of the crisper).
Note:
The temperature in the freezer compartment is
maintained at the ideal level for the storage of
frozen food also during power failures of limited
duration. However, it is advisable to avoid
opening the freezer compartment door during
such periods.
Freezing fresh food
•Press the fast freeze button (F) (if supplied)
24 hours before freezing fresh food; this will
optimise the freezing process.
•Before freezing, wrap and seal fresh food in:
aluminium foil, cling film, air and water-tight
plastic bags, polythene containers with lids
or special freezer containers.
•Arrange the fresh food in the top
compartment, leaving enough space for air
to circulate around packs. The lower grille (if
supplied) can be removed to increase the
capacity of the compartment.
• When putting food in to freeze, turn the
thermostat control knob down half a
position (e.g: from 3 to 2.5).
•The food will be completely frozen in 24
hours; the thermostat control knob can then
be returned to the previous position (e.g from
2.5 to 3).
•The amount of fresh food that can be frozen
in 24 hours, at an ambient temperature of
+25°C, is indicated on the rating plate.
Important:
Thetablealongsideshowstherecommended
maximum storage time for frozen fresh
foods.
When purchasing frozen food products:
•ensure that the packaging is not damaged
(frozen food in damaged packaging may
have deteriorated). If the package is swollen
or has damp patches, it may not have been
stored under optimal conditions and
defreezing may have already begun.
•When shopping, leave frozen food
purchases until last and transport the
products in a thermally insulated cool bag.
•Place the items in the freezer compartment
as soon as you get home.
•If food has defrozen even partially, do not re-
freeze it. Consume within 24 hours.
•Avoid, or reduce temperature variations to
the minimum. Observe the best-before date
on the package.
•Always observe the storage information on
the package.
Making ice cubes
•Pour water into the ice tray up to 2/3 full and
place it in the freezer compartment
•Do not use sharp or pointed instruments to
detach the tray if it is stuck to the freezer
bottom.
•Bend the ice tray slightly to remove the
cubes.
.
HOW TO OPERATE THE FREEZER COMPARTMENT
MONTHS FOOD
33110Gb.fm5 Page 15 Monday, June 28, 1999 3:50 PM

16
Defrosting of the refrigerator compartment is
completely automatic.
•Droplets of water on the rear wall of the
refrigerator compartment indicate that the
periodic automatic defrost cycle is in
progress.
•The defrost water is routed to a drain outlet
and into a container from which it evaporates.
•Clean the defrost water drain outlet regularly
using the tool supplied with the appliance.
This precaution ensures that defrost water is
removed correctly from the interior of the
refrigerator compartment.
•Also see “Maintenance and Cleaning”.
.
Defrost the freezer compartment at least
twice a year and whenever the formation of
ice is excessive.
It is perfectly normal for ice to form. The
amount and speed at which the ice forms
depends on ambient conditions and the
frequency with which the door is opened. Ice
formation is concentrated at the top of the
compartment and does not affect the
efficiency of the appliance.
If possible, defrost the freezer compartment
when it is nearly empty.
•Remove the food from the freezer
compartment wrap in newspaper and store
together in a cool place or in a portable
cooler.
• Unplug the appliance.
•Leave the compartment door open to allow
the ice on the walls to melt.
•Remove the defrost water from the bottom of
the freezer compartment.
•Clean the interior with a sponge soaked in
warm water and/or neutral detergent.
Do not use abrasive products.
Note: Do not use sharp or pointed metal
instruments to scrape off ice; do not heat the
freezer compartment artificially.
•Wipe down the interior and dry thoroughly.
•Put the food back into the freezer
compartment.
•Close the door.
•Plug in the appliance again.
•Switch the appliance on.
HOW TO DEFROST THE REFRIGERATOR
COMPARTMENT
HOW TO CLEAN AND DEFROST THE FREEZER
COMPARTMENT
33110Gb.fm5 Page 16 Monday, June 28, 1999 3:50 PM

17
Before any cleaning or maintenance
operation, unplug the appliance from the
mains or disconnect the electrical power
supply.
•Clean the appliance with a sponge soaked in
warm water and/or neutral detergent. Do not
use abrasive products.
•Rinse the interior and dry with a soft cloth.
•Clean the outside with a damp cloth. Do not
use abrasive products, scourers, stain-
removers (e.g. acetone, trichloroethylene) or
vinegar.
Built-in appliances
•Clean air vents periodically with a vacuum
cleaner or a brush (A).
Free-standing appliances
•Periodically clean the condenser at the rear
of the appliance with a vacuum cleaner or a
brush (B).
Prolonged disuse
1. Empty the refrigerator and freezer
compartments.
2. Unplug the appliance.
3. Defrost and clean the interior.
4. When not in use, leave the door of the
appliance open to prevent oxidation, the
formation of mould and unpleasant odours.
.
1. The appliance is not working.
•Is there a power failure?
•Is the power plug properly inserted in the
mains socket?
•Is the mains power switch set to ON?
•Has the fuse blown?
•Is the power cord in perfect condition?
•Is the thermostat set to z(Off)?
2. Temperature inside the compartments is
not low enough.
•Is the door shut properly?
•Is food obstructing proper door closure?
•Is the appliance installed next to a heat
source?
•Is the thermostat setting correct?
•Are the air circulation vents blocked?
3. Temperature inside the refrigerator
compartment is too low.
•Is the thermostat setting correct?
4. The appliance is excessively noisy.
•Has the appliance been installed correctly?
•Arethe pipesat the backtouching orvibrating?
5. Water collects at bottom of refrigerator
compartment.
•Is the defrost water drain blocked?
6. Ice forms on the rear wall of the
refrigerator compartment.
•Is food directly touching the wall?
7. Excessive frost build-up in the freezer
compartment.
•Is the door shut properly?
•Is food obstructing proper door closure?
There is, however, no defect is occurring if:
•The front edge of the appliance is hot (this
prevents the formation of condensation).
•Gurglingandscreechingnoisescanbeheard
coming from the appliance: this is caused by
the circulation of the refrigerant fluid.
MAINTENANCE AND CLEANING
A
B
TROUBLE-SHOOTING GUIDE
33110Gb.fm5 Page 17 Monday, June 28, 1999 3:50 PM

18
Before contacting After Sales Service:
1. See if you can solve the problem yourself
with the help of the “Trouble-shooting guide”.
2. Switch the appliance on again to see if the
problem has been solved.
If it has not, disconnect the appliance from
the power supply and wait for about an hour
before switching on again.
3. If the problem persists after this course of
action, contact After-sales Service.

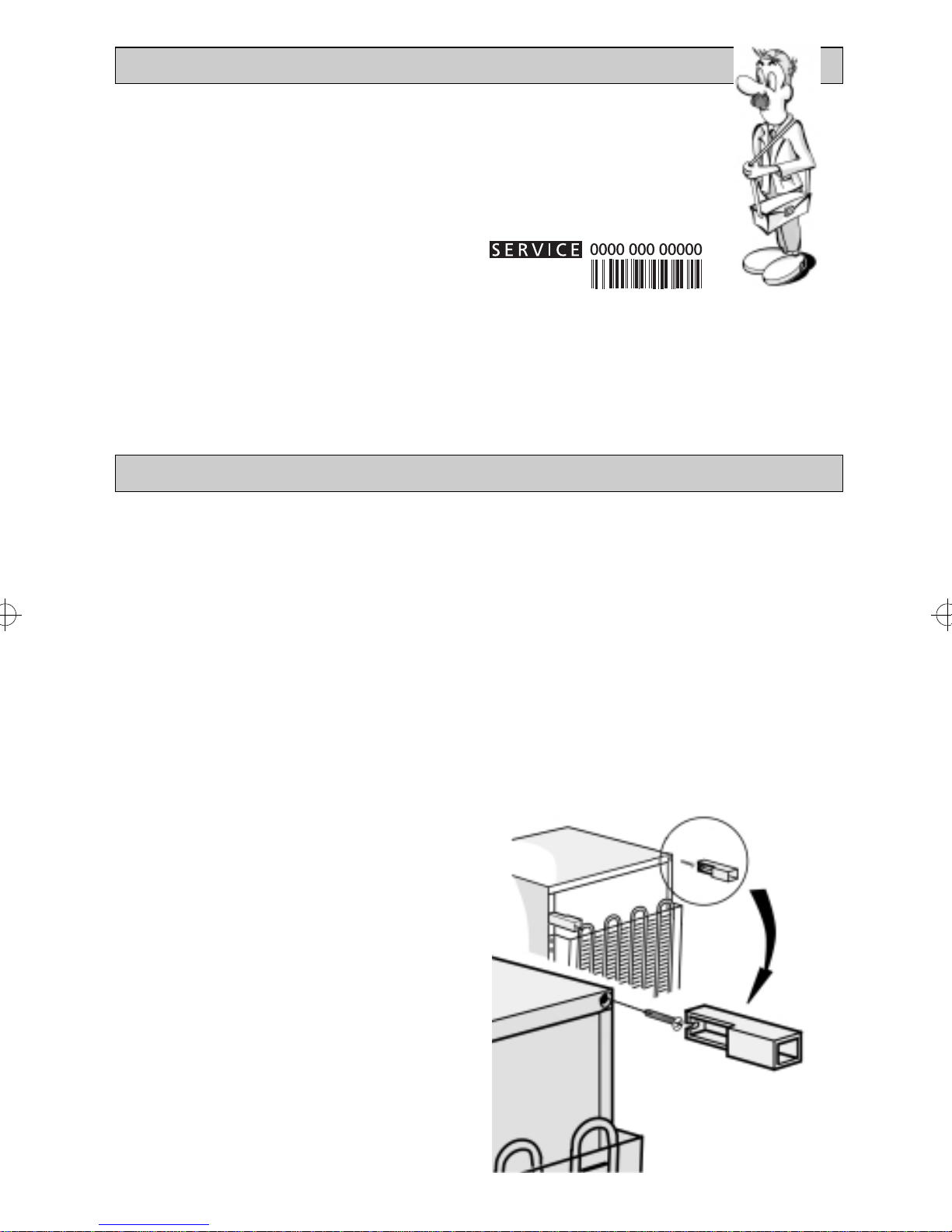

Specify:
•the nature of the problem
•the model
•the Service number (the number after the
word SERVICE on the rating plate on the
inside of the appliance).
•your full address
•your telephone number and area code
Note:
The direction of door opening can be
changed. If this operation is performed by
After-sales Service it is not covered by the
warranty.
•Installtheapplianceaway fromheat sources.
Installation in a hot environment, direct
exposure to the sun or installation near heat
sources (heaters, radiators, cookers) will
increase power consumption and should
therefore be avoided.
•Do not obstruct the circulation of air above
and below the appliance.
•Clean the inside (see section “Maintenance
and Cleaning”).
Electrical connection
• Electrical connections must be made in
accordance with local regulations.
•Voltage and power consumption are
indicated on the rating plate located inside
the appliance at the side of the crisper.
For free-standing appliances
(not built-in)
•The following minimum distances must be
respected:
•30 cm from coal or paraffin stoves;
•3 cm from electric and/or gas stoves.
•To optimise appliance efficiency, leave a 5
cm gap above the appliance and make sure
that adjacent kitchen units are sufficiently
distanced to allow air circulation.
•Fit the spacers (if supplied) at the rear of the
appliance (see figure).
•Install the refrigerator in a dry, well-ventilated
place. Make sure it is level. Adjust the front
feet if necessary.
•Fit the accessories.
• Regulations require that the appliance is
earthed. The Manufacturer declines all
liabilities for injury to persons or animals
or damage to property resulting from
failure to observe these regulations.
•If the plug and socket are not of the same
type, have the socket replaced by a qualified
electrician.
•Do not use extension leads or adaptors.
Disconnecting the appliance
It must be possible to disconnect the appliance
byunpluggingit orbymeans ofatwo-pole switch
fitted upline of the socket.
AFTER-SALES SERVICE
INSTALLATION
33110Gb.fm5 Page 18 Monday, June 28, 1999 3:50 PM
