Instructions for use
KRB 1310

PRODUCT SHEET GB
GB ID F NL E P GR DK
S N FIN
A. Refrigerator compartment
1. Crisper drawer
2. Shelves / Shelf area
3. Thermostat control knob/light
4. Shelves
5. Rating plate (at the side of crisper
drawer)
Least cold zone
Intermediate temperature zone
Coldest zone
Notes: The number of shelves and type of accessories may vary, depending on the model.
All shelves and racks are removable.
Important: Refrigerator accessories must not be washed in a dishwasher.
6gb33027.fm5 Page 1 Wednesday, February 28, 2001 5:18 PM

5019 602 33027
Printed in Italy 02/01
GB ID F NL E P GR DK
S N FIN
Refrigerator compartment controls
A. Light switch cam
B. Thermostat control
reference
C. Thermostat knob
D. Light bulb (max 15 W)
Thermostat set to MIN/1-2: minimum refrigeration.
Thermostat set to MED/3-4:medium refrigeration.
Thermostat set to MAX/5-7:maximum refrigeration.
Thermostat set to z:no refrigeration, no light.
Recommended thermostat setting: MED/3-4 position.
Optimal performance is obtained at temperatures between +16°C and +32°C for appliances with climatic
class “N”and at temperatures between +10°C and +32°C for appliances with climatic class “SN”.
The climatic class is indicated on the data plate inside the appliance.
Note: The ambient air temperature, the frequency of door opening and the position of the appliance can
affect the internal temperatures of the refrigerator. These factors must be taken into account when setting
the thermostat.
Removing the light bulb
To remove the light bulb, unscrew it anticlockwise (see figures).
Posizioning the appliance under the
worktop
The appliance can be installed under a
worktop (worktop height 850 mm from floor).
Proceed as follows:
•First loosen the rear “A”and front “B”
screws; then remove the appliance top
(Fig. 1).
•Make a vent outlet on the worktop (Fig. 2).
•Pushtheapplianceundertheworktopand
secure at the front with the same screws
“B”used for the top.
Observe the distance from the rear wall
indicated in (Fig. 2)
FIG. 1 FIG. 2
6gb33027.fm5 Page 2 Wednesday, February 28, 2001 5:18 PM

.

11
Instructions for use
Before using the refrigerator
Safeguarding the environment
Precautions and general recommendations
How to operate the refrigerator
compartment
How to operate the low temperature
compartment
How to defrost and clean the refrigerator
Care and maintenance
Troubleshooting guide
After-sales service
Installation

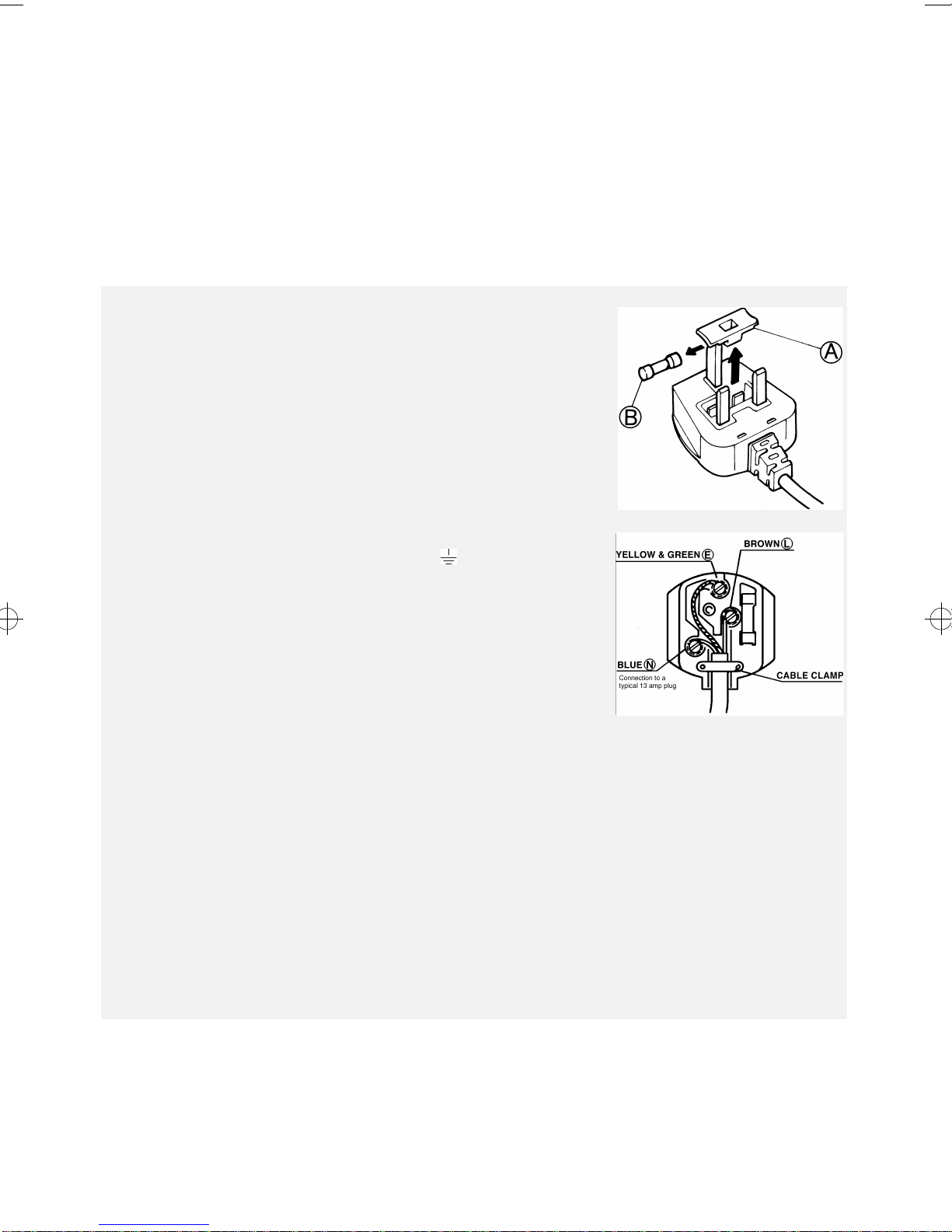

Electrical connection
4gb33003.fm5 Page 11 Thursday, March 1, 2001 9:45 AM

12
Before using the refrigerator
Your new appliance is
exclusively for domestic use.
Use the low temperature
compartment, if fitted, for
making ice cubes, storing
frozen and deep frozen foods
and freezing fresh and cooked
foods (only in the compartment
marked ); defrosting is
a manual procedure. The
refrigerator compartment,
which has an automatic
defrost feature, is used for
the storage of fresh food and
beverages.
To get the most out of your
new appliance, read the
user handbook thoroughly.
The handbook contains a
description of the appliance
and useful tips for storing
food.
Keep this handbook for
future consultation.
1. After unpacking the
appliance, make sure that
the door shuts properly.
Any damage must be
reported to your dealer
within 24 hours after
delivery of the appliance.
2. Wait at least two hours
before connecting the
appliance to the power
supply in order to ensure
the refrigerant circuit is
fully efficient.
3. Installation of the appliance
and electrical connections
must be carried out by a
qualified electrician, in
accordance with the
manufacturer's instructions
and local regulations.
Safeguarding the environment
1. Packing
The packaging material is
entirely recyclable, and
marked with the recycling
symbol.
Follow local regulations for
scrapping.
Keep the packaging
materials (plastic bags,
polystyrene parts, etc.) out
of reach of children, as they
are potentially dangerous.
2. Appliance
The appliance is made using
recyclable materials. Dispose
of the appliance in
conformity with local
environmental regulations.
Make the appliance
unusable by cutting off the
power cord. The appliance
must be delivered to an
authorised collection centre
for the recovery of
refrigerant gas.
Information:
This appliance does not contain
CFCs (replaced with R134a) or
HFCs (replaced with R600a
Isobutane). For more
information, refer to the
identification data plate affixed
to the appliance.
Declared performance
refers to freestanding
appliances, not built-in.
Precautions and general recommendations
Use the refrigerator
compartment only for
storing fresh foods and the
low temperature
compartment only for
making ice cubes, storing
frozen foods and freezing
fresh foods (only in the
compartment marked
).
Do not cover or obstruct the
air vents of the appliance.
Do not store liquids in glass
containers in the low
temperature compartment
risk of bursting.
Do not eat ice cubes or ice
lollies immediately after
taking them out of the low
temperature compartment
risk of "cold" burns.
Do not allow children to play
or hide inside the appliance
risk of becoming trapped
and suffocating.
Before servicing or cleaning
the appliance, unplug it from
the mains or disconnect the
electrical power supply.
The power cable may only be
replaced by an authorised
person.
Declaration of conformity
This appliance is intended to
come into contact with
foodstuffs and conforms to D.L.
108 of 25.01.1992 (European
Directive 89/109/EEC).
Information:
Appliances with Isobutane
(R600a)
Isobutane is a natural gas
having low environmental
impact. Caution is required,
however, since isobutane is
flammable. Therefore, it is
essential to ensure that
refrigerant pipelines are not
damaged.
4gb33003.fm5 Page 12 Thursday, March 1, 2001 9:45 AM

13
How to operate the refrigerator compartment
Switching on the
appliance
Starting up the appliance
Plug in the appliance. When
the appliance is connected
to the mains, the inside
light switches on each time
the door is opened
(provided that the
thermostat is set to z).
The thermostat is used to
adjust the temperature of
both the refrigerator
compartment and low
temperature compartment
(if fitted).
Adjusting the
temperature
1. For correct operation and
optimum storage of food,
follow instructions given
in the enclosed product
sheet for thermostat
adjustment.
2. To adjust the temperature in
the compartment, turn the
thermostat control knob:
lowest numbers 1-2/MIN
for the LEAST COLD
internal temperatures;
numbers 3-4/MED for a
MEDIUM internal
temperature;
highest numbers 5-7/
MAX for the COLDEST
internal temperatures.
Thermostat set to z: no
operation, no light.
Note:
The ambient air
temperature, frequency of
door opening and the
position of the appliance can
affect internal temperatures.
These factors must be taken
into account when setting
the thermostat.
How to use the
refrigerator
compartment

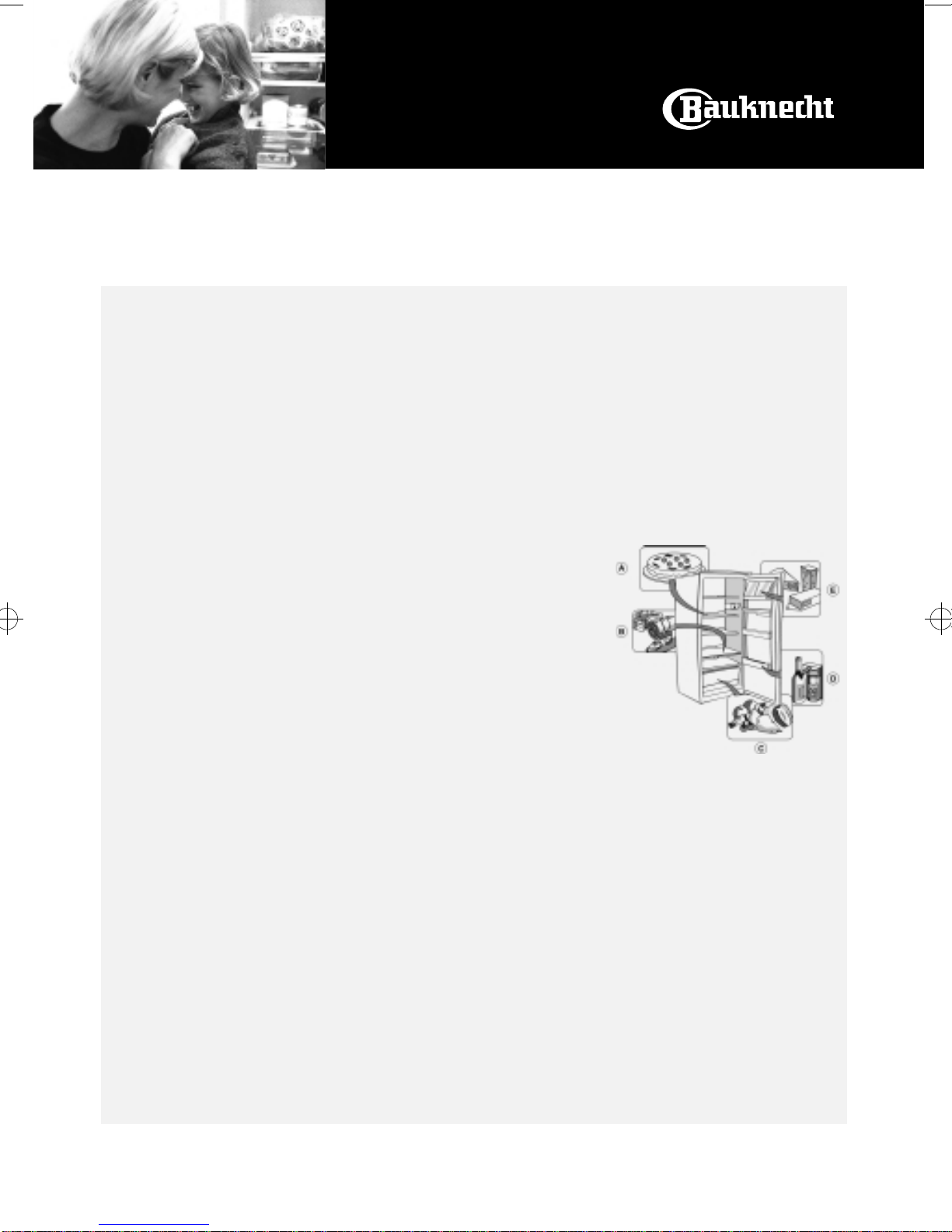

Position the food as shown
in the figure.
A) Cooked food
B) Fish, meat
C) Fruit and vegetables
D) Bottles
E) Cheese
Notes:
The space between the
shelves and the rear wall of
the refrigerator
compartment must be
unobstructed to allow
circulation of air.
Do not place food in direct
contact with the rear wall of
the refrigerator
compartment.
Do not place hot food in the
refrigerator.
Store liquids in closed
containers.
Important
Storing vegetables with
high water content can
cause condensation to
form on the glass shelf
of the crisper drawer:
this will not affect the
correct operation of the
appliance.
4gb33003.fm5 Page 13 Thursday, March 1, 2001 9:45 AM

14
How to operate the low temperature compartment
The low temperature
compartment is ,
or .
Compartments marked
or can be
used to store frozen
foods for the period of
time indicated on
packaging.
If the low temperature
compartment is marked
, it can also be used
to freeze fresh food.
The quantity of fresh
food that can be frozen
in 24 hours is shown on
the rating plate.
Note:
In the event of a power cut,
the low temperature
compartment will maintain
a sufficiently low
temperature for food
storage. However, it is
advisable to avoid opening
the compartment door
during such periods.
Freezing fresh food
(only in
compartments
marked )
Important
Before freezing, wrap and
seal fresh food in:
aluminium foil, cling film,
air and water tight plastic
bags, polythene containers
with lids or freezer
containers suitable for
freezing fresh food.
Arrange the fresh food in
the top compartment,
leaving sufficient space
around each pack for the air
to circulate.
For optimum freezing, turn
the thermostat down by half
a point when placing fresh
foods in the freezer
compartment.
The food will be completely
frozen in 24 hours.
For appliances with
compartments
marked
The table alongside
shows the
recommended
maximum storage time
for frozen fresh foods.
When purchasing frozen
food products:
Ensure that the packaging is
not damaged (frozen food
in damaged packaging may
have deteriorated). If the
package is swollen or has
damp patches, it may not
have been stored under
optimal conditions and
defrosting may have already
begun.
When shopping, leave
frozen food purchases until
last and transport the
products in a thermally
insulated cool bag.
Place the items in the low
temperature compartment
as soon as you get home.
If food has defrosted even
partially, do not re freeze it.
Consume within 24 hours.
Avoid, or reduce
temperature variations to
the minimum. Respect the
best before date on the
package.
Always observe the storage
information on the package.
Making ice cubes
Fill the ice cube tray 2/3 full
and place it in the low
temperature compartment.
Do not use sharp or pointed
instruments to detach the
tray if it is stuck to the low
temperature compartment
bottom.
Bend the ice tray slightly to
remove the cubes.
MONTHS FOOD
4gb33003.fm5 Page 14 Thursday, March 1, 2001 9:45 AM

15

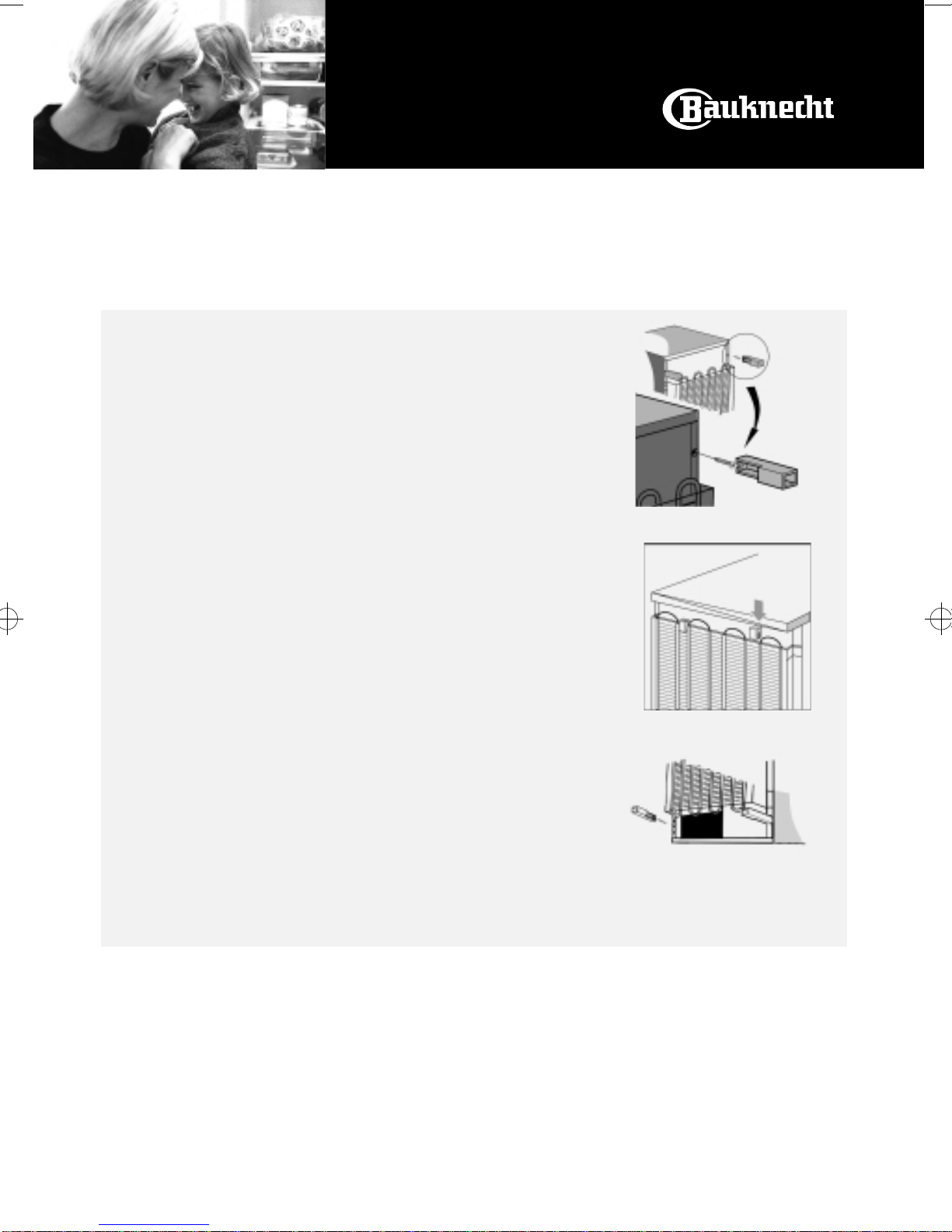

How to defrost and clean the refrigerator
Before any cleaning or
maintenance operation,
unplug the appliance
from the mains or
disconnect the electrical
power supply.
Defrosting of the
refrigerator
compartment is
completely automatic.
Droplets of water on the
rear wall of the refrigerator
compartment indicate that
the periodic automatic
defrost cycle is in progress.
The defrost water is
automatically routed to a
drain outlet and into a
container from which it
evaporates.
Clean the defrost water
drain outlet regularly using
the tool supplied with the
appliance in order to ensure
defrost water is removed
correctly.
Defrosting the low
temperature
compartment
Defrost the low
temperature
compartment once or
twice a year or when the
ice formation is
excessive.
It is perfectly normal for
ice to form. The amount
of ice which forms and
the rate at which it
accumulates will
depends on room
temperature and
humidity, and on the
frequency with which
the door is opened. Ice
formation is
concentrated at the top
of the compartment and
does not affect the
efficiency of the
appliance.
If possible, carry out
defrosting when the
compartment is nearly
empty.
Remove the food from the
low temperature
compartment, wrap in a
newspaper and group
together in a cool place or in
a portable cooler.
Leave the door open to
allow the frost to melt.
Clean the interior with a
sponge soaked in warm
water and/or neutral
detergent. Do not use
abrasive substances.
Rinse the interior and dry
thoroughly.
Put the food back into the
compartment.
Close the door.
Plug in the appliance once
again.
Switch the appliance on.
4gb33003.fm5 Page 15 Thursday, March 1, 2001 9:45 AM

16
Care and maintenance
Troubleshooting guide
1. The appliance is not
working.
Is there a power failure?
Is the plug properly
inserted in the socket?
Is the double pole switch
on?
Has the fuse blown?
Is the power cord in
perfect condition?
Is the thermostat set to z
(Stop)?
2. Temperature inside the
compartments is not low
enough.
Is the door shut properly?
Is food obstructing proper
door closure?
Is the appliance installed
near a heat source?
Is the thermostat setting
correct?
Are the air circulation
vents blocked?
3. Temperature inside the
refrigerator
compartment is too low.
Is the thermostat setting
correct?
4. The appliance is
excessively noisy.
Has the appliance been
installed correctly?
Are the pipes at the back
touching or vibrating?
Water collects at the
bottom of the
refrigerator
compartment.
Is the defrost water drain
blocked?
5. Excessive frost build-up
in the low temperature
compartment.
Is the door shut properly?
Is food obstructing proper
door closure?
Notes:
Gurgling and hissing noises
due to expansion in the
refrigerant circuit are normal.
After-sales service
Before contacting After-
Sales Service:
1. See if you can solve the
problem yourself with the
help of the Troubleshooting
guide.
2. Switch the appliance on
again to see if the problem
has been solved. If it has not,
disconnect the appliance
from the power supply and
wait for about an hour
before switching on again.
3. If the problem persists after
this course of action, contact
After sales Service.
Specify:
The nature of the problem.
The model.

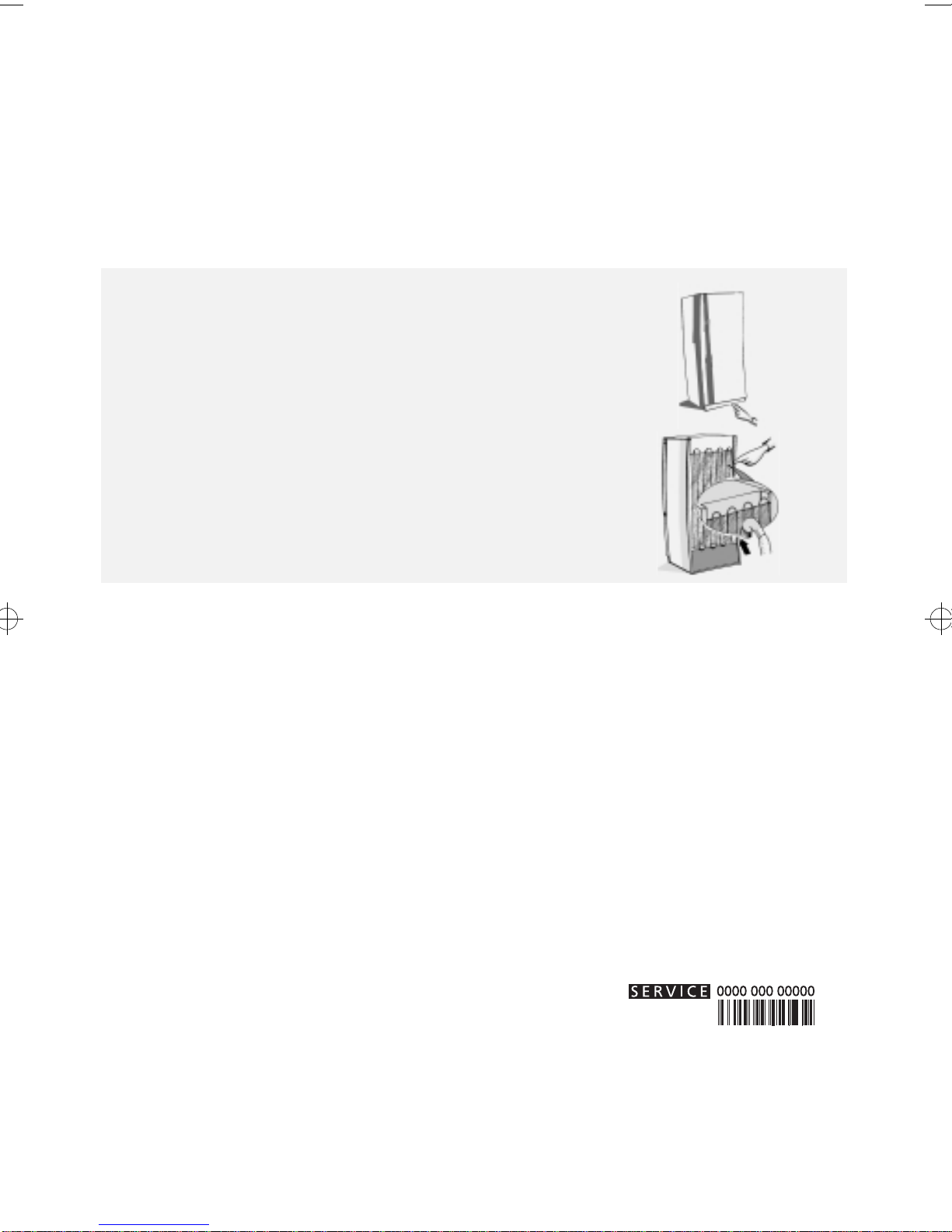

The Service number (the
number after the word
SERVICE on the data plate
on the inside of the
appliance).
Your full address.
Your telephone number
and area code.
Note:
The direction of door
opening can be changed. If
this operation is performed
by After-sales Service it is
not covered by the
warranty.
Periodically clean air vents
and the condenser at the rear
of the appliance with a
vacuum cleaner or a brush.
Clean the outside using a soft
cloth.
Prolonged disuse
1. Empty the refrigerator.
2. Disconnect the appliance
from the power supply.
3. Defrost and clean the
interior.
4. In the event of prolonged
disuse, leave the door open to
prevent the formation of
mould, odours and oxidation.
5. Clean the appliance.
Clean the inside of the low
temperature compartment
(where fitted) when
defrosting.
Periodically clean the inside
of the refrigerator
compartment with a sponge
dampened in warm water
and/or neutral detergent.
Rinse the interior and dry
with a soft cloth. Do not use
abrasive products.
Clean the outside with a
damp cloth. Do not use
abrasive products, scourers,
stain removers (e.g.
acetone, trichloroethylene)
or vinegar.
4gb33003.fm5 Page 16 Thursday, March 1, 2001 9:45 AM

17
Installation
Install the appliance away
from heat sources.
Installation in a hot
environment, direct
exposure to the sun or
installation near heat
sources (heaters, radiators,
cookers) will increase power
consumption and should
therefore be avoided.
If this is not possible, the
following minimum
distances must be respected:
30 cm from coal or
paraffin stoves;
3 cm from electric and/or
gas stoves.
Fit the spacers on the rear of
the condenser positioned at
the back of the appliance.
To optimize appliance
efficiency, leave a 5 cm gap
above the appliance and
make sure that adjacent
kitchen units are sufficiently
distanced to allow air
circulation.
Install the appliance in a dry,
well ventilated place, and
ensure it is level, using the
front adjustment feet if
necessary.
Clean the interior.
Fit the accessories.
Electrical connection
Electrical connections
must be made in
accordance with local
regulations.
Voltage and power
consumption are indicated
on the rating plate inside
the appliance.
Regulations require that
the appliance is earthed.
The manufacturer
declines all liability for
injury to persons or
animals and for damage
to property resulting
from failure to observe
the above procedures
and reminders.
If the plug and socket are
not of the same type, have
the socket replaced by a
qualified electrician.
Do not use extension leads
or adaptors.
Disconnecting the
appliance
It must be possible to
disconnect the appliance by
unplugging it or by means
of a two pole switch fitted
upline of the socket.
4gb33003.fm5 Page 17 Thursday, March 1, 2001 9:45 AM

18
Electrical connection
FOR GREAT BRITAIN ONLY
Warning - this appliance
must be earthed
Fuse replacement
If the mains lead of this
appliance is fitted with a
BS 1363A 13amp fused plug,
to change a fuse in this type
of plug use an A.S.T.A.
approved fuse to BS 1362
type and proceed as
follows:
1. Remove the fuse cover (A)
and fuse (B).
2. Fit replacement 13A fuse
into fuse cover.
3. Refit both into plug.
Important:
The fuse cover must be
refitted when changing a
fuse and if the fuse cover is
lost the plug must not be
used until a correct
replacement is fitted.
Correct replacement are
identified by the colour
insert or the colour
embossed in words on the
base of the plug.
Replacement fuse covers are
available from your local
electrical store.
Connection to a
rewirable plug
If the fitted plug is not
suitable for your socket
outlet, then it should be cut
off and disposed of in order
to avoid a possible shock
hazard should it be inserted
into a 13A socket elsewhere.
A suitable alternative plug
should then be fitted to the
cable.
The wires in the mains lead
are coloured in accordance
with the following code:
BLUE NEUTRAL (N)
BROWN LIVE (L)
GREEN AND YELLOW
EARTH (E)
1. The GREEN AND YELLOW
wire must be connected to
the terminal in the plug
which is marked with the
letter E or by the Earth
symbol or coloured
green or green and yellow.
2. The BLUE wire must be
connected to the terminal
which is marked with the
letter N or coloured black.
3. The BROWN wire must be
connected to the terminal
which is marked with the
letter L or coloured red.
FOR THE REPUBLIC OF
IRELAND ONLY
The information given in
respect of Great Britain will
frequently apply, but a third
type of plug and socket is
also used, the 2 pin, side
earth type. In this case, the
wire which is coloured
GREEN AND YELLOW must
be connected to the EARTH
contact, and the two wires
to the two pins, irrespective
of colour. The supply to the
socket must be fitted with a
16 amp fuse.
4gb33003.fm5 Page 18 Thursday, March 1, 2001 9:45 AM
