Instructions for use
KVIE 2009/A

PRODUCT SHEET GB
GB FNL I
D
A. Refrigerator compartment
1. Crisper drawer
2. Shelves / Shelf area
3. Electronic control group with light
4. Upper door tray
5. Door trays
6. Bottle compartment
7. Bottleholder shelf
8. Rating plate (at the side of crisper drawer)
B. Freezer compartment
9. Ice cube tray
(inside the compartment)
10. Freezer compartment inner door
Least cold zone
Intermediate temperature zone
Coldest zone
Note: The number of shelves and shape of accessories may vary, depending on the model. All shelves, door
trays and racks are removable.
Warning: Refrigerator accessories must not be washed in a dishwasher.
37048_GB.fm5 Page 1 Monday, January 25, 1999 12:08 PM

GB F
5019 100 37048 NL I
D
How to operate the refrigerator compartment
A. Temperature selection buttons for the refrigerator compartment (+/-)
B. Displays indicating selected temperature in °C
Actual temperature may differ from the set temperature.
C. ON/OFF button for refrigerator compartment
D. Fast freeze button
E. Light diffuser release button
F. Light diffuser
G. Bulb (max 25 watt)
The average recommended thermostat setting is 5.
The refrigerator can operate at ambient temperatures between +10°C and +38°C.
Optimal performance is obtained at temperatures between +16°C and +38°C.
Note: The ambient air temperature, the frequency of opening the door and the position of the appliance can
affect the internal temperatures of the refrigerator. These factors must be taken into account when setting
the thermostat.
Removing the light diffuser
1 - Hold the diffuser and press button “E”.
2 - Slide cover “F” towards the rear of the appliance.
3 - Remove the bulb and replace it with a new one (25 Watt).
37048_GB.fm5 Page 2 Monday, January 25, 1999 12:08 PM

.

11
CONTENTS GB
BEFORE USING THE REFRIGERATOR PAGE 12
PROTECTING THE ENVIRONMENT PAGE 12
PRECAUTIONS AND GENERAL
RECOMMENDATIONS PAGE 13
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT PAGE 14
HOW TO USE THE FREEZER COMPARTMENT PAGE 16
HOW TO DEFROST THE APPLIANCE PAGE 16
CARE AND MAINTENANCE PAGE 17
TROUBLESHOOTING GUIDE PAGE 17
AFTER-SALES SERVICE PAGE 18
INSTALLATION PAGE 18

12
Your new appliance is exclusively for domestic
use.
The freezer compartment can be used
to deep freeze fresh and cooked food, make ice
cubes, and for the storage of frozen and deep-
frozen food. Defrosting is a manual procedure.
The refrigerator compartment, which has an
automatic defrost feature, is used for the storage
of fresh food and beverages
To get the most out of your new appliance,
read the user handbook thoroughly. The
handbook contains a description of the
appliance and useful tips for storing food.
Keep this handbook for future consultation.
1. After unpacking the appliance, make sure
that the door shuts properly. Any damage
must be reported to your dealer within
24 hours after delivery of the appliance.
2. Wait at least two hours before connecting
the appliance to the power supply in order
to ensure the refrigerant circuit is fully
efficient.
3. Appliance installation and electrical
connections must be carried out by a
qualified electrician, in accordance with the
manufacturer's instructions and local
regulations.
1. Packing
The packaging material is entirely recyclable,
and is marked with the recycling symbol($).
Follow local disposal regulations.
Keep the packaging materials (plastic bags,
polystyrene parts, etc.) out of reach of children,
as they are potentially dangerous.
2. Appliance
The appliance is made from recyclable
materials.Disposeofthe appliance in conformity
with local environmental regulations.
Make the appliance unusable by cutting off the
powercord.The appliance must be consigned to an
authorised collection centre for the recovery of
refrigerant gas.
Information:
This appliance does not contain CFCs (replaced
with R134a) or HFCs (replaced with R600a -
Isobutane). For more information, refer to the
rating plate affixed to the appliance.
Appliances with isobutane(R600a)
Isobutane is a naturally occurring low
environmental impact gas. Caution is required,
however, because Isobutane is inflammable.
Therefore, it is essential to ensure that
refrigerant pipelines are not damaged.
BEFORE USING THE REFRIGERATOR
PROTECTING THE ENVIRONMENT

13
•Use the refrigerator compartment only for
storing fresh foods and the freezer
compartment only for making ice
cubes, storing frozen food and freezing fresh
food.
•Do not cover or obstruct the air vents of the
appliance.
•Do not store liquids in glass containers in the
freezer compartment - danger of
bursting.
•Do not eat ice cubes or ice lollies immediately
after taking them out of the low temperature
compartment - risk of “cold” burns.
•Do not allow children to play or hide inside
the appliance - risk of becoming entrapped
and suffocating.
•Before any cleaning or maintenance
operation, unplug the appliance from the
mains or disconnect the electrical power
supply.
•The power cable can only be replaced by an
authorised person.
Declaration of conformity
•This appliance is intended to come into
contact with foodstuffs and conforms to D.L.
108 of 25.01.1992 (European Directive
89/109/EEC).
PRECAUTIONS AND GENERAL RECOMMENDATIONS

14

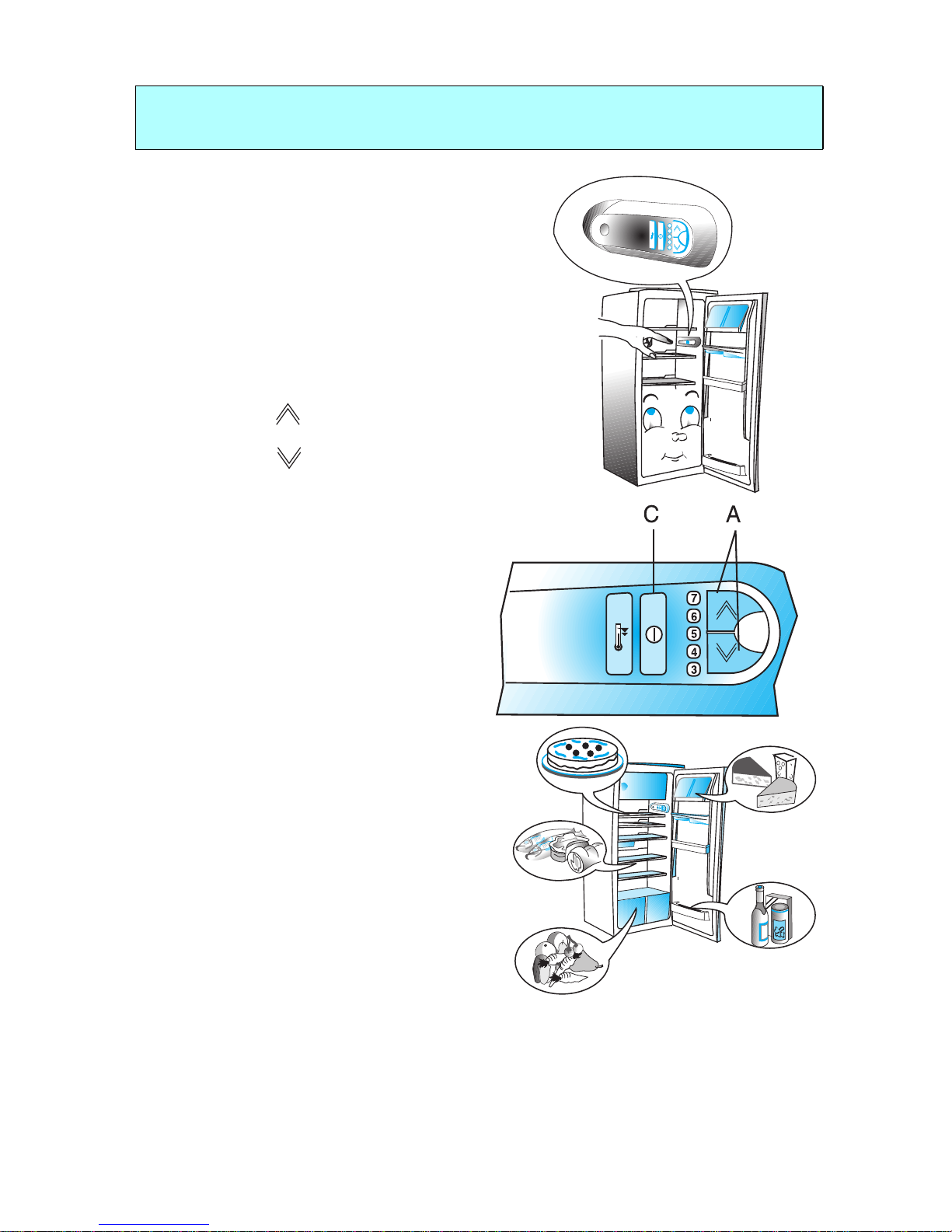

Switching on the appliance
1. Plug in the appliance.
2. The appliance switches on. The temperature
is factory set to 5 °C.
A visual warning signal flashes when the
door has been left open for more than 2
minutes.
(see “Refrigerator door open alarm” in this chapter).
Temperature adjustment for refrigerator
compartment
To adjust the temperature in the refrigerator
compartment, proceed as follows:
•Press button (A) to increase the
temperature, e.g. from 5° to 7°;
•Press button (A) to lower the
temperature, e.g. from 7° to 5°;
Note:
Room temperature, frequency of door opening,
the introduction of hot food and incorrect
positioning of the appliance can affect the
internal temperature of the refrigerator, which
may differ from that indicated on the panel.
Switching off the appliance
If the appliance is not to be used for a prolonged
period of time, it can be switched off by pressing
button (C) Although connected to the power
supply, the appliance is effectively switched off,
theinternallightisswitchedoffandallLEDsareoff
except red LED (C). To switch the appliance on
again, press button (C) again.
Refrigerator door open alarm
If the refrigerator door is accidentally left open
the appliance issues a warning by means of an
intermittent inside light.
When the door has been left open for 2 minutes
theinsidelightbegins toflash. It willstop flashing
when the door is closed.
Using the refrigerator compartment
Position the food as shown in the figure.
A Cooked food
B Fish, meat
C Fruit and vegetables
D Bottles
E Cheese
Note:
•The space between the shelves and the rear
wall of the refrigerator compartment must be
unobstructed to allow air circulation.
•Do not place food in direct contact with therear
wall of the refrigerator compartment.
•Do not place hot food in the refrigerator.
•Store liquids in closed containers.
Warning
Storing vegetables with high water content
can cause condensation to form in the
crisper: this will not affect the correct
operation of the appliance.
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
A
B
C
D
7
6
5
4
3
E
7
6
5
4
3

15

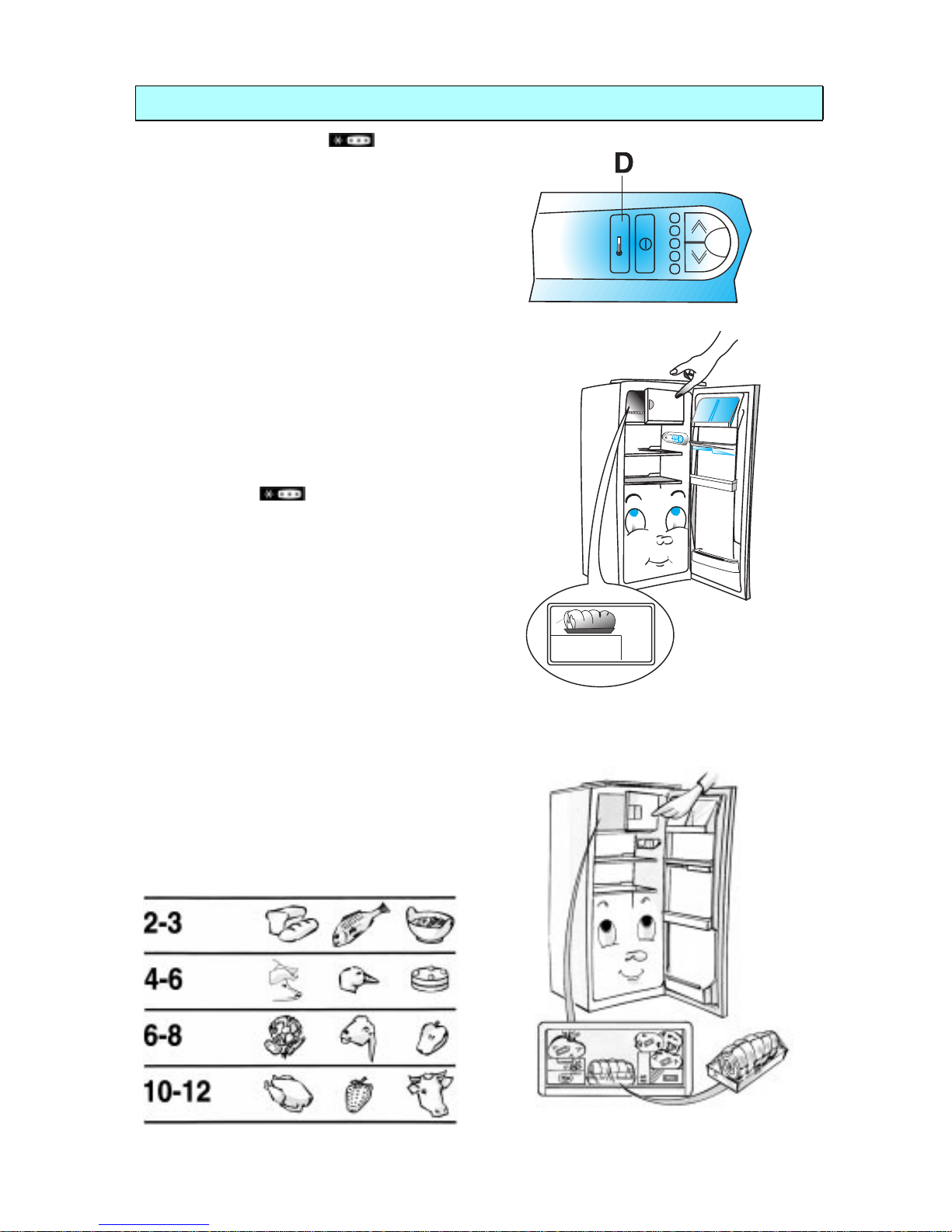

The freezer compartment this
compartment can be used for freezing fresh
foods.
The quantity of fresh food that can be frozen
in 24 hours is shown on the rating plate.
Freezing fresh food
•Press the freeze button (D) the yellow LED
comes on and remains lit for the entire
period.
•If your appliance is equipped with a grid,
position food to be frozen as indicated in
Fig. 1, otherwise position food as illustrated
in Fig. 2.
A) Arrange the fresh food on the grid, leaving
sufficient space around each pack for the air
to circulate and avoiding contact with already
frozen food (Fig.1).
B) Arrange the food centrally in the
compartment, , ensuring it does not
come into contact with already frozen food.
Leave a space of approx. 20 mm around
packages (Fig. 2 ).
•After approximately 24 hours the function
switches off automatically and the yellow LED
for button (D)switches off. To cancel the
function, press button (D) again.
Thetablealongsideshowstherecommended
maximum storage time for frozen fresh
foods.
HOW TO OPERATE THE FREEZER COMPARTMENT
Fig. 2
Fig. 1
7
6
5
4
3
MONTHS FOOD

16
When purchasing frozen food products:
•ensure that the packaging is not damaged
(frozen food in damaged packaging may
have deteriorated). If the package is swollen
or has damp patches, it may not have been
stored under optimal conditions and thawing
may have already begun.
•When shopping, leave frozen food
purchases till last and transport the products
in a thermally insulated cool bag.
•Place the items in the freezer compartment
as soon as you get home.
•If food has thawed, even partially, do not re-
freeze it. Consume within 24 hours.
•Avoid, or reduce temperature variations to
the minimum. Respect the best-before date
on the package.
Always observe the storage information on the
package.
Making ice cubes
•Filltheicecubetray2/3fulland placeitinthe
freezer compartment. .
•Do not use sharp or pointed instruments to
detach the tray if it is stuck to the freezer
bottom.
Bend the ice tray slightly to remove the cubes.
Before defrosting, unplug the appliance from
the mains or disconnect the electrical power
supply.
Defrosting of the refrigerator compartment is
completely automatic. Droplets of water on
the rear wall of the refrigerator compartment
indicate that the periodic automatic defrost
cycle is in progress. The defrost water is
automatically routed to a drain outlet and
into a container from which it evaporates.
Clean the defrost water drain outlet regularly
using the tool supplied with the appliance. This
precautionensuresthatdefrostwaterisremoved
correctly (Fig. 3).
Defrosting the compartment
Defrostthefreezer compartment once or
twice a year or when the formation of ice on the
walls is excessive.
It is perfectly normal for ice to form. The amount
and speed at which the ice forms depends on
ambient conditions and the frequency with which
thedoorisopened.Iceformationis concentrated
atthe topofthe compartmentanddoesnotaffect
the efficiency of the appliance.
If possible, defrost the freezer compartment when
it is nearly empty.
•Remove the food from the freezer
compartment and group together in a cool
place or in a cool bag.
•Leave the door open to allow the frost to melt.
•Clean the interior with a sponge soaked in
warm water and/or neutral detergent. Do not
use abrasive products.
•Rinse the interior and dry thoroughly.
•Put the food back into the freezer
compartment.
•Close the door.
Plug in the appliance again and switch on
following the instructions in chapter “HOW TO
OPERATE THE refrigerator compartment”.
Adjustments and selections valid before
switching off will automatically be restored.
HOW TO USE THE FREEZER COMPARTMENT
HOW TO DEFROST THE APPLIANCE
Fig. 3

17
Before any cleaning or maintenance
operation, unplug the appliance from the
mains or disconnect the electrical power
supply.
•Periodically clean the inside of the
refrigerator compartment with a sponge
dampened in warm water and/or neutral
detergent. Rinse the interior and dry with a
soft cloth.
Do not use abrasive products.
•Clean the inside of the freezer compartment
when defrosting.
Prolonged disuse:
1. Empty the refrigerator.
2. Unplug the appliance.
3. Defrost and clean the interior.
4. Clean the appliance.
Leave the doors open to prevent the formation of
mould, odours and oxidation.
.
1. The appliance is not working.
•Is there an electricity supply?
•Is the plug properly inserted in the mains
socket?
•Is the appliance switched on?
•Has the fuse blown?
•Is the power cord in perfect condition?
2. Temperature inside the compartments is
not low enough.
•Are the doors closed properly?
•Is the appliance installed next to a heat
source?
•Are the air circulation vents blocked?
3. Water collects at bottom of refrigerator
compartment.
•Is the defrost water drain blocked?
4. The inside light is not working.
Perform the checks for problem 1., and then:
•Unplug the appliance. To replace the bulb
(max 25 W), refer to the instructions and
illustration on the product description sheet.
5. Excessive frost build-up in the freezer
compartment.
•Is the door shut properly?
•Is food obstructing proper door closure?
Gurgling and hissing noises due to
expansion in the refrigerant circuit are
normal.
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE

18
Before contacting After-Sales Service:
1. See if you can solve the problem yourself with
the help of the “Troubleshooting guide”).
2. Switch the appliance on again to see if the
problem has been solved. If it has not,
disconnect the appliance from the power
supply and wait for about an hour before
switching on again.
3. If the problem persists after this course of
action, contact After-sales Service.
Specify:
•the nature of the problem.
•the model.
•the service code (number after the word
Service on the rating plate inside the
appliance).
•your full address.
•your telephone number and area code.
Note:
Thedirectionof door opening can bechanged.
If this operation is performed by After-sales
Service it is not covered by the warranty.
•Installtheapplianceawayfromheat sources.
Installation in a hot environment, direct
exposure to the sun or installation near heat
sources (heaters, radiators, cookers) will
increase power consumption and should
therefore be avoided.
•If this is not possible, the following minimum
distances must be respected:
•30 cm from coal or paraffin stoves;
•3 cm from electric and/or gas stoves.
•Clean the interior
•Fit the accessories.
Electrical connection
•Electrical connections must be made in
accordance with local regulations.
•Voltage and power consumption are
indicated on the rating plate inside the
appliance.
•Regulations require that the appliance is
earthed.
The Manufacturer declines all liabilities
for injury to persons or animals or
damage to property resulting from failure
to observe these regulations
•If the plug and socket are not of the same
type, have the socket replaced by a qualified
electrician.
•Do not use extension leads or adaptors.
Disconnecting the appliance
It must be possible to disconnect the appliance
byunpluggingitorbymeansof atwo-poleswitch
fitted upline of the socket.
AFTER-SALES SERVICE
INSTALLATION
