Instructions for use
KVA 2500/1

PRODUCT SHEET GB
I
GB
D F NL E P GR DK
S N FIN

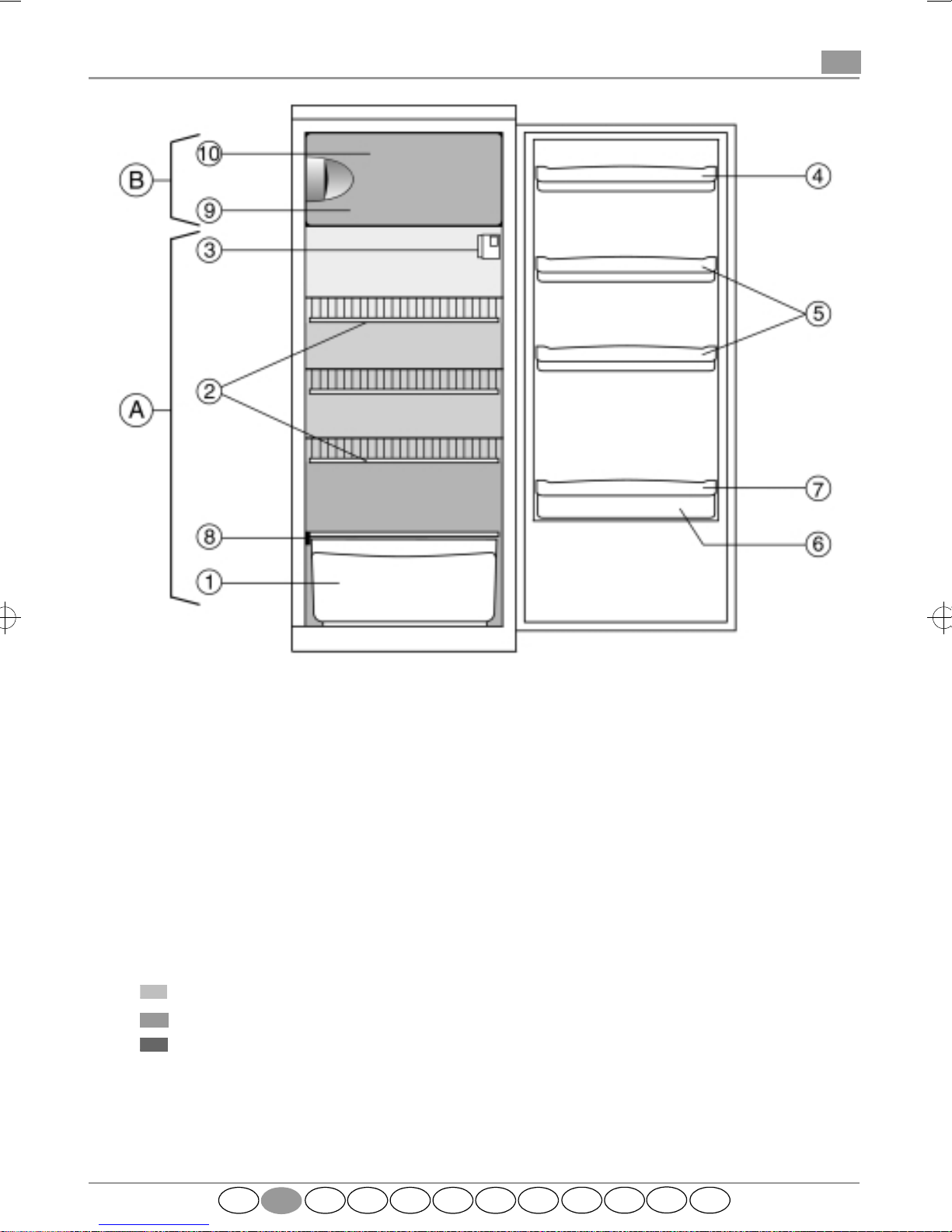

A. Refrigerator compartment
1. Crisper drawer
2. Shelves / Shelf area
3. Thermostat control knob/light
4. Upper door tray
5. Door trays
6. Bottle rack
7. Removable bottle restrainer (if present)
8. Rating plate (at the side of crisper
drawer)
B. Low temperature compartment
9. Ice cube tray (inside the compartment)
10. Freezer compartment inner door
Least cold zone
Intermediate temperature zone
Coldest zone
Notes: The number of shelves and type of accessories may vary, depending on the model.
All shelves, door trays and racks are removable.
Important: Refrigerator accessories must not be washed in a dishwasher.
6gb33022.fm5 Page 1 Friday, February 9, 2001 5:41 PM

5019 602 33022 I
GB
D F NL E P GR DK
S N FIN
Printed in Italy 02/01

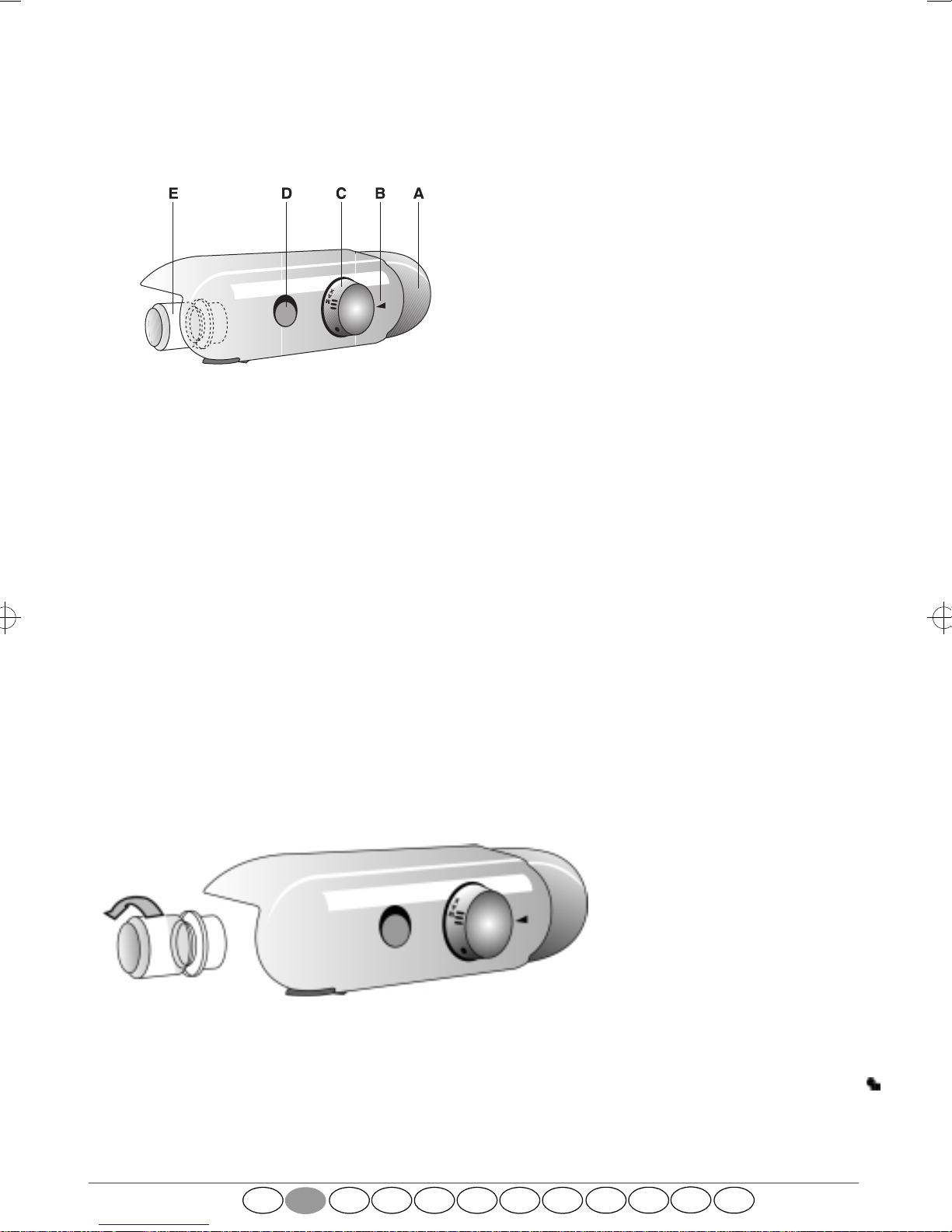

Refrigerator compartment controls
A.Light switch cam
B.Thermostat control reference
C.Thermostat knob
D.Switch (if provided)
E.Light bulb (max 15 W)
Thermostat set to 1/MIN:minimum refrigeration.
Thermostat set to 2-3/MED:medium refrigeration.
Thermostat set to 7/MAX:maximum refrigeration.
Thermostat set to z: no refrigeration, no light.
Recommended thermostat setting: 2-3/MED position.
The refrigerator can operate at ambient temperatures between +10°C and +38°C. Optimal performance is
obtained at temperatures between +16°C and +38°C.
Note: The ambient air temperature, the frequency of door opening and the position of the appliance can
affect the internal temperatures of the refrigerator. These factors must be taken into account when setting
the thermostat.
Removing the light bulb
Unscrew the bulb anticlockwise as shown in the figure.
6gb33022.fm5 Page 2 Friday, February 9, 2001 5:41 PM

.

11
TABLE OF CONTENTS GB
BEFORE USING THE APPLIANCE PAGE 12
SAFEGUARDING THE ENVIRONMENT PAGE 12
PRECAUTIONS AND GENERAL HINTS PAGE 13
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT PAGE 14
HOW TO OPERATE THE LOW TEMPERATURE
COMPARTMENT PAGE 15
HOW TO DEFROST AND CLEAN THE APPLIANCE PAGE 16
CARE AND MAINTENANCE PAGE 17
TROUBLESHOOTING GUIDE PAGE 17
AFTER SALES SERVICE PAGE 18
INSTALLATION PAGE 18
ELECTRICAL CONNECTION PAGE 19
37030-GB.fm5 Page 11 Thursday, June 8, 2000 9:32 AM

12
Your new appliance is exclusively for
domestic use.
The low temperature compartment, if present,
can be used for making ice cubes, storing frozen
foods and freezing fresh and cooked food
(in the compartment only).
Defrosting is a manual procedure.
The refrigerator compartment,which has
an automatic defrost feature, is used for the
storage of fresh food and beverages.
To get the most out of your new appliance,
read this user handbook thoroughly, as it
contains a description of the appliance and
useful tips for storing food.
Keep this handbook for future consultation.
1. After unpacking the appliance, make sure
that the door shuts properly.
Any damage must be reported to your dealer
within 24 hours after delivery of the appliance.
2. Wait at least two hours without moving
the appliance before connecting it to the
power supply.
3. Appliance installation and electrical
connections must be carried out by a
qualified technician in accordance with the
manufacturer’s instructions and local
regulations.
1. Packing
The packaging material is 100% recyclable
(marked with the recycle symbol).
Follow local regulations for disposal.
The packaging material (plastic bags,
polystyrene parts, etc.) is potentially dangerous
and must be kept out of reach of children.
2. Product
The appliance is made using recyclable
materials and must be scrapped in accordance
with local waste disposal regulations.
Make the appliance unusable by cutting off the
power cord. Dispose of this appliance correctly.
Take it to an authorised collection centre for the
recovery of refrigerant gas.
Information:
This appliance does not contain CFCs
(replaced with R134a) or HFCs
(replaced with R600a - Isobutane).
For more information, refer to the rating plate
affixed to the appliance.
BEFORE USING THE APPLIANCE
SAFEGUARDING THE ENVIRONMENT
37030-GB.fm5 Page 12 Thursday, June 8, 2000 9:32 AM

13
•Use the refrigerator compartment only for
storing fresh foods and the low temperature
compartment only for making ice cubes, storing
frozen food and freezing fresh food (
compartment only).
•Do not cover or obstruct the air vents of
the appliance.
•Do not store liquids in glass containers in the low
temperature compartment - danger of bursting.
•Do not eat ice cubes or ice lollies after taking them
out of the low temperature compartment - risk of
“cold”burns.
•To avoid the risk of children becoming trapped or
suffocating,donotallowthemtoplayorhideinside
the appliance.
•Before cleaning or carrying out maintenance,
always unplug the appliance or switch the power
supply off.
•The power cable can only be replaced by an
authorized person.
Declaration of conformity
•This appliance is intended to come into contact
with foodstuffs and conforms to D.L. 108 of
25.01.1992 (European Directive 89/109/EEC).
Information
Appliances with isobutane (R600a)
Isobutane is a natural gas having low environmental
impact. Caution is required, however, because
Isobutane is inflammable. Therefore, ensure that the
pipelines of the refrigerant circuit do not get damaged.
PRECAUTIONS AND GENERAL HINTS
37030-GB.fm5 Page 13 Thursday, June 8, 2000 9:32 AM

14
A
B
E
D
C

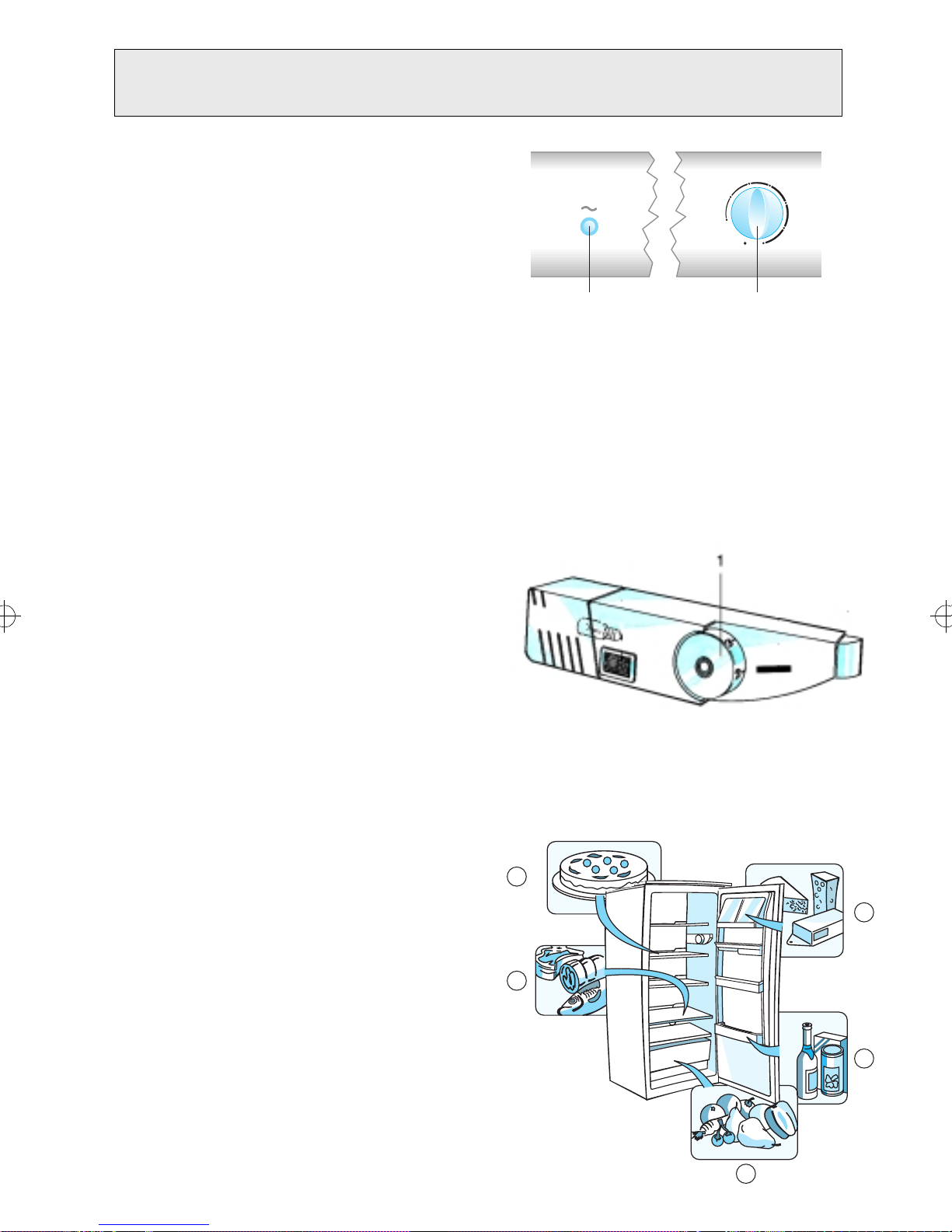

Switching on the appliance
Switching on the appliance
Depending on the model, your appliance is fitted with
external controls (A) or internal controls (B).
Plug in the appliance.
If your appliance is equipped with external controls (A):
•The light, located below the control panel,
switches on when the refrigerator door is opened.
•The green light (A2) switches on, indicating that
the appliance is in operation.
For appliances with internal controls (B), when the
refrigerator is connected to the electrical power supply
the interiorlight will switchon when thedoor is opened
unless the thermostat knob is set to l.
The thermostat (A1-B1), fitted in the refrigerator
compartmentoronthefrontpaneloftheappliance,canbe
used to adjust the temperature of the refrigerator
compartment and that of the low temperature
compartment (if present).
Temperature adjustment
1. To ensure correct operation and the best possible
food storage in both compartments, set the
thermostat in accordance with the indications
on the enclosed product chart.
2. To alter the temperature in the compartment set
the thermostat knob to:
•on lower numbers 1-2 if you require
HIGHER TEMPERATURES;
•on numbers 3-4 for INTERMEDIATE
TEMPERATURES;
•on higher numbers 5-7 (MAX) for LOWER
TEMPERATURES.
Thermostat setting on l: all functions of the appliance
including the interior light are switched off.
Note:
Internal temperatures are affected by room
temperature, frequency of door opening and the
position of the appliance. Thermostat settings must be
regulated according to these factors.
Using the refrigerator compartment
Position the food as shown in the figure.
A Cooked food
B Fish, meat
C Fruit and vegetables
D Bottles
E Dairy products
Notes:
•The space between the shelves and the rear wall
of the refrigerator compartment must be
unobstructed to allow air circulation.
•Do not place the food in direct contact with the rear
wall of the refrigerator compartment.
•Do not place hot food in the refrigerator.
•Store liquids in closed containers.
Caution
Storingvegetables withhigh watercontentcan cause
condensate formation in the crisper: this will not
affect the refrigerator's efficiency.
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
Off Max
1
2
34
5
6
2 1
A
B
37030-GB.fm5 Page 14 Thursday, June 8, 2000 9:32 AM

15
Thelowtemperaturecompartmentisat ,
or at .
In compartments at or frozen
foods can be stored for the period indicated
on the package. If the low temperature
compartment is set at , it can also
be used for freezing fresh food.
The quantity of fresh food that can be frozen
in 24 hours is shown on the rating plate.
Note:
In the event of a power failure, the low
temperature compartment maintains the correct
storage temperature. However, avoid opening
the compartment door during this period.
Freezing fresh food
(in the compartment only)
Important
•Before freezing, wrap and seal fresh food in:
aluminium foil, cling film, air and water-tight
plastic bags, polythene containers with lids
or special freezer containers.
•Arrange food to be frozen in the top
compartment leaving sufficient space around
each pack for the air to circulate.
•For most efficient freezing, set the thermostat
half a notch back towards the lower numbers
when food items are inserted into the low
temperature compartment.
•The food will be completelyfrozen in 24 hours.
For appliances with the compartment.
The table alongside shows the recommended
maximum storage time for frozen fresh foods.
When purchasing frozen food products:
•ensure that the packaging is not damaged
(frozen food in damaged packaging may
have deteriorated). Avoid packages that are
swollen or show evidence of damp areas
indicating that the food may have thawed
partially during its period of storage.
•When shopping, leave frozen food
purchases till last and transport the products
in a thermally insulated bag.
•Place the items in the low temperature
compartment as soon as you get home.
•If food has thawed, even partially,
do not re-freeze it. Consume within 24 hours.
•Avoid subjecting foods to temperature
variations. Observe the “best before”date on
the package.
•Always observe the storage information on
the package.
Making ice cubes
•Fill the ice cube tray 2/3 full of water and
place it in the low temperature compartment.
•Do not use sharp or pointed instruments to
detach the ice tray if it is stuck to the shelf.
•Bend the icetray slightly to removethe cubes.
.
HOW TO OPERATE THE LOW TEMPERATURE
COMPARTMENT
MONTHS FOOD
37030-GB.fm5 Page 15 Thursday, June 8, 2000 9:32 AM

16

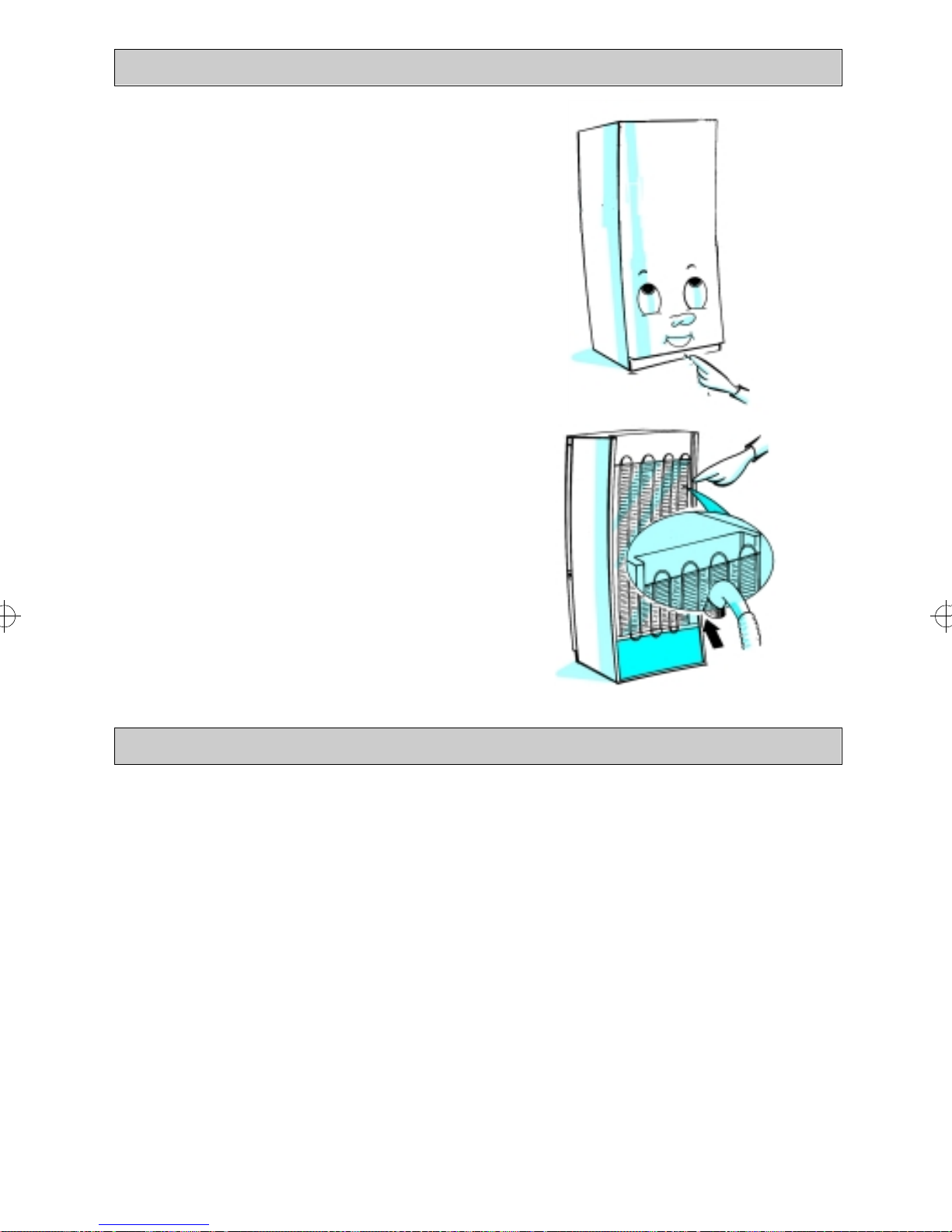

Before servicing or cleaning the appliance,
unplug it from the mains or disconnect the
electricity supply.
Defrosting of the refrigerator compartment is
completely automatic.
Droplets of water on the rear wall of the refrigerator
compartment indicate that the periodic automatic
defrost cycle is in progress.
The defrost water is routed to a drain outlet andintoa
container on the compressor from which it evaporates.
Cleanthedefrostwaterdrainoutletregularlyusingthe
tool supplied with the appliance. This precaution
ensures that defrost water is removed correctly from
the interior of the refrigerator compartment.
Defrosting the low temperature compartment
Defrost the low temperature compartment once
or twice a year or when the formation of ice
is excessive.
It is perfectly normal for ice to form in the low
temperature compartment. The amount and speed
at which the ice forms depends on ambient
conditions and the frequency with which the door
is opened. Ice formation is concentrated at the top
of the low temperature compartment and doesnot
affect the efficiency of the appliance.
If possible, defrost the low temperature
compartment when it is nearly empty.
•Remove the food from the low temperature
compartment, wrap in sheets of newspaper
and group together in a cool place or in a
portable cooler.
•Leave the door open to allow the frost to melt.
•Clean the interior with a sponge soaked in
warm water and/or neutral detergent.
Do not use abrasive products.
•Rinse the interior and dry thoroughly.
•Put the food back into the low temperature
compartment.
•Close the door.
•Plug in the appliance.
•Switch the appliance on.
HOW TO DEFROST AND CLEAN THE APPLIANCE
37030-GB.fm5 Page 16 Thursday, June 8, 2000 9:32 AM

17
•Periodically clean air vents and the
condenser at the rear of the appliance with
a vacuum cleaner or a brush.
•Clean the outside using a soft cloth.
Prolonged disuse
1. Empty the refrigerator.
2. Disconnect the appliance from the mains.
3. Defrost and clean the interior.
4. Leave the door open to prevent oxidation and
theformationofmouldandunpleasantodours.
5. Clean the appliance.
•Cleanthelowtemperaturecompartmentinterior
(if present) during the defrosting operation.
•Periodically clean the inside of the
refrigerator compartment with a sponge
moistened with warm water and/or neutral
detergent. Rinse and dry with a soft cloth.
Do not use abrasive products.
•Clean the outside with a soft clothmoistened
with water. Do not use abrasive products,
scouringpads, stain removers (e.g. acetone,
trichloro-ethylene) or vinegar.
.
1. The appliance is not working.
•Is there a power failure?
•Is the plug properly inserted in the socket?
•Is the mains power switch set to ON?
•Has the fuse blown?
•Is the power cord in perfect condition?
•Is the thermostat set to l(Stop)?
2. Temperature inside the compartments is
not low enough.
•Is the door closed properly?
•The food is stored inside the appliance
incorrectly and obstructs proper closing of
the door?
•Is the appliance installed next to a heat
source?
•Is the thermostat setting correct?
•Are the air circulation grilles blocked?
3. Temperature inside the refrigerator
compartment is too low.
•Is the thermostat setting correct?
4. The appliance is excessively noisy.
•Has the appliance been installed correctly?
•Are the pipes at the back touching or
vibrating?
5. Water collects at bottom of refrigerator
compartment.
•Is the defrost water drain blocked?
6. Excessive frost build-up in the low
temperature compartment.
•Is the door closed properly?
•Does the food stored inside obstruct proper
closing of the door?
Note:
•Gurgling and hissing noises due to
expansion in the refrigerant circuit are
normal.
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
37030-GB.fm5 Page 17 Thursday, June 8, 2000 9:32 AM

18
Before calling After Sales Service:
1. See if you can solve the problem yourself
with the help of the Trouble-shooting guide.
2. Switch the appliance on again to see if the
problem persists. If it does, switch off and
wait for about an hour before switching on.
3. If the problem persists, contact
After Sales Service.
Specify:
•the nature of the fault,
•the model,
•the service number (the number after the
word SERVICE on the rating plate on the
inside of the appliance),
•your complete address,
•your telephone number and area code. Note:
The direction of door opening can be
changed. If this operation is performed by
After-sales Service it is not covered by
the warranty.
•Installtheapplianceawayfromheatsources.
Installation in a hot environment, direct
exposure to the sun or installation near heat
sources (heaters, radiators, cookers)
will increase power consumption and should
therefore be avoided.
•If this is not possible, the following minimum
distances must be respected:
•30 cm from coal or petroleum stoves;
•3 cm from electric and/or gas cookers.
•Fit the spacersprovided on the condenser at
the rear of the appliance (see figure).
•To optimize appliance efficiency, leave a 5
cm gap above the appliance and make sure
that adjacent kitchen units are sufficiently
distanced to allow air circulation.
•Install the refrigerator in a dry, well-ventilated
place. Make sure it is level. Adjust the front
feet if necessary.
•Clean the inside.
•Fit the accessories.
Electrical connection
•Electrical connections must be made in
accordance with local regulations.
•Voltageandpowerconsumptionareindicated
on the rating plate inside the appliance.
•Appliance earthing is compulsory by law.
The Manufacturer declines all liabilities
for injury to persons and animals or
damage to property resulting from failure
to observe these regulations.
•If the plug and socket are not of the same
type, have the socketreplaced by a qualified
electrician.
•Do not use extension leads or adapters.
Disconnecting the appliance
It must be possible to disconnect the appliance
by unplugging it or by means of a two-pole switch
fitted upline of the socket.
AFTER SALES SERVICE
INSTALLATION
37030-GB.fm5 Page 18 Thursday, June 8, 2000 9:32 AM

19
For Great Britain only
Warning - this appliance must be
earthed
Fuse replacement
If the mains lead of this appliance is fitted with a
BS1363A13ampfusedplug,to changea fusein
this type of plug use an A.S.T.A. approved fuse
to BS 1362 type and proceed as follows:
1. Remove the fuse cover (A) and fuse (B).
2. Fit replacement 13A fuse into fuse cover.
3. Refit both into plug.
Important:
The fuse cover must berefitted when changinga
fuseandif thefusecoverislosttheplugmustnot
be used until a correct replacement is fitted.
Correct replacement are identified by the colour
insert or the colour embossed in words on the
base of the plug.
Replacement fuse covers are available from
your local electrical store.
Connection to a rewirable plug
If the fitted plug is not suitable for your socket
outlet, then it should be cut off and disposed of in
order to avoid a possible shock hazard should it
be inserted into a 13A socket elsewhere.
A suitable alternative plug should then be fitted
to the cable.
The wires in the mains lead are coloured in
accordance with the following code:
BLUE - “NEUTRAL”(“N”)
BROWN - “LIVE”(“L”)
GREEN AND YELLOW - “EARTH”(“E”)
1. The GREEN AND YELLOW wire must be
connected to the terminal in the plug which is
marked with the letter “E” or by the Earth
symbol 4 or coloured green or green and
yellow.
2. The BLUE wire must be connected to the
terminal which ismarked with theletter “N”or
coloured black.
3. The BROWN wire must be connected to the
terminal which is marked with the letter “L” or
coloured red.
For the Republic of Ireland only
The information given in respect of Great Britain
will frequently apply, but a third type of plug and
socket is also used, the 2-pin, side earth type. In
this case, the wire which is coloured GREEN
ANDYELLOWmustbeconnectedtotheEARTH
contact, and the two wires to the two pins,
irrespective of colour. The supply to the socket
must be fitted with a 16 amp fuse.
ELECTRICAL CONNECTION
37030-GB.fm5 Page 19 Thursday, June 8, 2000 9:32 AM
