Baumatic BDW65S User manual

BDW65S/W
60 cm Freestanding
electronic dishwasher

2
USER MANUAL FOR YOUR BAUMATIC
BDW65S/W
60cm Freestanding Electronic
Dishwasher
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 19/07/11

3

4
Contents
Environmental note 5
Important safety information 6 – 8
Specifications 9 - 12
Productdimensions 9
Product specifications 9 - 10
Energyefficiencydetails 10
Electricaldetails 10
Description of the appliance 11
Controlpanel 11
Displayicons 12
Usingyourdishwasher 13 -27
Before first use 13
Fillingwithrinseaid 13
Settingtherinseaidlevel 14
Filling with dishwasher detergent 14 -15
Concentrateddetergent 15
Detergenttablets 15
Loading the upper basket 16
Adjusting the upper basket 17
Folding back the cup shelves 18
Loadingthelowerbasket 18-19
Thecutlerybasket 19-20
Loadingdishesandcutlery 20-21
Program table 21-22
Settingawashprogram 23
Changingawashprogram 23-24
Attheendofawashprogram 24
Settingadelaystart 25
TheAltfunction 26
Thesafetylock 26-27
Saving energy using your dishwasher 27
Cleaning and maintenance 28 -30
Thefiltersystem 28
Cleaningthefilters 29
Cleaningthesprayarms 29
Cleaning the control panel 30
Cleaningthedoor 30
Cleaningtheseals 30
Longperiodsofnotinuse 30
Errorcodefailuresystem 31 –32
General troubleshooting 32 –34
Installation 35 -39
Positioning and leveling the appliance 35 -36
Connecting to the mains water supply 36
Connecting to the water outlet 37
Connecting to the power supply 37 -38
Before first use 38
Contact details 39 -40

5
ENVIRONMENTAL NOTE
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

6
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Retailer where you purchased
your unit from.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your dishwasher.
oIf you notice that the mains cable is damaged. The appliance
must not be used.The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe external surface of the appliance may become hot whilst
your dishwasher is in use.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
oBefore the first use of the appliance, you should follow the
steps listed in the “Before first use” section on page 13
and page 38 of this manual.

7
oCare should be taken not to trap the power supply cable
underneath the appliance whilst installing it.
oNo attempt should be made to alter or modify the specifications
of this appliance.
In daily use
oThis appliance is only designed to wash normal domestic
washloads. If you use your dishwasher in any other way or it is
incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThe detergents, rinse aid and salt that you place in this appliance
should be suitable for automatic dishwashers. With regards to
dosage levels, the detergent manufacturer’s recommendations
should be followed.
oSharp knives or ones with long blades are a potential safety
hazard when placed in an upright position in the cutlery basket.
We would recommend that these items are placed horizontally in
the upper basket.
oYou should not wash any items that have come into contact
with corrosive, acidic or alkaline chemicals, paint, petrol, iron or
steel debris.
oYou should not open the door whilst the appliance is set on a
wash program. Depending on which stage that the wash
program is at, hot water could escape the machine.
oYou should not leave the door of the appliance open, unless
you are loading or unloading the dishwasher.
oYou should not stand or sit on the door when it is open.

8
Child Safety
oYour dishwasher should only be used by adults. You should not
allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
dishwasher if the door is left open. Therefore please check the
inside of the appliance before setting it on a wash cycle.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of children’s reach in a safe
place.
oSome water will remain inside the dishwasher when it has
completed a wash cycle. This water is not suitable for drinking
and may contain residues from the detergents that are used in
the appliance.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23 dated 19/02/1973 Low Voltage Directive and subsequent
modifications.
-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and
subsequent modifications.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your dishwasher is
located on the right hand side of the drop down door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

9
Specifications

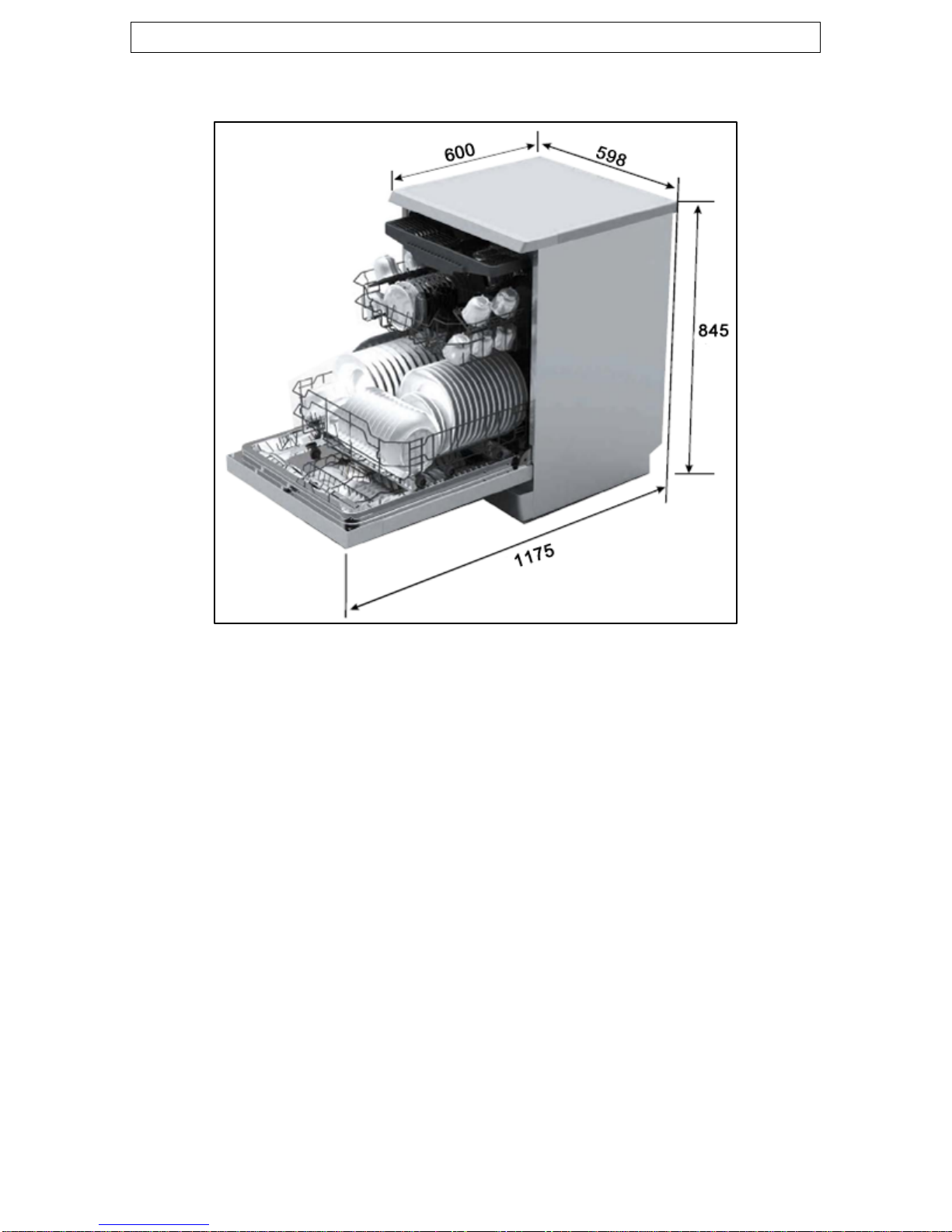

Product dimensions
Height: 845 mm
Width: 598 mm
Depth: 600 mm (1175 mm with door open)
Product specifications
o14 Place settings
o7 programs: Normal
Intensive
Heavy
Glass
Rapid
Soak
1 hour
o4 temperatures: 40°C, 50°C, 60°C, 65°C
oWater consumption (normal program): 13 litres/cycle
oQuiet operation (49 dB)

10
oLED display
oDelay start
oResidual drying
oAlternative wash function
oConcealed heating element
oSelf-cleaning stainless steel micro-filter
oAnti-leak device
oAnti-flood device
oHeight adjustable upper basket
oCollapsible plate racks
Energy efficiency details
Water consumption: 3.5 stars
Energy consumption: 4 stars
Electrical details
Rated voltage: 220 - 240 Vac 50 Hz
Supply connection: 13 A (double pole switched fused outlet
with 3 mm contact gap)

11

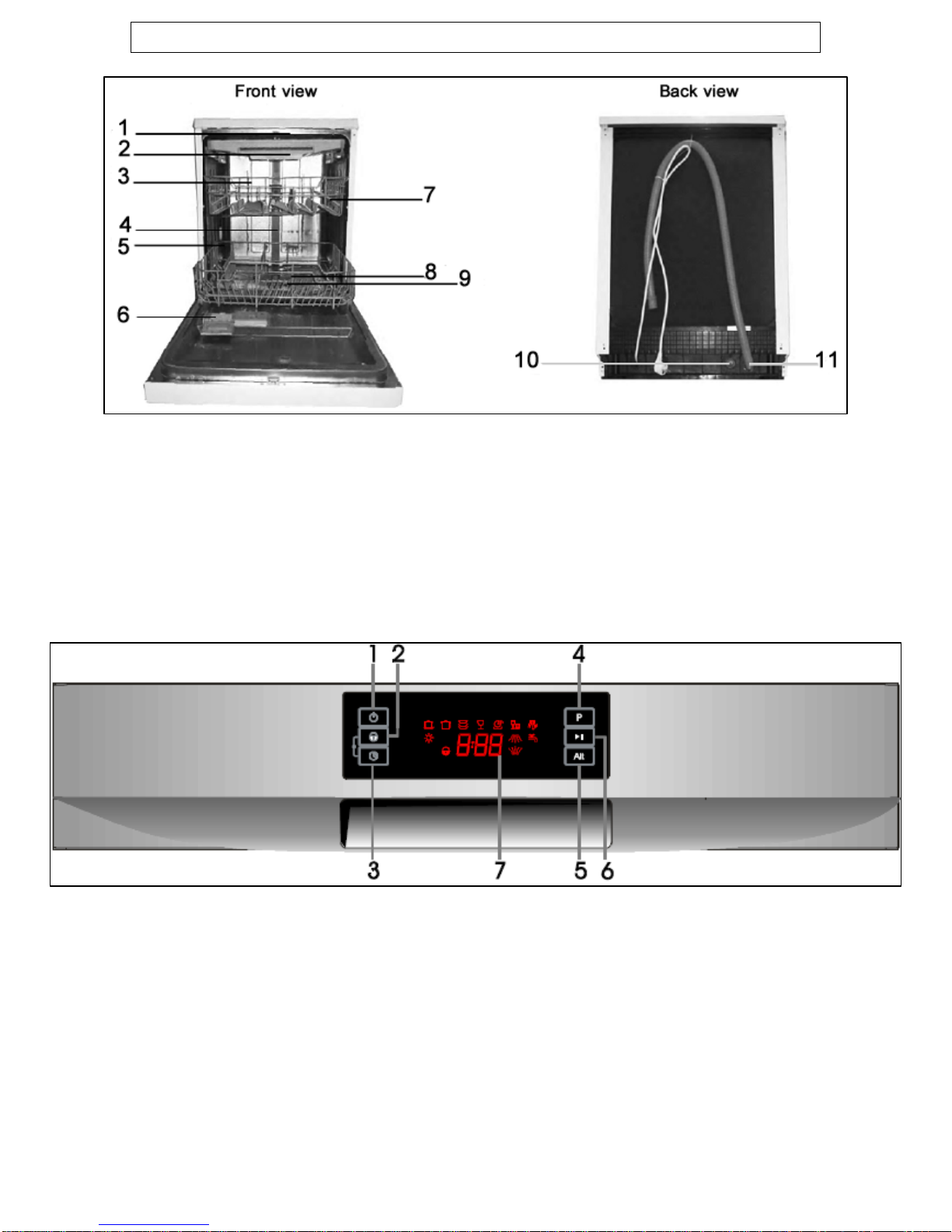

Description of the appliance
1) Upper spray arm
2) Cutlery basket
3) Upper basket
4) Internal pipe
5) Lower basket
6) Detergent dispenser
7) Cup shelf
8) Lower spray arm
9) Filter assembly
10) Inlet pipe connector
11) Drain pipe
Control panel
1) ON/OFF button
2) Safety lock button
3) Delay start button
4) Program button
5) Alt button
6) Start/Pause button
7) LED display

12

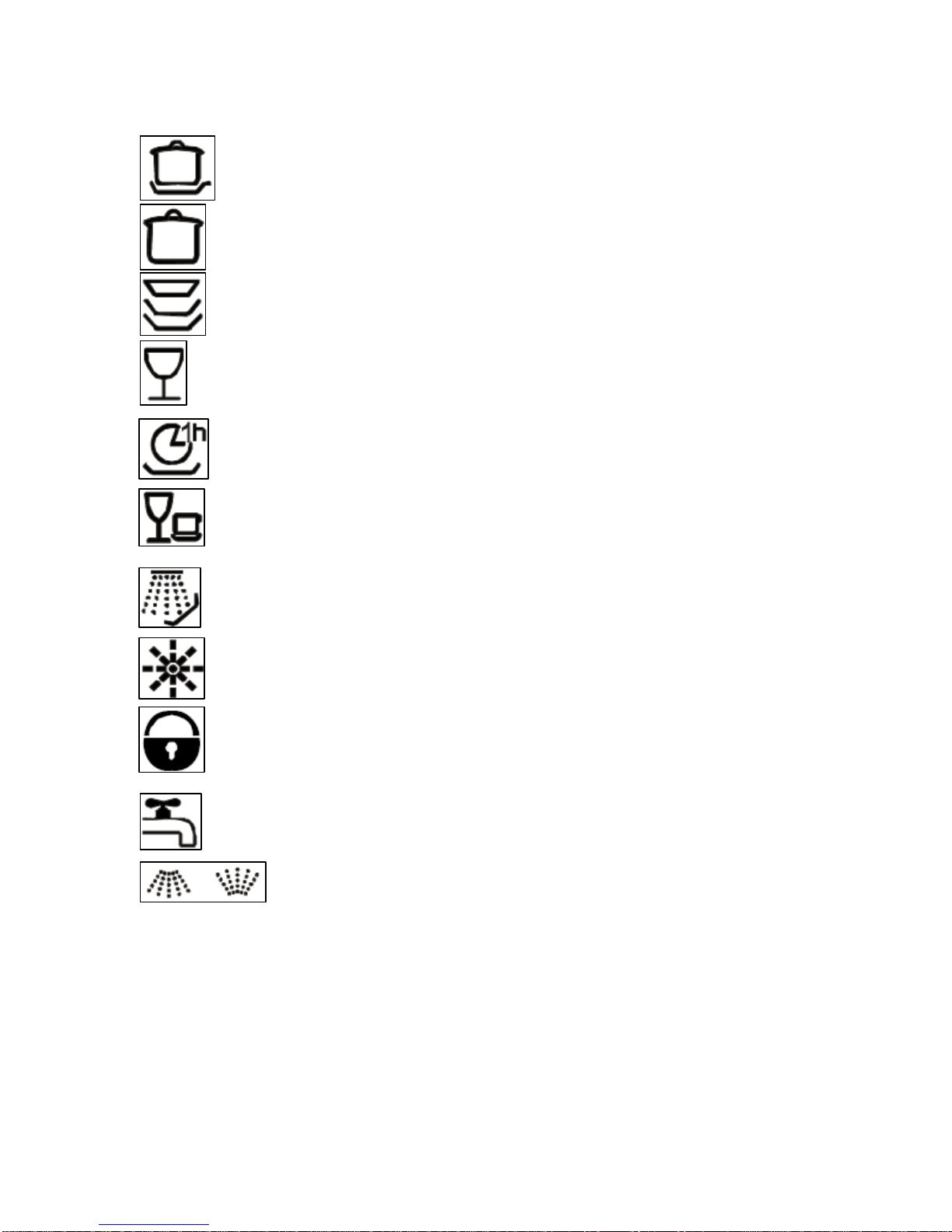

Display icons
oThe LED display contains numerous icons which light for different
usages. For a description of each icon please see the list below.
INTENSIVE program icon
HEAVY program icon
NORMAL program icon
GLASS program icon
1 HOUR program icon
RAPID program icon
SOAK program icon
Rinse aid indicator
Safety lock icon
Water tap icon
Alt function icons

13
Using your dishwasher
Before first use
oLocate the appliance as per the installation instructions
contained within this booklet.
oFill the rinse aid dispenser and then set the rinse aid dosage.
Filling with rinse aid
The rinse aid is released during the final rinse and it helps
to prevent water from forming droplets on your dishes.
These droplets will lead to spots and streaks being left on
items after the wash program has completed.
oYour dishwasher is designed to utilise liquid rinse aid.
oThe rinse aid dispenser is located inside the drop down door,
next to the detergent dispenser.
oTo access the rinse aid dispenser, you should turn the cap
anticlockwise and it will pop out of the hole. Then slowly pour in
liquid rinse aid, the rinse aid dispenser will hold approximately
110 ml of rinse aid.
oBe careful not to overfill the dispenser, as this could cause
oversudsing when a wash program is selected. Wipe away any
rinse aid excess or spillages with a damp cloth.
oReplace the cap and turn it clockwise until it locks into position.
oYou should refill the rinse aid dispenser when the
rinse aid indicator lights on the control panel.
oIMPORTANT: If you are using 3 in 1 dishwasher
tablets then you should still fill the rinse aid dispenser.

14
Setting the rinse aid level
The amount of rinse aid that the dishwasher requires also depends on
the hardness of your water. You should experiment with the rinse aid
setting, until you find a level that gives the best results.
oOn the first wash cycle, we
would recommend that the
rinse aid level is set to number
4.
oIf you get water spots and
poor drying performance, then
you should turn the arrow
anticlockwise and increase the
setting to the next number.
oYou should continue to adjust the rinse aid level upwards until
you get no water spots.
oIf you get cloudiness or streaking on your dishes, the rinse aid
level is set too high and it is causing foaming during the wash
cycle. Turn the arrow clockwise and lower the setting to the next
number.
Filling with dishwasher detergent
The detergent dispenser must be refilled at the start of each wash
cycle (apart from the Rinse wash program).
oPush the latch on the side of the dispenser to open the lid and
place the detergent inside of the dispenser.

15
oThe section marked A in the diagram is for the main wash cycle
detergent. Only one detergent tablet should be placed in the
dispenser at any one time. If you are using detergent powder or
liquid, you should follow the detergent manufacturer’s
recommendations.
oThe section marked Bin the diagram can have separate
detergent placed in it for any wash cycle that has a pre-wash
element to it, however this is optional. This must be a liquid or
powder detergent, not another detergent tablet.
oShut the detergent dispenser lid and position the clip on the
outer edge, so that it holds the lid shut.
oAt the beginning of a wash cycle the clip will open and the
tablet/powder/liquid will enter the dishwasher.
Concentrated detergent
oThe use of the NORMAL program with concentrated detergents
reduces pollution and is good for your dishes.
oThe NORMAL program is specifically matched to the dirt-
dissolving properties of the enzymes of concentrated detergents.
For this reason, the NORMAL program with concentrated
detergent can achieve the same result as the INTENSIVE
program.
Detergent tablets
oDifferent brands of detergent tablets dissolve at different speeds.
For this reason, some detergent tablets cannot dissolve and
develop their full cleaning power during short programs.
oTherefore, please use longer programs when using detergent
tablets to ensure the complete removal of detergent residues.

16
Loading the upper basket
The upper basket is most suited to washing delicate and light
dishware, such as glasses, coffee & tea cups, saucers, plates, bowls
and shallow pans (that are not heavily soiled).
1) Cups
2) Saucers
3) Glasses
oYou should position the dishes and cookware in such a way that
they are not moved by the spray of water during the wash cycle.
oUse the diagrams above as a guide to the most appropriate way
to load the upper basket.

17

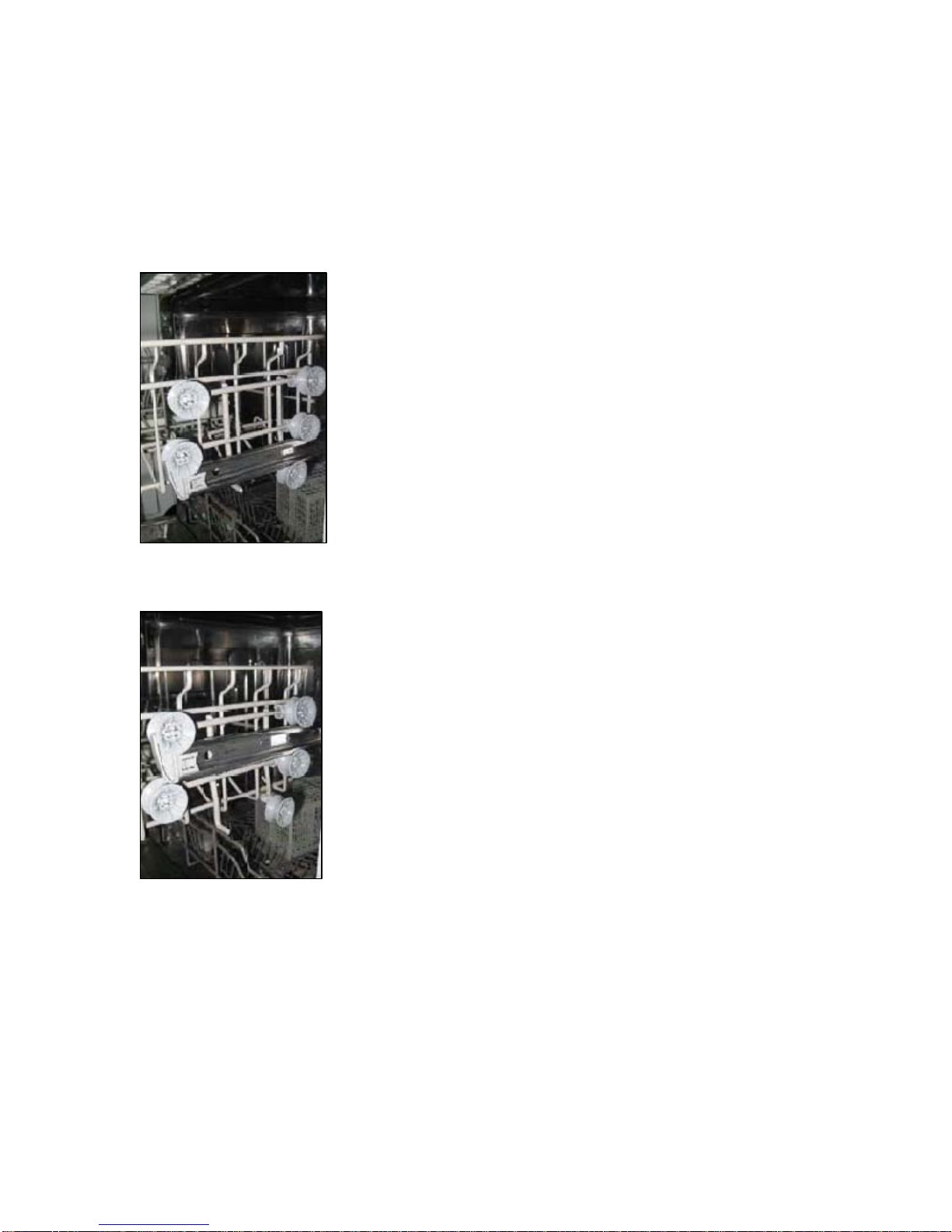

Adjusting the upper basket
Your dishwasher has an adjustable upper basket which you can alter to
the most suitable position for the items you are going to wash in the
upper basket.
The height of the upper basket can be adjusted by pulling the handle
on either side of the basket upwards until it clips into place.
Position 1 (upper position)
oFor accommodating items such as glass
tumblers and wine glasses. Wine glasses
should be placed upside down, so that the
stem of the glass rests in one of the
grooves on the side flap.
Position 2 (lower position)
oFor accommodating additional tumblers,
cups and mugs. You can also place small,
espresso sized cups on top of the side
racks. Care should be taken to make sure
that there is enough clearance between the
top of the cups placed on top of the side
racks and the underneath of the dishwasher
interior.
oPlease note that when the basket is in the upper position, you
cannot have the side flaps in a raised position. Otherwise the
basket will not slide back into the interior of the dishwasher.

18
Folding back the cup shelves
oFor easier stacking of pots and pans, the cup shelf spikes can be
folded down as shown in the image below.
Loading the lower basket
The lower basket is most suited to washing larger and more heavily
soiled items, such as saucepans, saucepan lids and serving dishes. You
can also load bowls and a variety of plates into the lower basket.
4) Dinner plates
5) Soup plates
6) Dessert dishes

19
oSaucepans and serving bowls must always be placed with their
bases upwards.
oDeep saucepans should be slanted, to allow water to run off.
oThe bottom rack has foldable racks at the rear of the basket that
can be folded downwards, to allow for easier loading of larger
saucepans and serving bowls.
Foldable racks
To make it easier to load saucepans, the
racks in the lower basket can be folded
downwards.
The cutlery basket
Cutlery should be placed inside of the cutlery basket. The cutlery
should be placed separately from each other to ensure thorough
cleaning. Long utensils should be placed in the middle of the basket.

20
1) Forks
2) Soup spoons
3) Dessert spoons
4) Teaspoons
5) Knives
oThe loading methods shown above for the upper basket, lower
basket and cutlery basket are in accordance with the
AS/NZS2007.1 testing cycle.
Loading dishes and cutlery
Household cloths, sponges or any other object that
may absorb water SHOULD NOT be washed in a
dishwasher.
oRemove leftovers and soften the remnants of burnt food in pans,
prior to loading dishes in the appliance.
oOnce the dishwasher has been loaded, check that the spray arms
can move freely. If the spray arm comes into contact with any
item, then you should rearrange the wash load.
oCups, glasses, pans etc. should all be loaded with their bases
upwards, so that water does not collect inside of them.
oCutlery and dishes should not cover each other; otherwise you
may get poor wash results.
oDo not allow glasses to touch inside the dishwasher, otherwise
damage may occur.
The following items are NOT suitable for washing
inside a dishwasher:-
oCutlery with a handle of mother-of-pearl, wood, horn or china.
oPlastic items that are not resistant to heat.
oCutlery that consists of glued parts that are not resistant to heat.
oCutlery items or crockery that are bonded.
oCopper or pewter items.
oLead crystal glass.
