Baumatic BFD47SS User manual

BFD47SS
DISHWASHER

BAUMATIC
INSTRUCTION MANUAL
CAREFULLY READING IT BEFORE USING THE DISHWASHER WILL HELP
YOU
USE AND MAINTAIN THE DISHWASHER PROPERLY.
IMPORTANT!
PLEASE READ THIS MANUAL AND KEEP IT FOR FUTURE REFERENCE!
THIS MANUAL CONTAINS SECTIONS OF SAFETY INSTRUCTIONS , OPERATING
INSTRUCTIONS
& TROUBLESHOOTING TIPS , ETC.
DD 02/11/07
BFD47SS DISHWASHER
45CM FULL HEIGHT DISHWASHER

MINIMUM AND MAXIMUM PLATE SIZES....2
9
ENVIRONMENTAL NOTE………………………..3
1
HOW TO INSTALL ……….…….…..……....23-2
8
FINAL CHECKLIST BEFORE STARTING…….2
8
BAUMATIC BFD47SS dishwasher user manual
2
FROM PROFESSIONAL
NOTICE.
2
PLEASE NOTE:
THE MANUFACTURER
RESERVES THE RIGHT TO MAKE
MODIFICATIONS
TO PRODUCTS
WITHOUT
GIVING PRIOR
BEFORE
CALLING
FOR
SERVICE
REVIEWING THE SECTION ON
TROUBLESHOOTING
TIPS WILL
HELP
YOU SOLVE SOME
COMMON
PROBLEMS WITHOUT
THE
NEED TO ASK FOR HELP
TECHNICIANS.
CONTENTS
• SAFETY FIRST!
SAFETY INFORMATION .……………..…………3
*Please read this before using your dishwasher!
• KNOWING YOUR
DISHWASHER
CONTROL PANEL ………………………..……..…4
DISHWASHER FEATURES …………..………….4
• USING YOUR
DISHWASHER
WATER SOFTENER …………………..………...5-6
DETERGENT ………………..............................6
RINSE AID ………………….............................7
LOADING YOUR DISHWASHER…..….......8-11
STARTING A WASH CYCLE ……………….12-14
UNLOADING AT THE END OF A CYCLE…....14
FILTERING SYSTEM ………………..…….…….15
CLEANING AND MAINTAINING
YOUR DISHWASHER …………………….…15-17
• BEFORE YOU CALL FOR
SERVICE…
TROUBLESHOOTING ………………….…18-21
ERROR CODES ……………….……………….…22
• MISCELLANEOUS
CHARACTERISTICS ………….………….……...2
2

IN YOUR DISHWASHER. PLEASE SEE PAGE 8 FOR A LIST
DO NOT TAMPER WITH THE CONTROLS.
AFTE
R
USE
ALWAYS KEEP THE DOOR CLOSED TO AVOID DANGER
2) Load sharp knives with the handles up to prevent
•
•
CHECK THAT THE DETERGENT DISPENSER IS EMPTY
DETERGENT, NOT SOAP OR LAUNDRY DETERGENT.
• IF LEAVING UNUSED FOR A LONG TIME,
EXPLOSION!
BAUMATIC BFD47SS dishwasher user manual
3
IMPORTANT SAFETY INFORMATION
READ BEFORE USING!
• KEEP CHILDREN AWAY FROM DETERGENT,
DISHWASHER AS THERE COULD BE
• SUPERVISE YOUNG CHILDREN TO ENSURE
BEFORE USING
SOME ITEMS ARE UNSUITABLE FOR WASHING
OF THESE ITEMS.
WHEN LOADING ITEMS TO BE WASHED:
1) Keep sharp items like knives away from the door
seal.
injuries.
ONLY USE AUTOMATIC DISHWASHER
OF TRIPPING.
NEVER USE SOLVENTS AS THIS COULD RESULT IN AN
AFTER COMPLETION OF WASH CYCLE.
DISCONNECT THE WATER SUPPLY (SEE PP. 17, 26).
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY BEFORE
USING
YOUR DISHWASHER FOR THE FIRST TIME!
3
DURING USE
CHILD SAFETY
• DO NOT ABUSE OR FORCE THE
DISHWASHER.
DO NOT SIT ON OR STAND
ON
ITS DOOR OR DISH RACKS – TIPPING
HAZARD.
RINSE AID AND THE OPEN DOOR OF THE
DETERGENT LEFT INSIDE.
THEY DO NOT PLAY WITH THE APPLIANCE.
• SUPERVISE INFIRM PERSONS IF THEY MUST
USE
THE APPLIANCE.
• REMOVE THE DOOR TO WASHING
COMPARTMENT
OF YOUR OLD APPLIANCE
BEFORE DISCARDING IT.
ELECTRICAL SAFETY
• NOTE - This appliance must be grounded. In
the event of a malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least resistance
of electrical current. You will be able to tell if
it is because a non-grounded appliance will
give off an electrical discharge.
• Manufacturer declines all responsibility for
any damage due to non-grounding of
appliance.
• DURING THE GUARANTEE PERIOD ONLY BAUMATIC
SERVICE ENGINEERS OR AN AUTHORISED AGENT
OF BAUMATIC SHOULD CARRY OUT REPAIRS ON
THIS UNIT.
• DO NOT USE IF THE SUPPLY CORD IS DAMAGED.
• FOR INSTALLATION PROCEDURE PLEASE CONSULT
PAGES 24 – 29.
• DO NOT USE YOUR DISHWASHER UNLESS
ALL
ENCLOSURE PANELS ARE PROPERLY
IN
PLACE. OPEN THE DOOR VERY
CAREFULLY
IF THE DISHWASHER IS
OPERATING.
THERE IS A RISK OF WATER
SQUIRTING
OUT.
• DO NOT TOUCH THE HEATING ELEMENT
DURING OR IMMEDIATELY AFTER USE.

(ADJUSTABLE)
8 CUTLERY BASKET
4 WATER SOFTENER
BAUMATIC BFD47SS dishwasher user manual
4

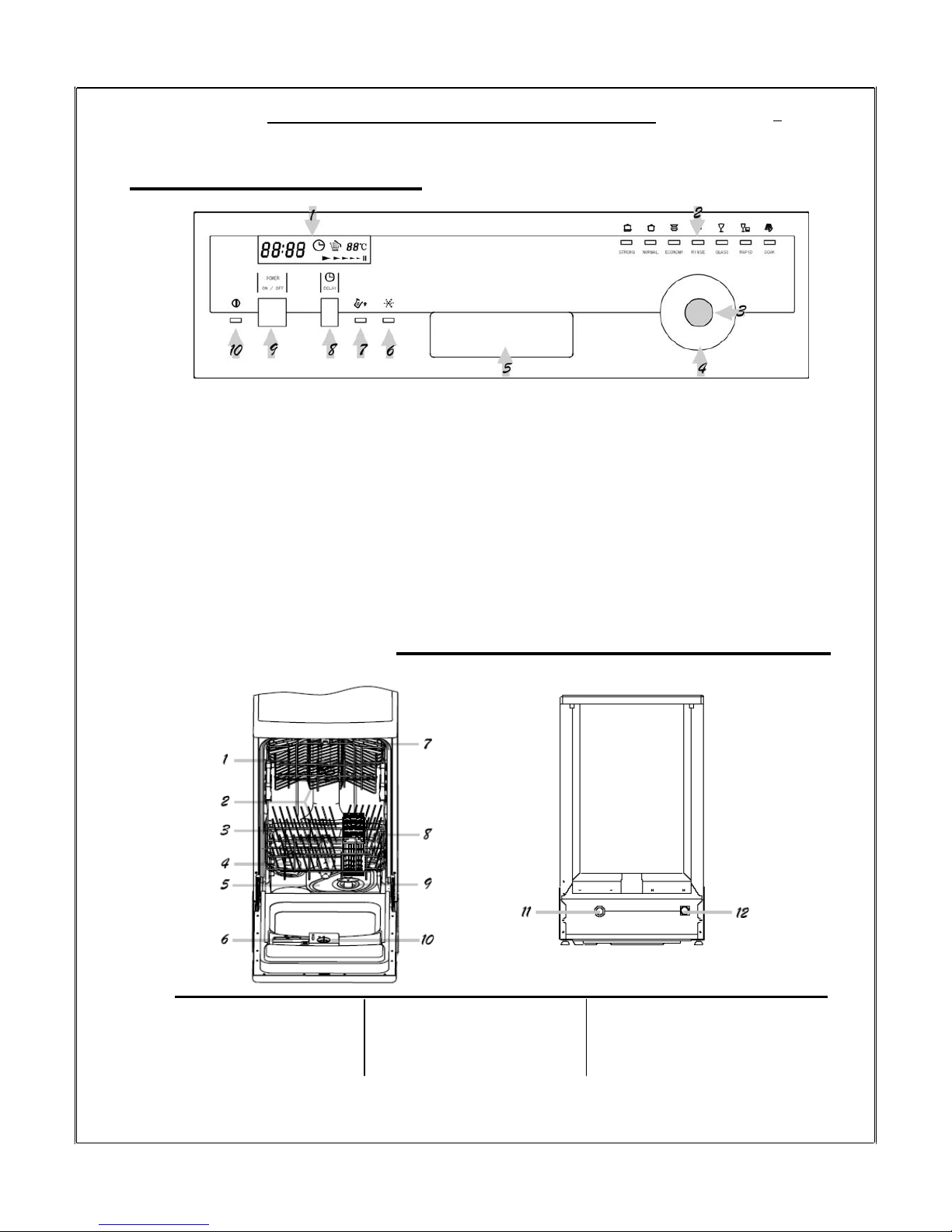

CONTROL PANEL
1) Display window – Program remaining time, delay time, running indicator, water temperature, fault
codes, etc.
2) Program indicator light.
3) Start / Pause Button: Press this button to start or stop the dishwasher. The light will come on when
starting.
4) Program Knob: Turn around the knob to choose the desired program.
5) Door Lock: Pull it to open the door.
6) Rinse Aid Warning light: Add more rinse aid as the indicator on the front panel lights up.
7) Salt Warning Light: Add more salt as the indicator on the front panel lights up.
8) Delayed Start Button: Press this button to set the time you want to start a washing cycle. Each
press adds 30 minutes to the delayed start time. You can set it up to 12 hours into the future.
9) Power Switch: Turns the power supply ON / OFF.
10) Power On Indicator Light: Comes on when the appliance is turned on.
DISHWASHER FEATURES
1 ADJUSTABLE UPPER BASKET 5 MAIN FILTER
9 COARSE FILTER
2 SPRAY ARMS 6 DETERGENT DISPENSER
10 RINSE AID DISPENSER
3 LOWER BASKET 7 CUP & GLASS SHELF
11 DRAIN PIPE CONNECTOR
12 INLET PIPE CONNECTOR
4

DISH
W
ASHER.
SURE NOT TO ADD SALT AND/OR RINSE AID
TO
THE APPLIANCE AS THESE TABLET
MINERA
L
S FROM THE WA
T
ER .
INDIVI DUA L CHEMI CA LS AND MA Y CAU SE
BAUMATIC BFD47SS dishwasher user manual
5
Note used by the dishwasheron chemicals
• Your dishwasher is equipped with an adjustable rinse aid and salt container. Using individual detergents,
rinse
aid and salt will give the best possible results as this will give the correct dosage of each chemical to
suit
your needs. Using Two-in-One or Three-in-One tablets may not give the best results when used in
your
appliance, and may not be suitable for the type of water supply in your home, as they contain pre-
determined
quantities of salt, rinse aid and detergent and cannot be adjusted to the individual
requirements.
If you are going to use 3-in-1 (or 2-in-1) tablets, we suggest that you contact the manufacturer before use
or if you experience poor results in the wash performance and ask for assistance from them.
WARNING!
ONLY USE DISHWASHER SALT IN YOUR
NOTE:
IF YOU USE 3-IN-1 OR 2-IN-1 TABLETS, BE
TYPES ALREADY CONTAIN SALT AND/OR
THE LIME IN HARD WATER MAKES DEPOSITS FORM ON RINSE AID. A DDING SALT AND R INSE A I D
DISHES AND UTENSILS. YOUR DISHWASHER HAS A
TO YO UR D ISHWAS H ER’S COMP AR TMENTS
SPECIAL SOFTENING FEATURE THAT USES SALT
I N A C Y C LE INVOLVING A 3-I N-1 O R 2-IN -1
SPECIFICALLY DESIGNED TO ELIMINATE LIME AND
TABLET WILL RESULT I N OVERDOSING OF
OVERFLOWI N G OF WATER AND SUDS.

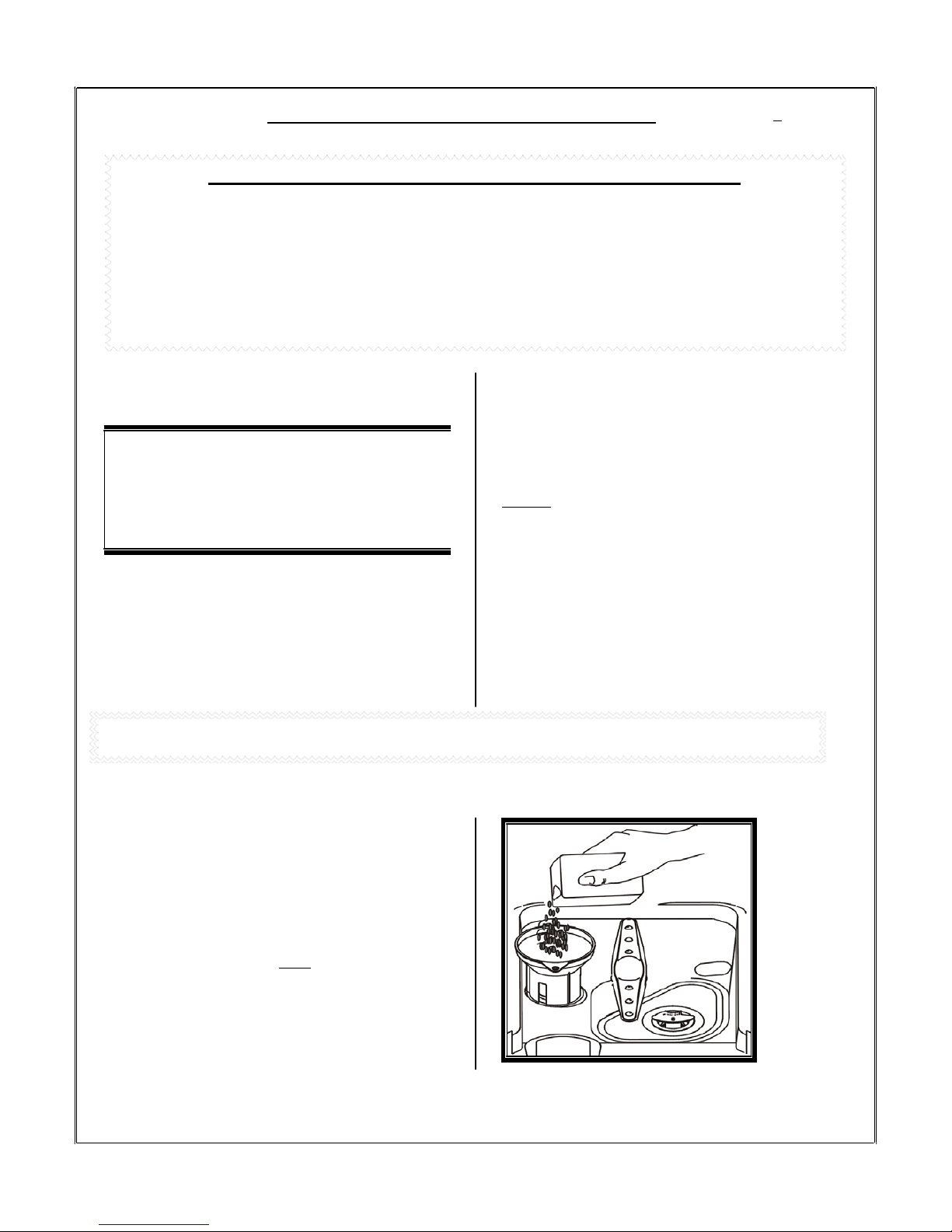

LOADING SALT INTO THE SALT CONTAINER
• REMOVE THE LOWER BASKET & THEN
UNSCREW
AND REMOVE THE CAP
FROM THE SALT CONTAINER.
• IF YOU ARE FILLING THE CONTAINER
FOR THE FIRST TIME, ,FILL 2/3 OF IT’S
VOLUME WITH WATER
(AROUND500ML).
• PLACE THE END OF THE SUPPLIED
FUNNEL INTO THE HOLE & ADD 1.2 Kg
OF SALT. NOTE: IT IS NORMAL FOR A
SMALL AMOUNT OF WATER TO COME
OUT OF THE CONTAINER.
• USUALLY:THE WARNING LIGHT WILL
BE OFF IN 2-6 DAYS AFTER THE SALT
CONTAINER BE FILLED WITH SALT.
5
WATER
SOFTENING
FEATURE

BAUMATIC BFD47SS dishwasher user manual
6

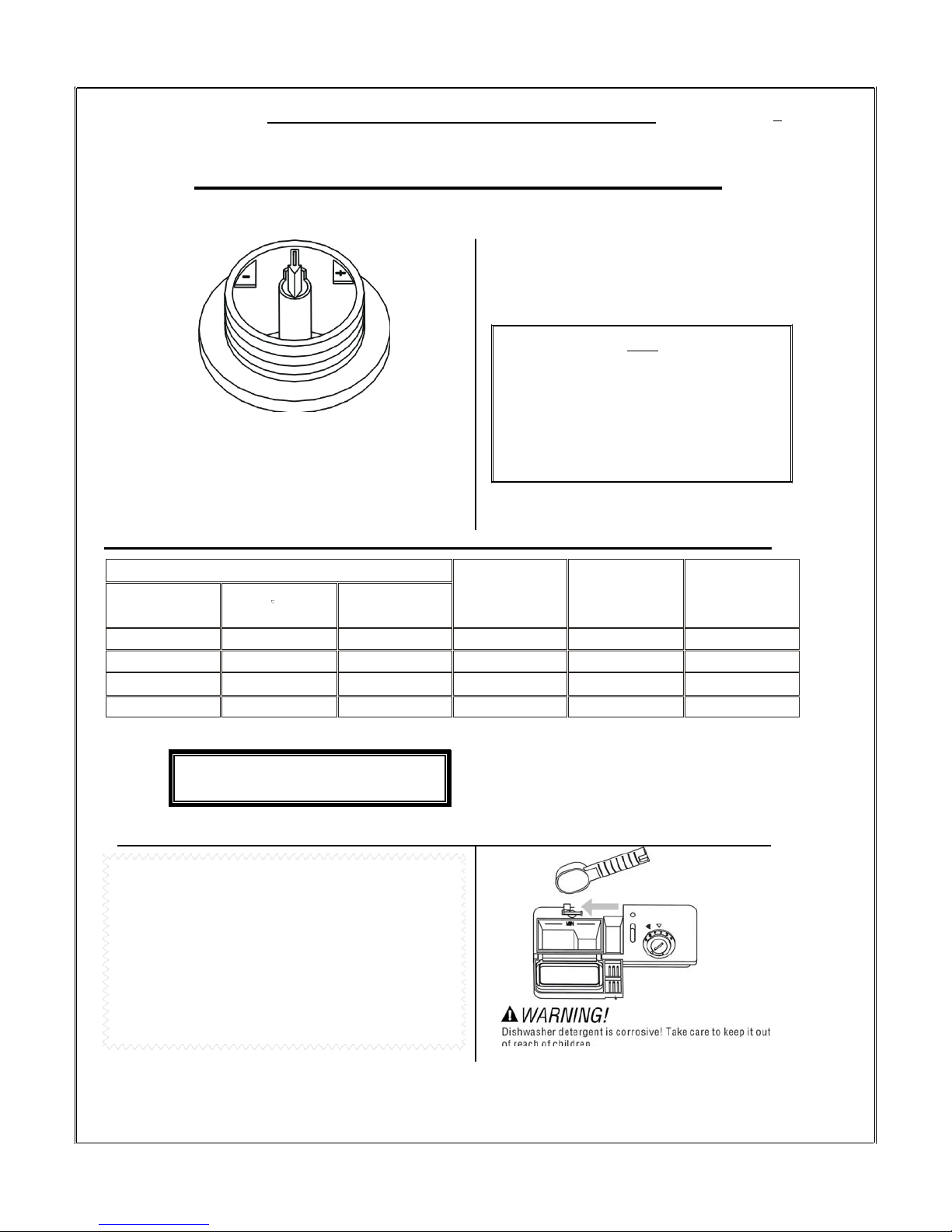

SETTING THE WATER SOFTENER LEVEL
YOU CAN ADJUST THE AMOUNT OF SALT USED BY THE DISHWASHER TO SOFTEN WATER TO GET
THE BEST WASHING RESULTS, BASED ON THE HARDNESS OF WATER IN YOUR AREA.
2 THERE IS A RING ON THE NECK OF THE
CONTAINER.
ROTATE THE RING IN AN
ANTICLOCKWISE
DIRECTION FROM THE “-”
SETTING
TOWARDS THE “+” SETTING
ACCORDING
TO THE HARDNESS OF WATER
IN
USE. SEE TABLE BELOW.
NOTE
1. THE SALT CONTAINER MUST BE REFILLED WHEN THE
SALT
WARNING LIGHT COMES ON. ALTHOUGH THE
SALT CONTAINER MAY BE FULL, THE INDICATOR LIGHT
MAY
NOT GO OUT UNTIL THE SALT HAS DISSOLVED.
1 UNSCREW THE CAP FROM THE SALT
CONTAINER.
DJUSTMENTS SHOULD BE MADE ACCORDING TO THE TABLE BELOW:
2. IF THERE ARE SALT SPILLS, A SOAK PROGRAM CAN
BE
RUN TO WASH AWAY SPILLAGE BEFORE USING THE
MACHINE.
3. CLEAR ANY SALT GRANULES AWAY FROM THE
CONTAINER OPENING.
A
W A TE R H A RDN ES S
( c yc l e s/ 1 . 2 k g s )
Au t o no m y
Sa l t c on s u m pt i on
S e l e c t or P os i t i o n
( g r a m / cy cl e )
C l a r ke De g r ee s
mmo l / l
dH
/
0 ~ 14 0~ 18 0 ~ 1 . 8 0
/
-
14 ~ 3 6 1 8~ 44 1. 8 ~ 4 . 4 20 60
36 ~ 71
44 ~8 9 4 . 4 ~ 8 . 9 M E D 40 30
+
71 89 8 . 9 60 20
C ont a c t y ou r l oc a l w a t e r b oa r d f or i nfor m a t i on on t h e ha r d ne ss of y ou r w a te r s upp l y .
DETERGENT
“ How much do I use?”
To OPEN the DETERGENT DISPENSER DOOR, use the CATCH on its LOWER SIDE.
*NOTE: SEE P.13 – WASH CYCLE TABLE for AMOUNT of DETERGENT to use .
NOTE:
• ALWAYS CHECK THE WASH CYCLE TABLE
FOR DOSAGE ADVICE. NEVER OVERFILL
THE DISPENSER.
• DO NOT OVERDOSE TO PREVENT THE
FORMATION OF DEPOSITS (THE WATER
SOFTENING FEATURE ALREADY TAKES CARE
OF THIS!).
THE HARDER YOUR WATER, THE MORE DETERGENT
YOU MAY NEED. ADJUST THE DOSE JUST BY SMALL
AMOUNTS
UNTIL YOU FIND THE CORRECT AMOUNT
OF DETERGENT TO USE.
6

BAUMATIC BFD47SS dishwasher user manual
FORMING DROPLETS ON YOUR DISHES
THAT CAN CAUSE SPOTS AND STREAKS. IT
THE ‘OPEN’ (LEFT) ARROW AND LIFT IT OUT.
THE CAP BEFORE YOU CLOSE THE
(RIGHT) ARROW.
7
• THE RINSE AID IS RELEASED DURING THE
FINAL RINSE TO PREVENT WATER FROM
RINSE AID
ALSO IMPROVES DRYING BY ALLOWING
WATER TO FALL OFF THE DISHES.
• YOUR DISHWASHER IS DESIGNED TO USE
LIQUID RINSE AIDS. THE RINSE AID
DISPENSER CAN BE FOUND INSIDE THE
DOOR NEXT TO THE DETERGENT
DISPENSER. TO FILL THE DISPENSER, OPEN
THE CAP AND POUR THE RINSE AID INTO
THE DISPENSER UNTIL THE LEVEL
INDICATOR TURNS COMPLETELY BLACK.
THE DISPENSER HOLDS ABOUT 100ML OF
LIQUID RINSE AID.
• BE CAREFUL NOT TO OVERFILL THE
DISPENSER – THIS COULD CAUSE
FROTHING. WIPE AWAY SPILLS WITH A
• TO OPEN THE DISPENSER, TURN THE CAP TO
DAMP CLOTH. DON’T FORGET TO REPLACE
• POUR THE RINSE AID INTO THE DISPENSER. DISHWASHER DOOR.
BE CAREFUL NOT TO OVERFILL.
NOTE : IF YOU HAVE SOFT WATER, YOU MAY NOT
• REPLACE CAP BY INSERTING IT ALIGNED WITH
NEED RINSE AID FOR IT MAY CAUSE A WHITE FILM
‘OPEN’ ARROW & TURN IT TO THE CLOSED
TO DEVELOP ON YOUR DISHES.
ADJUSTING THE RINSE AID DISPENSER
•
As wi th deter g ent, the amount of r i nse
ai
d nee d e d for your di shes depends on
the
hardness of the w ater i n your area.
Too much rinse aid can result in
foaming
and cause cloudiness or
streaks
on your di shes . If your w a t er
is
very soft, you may no t need rinse
aid.
Y ou can always di lu t e t he rinse
aid
wit h an equal amoun t of water.
The rinse aid dispenser has six settings. ALWAYS START WITH THE DISPENSER SET ON “1”. IF SPOTS & POOR
DRYING ARE A PROBLEM, INCREASE THE AMOUNT OF RINSE AID DISPENSED BY REMOVING THE DISPENSER
LID AND ROTATING THE DIAL TO “2”. IF THE DISHES ARE STILL NOT DRYING PROPERLY OR ARE SPOTTED,
ADJUST THE DIAL TO THE NEXT HIGHER NUMBER UNTIL YOUR DISHES ARE SPOT-FREE .
*** NOT E: Please read the notes for detergent use on p. 13.
WHEN TO REFILL THE RINSE
AID DISPENSER - If the rinse aid
warning light ( SEE control panel) is not on, you
can judge the rinse aid level by looking at the
black dot on the rinse aid dispenser. As the
rinse aid level decreases, the black dot shrinks.
Never
let the rinse aid get below ¼ full.
7

BAUMATIC BFD47SS dishwasher user manual
8
LOADING
NOT E:
YOUR
FOR BEST PER F OR MA NC E, FOLLOW THE S E
L O ADING GUID E LINES. FEATURES AND
APPEARA
NCE O F RACKS & CUTL ERY
BASKETS MA Y VA RY FROM YOUR MODEL.
DISHWASHER
BEFORE LOADING!
• REMOVE ALL SCRAPS OF FOOD.
• E MPTY DRINK S & L I QU IDS FR OM C U PS .
• SO FTEN BURNT-ON FOOD IN PANS BY SO AKIN G.
DO OT PUT THESE ITEMS IN YOUR DISHWASHERN:
• BRONZE • OLDER • STEEL ITEMS
CUTLERY CUTLERY SUBJECT TO
WITH GLUED RUSTING
• SAUCEPANS PARTS
WITH • WOODEN
WOODEN PLATTERS
HANDLES • BONDED
CUTLERY
• CUTLERY ITEMS OR • ITEMS MADE
WITH DISHES FROM
WOODEN, SYNTHETIC
HORN, CHINA FIBRES (eg.
OR MOTHER • PEWTER OR SPONGES)
OF PEARL COPPER ITEMS
HANDLES
• DELICATE,
• PLASTIC • LEAD CRYSTAL REPAIRED OR
ITEMS THAT GLASS PAINT /
ARE NOT HEAT PATTERN
RESISTANT OVERLAID
CHINA
Note :
Do not wash stainless steel and silver cutlery together. Iron objects can rust
and
stain other items. Aluminium tends to go black. Copper, pewter & brass
stain.
8

BAUMATIC BFD47SS dishwasher user manual
COOKW
A
RE
SO
THAT THE
Y
DO N O T
WA TER.
ALWAYS
PL
A
C E GLASSES,
OR
TH E
HIGHER
LE VEL
(POSITION ‘2’ IN
9

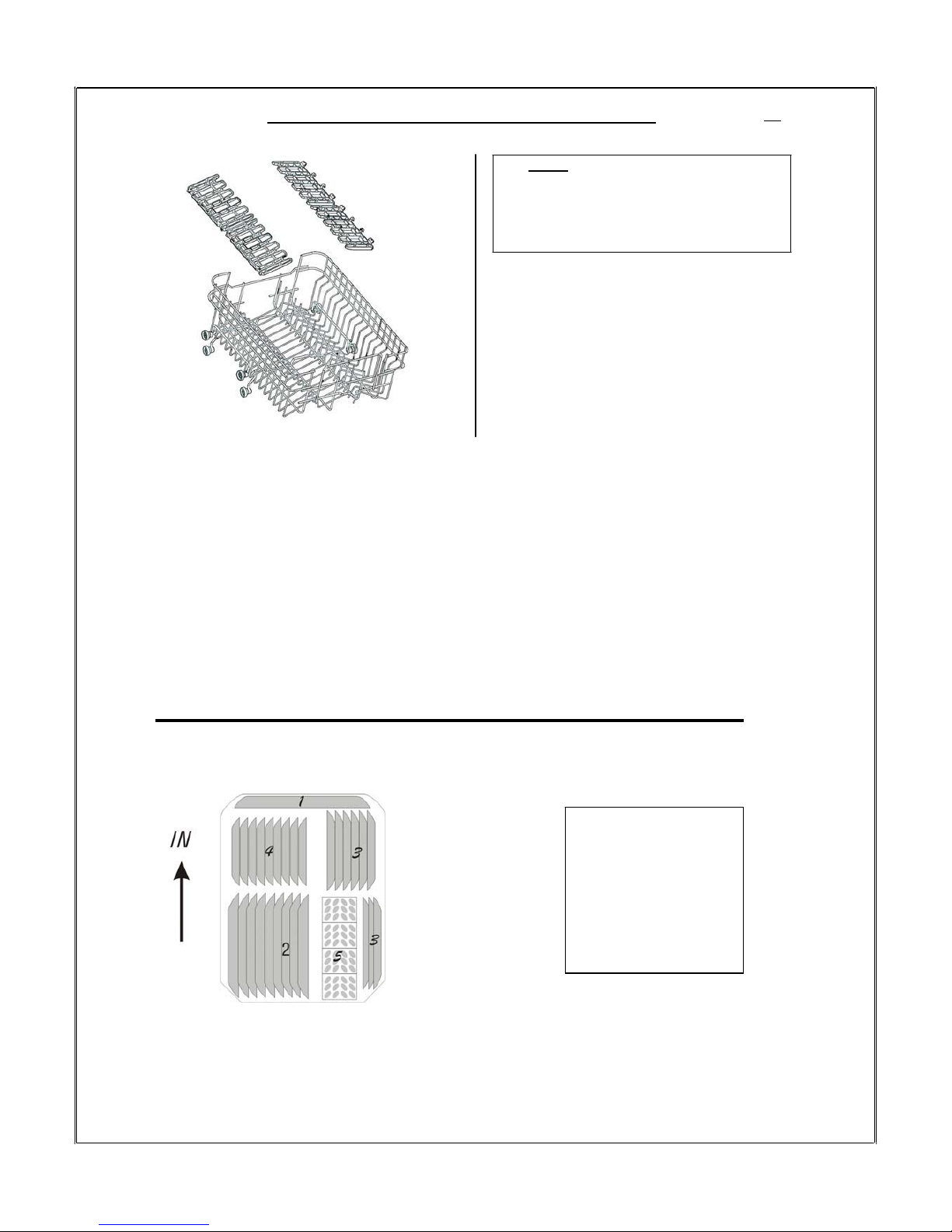

HOW TO USE THE UPPER RACK
POSITION THE D ISHES AN D
THE UPP ER RACK IS F OR M ORE D E LICATE
AND
LIGHTER DISHWAR E SU CH AS
GLASSES,
CO FFEE & TE A CUPS, SAUCERS,
P LATES, BOWLS, AND SHALLOW PANS
(PRO VIDED TH ESE A RE NOT TOO DIR TY ).
GE T M O V ED BY THE SPRAY OF
CUPS & BOWLS UPSID E DOW N .
NOTE :
YOUR DISHWASHER COMES WI TH AN
ADJU STAB LE TOP RA CK (BA S K E T ) –
PICTURED
AT R I GH T . I T S HEIG HT CAN
BE
ADJUS T ED BY U N DO IN G THE FR ONT
RA IL CLIP S, REMOVING THE RA CK
COMPLETELY
AND LATCHING THE
WHEELS OF TH E LOWER LE V EL
(POSITION ‘1’ IN THE FIGURE ON THE RIGHT)
1
THE FIGURE ON THE RIGHT) IN THE GR OOV E
OF
THE RA IL.
2
LOADING GUIDE (UPPER RACK):
1 Cups
2 Small
Serving
Bowls
3 Large
Serving
Bowls
4 Glasses
5 Saucers
6 Dishes
9

BAUMATIC BFD47SS dishwasher user manual
10
***NOTE ***: THE U PPER RA CK HAS
SI DE FLAPS (PICTURED AT LEFT ABOVE BASKET) .
TH ERE ARE 4 (2 ON EACH SIDE) .
TH ESE CAN BE ADJUSTED INTO 2
POSITION S = POSITI O N 1 (H IG H)
A
N D POSITI O N 2 (LOW).
TO MOVE THE FLA P S BETWEEN THE S E
PO
SITIONS, FIND TH E LARGE H ING ES
CLASPIN G EACH FL AP T O TH E UPPER
RA CK . THERE A RE TWO OF TH ESE AT
EIT
HER END OF E A CH FLAP. GENT L Y PULL
B
OTH C LAS P S O FF THE WI RE RA C K A N D
M
O VE THE FLAP TO THE DESIRED
PO SI T I ON . BE CAREFUL IF YO U HA VE
LO NG F ING ER NAI LS!
POSITION 1
THE UPPER POSITION WILL ACCOMMODATE ITEMS SUCH AS GLASS TUMBLERS
(PLACED
BENEATH FLAP) AND WINE GLASSES. WINE GLASSES CAN BE PLACED
UPSIDE
DOWN SO THAT THE NECK NESTLES SNUGLY IN THE GROOVES AT SIDE OF
FLAP
WITH THE BASE OF THE GLASS FACING UPWARD.
POSITION 2
WHEN THE FLAPS ARE MOVED TO THE LOWER POSITION, THEY CAN BE USED TO
HOLD
ADDITIONAL TUMBLERS, CUPS AND MUGS. ALWAYS CHECK THAT YOU ARE
ONLY
PLACING ITEMS ON THE FLAPS THAT WILL CLEAR THE CEILING HEIGHT OF
YOUR
DISHWASHER WHEN YOU PUSH THE RACK BACK IN. BE PARTICULARLY
CAREFUL
WITH LONG-STEMMED GLASSWARE SUCH AS CHAMPAGNE GLASSES –
BREAKAGE HAZARD!

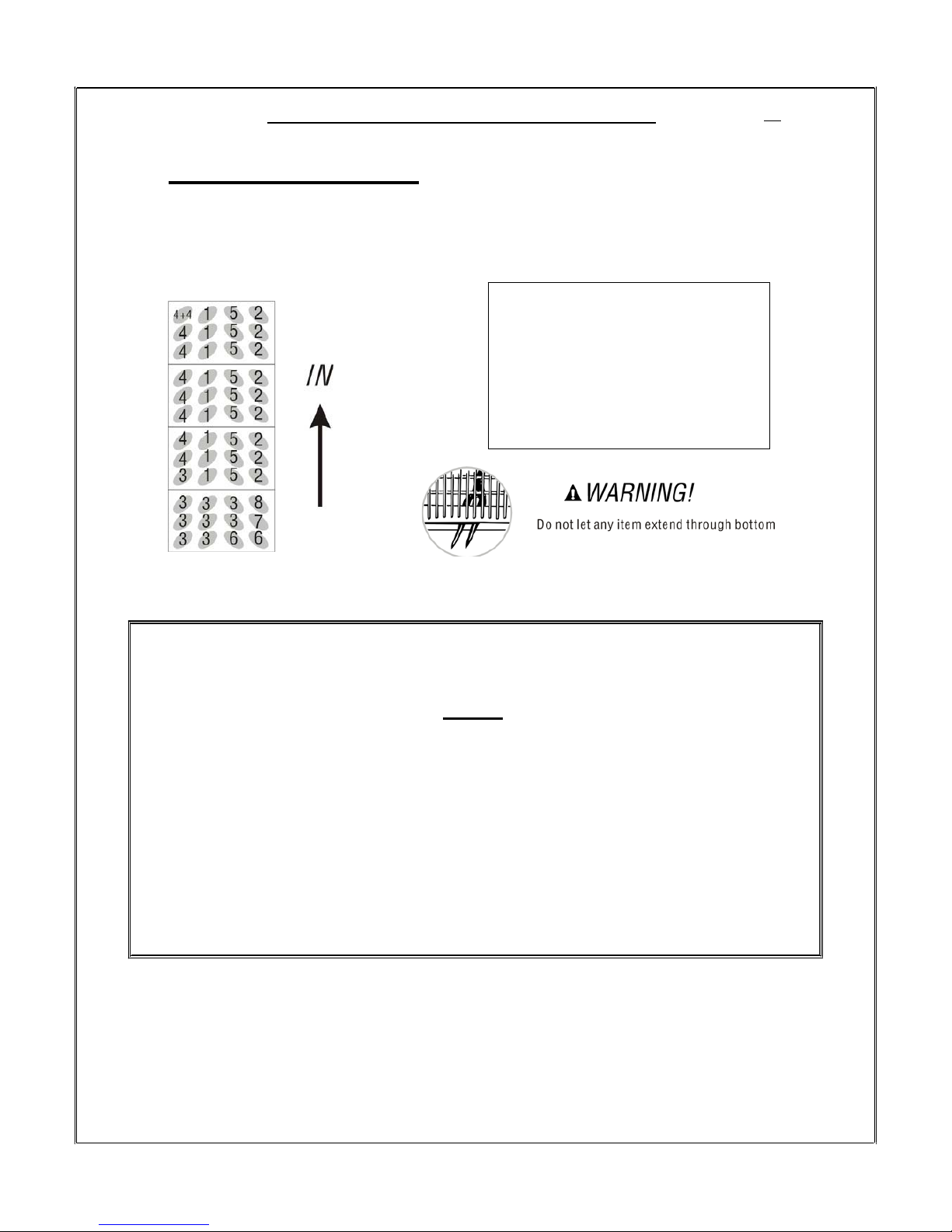

HOW TO LOAD THE LOWER RACK:
P LACE LA RGE I TE MS THAT ARE HARD TO CLEAN IN THE L O W ER RACK : eg . POTS, PANS,
LIDS,
SERVING DISHES, BOWLS.
1. OVAL PLATTER.
2. DINNER PLATES.
3. SOUP PLATES.
4. DESSERT
DISHES.
5. CUTLERY
BASKET .
• POTS, SERVING BOWLS, ETC. MUST ALWAYS BE PLACED UPSIDE DOWN.
• DEEP POTS SHOULD BE SLANTED TO LET WATER FLOW OUT.
• THE BOTTOM RACK FEATURES FOLD DOWN BASKETS SO THAT LARGER OR MORE POTS
& PANS CAN BE LOADED.
10

BAUMATIC BFD47SS dishwasher user manual
11
CUTLERY BASKET
CUTLER Y SHOULD B E PLACED IN THE CUTLE RY BASKET WITH HANDL E S ALWAYS PO INTI NG
D O W N WARD ( A T THE BO TTO M ) . V ERY L ONG U TEN SILS (LADLES, e t c. ) SHOULD BE P LACED
HOR IZONTALLY AT THE FRONT O F THE UP PER RACK.
1 Forks
2 Soup Spoons
3 Dessert Spoons
4 Teaspoons
5 Knives
6 Serving Spoons
7 Gravy Ladle
8 Serving Fork
NOTE
:
• WHEN YOU ARE SATISFIED YOU HAVE LOADED ALL THE UTENSILS
AND
DISHES YOU WANT TO WASH AND HAVE ADDED THE PROPER
AMOUNT
OF DETERGENT TO THE DISPENSER (REMEMBER TO CHECK THE
TABLE
ON PAGE 13 FOR THE DOSE THAT’S RIGHT FOR THE WASHING CYCLE YOU
WANT),
ENSURE THE RACKS ARE PUSHED ALL THE WAY BACK INTO
YOUR
DISHWASHER AND CLOSE THE DOOR.
• YOU ARE NOW READY TO START A WASH CYCLE (SEE NEXT PAGE).
11

BAUMATIC BFD47SS dishwasher user manual
12
STARTING A WASH CYCLE
1) MAKE SURE THAT THE PLUG OF THE
APPLIANCE IS INSERTED INTO THE 5) TURN THE KNOB LOCATED ON
WALL SOCKET. THE RIGHT OF THE CONTROL
PANEL CLOCKWISE UNTIL THE
2) MAKE SURE THAT THE WATER SUPPLY DIAL POINTS TO THE SYMBOL
IS TURNED ON TO FULL PRESSURE. FOR THE CYCLE SETTING.
SEE THE ‘WASH CYCLE TABLE’
3) LOAD THE DISHWASHER (SEE THE ON THE NEXT PAGE.
SECTION ENTITLED ‘LOADING YOUR
DISHWASHER’). 6) PRESS THE ON/OFF BUTTON –
THE ON/OFF LIGHT WILL
4) POUR IN DETERGENT (SEE THE TURN ON. AT THIS POINT,
SECTION ENTITLED ‘SALT, DETERGENT THE WASH CYCLE WILL BEGIN.
& RINSE AID’).
* REMEMBER *: YOU CAN PR OGRA M YOUR DISH WASHER UP TO 12 HOURS IN
AD V A NCE BY PRESSIN G THE DELA Y BUTTON MULTIP LE TIME S UNTI L THE DES I RED DELA Y
HAS BEEN SET. EACH PRESS SE TS T HE START TIME FORWARD BY 30 MINUTES.
What
ill ee displayedyou ws
:
Not e t h at when you s tart a
washing
cycl e yo u will see t he t emp erature displaye d a s well as the number
of minutes the washing cycl e ha s l e ft to run.
• D i gital sign: shows the delayed time, remaining
time and fault codes.
• Delay sign: shows this when delaying.
• Washing sign: shows this when washing.
• Running sign: repeatedly shows this sign in turn
when running. Does not flicker when stopping.
• Temperature display: displays the wash
temperature at any time.
Approximate Timing of Wash Cycles
Intensive
12
Norma l
(strong) 126
mins.
Economy
114
mins.
90
mins.
Rinse Glass
48
mins.
Rap i d
51
mins.
40
mins.
Soap
7
mins.

BAUMATIC BFD47SS dishwasher user manual
F o r t h e h ea v ie st s o i le d l o a d s ,Pr
e - w a s h
S t rong
d i s h es a n d d i s h e s t h a t h av e
4 g r a ms (p r e ) / 20
Ri n s e 70 ℃
su c h as po ts , p l a t e s ,g l a ss e s
wa sh 50 ℃ .
gr am s ( m ain )
s t a nd a r d d ai l y cy c l e .Dr
y i ng.
Ri ns e 70 ℃
a nd d r i e d on l y
G l a ss
ch i n a .
Dr y i ng
s o i l e d l o a ds t h a t do n ot n e
ri n s e .
e d
So a k
l o a d t o be c ompl e t e d a ft e r t he
13
W a sh C ycl e T ab l e
Information
of Cycle pre/ main
Aid
Program Cycle
Cycle Select ion
Description Detergent
Rinse
Pr e - w a s h 45 ℃
s u c h a s p o t s , p a ns, c a s s er o l e
wa sh50 ℃
be e n s i tt i ng w i t h dr i e d fo od on
Ri n s e
gr a m s( m ai n )
th e m f o r a whi l e .
Dr y i ng
Fo r no rm a ll y s o i le d l o ad s,
Pr e- w a s h
No r m a l a nd l i gh tl y s o il e d p a n s .
Ri ns e 70 ℃
4 gr am s (p r e) / 20
( I E C - E N 50 24 2)
Fo r li gh t l y so i l e d l o a d s , s u c h w a s h 45 ℃ .
as p l a t e s, g l a ss e s, bo wl s an d Ri ns e 70 ℃
Ec ono m y
li gh t l y s o il ed p a n s . Dr y i ng.
20 gr am s
Fo r d i sh es t h a t n ee d t o r i n s e d
Ri ns e
R i ns e
Dr y i ng
F o r li g ht l y s oi l e d l o a d s , s u c h Wa s h 45 ℃
as g l a s se s, c ry st a l a nd f in e ri n s e 65 ℃
15 gr am s
A s h or te r w a s h f or li g ht l y
wa sh 35 ℃
R a p i d
dr y i ng.
15 g r am s
P r e - w a s h o f di s h e s p ot s a nd
pa ns w h il e w a i t i ng f o r t he
Pr e- w a s h
s ub s e q ue nt m ea l .
OVERFLOW PROTECTION
YOUR BAUMATIC DISHWASHER HAS AN OVERFILL PROTECTION DEVICE WHICH AUTOMATICALLY SHUTS OFF
THE INLET VALVE AND STARTS THE DRAIN PUMP IF THE WATER OVERFLOWS . IF THIS OCCURS THEN TURN
OFF
THE MAINS WATER SUPPLY BEFORE CALLING THE SERVICE DEPARTMENT. IF THERE IS WATER IN THE
BASE
PAN BECAUSE OF AN OVERFILL OR SMALL LEAK , THE WATER SHOULD BE REMOVED BEFORE
RESTARTING
THE DISHWASHER.
13

BAUMATIC BFD47SS dishwasher user manual
14
FORGET TO ADD A DISH?
A FORGOTTEN DISH CAN BE ADDED AT ANY TIME BEFORE THE DETERGENT
DISPENSER
OPENS.
• OPEN THE DOOR A LITTLE TO STOP THE WASHING.
• WAIT ABOUT TEN SECONDS. AFTER THE SPRAY ARMS STOP WORKING,
YOU
CAN OPEN THE DOOR COMPLETELY.
• ADD FORGOTTEN DISHES.
• CLOSE THE DOOR, THE DISHWASHER WILL WORK AFTER TEN SECONDS.
NEED TO INTERRUPT A CYCLE?
If an emergency arises , you can stop the machine at any time. Remember to wait
approx. 10 seconds before you open the door fully, as the spray arms continue to turn
after
the power has been cut and could spray hot water up at you. DO NOT PRESS
THE ON/OFF BUTTON AS THIS WILL RESET THE WHOLE WASH CYCLE! YOU
JUST NEED TO PULL THE DOOR OPEN – DO NOT TOUCH ANY BUTTONS!
NOTE :
If you need to change a cycle , you can as long as the dishwasher has only been
running
for a short time. Just press the ON/OFF button so the ON light goes out, turn
the knob to the setting you want then turn the dishwasher back on with the ON/OFF
button.
However, if it’s been a long time since the old cycle began, the detergent may have
already
been released and the wash water drained out. You’ll need to start a new
cycle altogether so press the ‘ ON/OFF’ button to switch the dishwasher off, wait until
the inside cools before you refill the detergent dispenser, close the door and then turn
the
knob to the cycle setting you want before you turn your dishwasher back on.
TAKE CARE WHEN OPENING THE DOOR DURING
WASHING.
THE HOT WATER MAY SCALD YOU!
AT THE END OF THE WASH CYCLE
14
• When the washing cycle timer counts back to zero, you will hear a beeping
sound
for a few seconds, meaning that the washing cycle has now finished.
• The display will read ‘END’ for about three minutes.
• Turn the dishwasher off using the ON/OFF button and open the door of the
dishwasher.
• Wait a few minutes before unloading the dishwasher so the dishes can cool
down.
This will make them less breakable and allow them to dry better.

BAUMATIC BFD47SS dishwasher user manual
15

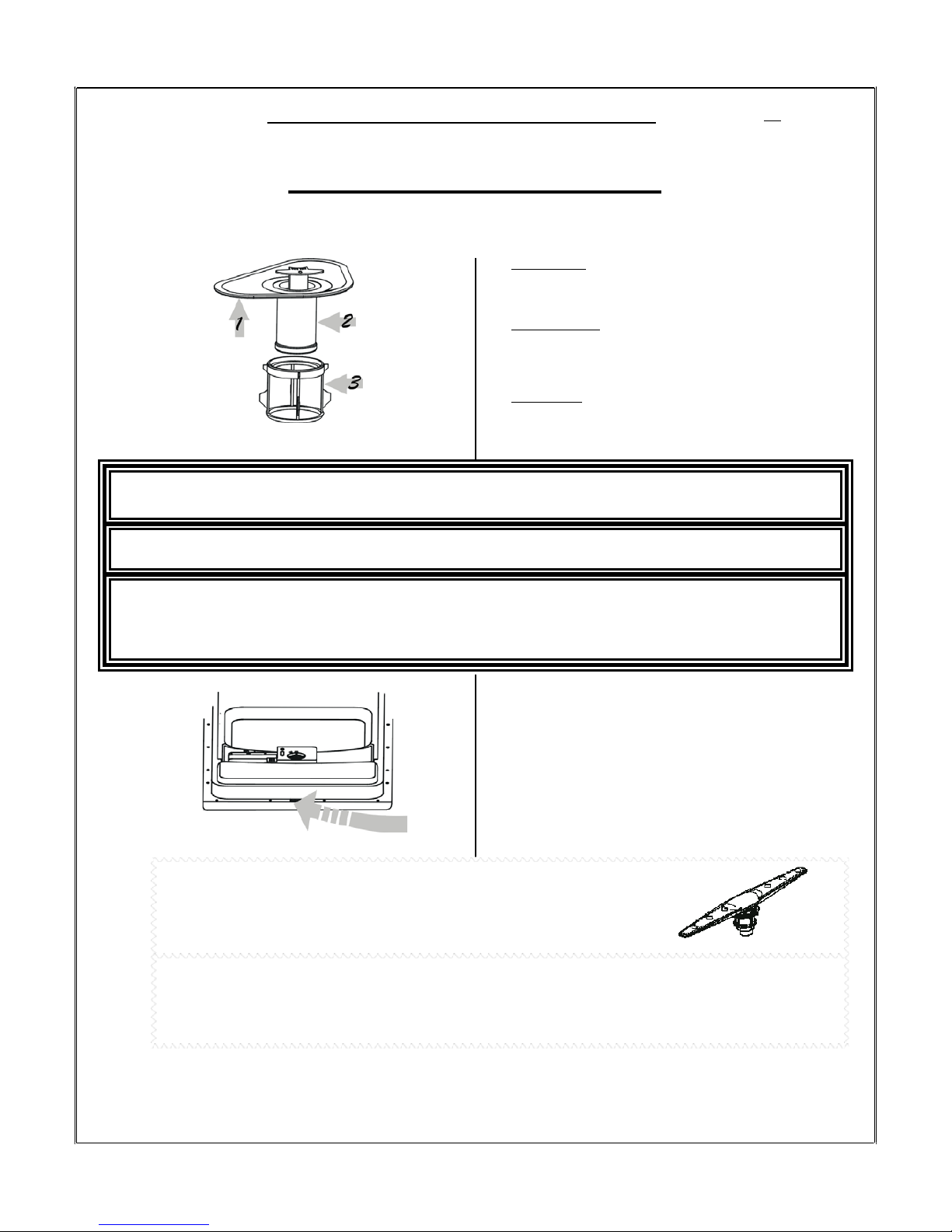

FILTERING SYSTEM
FOR YOUR CONVENIENCE, WE HAVE PLACED THE FILTERING SYSTEM WITHIN EASY REACH INSIDE THE
TUB. THE FILTER REMOVES BITS OF FOOD TRAPPED IN THE FILTER FROM THE WASH WATER SO IT CAN BE
RECIRCULATED DURING THE CYCLE. THERE ARE THREE PARTS TO THE FILTERING SYSTEM: 1) The Main Filter,
2) The Coarse Filter & 3) The Fine Filter .
1 MAIN FILTER
Food and soil particles trapped by this filter are
pulverized
by a special jet on the lower spray arm and
washed
down the drain.
2 COARSE FILTER
Larger items, such as pieces of bone or glass that could
clog
the drain are trapped in the coarse filter. To
remove
an item caught in this filter, gently squeeze
the
tabs on top of this filter and lift it out.
3 FINE FILTER
This filter holds soil and food residue in the sump area
and
prevents it from being re-deposited on the dishes
during
a cycle.
Caring for your Dishwasher
CLEANING THE OUTSIDE SURFACES OF YOUR APPLIANCE
• TO CL E A N THE EXTERIOR O F YOUR DISHWASHE R (INCLUDING THE CONT ROL P ANEL), USE A LI GHT L Y
DAMP ENE D CL OTH THEN D RY THOR OUG H L Y . NEV ER USE SHAR P OBJECTS, SCOURIN G PAD S OR
HARSH
CLEAN ERS O N ANY PART OF THE APPLIANC E. SOME PAPER TOW ELS CAN SCR A TCH.
• TO CLEAN THE EDGE AROUND THE DOOR,
ONLY
EVER USE A SOFT WARM, DAMP RAG.
DO
NOT USE A SPRAY CLEANER HERE OR
WHEN
CLEANING THE DOOR PANEL AS THIS
MAY
HARM THE DOOR LOCK AND
ELECTRICAL PARTS.
CLEANING THE SPRAY ARMS
THE SPRAY ARMS NEED REGULAR CLEANING AS HARD WATER RESIDUES WILL CLOG THEIR
JETS
& BEARINGS. TO REMOVE THE SPRAY ARM, SCREW OFF THE NUT TO TAKE OUT THE
WASHER
ON TOP OF THE SPRAY ARM AND REMOVE THE ARM. WASH THE ARMS IN SOAPY
WARM
WATER & USE A SOFT BRUSH TO CLEAN THE JETS. REPLACE THE SPRAY ARM AFTER
RINSING
IT THOROUGHLY.
15

BAUMATIC BFD47SS dishwasher user manual
16
CLEANING THE FILTERS
• THE FIL TER ASSEMBLY MUST BE KEPT CLEAN FO R BEST PE RFORMANCE. You shou ld remove the
l arger bit s of food trapped i n t he fi lt er af t er each wash cycle b y rinsin g the semicircular fi lt er and
cu
p under running water. To re mov e t he f ilt er a ssemb ly , pu ll up o n t he cup h a nd l e .
• The entire filter assembly should be cleaned at least once a month.
• T o clear the coarse fi lt er and t he fine fi lt er, use a cleaning brush. Then, reassemb l e the fi lt er parts
as shown i n the figure above and reinsert the en ti re assembly i n t he di shwasher i n it s seat & p ress
d ownwar d t o secure it .
• Impro p er re pl acemen t of the f ilt er may i mpair app li ance p erformance and d amage di shes and
u
t ensils.
• Warning - never run the dishwasher without the filters
in place!
• Warning - Before cleaning the inner cavity of the appliance
always allow 30 minutes for the Element to cool down to
avoid injury!
16

BAUMATIC BFD47SS dishwasher user manual
17

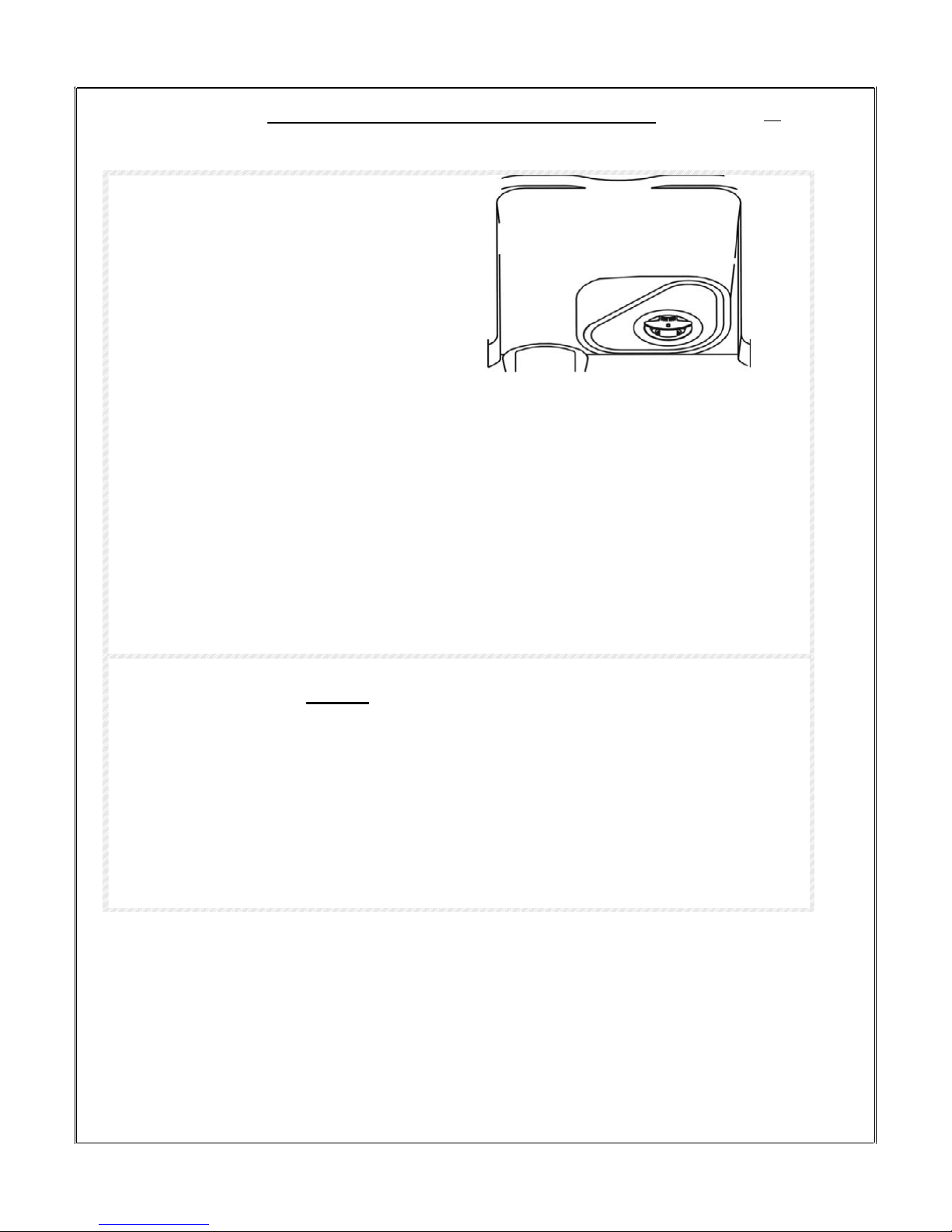

HOW TO KEEP YOUR DISHWASHER IN SHAPE
A FTER E VERY W ASH , leave the door slightly ajar so that moisture and odours are not trapped
inside.
R EMOVE THE P LUG before cleaning or performing maintenance. Never run the risk of electric
shocks.
D O N OT U SE S OLVENTS OR A BRASIVE C LEANING A GENTS to clean the exterior and the rubber
parts of the dishwasher. Only use a cloth and warm soapy water. To remove spots or stains
from
the surface of the interior, use a cloth dampened with water and a little white vinegar,
or a cleaning product made specifically for dishwashers.
W HEN YOU G O ON H OLIDAY , run a wash cycle with the dishwasher empty. Then unplug it, turn
off
the water supply and leave the door slightly ajar to prevent odours and mould from
developing.
M OVING THE A PPLIANCE is possible but KEEP IT UPRIGHT.
S EALS can trap food, which in turn will cause odours. Periodic cleaning with a damp cloth or
sponge
will prevent this from becoming a problem.
PROTECTING
OUR ISHWASHER AGAINST REEZINGYDF
If your dishwasher is left in an unheated place during the winter, ask a
service
technician to :
1) Cut off electrical power to t he dishwa sher. Rem ov e fuses or t r ip cir c uit
bre aker.
2) Tu rn of f th e water supply and disconnect t he water inlet pi pe fr om the water
valv
e & di sc ha rge hose s.
3) Drain wat er fr om the inl e t pipe and water valve (Use a pan to c at ch the
wat
er).
4) Reconnect the water i n let pipe to the w ater valve.
5) Rem ove the plasti c sump c over in the tub bottom and use a spo nge to soak
up wate r in th e rubber boot.
17

BAUMATIC BFD47SS dishwasher user manual
18
BEFORE YOU CALL FOR SERVICE …
CHECKING AGAINST THE CHARTS BELOW MAY FIX YOUR PROBLEM.
PROBLEM POSSIBLE CAUSES WHAT TO DO
• Replace fuse or reset circuit
breaker.
• Fuse blown, or the
circuit
breaker acted
• Remove any other appliances
feeding
from the same socket as
the dishwasher.
Dishwasher
doesn’t run!
• Power supply is not
turned on
on and the door is closed securely.
• Make sure the dishwasher is turned
• Check that the water supply is
connected properly and the water is
turned on.
• Water pressure is low
• The system is designed to detect an
overflow. When it does, it shuts off
Drain Pump
doesn’t stop!
• Overflow the circulation pump and turns on
the drain pump. Call a Baumatic
Ltd approved technician.
action and detergent cup opening.
• Sound from soft food shredding
• Some audible sounds
are normal
This is not a problem.
• Utensils are not secure
in the baskets or
something small has
dropped into the
securely in the dishwasher.
• Ensure everything is placed
Noise!
basket and is loose
• Dishwasher has not been used
regularly. If you do not use it
often, remember to set it to fill and
• Motor Hums
pump out every week. (See Wash
Cycle table). This will help keep the
seal moist.
18

BAUMATIC BFD47SS dishwasher user manual
19
PROBLEM POSSIBLE CAUSES WHAT TO DO
detergent to avoid suds.
• Use only special dishwasher
Suds in the Tub!
• Improper detergent
immediately.
• Always wipe up rinse agent spills
• Spilled rinse agent
Stained tub
Interior!
• Detergent with
colorant was used
• Make sure you use detergent
without colorant.
Dishes are not
dried!
• Rinse agent dispenser
is empty
• Make sure that the rinse agent
dispenser is filled.
Dishes and
Flatware not
Clean!
• Improper program • Select stronger program.
• Make sure there are no large dishes
blocking the action of the detergent
dispenser
and the spray arms.
• Improper rack loading
To remove spots from glassware:
Spots and Filming
on Glasses and
Flatware!
1. Take all metal utensils out of the
• Extremely hard water
dishwasher.
• Low inlet temperature
2. Do not add detergent.
• Overloading the
dishwasher
3. Choose the longest cycle.
4. Start the dishwasher and let it to run for
• Improper loading
18 - 22 minutes, then it will be in the main
• Old or damp powder
detergent
wash.
5. Open the door and pour 2 cups of white
• Empty rinse agent
dispenser
vinegar into the bottom of the dishwasher.
6. Close the door and let the dishwasher
• Incorrect dosage of
detergent
complete the cycle.
7. If the vinegar does not work, repeat as
above,
only use ¼ cup (60ml) of citric acid
crystals
instead of vinegar.
19
